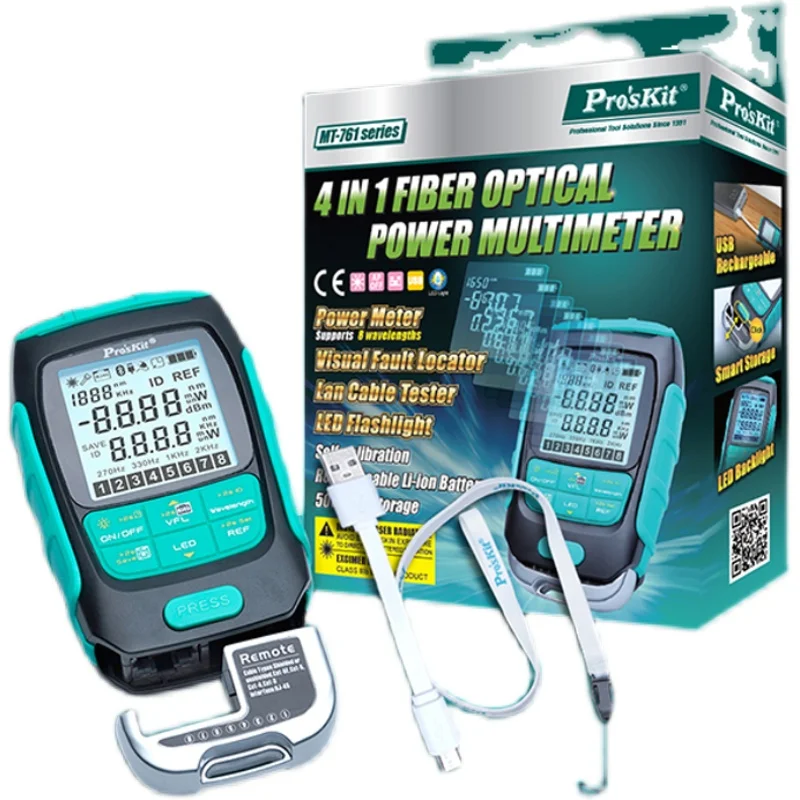

Proskit MT 7615 MT 7616 4in1 Li Lion Battery Optical Power Meter Visual Fault Locator Network Cable Tester VFL
- Category: >>>
- Supplier: Hefei Equilateral Communication Equipment Co. Ltd.
Share on (1600437852082):
Product Overview
Description
Products Description

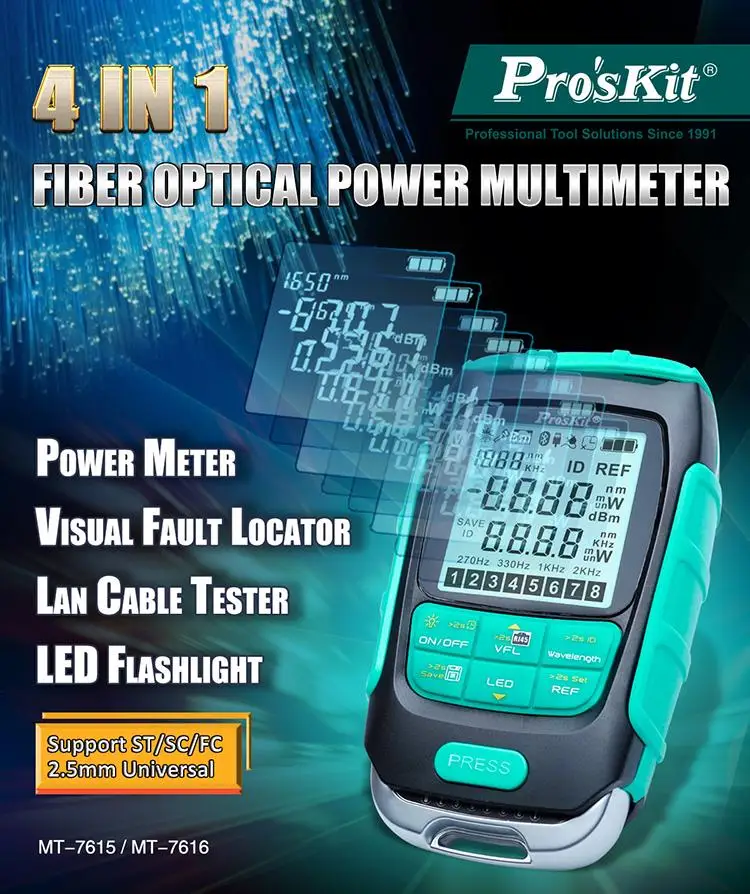

4 in 1, including Power Meter, Lan Cable Tester, Visual Fault Locator & LED Flashlight.
Features
Power Meter:
Supports 8 wavelength, 850/980/1300/1310/1490/1550/1625/1650nm.
Measurement units: dB, dBm, nW, mW & uW.
Other Functions: Wave ID function, wavelength memory, self-calibration & REF value setting.

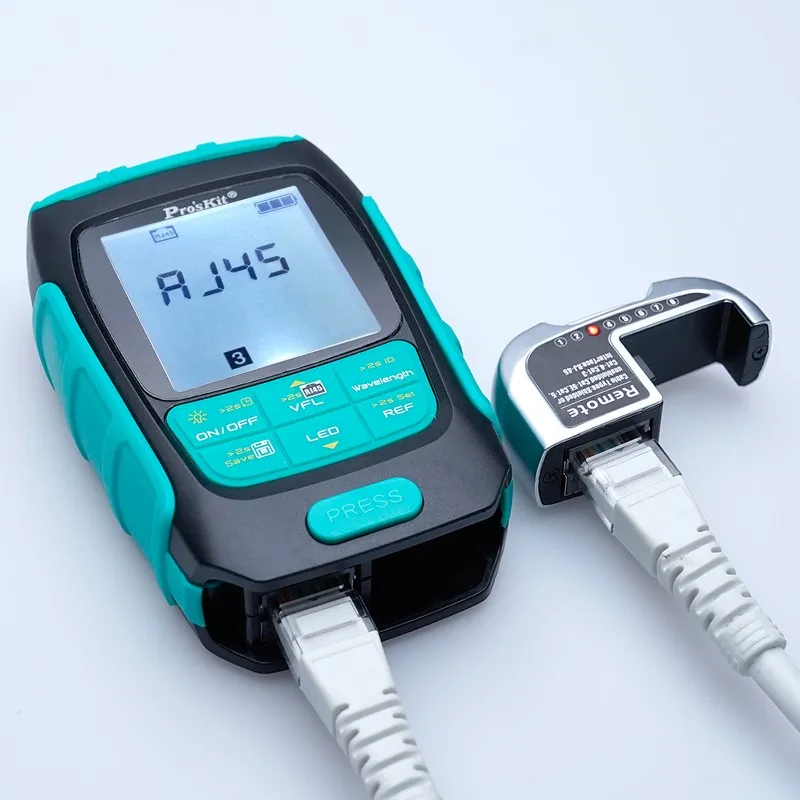

Lan Cable Tester:
Pin to Pin cable map indicator.
Max. measuring length 600m.
Pin to Pin cable map indicator.
Max. measuring length 600m.

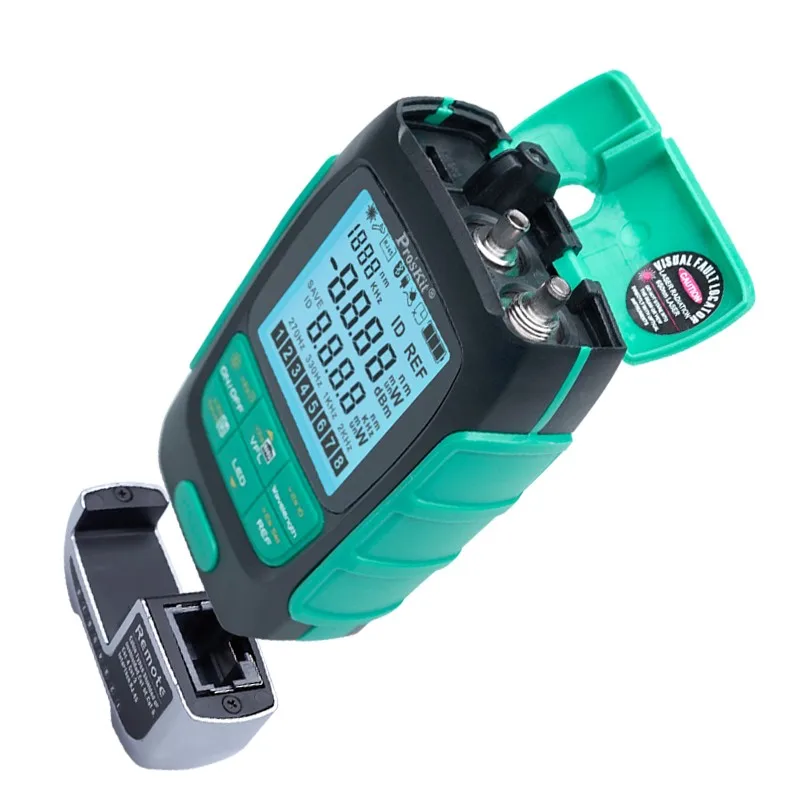

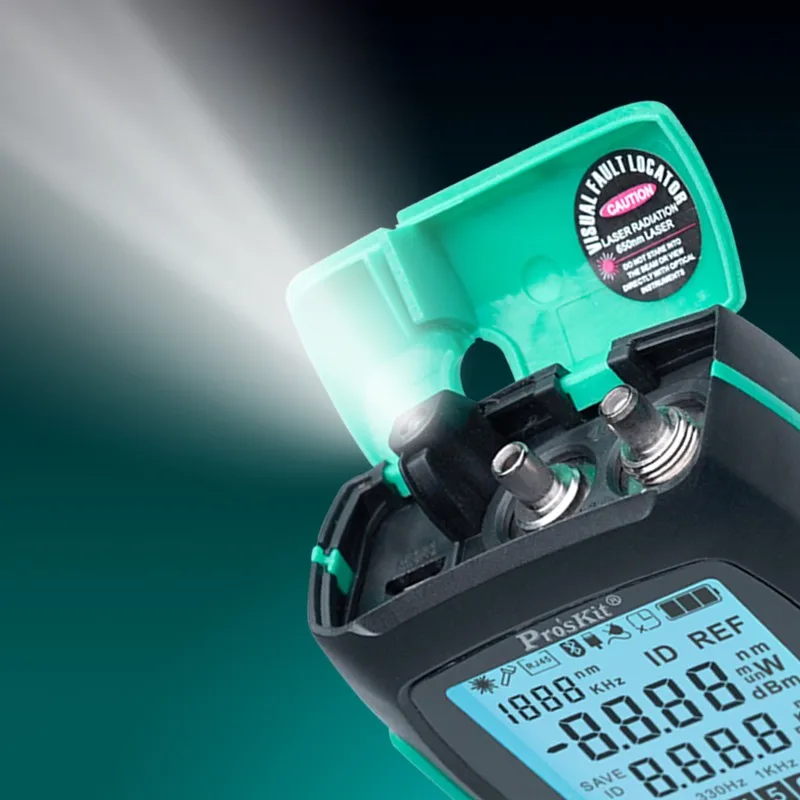

Visual Fault Locator:
Easy to locate the breakpoint & bad connections in fiber optic cables.
Both continuous and flashing modes available.
Easy to locate the breakpoint & bad connections in fiber optic cables.
Both continuous and flashing modes available.
LED Flashlight:
Supports extra illumination in dark working condition.
Supports extra illumination in dark working condition.
More Functions:
30mW output power.
Equipped with 3.7V/450mAh Li-ion battery, working hours > 50 hours (only OPM).
Micro USB rechargeable design.
Supports 500 data storage.
30mW output power.
Equipped with 3.7V/450mAh Li-ion battery, working hours > 50 hours (only OPM).
Micro USB rechargeable design.
Supports 500 data storage.

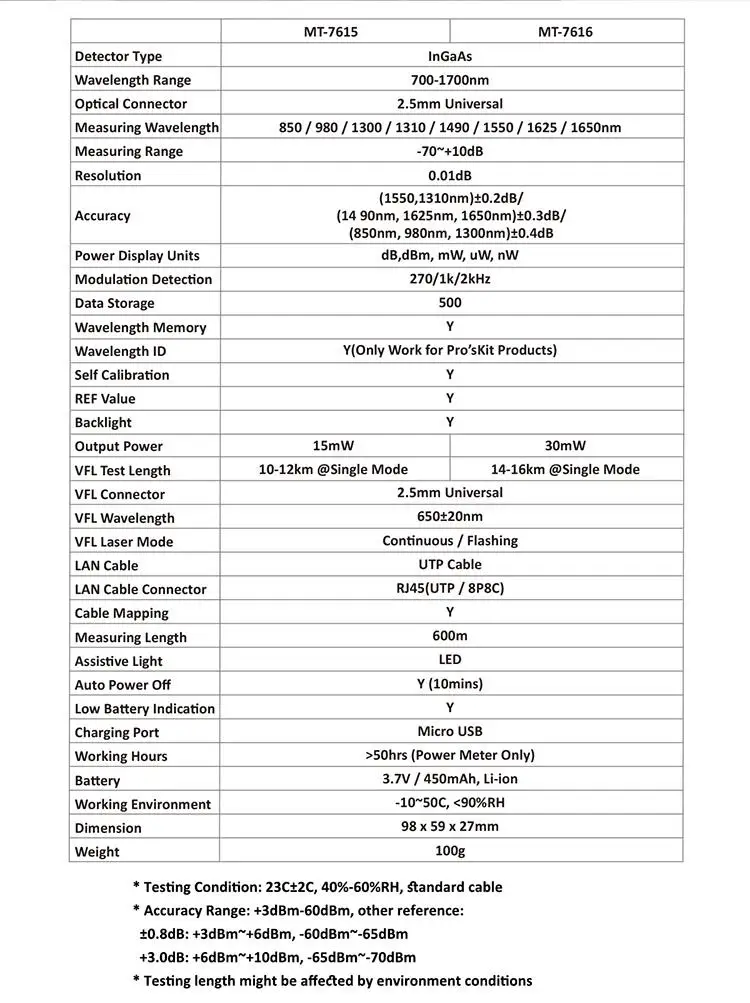

Specification
Power Meter | 850/980/1300/1310/1490/1550/1625nm Measurements in dB, dBm, nW, mW & uW | |||
Cable Tester | Max. length 600m | |||
Visual Fault Locator | Continuous & flashing modes | |||
LED Flashlight | Dark area support |
More details

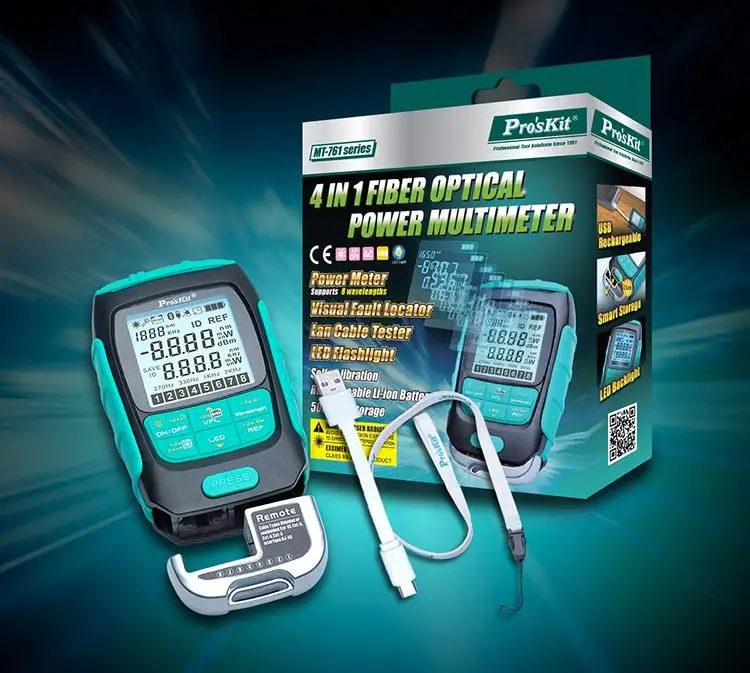

Product packaging
