Price:$550.00 - $759.00

Quantity:


Product Overview

Description





Product Paramenters

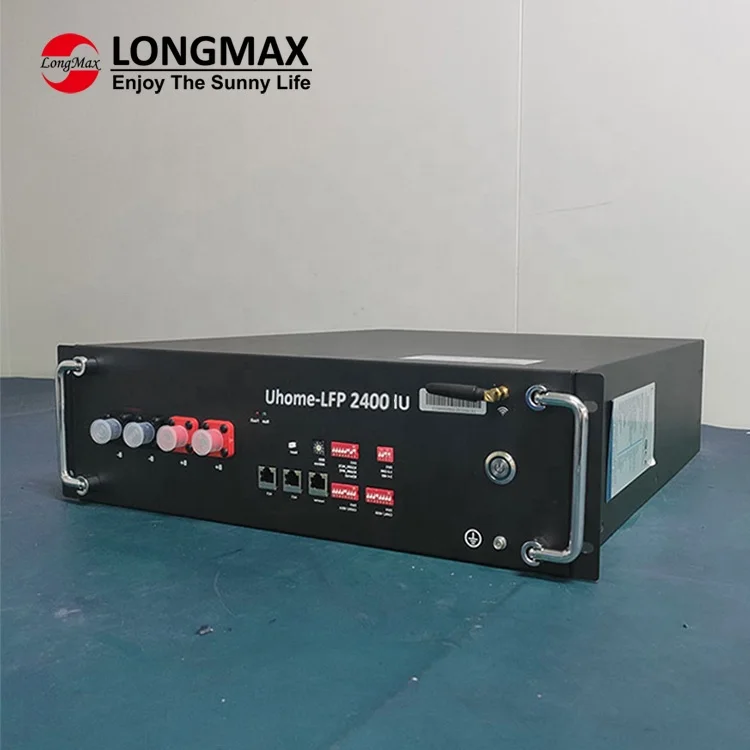

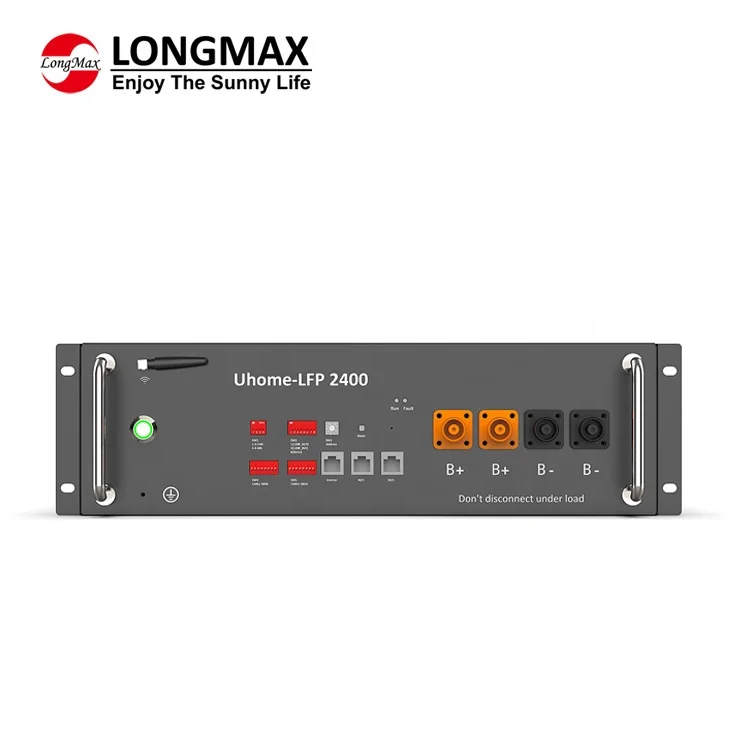

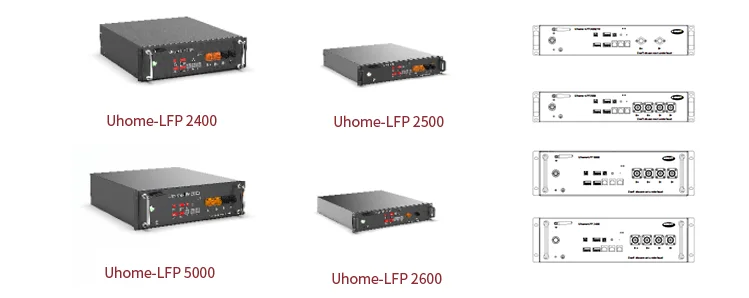

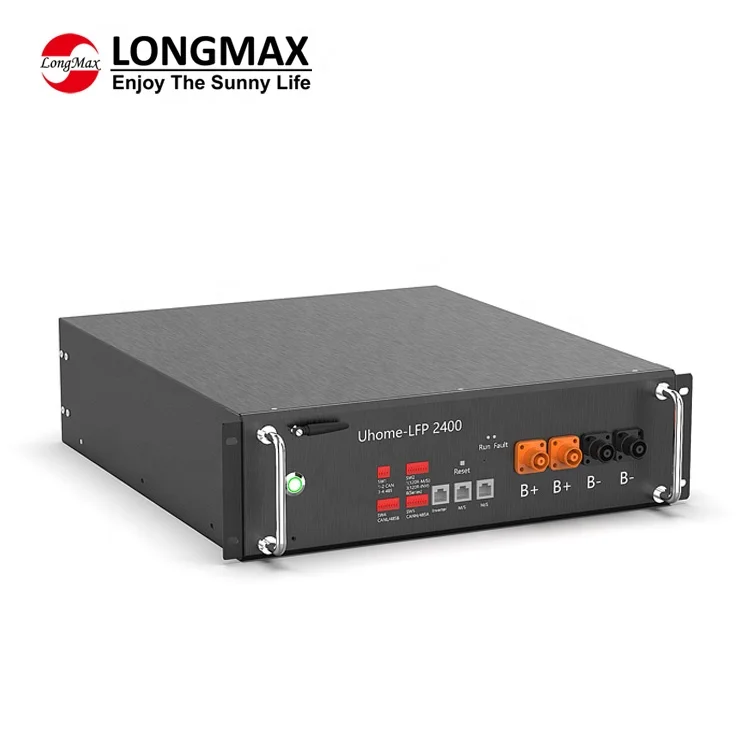

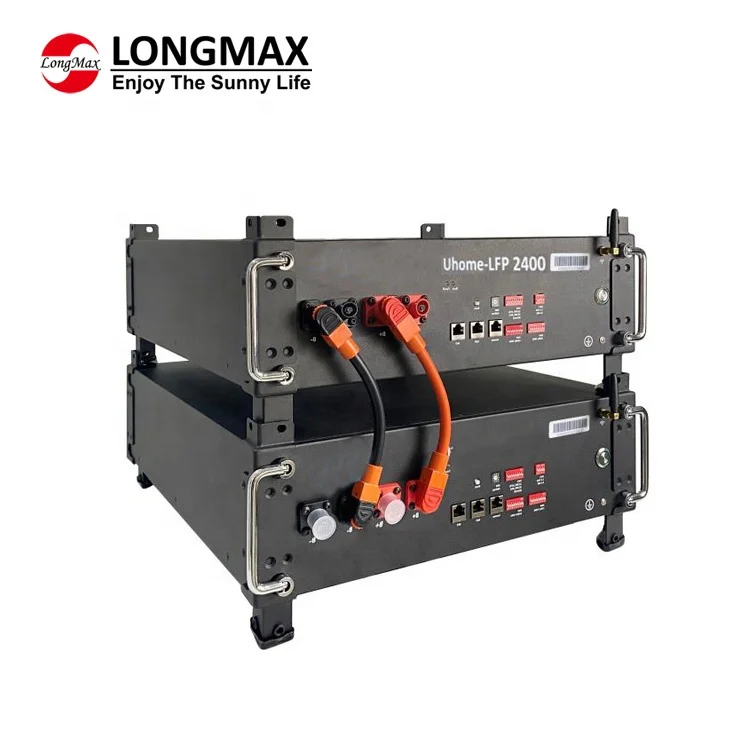

Model
Uhome-LFP
5000
Uhome-LFP
2400
Uhome-LFP
2600HV
Uhome-LFP
2500
Total Energy*
5.1kWh
2.4kWh
2.5kWh
2.56kWh
Usable Energy(DC)*
4.8kWh
2.2kWh
2.2kWh
2.2kWh
Nominal Dis-/Charge Power
3.0kW
1.5kW
1.5kW
1.5kW
Peak Power(Only Discharge)
6kW for 3s
3kW for 3s
3kW for 3s
3kW for 3s
Constant Current(Only Discharge)
80A
40A
40A
20A
Voltage
48~56Vd.c
48~56Vd.c
48~56Vd.c
96~112Vd.c
Nominal Voltage
51.2Vd.c
51.2Vd.c
51.2Vd.c
102.4Vd.c
Nominal Current
60A
30A
30A
15A
Max. Charge Voltage
57.6Vd.c
57.6Vd.c
57.6Vd.c
115.2Vd.c
Weight
45kg
27.5kg
23kg
27kg
Dimension(mm)
500*448*135mm
500*442*133mm
500*442*88mm
500*442*88mm
Max.recommended DOD
90%
Operating Condition
Indoor
Indoor

Operating
Temperature
Charge
From 0~50℃

Discharge
From -10~55℃

WIFI Frequency Range
2400MHz~2483MHz
Humidity
＜60%(No condensed water)
Over Voltage Category
II
Cooling Type
Natural cooling
Case Material
Metal
Color
Black or White
Installation
Wll mounting/Ground Installation
IP rating
IP 20
Protective Class
I

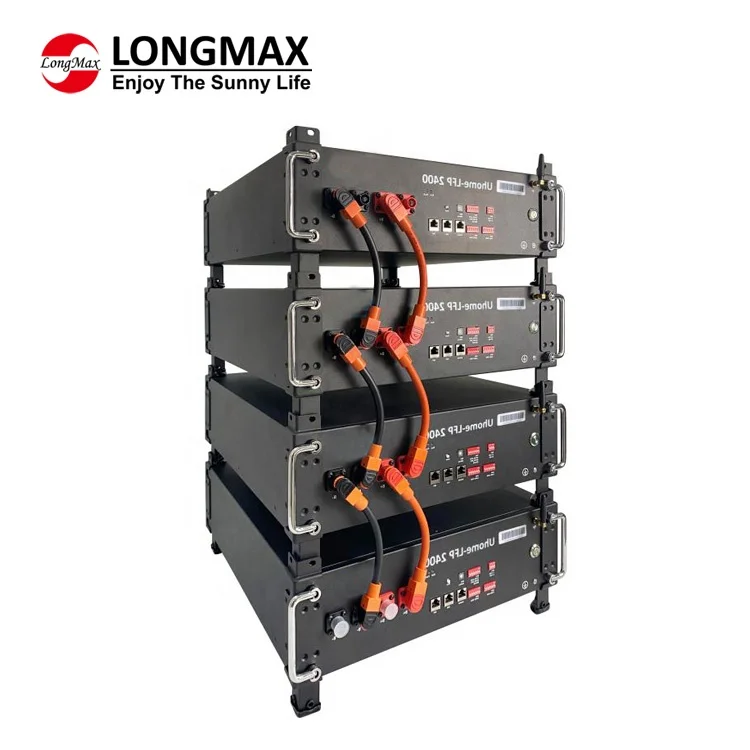

Max. Connection Number
8S/4P
8S/8P
8S/8P
6S
Warranty
10 years
Life Span
>15 years
Communication
CAN/ RS485
CAN/ RS485
Protection Mode
Dual hardware protection
Battery Protection
Over-current/Over-voltage/Short circuit/ Under-voltage/Over temperature
Safety
Cell UL 1973
Cell UL 1973
Cell TUV
Cell TUV
CE/TUV
Hazardous Material Classification
9
Transportation
UN 38.3












Company Profile








Packing & Delivery




FAQ


1. who are we?
We are based in Jiangsu, China, start from 2002,sell to Domestic Market(42.00%),Southeast Asia(22.00%),Oceania(7.00%),Africa(6.00%),Eastern Asia(6.00%),South Asia(4.00%),South America(3.00%),Mid East(3.00%),Western Europe(3.00%),North America(2.00%),Eastern Europe(00.00%),Central America(00.00%). There are total about 51-100 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Solar Combiner Box,Solar Power System,Solar Application Products,Energy Storage System,Wind Power System

4. why should you buy from us not from other suppliers?
20 years dedicated in solar combiner box field
scale production,reasonalbe price
stocking company
advanced enterprice management system
customer centered ring service support system
TUV/CQC/CE/UL certified
independent research and development capabi

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese,German
