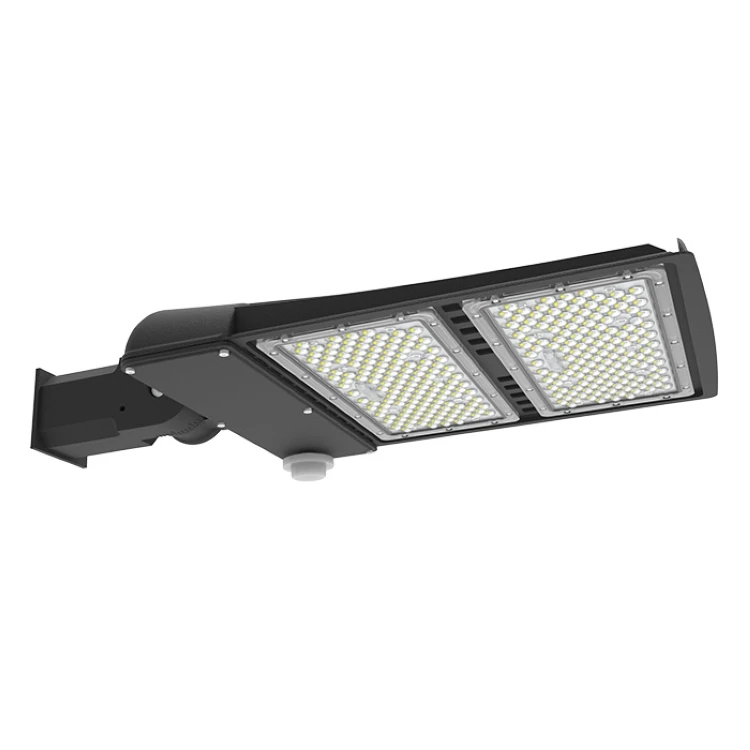

YAORONG Slim LED Area Light IP66 ETL 50w 100w 135lm/w Lightning protection led street light price
- Category: >>>
- Supplier: Shenzhen Yaorong Technology Co. Ltd.
Share on (1600437869297):
Product Overview
Description
Yaorong Slim LED Area Light Advantages
—————
1.Intelligent control: Yaorong Technology LED parking lot lights have automatic control energy-saving devices, which can reduce the power as much as possible and save energy under different lighting conditions. It can realize computer dimming, time-segment control, light control, temperature control, automatic inspection and other humanized functions.
2.Stable luminescence: Yaorong Technology LED parking lot lights use low voltage drive, stable luminescence, no pollution, no stroboscopic phenomenon of AC power supply, no ultraviolet B band, color rendering index Ra position close to 100, color temperature 5000K, close to the sun color temperature.
3.Low overall cost: The maintenance cost and energy consumption of LED parking lot lights are far lower than traditional lighting fixtures. Using Yaorong Technology LED parking lot lights can reduce energy consumption by more than 40%. And the life of LED parking lot lamps is 3 or 4 times longer than traditional lamps, which can save more lamps and lanterns purchase cost.
4.Intelligent induction: Yaorong Technology's solar LED parking lot lights can be remotely controlled and controlled intelligently according to the environment. It will automatically turn on at dark and turn off at dawn. Direct power supply by solar radiation, no need to pay for electricity, low power consumption, and no large number of cables and wires to lay and connect. science! green! environmental Protection!
5.High color rendering index: The color rendering of LED parking lot lights is much higher than that of high pressure sodium lights. The two achieve the same brightness, and the average illuminance of the LED parking lot lights of Yaorong Technology is lower than that of the high-pressure sodium lights by more than 20%.
6.Constant current drive: Yaorong Technology LED parking lights adopt constant current IC drive technology, which can make the drive circuit still have extremely high conversion efficiency under the premise of maintaining good constant current output characteristics.
Yaorong Slim LED Area Light Certification
—————
Yaorong Slim LED Area Light Parameters
—————
| 6th GEN Slim LED Area Light | |||
| Model | CRI | Luminous Flux | Power |
| YR-PL322-W050 | >70 | 6500LM | 50W |
| YR-PL322-W100 | >70 | 10400LM | 100W |
| YR-PL322-W150 | >70 | 13000LM | 150W |
| YR-PL322-W200 | >70 | 19500LM | 200W |
| YR-PL322-W240 | >70 | 26000LM | 240W |
| YR-PL322-W300 | >70 | 31200LM | 300W |
| CCT | 30K/40K/50K/60K/70K | ||
| Warranty | 5 years | ||
| Temperature | -40°~45° | ||
| Power Efficiency | >0.9 | ||
| Protection level | IP65 | ||
| Beam angle | 90°*140°/120° | ||
| Shell Color | Bronze/Black/Silver/White/Customized Color | ||
| Certification | ETL/DLC/CE/ROHS | ||
Yaorong Slim LED Area Light Features
—————
Bracket Angel 180° Adjustable

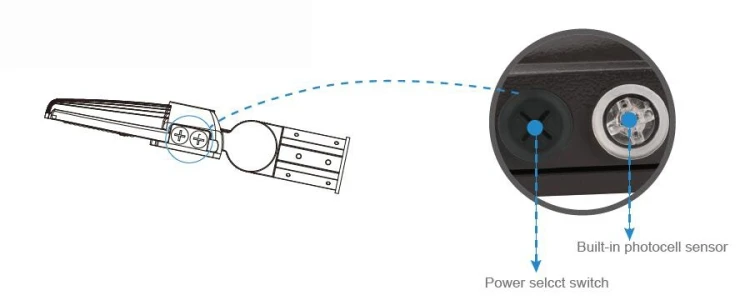

Built-in Photocell Optional

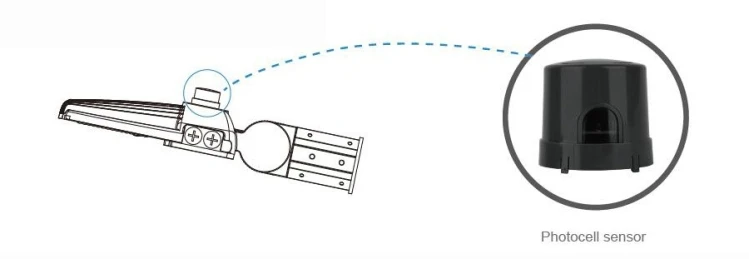

Twist Lock Photocell Sensor

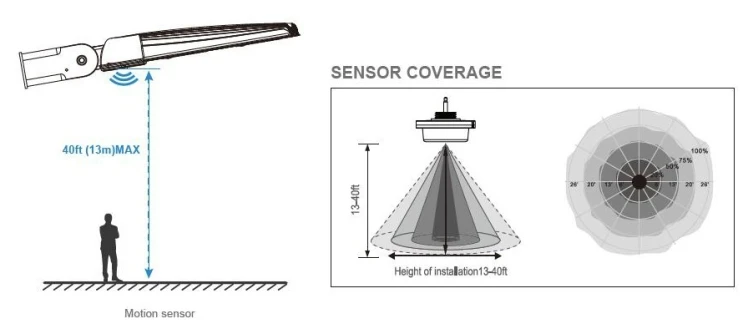

Bi-level Microwave Sensor Optional

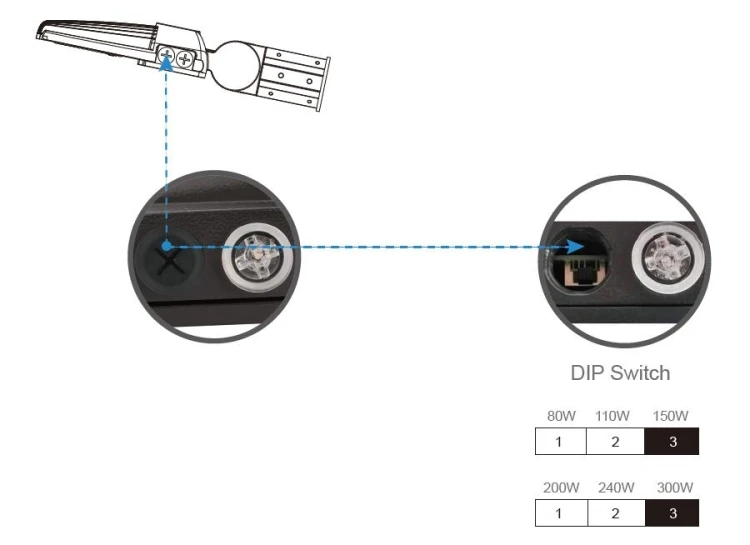

DIP switch design, three wattages can be selected

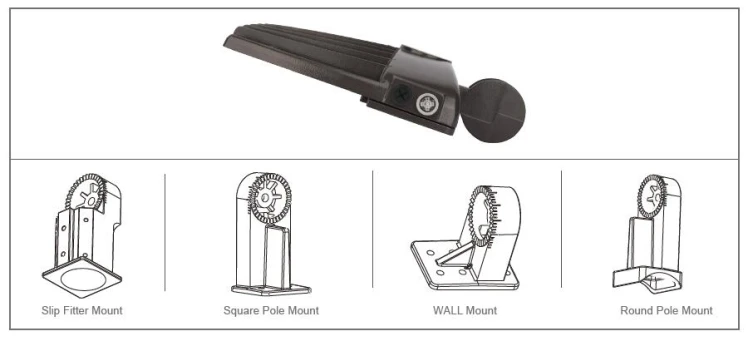

Compatible With Different Mount Brackets

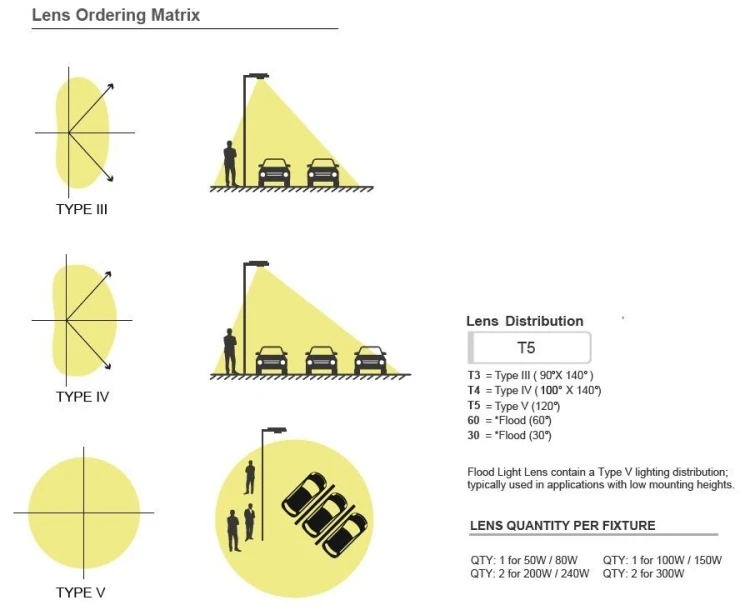

Options For Optic Lens
—————
Type III ,Type IV ,Type V and flood lens optional
Yaorong Slim LED Area Light Distribution Curve
—————

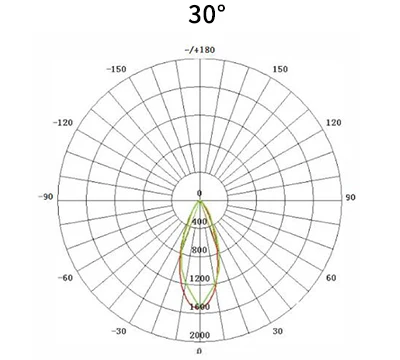

30° Distribution Curve

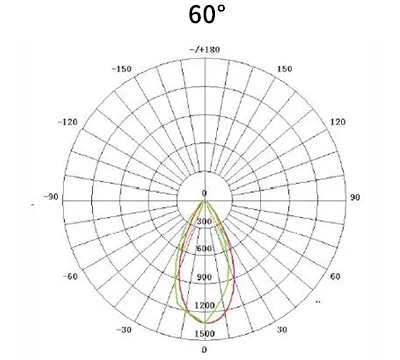

60° Distribution Curve

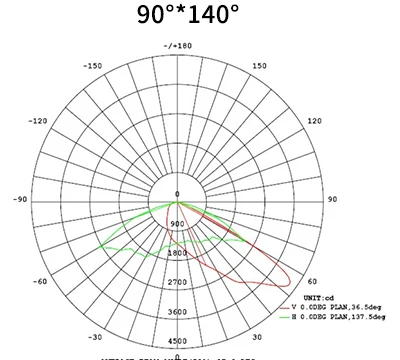

90°*140° Distribution Curve

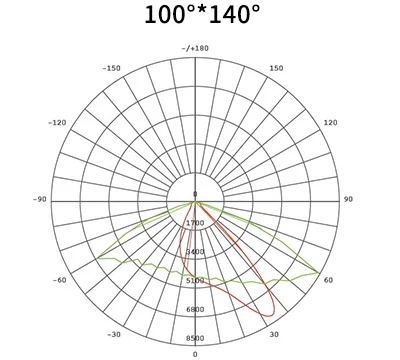

100°*140° Distribution Curve

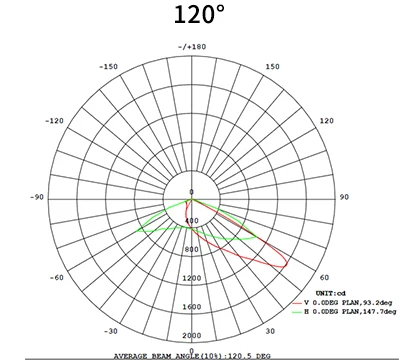

120° Distribution Curve
Yaorong NB-IOT Single Controller Parameters
—————
| NB-IOT Single controller | |||
| Name | YR-NB73-12 single controller | Temperature | -40°~85° |
| Power | DC12V | Sensitivity | -135dBm |
| Communication | NB-IOT wireless network communication interface Fully comply with NB-IOT narrowband communication standard | Frequency | LTE NB-IOT B3/B5/B8/B26 |
| Switch output | 1 way, contact 12V/16A | Transmit power | 23dBm |
| Dimming output | 1 way, 0-10V/PWM | Protection level | IP65 |
| Elec Parameter | Voltage, current, power, factor, electric energy | Antenna type | Built-in |
| Model | YR-NB73-220,YR-NB73-12 YR-M5310-220,YR-M5310-12 | Dimensions | 84*84*97mm |
| Advantages | 1. Grouping, time control, light control, induction, latitude and longitude switch lights; 2. Dimmable from 0 to 100%; 3. With system monitoring function and positioning alarm function; | ||

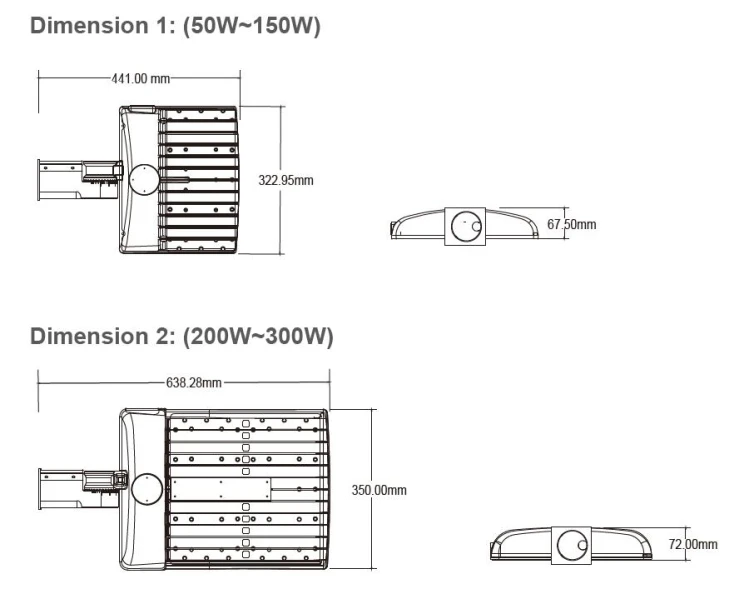

Slim LED Area Light Size Atlas
—————
Slim LED Area Light Installation Method Atlas
—————
Slim LED Area Light Packaging information
—————
| Watage | Product Size(mm/in) | Package Size(mm/in) | N.W(Kg/lb) | G.W(Kg/Lbs) | QTY |
| 50W | 340×322×77.5mm 13.39×12.68×3.05in | 580×400×130mm 22.83×15.75×5.12in | 3.8Kg(8.38lb) | 4.8kg(10.59lb) | 1PCS |
| 100W | 340×322×77.5mm 13.39×12.68×3.05in | 580×400×130mm 22.83×15.75×5.12in | 3.8Kg(8.38lb) | 4.8kg(10.59lb) | 1PCS |
| 150W | 340×322×77.5mm 13.39×12.68×3.05in | 580×400×130mm 22.83×15.75×5.12in | 3.8Kg(8.38lb) | 4.8kg(10.59lb) | 1PCS |
| 200W | 538×354×72mm 21.18×13.94×2.83in | 610×410×130mm 24.02×16.14×5.12in | 5.2Kg(11.47lb) | 6.7kg(14.78lb) | 1PCS |
| 240W | 538×354×72mm 21.18×13.94×2.83in | 610×410×130mm 24.02×16.14×5.12in | 5.2Kg(11.47lb) | 6.7kg(14.78lb) | 1PCS |
| 300W | 538×354×72mm 21.18×13.94×2.83in | 610×410×130mm 24.02×16.14×5.12in | 5.2Kg(11.47lb) | 6.7kg(14.78lb) | 1PCS |

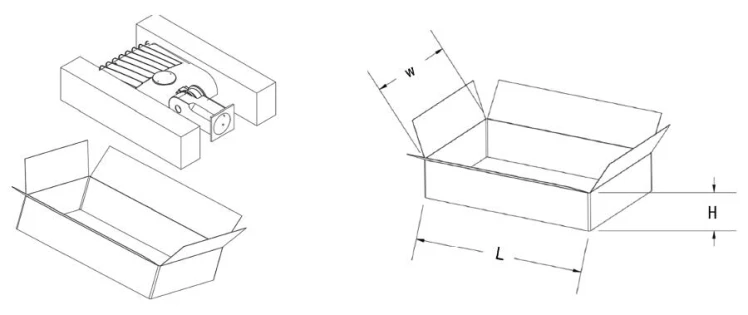

Slim LED Area Light Packaging Atlas
—————
Precautions For The Installation Of Slim LED Area Light
—————
- Please cut off the power before installation and make sure that the installation part can bear the weight of the lamp.
- In order to prevent the lamp from falling off, please make sure that the installation is correct.
- Please do not use it in a place with corrosive gas.
- Please do not cover any material on the lamp.
- For safety, please connect the ground wire securely.
- This LED lamp has a five-year warranty from the date of purchase.
- However, failures caused by disassembly, modification, or improper construction of this product are not within the scope of this warranty.
Five-year warranty
—————
- Yaorong Technology is committed to providing customers with cost-effective LED lighting products. And provide high-quality after-sales service ahead of peers.
- Yaorong Technology provides a 5-year warranty. However, unauthorized disassembly or destruction of Yaorong Technology LED lighting products will not be eligible for warranty service.
- If you need after-sales service support, please contact our after-sales staff during the warranty period. Yaorong Technology after-sales engineers communicate with you about after-sales matters.

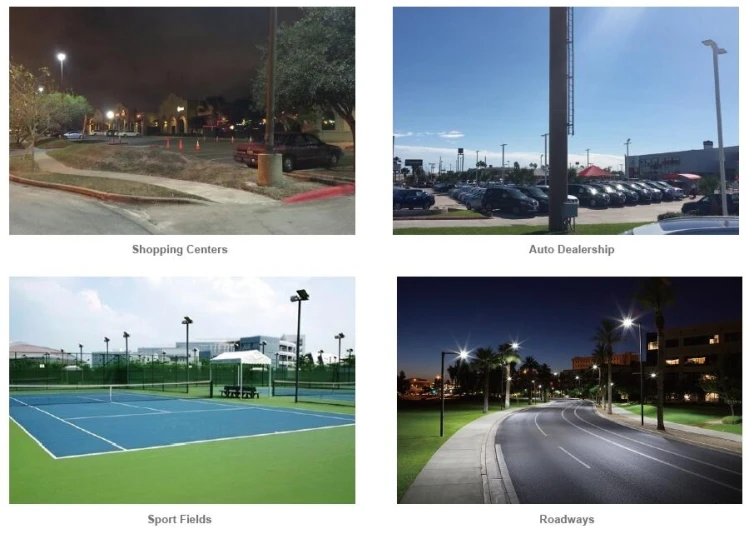

Yaorong Slim LED Area Light Case
—————
Yaorong Slim LED Area Light Case
