Customize the wires on tube evaporator for freezers and refrigerators
- Category: >>>
- Supplier: Changzhou Aidear Refrigeration Technology Co. Ltd.
Share on (1600437875412):
Product Overview
Description
Product Overview

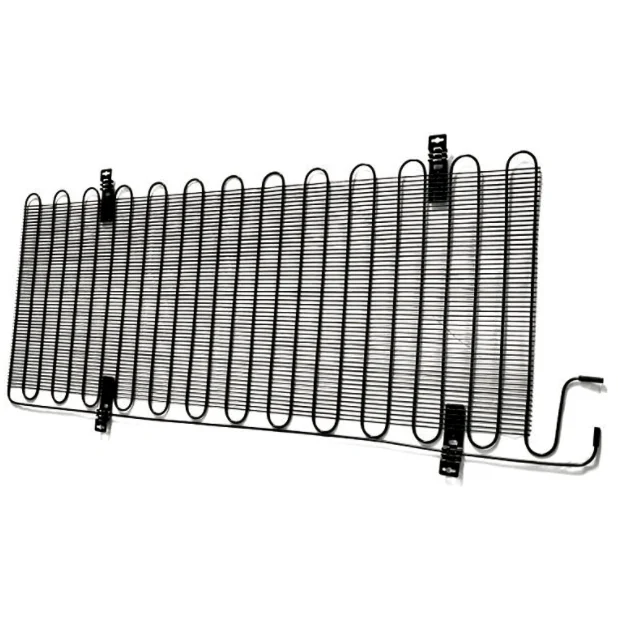

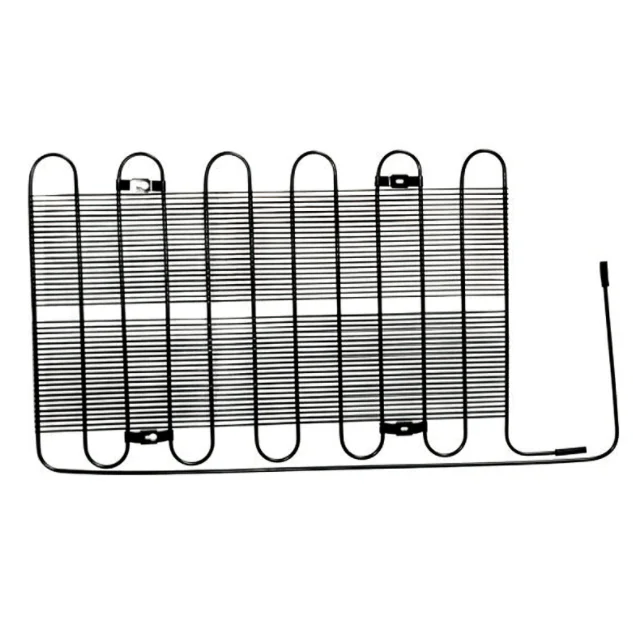

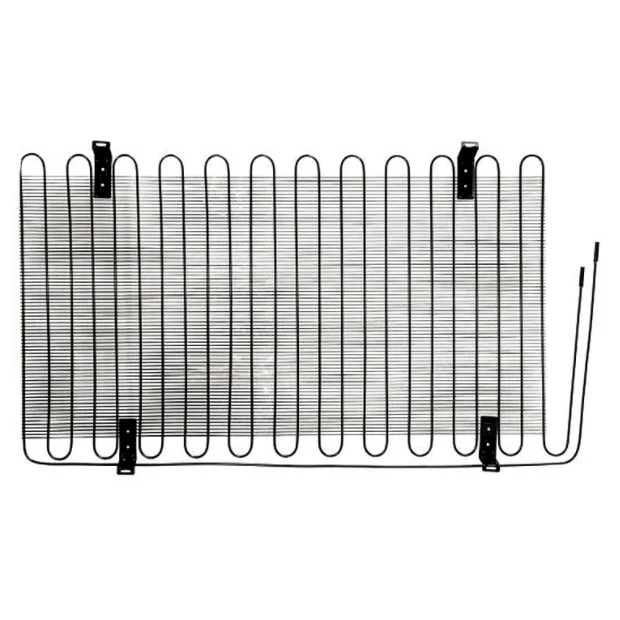

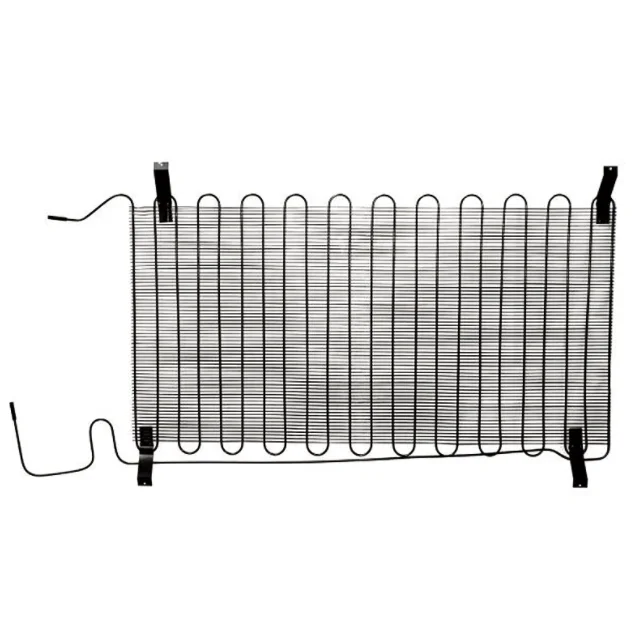

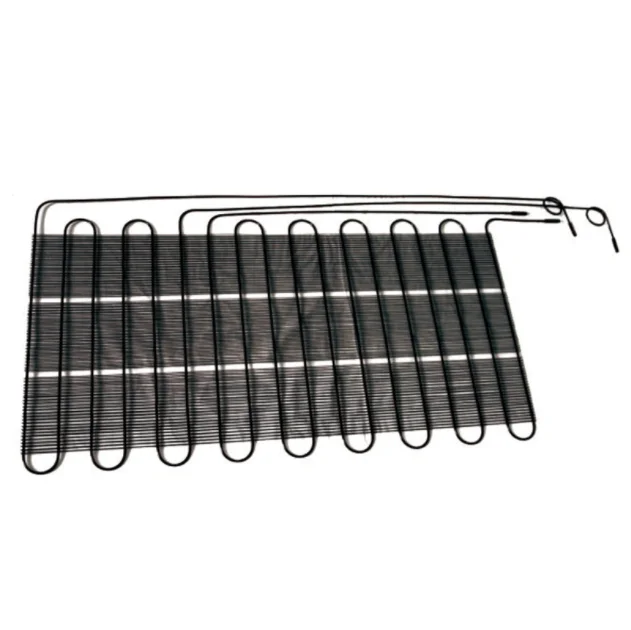

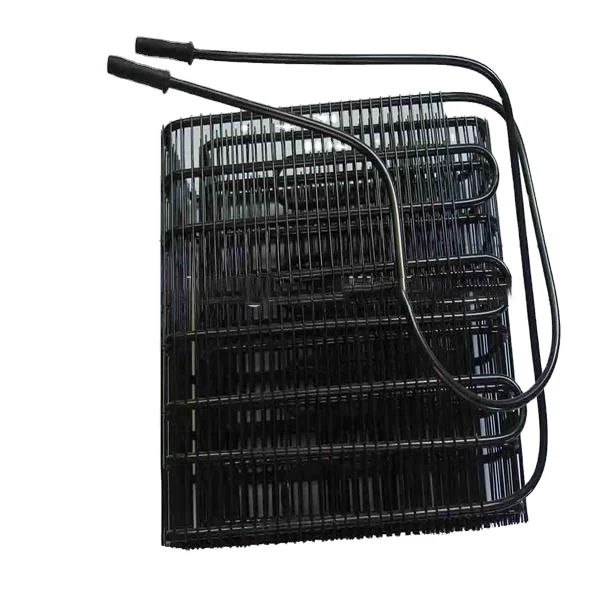

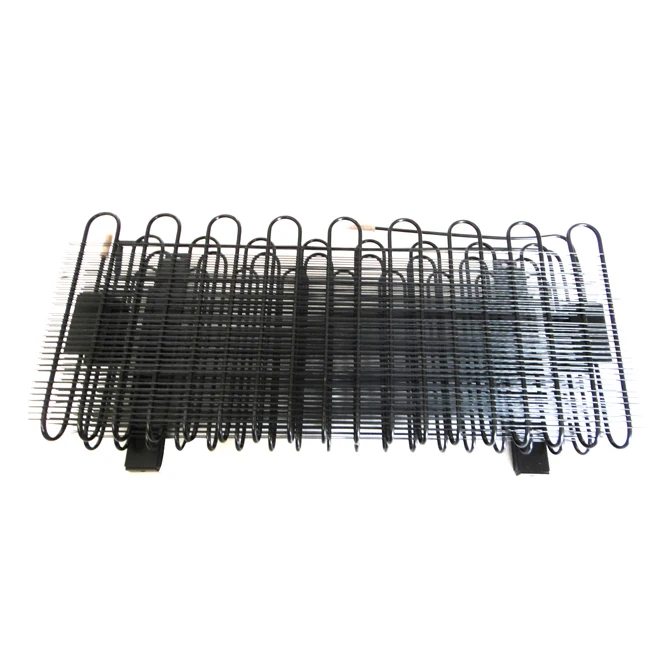

Refrigeration wire Evaporator

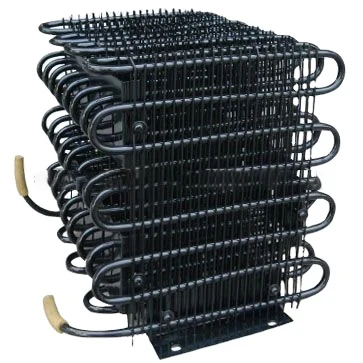

The refrigerator condenser is mainly have three type: Louver condenser,wire tube condenser and internal-mounted condenser. The
wire tube condenser is made of bundy tubes and steel wire tubes, it is to increase the heat dissipation area. Generally, thediameter of a bundy tube is 5-6 mm, the steel wire tube diameter is about 1.5 mm, and the steel wires pitch is about 4-5 mm. the
heat tansfer efficiency of wire tube condenser is better than louver condenser, and its strength and rigidity are also better.
Aidear wire on tube steel static condensers are composed by serpentines with electric welded wires on both sides. Products are
fully compliant with all refrigerating gasses: R600a, R290, R134a, R404a, R407C, etc. Wire on tube static condensers are also
compliant with R744 (CO2). Wire on tube static condensers are more suitable, in terms of performances, in narrow chimneys,
possibly closed on two sides and with 30 to 50 mm depth. Thanks to the quality of materials employed, Aidear wire on tube static
condensers are suitable for all regions worldwide, including estreme tropical climate conditions.
fully compliant with all refrigerating gasses: R600a, R290, R134a, R404a, R407C, etc. Wire on tube static condensers are also
compliant with R744 (CO2). Wire on tube static condensers are more suitable, in terms of performances, in narrow chimneys,
possibly closed on two sides and with 30 to 50 mm depth. Thanks to the quality of materials employed, Aidear wire on tube static
condensers are suitable for all regions worldwide, including estreme tropical climate conditions.
FEATURES
• Maximum sizes: 1450 x 1150 mm (including terminations)
• Tubes: steel, 4,76 x 0,7 mm OD or galvanized steel Ø 6 x 0,7 mm
• Serpentine pitch 50 – 25 mm, mixed 50/25 mm
• Tube max. length: 23 meters.
• Wire height: 300 – 1,450 mm
• Wire: UNI 5598-71 grade 3 CD 5 steel, 1.2~1,4 mm OD, wire min. pitch 5 mm (parallel or staggered)
• Black cataphoresis paint
• Cleanness and internal humidity according to DIN 8964
• Resistence to saline mist as per ASTM 8117/ISO 9227 > 48 h
• Tube ends (30 mm length) not painted to allow braze welding
• Maximum sizes: 1450 x 1150 mm (including terminations)
• Tubes: steel, 4,76 x 0,7 mm OD or galvanized steel Ø 6 x 0,7 mm
• Serpentine pitch 50 – 25 mm, mixed 50/25 mm
• Tube max. length: 23 meters.
• Wire height: 300 – 1,450 mm
• Wire: UNI 5598-71 grade 3 CD 5 steel, 1.2~1,4 mm OD, wire min. pitch 5 mm (parallel or staggered)
• Black cataphoresis paint
• Cleanness and internal humidity according to DIN 8964
• Resistence to saline mist as per ASTM 8117/ISO 9227 > 48 h
• Tube ends (30 mm length) not painted to allow braze welding
Product Specifications
Product Name | WIRE ON TUBE CONDENSERS |
Tube Material | OD￠6～￠9.5mm，thickness t≥0.6 |
Wire Material | Steel wire，OD ￠1.3～1.5 |
space between Steel wire | 3.5mm～10mm |
Surface | cathodic E coating, film of coating≥15um |
We can supply freezer condenser, bundy tube condenser, wire tube condenser, refrigeration part...

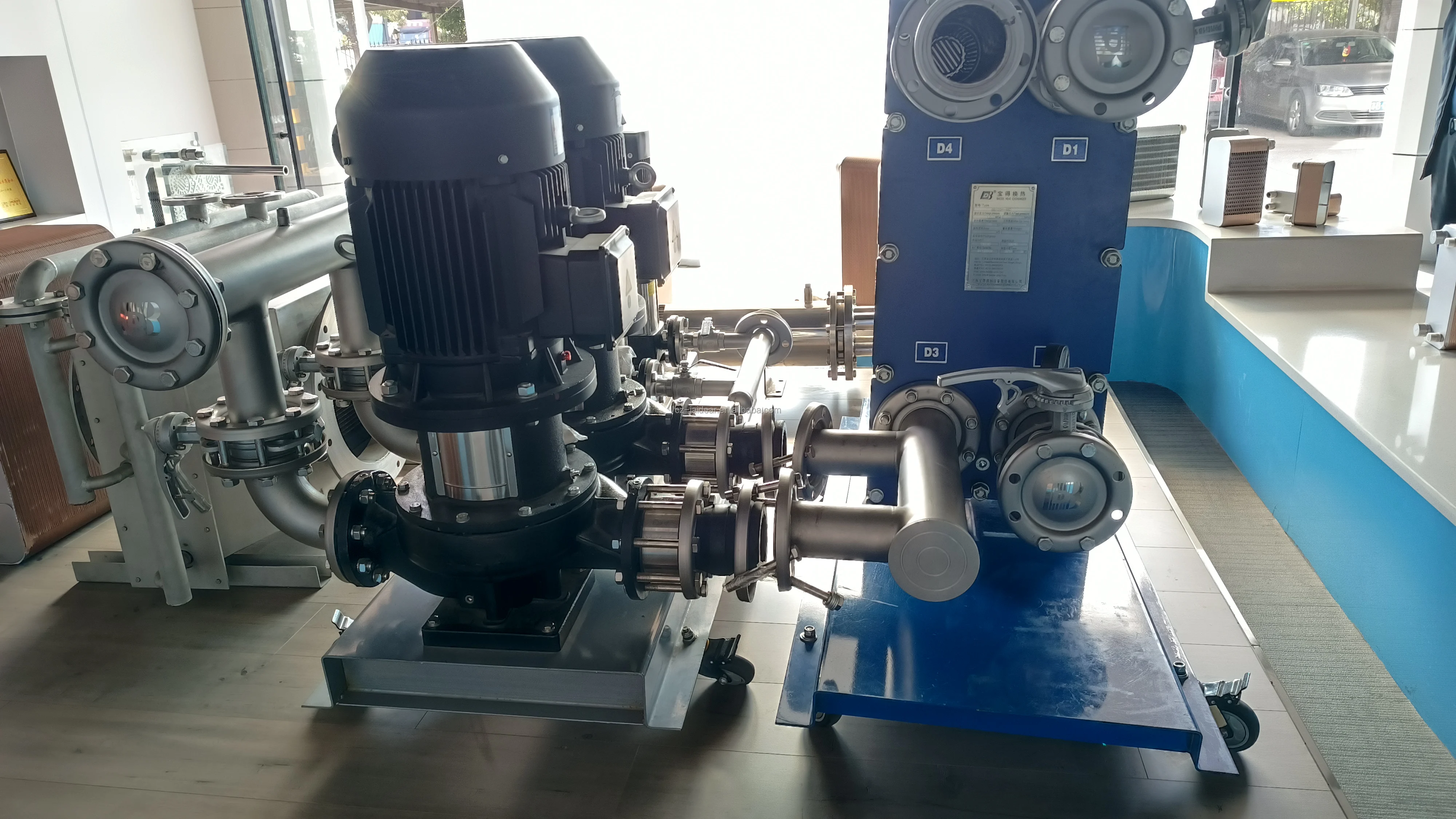

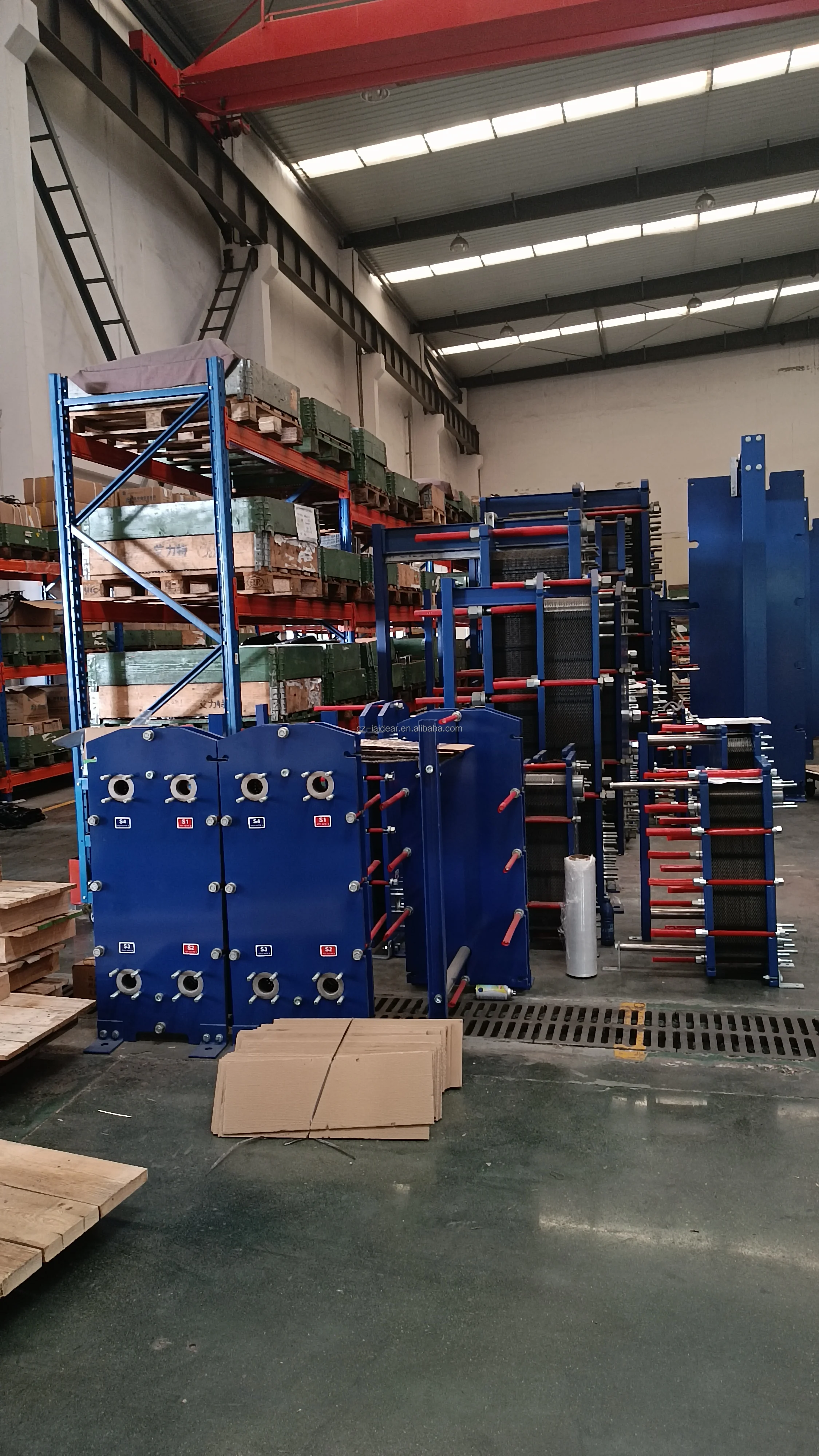

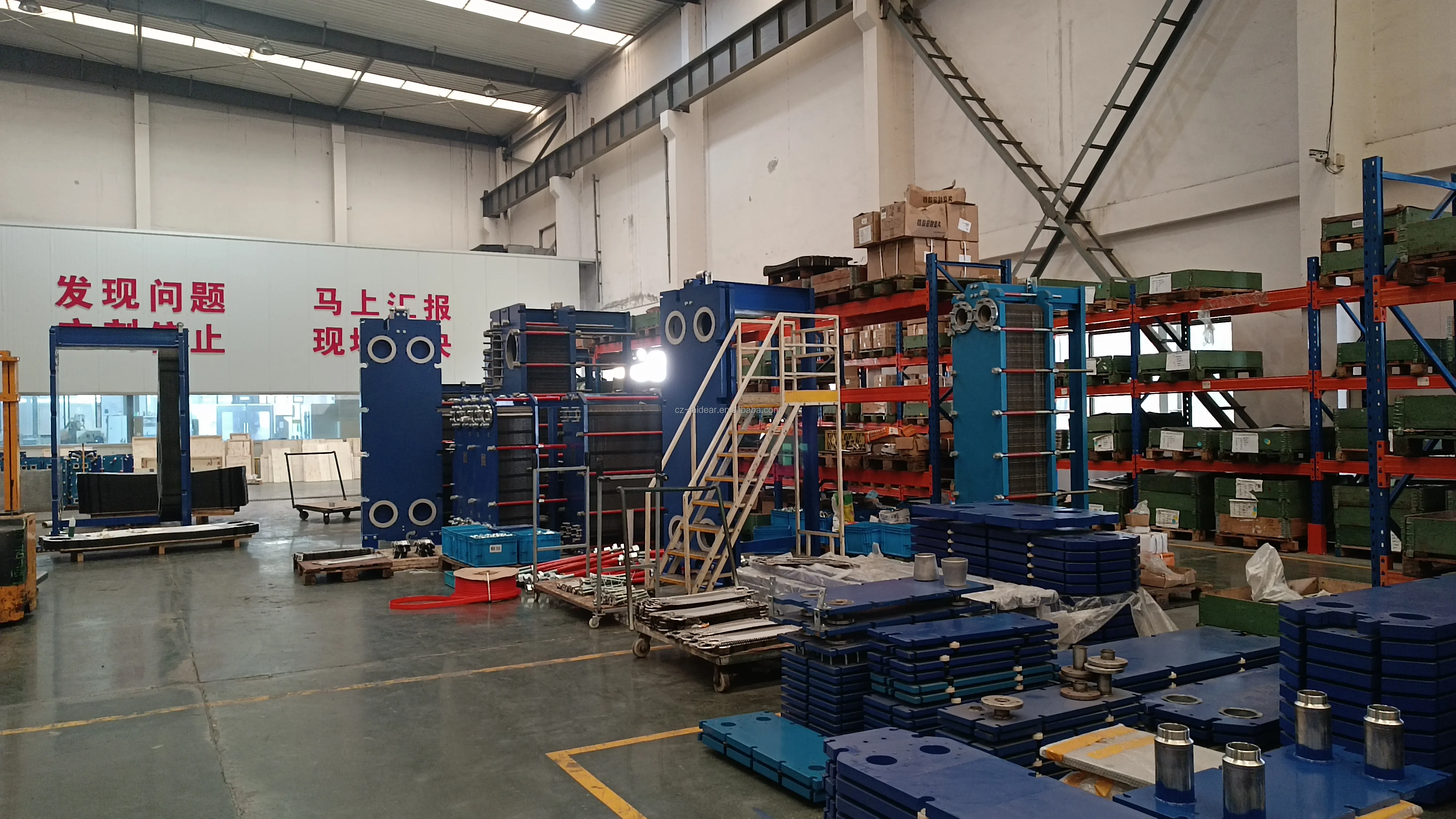

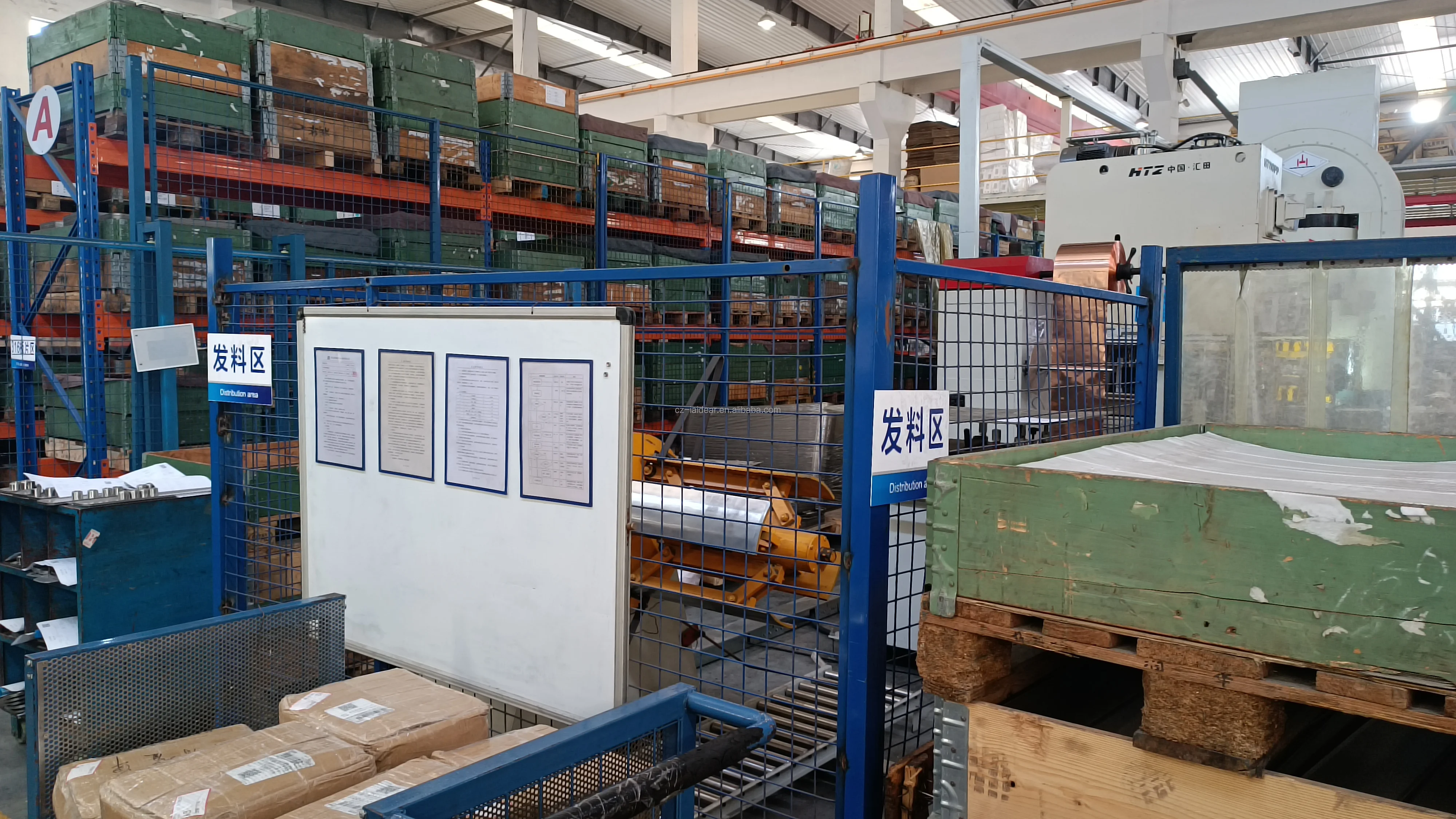

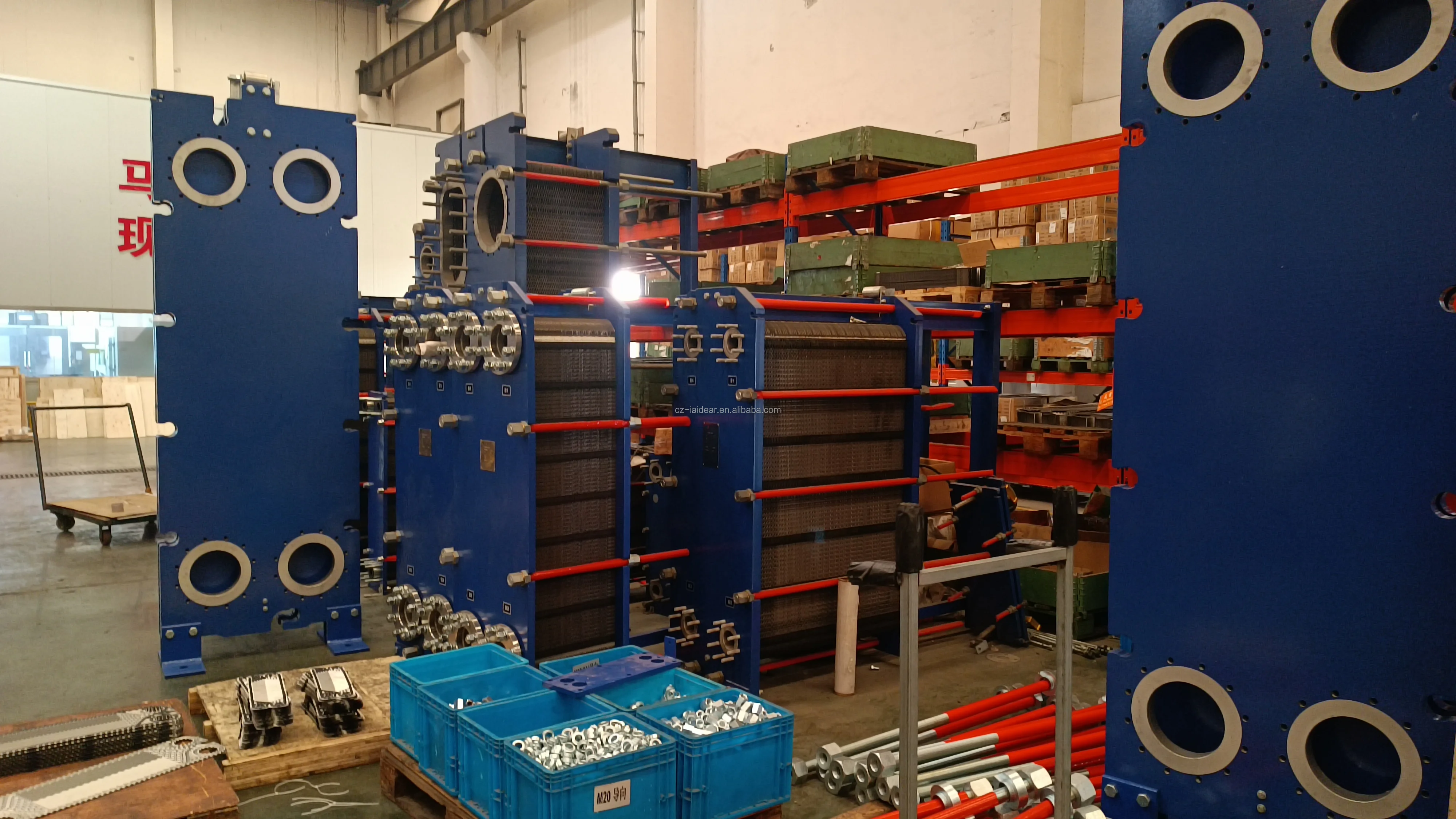

Factory Tour
We have our own factory and complete production line to meet your custom needs brazed heat exchanger mostly applied for automotive, engineering machinery, petrochemical engineering, HVAC chiller, Marine, Food and Medical etc industrial fields.
About Aidear
Aidear, your idea!
An excellent, specialized refrigeration system solutions provider.Main products are tube and fin heat exchangers, Microchannel heat exchanger, air cooler, condenser and units, raw materials and the components for heat exchangers, automatic machines for heat exchangers, and the complete solutions for customer.Based on Honesty, Responsible, Technology and continuous Innovation.Work on refrigeration resource integration & solutions, one station service for customer Persist in customer first, always think for customer Focus on create Maximum value for customer.
FAQ
1. Q: I haven't done business with you guys before,how can I trust your company?
A: Our company has been in Alibaba.com for 5 years, which is longer than most of our fellow suppliers, we've been golden suppliers for years. What's more, we've got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate.I hope those above will be persuasive enough.
2. Q: What is the minimum order?
A: Yes, our company mainly deals with wholesale deals, but if you insist buying one piece, or you just need one piece, we would be very likely to make the MOQ as 1 piece for you though.
3. Q: How can I get a sample to check your quality? How long can I get the sample?
A: After price confirmed, FREE SAMPLE could be provided for your evaluation.After you confirm the sample details, the samples will be ready for delivery in 3-7days,and will be sent to you via express and arrive in 3-5days.
4. Q: What payment methods your company accept?
A: We accept T/T, L/C, Western Union, Paypal.
5. Q: What's the shipment terms and delivery time of your company?
A: FOB,CFR,CIF,15-50days
6. Q: Do you give any discount ?
A: We'll surely try our best to help you get those by the best price and good service at the same time.
A: Our company has been in Alibaba.com for 5 years, which is longer than most of our fellow suppliers, we've been golden suppliers for years. What's more, we've got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate.I hope those above will be persuasive enough.
2. Q: What is the minimum order?
A: Yes, our company mainly deals with wholesale deals, but if you insist buying one piece, or you just need one piece, we would be very likely to make the MOQ as 1 piece for you though.
3. Q: How can I get a sample to check your quality? How long can I get the sample?
A: After price confirmed, FREE SAMPLE could be provided for your evaluation.After you confirm the sample details, the samples will be ready for delivery in 3-7days,and will be sent to you via express and arrive in 3-5days.
4. Q: What payment methods your company accept?
A: We accept T/T, L/C, Western Union, Paypal.
5. Q: What's the shipment terms and delivery time of your company?
A: FOB,CFR,CIF,15-50days
6. Q: Do you give any discount ?
A: We'll surely try our best to help you get those by the best price and good service at the same time.

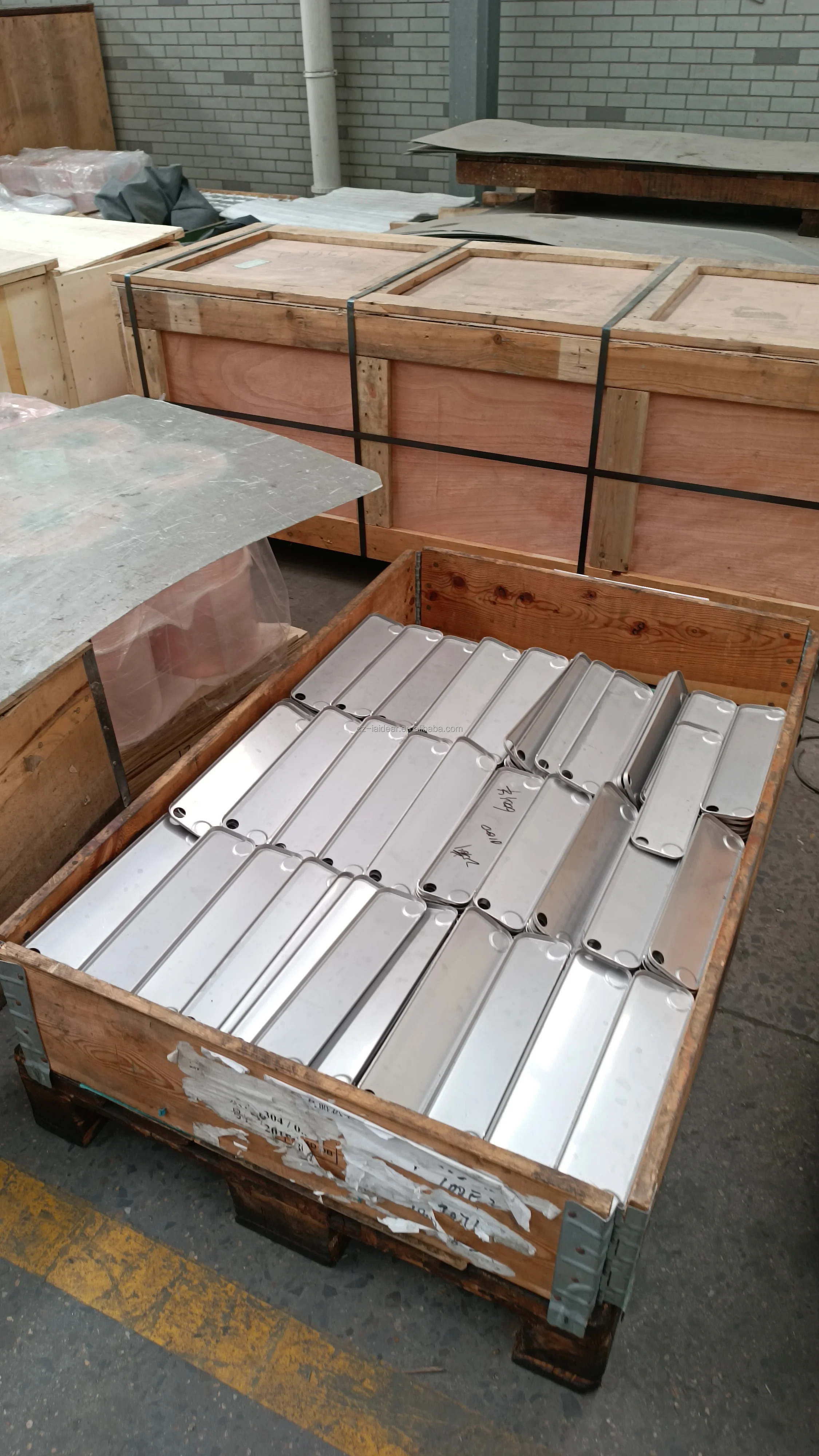

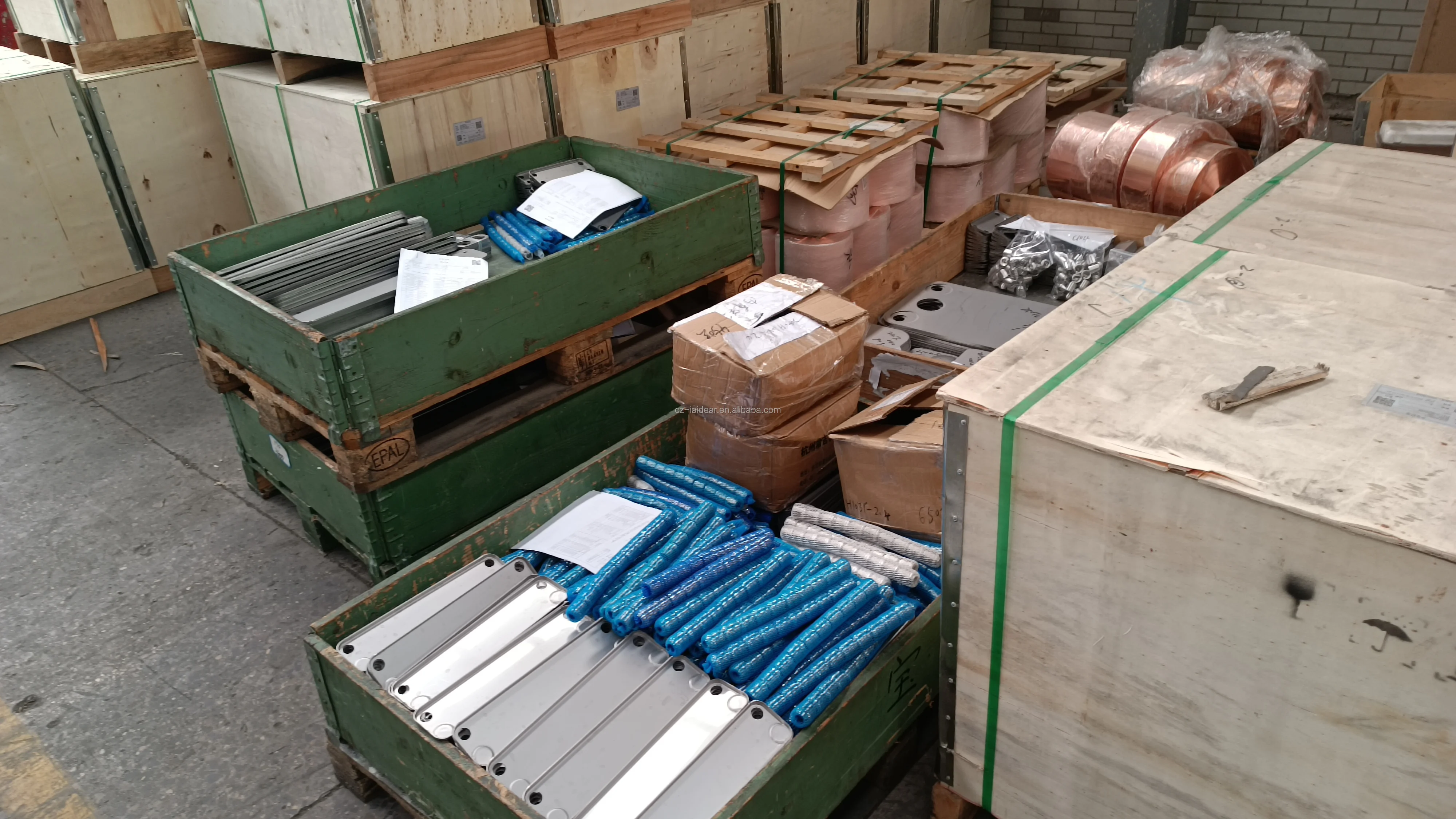

Product Packaging
Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
