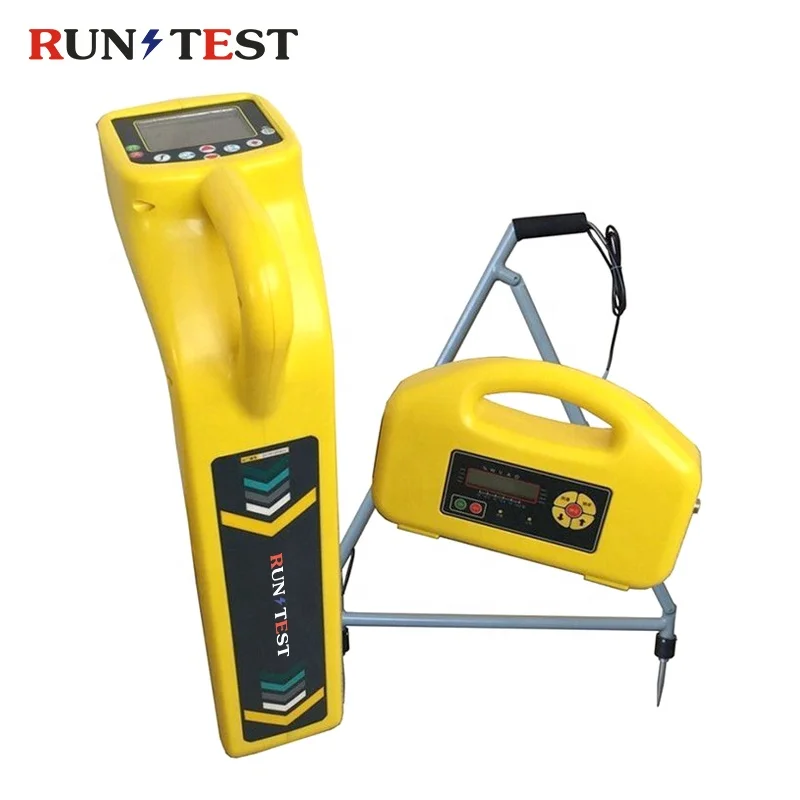

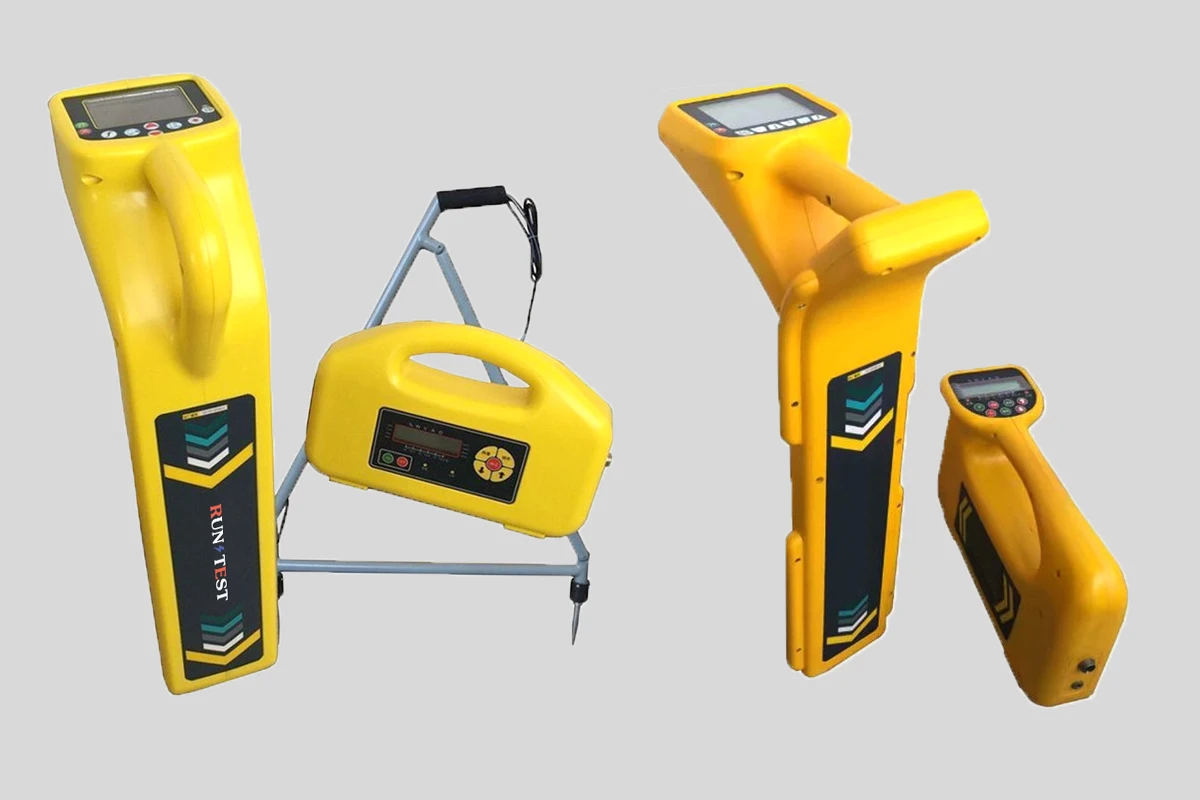

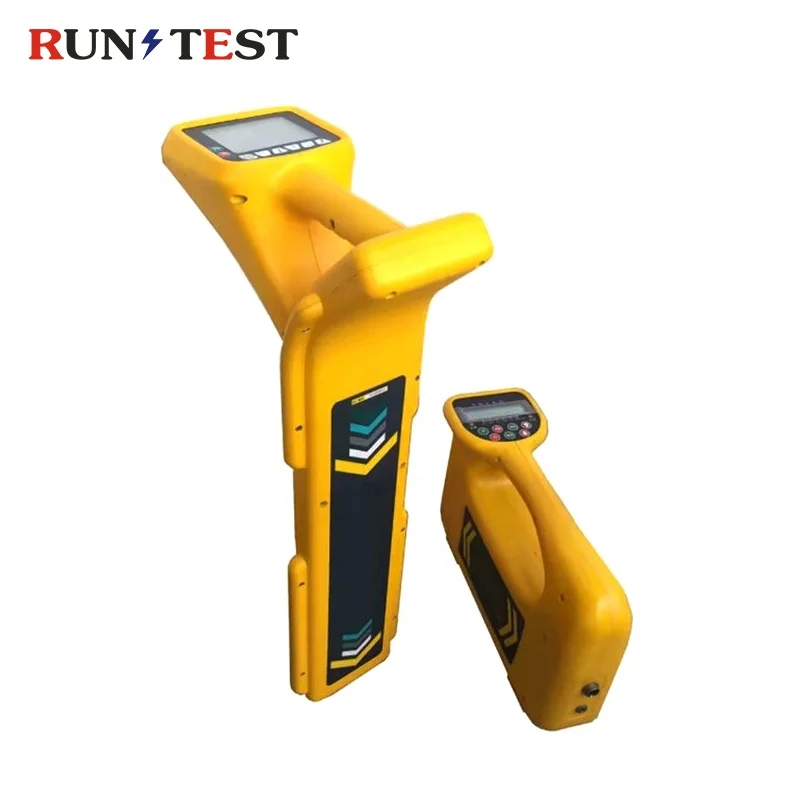

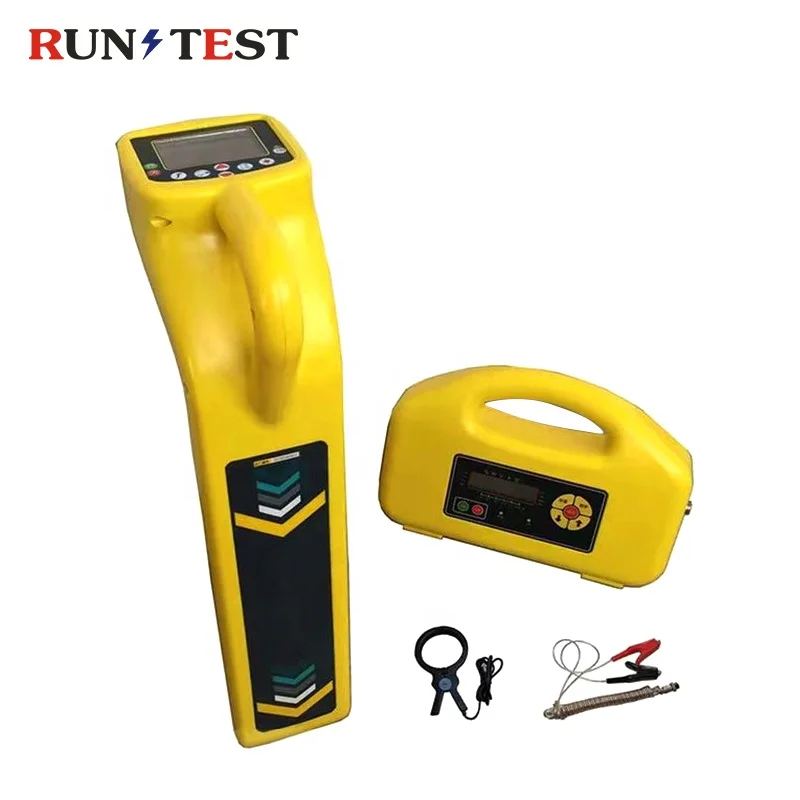

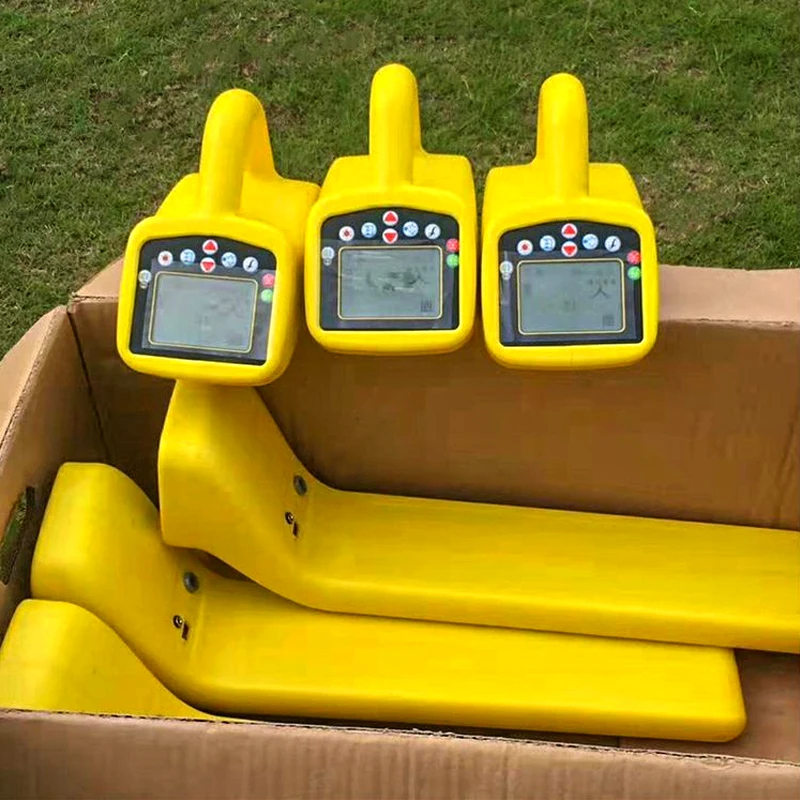

Best Price Multifunction Precision Underground Electric Cable and Pipe Locator
This underground pipeline detector in the case of non-excavation, the underground pipeline, cable, cable for accurate positioning and buried depth measurement, accurate search underground pipe outside the coating damage point, buried cable fault point location.The instrument combines ultra-narrowband filter, Bluetooth wireless communication, GPS positioning, professional data analysis software automatically map, test report automatically generated the most advanced technology, with superior anti-jamming capability, precise positioning and sounding, suitable for underground Metal pipeline detection and inspection line, pipeline management and maintenance, municipal planning and construction, power supply and other departments of the pipeline inspection, pipeline maintenance units is one of the necessary equipment. pipeline detector features:
(1) multi-function(2)High positioning accuracy
(3)Multi-Measuring depth method
(4)Strong anti-interference
(5) easy to operate
(6)Continuous working time is long, the use of low cost
（7）Transmitter AC and DC
Specification
Peak mode | two horizontal coils used |
Broad peak mode | one horizontal coil used |
Valley mode | one vertical coil, having the function of left and right orientation |
Gain control | automatic gain, range of 0-100dB |
Location accuracy | 5% of depth (range of depth: 0-3meter) |
Range of measurement | 0-6m |
Power supply | Lithium battery pack (energy-efficient and environmental-friendly) |
Transmitter:
Function: to apply the location signal of a certain frequency onto pipelines
Output modes: induction, direct link, clamping
Working frequencies: 128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz
Frequency configuration at various modes:
Induction mode:65KHz, 83KHz
Direct link mode:128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz
Clamping mode:33KHz
Maximum power output:10W
Maximum voltage output:60V
Maximum current output:1A
Power supply: dual power supply, Lithium battery pack (energy-efficient and environmental-friendly)
Function: to apply the location signal of a certain frequency onto pipelines
Output modes: induction, direct link, clamping
Working frequencies: 128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz
Frequency configuration at various modes:
Induction mode:65KHz, 83KHz
Direct link mode:128Hz, 512Hz, 1KHz, 2KHz, 8KHz, 33KHz, 65KHz, 83KHz
Clamping mode:33KHz
Maximum power output:10W
Maximum voltage output:60V
Maximum current output:1A
Power supply: dual power supply, Lithium battery pack (energy-efficient and environmental-friendly)
Our Advantages
After-sale Service: 100% quality guaranteed.
One year warranty from the date of purchase, customers enjoy a free repair or replacement service.
Lifetime maintenance and free remotely technical support.
Payments: all kinds of payment to meet your requirement.
Delivery: Ocean, Railway, Air or Express
One year warranty from the date of purchase, customers enjoy a free repair or replacement service.
Lifetime maintenance and free remotely technical support.
Payments: all kinds of payment to meet your requirement.
Delivery: Ocean, Railway, Air or Express

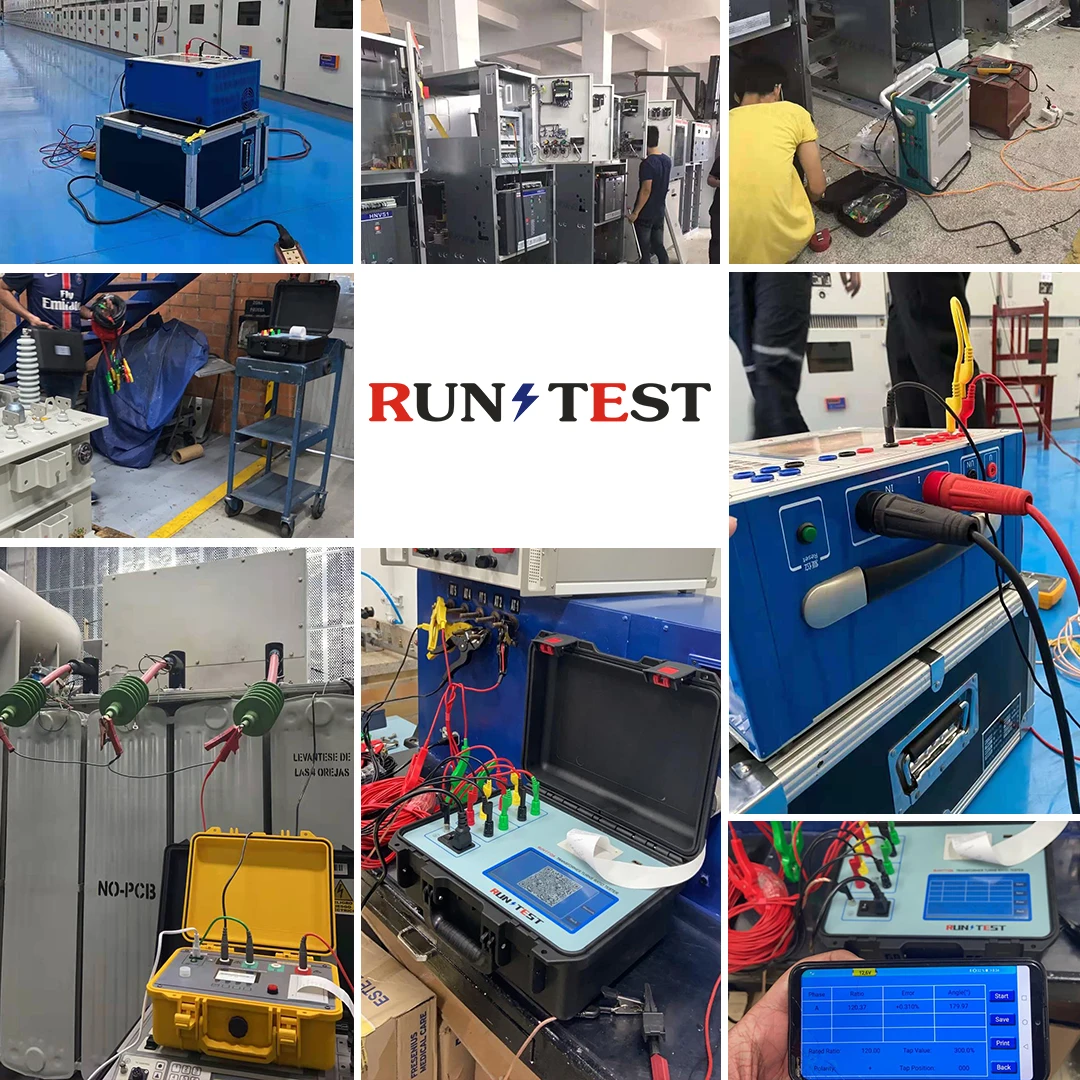

Company Profile
Run Test Electric Manufacturing Co., Ltd, located in High-Tech Industrial Development Zone, Baoding, China. It is a joint venture which is invested by Zhongchuang Electric and Dongrun Technology.
We have been in electric testing industry more than 10 years, specialized in design, manufacture and test service. We are qualified supplier and service provider of State Grid in China.
We have our own R&D department which is specialized both in hardware and software, at the same time, our R&D department is cooperating with high technology institute such as Chinese Academy of Sciences,North China Electric Power University etc.
Our main products including: Partial discharge tester, transformer tester, transformer oil test series, high voltage test series, safety product test series, cable fault location system, relay & microcomputer protection test, etc.
All our products comply with international quality standard and customizable. We sincerely invite clients and friends all over the world to visit our company. We will and always provides nice products and service.
We have been in electric testing industry more than 10 years, specialized in design, manufacture and test service. We are qualified supplier and service provider of State Grid in China.
We have our own R&D department which is specialized both in hardware and software, at the same time, our R&D department is cooperating with high technology institute such as Chinese Academy of Sciences,North China Electric Power University etc.
Our main products including: Partial discharge tester, transformer tester, transformer oil test series, high voltage test series, safety product test series, cable fault location system, relay & microcomputer protection test, etc.
All our products comply with international quality standard and customizable. We sincerely invite clients and friends all over the world to visit our company. We will and always provides nice products and service.

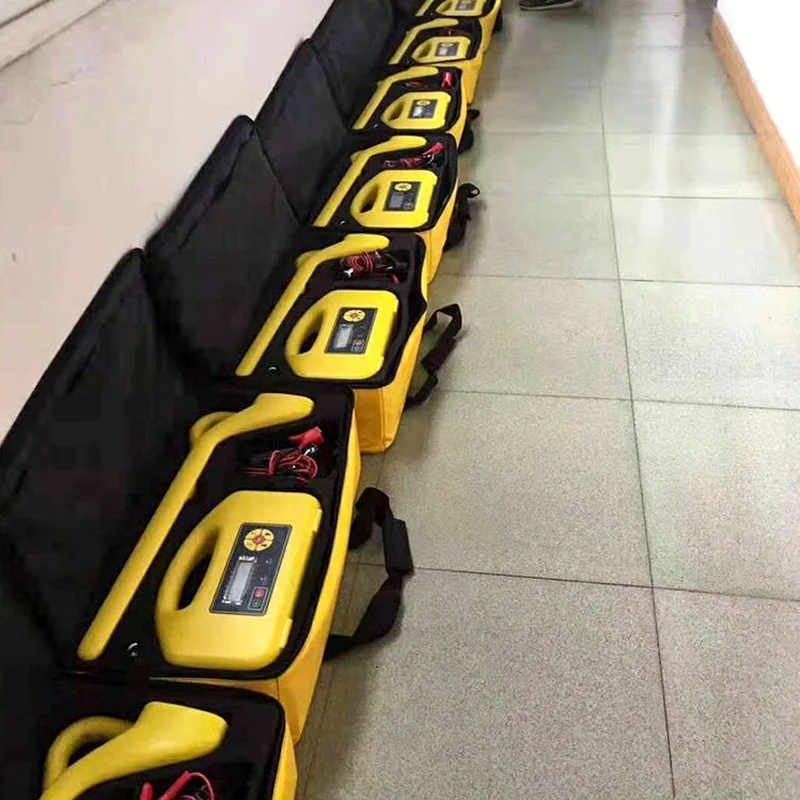

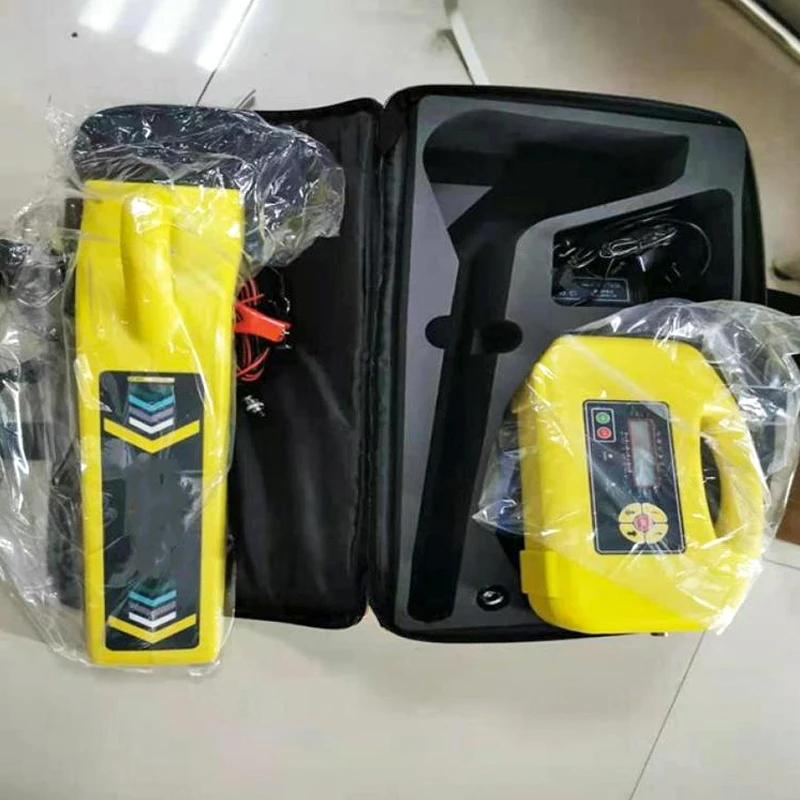

Product packaging
