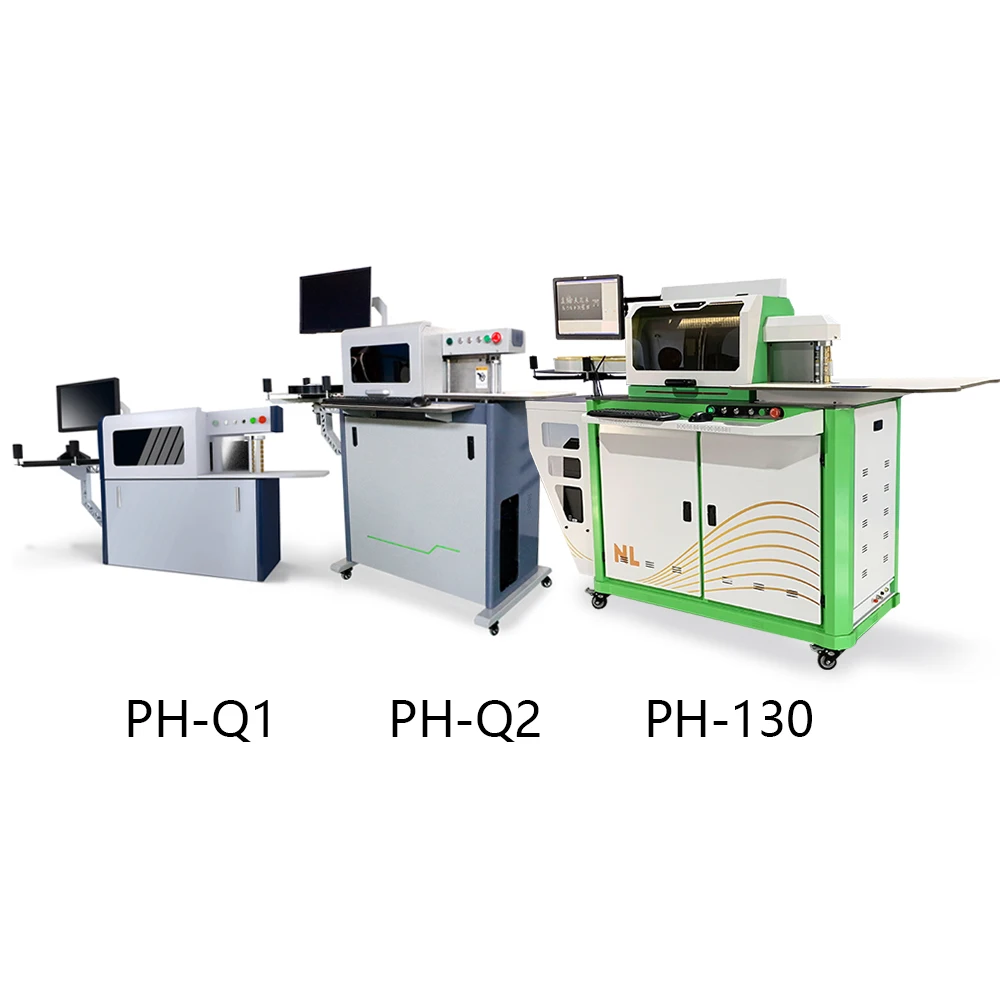

weifang 3d sign making cnc cut and bender plastic automatic flat aluminum channel letter bending machine
- Category: >>>
- Supplier: Shandong Penghai Machinery Co. Ltd.
Share on (1600437934279):
Product Overview
Description
Model | PH-LQ1 |
Function | Automatic feeding,slotting and bending |
Applicable Material | Flat Aluminum |
Material Width | Flat Alu:≤100mm |
Material Thickness | Aluminum:0.3~0.8mm |
Bending Radius | 3mm |
Feeding | φ30mm feeding wheel +Encoder |
Slotting System | Planner cutter |
Bending | Coupled extrusion-general arc bender |
Power | 300W |
Air Pressure | 0.6MPa |
File Format | Dxf, Ai,Plt |
Working Voltage | 220V/ 50-60HZ/1P |
1.Cut angle from 45° to 135° and it can control depth precision, by using the CNC axis,to achieve the processing of various types of profile bending angle precision.
2.Intelligent software controlling and intelligent inspection to avoid collision in words bending process.
3.Unique bilaterally symmetrical bending distribution to avoid bending interfere in a most effective way, this also improved the bending strength greatly.
4.Unique stainless steel planer tool and channel aluminum milling cutter two individual systems, according to different materials arbitrarily switching, the operation is simple and convenient.
5.Can read multi-vector files, like the formats AI,DXF,ALT, matching with the engraving software perfectly.
6.Adopt rotary handwheel to adjust feeding depth, the operation is simple and convenient.
7.Using imported square guide rail and a high precision lead screw to control the depth of slotting intellectually.
8.Special specification of this equipment is available.
3.Unique bilaterally symmetrical bending distribution to avoid bending interfere in a most effective way, this also improved the bending strength greatly.
4.Unique stainless steel planer tool and channel aluminum milling cutter two individual systems, according to different materials arbitrarily switching, the operation is simple and convenient.
5.Can read multi-vector files, like the formats AI,DXF,ALT, matching with the engraving software perfectly.
6.Adopt rotary handwheel to adjust feeding depth, the operation is simple and convenient.
7.Using imported square guide rail and a high precision lead screw to control the depth of slotting intellectually.
8.Special specification of this equipment is available.
shandong Penghai are a Chinese supplier specializing in the export of advertising machinery and equipment. We mainly produce Letter Bending Machine, Acrylic Heat Bending Machine, etc. We also provide customers with CNC Router Machine, Co2 Laser Cutting Machine, aluminum coil and other advertising industry supporting products. Our customers It covers more than 100 countries in the world and has after-sales service in more than 30 countries. For advertising equipment, choose Shandong Penghai 。
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*12months warranty and 36months for motor
*24hours full after sale service to solve your problem.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
*12months warranty and 36months for motor
*24hours full after sale service to solve your problem.
FAQ
1.What's the Payment terms?There are 3 ways to pay money:
1). T/T, means international bank transfer, 30% deposit, we produce the machine for you, 70% before shipping. It's convenient and fast.
2). Alibaba Secure payment. Reliable and safe, Alibaba will charge a litter extra fee for the service.
3). Other kinds of payment we can consider if acceptable for us.
2.what's the warranty service?
12 months for all machines and 24 months for motors.
3.How to install and run the machine?
We will send the user's manual and the install video with the machine, you could learn by yourselves, we also provide remote machine training or overseas training services.
4.Do you have matching materials for sale?
Yes,we have all kinds of materials such as aluminum coil, stainless steel, galvanized iron, coppers etc. for sale.
5.How to choose a suitable machine?
You can tell us the working piece material, size, and the machine function request. We can recommend the most suitable machine according to our experience.
1). T/T, means international bank transfer, 30% deposit, we produce the machine for you, 70% before shipping. It's convenient and fast.
2). Alibaba Secure payment. Reliable and safe, Alibaba will charge a litter extra fee for the service.
3). Other kinds of payment we can consider if acceptable for us.
2.what's the warranty service?
12 months for all machines and 24 months for motors.
3.How to install and run the machine?
We will send the user's manual and the install video with the machine, you could learn by yourselves, we also provide remote machine training or overseas training services.
4.Do you have matching materials for sale?
Yes,we have all kinds of materials such as aluminum coil, stainless steel, galvanized iron, coppers etc. for sale.
5.How to choose a suitable machine?
You can tell us the working piece material, size, and the machine function request. We can recommend the most suitable machine according to our experience.
