Topton New Fanless Mini pc Inte l 4 Cores 8 Threads i7 10510U Processor(up to 4.9Ghz) Portable Compact Computer Win10 Pro
- Category: >>>
- Supplier: Dongguan Tuofuton Electronic Technology Co. Ltd.
Share on (1600437962600):
Product Overview
Description
Product Description
Feature
1. Fanless solid-built aluminum design for passive heat dissipation, no fan noise, compact dimension 170*126*53mm;
2. On-board with Intel Core 10th/8th Gen processors, enough performance for your every day computing needs, it's one high
cost-effective mini PC;
3. Support Win11/10, Linux, Ubuntu OS, and more;
4. Dual SODIMM DDR4 slots, max support 2x 32GB DDR4 memory 2666/2400/2133MHz;
5. Support two hard disk, one M.2 NVME/SATA SSD and one 2.5 inch HDD/SSD;
6. Support HD-MI, DP, Type-C triple 4K@60Hz Display;
7. Support 2*Realtek 8111F Gigabit ethernet+Dual-band 2.4G/5.0G AC(AX) WiFi/BT;
8. Low power consumption TDP only 15W, energy-saving up to 90% compare to traditional desktop computers;
9. Extensive connectivity,4*USB 3.0, 2*USB 2.0, 1*Type-C, 1*SPK, 1*MIC;
10. 1xDB9 RS232 COM, 1xSD card reader make widespread applications such as factory, office, school, bank, supermarket, service
center, hospital, POS, HTPC, CCTV, etc.
1. Fanless solid-built aluminum design for passive heat dissipation, no fan noise, compact dimension 170*126*53mm;
2. On-board with Intel Core 10th/8th Gen processors, enough performance for your every day computing needs, it's one high
cost-effective mini PC;
3. Support Win11/10, Linux, Ubuntu OS, and more;
4. Dual SODIMM DDR4 slots, max support 2x 32GB DDR4 memory 2666/2400/2133MHz;
5. Support two hard disk, one M.2 NVME/SATA SSD and one 2.5 inch HDD/SSD;
6. Support HD-MI, DP, Type-C triple 4K@60Hz Display;
7. Support 2*Realtek 8111F Gigabit ethernet+Dual-band 2.4G/5.0G AC(AX) WiFi/BT;
8. Low power consumption TDP only 15W, energy-saving up to 90% compare to traditional desktop computers;
9. Extensive connectivity,4*USB 3.0, 2*USB 2.0, 1*Type-C, 1*SPK, 1*MIC;
10. 1xDB9 RS232 COM, 1xSD card reader make widespread applications such as factory, office, school, bank, supermarket, service
center, hospital, POS, HTPC, CCTV, etc.
Specification
Basic Information: | ||
CPU | Inte-l Core i5-10210U/Inte-l i7-10510U/Inte-l Core i5-8265U/Inte-l i7-8565U | |
CPU install Method | FCBGA1528 | |
TDP | 15W | |
Code Name | Inte-l Comet Lake/Whiskey Lake | |
Chipset | Inte-l 300/400 series PCH | |
Memory | 2 x DDR4 SODIMM Slot, up to 64GB | |
OS | Win11/10/Linux/Ubuntu etc | |
PXE | Yes | |
Audio | Azalia Codec support 2.1 channel output High Definition Audio Controller | |
Network | 2xRTL8111 PCI-E Gigabit Ethernet NIC 10/100/1000 BaseT LAN | |
Video | Inte-l® UHD Graphics 620 | |

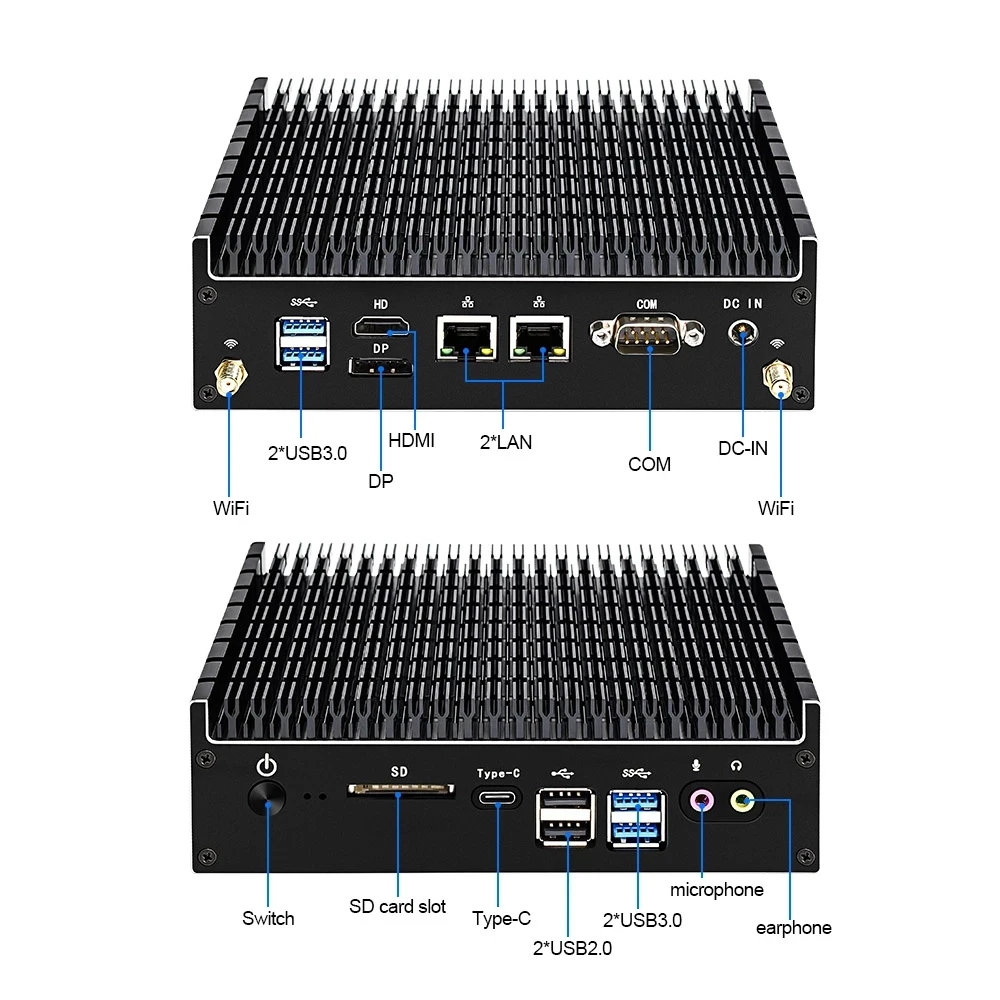

Input/output port | ||
Switch | 1 x Power On/Off Switch | |
Power | 1 x 19V DC In | |
USB | 4 x USB3.0, 2 x USB2.0 | |
USB-C | 1 x Type-C USB3.1 | |
Display | 1 x DP, 1 x HDMI, 1 x Type-C | |
LAN | 2 x RJ45 Giga LAN | |
Audio | 1 x MIC, 1 x SPK | |
Others | 1 x SD card slot, 2 x LED | |

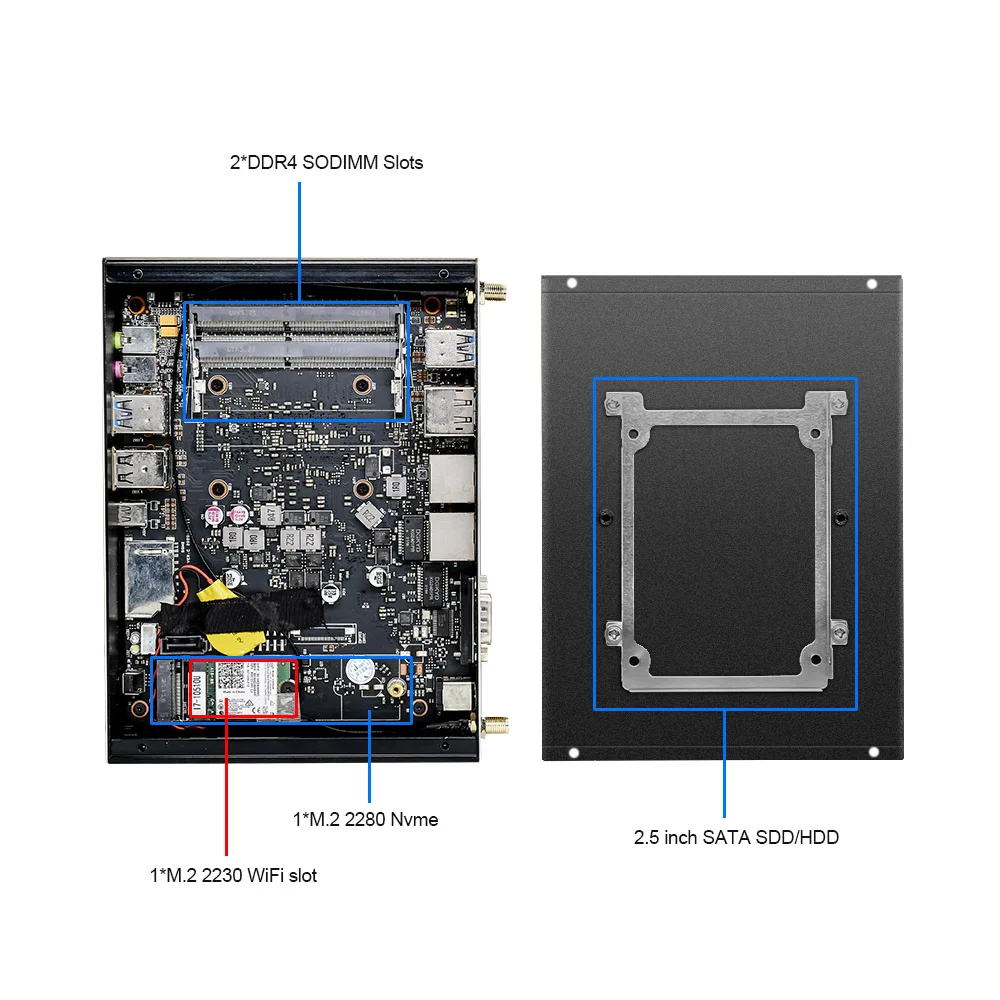

Storage | ||
M.2 | 1 x M.2 22*80 SSD for NVMe/SATA3.0 | |
SATA | 1 x SATA3.0 slot for 7.0mm SATA HDD/SSD | |
Wi-Fi | ||
Module | 1 x M.2 NGFF 2230 slot for Wi-Fi module | |
Antenna | 2 x inner RF cable | |
Power and Working Environment | ||
Input | DC100-240V AC/50-60Hz | |
Output | DC +12V~+19V, recommend 19V/3~5A | |
Operating Temperature | 0/70 Centigrade | |
Storage Temperature | -20/+80 Centigrade | |
Relative Humidity | 0%~90% (non-condensing) | |
Product Dimension & Details | ||
Size | 170*126*53mm | |
Weight | Net 1kg, Gross 1.8kg | |
Shell | Brushed Black color aluminum alloy | |
Cooling Mode | Passive Fanless | |
Functions | Support PXE, Auto Power ON, RTC etc | |
Package Content | ||
Standard | 1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag | |
FAQ
Q1. Can you provide OEM/ODM service? How much do I need to pay for your OEM service?
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support . And we could print your logo on the pc for free !
Pls contact me for logo printing ;)
Q3. What is the Minimum Order Quantity (MOQ)?
Re: We can sell one piece sample for your test.
Q4. What is the lead time of your products?
Re: Sample order within 3-7 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model
to insure the quality before shipping.
Q5. How will you deliver my goods to me?
Re: We ship by air generally. In the meantime, we cooperate with international expresses such as DHL, UPS, FedEx, and TNT to
enable our customers to get their goods rapidly.
Q6.What's the warranty?
Re: 3 year warranty ! After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories)
Re: Yes we can. The charges for OEM service depends on the different level of customize. the process of customization is
following:
1) provide your specific requirement.
2) our design engineer draw the design draft.
3) you confirm the design draft.
4) we start produce it.
Q2. Can you print my logo on the mini computer ?
Re: Yes, it is support . And we could print your logo on the pc for free !
Pls contact me for logo printing ;)
Q3. What is the Minimum Order Quantity (MOQ)?
Re: We can sell one piece sample for your test.
Q4. What is the lead time of your products?
Re: Sample order within 3-7 business days . Bulk order within 3~15 business days ( depends on order qty) ,we will test the model
to insure the quality before shipping.
Q5. How will you deliver my goods to me?
Re: We ship by air generally. In the meantime, we cooperate with international expresses such as DHL, UPS, FedEx, and TNT to
enable our customers to get their goods rapidly.
Q6.What's the warranty?
Re: 3 year warranty ! After expired warranty and sent back to our company, we will still try our best to repair for you without
repair cost (except change new accessories)
