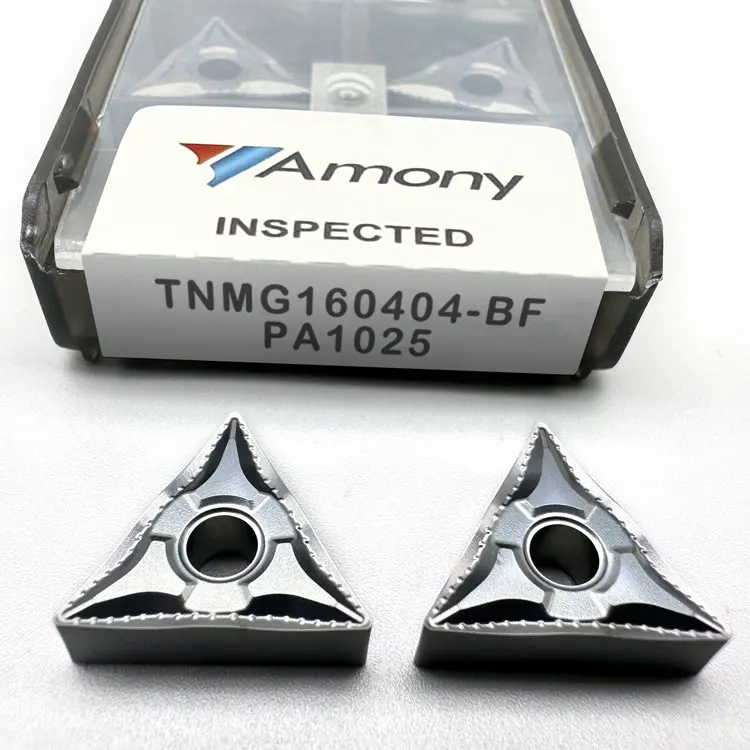

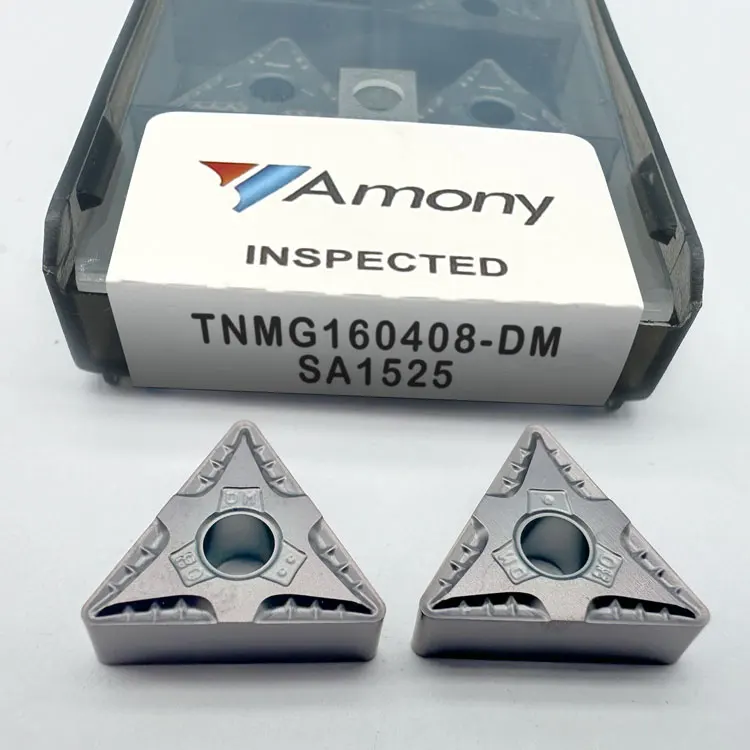

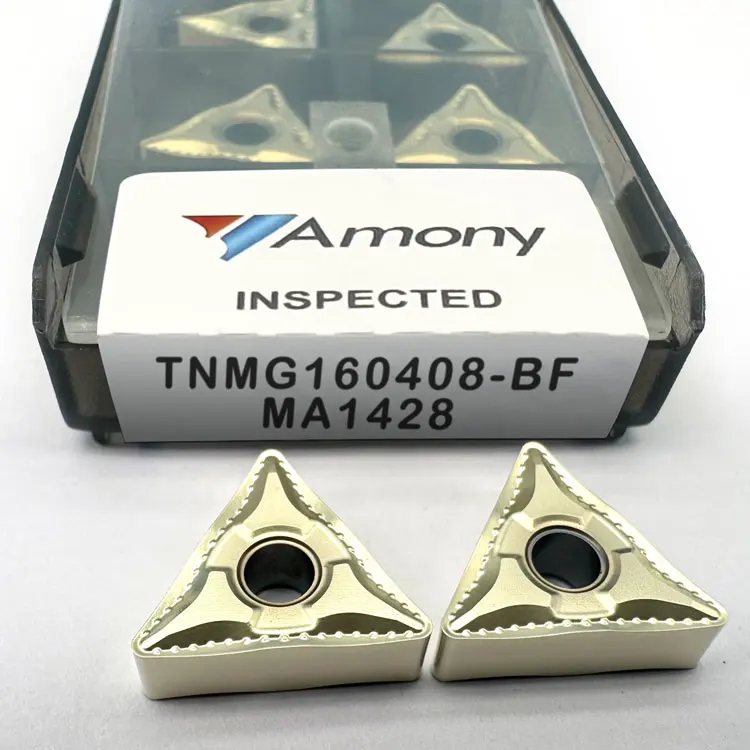

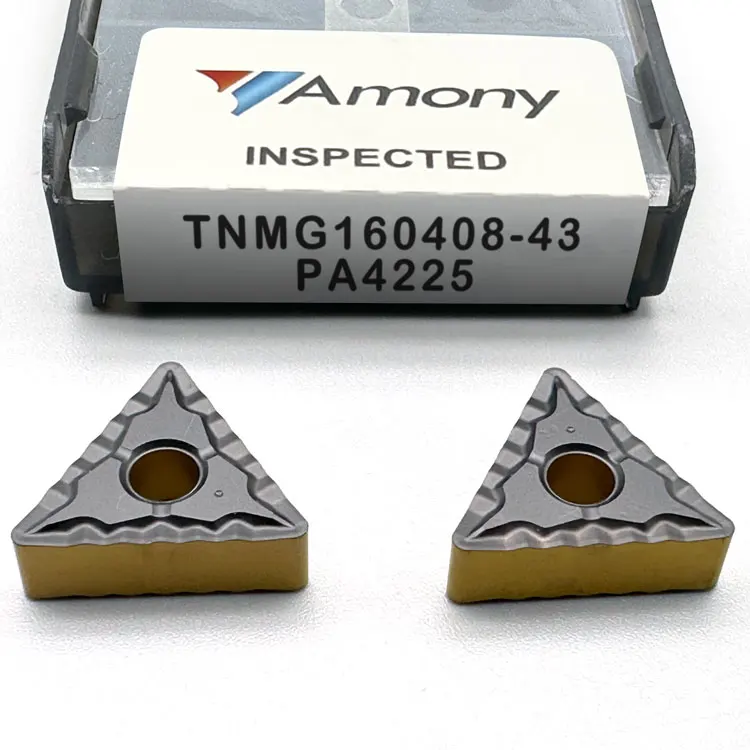

Tungsten Carbide Turn Cnc Insert TNMG 160408 MF
- Category: >>>
- Supplier: Dongguan Harmonie Cutting Tools Co. ltd.
Share on (1600437983418):
Product Overview
Description
Product Overview

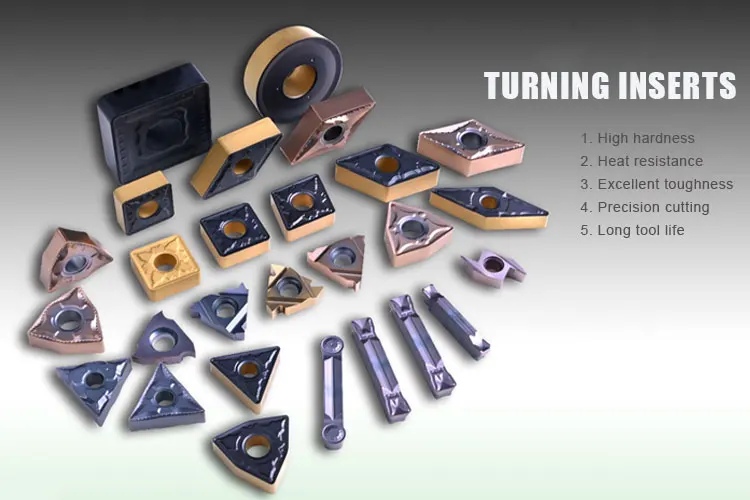

Carbide Turning CNC Inserts
Amony applys avariety of international leading coating processes and world-class qualitycontrol system to ensure the same quality of each insert, providecustomers with high-quality CNC Inserts and improve the productionefficiency of users, and fully meet the market's high requirements forproduct quality.
PRODUCT SPECIFICATIONS
Product Name | Carbide CNC Inserts TNMG Sries |
Brand | Amony |
Place of Origin | CHINA |
Workpiece | Steel/Stainless steel/IRON |
Usage | TurningTool |
MOQ | 10 Pieces |
Delivery Time | sample order 1-3 days, big order 3-15 days |

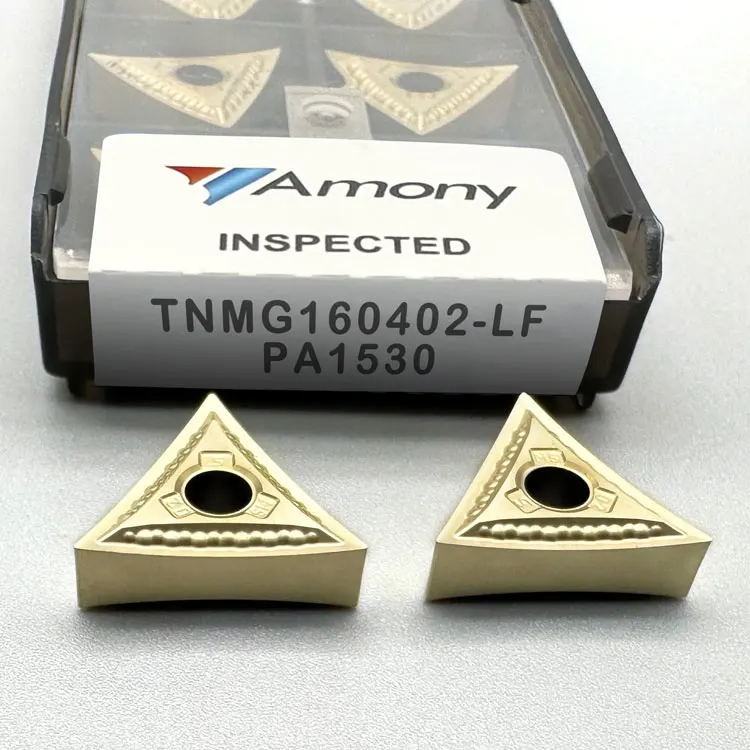

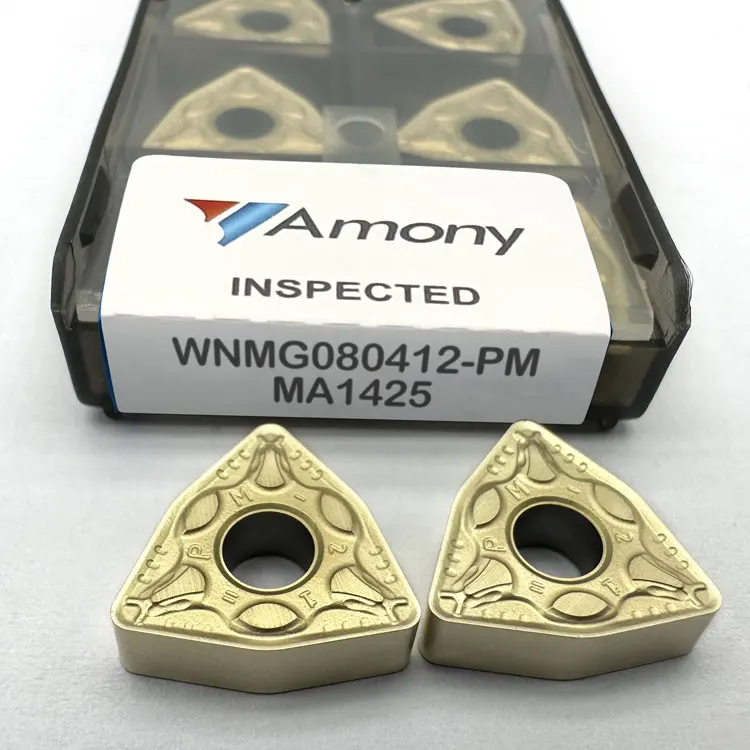

Details Images
Inserts Grade Information:
ISO | Application | Grade |
P | Steel | PA4125/PA4225/PA4235/PA1015/PA5130 |
M | Stainless steel | MA1820/MA1525/MA1425/MA1428 |
K | Cast iron | KA3020/KA3040/KA3115/KA3415 |
S | Superalloy | SA1010/SA1020/SA1525/SA1610 |
P M | Steel/Stainless steel | PA1005/PA1825/PA1526 |
P M K | Steel/Stainless steel/Cast iron | PA1025/PA63 |
P K | Steel/Cast iron | Ceramics: PA10/PA20/PA45/PA55 |
Cases

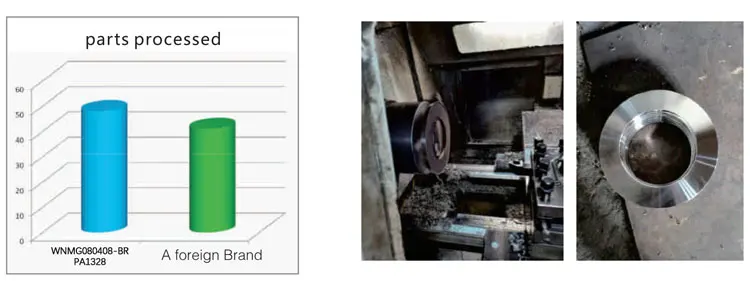

Stainless Steel Processing
Workpiece material: stainless steel sUS304
Workpiece: Flange
Cooling type: Fluid cooling
Original blade: A foreign brand
Amony insert: WNMG080408-BR/PA1328
Cutting parameter: Vc:153m/min，F:0.2mm/r , Ap:1 -2mm
Conclusion: Used for boring, uneven cutting allowance, our inserts processed 48 pieces, a foreign brandprocessed 41 pieces, tool life increased by 17%, and has the advantage of cost performance.
Workpiece: Flange
Cooling type: Fluid cooling
Original blade: A foreign brand
Amony insert: WNMG080408-BR/PA1328
Cutting parameter: Vc:153m/min，F:0.2mm/r , Ap:1 -2mm
Conclusion: Used for boring, uneven cutting allowance, our inserts processed 48 pieces, a foreign brandprocessed 41 pieces, tool life increased by 17%, and has the advantage of cost performance.

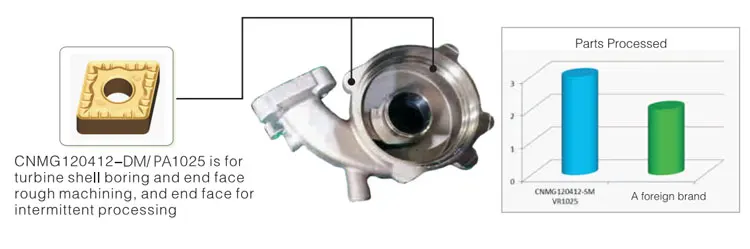

Steel Processing
Workpiece material: heat-resisting steels 1.4837
Workpiece: Turbine shell
Cooling type: Compressed Air
Original blade: A foreign brand
Amony insert: CNMG120412-DM/PA1025
Cutting parameter: Boring: Vc:111m/min f: 0.18 mm/r Ap: 1,75mm
End face: Vc: 120m/min f:0.15mm/r Ap: 1.3mm
Service life: 3 pieces/edge
Conclusion: Used for turbine shell boring and end face rough machining, and end face for intert mittent processing, our inserts can process 3 pieces, a foreign brand processed 2 pieces, and successfully replaced
Product Packaging

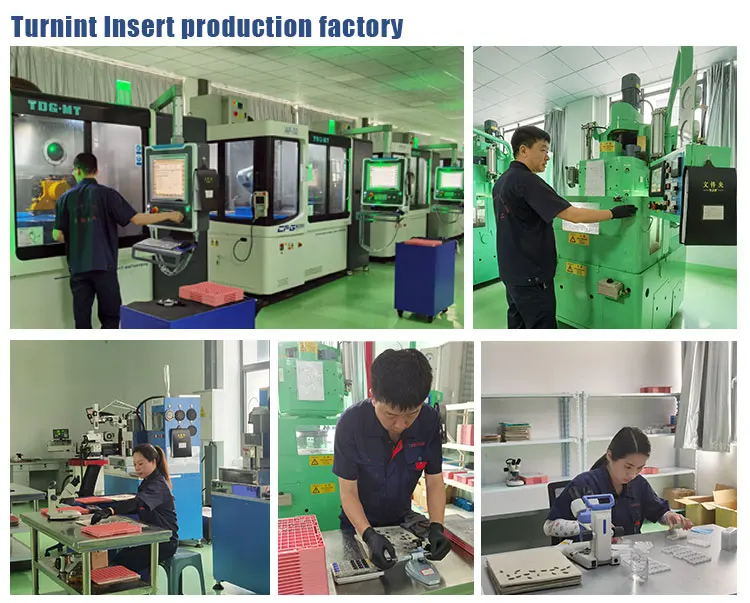

Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: Why is the shipping cost displayed as so expensive after placing an order?
A: Because on the Alibaba platform, a product page can only set the weight for one product specification. However, different product specifications have varying weights, which can lead to the platform displaying shipping costs that are either too high or too low.
A: We are factory.
Q: Why is the shipping cost displayed as so expensive after placing an order?
A: Because on the Alibaba platform, a product page can only set the weight for one product specification. However, different product specifications have varying weights, which can lead to the platform displaying shipping costs that are either too high or too low.
Please inform us of your detailed specifications before placing an order, and we will calculate the accurate shipping
cost based on the actual weight.
Q: Are sample avaliable?
A: Yes, you can ask some samples for testing after confirming our prices, but pls pay the sample and freight fee, the sample fee will be returned to you after you making official order.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15 days
if the goods are not in stock, it is according to quantity.
cost based on the actual weight.
Q: Are sample avaliable?
A: Yes, you can ask some samples for testing after confirming our prices, but pls pay the sample and freight fee, the sample fee will be returned to you after you making official order.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15 days
if the goods are not in stock, it is according to quantity.
