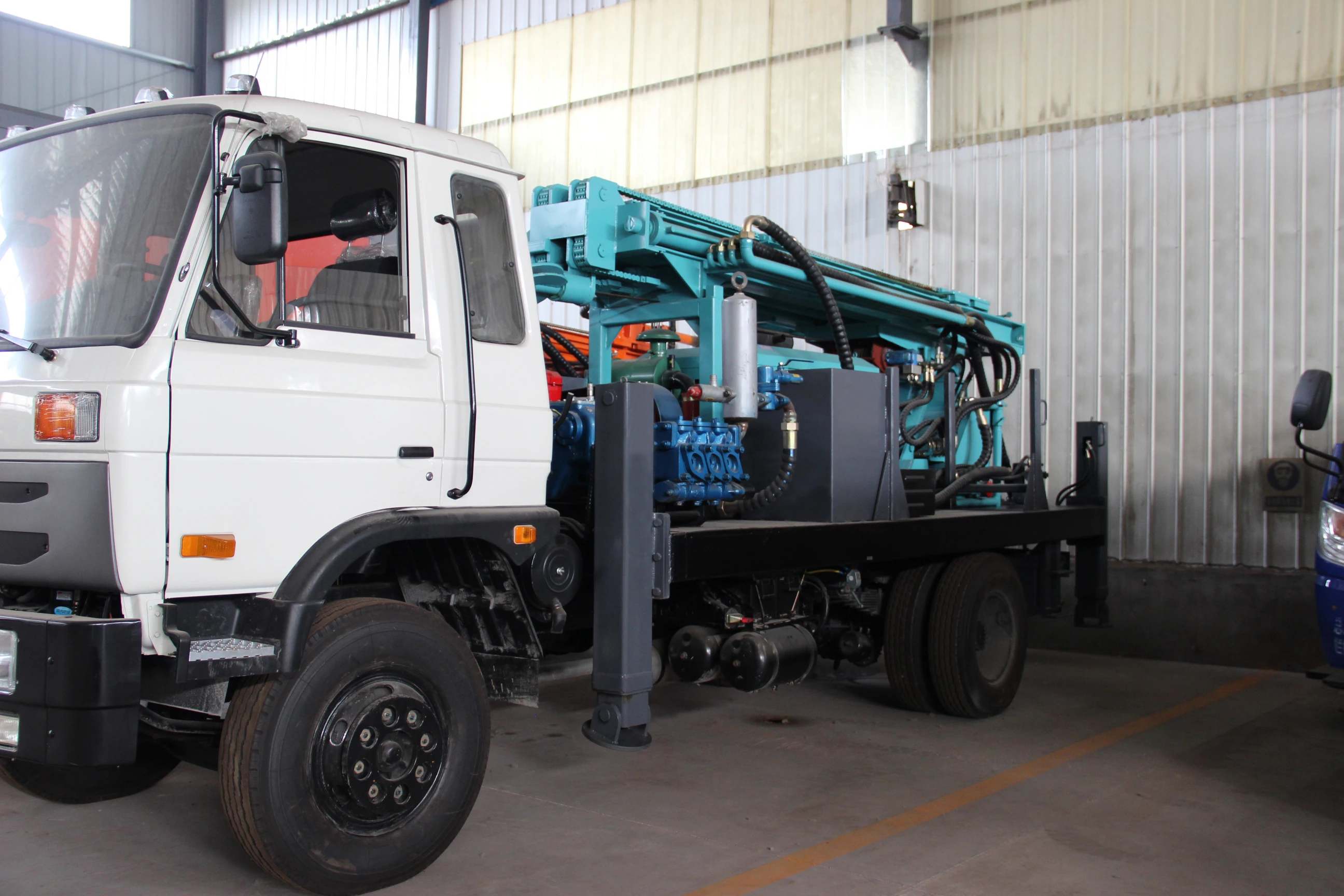

STARS NEW DESIGN camion forage Vehicle Price With Air Compressor Hydraulic Trailer Tractor Truck Mounted Water Well Drilling Rig
- Category: >>>
- Supplier: Zhejiang Stars Energy Saving Technology Co. Ltd.
Share on (1600437984668):
Product Overview
Description
This is our best-selling product, if you want to know their information.

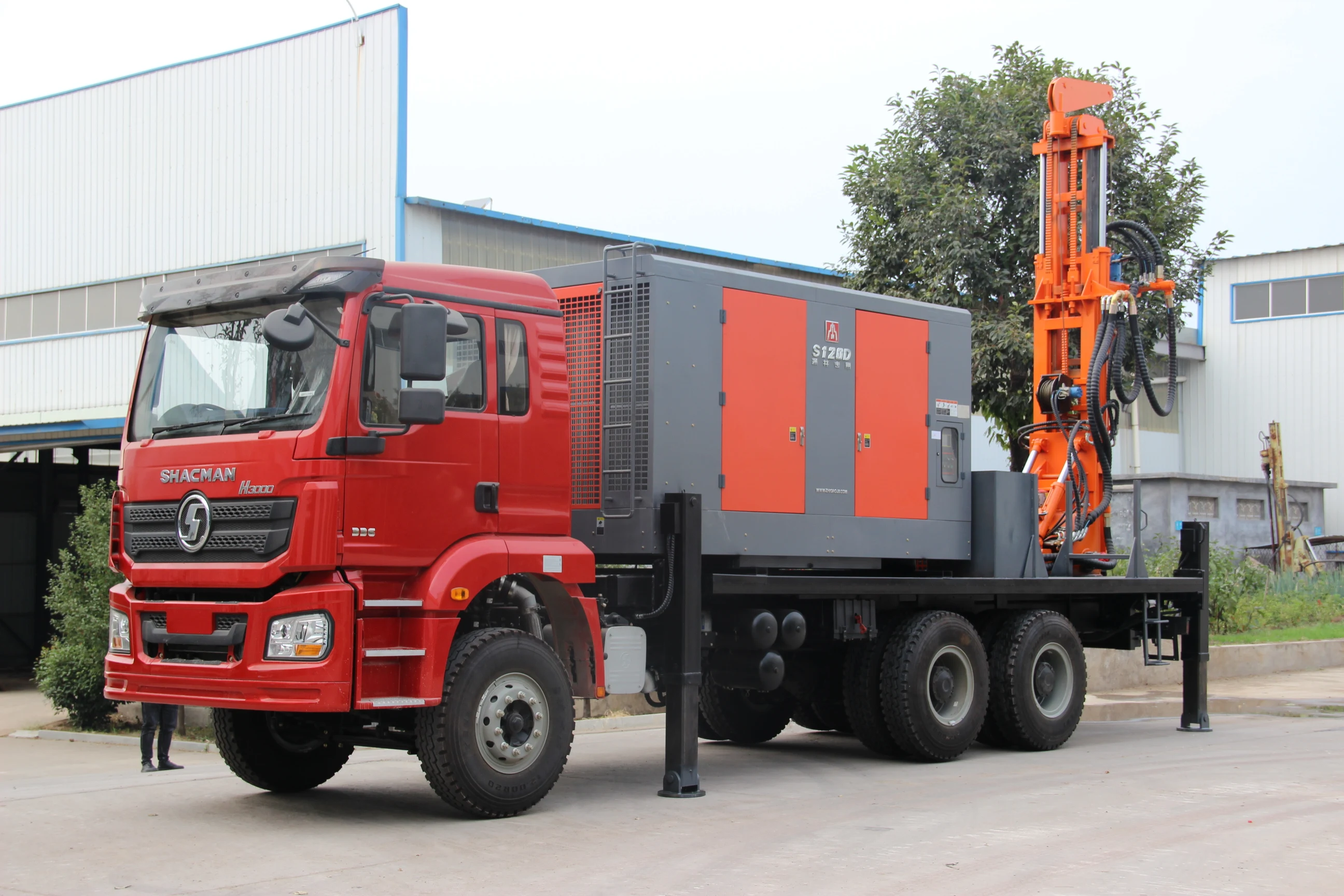

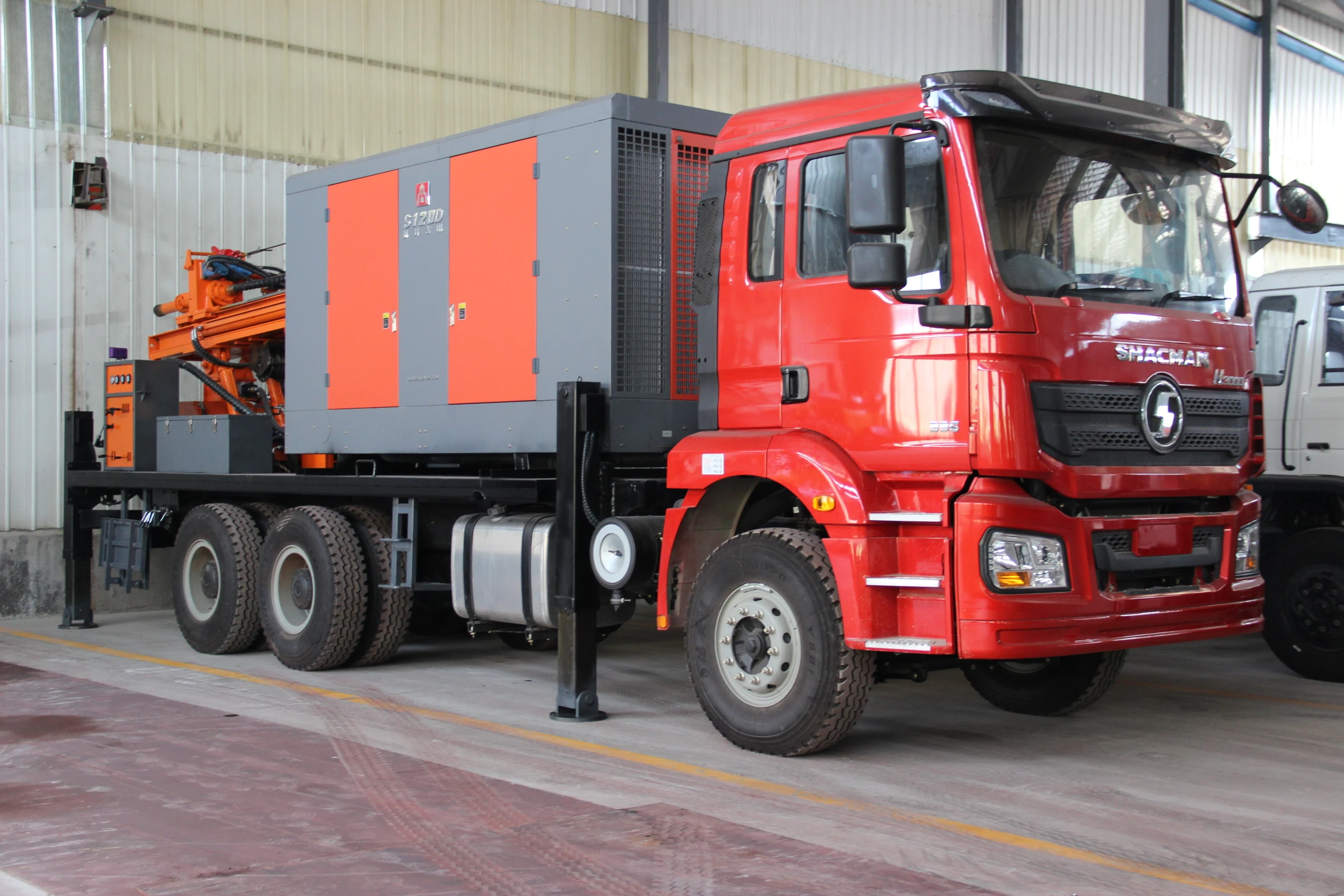

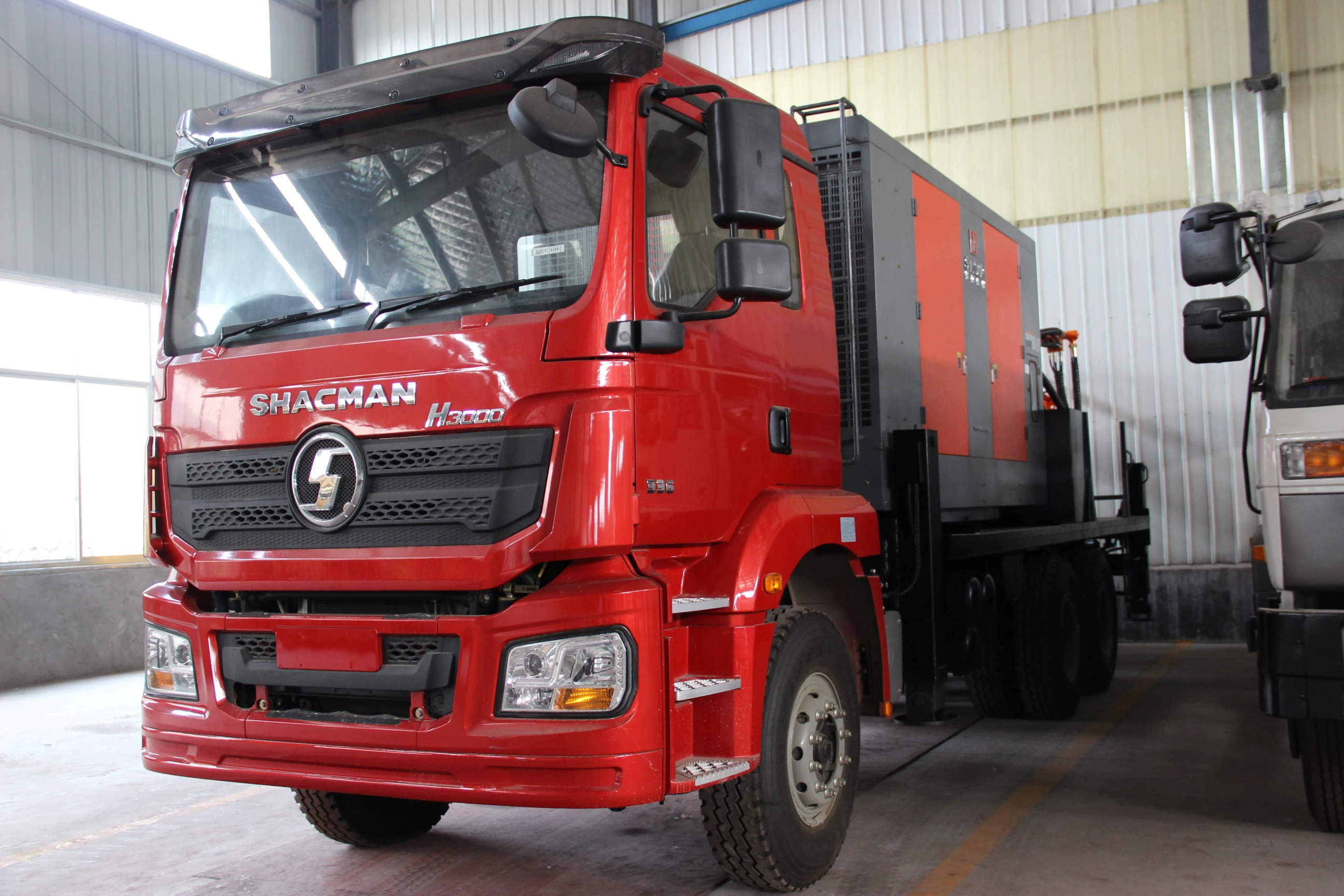

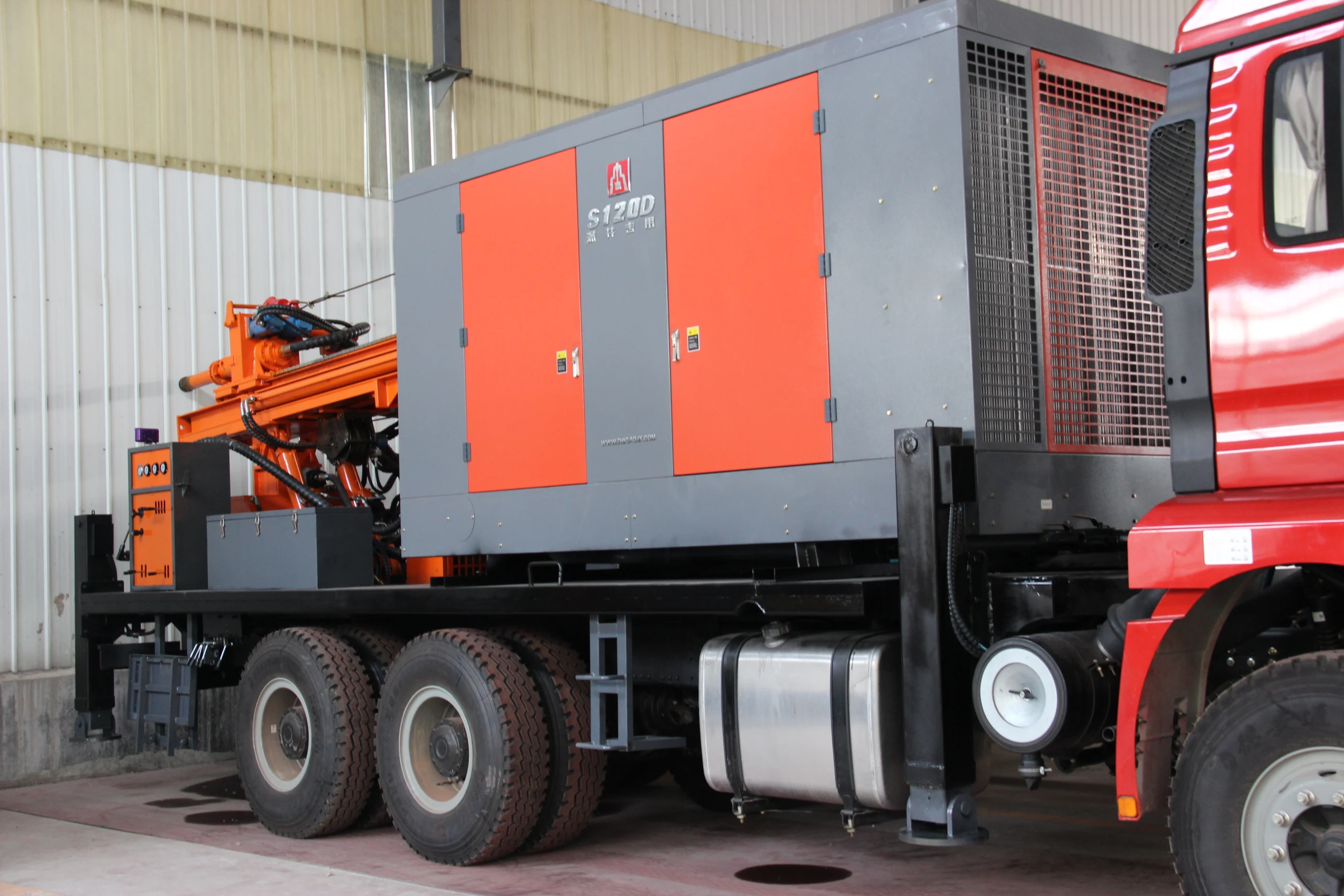

STARS NEW DESIGN Camion forage Vehicle Price With Air Compressor Hydraulic Trailer Tractor Truck Mounted Water Well Drilling Rig
1. It improves drilling efficiency and reduces labor intensity With hydraulic automatic feeding mechanism.
2. It can be achievedwithout stopping to change rods, easy to operate, safe and reliable with ball clip holding mechanism orhydraulic chuck.
3. It hashole bottom pressure gauge to be easy to master the situation in the hole.
4. It also has advantage of Compact structure,concentrated handle, small footprint, light weight, strong decomposition, easy tomove. It can be operated in plains and mountainareas.
Model | KS180 |
The weight(T) | 4.5T |
The hole diameter(mm) | 140-254mm |
One-time advance length(m) | 180m |
Walking speed(Km/h) | 2.5km/h |
Climbing angles(Max) | 30 |
Equipped motor(Kw) | 55kw |
Air pressure(Mpa) | 1.7-2.5Mpa |
Drill pipe diameter(mm) | 76mm/89mm |
Drill pipe length(m) | 1.5m 2.0m 3.0m |
Rig lifting force(T) | 12 |
Swing speed(rpm) | 45-65 |
Swing torque(N.m) | 3200-4600 |
Dimension(mm) | 3800x1500x2200mm |
Details Images

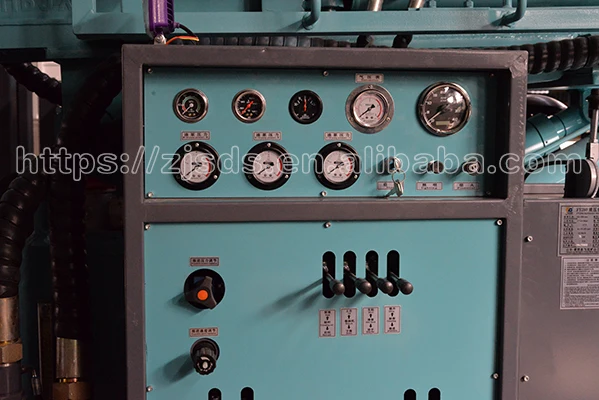

Console
The console is composed of a console frame, manual reversing valve, pressure reducing valve, speed regulating valve, oil pressure gauge, various pipelines, engine instruments, throttle cable, flameout cable, damper control, etc. All control functions are concentrated on the console, which is easy to operate, time-saving and labor-saving. The operator can stand on a foot pedal with sufficient area to operate.

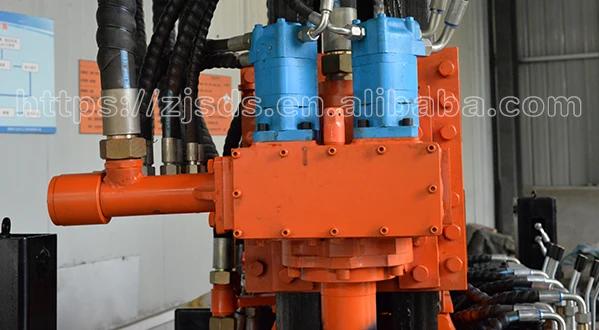

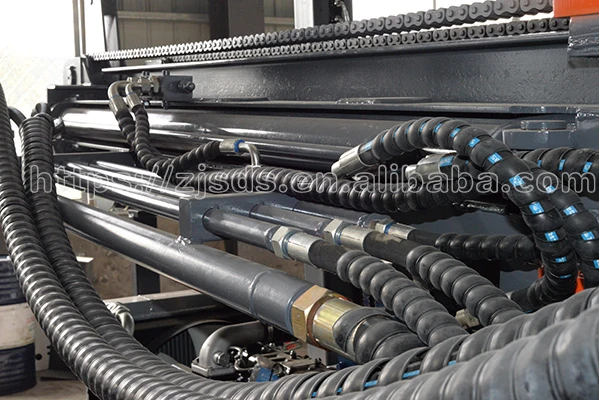

Promotion part

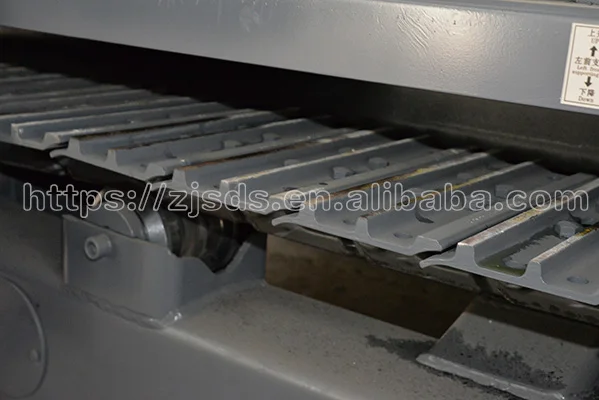

The propulsion part is composed of propulsion cylinder, chain, slide plate and so on. When the piston rod of the propulsion cylinder comes out and retracts, it drives the pulley block, and the slide plate slides up and down on the carriage through the chain. The resin slider structure is adopted on the skateboard, which effectively reduces the wear of the slideway. The axial pressure can be adjusted during deep hole drilling.

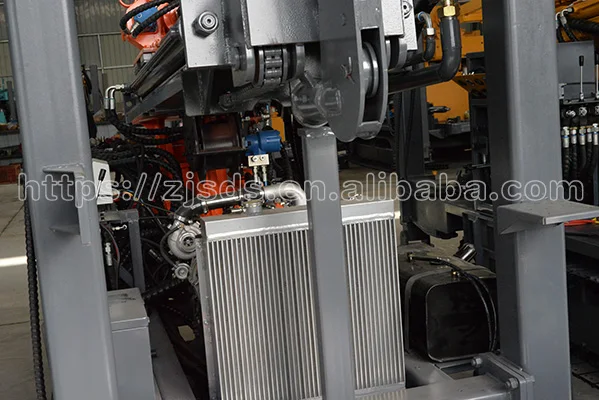

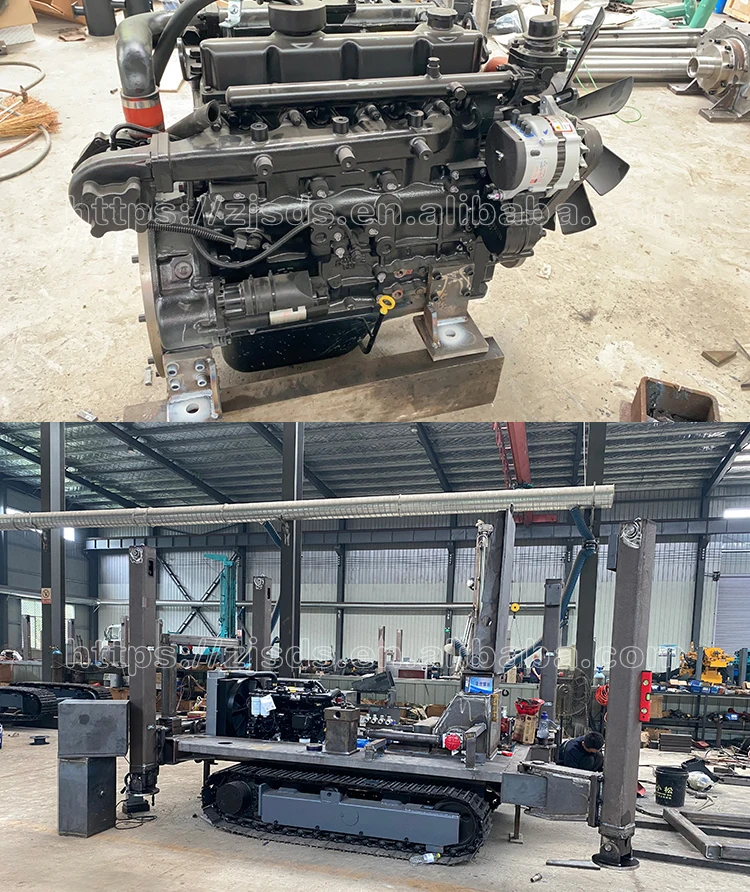

Power system
It is composed of engine, coupling, oil pump connecting plate, and air filter. The air filter is composed of three-stage air pre-filter and air fine filter. It can effectively protect the engine from normal use under severe working conditions.
Application
Related Products

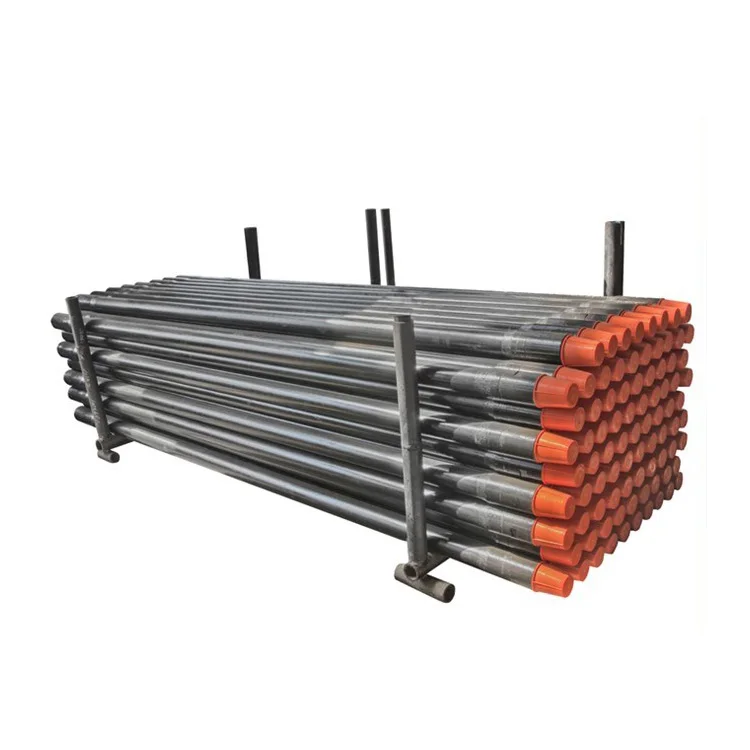

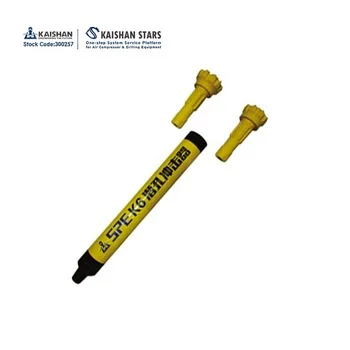

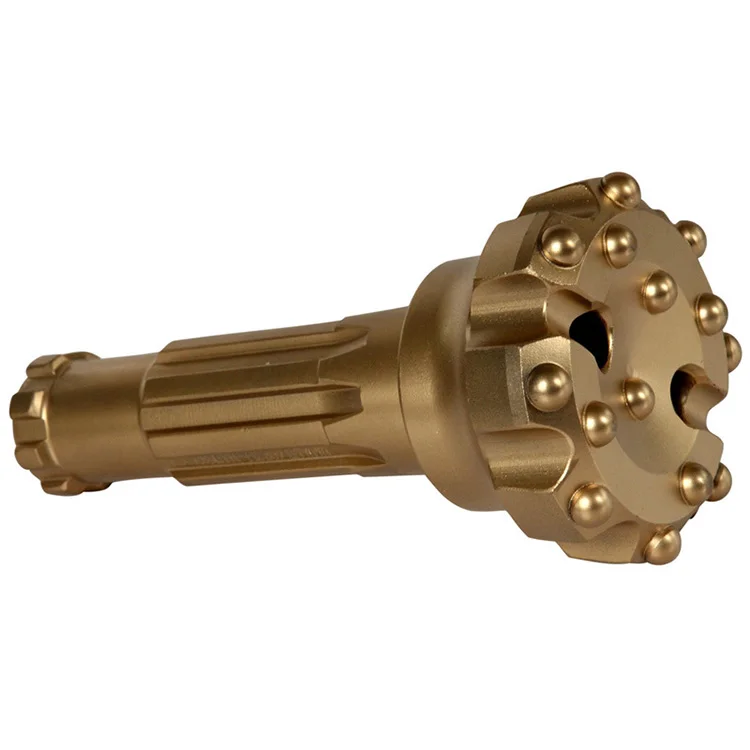

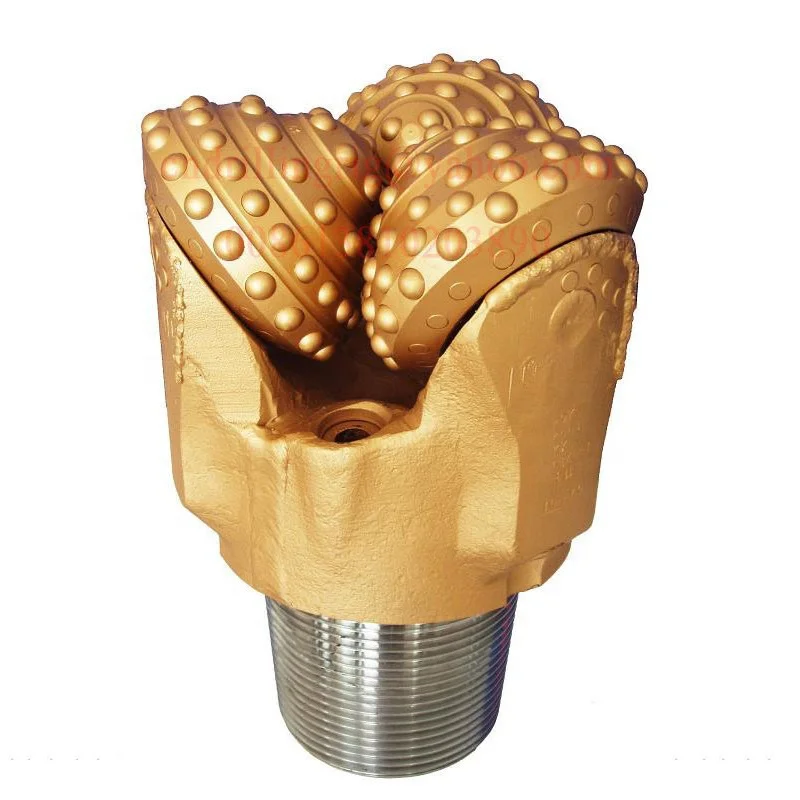

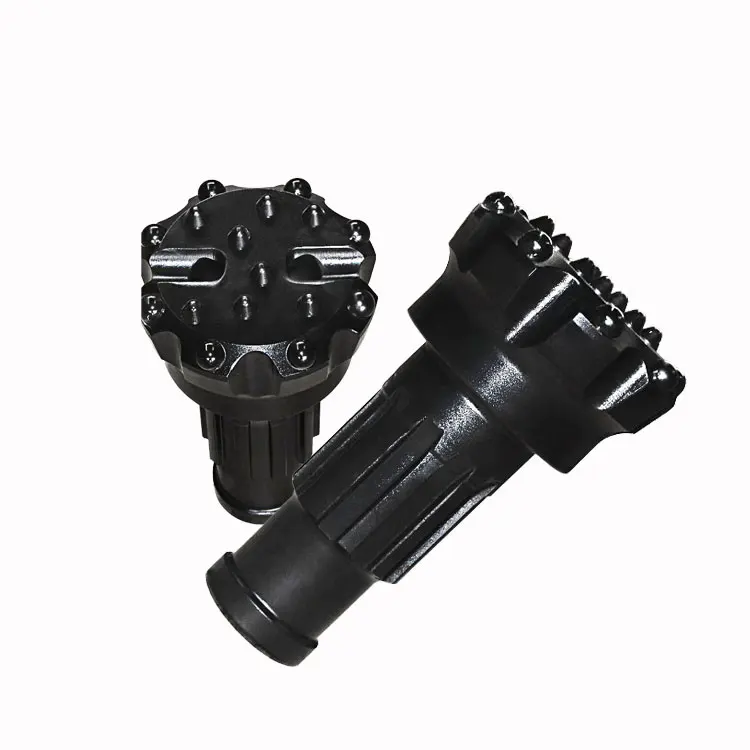

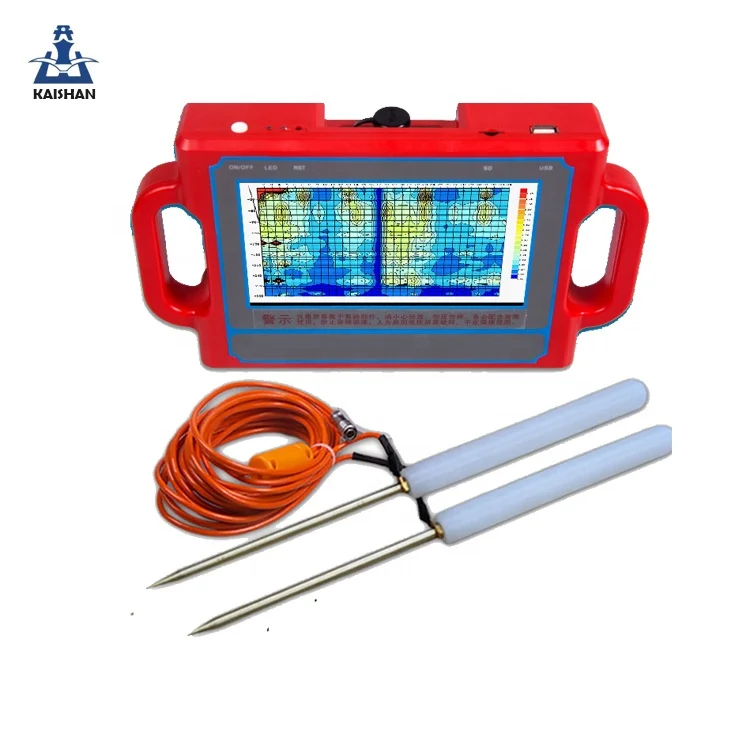

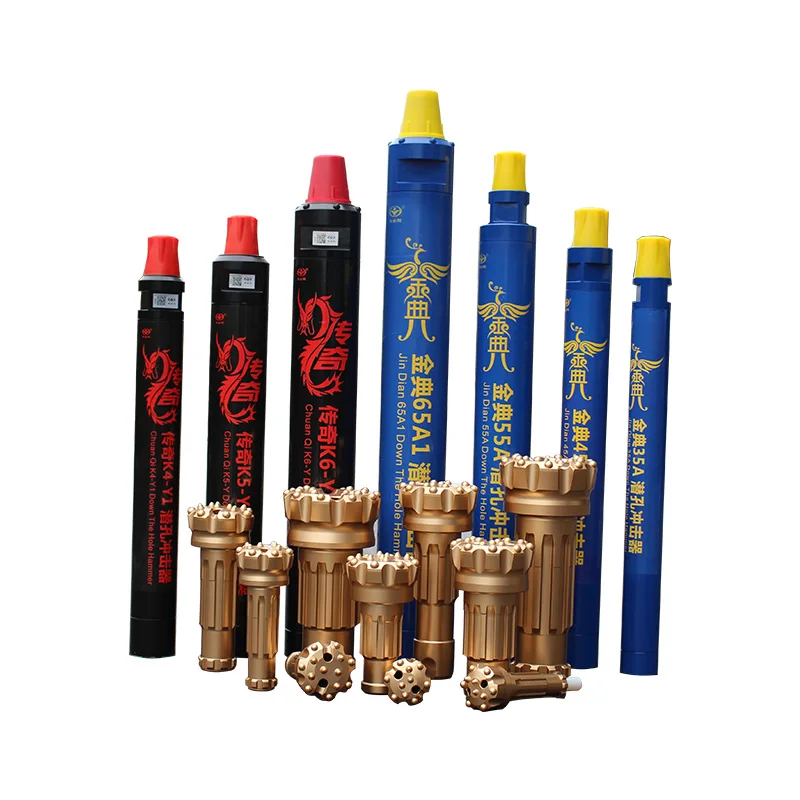

We also have your drilling rigs` related accessories——drilling bits, drilling rods, drilling pipe, Underwater detector and so on. Just send message to us to get the best price!

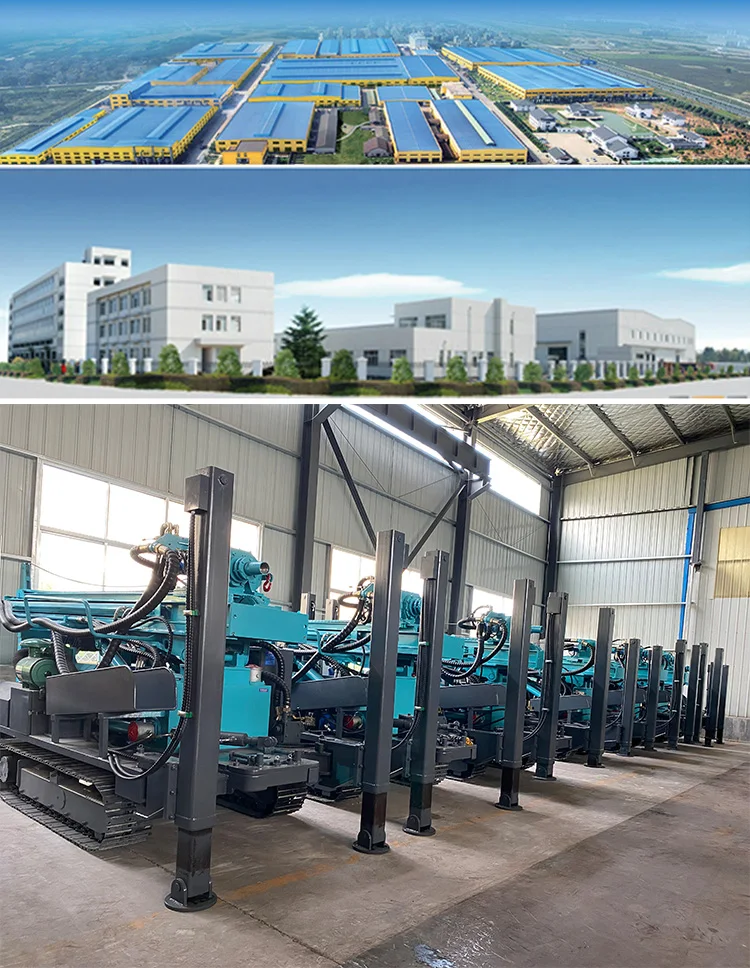

Why Choose Us
1. We are driiling rig in SiChuan for more than ten years, with a series of PASSED certificate, like CE,TUV,BV,ISO.
2. for Soils, we have hydraulic one for choice.for rocks, we have penumatic one for choice.also we have DTH drilling rig, big diameter drilling rigs, geological exploration drilling rig, engineering drilling rig for different working condition.
3. for hydrtaulic drilling rig, we have portable type, wheel type, crawler type for choice.
2. for Soils, we have hydraulic one for choice.for rocks, we have penumatic one for choice.also we have DTH drilling rig, big diameter drilling rigs, geological exploration drilling rig, engineering drilling rig for different working condition.
3. for hydrtaulic drilling rig, we have portable type, wheel type, crawler type for choice.

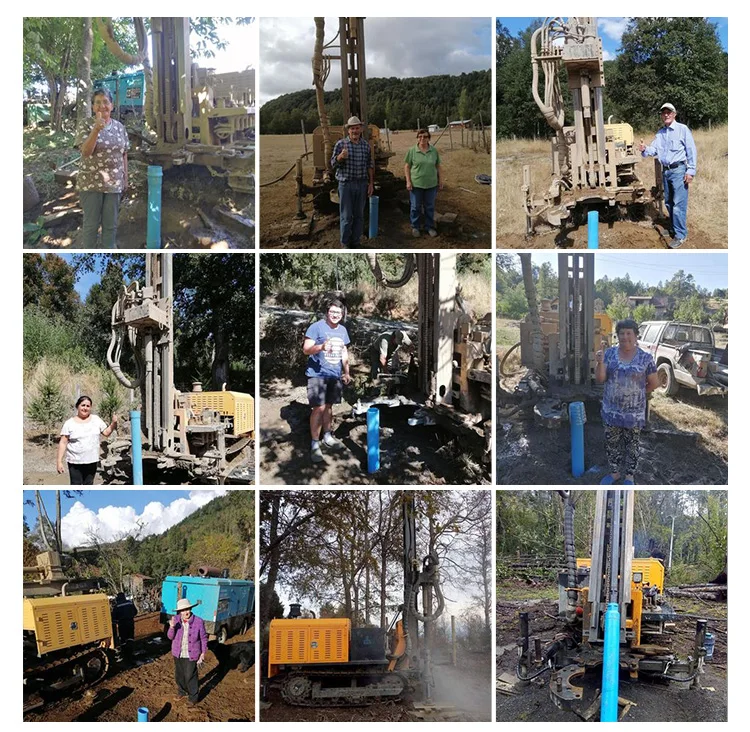

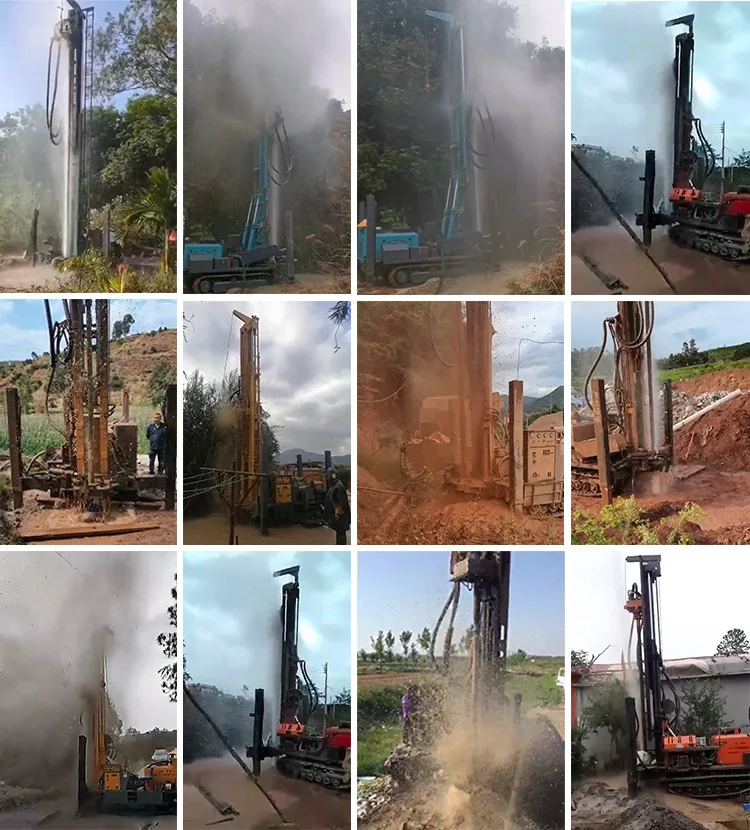

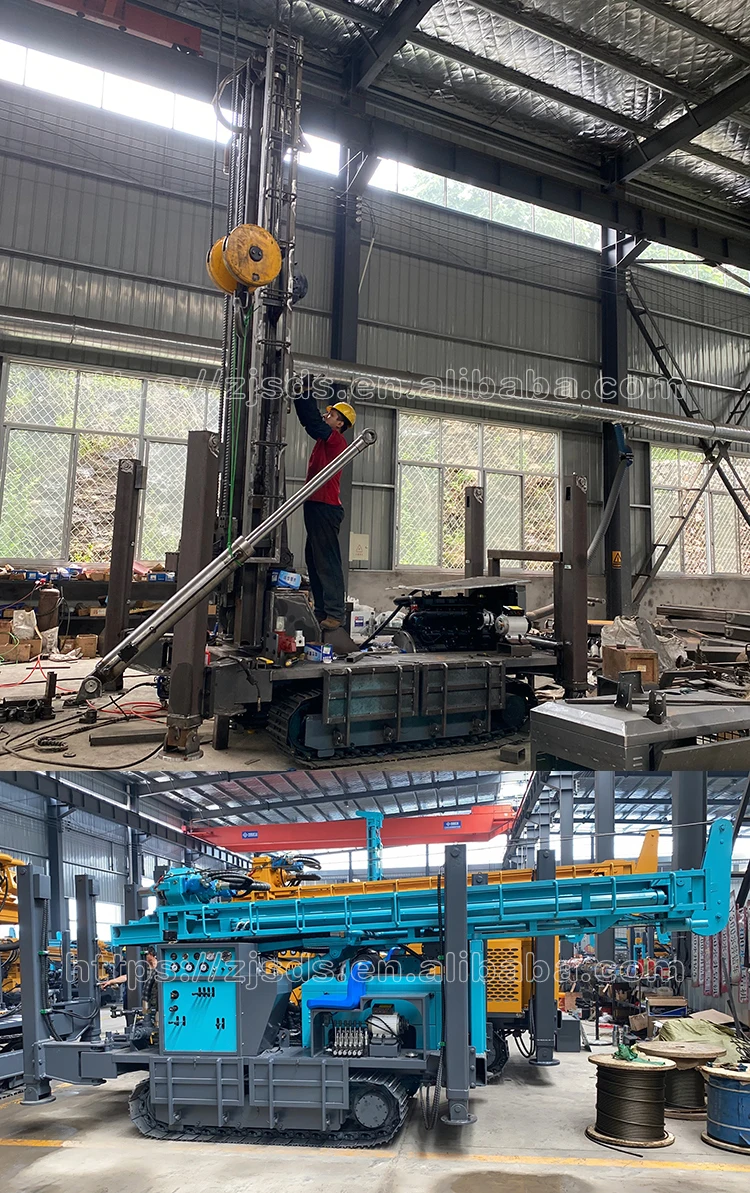

Customer Photos

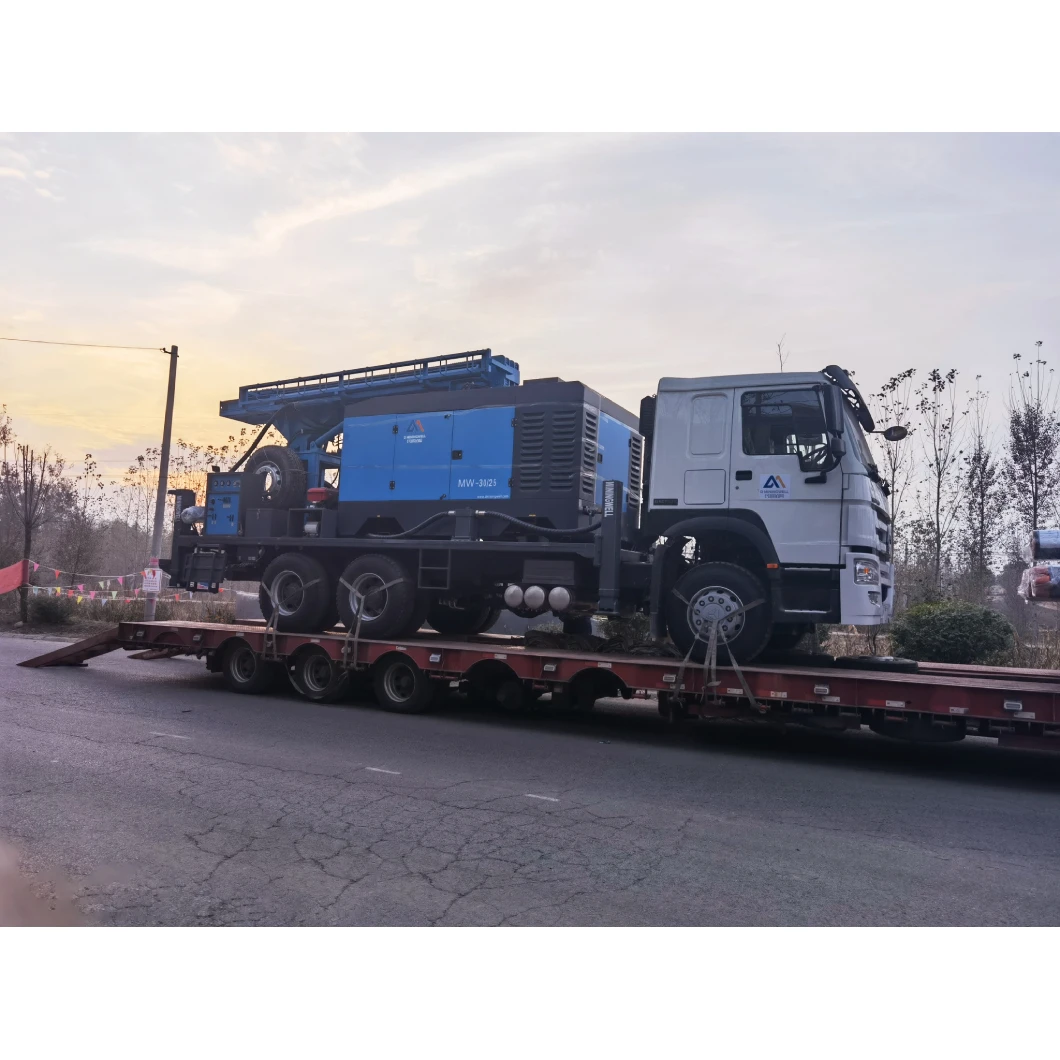

Packaging & Shipping
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
