Product Overview
Description
Product Description

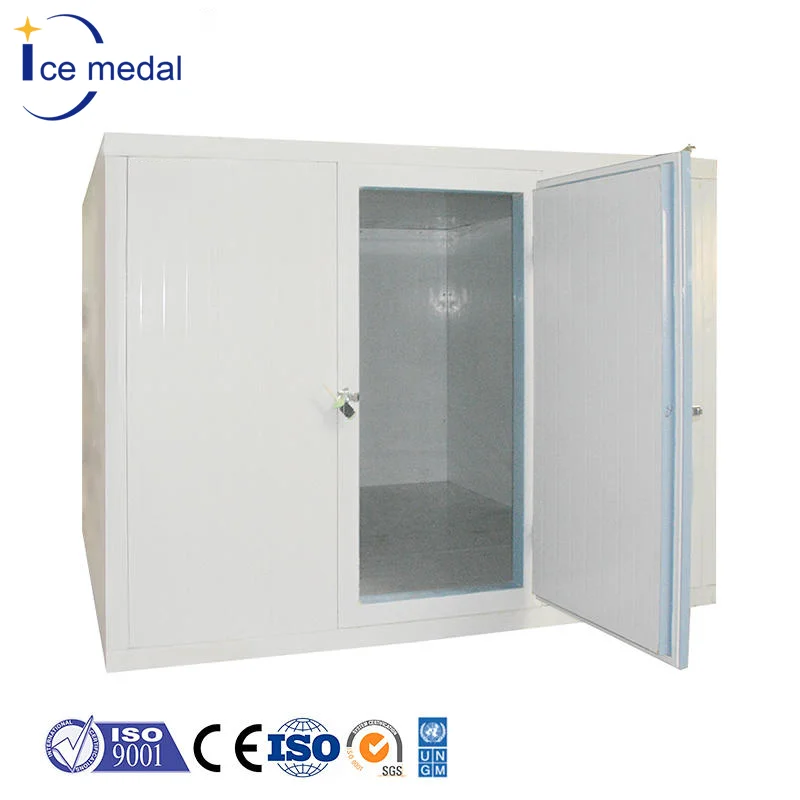

Customized walk-in freezer room/cold room for ice cream storage
1. Our cold room/freezer room specification:
1. Temperature range: -60°C to +20°C (-60°F to +68°F) are all available.
2. Size: customize.
3. Functions: fresh-keeping, freezing, quick-freezing, fire-proof, explosion-proof, air-conditioning are all available.
4. Full automatic control system.
5. Easy to install and dismantle.
6. Temperature Alarm.
7. Control box: Digital indicator.
8. PLC electric control ( SIMENS)
9. Insulation material: Polyurethane (PU).
10. Type of door: Sliding door/Swing door.
11. Size of door: as your demand.
12. Cooling way: air cooling, water cooling.
13. Refrigeration unit: Copeland, Bitzer, Hitachi, Franscold and others.
14. Auxiliary material: Domestic and import.
15. Local power supply: 380V or 220V, Single phase or triphase, 50Hz or 60Hz.

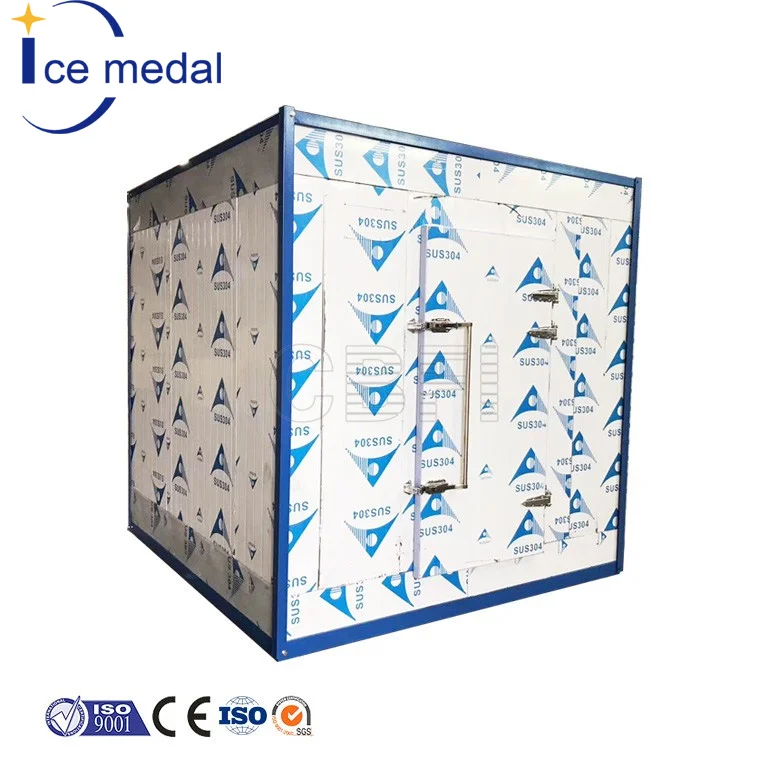

2. Detailed Images:
Product Parameters
Cold room parameter:
| Thickness | Suitable temperature |
| 50mm | 5 degree or above |
| 70mm | -5 degree or above |
| 100mm | -28 degree or above |
| 150mm | -35 degree or above |
| 200mm | -45 degree or above |
The polyurethane cold panel is process by mold high pressure foam ,with a certain standard size,the width of the cold panel regards 295.3 as the modulus, the length of the cold panel not more than 12 meters, non-standard sizes can be customized ,the price is extra.
All panels are made tongue and groove edges and are locked together with cam lock fasteners, which can be unscrewed easily with a hexagon.
Varieth panel for optioanl:
A.embossed aluminum plate
B.Stainless steel plate
C.Color zinc plate
D.The monitoring of the steel plate
E.Galvanized sheet

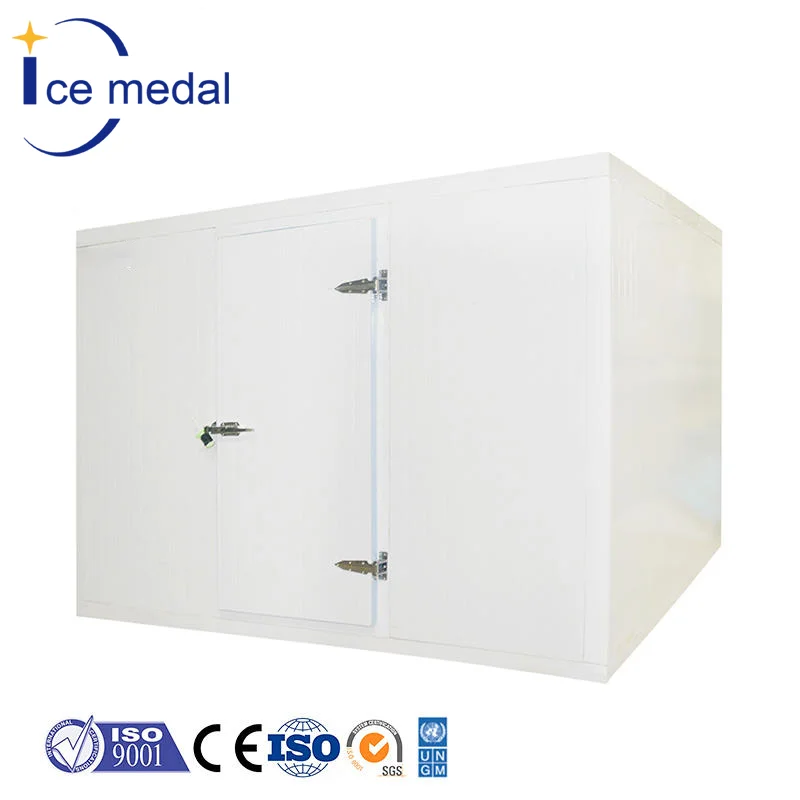

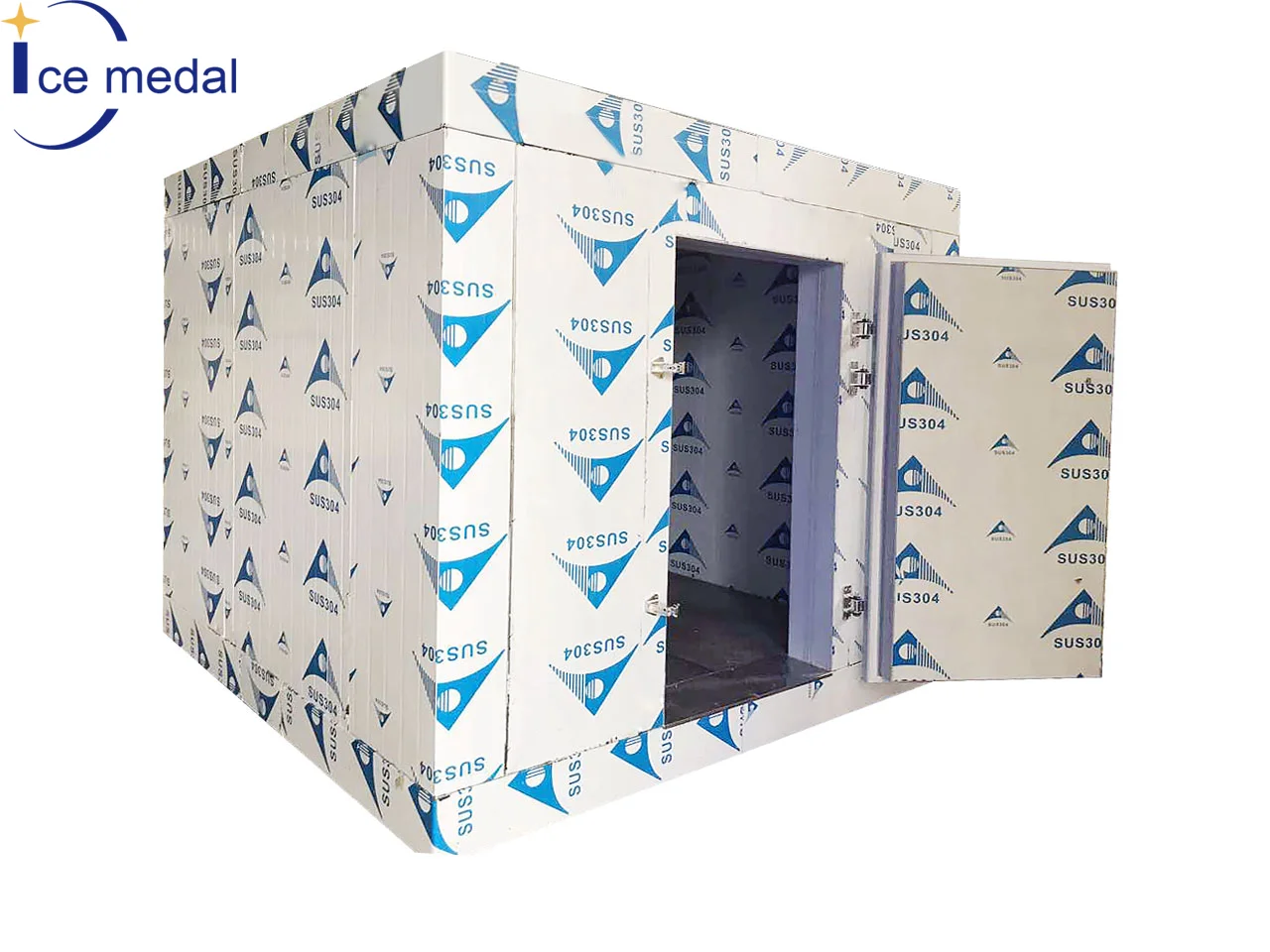

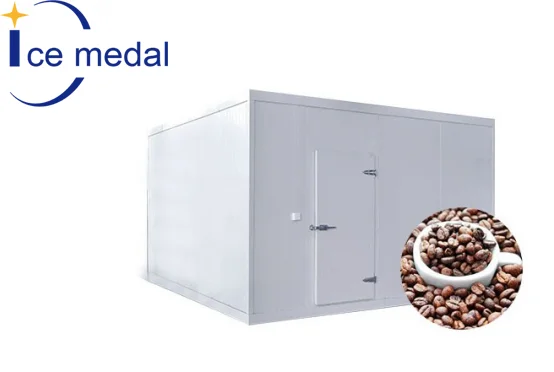

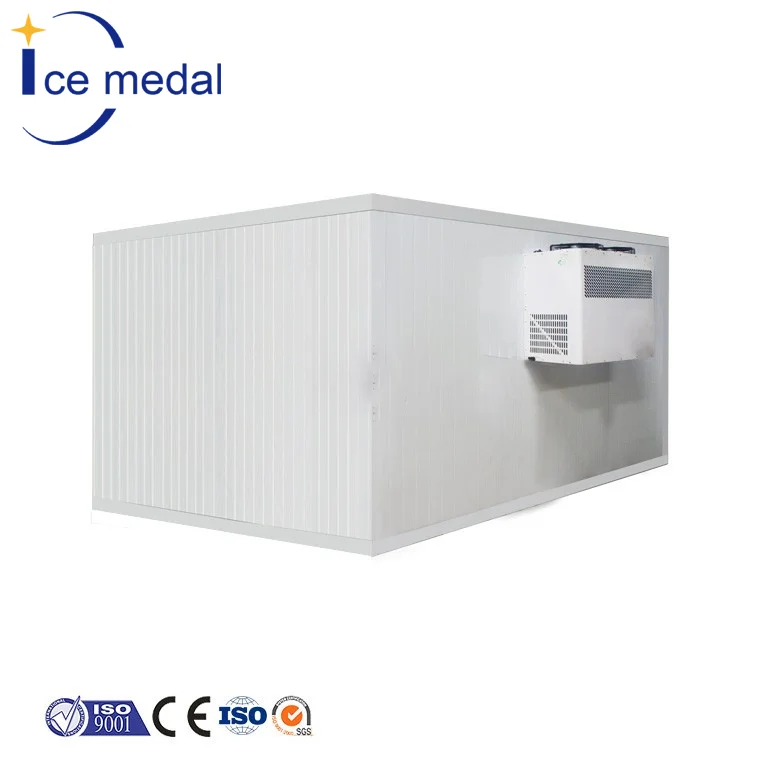

Product Picture
Company Information

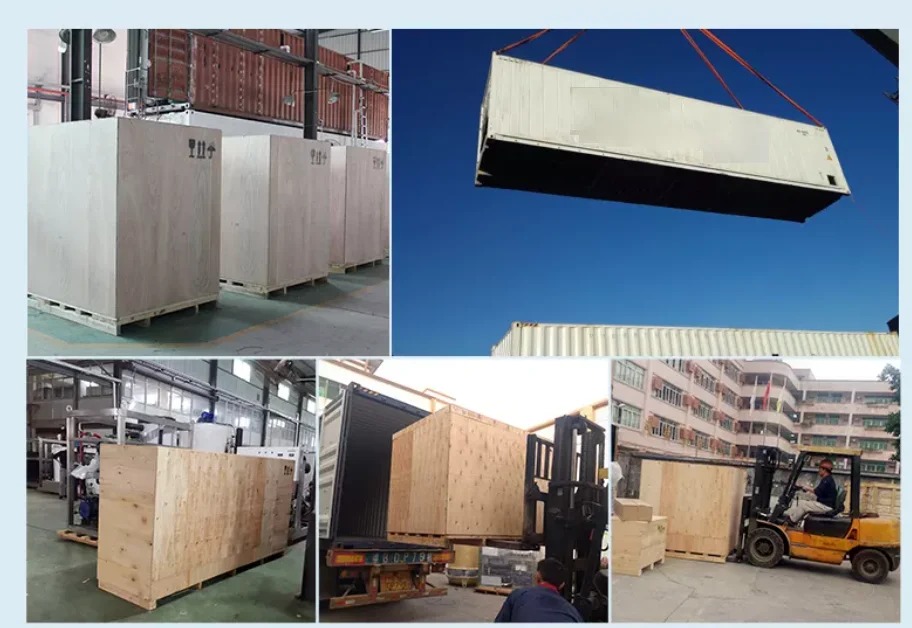

Packaging & Shipping

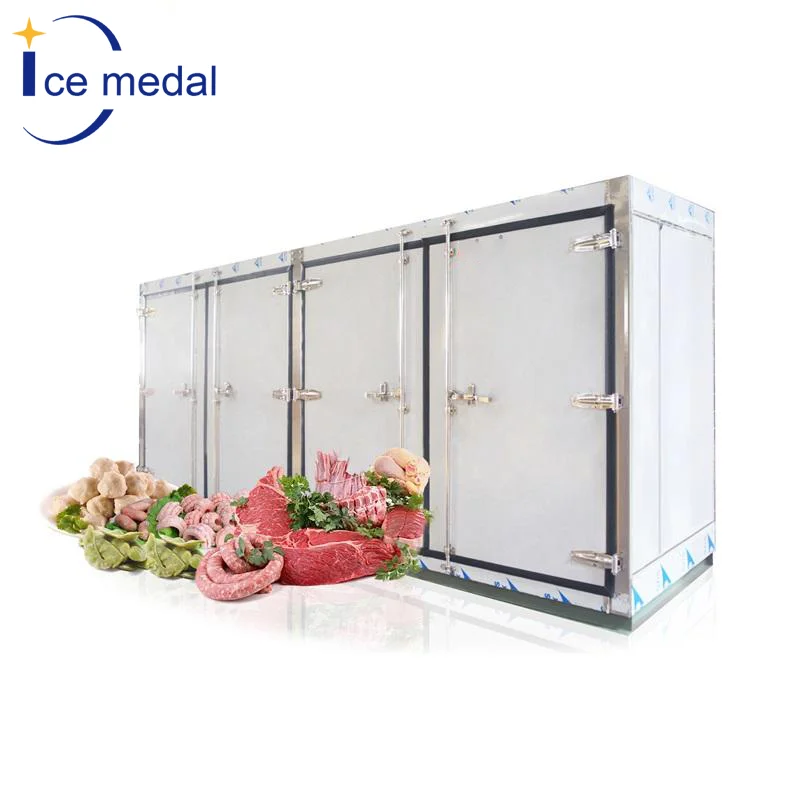

Product Application
Food (meat, vegetable, fruit, dairy, drink), medicine, chemical, electronics, etc.
| Storage products | Storage temperature approach |
| Vegetable,fruit storage | -5 to 5 degree or above |
| Drink,beer storage | 2 to 8degree or above |
| Meat,fish freeze storage | -18 to -25 degree or above |
| Medicine storage | 2 to 8degree or above |
Certifications
9. Installation:
1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2).Installing by our engineers:
(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.
(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
(4) 2~ 3 workers are required to assist the installation for big project.
Guarantee Period: During 12 months after selling, maintenance and parts free of charge
