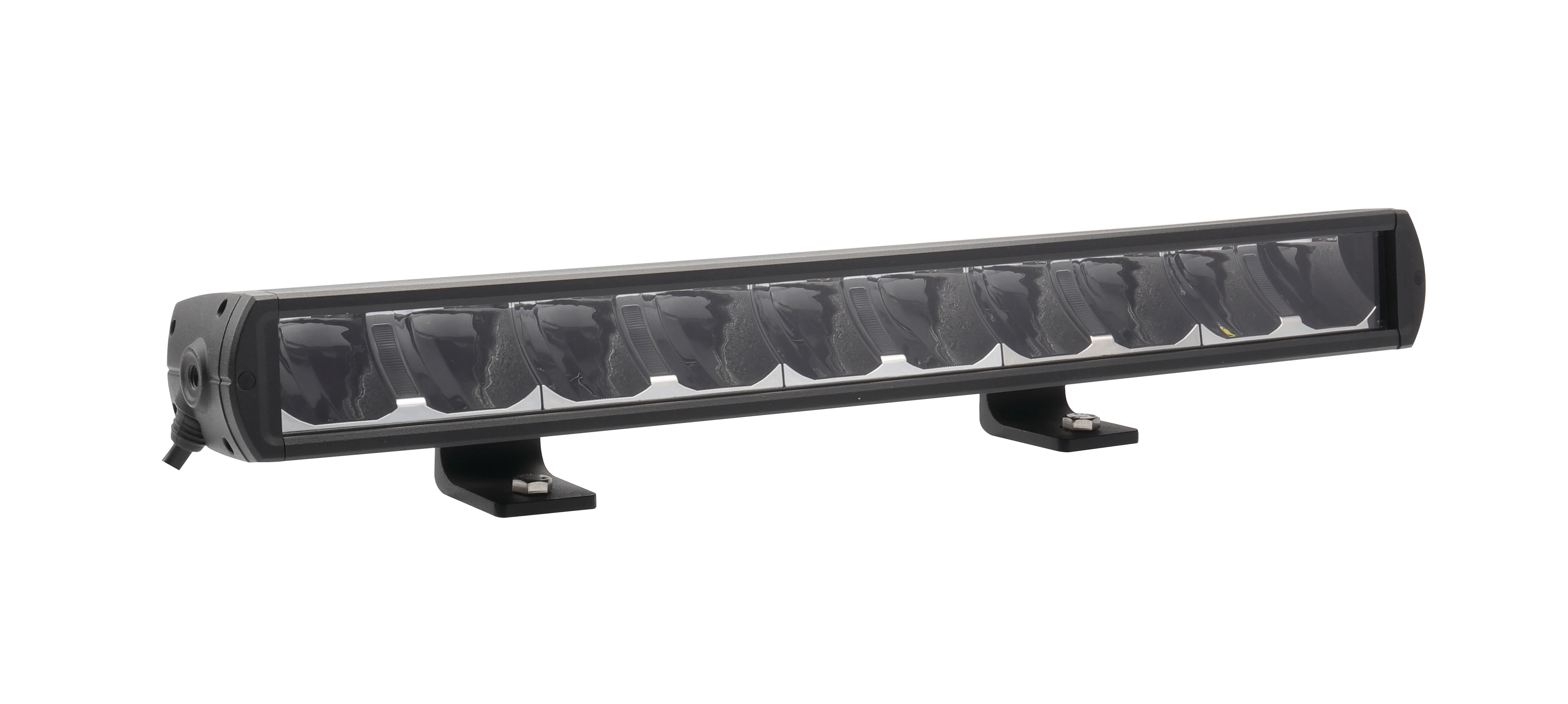

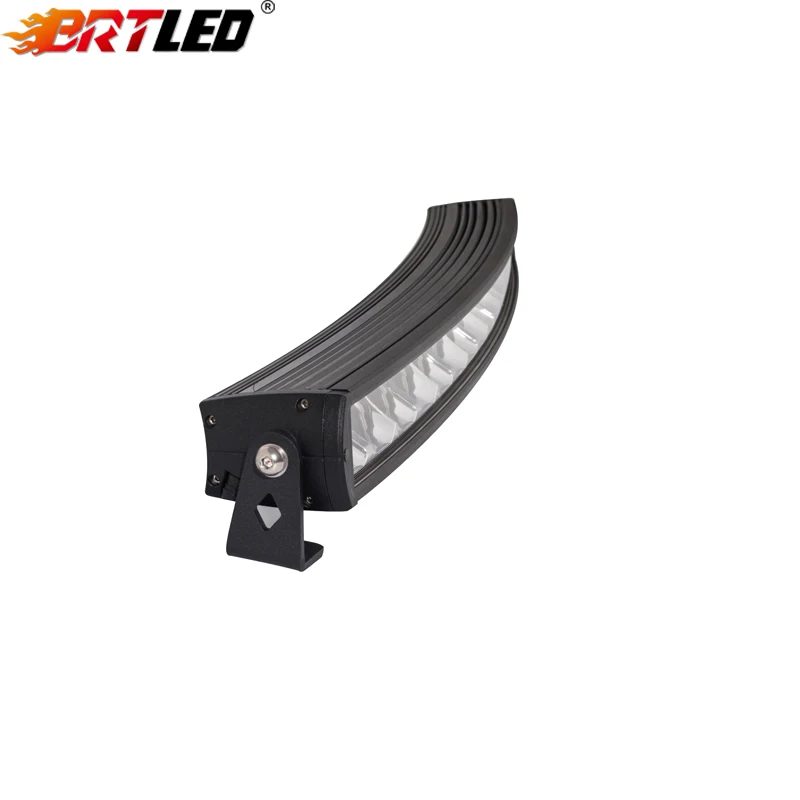

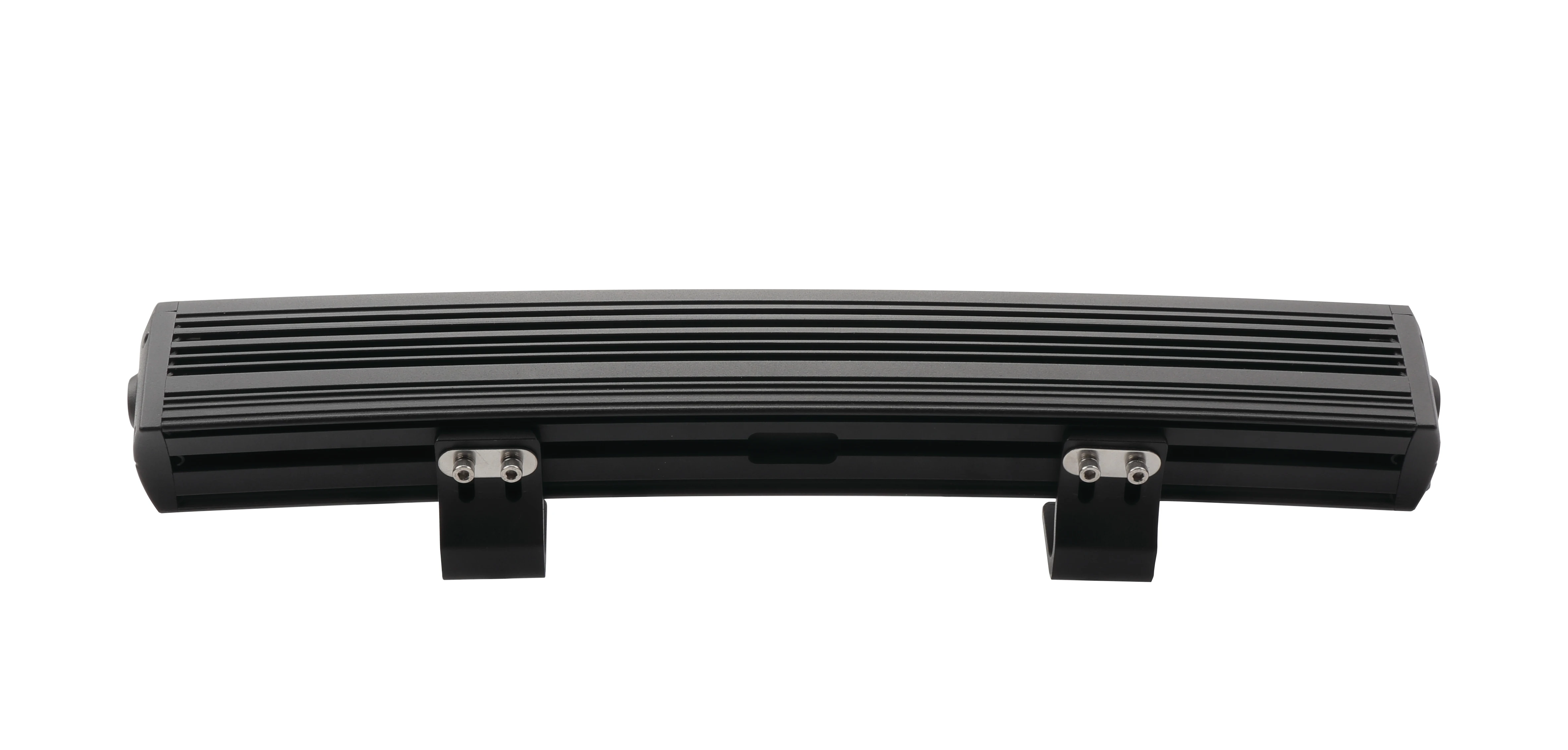

R112 auxiliary 12v 24v waterproof bright LED curved light bar with vertical parking light 100w off road led light bars
- Category: >>>
- Supplier: Brighter LED Lighting Co. Ltd.
Share on (1600438092287):
Product Overview
Description
Product Description
Main Features:

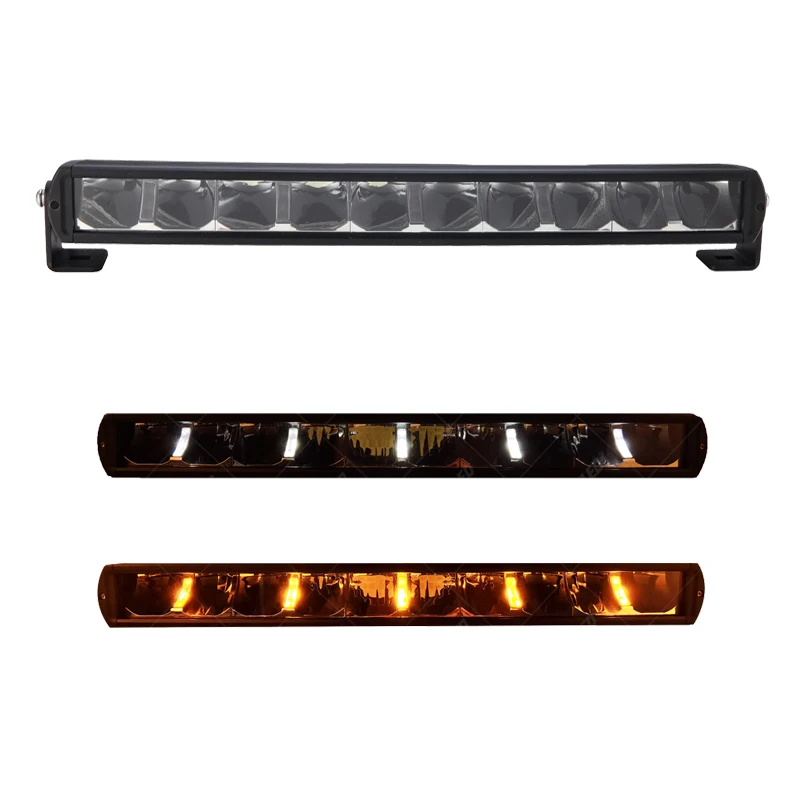

1. Driving beam + dual position light(white&amber).
2. No screw on the PC cover for better anti-corrosion.

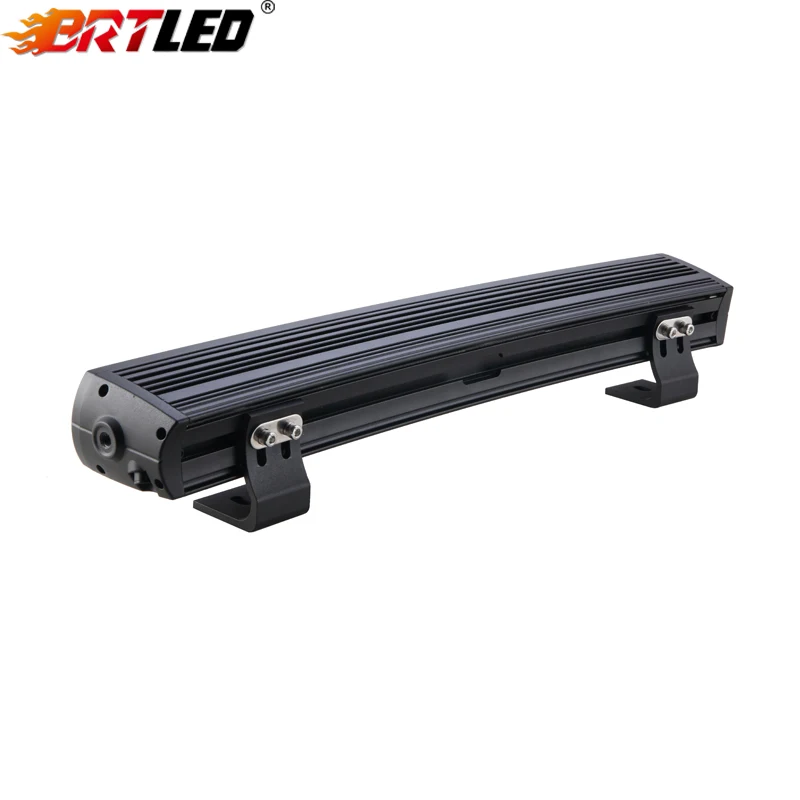

3. Side and bottom bracket for more flexible installation.
4. Approved by ECE R112, R7, R10,CE, RoHS.

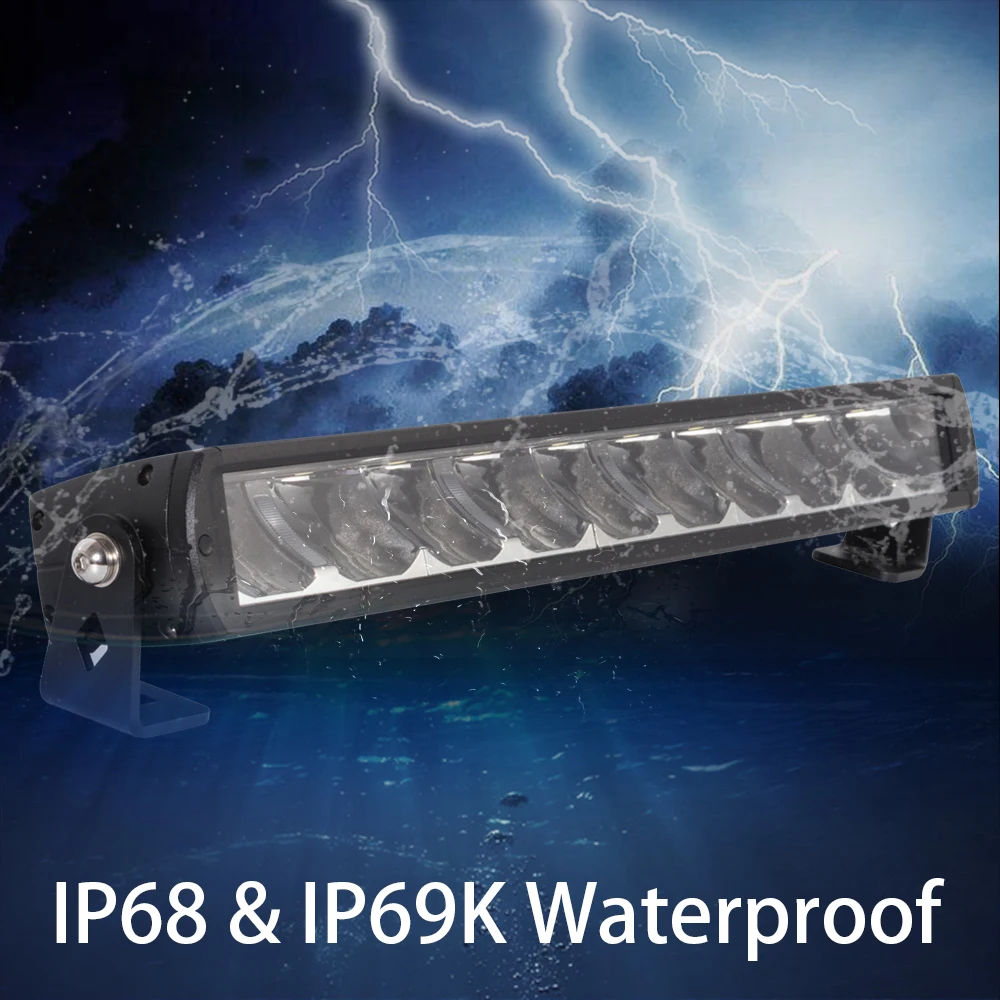

5. Superior IP rating:IP68 & IP69K
1. Driving beam + dual position light(white&amber).
2. No screw on the PC cover for better anti-corrosion.
3. Side and bottom bracket for more flexible installation.
4. Approved by ECE R112, R7, R10,CE, RoHS.
5. Superior IP rating:IP68 & IP69K
Specification

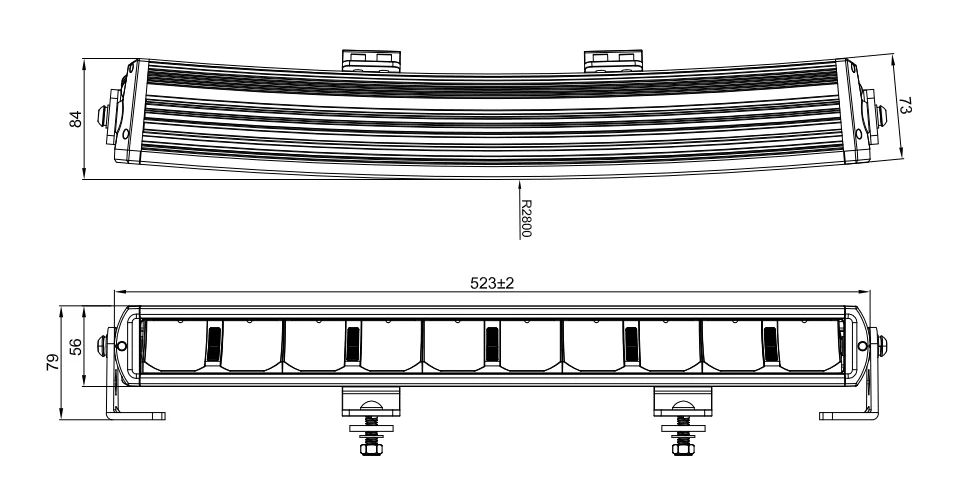

20 inch
Model No.: | BL1010CS | Beam Pattern: | Driving beam 20 degree | ||
LED: | 10pcs* 10W LEDS | Light intensity: | 1Lux@425m | ||
Size: | 523*56*83mm (20inch) | IP Rate: | IP68/IP69K | ||
Lumen: | Raw lumens: 9500Lm Effective Lumens: 8075Lm | Certificate: | ECE R112/R10 REF.45 | ||

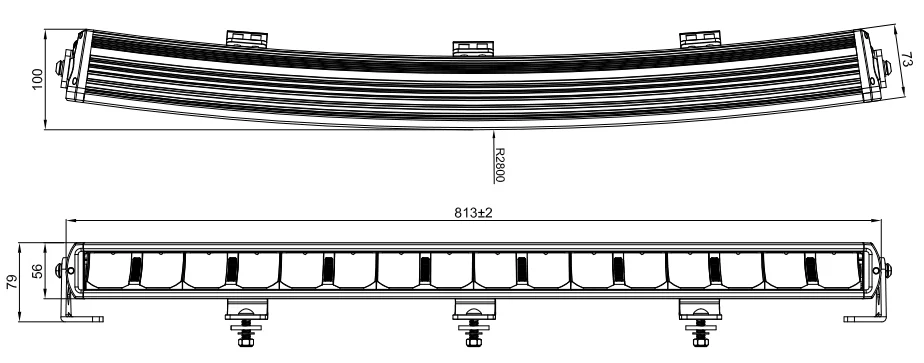

32 inch
Model No.: | BL1610CS | Beam Pattern: | Driving beam 30 degree | ||
LED: | 16pcs* 10W LEDS | Light intensity: | 1Lux@480m | ||
Size: | 813*56*100mm (32inch) | IP Rate: | IP68/IP69K | ||
Lumen: | Raw lumens:15200Lm Effective Lumens:12920Lm | Certificate: | ECE R112/R10 REF.45 | ||
43 inch
Model No.: | BL2210CS | Beam Pattern: | Driving beam 40 degree | ||
LED: | 22pcs* 10W LEDS | Light intensity: | 1Lux@512m | ||

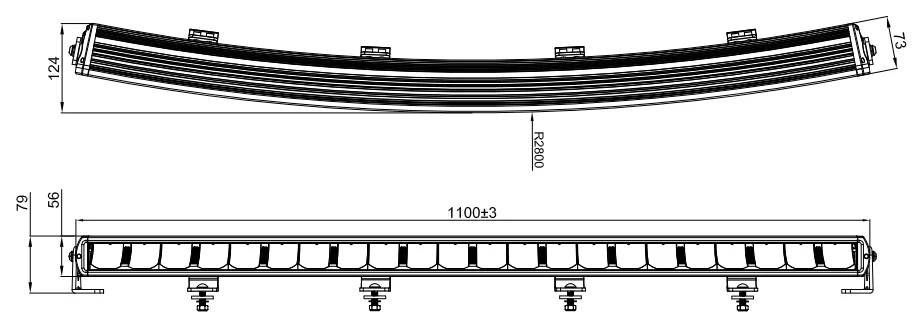

Size: | 1100*56*124mm(43inch) | IP rate: | IP68/IP69K | ||
Lumen: | Raw lumens: 20900Lm Effective Lumens:17000Lm | Certificate: | ECE R112/R10 REF.50 | ||

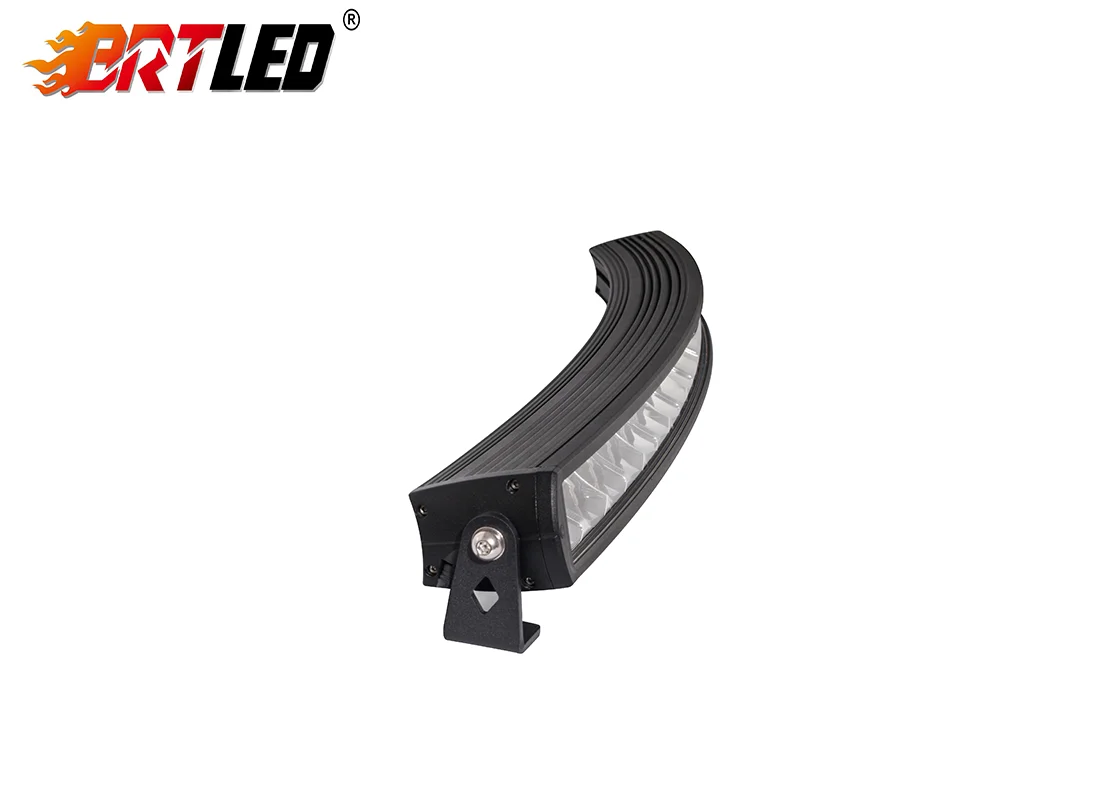

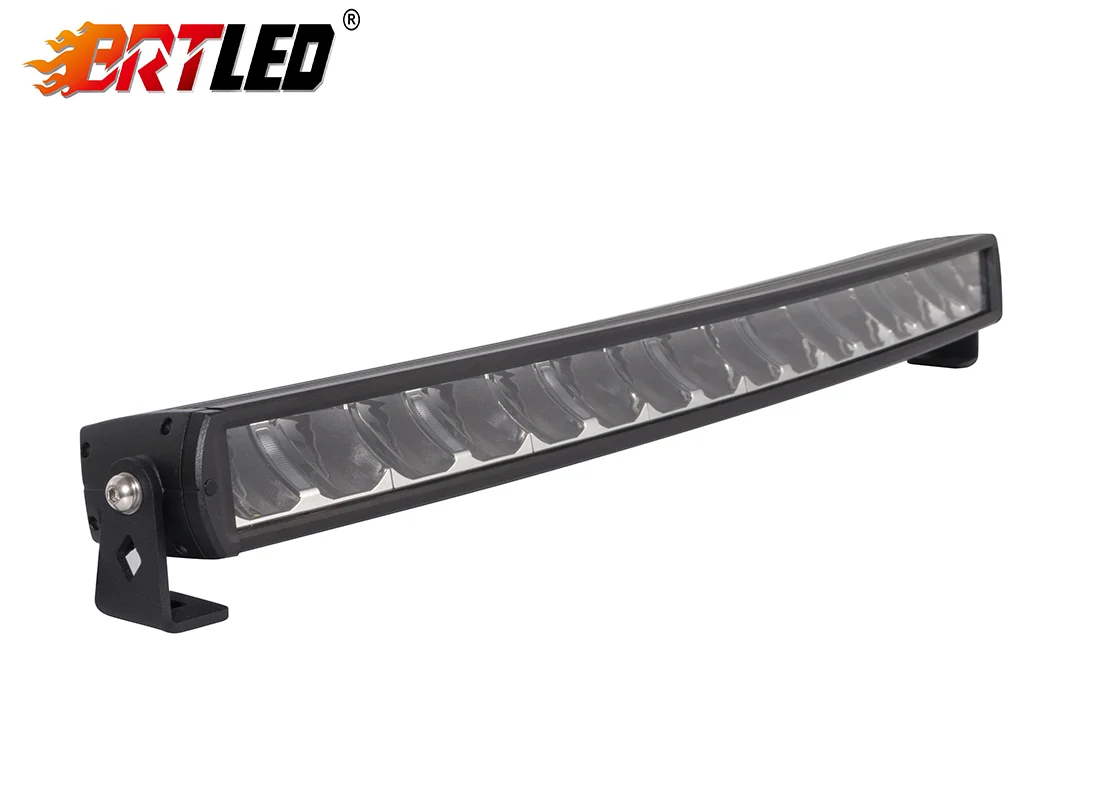

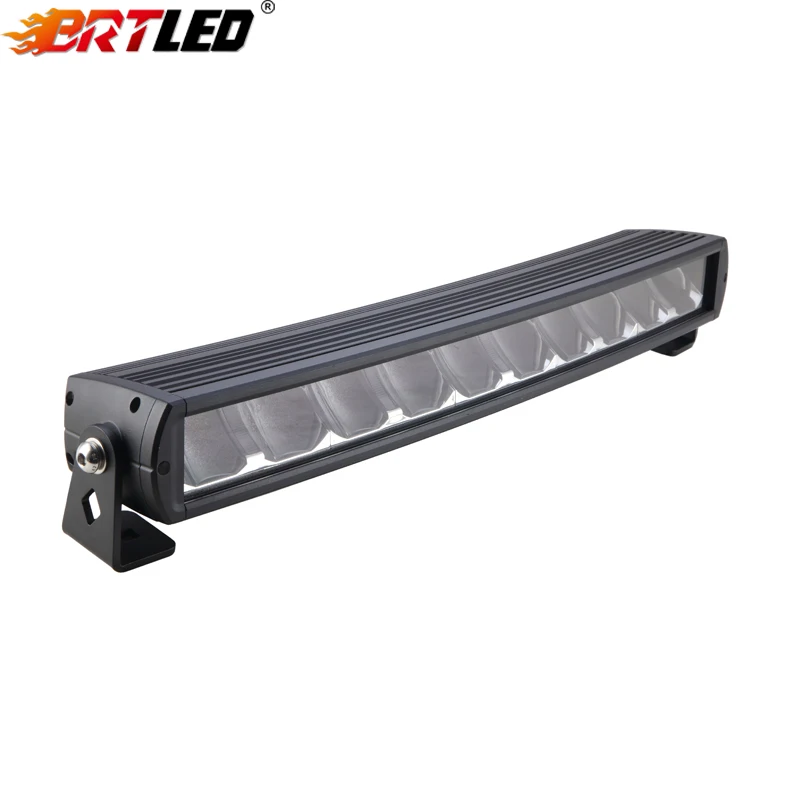

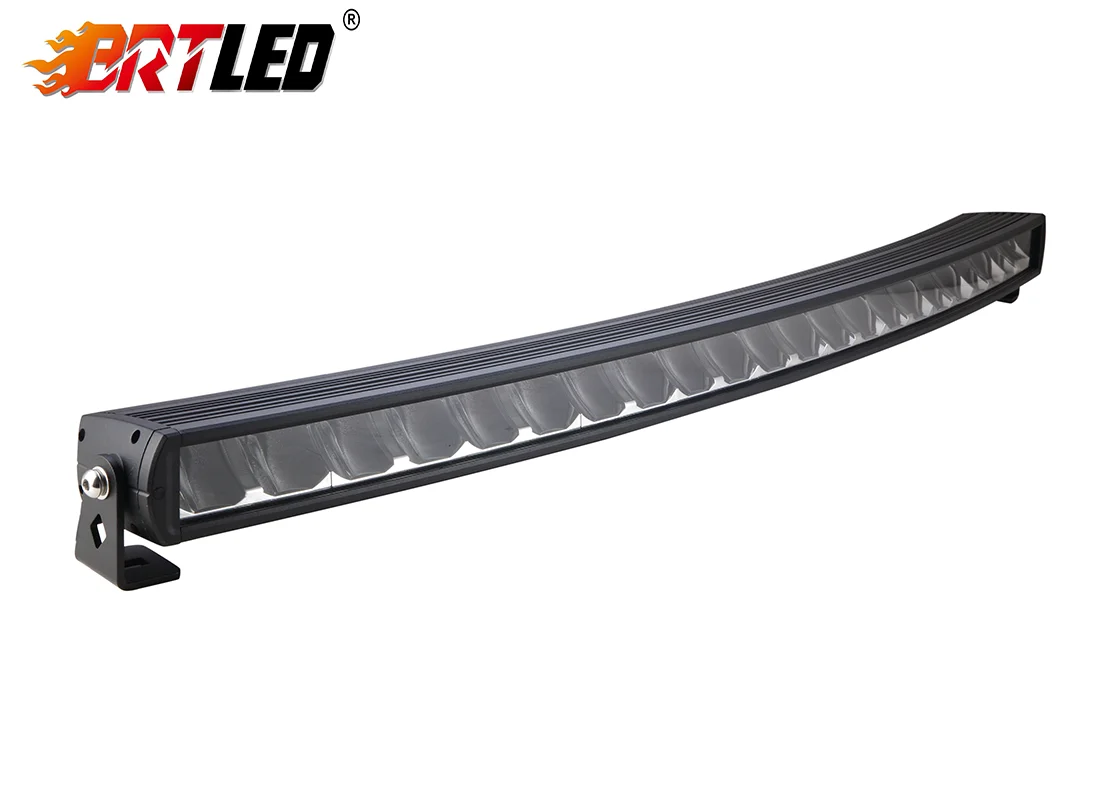

Details Images

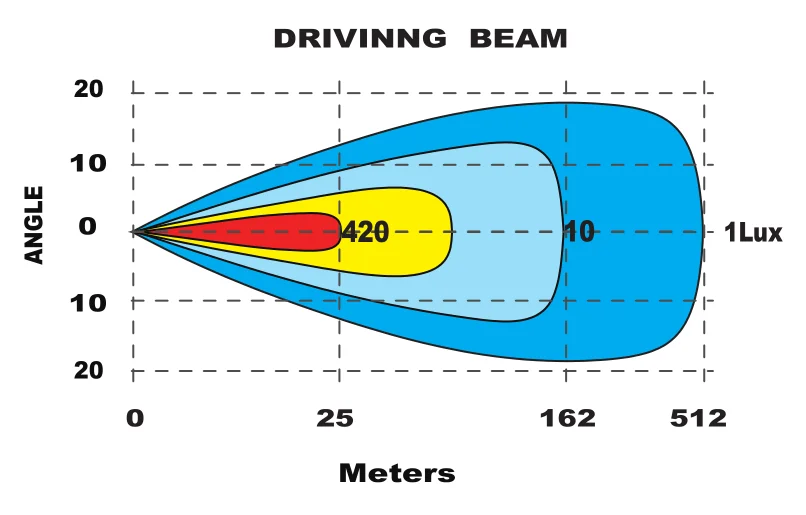

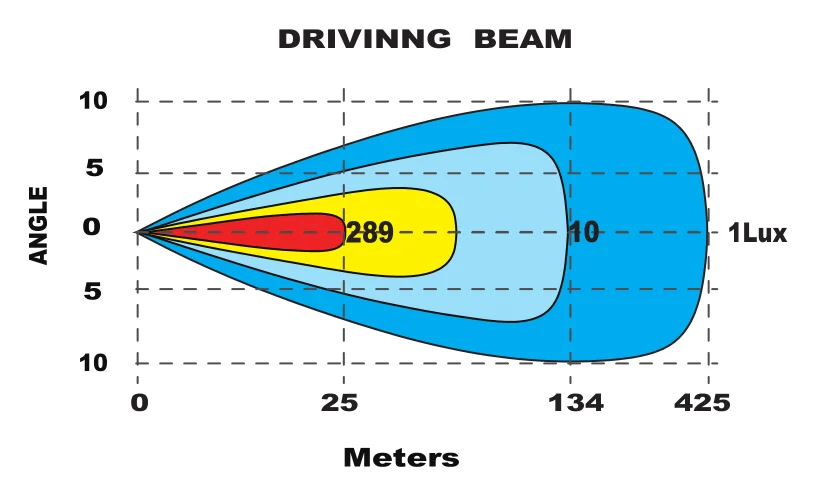

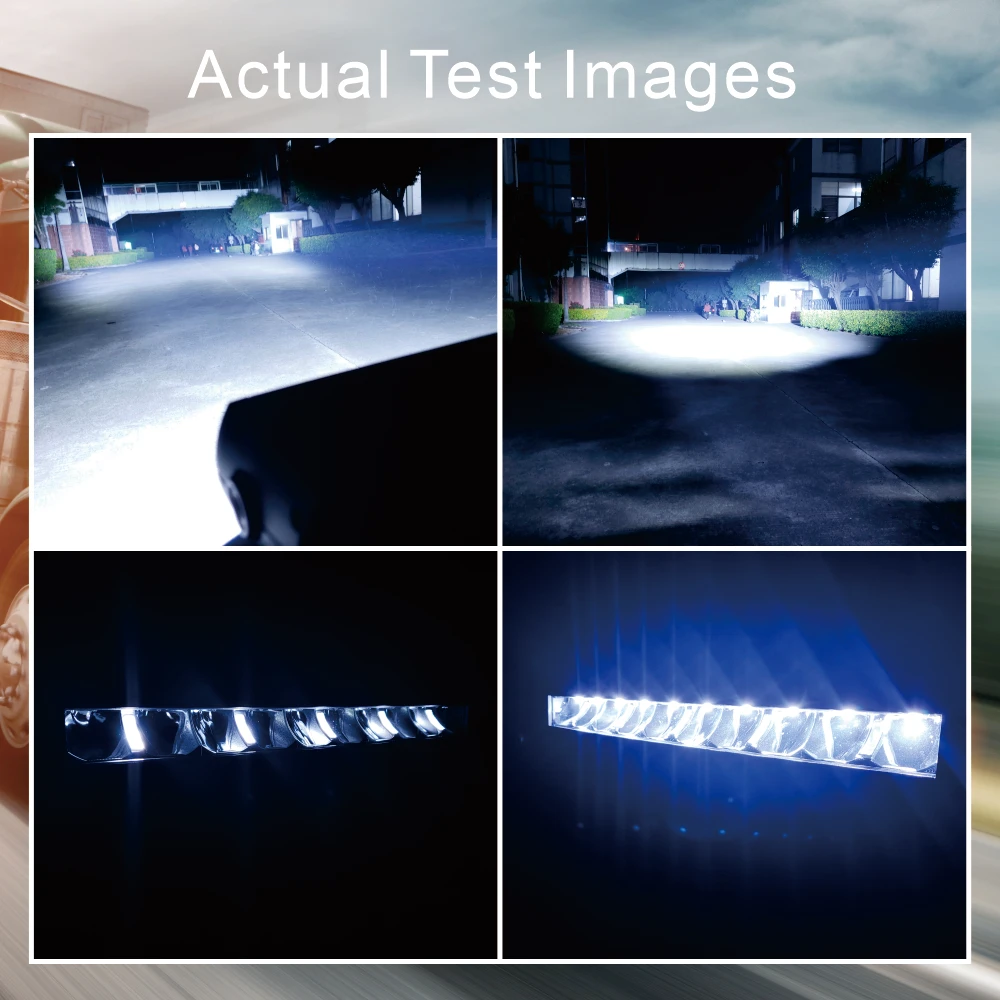

Lighting Performance

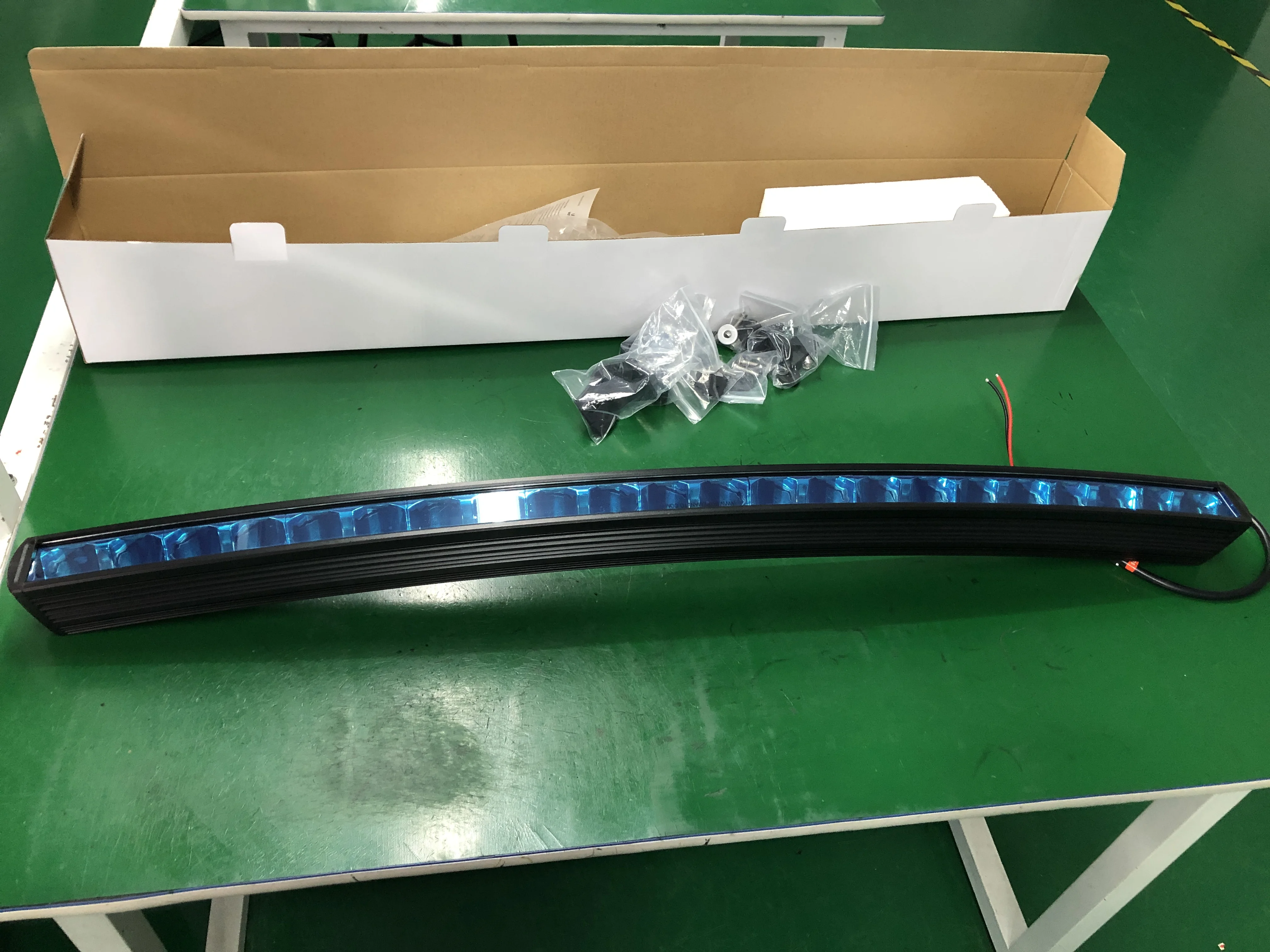

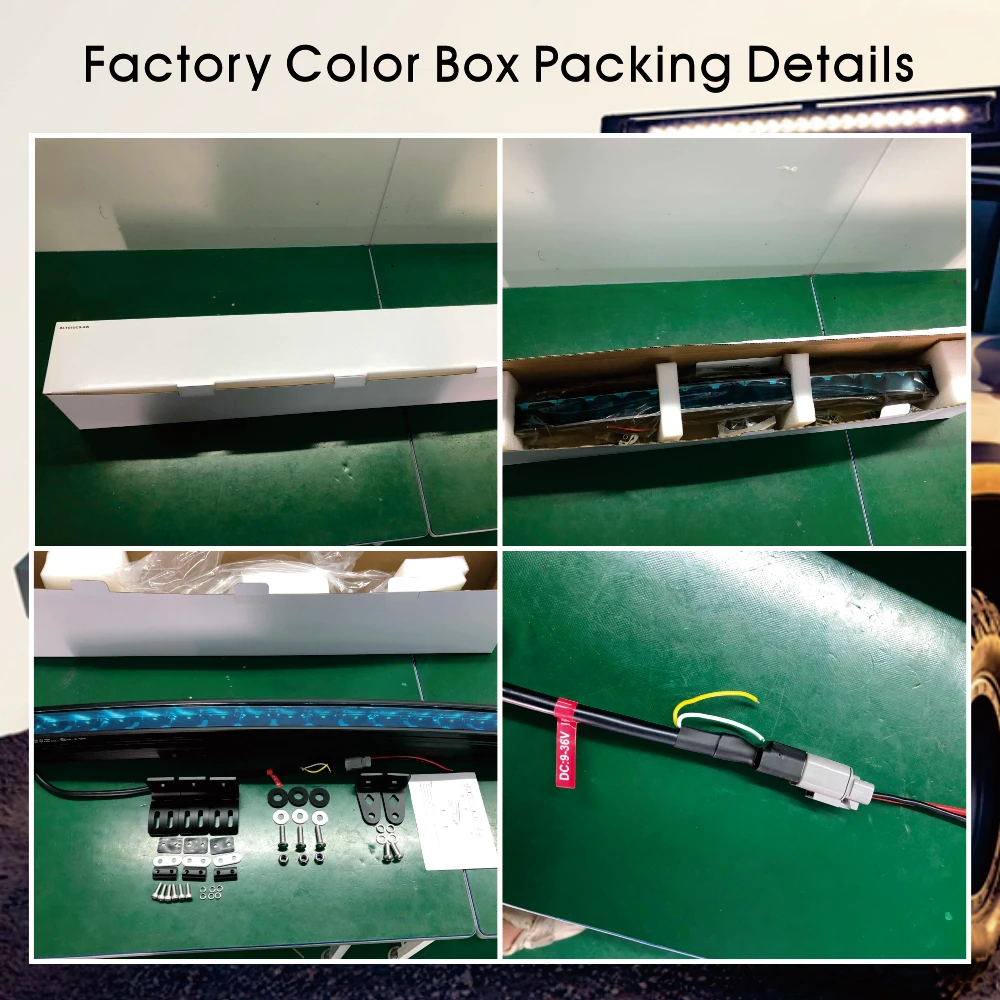

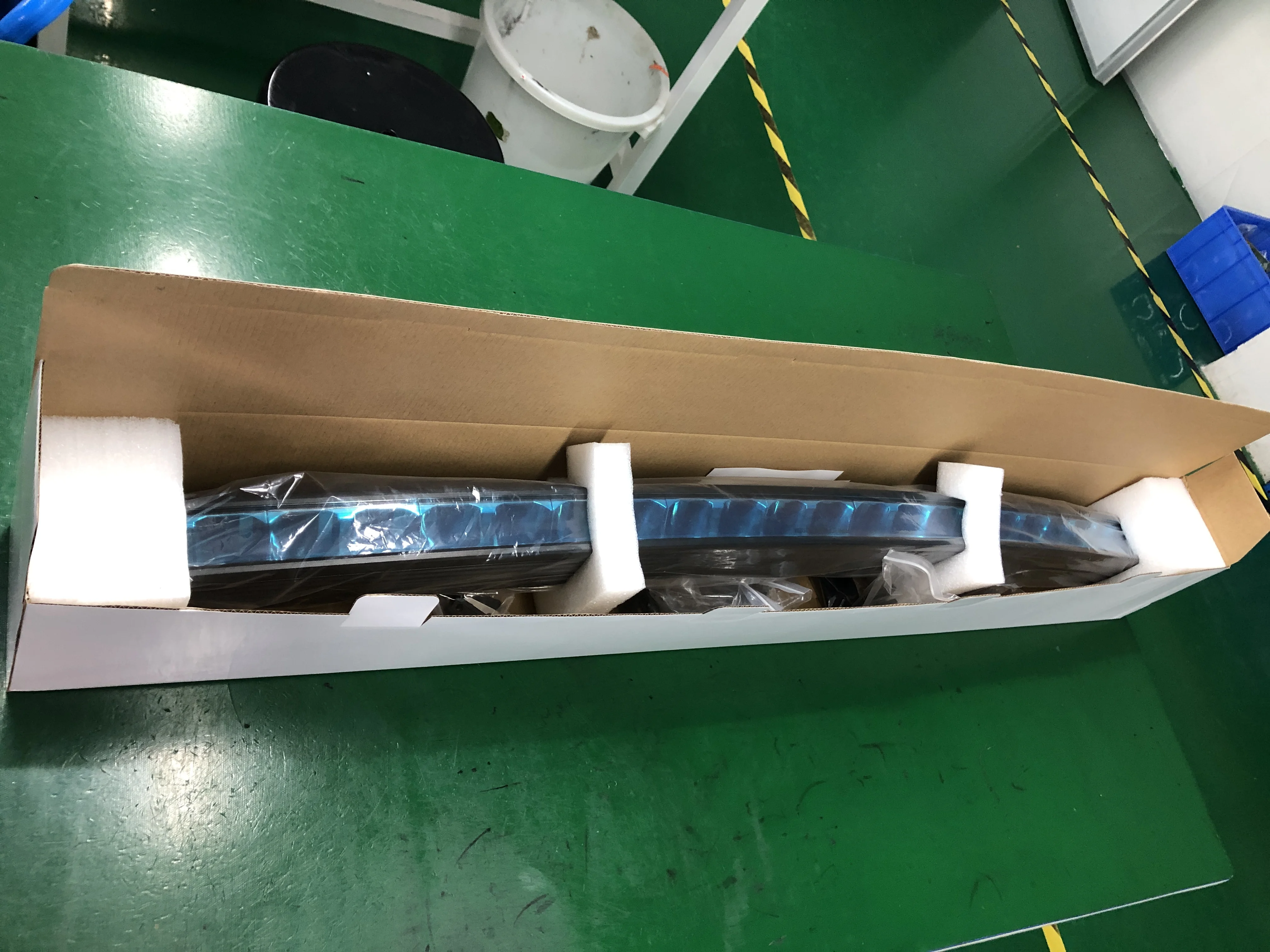

Packing & Delivery
