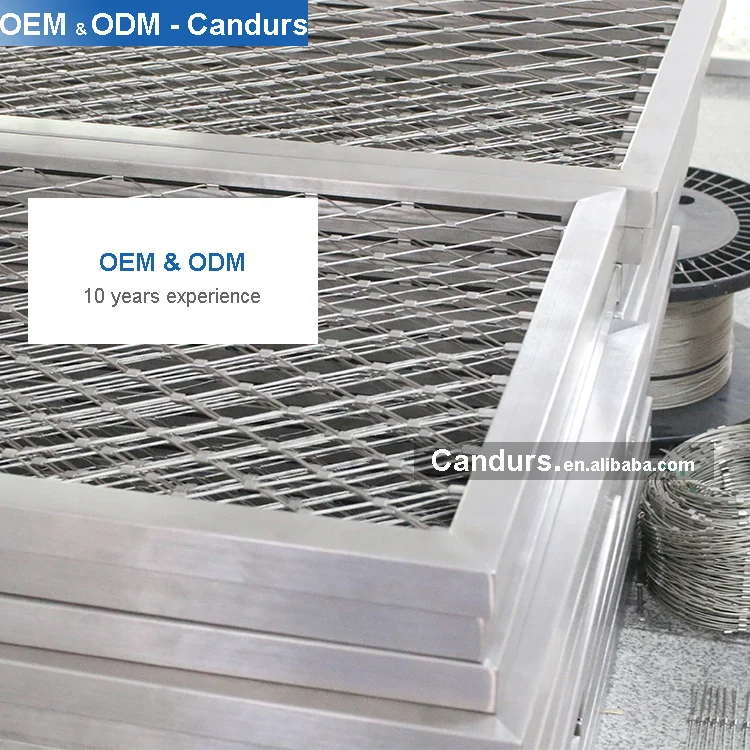

Tubular Slot Frames Stainless Steel Wire Rope Mesh Net Balustrade Panels

Product Overview

Description

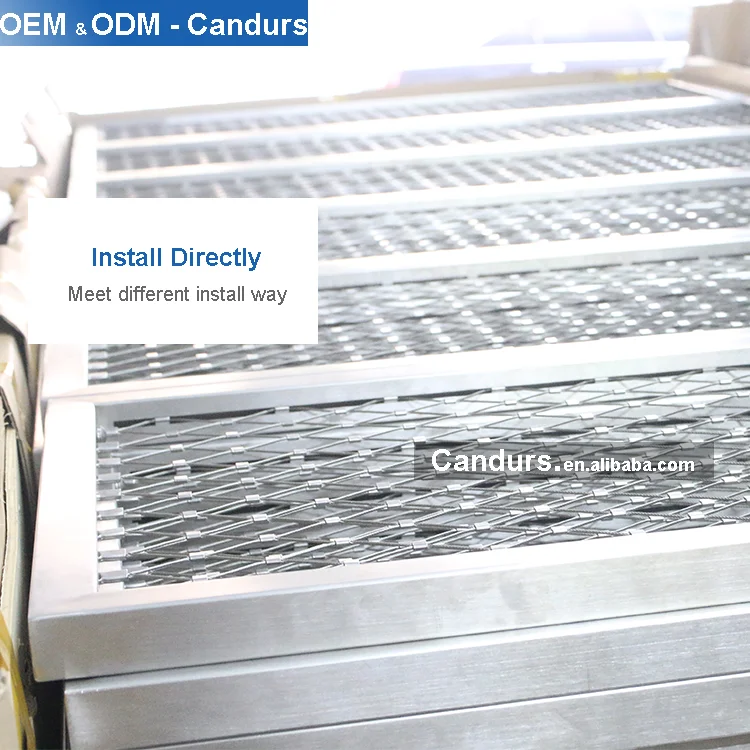

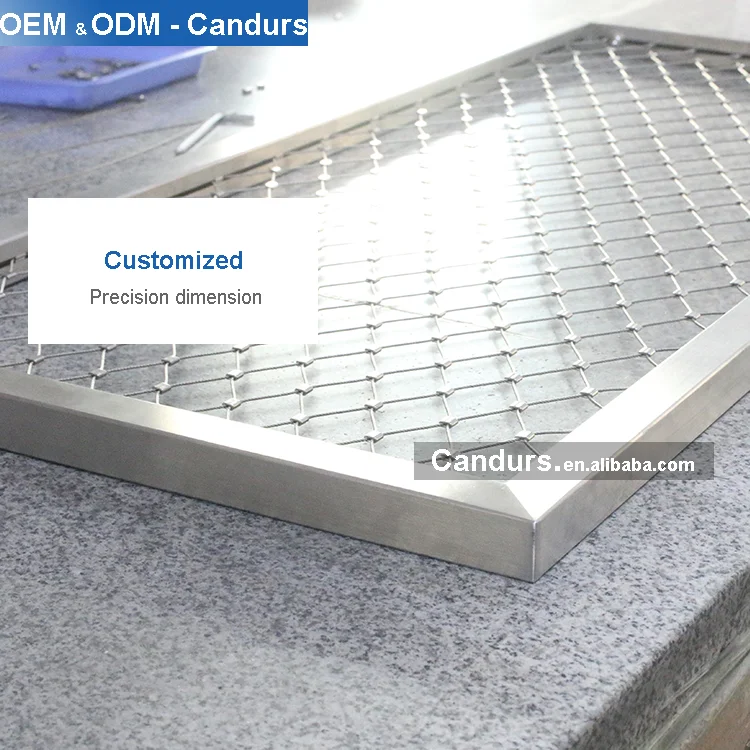

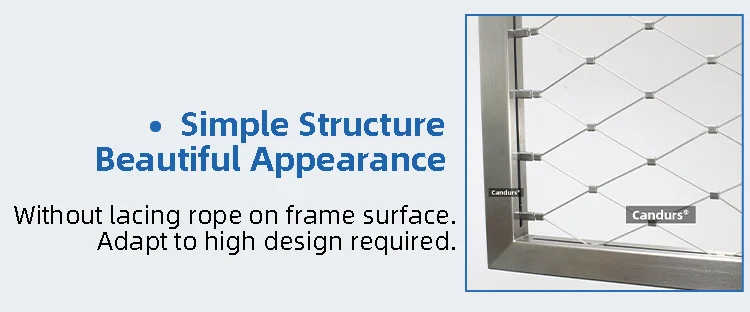

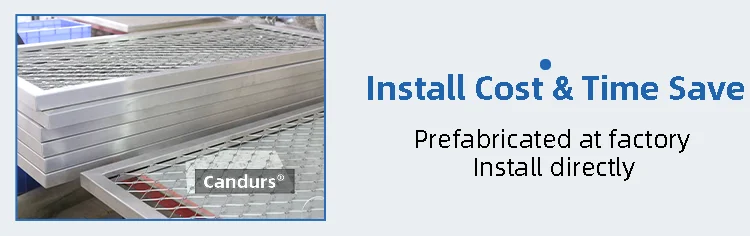

Slot Frames

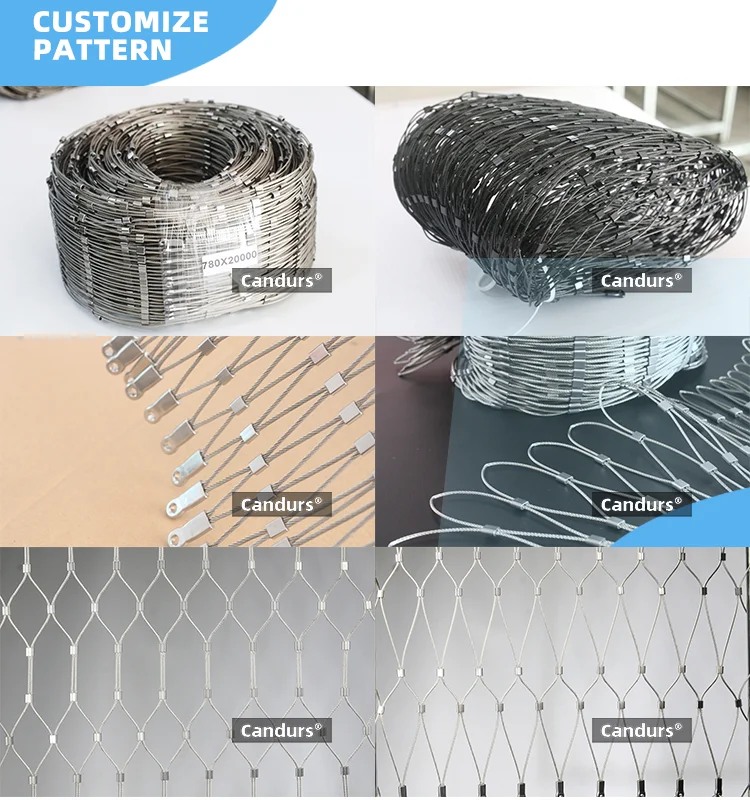

Assembled flexible stainless steel wire rope ferrule mesh.

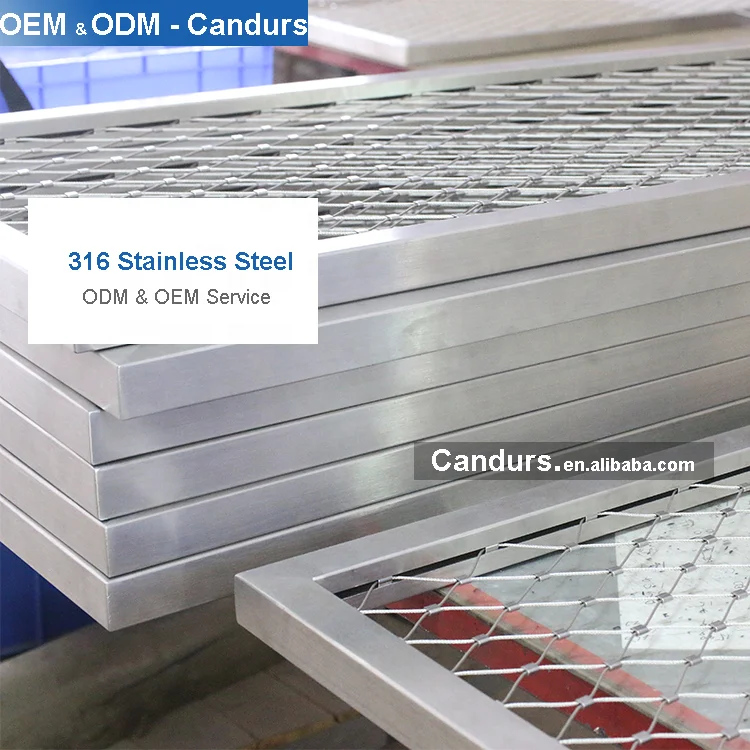

Material	AISI 316 stainless steel.EN1.4401

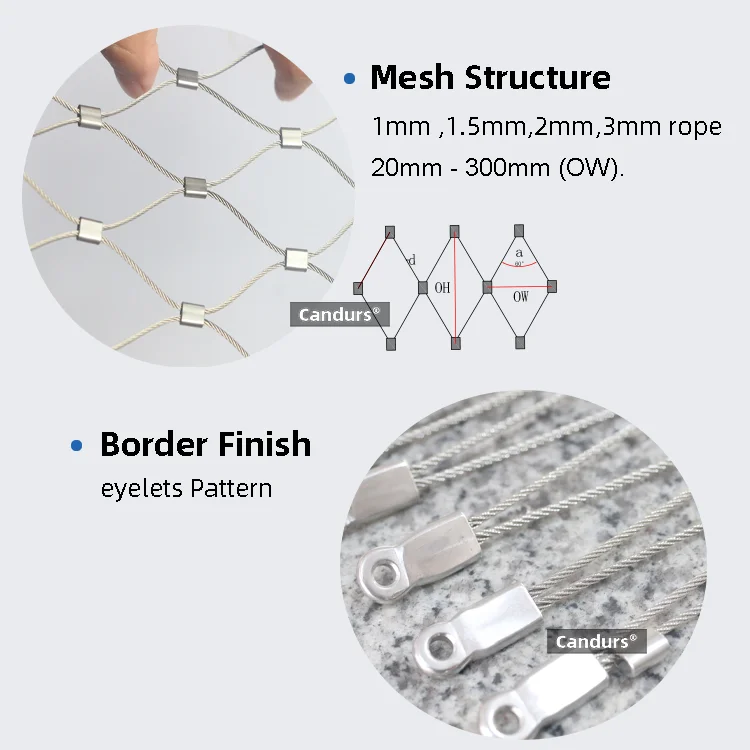

OW	Opening Width
OH	Opening Height



Rope diameter	1.0 mm	1.5 mm	2.0 mm	3.0 mm
Rope Structure	7 x 7	7 x 7	7 x 7	7 x 19
Test Break Loading	81 KG	168KG	290  KG	700 KG
Mesh	Rope Diameter
OW X OH	1.0 mm	1.5 mm	2.0 mm	3.0 mm
20 x 35	CD1020
25 x 45	CD1025	CD1525
30 x 52	CD1030	CD1535
35 x 61	CD1035	CD1535	CD2035
40 x 70	CD1040	CD1540	CD2040	CD3040
50 x 90	CD1050	CD1550	CD2050	CD3050
60 x 105	CD1060	CD1560	CD2060	CD3060
70 x 120	CD1070	CD1570	CD2070	CD3070
80 x 140	CD1080	CD1580	CD2080	CD3080
100 x 175	CD10100	CD15100	CD20100	CD30100
120 x 210	CD10120	CD15120	CD20120	CD30120
160 x 280	CD10160	CD15160	CD20160	CD30160
180 x 315	CD10180	CD15180	CD20180	CD30180
200 x 350	CD10200	CD15200	CD20200	CD30200













Vast Experience Can Help You !



10+ Years Experiences. Served 500+ Projects.

 Exported 20+ Countries











Carton / Case : as flexibe stainless steel rope mesh has small package volume.Smll quantity ship byDHL.FedEx

5-7 days shipping time.

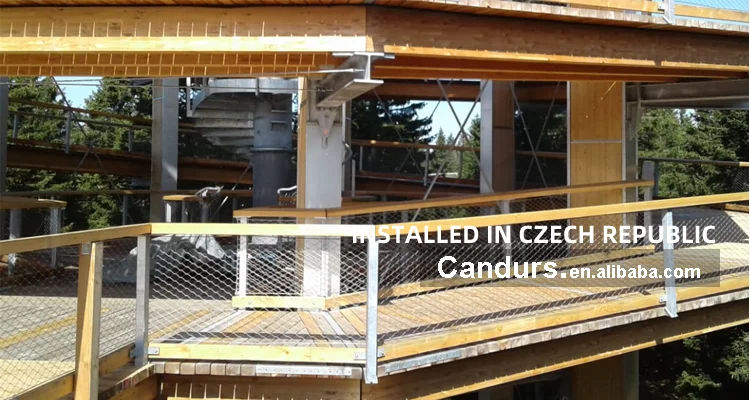

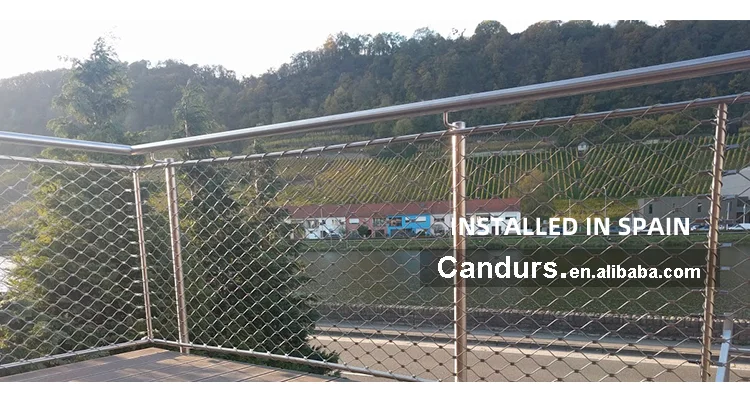

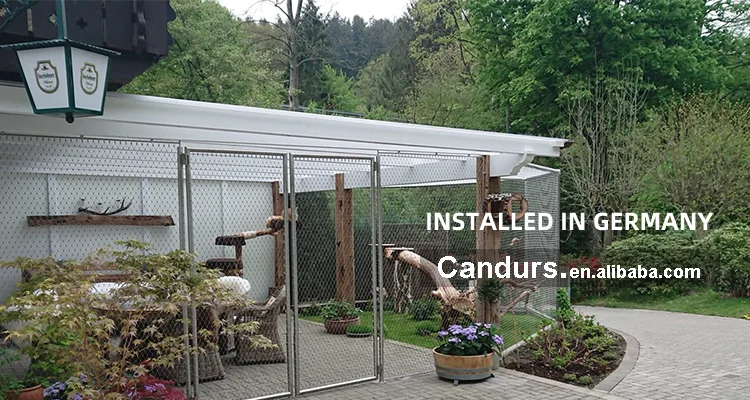

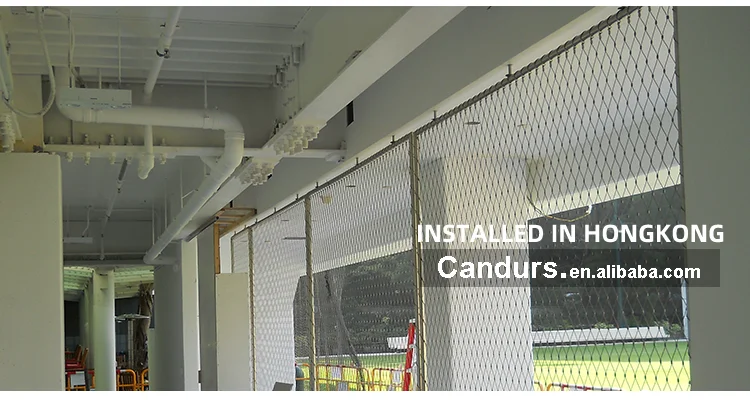

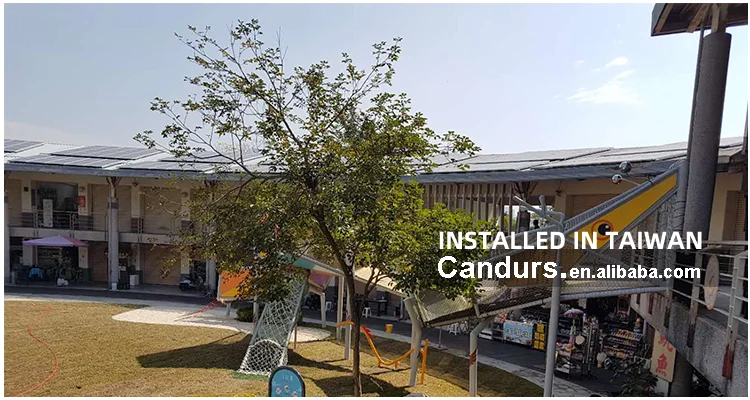

Thank Customers Share Us The Photos.
