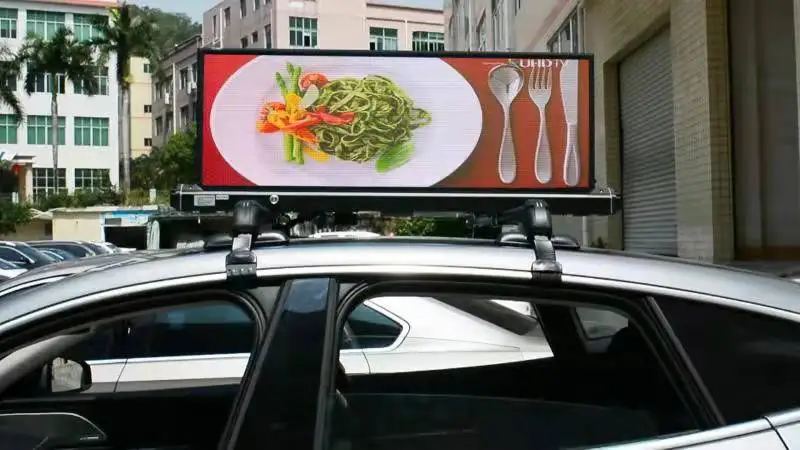

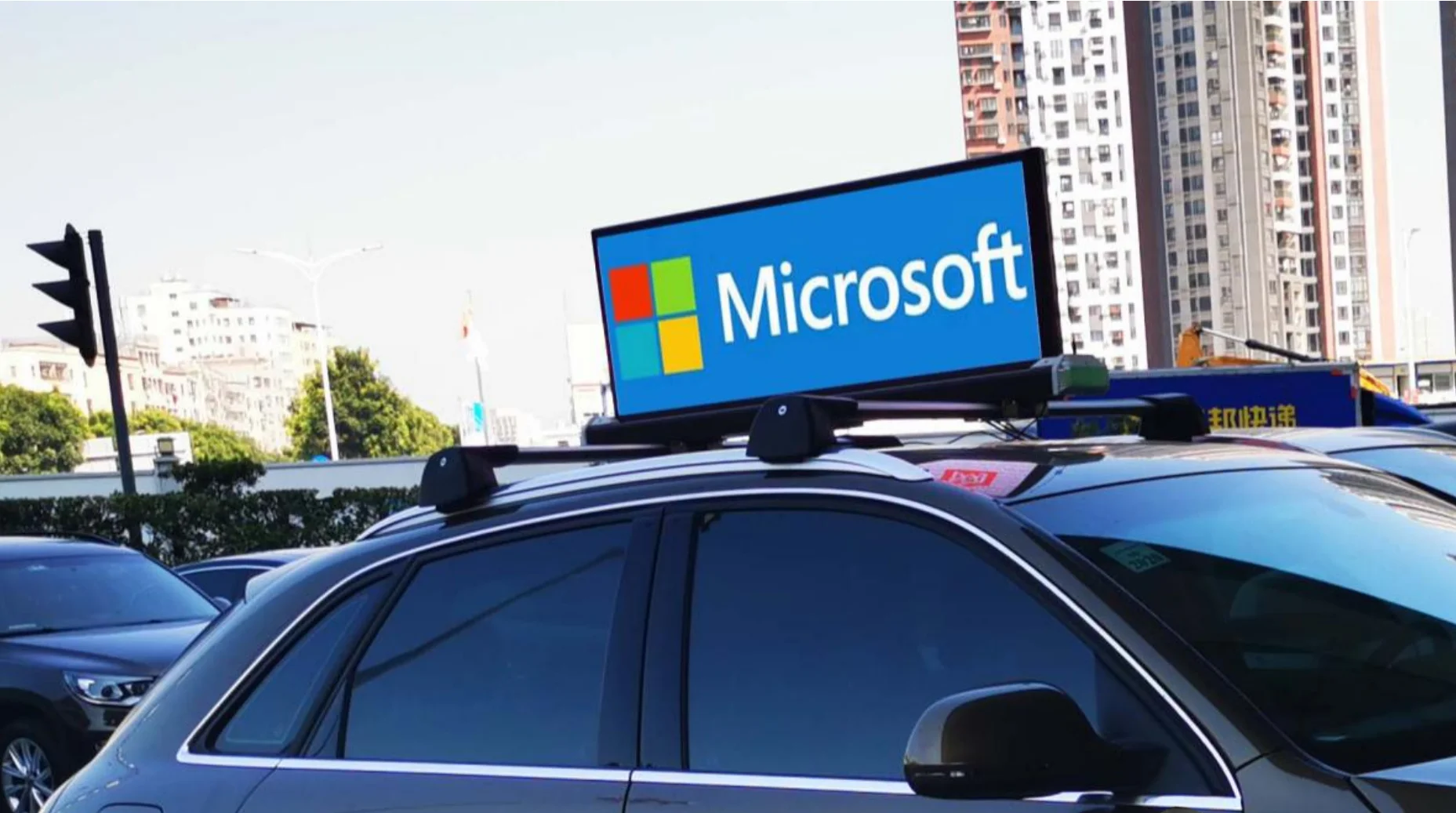

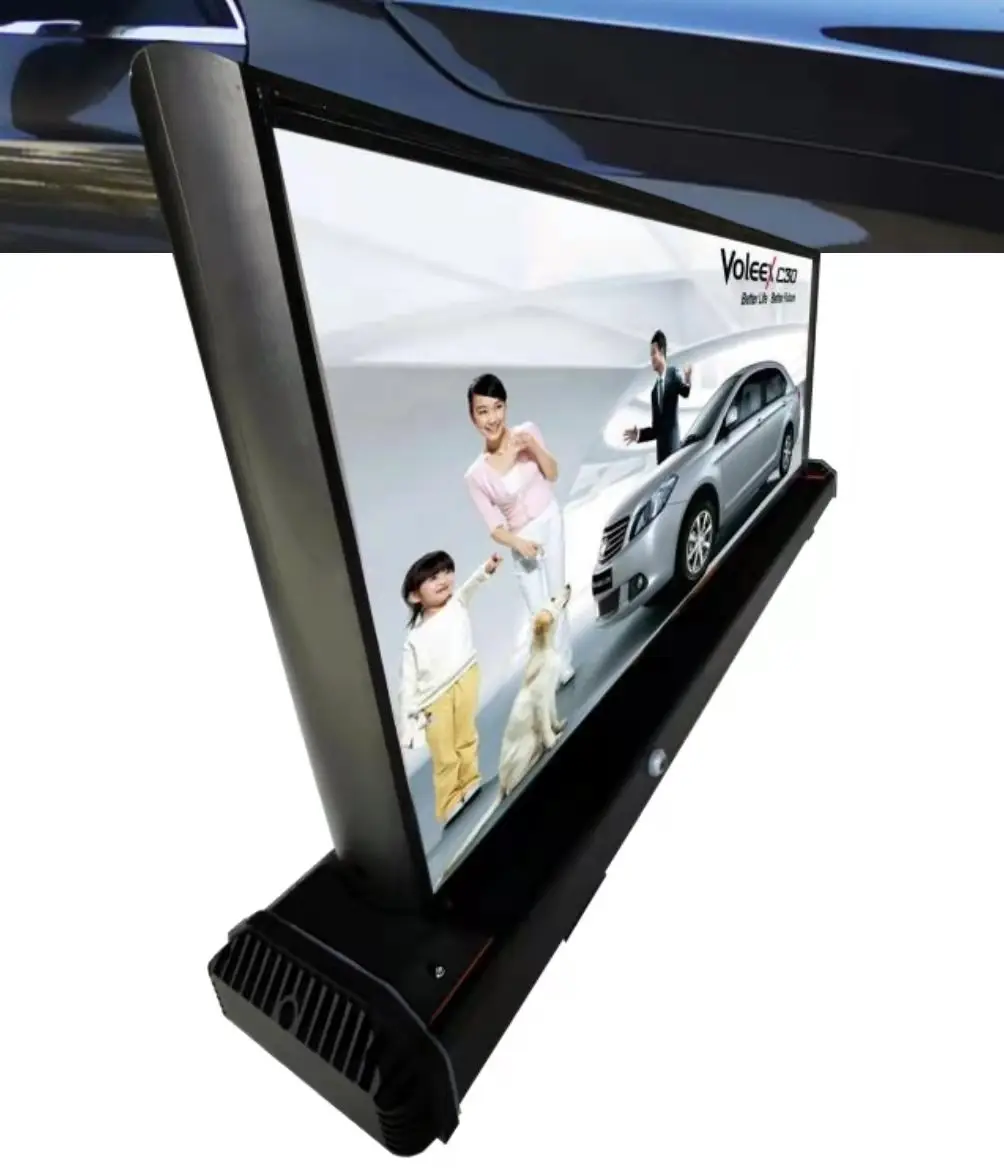

Digital Taxi Roof Led Display P2.5 P3 P5 4G WiFi GPS Outdoor Taxi Top Led Screen
- Category: >>>
- Supplier: Shenzhen Longvision Technology Co. Ltd.
Share on (1600438268972):
Product Overview
Description
Specification
Product Advantages
1, Patent structure design,aluminum case with oxidation treatment,coating film for unti ultraviolet, outdoor painting for anti-rusting and anti-aging.
2, High tranparent pc cover that not turning yellow color or old in 10 years.
3, high level powersupply,beyond voltage,current load,short circuit will be protected, work in -40°C~+70°C environment.
4, Web control and could manage in anytime and any location through web browser.No need for download software.
5, Easy installtion bracket , fast maintenance structure.
Lightweight 15kg/pcs and 58mm thickness, the most light and thin Car Top led display in this industry, can reduce much of your transportation failure.
Product Description

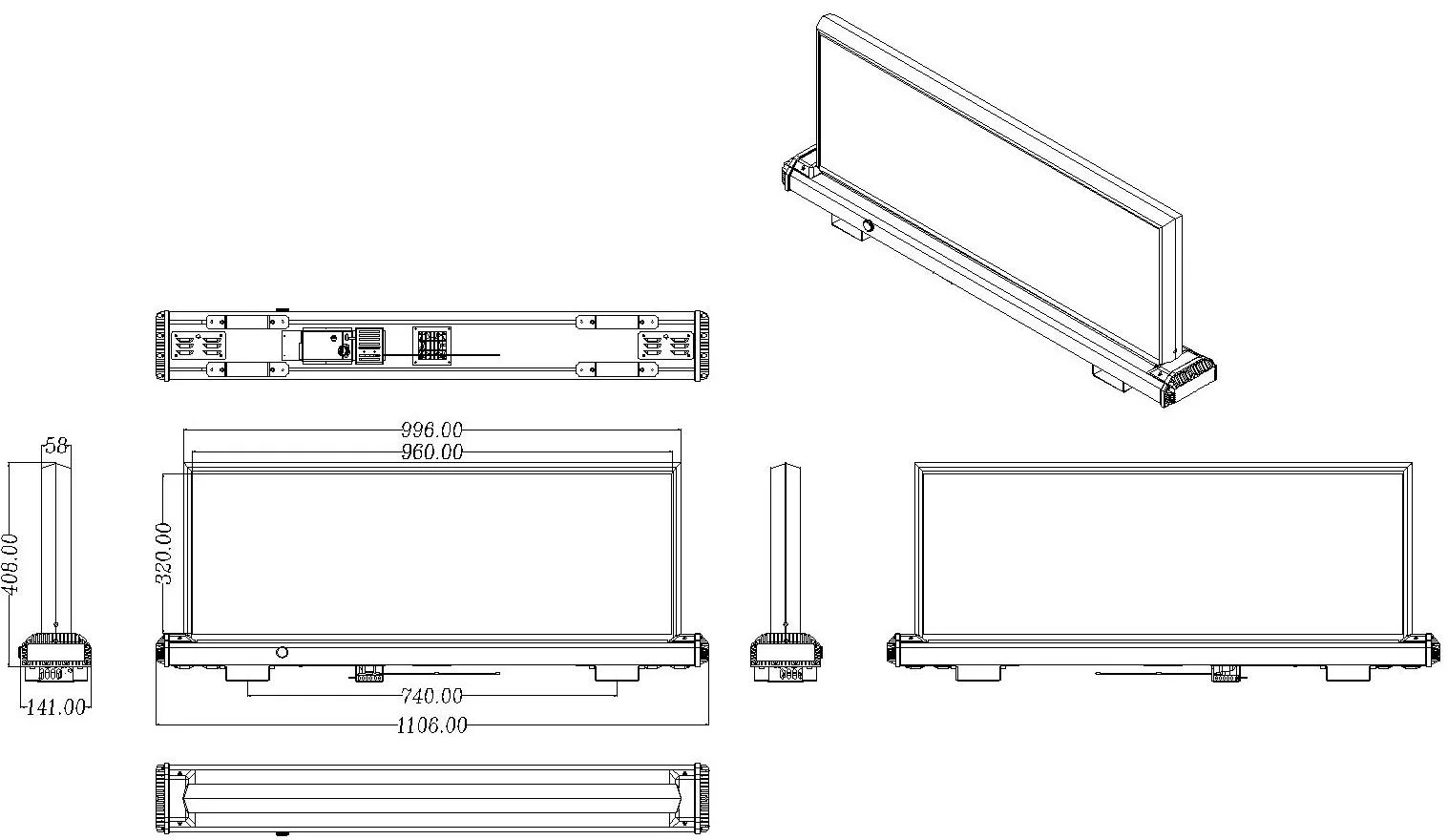

Product Size
Here is standard size, special installation way should follow the car size.
Bracket installation
Easy design leads a quick way installtion of bracket.
Sign installation
Each type of vehicle has different mounting racks.
Different lengths of mounting racks can be selected according to type to be installed.
The corresponding installation method can be designed according to different types of vehicles.

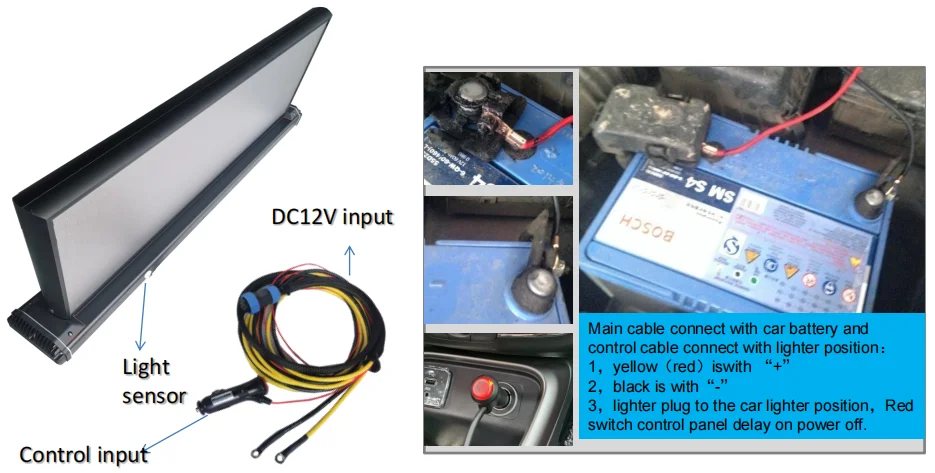

Connection Schematic Diagram
Main cable connect with car battery and control cable connect with lighter position.
Control schematic
Supports 3G 4G WIFI Internet connection.
Quickly and simply change your content anytime, anywhere.

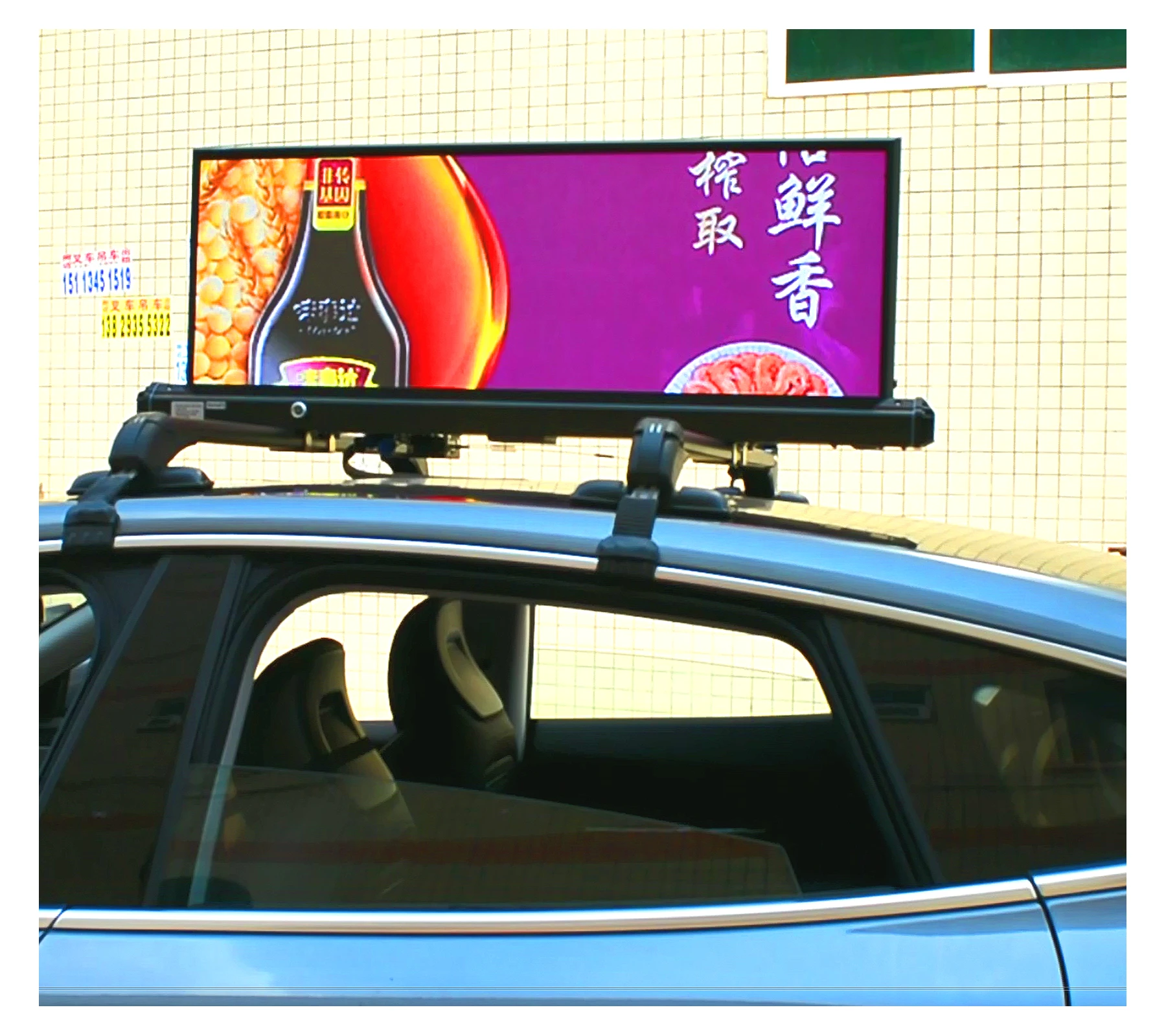

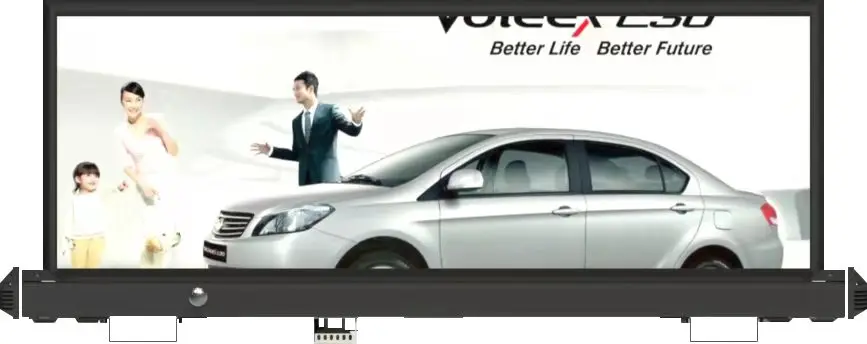

Slim and Light Weight
Slim and light architecture, Yaham taxi roof LED display cabinet weighs only 15kg.
The thinnest part of the cabinet measures only 5.8cm, aerodynamic design results in low wind load.

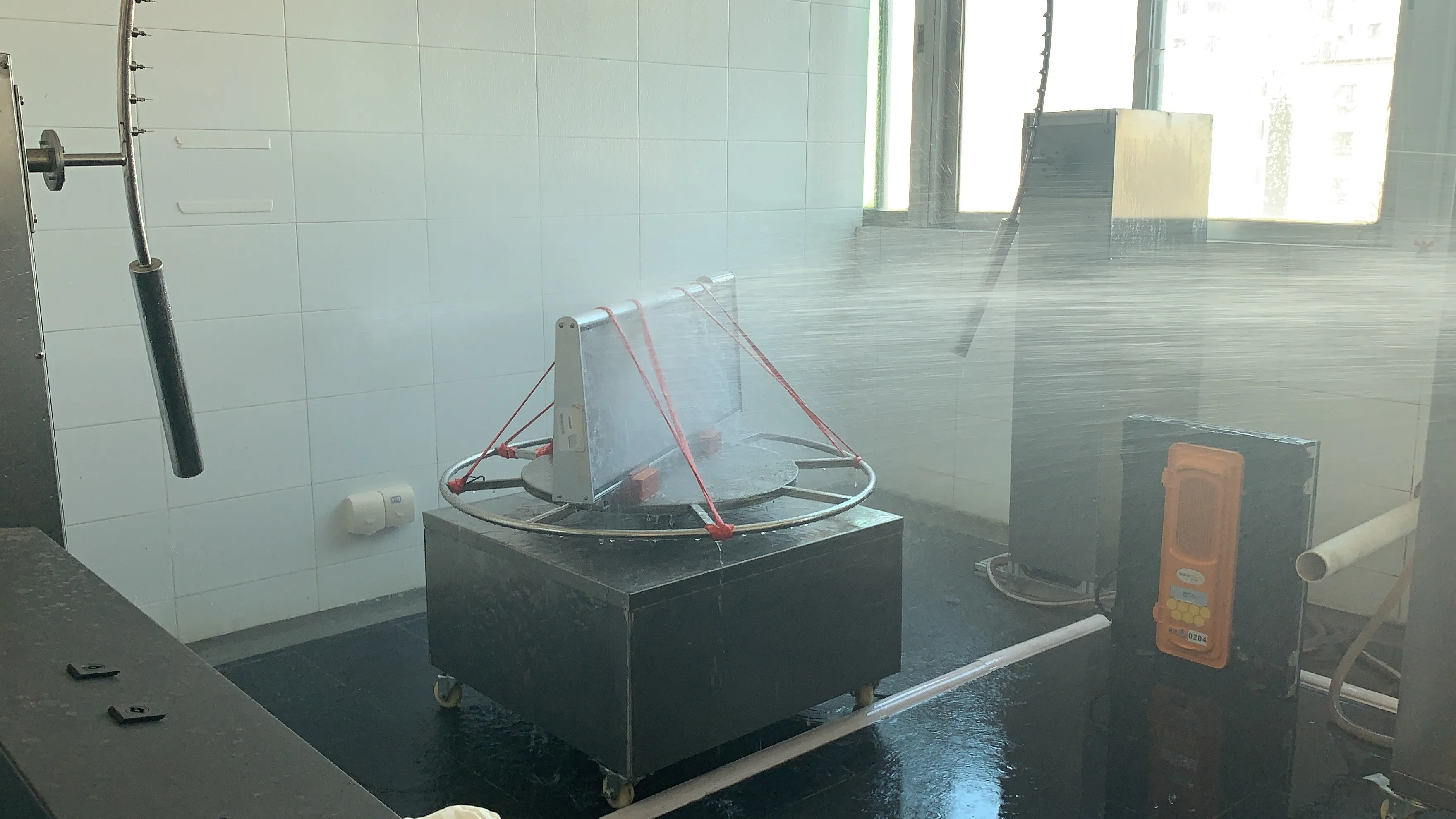

Waterproof Testing
IP65 High protection, can adapt to any extreme enviroment.
Product Parameters
Model | P2.5 | P3 | P4 | P5 | |||
Pixel Pitch | 2.5mm | 3mm | 4mm | 5mm | |||
Application | Outdoor | Outdoor | |||||
LED Configuration | SMD1921 | SMD1921 | SMD1921 | SMD1921 | |||
Pixel Density (dots/㎡) | 160,000 | 111111 | 62,500 | 40,000 | |||
Module size | 160×160mm | 192×192mm | 256×128mm | 320×160mm | |||
Module Resolution | 64×64dots | 64×64dots | 64×32dots | 64×32dots | |||
Cabinet Size | 960×320(Double Sided) | 960×320(Double Sided) | 960×320(Double Sided) | 960×320(Double Sided) | |||
Cabinet Resolution | 640×128dots | 512×128dots | 384×96dots | 192×640dots | |||
Cabinet Weight | 15kg | 15kg | 15kg | 15kg | |||
IP Rating | IP65 | IP65 | IP65 | IP65 | |||
Brightness Intensity | ≥5500cd/㎡ | ≥5500cd/㎡ | ≥5500cd/㎡ | ≥5500cd/㎡ | |||
Viewing Angle | 140° | 140° | 140° | 140° | |||
View Distance | ＞2m | ＞3m | ＞4m | ＞5m | |||
Gray Scale | 16bit | 16bit | 16bit | 16bit | |||
Max./Avg. Consumption (m²) | 400W/130W | 460W/150W | 480W/160W | 500W/160W | |||
Operating Life | 100,000hours | ||||||
Refresh Frequency | ≥3840-5200HZ | ≥3840-5200HZ | ≥3840-5200HZ | ≥3840-5200HZ | |||
Control Mode | Synchronous display with control PC by DVI | ||||||
Operation Power | AC100/240 50/60HZ | ||||||
Operating Condition | - 20℃~+50℃, 10~90% RH | ||||||
Company Profile

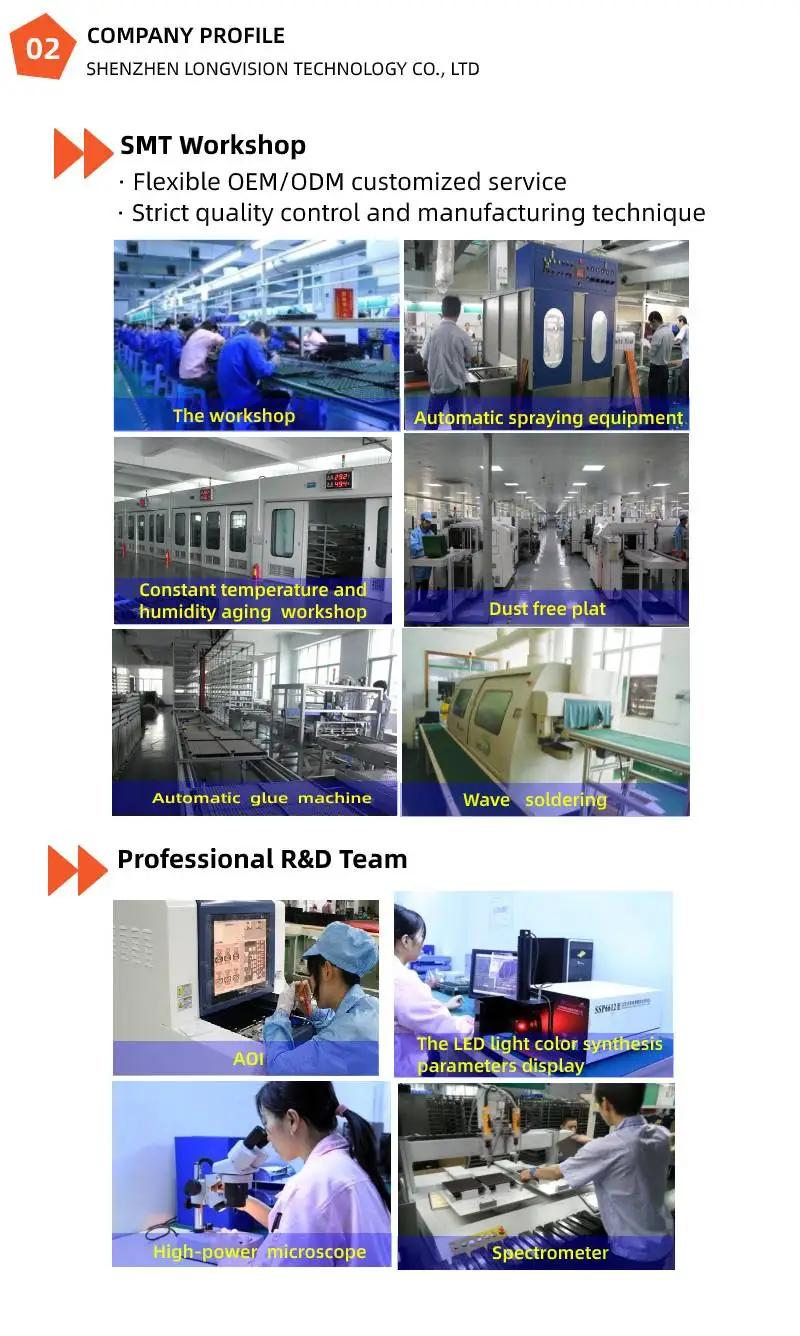

production process

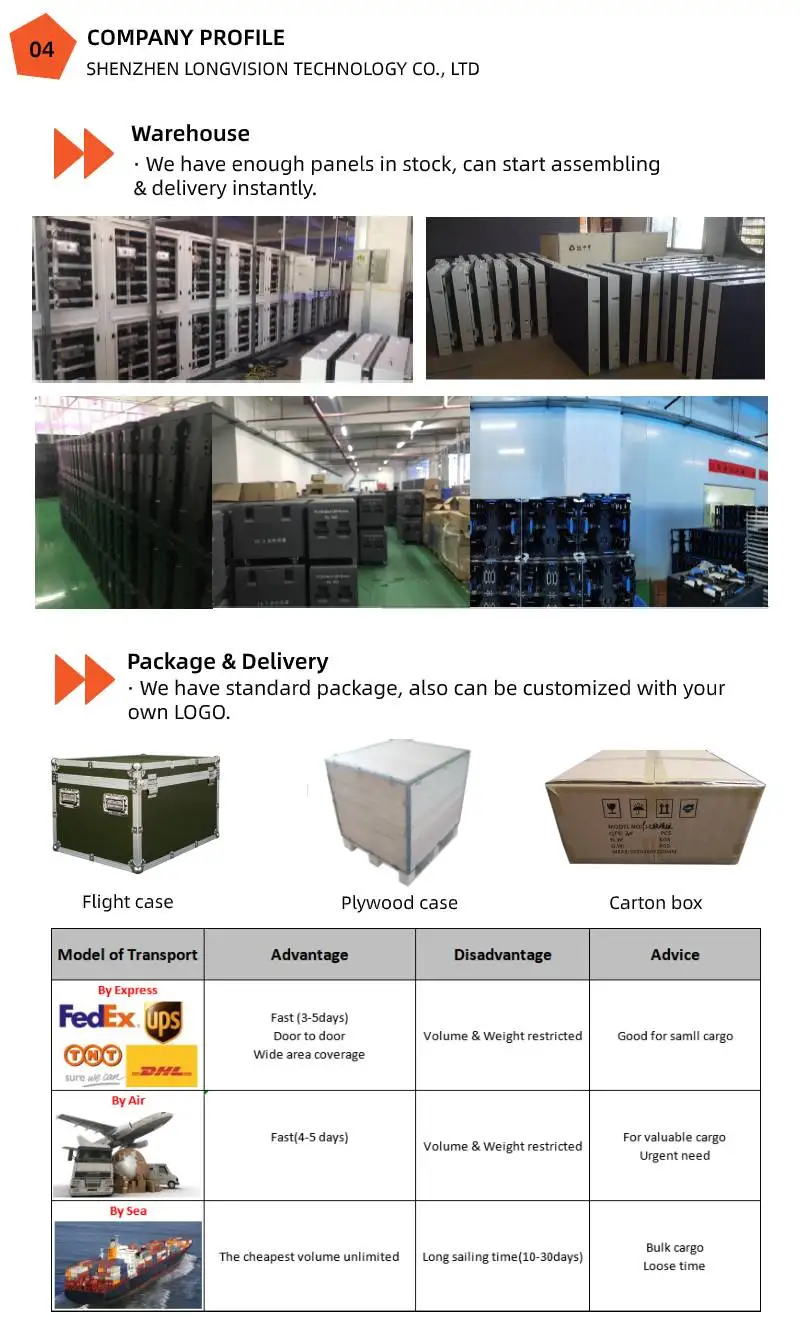

Packing & Delivery

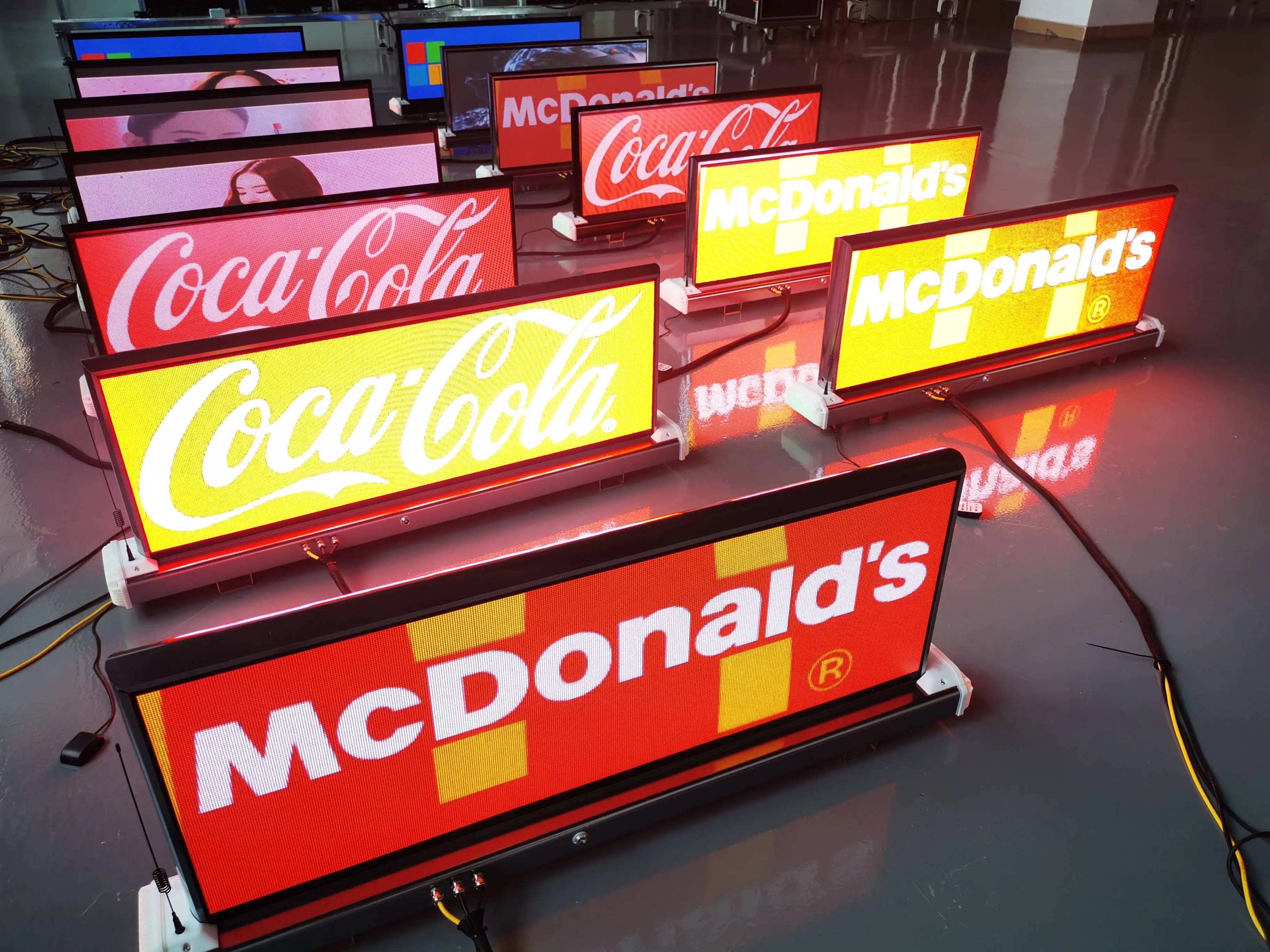

Customer Photos
Certifications
FAQ:
Q1. What about LED Display MOQ?
A1. Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven 250 skilled workers.
Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to the size and quantities of your order.
Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.
Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.
Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
Q2. What about Longvision capacity?
A2.3000sqm per month.
8 modernized dust-free and static-free production lines,
6 new YAMAHA and PANASONIC high speed SMT machines,
2 large leadless reflow oven 250 skilled workers.
Q3. When will you make the delivery?
A3. 3-5 working days when we have LED module stock
10-15 days for the new production led finished screen according to the size and quantities of your order.
Q4. How about the warranty time?
A4. Our standard is 2 years.
But you are willing to pay extra money for after sales and adopt industry top quality material,we can accept 3-5 years warranty.
Q5. Do you provide any free spare parts in each order?
A5. Yes, a certain amount of spare parts will be provided for free, spare parts including module, power cable,signal cable, LED
lamp, IC, mask, power supply, receiving card, etc.
Q6. What`s trade terms you accept?
A6. We accept EXW,CIF,CNF,DDP,DDU etc
