Double 100 S10000 Industrial Heavy Duty Commercial Thermal Hot Glue A3 A4 Paper Sheet Binding Machine For Binding Books
- Category: >>>
- Supplier: Qihe Shuangbai Digital Photographic Equipment Co. Ltd.
Share on (1600438284470):
Product Overview
Description
Product Overview

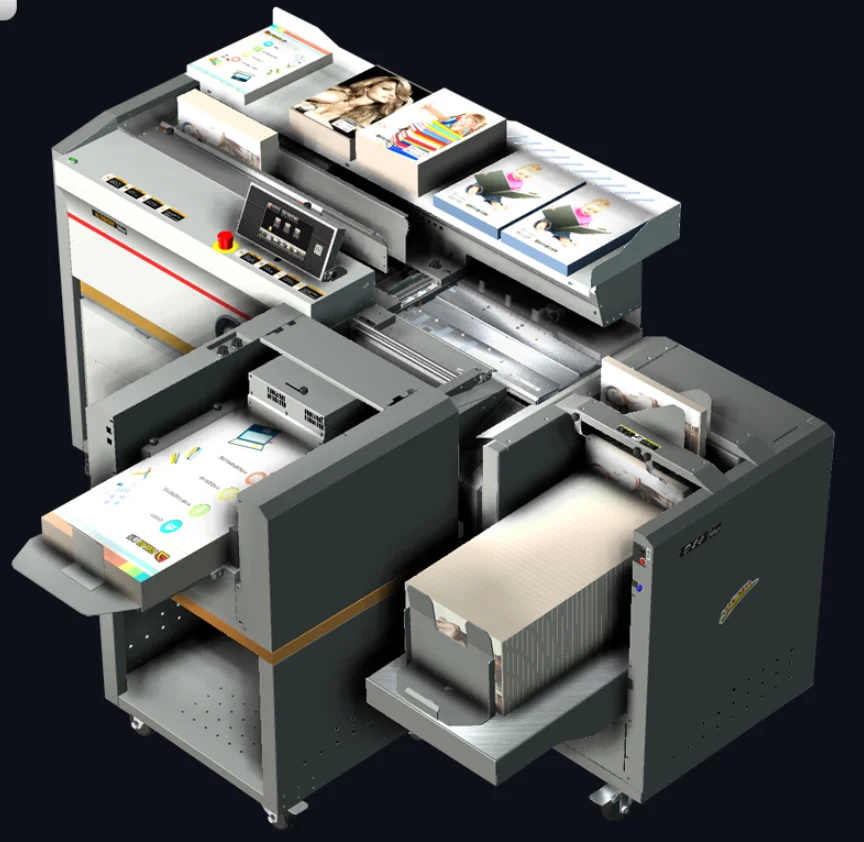

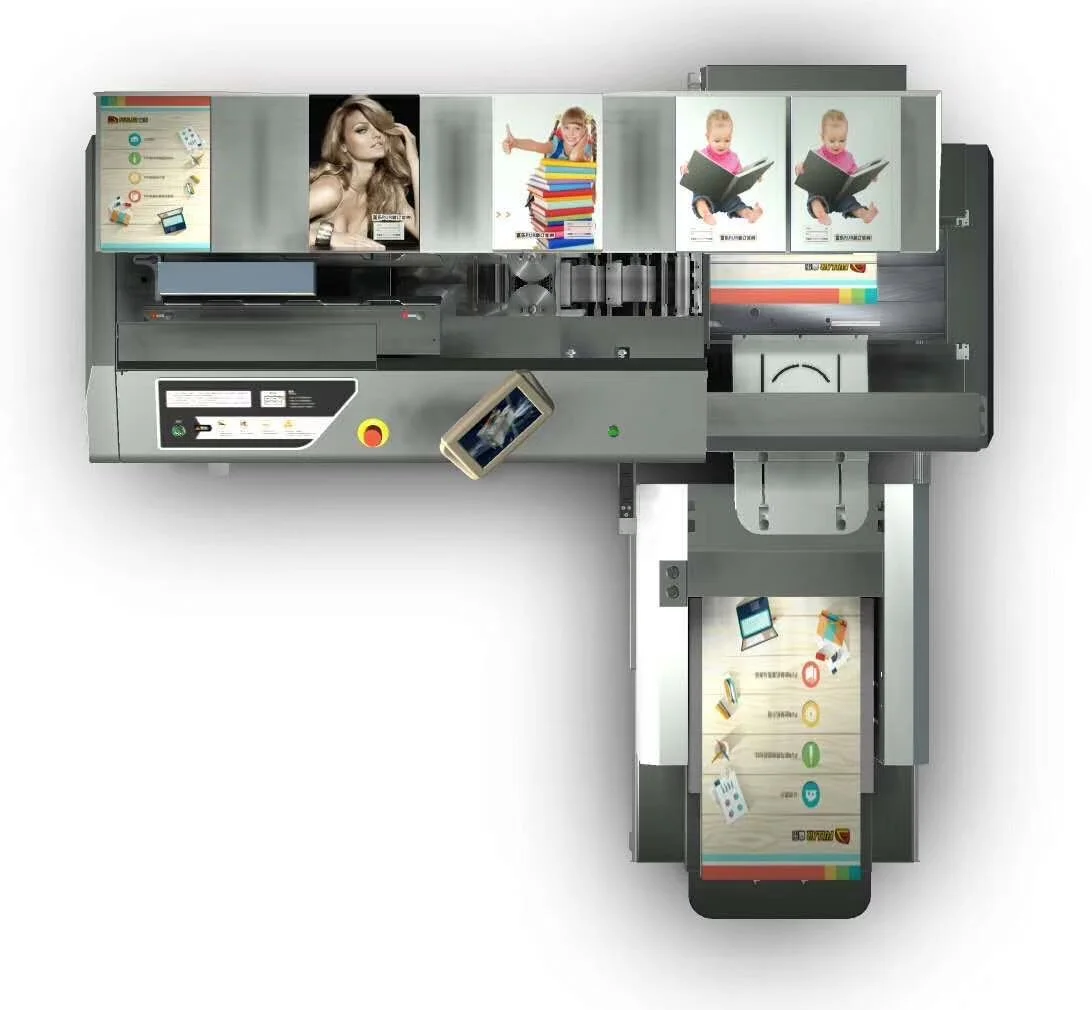

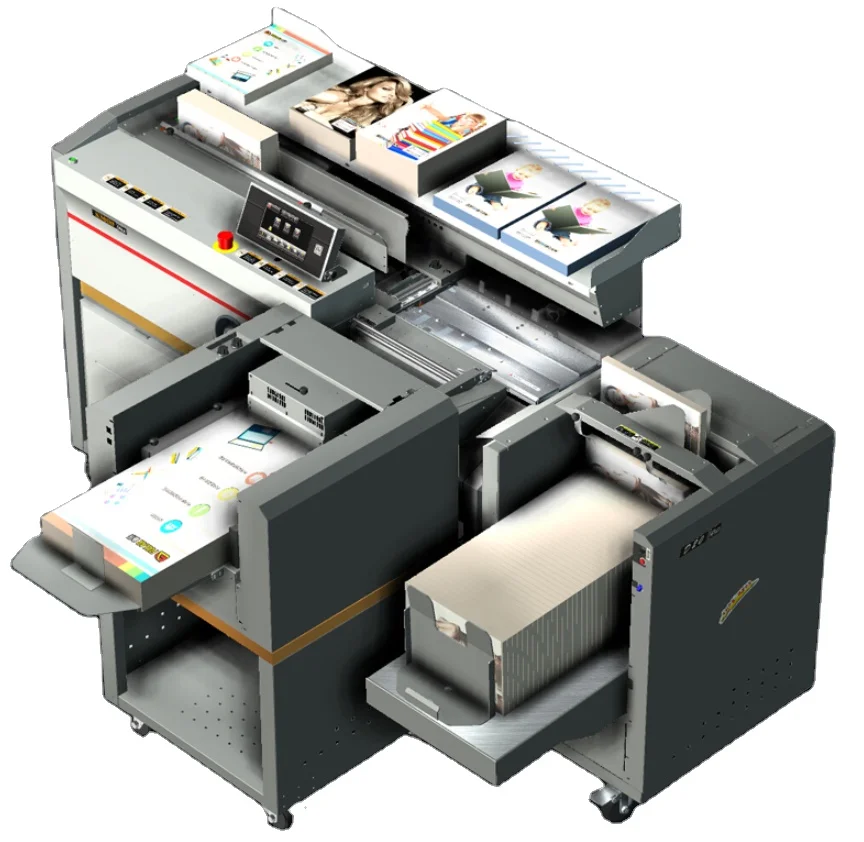

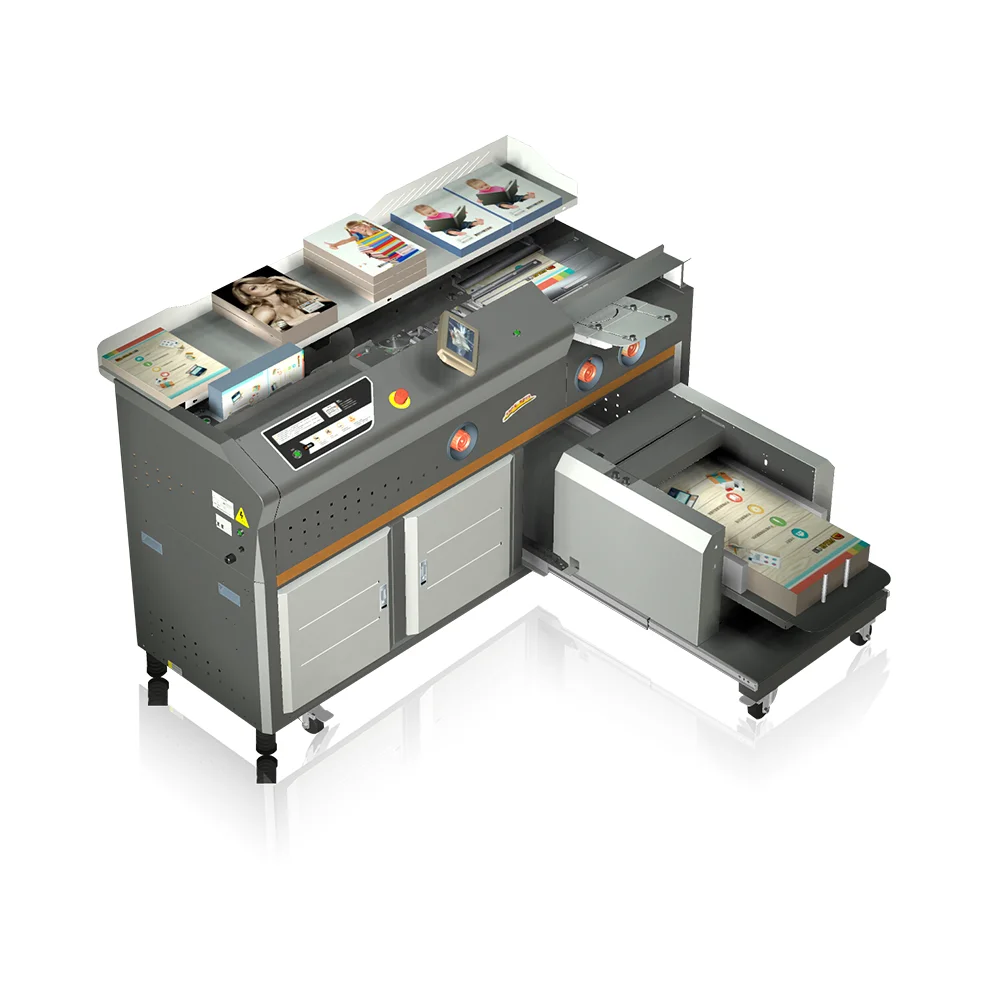

S10000 Fully Automatic Gluing Machine with Side Glue
S10000 Fully Automatic Gluing Machine with Side Glue

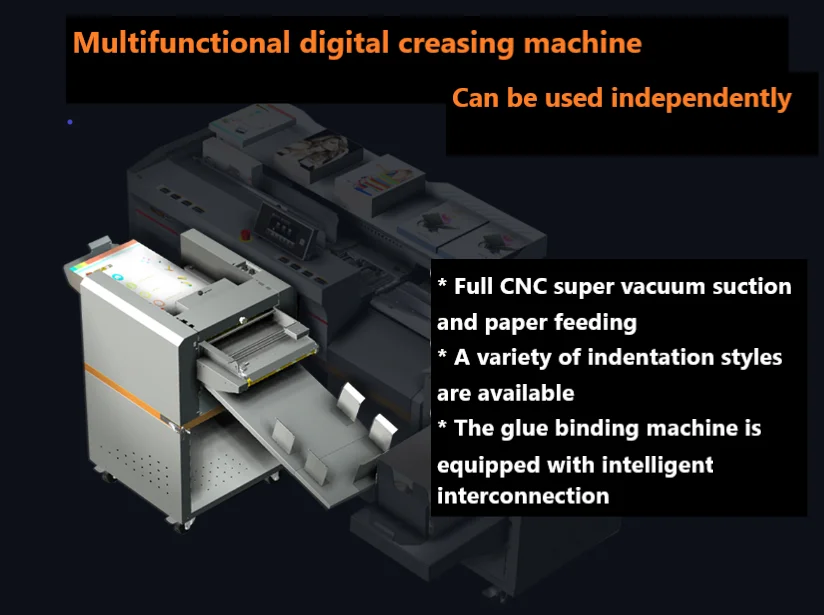

S10000 is the most comprehensive model we designed, which consist of Glue binder, auto stacker, auto feeder and creasing machine.
S10000 is the most comprehensive model we designed, which consist of Glue binder, auto stacker, auto feeder and creasing machine.
It can bind up to 320mm long and up to 58mm thick books at A3 size, and produces 300-450 books per hour.
Other additional functions like Self-adaptive Thickness of Book Clamp Plate, Thickness Measurement Speed Adjustment, Auto
anti-creasing, and etc. Assure you of more convenient operation.
S10000 is the most comprehensive model we designed, which consist of Glue binder, auto stacker, auto feeder and creasing machine.
It can bind up to 320mm long and up to 58mm thick books at A3 size, and produces 300-450 books per hour.
Other additional functions like Self-adaptive Thickness of Book Clamp Plate, Thickness Measurement Speed Adjustment, Auto
anti-creasing, and etc. Assure you of more convenient operation.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Model No. | S10000 |
2 | Book Length（mm） | 320 mm |
3 | Book Thicness(mm) | 58 mm |
4 | Speed (books/hour ) | 300-450 books/hour |
5 | Roller Quantity | Three Roller |
6 | Automatic Side Gluing | YES |
7 | Machine Size (mm) | 1990*1700*1085 |
8 | Net Weight(kg) | 450 |
Economic Single Roller Gluing Machine | Standard Single Roller Gluing Machine | Double Roller Gluing Machine with Side Glue | Three Roller Gluing Machine with Side Glue | Automatic Gluing Machine with Side Glue | |||
TT100 | TT300 | T60A4/A3 | TC60A4/A3 | ST60CA3 | S10000 | ||
Book Length（mm） | 310 | 310 | 330/425 | 330/425 | 425 | 320 | |
Book Thickness (mm) | 58 | 58 | 58 | 58 | 65 | 58 | |
Speed (books/hour ) | 250 | 250 | 250 | 250 | 350 | 300-450 | |
Glue Melting Time (min) | 30mins | 30mins | 30mins | 35mins | 40mins | 30mins | |
Milling Cutter | 10-teeth | 10-teeth | 21-teeth | 21-teeth | 21-teeth | High-speed Milling cutter | |
Auto anti-creasing Clamp | / | / | / | Auto anti-creasing | Auto anti-creasing | Auto anti-creasing | |
Roller Quantity | Single | Single | Single | Double rollers | Three rollers | Three rollers | |
Automatic Side Gluing | / | YES | / | YES | YES | YES | |
Thickness Measurement Speed Adjustment | / | / | / | YES | YES | YES | |
Pre-melting & Replenishing Glue | / | / | YES | YES | YES | YES | |
Vacuum Cleaner | Single | Single | Single | Single | Single | Forceful vacuum cleaner | |
Self-adaptive Thickness of Book Clamp Plate | / | / | / | YES | YES | YES | |
Power | 1500w | 1800w | 2600w | 2600w | 2600w | / | |
Dimension (mm) | 1180*500*950 | 1300*500*950 | 1240*540*980/ 1560*570*1070 | 1340*580*970 / 1550*580*970 | 1660*560*970 | 1990*1700*1085 | |
Net Weight (Kg) | 150 | 190 | 200/220 | 220/230 | 260 | 450 | |
Products Description
1. We own more than 20 patent for book binding machine
2. All products acquire the CE Certificate, ISO Certificate.
3. The special frequency converter for automatic speed adjustment.
4. Series of accessories, consumables and ready-made product on sale, on-stop service provided.
5. Online service for installation, operation, maintenance service by video talk, solving your problem more efficient.
2. All products acquire the CE Certificate, ISO Certificate.
3. The special frequency converter for automatic speed adjustment.
4. Series of accessories, consumables and ready-made product on sale, on-stop service provided.
5. Online service for installation, operation, maintenance service by video talk, solving your problem more efficient.
Image Detail
SIMILAR PRODUCTS
Economic Single Roller Gluing Machine TT100
Single Roller
Book Thickness(mm) : 58 mm

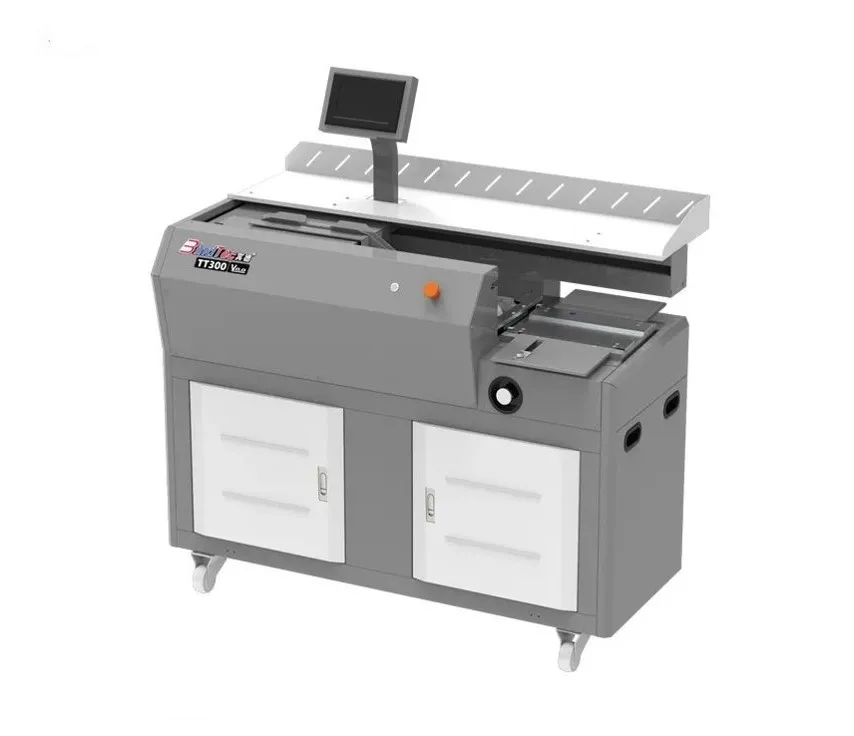

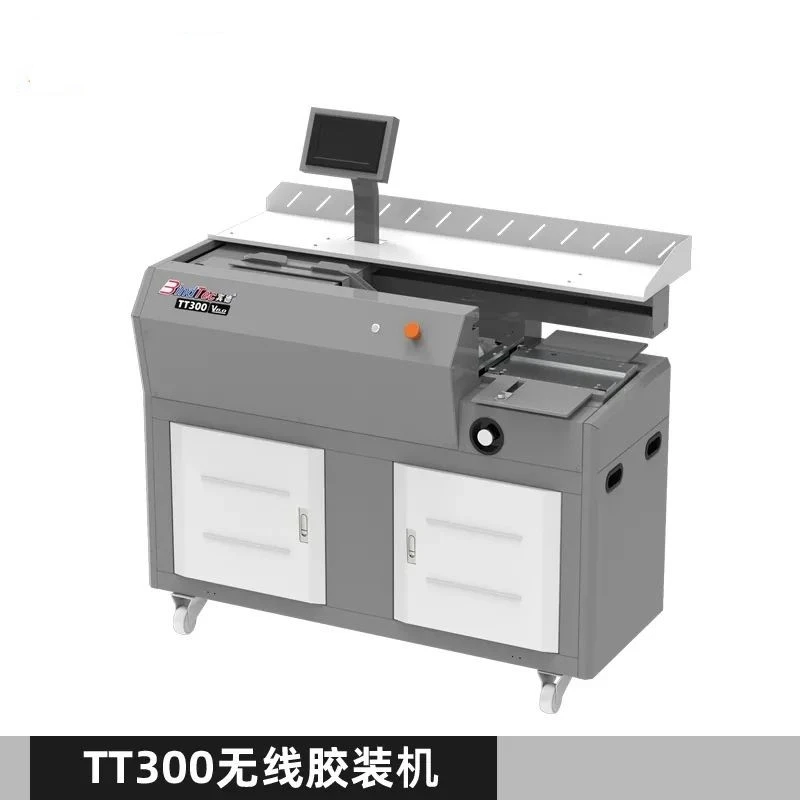

Economic Single Roller Gluing Machine TT300
Single Roller
Side glue
Book Thickness(mm) : 58 mm
Standard Single Roller Gluing Machine T60A4/A3
Single Roller
Book Thickness(mm) : 65 mm
