Product Overview
Description
Product Description
!!WARNING!!

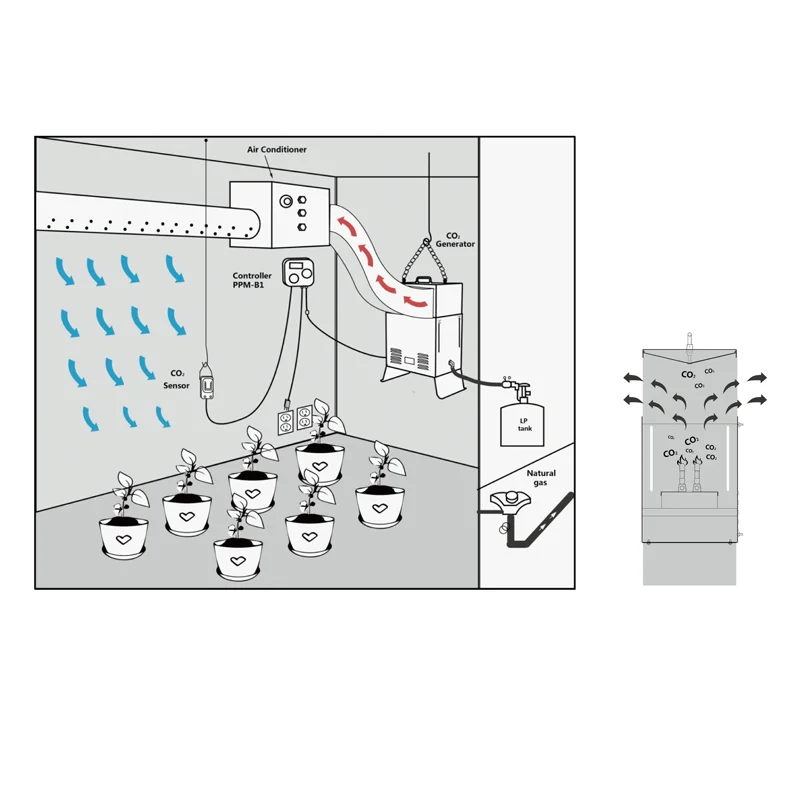

In closed spaces without adequate ventilation, CO2 levels can accumulate and become toxic(CO2 levels above 5000 PPM are toxic).Plants benefit from levels up to 1500 PPM. Levels above 2500 PPM can cause headaches and /or other feelings of being ill.Determine the best location for the generator. It must be placed in an area that is adequately ventilated.

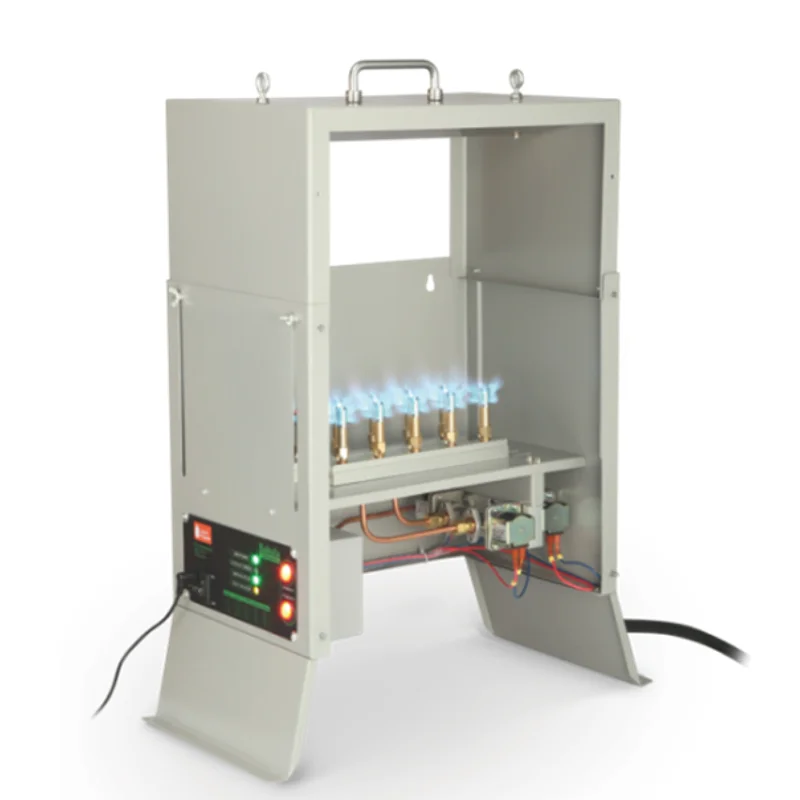

Specially designed for indoor garden, Application: Indoor garden, grow room,hydroponic garden Propane or Natural Gas available,4 burners, 8 burners and 10 burners available Constructed high temperature resistance and powder-coated steel Electronic Spark Ignition - No pilot light necessary Safety "tip-over" switch shuts down Propane or natural gas in case the CO2 generator falls or gets knocked over.
Specification
Name | Greenhouse CO2 generator | ||||
model | AM-06A | AM-05 | AM-12 | ||
voltage | AC220V | AC220V | AC220V | ||
Gas production | 1100g/h | 1100g/h | 2500g/h | ||
power | 1100W | 900W | 1800W | ||
Applicable area | ≤667m2 | ≤667m2 | 1500m2 | ||
Unit packing size | 35*90cm | 35*90cm | 35*90cm | ||
N.W/G.W | 13KG/15KG | 13KG/15KG | 13KG/15KG | ||
Setup & Operation Instructions

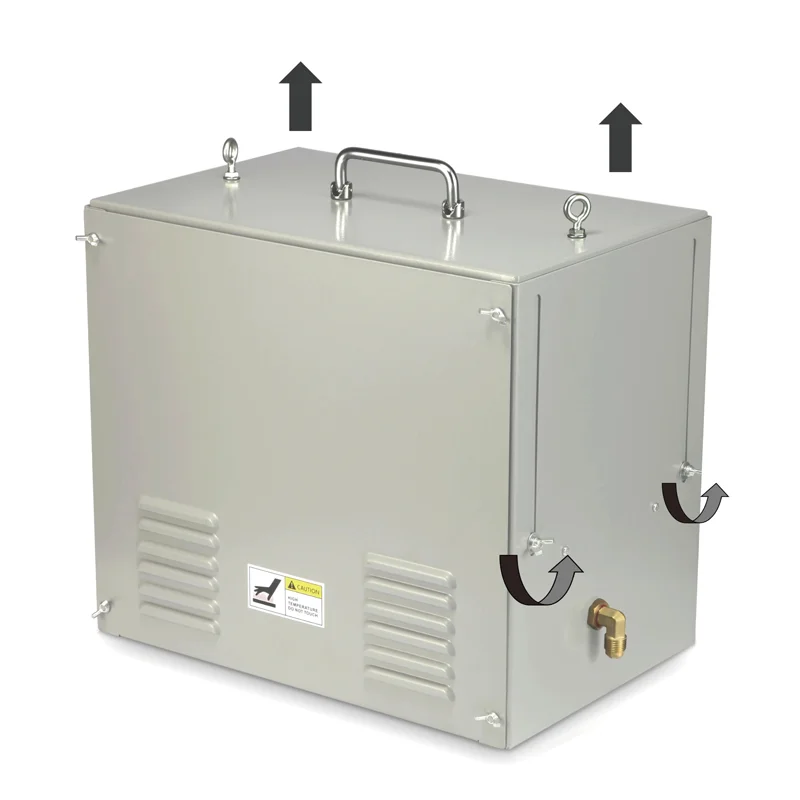

Step 1: Loosen the 2 wing bolts on each side, raise the top upward.
Step 2: Tighten the bolts at the top limit. Install two stand feet when you need to place it on the ground.
Step 3:Connect the supplied hose to the gas source and generator. Verify that the gas supply matches the CO2 generator model (LP or NG), and check thoroughly for any gas leaks at the connection points using soapy water. Plug in the 24V power supply
Step 4:Turn the power switch to the ON position. The green 'MAIN POWER ON' LED should be illuminated. The intelligent ignition module will then attempt to ignite the burners. If the burners ignite properly and maintain a flame, the green 'MAIN VALVE ON' LED should remain illuminated.The yellow 'PILOT VALVE ON' LED indicator should also remain illuminated (for 10 burner units only).
