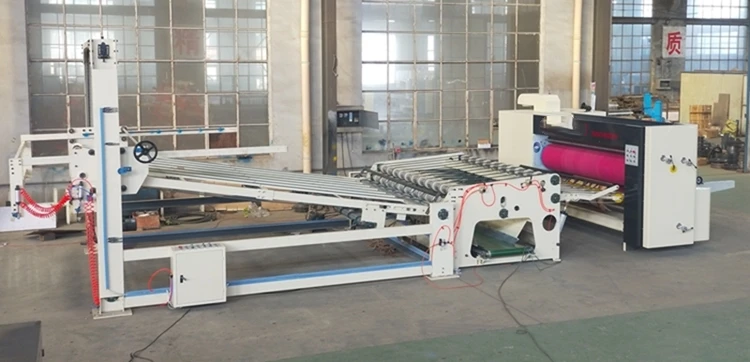

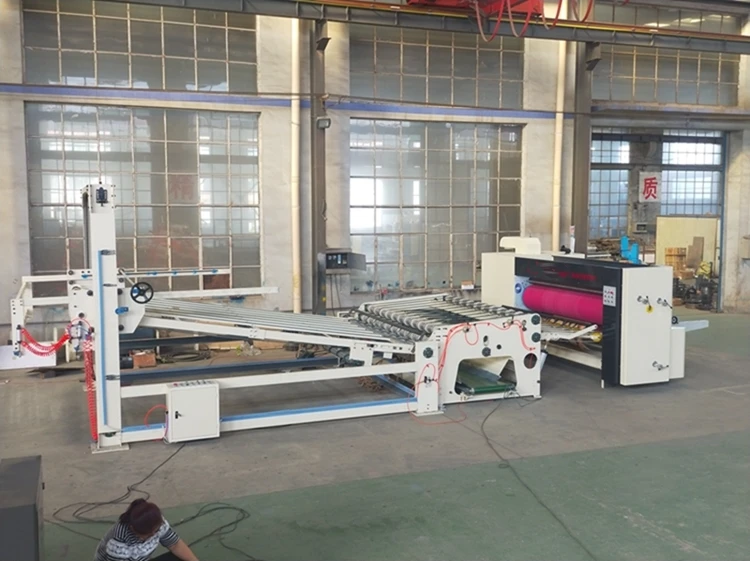

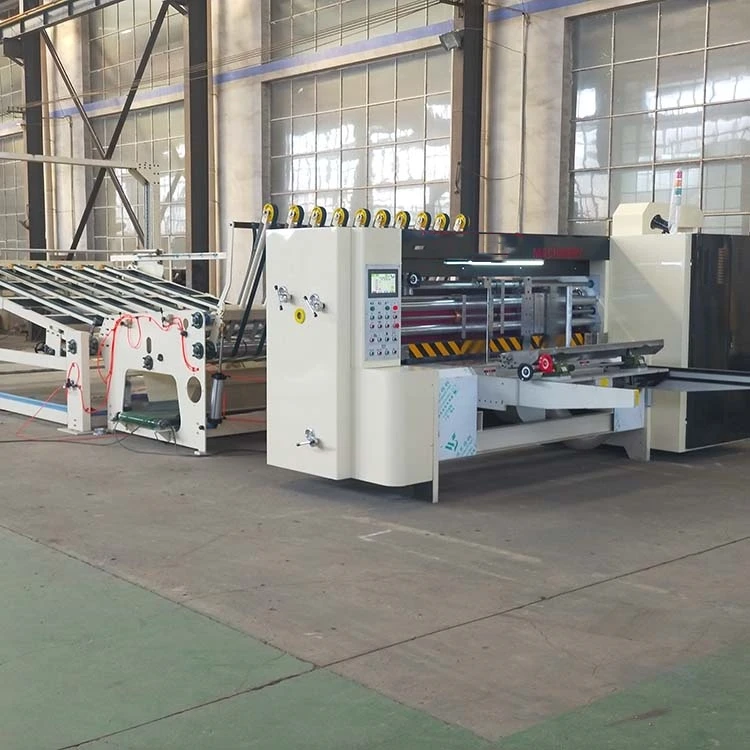

automatic corrugated paper rotary die cutting machine for carton box
- Category: >>>
- Supplier: Cangzhou Liqiang Packaging Machinery Co. Ltd.
Share on (1600438326287):
Product Overview
Description
Product Description
Power | 7.5-11kw |
Application | corrugated carton making |
Usage | milk, fruit and vegetable, beverage, egg |

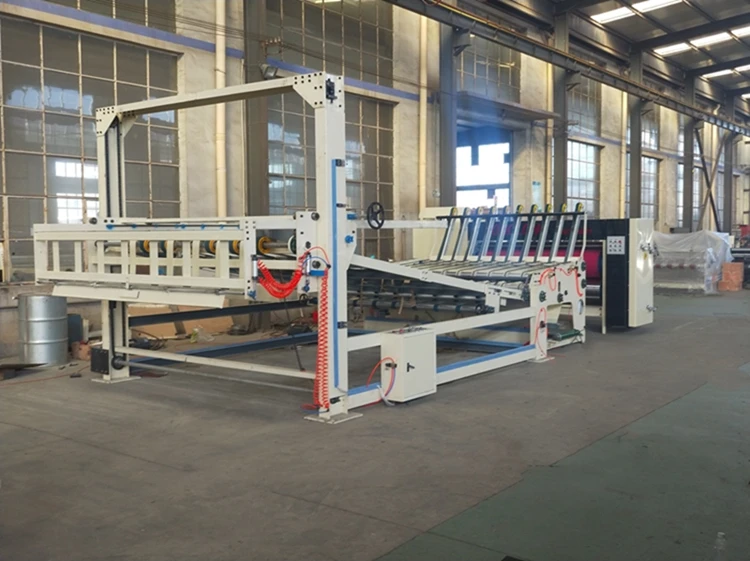

Feeding part | 1. The machine used roller-type lead edge feeder with adsorption system, feeding fast and high accurately. 2. Fan motor is frequency type, air volume can be adjusted arbitrarily. 3. Phase adjustment by computer control, planetary gear type in 360 degree, fast and accurate. 4. The front baffle is adjusted by hand synchronously, the side baffle is adjusted by computer, and the rear gearbox is adjusted by electric driving. 5. Grooving glue surface of the paper guiding roll, preventing damages to strength of cardboard and increasing the accuracy of paper feeding. |

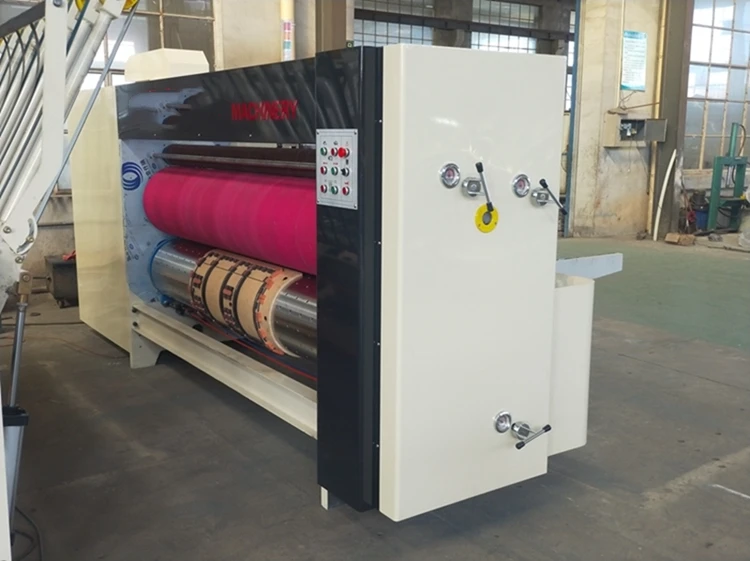

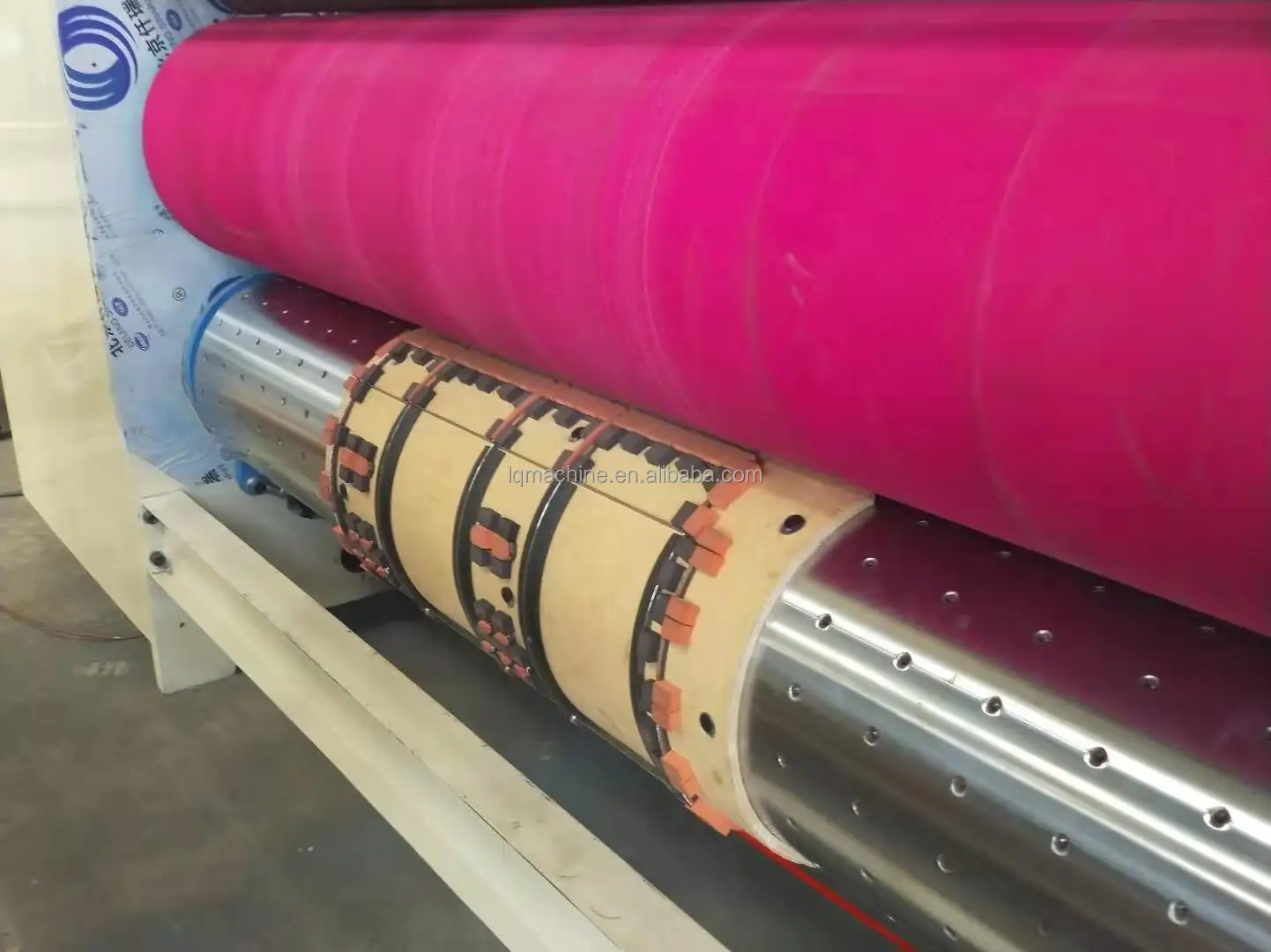

Die-cutting part
| 1. Die cutting rolls are made of high quality steel, wall thickness 30m,dynamic balance correcting, hard chromium plating. 2. The wallboard is made of high quality cast iron material HT200, wall thickness 50mm. 3. Gears after high frequency heating and surface finishing. 4. Soft rollers adopts automatic grinding mechanism, which can be repaired for 3-4 times , improving the reusing rate of rubber sleeve. 5. The soft roller adopts mechanical cam type, moves transversely +40mm, keeps wear and tear of the rubber evenly and prolongs the service life of the rubber sleeve. 6. Automatic compensation of line speed,to ensure that each batch of carton size is exactly the same. 7. Adopt “Maxdura” brand anvil cover, install conveniently, more than 12 million times die-cutting. (CUE, and DEPAIR brand for option). 8. The gears are made of 40Cr material, six grade grinding , lower noise and longer service life. 9. Spray lubrication system is adopted in this machine, works simple and efficient. 10. The die cutting rollers adopts automatic cylinder separation device,to reduce wear of rubber pad. |

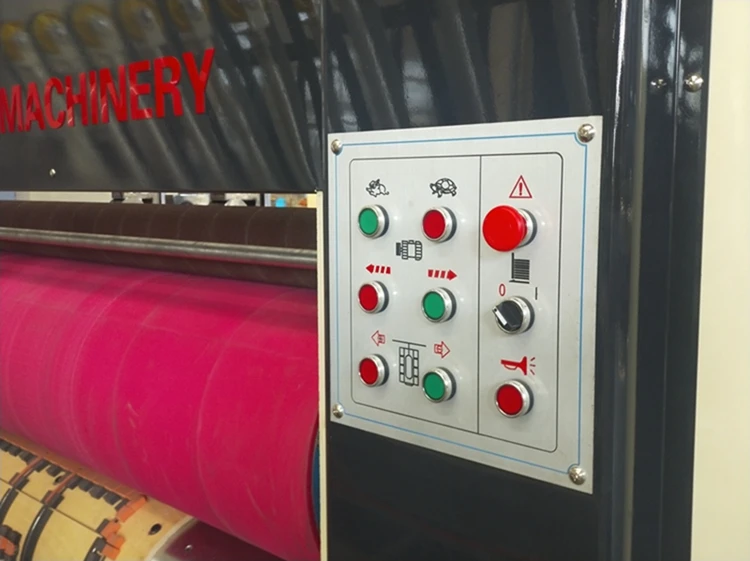

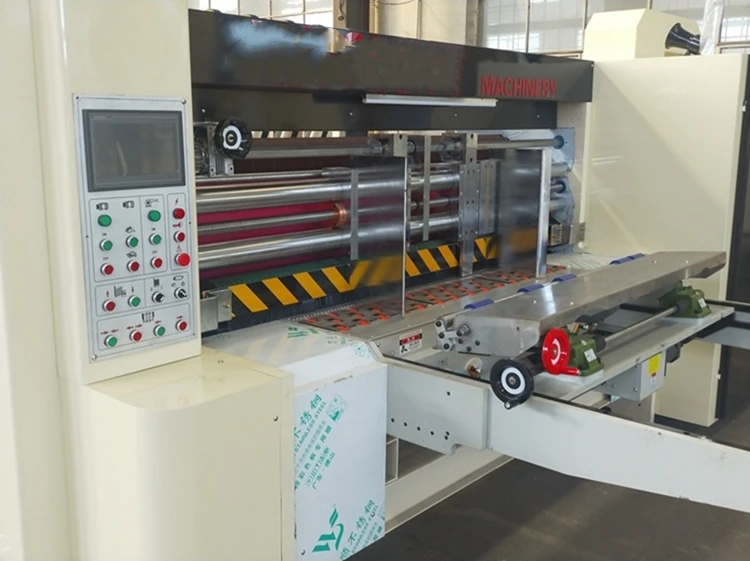

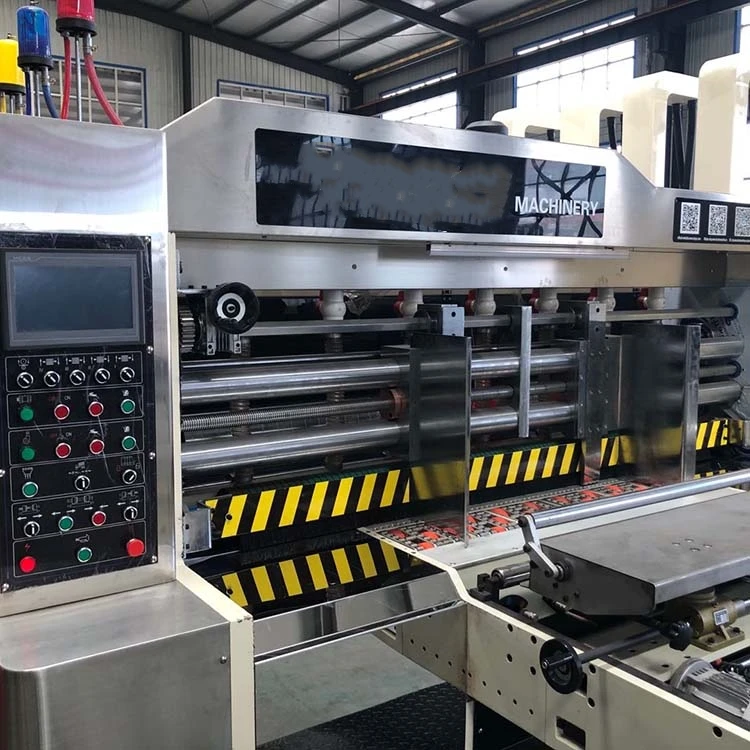

| Electronic control part | 1. Man machine interface, full computer PLC precision control system. 2. The main motor is variable frequency motor. 3. The front and rear control panel is concise and centralized, convenient operation. 4. System of complete machine is unitedly controlled by photo, electricity and gas. |
More Products
Company Information
Certifications
Partner
Packaging & Shipping
FAQ
1. Q: Are you a manufacturer, trading company or third party?
A: We are a manufacturer, located in Dongguang county, Hebei province, China.
Warmly welcome to visit our company
2. Q: What is your minimum order quantity, can you send me samples?
A: Our minimum quantity is 1 set, as our product is machinery equipment, it is difficult to send you samples, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information such as specifications, video, etc.
3. Q: How does your factory do regarding quality controlling?
A: 1) All raw material we used are environmental-friendly
2) Skillful workers care every details in handling the producing and packing process
3) Quality control department are specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different countries including Russia, the middle east, Africa, Southeast Asia, EU, etc. Which earned us a high reputation among the customers.
4. Q: How about the after-sale service?
A: 1) TM online 24 hours, also contact by email, skype, wechat, whatsapp, etc.
2) To solve the problems with videos/pictures
3) One year warranty for spare parts change.
