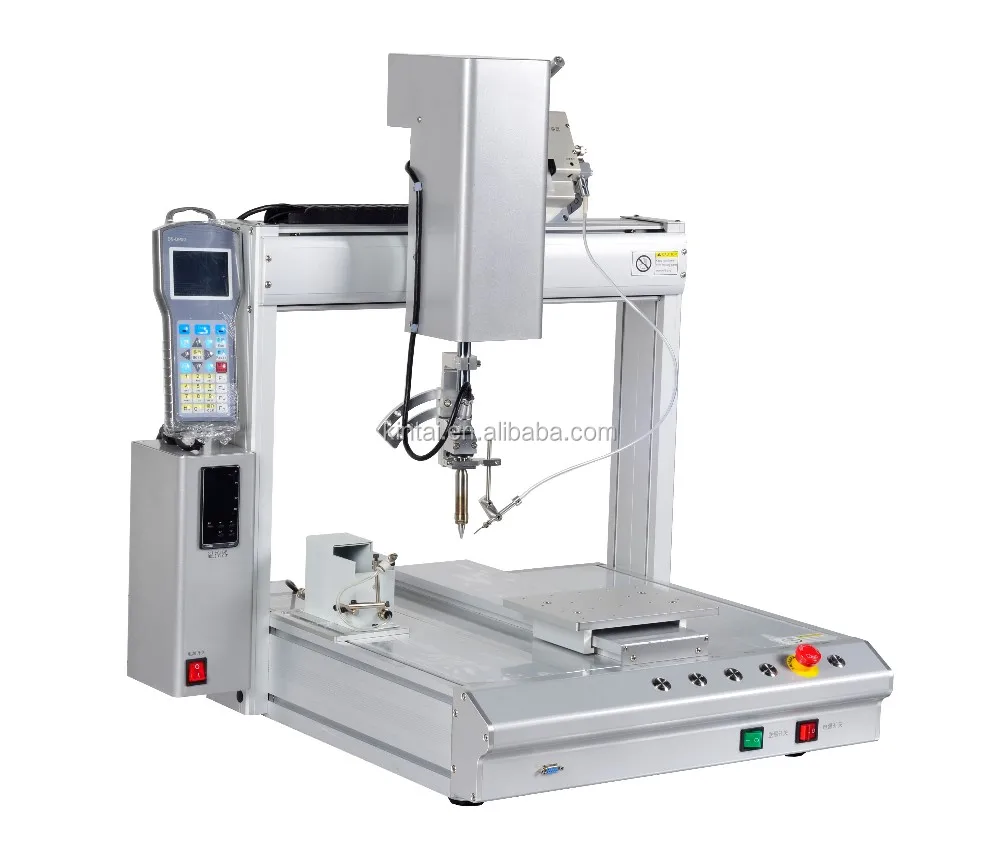

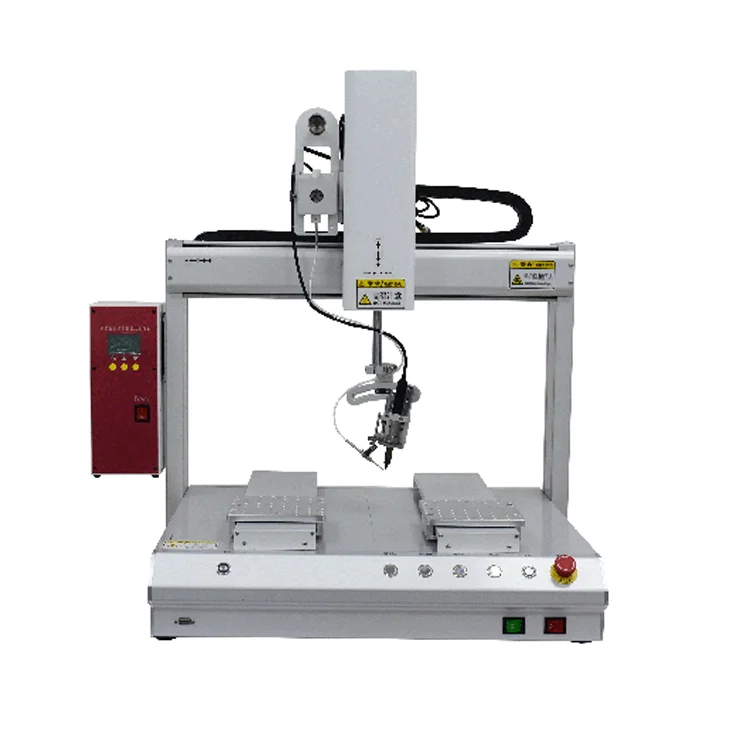

China Semi Automatic Benchtop 3 Axis Pcb Smt Paste Solder Machine
- Category: >>>
- Supplier: Guangzhou Kintai Technology Co. Ltd.
Share on (1600438335816):
Product Overview
Description
Products Description
Desktop Soldering Paste Machine

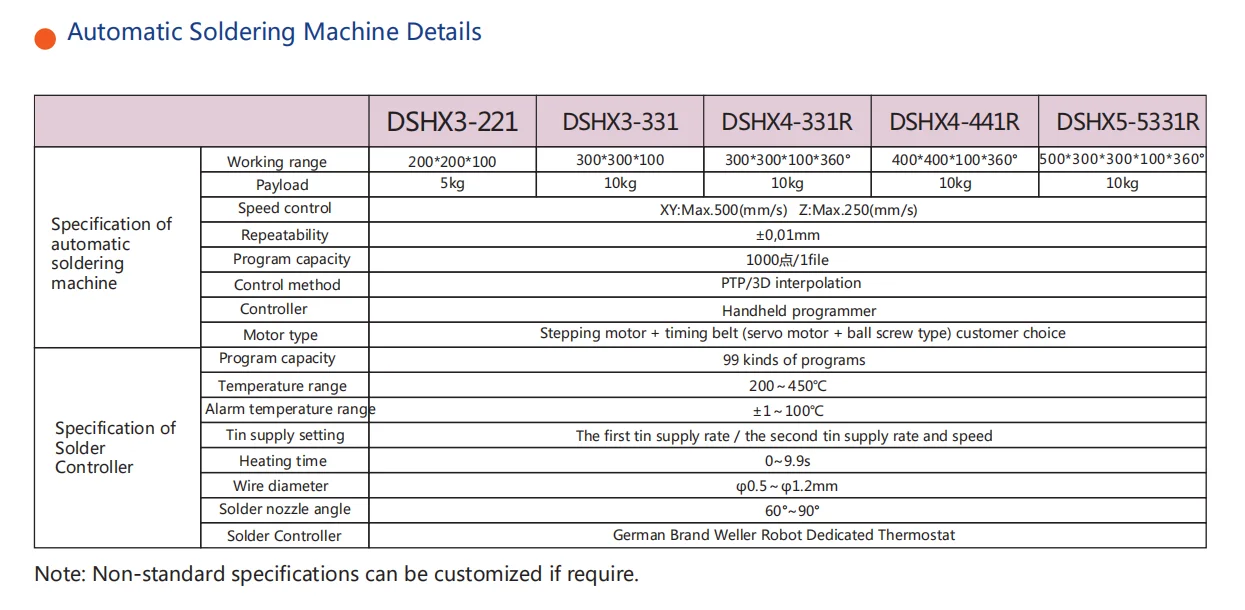

Products Parameters
Speed control | XY:Max.500(mm/s) Z:Max.250(mm/s) | ||||||
Repeatability Accuracy | ±0.01mm/Axis | ||||||
Control method | PTP/3D interpolation | ||||||
Controller | Handheld programmer | ||||||

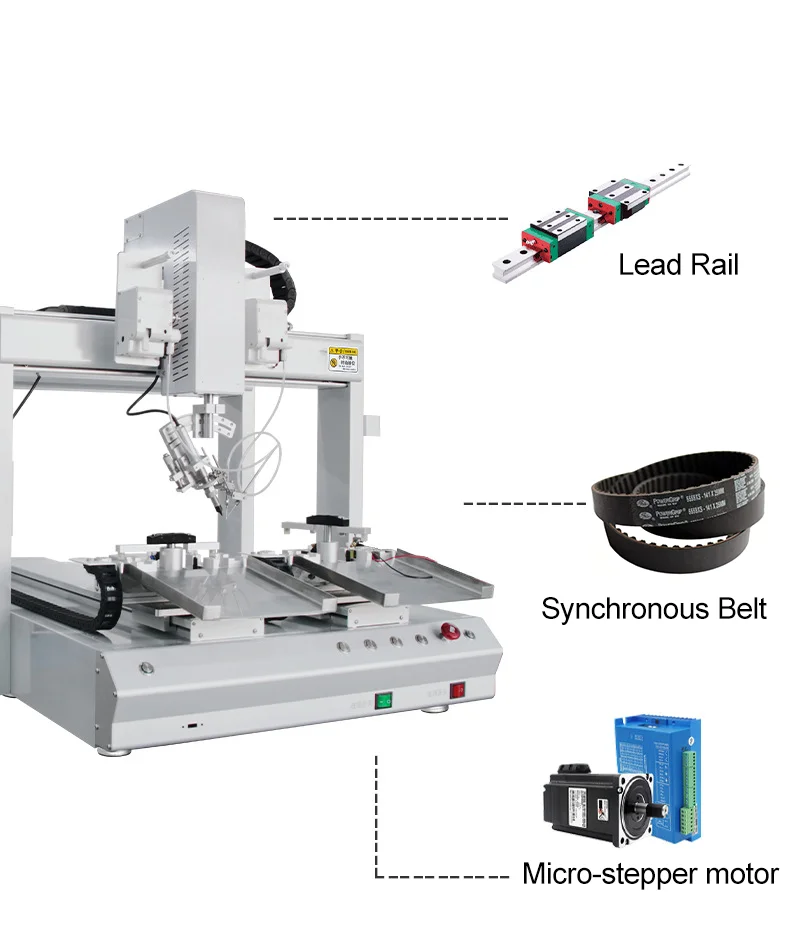

Motor type | Stepping motor + timing belt (servo motor + ball screw type) customer choice | ||||||
Transmission | Timing belt/precision linear guides | ||||||
Program capacity | 99 kinds of programs | ||||||
Temperature range | 200～450℃ | ||||||
Alarm temperature range | ±1～100℃ | ||||||
Tin supply setting | The first tin supply rate / the second tin supply rate and speed | ||||||
Heating time | 0~9.9s | ||||||
Wire diameter | φ0.5～φ1.2mm | ||||||

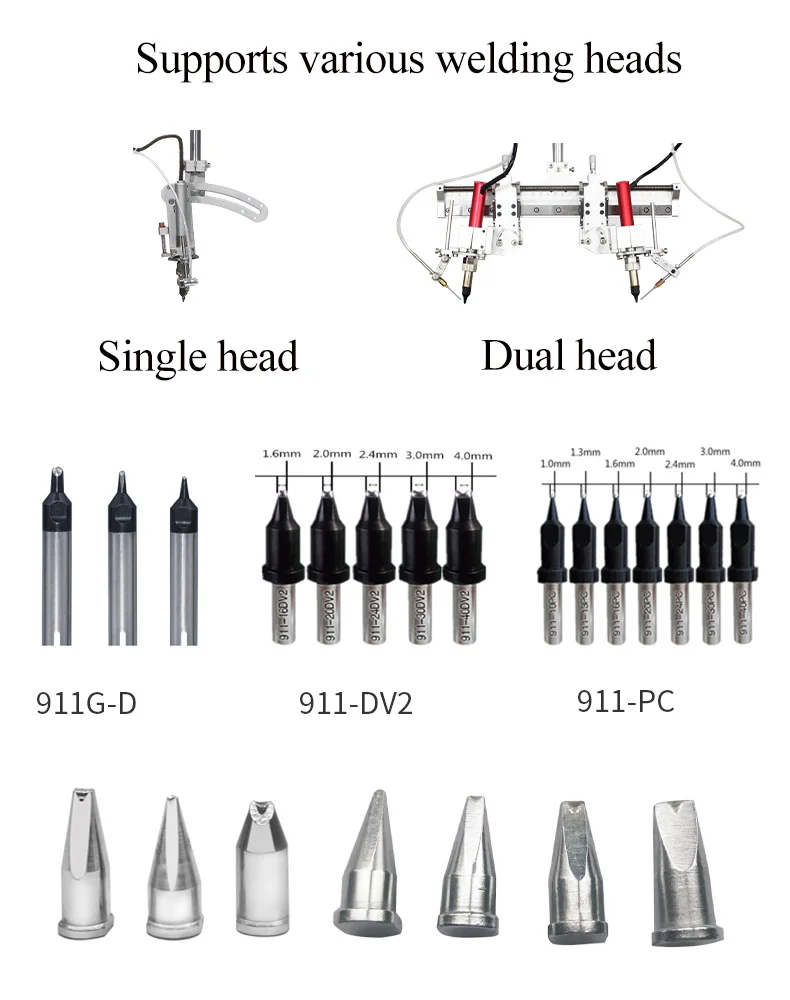

Solder nozzle angle | 60°~90° | ||||||
Solder Controller | German Brand Weller Robot Dedicated Thermostat | ||||||
Details Images
