Parameters:
| Model | BS15-013S | |
| Heating capacity | KW | 5.6 |
| BTU | 19000 | |
| COP | 6.6 | |
| Operating range-Air | ℃ | -7~43 |
| Advised water flow | m³/h | 2~4 |
| Rate input power | KW | 0.84 |
| Running current heating | A | 3.96 |
| Max current heating | A | 5.2 |
| Heat ex-changer | Titanium in PVC | |
| Compressor | Rotary | |

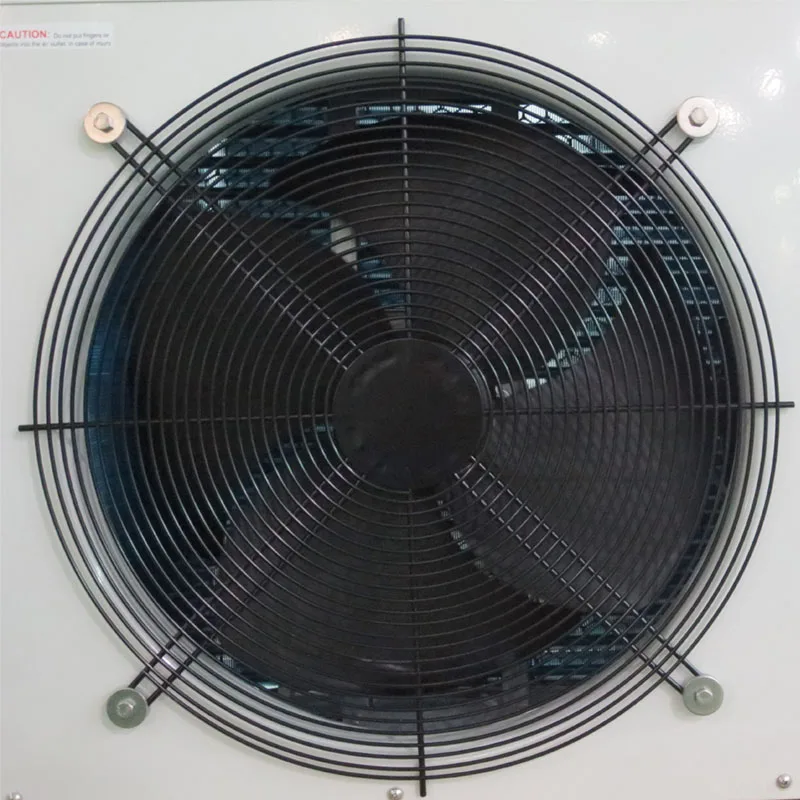

| Fan direction | Horizontal | |
| Sound level | dB(A) | 50 |

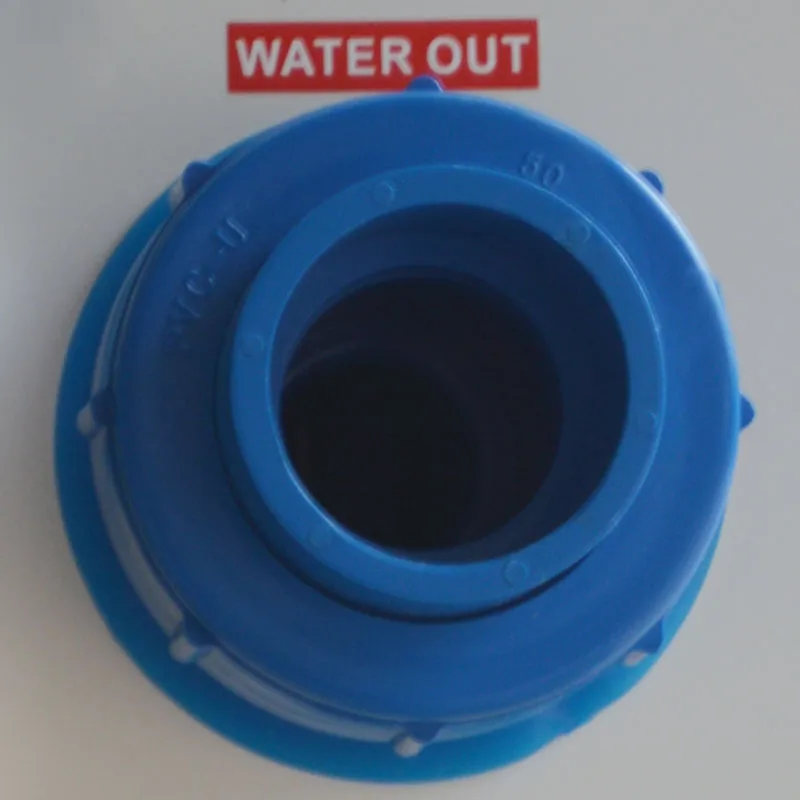

| Water pipe in-out spec | mm | 50/48.3 |
| Gross weight | KG | 57 |
| Power supply | V/Ph/Hz | 220~240/1/50 |
| Measuring conditions | A26W26 |

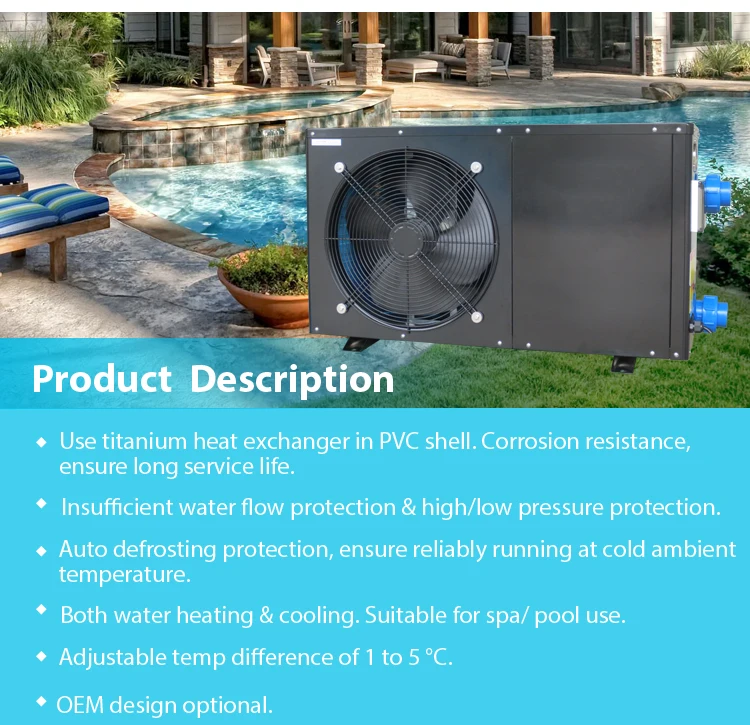

Features:
1. Both water heating & cooling, Min 8°C/ Max 40°C.Auto flow detect.

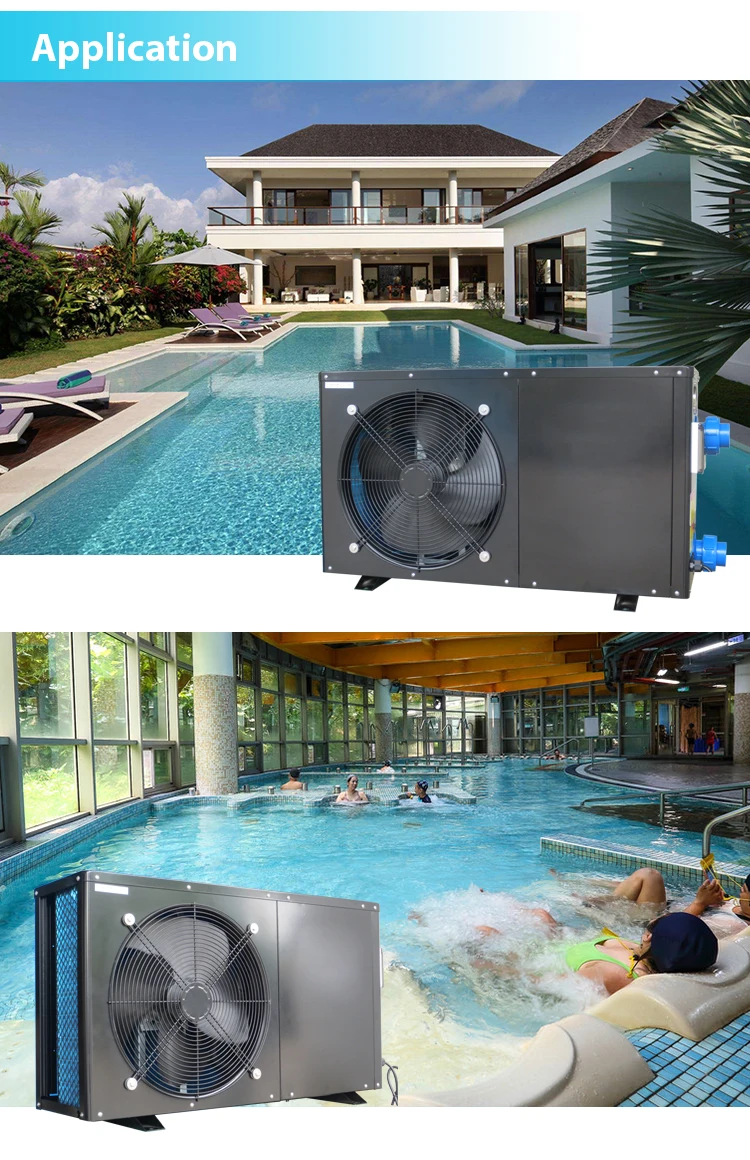

2. Applicable to swimming pool, SPA or fish cultivation.
3. Titanium heat exchanger in PVC shell , virtually impervious to water chemistry damage.

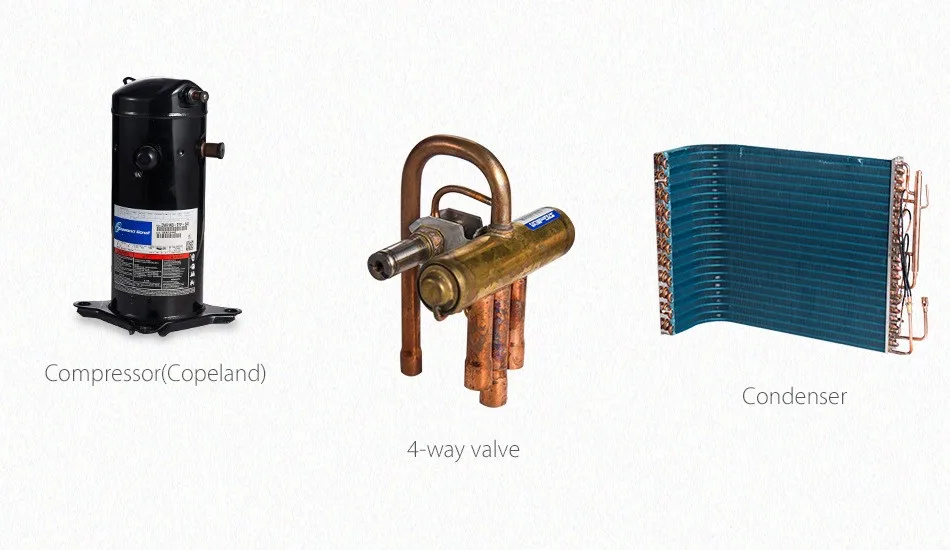

4. World famous Japanese brand compressor.
5. Small water temp difference only 1-5 deg c.
6. Insufficient water flow protection & high/low pressure protection.
7. Auto 4-way-valve defrost, ensure reliably running at cold ambient temp.
8. Pallet packing for easy container loading.
9 .Widely choose for heating capacity.
10. OEM design optional.
11.CE approved.








As the innovative continuation of Guangdong Shenbao Electrical Appliance CO., LTD, which was established in 1999, with rich experience in manufacturing and exporting air to water heat pump products. O.S.B. have born in 2014, dedicated to provide the highest quality of service and most demanding products available in the latest market.

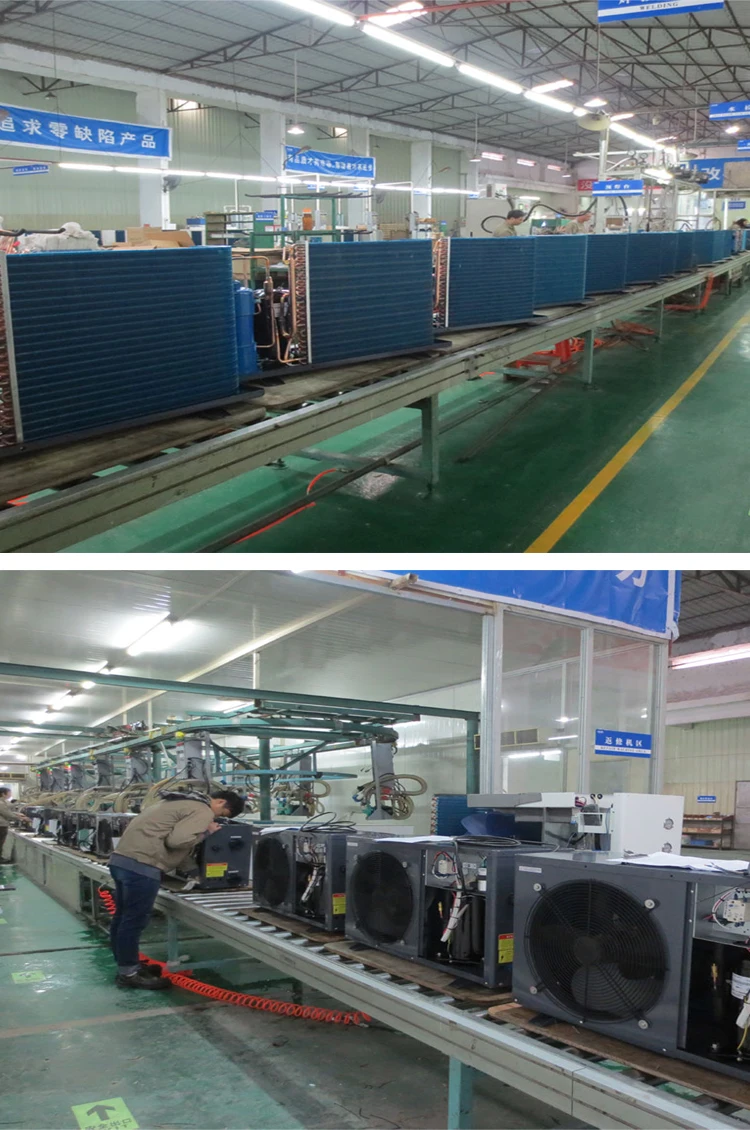

Up to now, we have equipped with 3 automatic production line, 3 cold/hot condition enthalpy testing lab , fully refrigerant auto-refilling machine , as well as all necessary testing equipment, such as 4-in-1 electricity safety inspection machine and halogen leakage checking machine, etc. All management are executed by following ISO 9001:2008 system.
The heat pump products we have been manufacturing and supplying to Europe, South Africa and Asia are well accepted by the market and we have achieved more success by passing EN 14511, EN16147, EN14825 etc energy efficiency test , as well as our self developed IOT wifi control function that applicable in almost all of our air to water heat pump products.
We compete, we innovate, we welcome you to john us and be partner with us to make the best products!
