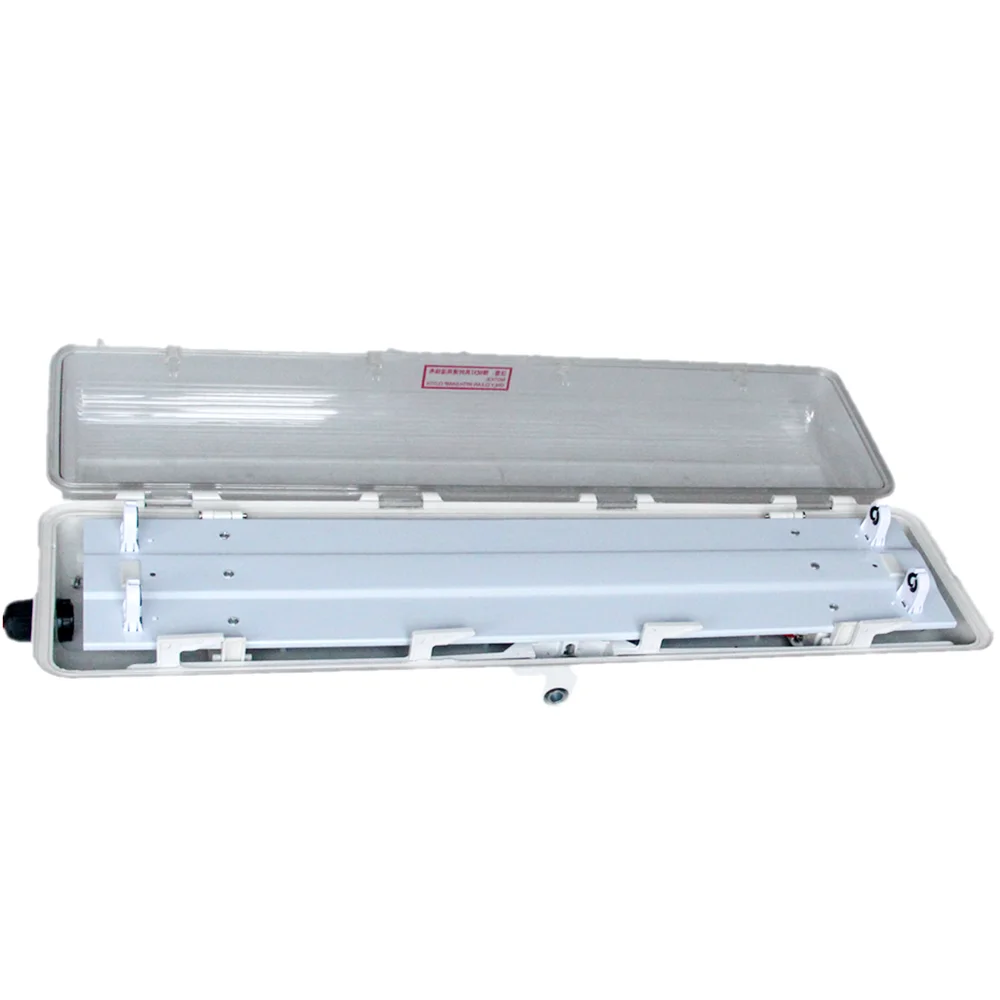

Atex Bys 120cm Explosion Proof Led Light Ip65 Flameproof Explosion Proof Fluorescent Lamp
Atex Bys 120cm Explosion Proof Led Light Ip65 Flameproof Explosion Proof Fluorescent Lamp
Atex Bys 120cm Explosion Proof Led Light Ip65 Flameproof Explosion Proof Fluorescent Lamp
Atex Bys 120cm Explosion Proof Led Light Ip65 Flameproof Explosion Proof Fluorescent Lamp
Atex Bys 120cm Explosion Proof Led Light Ip65 Flameproof Explosion Proof Fluorescent Lamp
Atex Bys 120cm Explosion Proof Led Light Ip65 Flameproof Explosion Proof Fluorescent Lamp

Atex Bys 120cm Explosion Proof Led Light Ip65 Flameproof Explosion Proof Fluorescent Lamp

Share on (1600438370616):


Price:

Quantity:


Product Overview

Description





Applications

A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
Areas with high energy costs
Typical applications include: Oil and gas industries
Chemical, petrochemical
Pharmaceutical indu stries
Pulp and Paper
Waste and sewage treatment
Power Generation


Features:

GRP enclosure, corrosion-proof, Polycarbonate lampshade, strip-shaped with anti-glare
Special locking mechanism, with reliable locking force
Built-in explosion proof interlockdevice, automatically power-off after cover open
The emergency device can be equipped at the request of users.

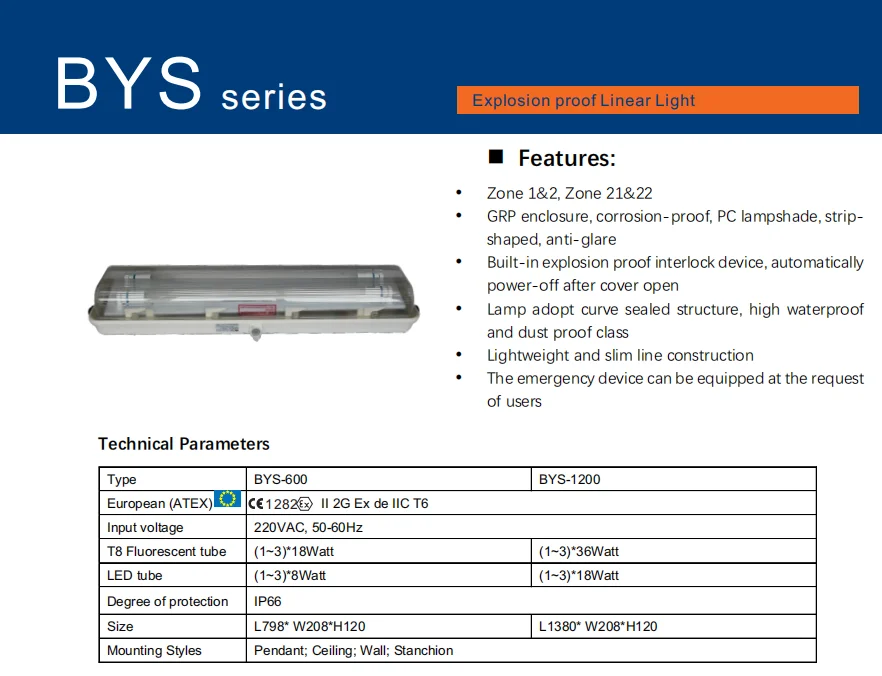

Specification






Electrical Data
Ex Marking
Ex d e IIC T6 Gb/ DIP A21 TA
Classification
Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D;
IP Degree
IP66
Corrosion Resistant
WF2
Input Voltage
110VAC; 220VAC/50~60HZ
Conduit Entries
G 3/4”
Battery Back-up
Optional, Emergency time>90min;Charging time:24h;Starting time:0.3s
Mounting Styles
Pendant; Ceiling; Chain; Embedded; Wall; Stanchion

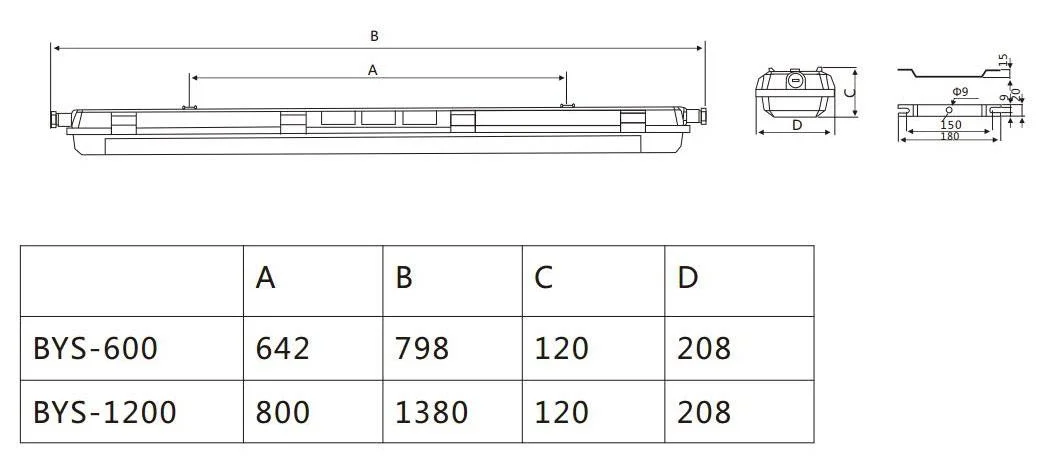

Ordering Information
Model
BYS-600
BYS-1200
T8 Fluorescent tube
(1-3)*18Watt (1350Lm,75Lm/W)
(1-3)*36Watt (2700Lm,75Lm/W)
T5 Fluorescent tube
(1-3)*14Watt(1350Lm,96Lm/W)
(1-3)*28Watt (2100Lm,75Lm/W)
LED tube
(1-3)*8Watt (800Lm,100Lm/W)8W
(1-3)*18Watt (1800Lm,100Lm/W)

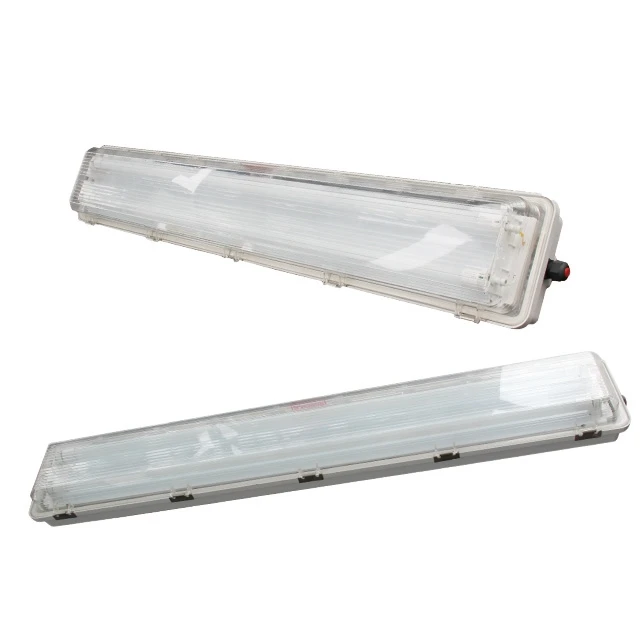

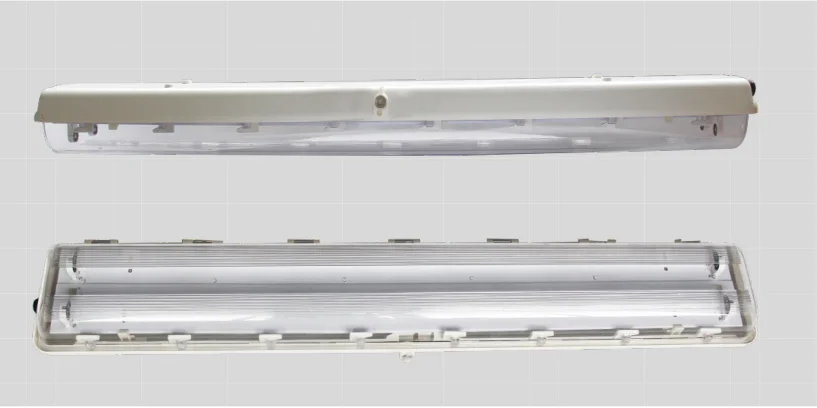

Details Images

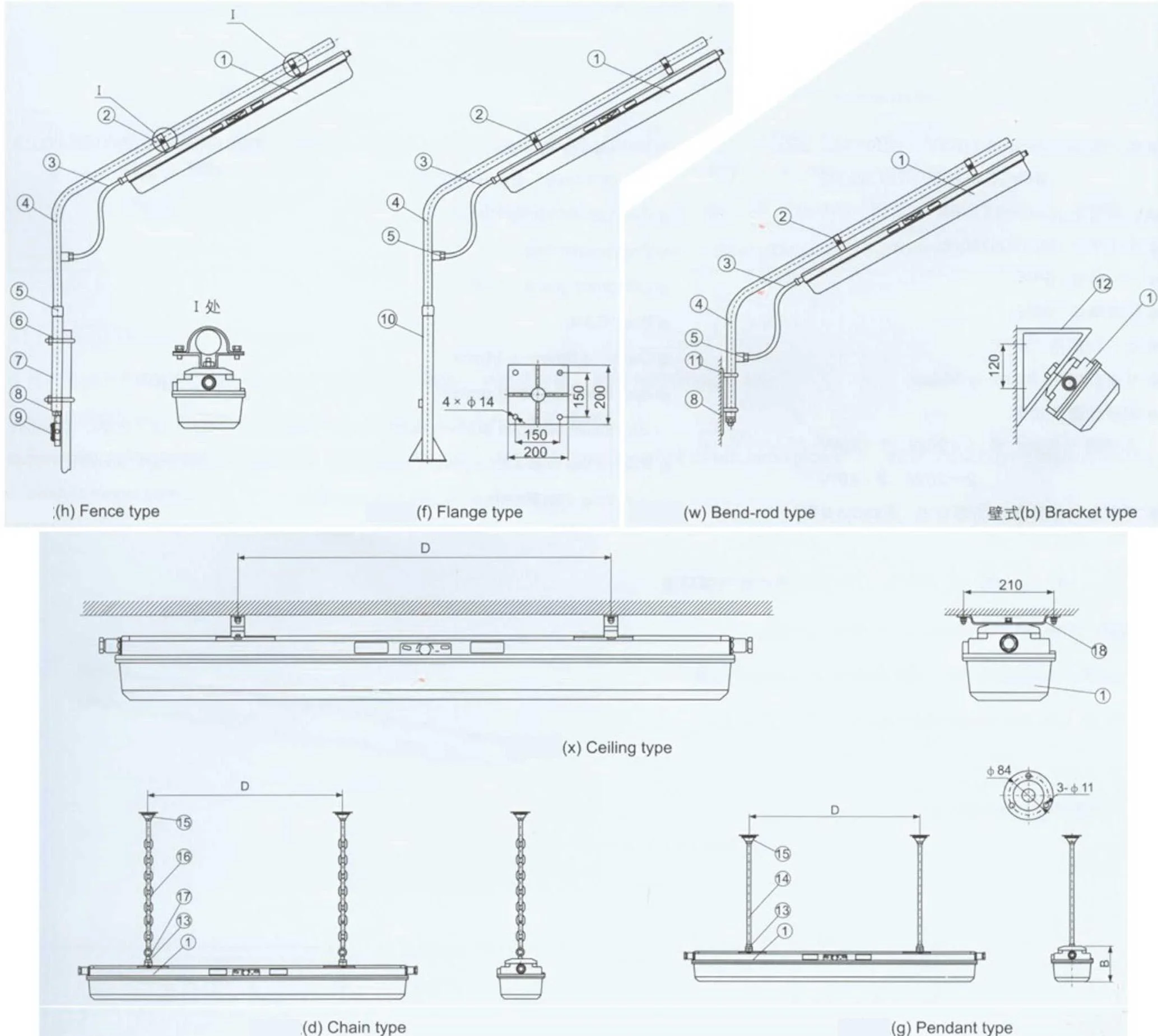

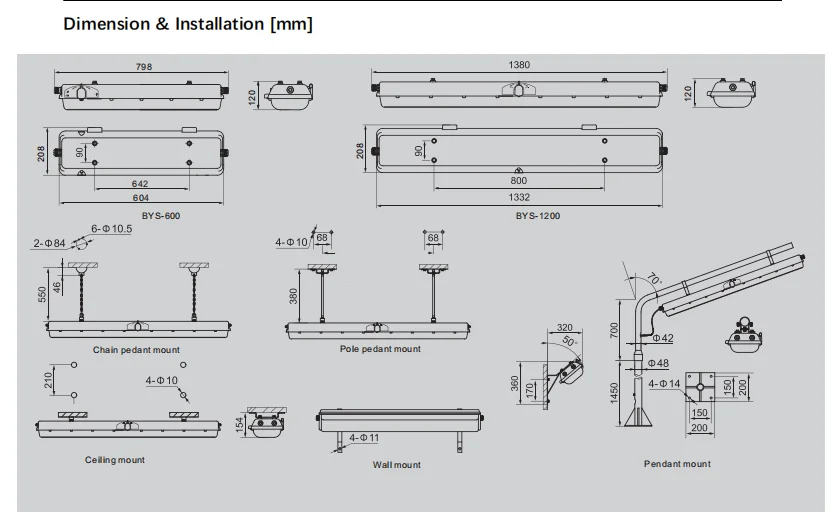

Mounting Styles

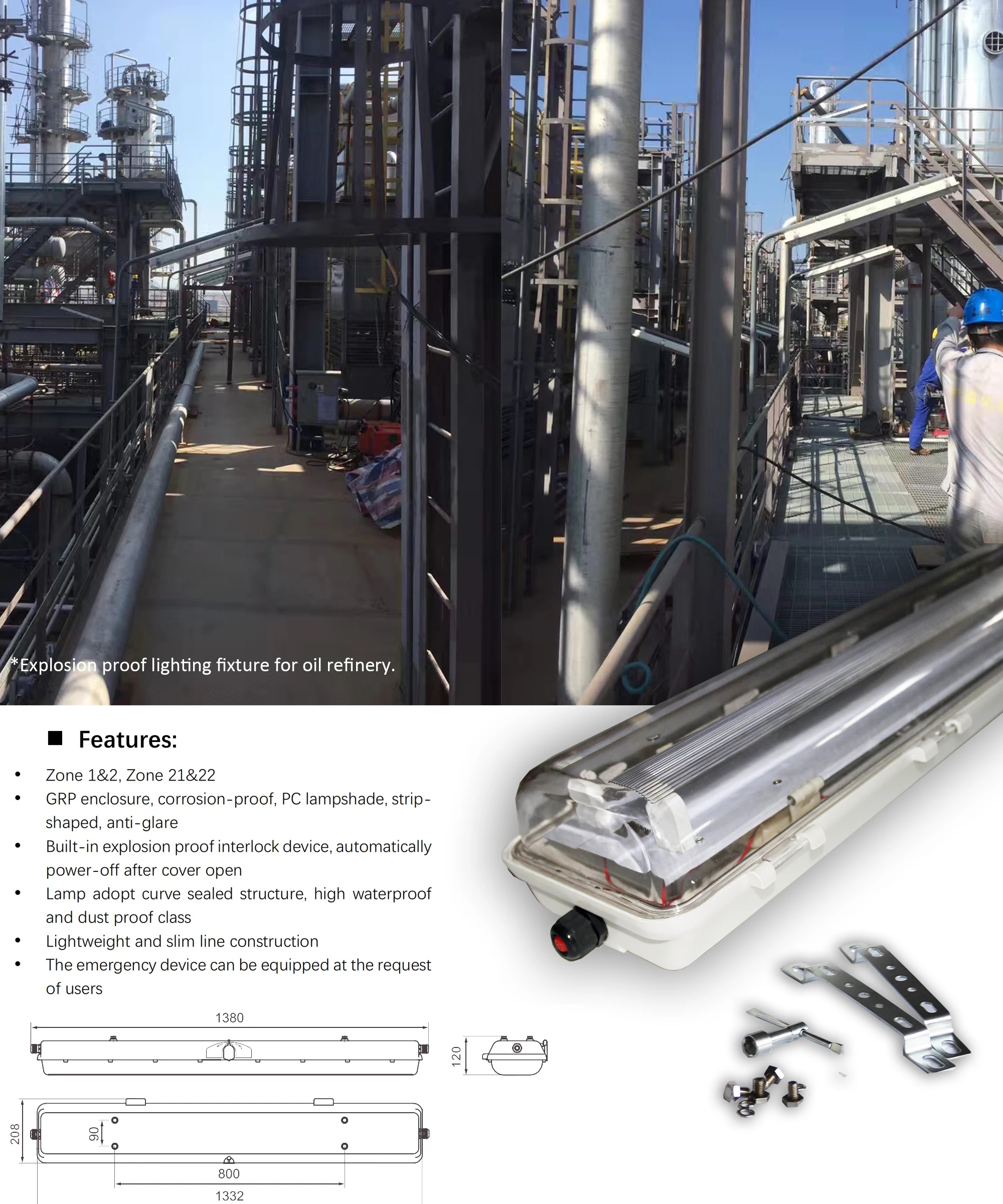

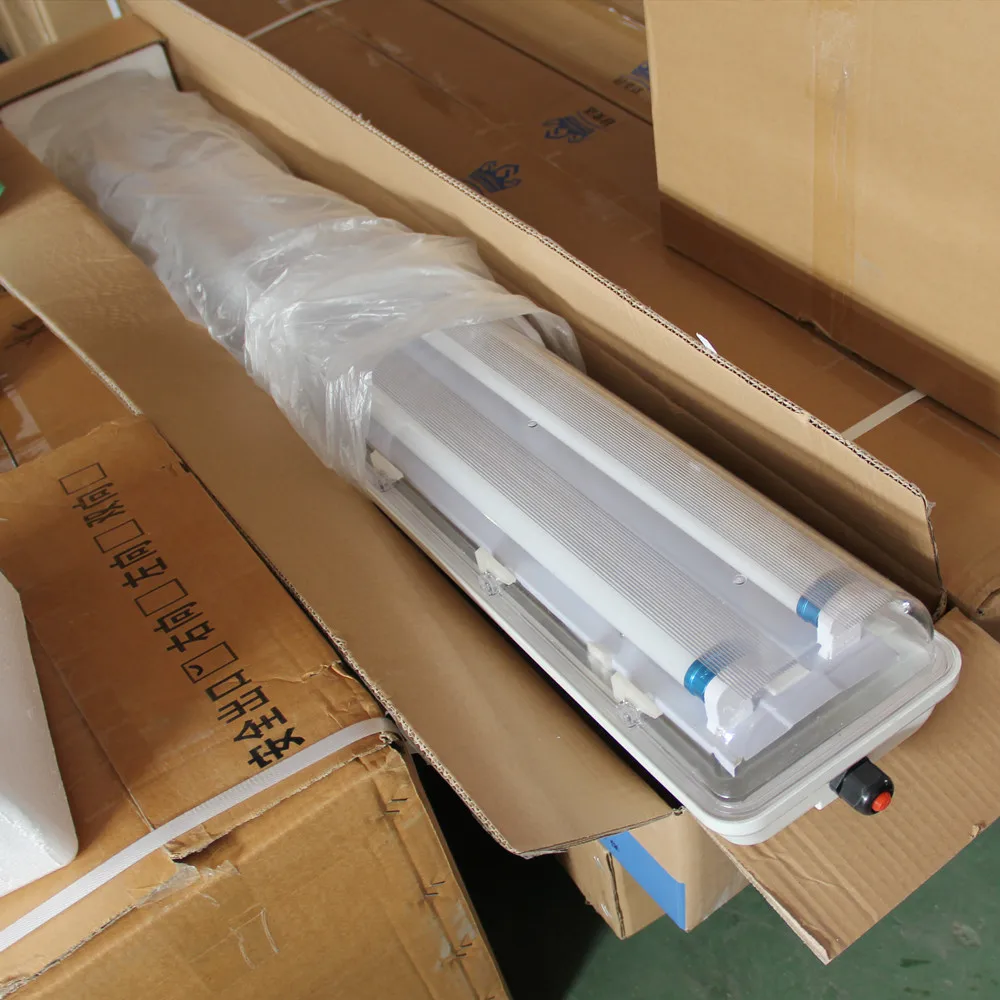

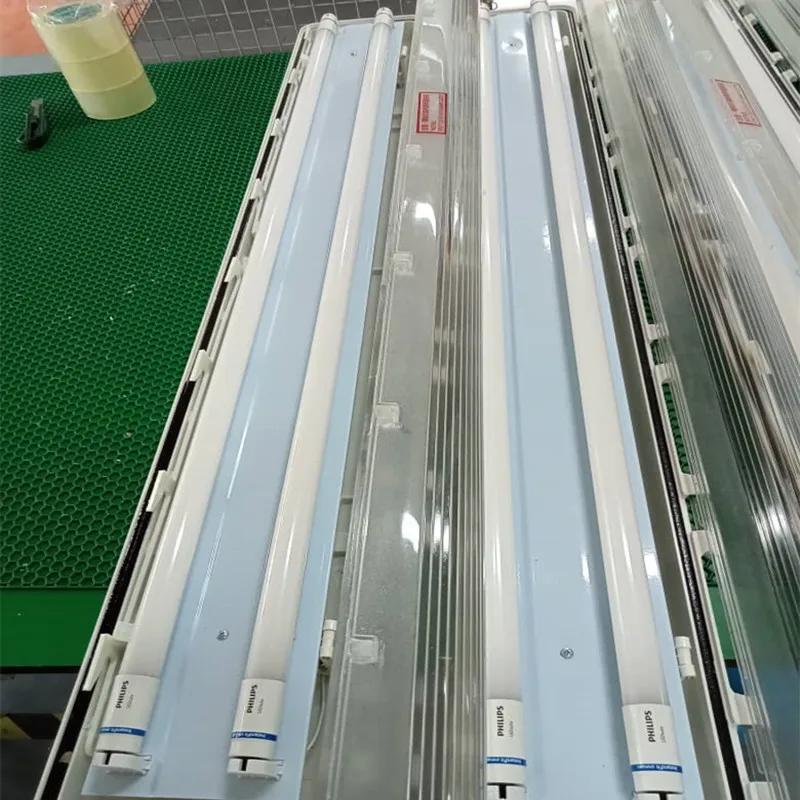

Customer Photos






Applications






Typical applications of flame proof light include:



Branch
Explosion Hazard
Branch
Explosion Hazard
Chemical Industry
Flammable Gases/Liquids/Solids
Paint-spraying
Overspray in Spray-paint Bays
Solvent Vapor Emissions
Landfills

Civil Engineering
Flammable Landfill Gases
Uncontrolled Gas Emissions
Flammable Gas from poor ventillation sources
Agriculture
Bio-gas Production Plants

Bio-gas Located on Farms
Power Generation
Lump Coal Dust
Metal-work
Explosive Metal Dust
Spark-ignitable Metal Dust
Waste Disposal
Waste-water Treatment Gasses
Food/Beverage
Overspray in Spray-paint Bays
Solvent Vapor Emissions
Gas Suppliers
Natural Gas Leagage

Natural Gas Emissions
Pharmaceutical
Alcohol Solvents
Materials explosive when mixed
Woodworking Industry
Saw Dust

Fine Wood Chips
Refinery
Hydorocarbons close to their flash-points
Oil Processing Plants


Company Information




About Us

Crown Extra Lighting Co., Ltd was founded since 2011. We are specialized inflame proof light Series, Ex-proof Emergency, Obstruction,  Ex-proof H.I.D light fixture,  Ex-proof Appliance, Ex-proof Equipment, etc.

Our complete product range including lighting products panel distribution, enclosures, fixtures, fittings, control stations, receptacles,etc. for the provision of hazardous area.

Crown extra products have approvals and certificates including EU ATEX, China CNEX, RoHs, ISO 9001:2008, ISO14001:2004 and OHSAS18001.
