Automatic Continuous Plastic Bottle Electromagnetic Induction Aluminum Foil Sealing Machine
- Category: >>>
- Supplier: Guangzhou PM Technology Co. Ltd.
Share on (1600438379553):
Product Overview
Description
Product Overview
Automatic Continuous Plastic Bottle Electromagnetic Induction Aluminum Foil Sealing Machine
The electromagnetic induction aluminum foil sealing machine uses the principle of electromagnetic induction to instantly generate high heat on the aluminum foil on the bottle mouth, and then fuse it on the bottle mouth to achieve the function of sealing. It has good moisture-proof, mildew-proof and anticounterfeit effects, and can extend the article. The purpose of the retention cycle.Ideal packaging equipment suitable for industries such as medicine, food, cosmetics, lubricants, etc. The material of the container can be polyethylene (PE), polypropylene (PP), polyester (PET), polystyrene (PS), ABC, and glass Etc. It cannot be used for metal bottle bodies and caps.
Features:
1. Designed for supporting assembly lines;
2. Air cooling, the performance is close to the effect of water-cooled machine;
3. All stainless steel shell, beautiful and generous;
4. Fast sealing speed and stable performance.
5. Professional manufacturing and production of hydraulic baler and various packaging machine machinery (high frequency,ultrasonic welding machine, vacuum packaging machine, shrink packaging machine, skin packaging machine, filling machine, etc.)

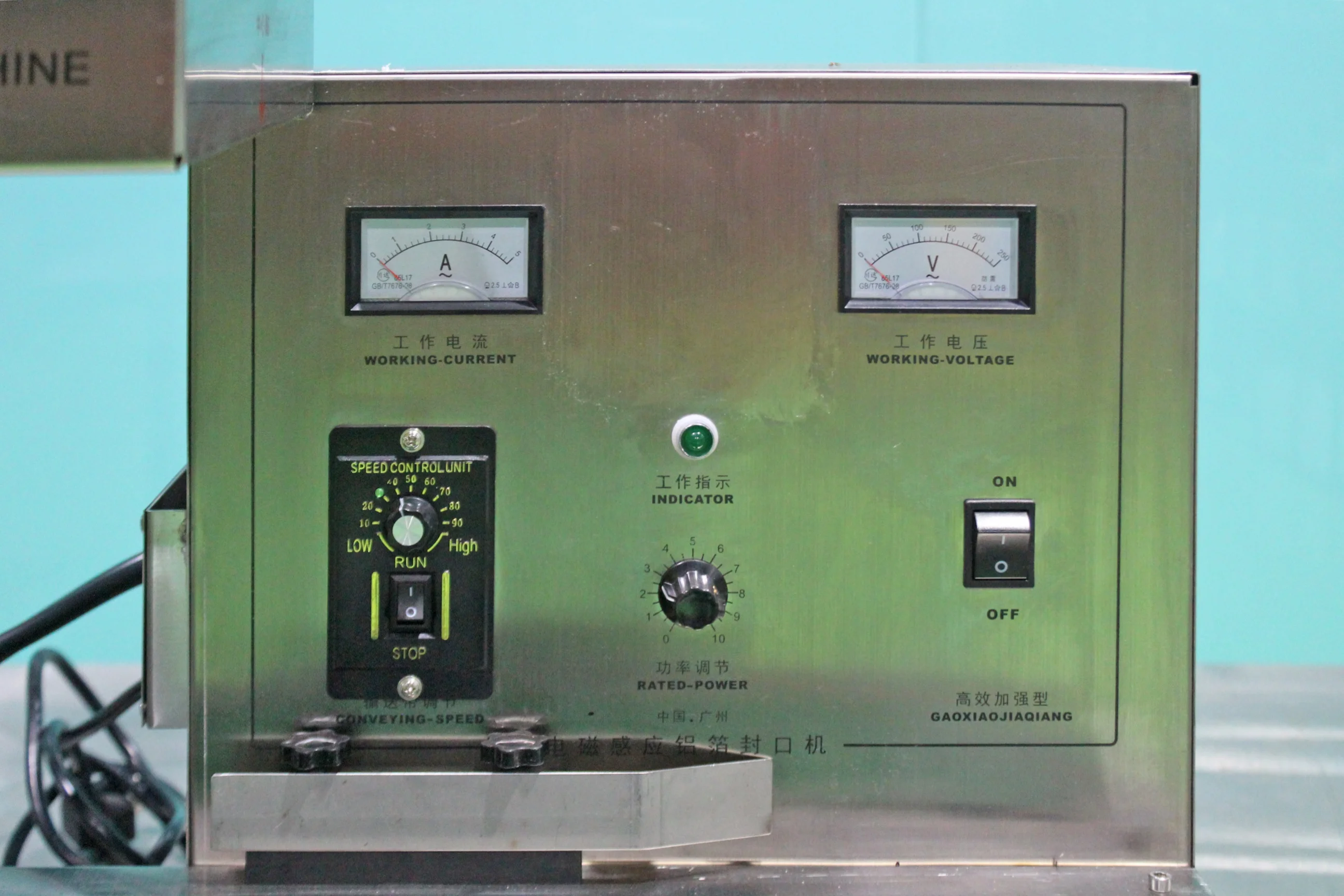

Control panel
Concentrated functions, clear and simple, easy to operate

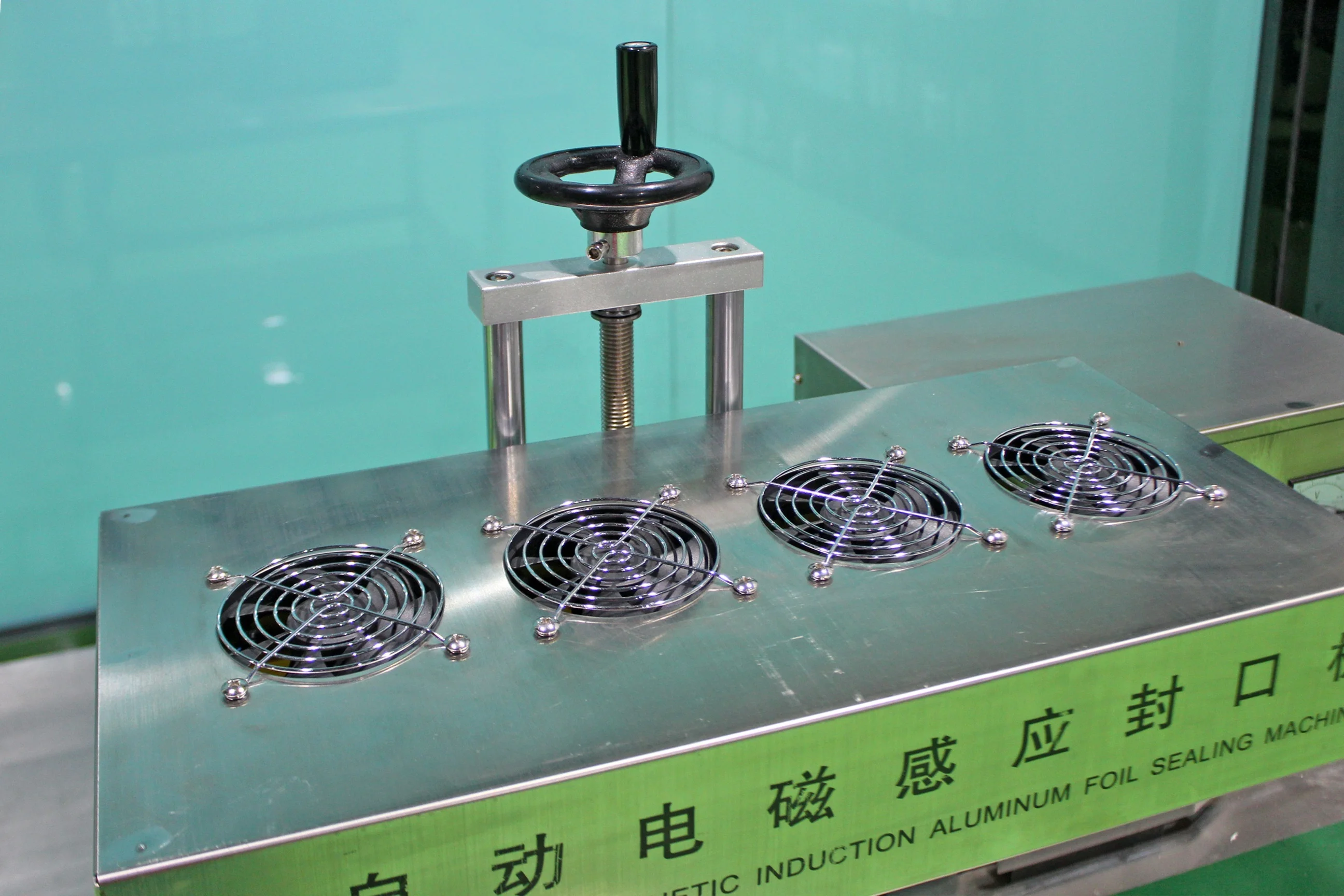

Air cooling vent
Integrated air cooling, strong sealing power and long service life
Induction sealing head
The induction coil is made of pure copper, and the sealing is stable, efficient and firmer

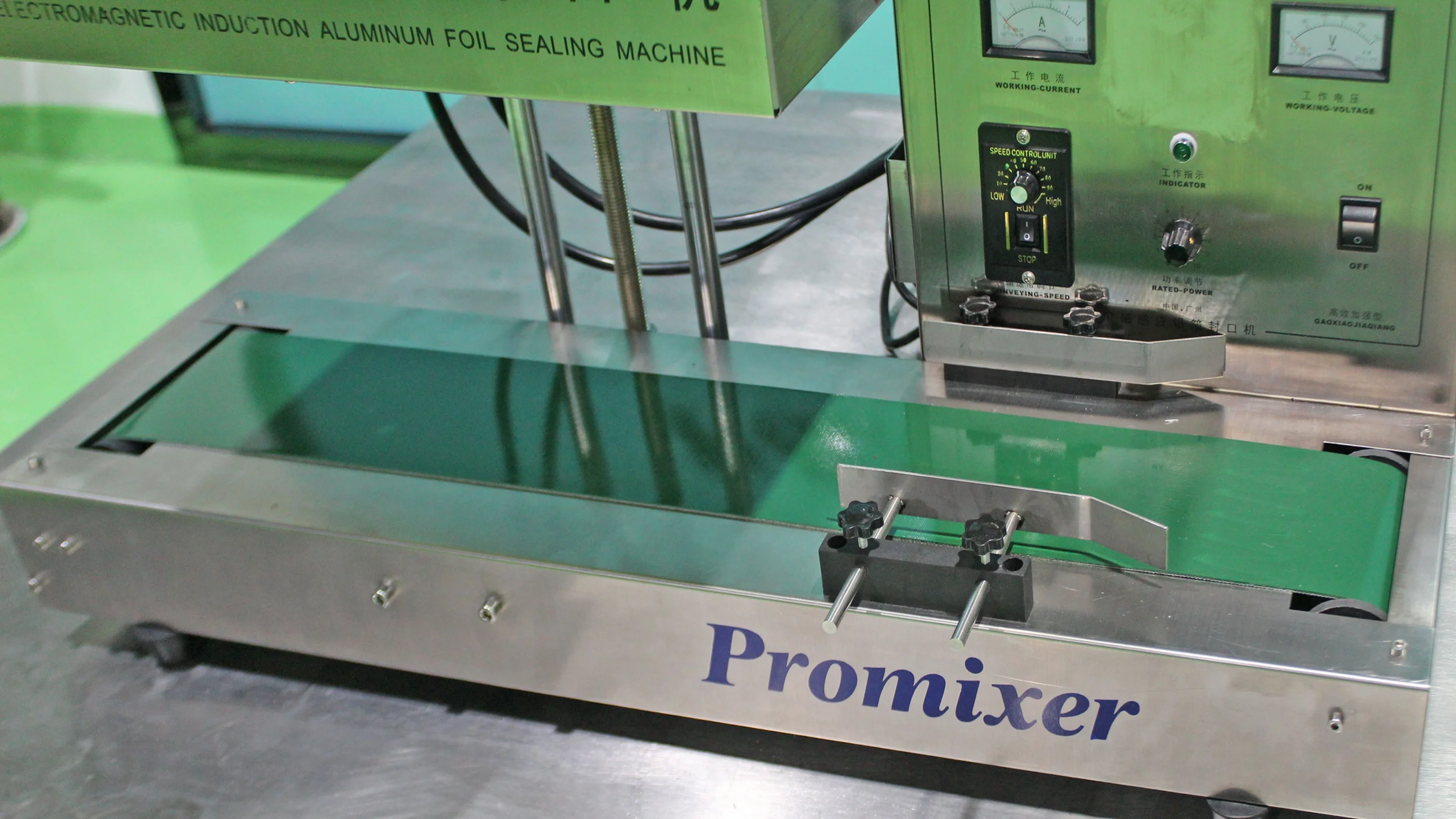

Thicken conveyor belt
Smooth transmission, using a textured surface to increase friction with the product
PRODUCT SPECIFICATIONS
The below parameter is for reference only.
It can be customized according to clients' requirement.
No | Item | Data |
1 | Power supply | 220V/50Hz |
2 | Power | 1.8KW |
3 | Applicable bottle height | 10-300mm |
4 | Cooling mode | Air Cooling |
5 | Seal diameter | 60-120mm |
6 | Conveyor speed | 0-12.5m/min |
7 | Yield | 0-80 bottles per minute |
8 | Size | 360×280×730 mm |
Overview
1.Composite electromagnetic induction aluminum foil sealing technology is an internationally recognized advanced sealing technology,The non-contact heating of the adaptation characteristics of plastic bottles (PP, PVC, PET, ABS, HDPE, PS, DURACON) glass bottles and a variety of composite plastic hose seal, is currently the pharmaceutical, food, oil, chemical, agrochemical, home of the most advanced technology of bottle sealing.2.Our products use a number of the latest development of technology, the level of technology in the forefront of the industry, the core components are used internationally renowned brands. Products factory for a number of strict testing, so excellent quality, stable and reliable performance, is the first choice for customers.
Working principle
The host will be transported to the current super audio induction head, the bottle head under the aluminum foil in the induction electromagnetic induction and ultra audio frequency current, the instantaneous high temperature to reach the melting, aluminum foil composite film and adhesive bottle, achieve high quality sealing effect.
Operation
1.The electromagnetic induction aluminum foil sealing machine flat on the stability of the table, and plug in the 220V power supply.
2.When sealing the bottle placed on the conveyor belt, rotary lifting hand wheel adjustment, to make the sealing bottle just to pass the limit of sealing head cap from the bottom, general oral closure distance not more than 5 mm, the greater the power is weak because of the distance.
3.Rotating speed regulation system, the conveyor belt running, first check whether the bottle from the bottom of the seal through the smooth center.
4. The "seal switch" to the "open" position, the machine has a slow start protection device, the power of about five seconds
before they can begin to work.
5.n order to make the sealing quality stable, the bottle must be adjusted to pass through the center of the sealing head
(Note:because the thickness of each bottle cap is different, the working time should be lengthened with the thickness of the bottle cap).
6."Power regulation" is the power of the micro regulating seal. Note: the sealing range of this machine is 60 mm in diameter to 120 mm in diameter
7.The normal use of the customer in the process of the machine, if any quality or operational problems, please consult the dealer or directly contact with our factory.
8.Electromagnetic induction aluminum foil sealing machine and sealing head with high pressure, non factory professionals are strictly prohibited, once installed, the factory will not warranty, and therefore do not bear all the responsibility for the accident.

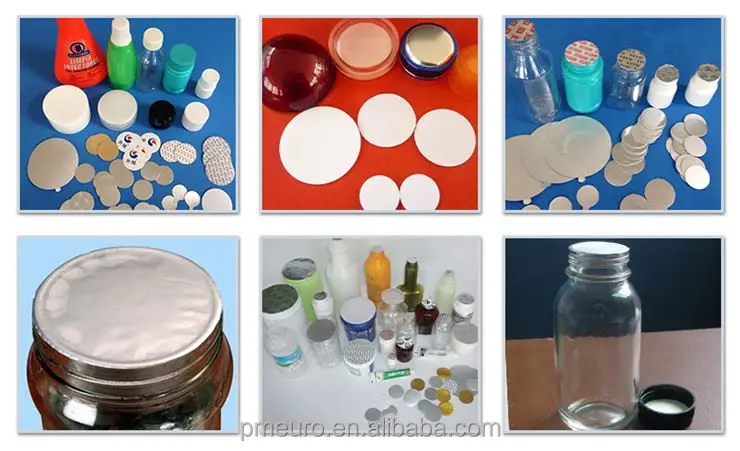

Applications
EASILY ACHIEVE A VARIETY OF BOTTLE CLOSURES
Food/Medicine/Pesticide/DailyChemical/Glass/Plastic
1.Composite electromagnetic induction aluminum foil sealing technology is an internationally recognized advanced sealing technology,The non-contact heating of the adaptation characteristics of plastic bottles (PP, PVC, PET, ABS, HDPE, PS, DURACON) glass bottles and a variety of composite plastic hose seal, is currently the pharmaceutical, food, oil, chemical, agrochemical, home of the most advanced technology of bottle sealing.2.Our products use a number of the latest development of technology, the level of technology in the forefront of the industry, the core components are used internationally renowned brands. Products factory for a number of strict testing, so excellent quality, stable and reliable performance, is the first choice for customers.
Working principle
The host will be transported to the current super audio induction head, the bottle head under the aluminum foil in the induction electromagnetic induction and ultra audio frequency current, the instantaneous high temperature to reach the melting, aluminum foil composite film and adhesive bottle, achieve high quality sealing effect.
Operation
1.The electromagnetic induction aluminum foil sealing machine flat on the stability of the table, and plug in the 220V power supply.
2.When sealing the bottle placed on the conveyor belt, rotary lifting hand wheel adjustment, to make the sealing bottle just to pass the limit of sealing head cap from the bottom, general oral closure distance not more than 5 mm, the greater the power is weak because of the distance.
3.Rotating speed regulation system, the conveyor belt running, first check whether the bottle from the bottom of the seal through the smooth center.
4. The "seal switch" to the "open" position, the machine has a slow start protection device, the power of about five seconds
before they can begin to work.
5.n order to make the sealing quality stable, the bottle must be adjusted to pass through the center of the sealing head
(Note:because the thickness of each bottle cap is different, the working time should be lengthened with the thickness of the bottle cap).
6."Power regulation" is the power of the micro regulating seal. Note: the sealing range of this machine is 60 mm in diameter to 120 mm in diameter
7.The normal use of the customer in the process of the machine, if any quality or operational problems, please consult the dealer or directly contact with our factory.
8.Electromagnetic induction aluminum foil sealing machine and sealing head with high pressure, non factory professionals are strictly prohibited, once installed, the factory will not warranty, and therefore do not bear all the responsibility for the accident.
Applications
EASILY ACHIEVE A VARIETY OF BOTTLE CLOSURES
Food/Medicine/Pesticide/DailyChemical/Glass/Plastic
Our equipment has CE certification, American UL certification, product quality certificate, stainless steel material certificate and pressure vessel certificate, etc.
Cooperation partner
Our Advantages
Company Profile
P&M Promixer is a comprehensive enterprise integrating of production, sales, trade, after sales and others,With market partner in Europe to provide the advanced European technology and after-sales service. The products include Vacuum Emulsifying Mixer, Liquid Washing Mixer, RO Water Treatment, Cream & Liquid Filling machine.Our company provides top-ranking professional project installation experience and management experience. By holding the work attitude of keeping improving, we provide users with good after-sales service and meet customer requirements.
The strict workshop site management, 6S location management and various operation rules for safe production have become driving force for the development of our enterprise. We are continuously intensifying the research, development and innovation of core technology, pursuing prominence and keeping improving, ensuring the excellent performance of every single product by advancedproduction equipment, strict quality control and precise production and inspection procedures.
Exquisite technology provides customers with cutting-edge products. As a supplier of overall solutions, we provide diversified stand-alone equipment, process automation, production process control, MES execution management and data collection, production data analysis and online reports, etc. The industry provides integrated solutions for digital factories such as online M2M and M2B.
In the past and in the future, P&M Promixer will continue to participate in exhibitions around the world, bringing you more
newproducts, new technologies and overall solutions for specific industries in various fields.
Product packaging
We have a variety of packaging methods for customers to choose: vacuum wood packing, ordinary wood packing, frame packing, etc.,to meet the different needs of customers
The long-term export trade has enabled our team to have rich experience in loading cabinets: high cabinets, low cabinets, open top cabinets, flat cabinets, etc., can be easily completed
The long-term export trade has enabled our team to have rich experience in loading cabinets: high cabinets, low cabinets, open top cabinets, flat cabinets, etc., can be easily completed
Customer praise
FAQ
Q1. Are you factory or trade company?
A1: We are factory with more than 30 years production experience. Factory inspection andcustomized is acceptable.
Q2. What would be the after-sales service?
A2: We provided 2-year free warranty which base on the quality problem, and lifetime free after-sales consultant. We set up Spain office and Tunis service team in Europe and Africa, provide convenient service for our customers.
Q3. How to ensure the quality?
A3: FAT is acceptable, including CE, IQ, OQ, PQ
certificate. The complete operation video, manual, circuit diagram will be sent before shipment.
certificate. The complete operation video, manual, circuit diagram will be sent before shipment.
Q4. Do you provide installation
service?
service?
A4: The single unit machine has finished the installation before shipment, can be used directly. The production line will
arrange engineer to install and operator training on site.
arrange engineer to install and operator training on site.
