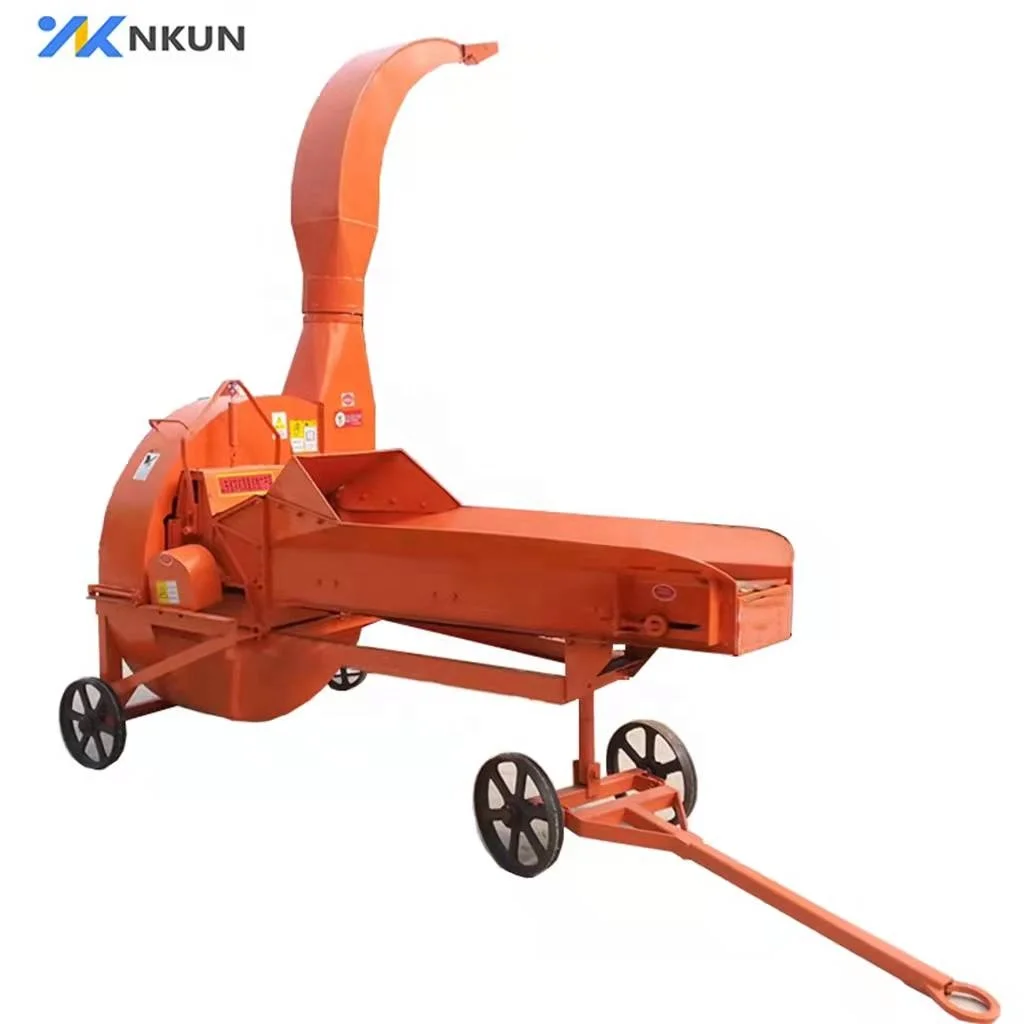

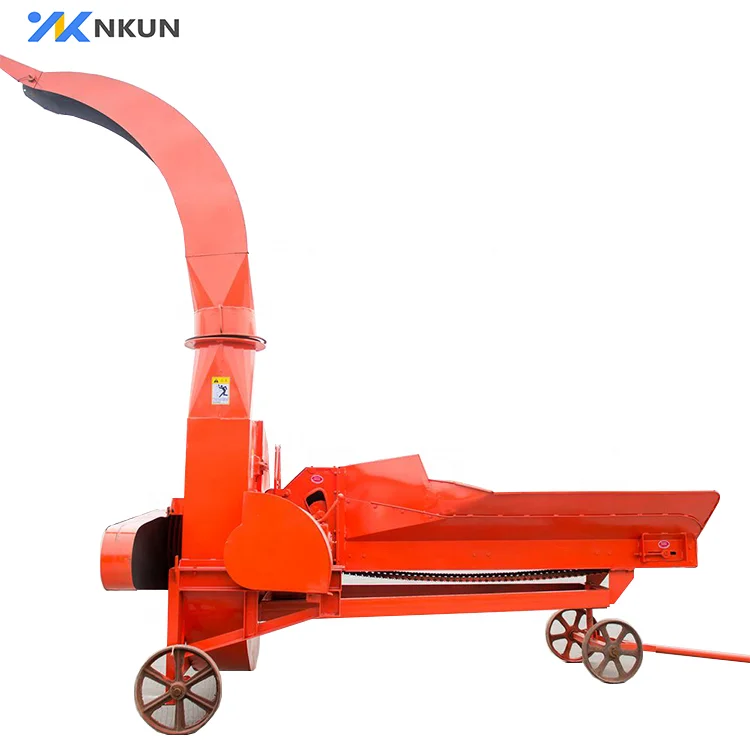

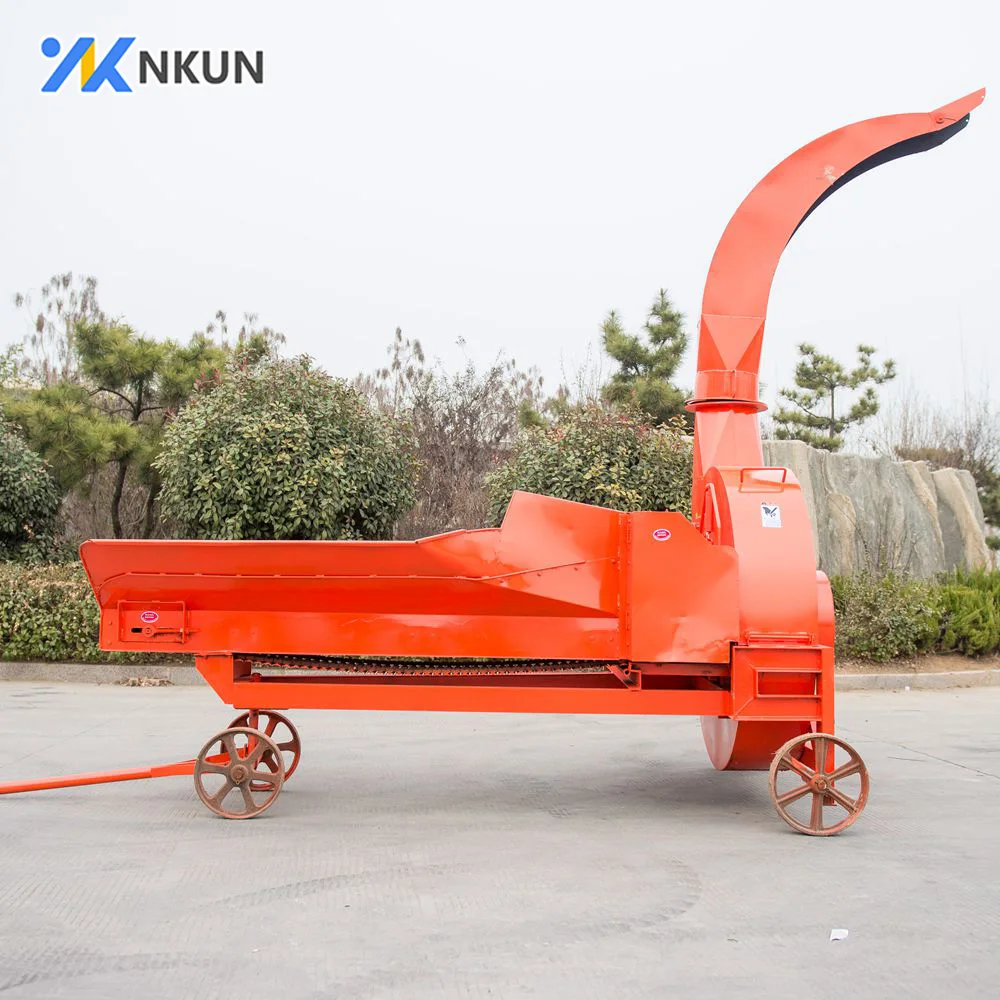

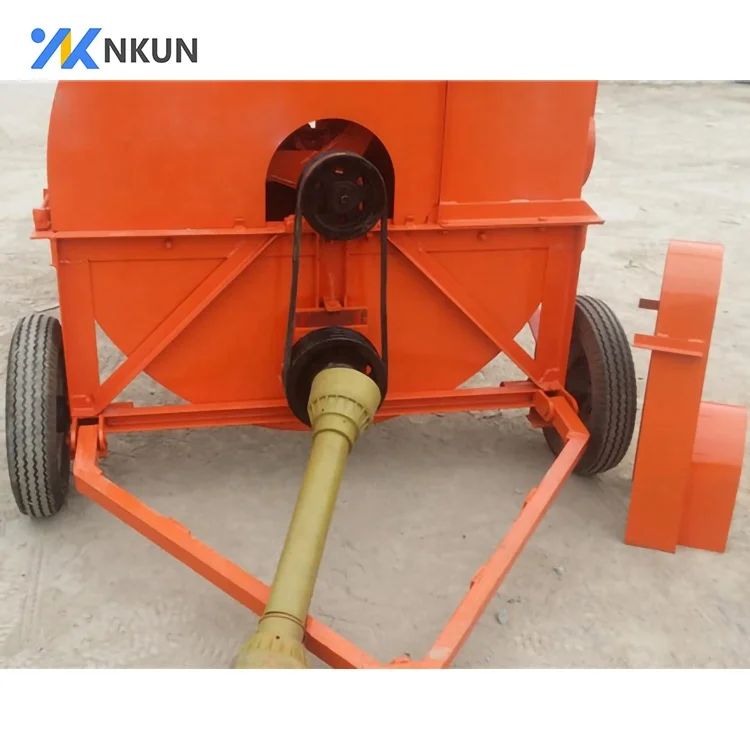

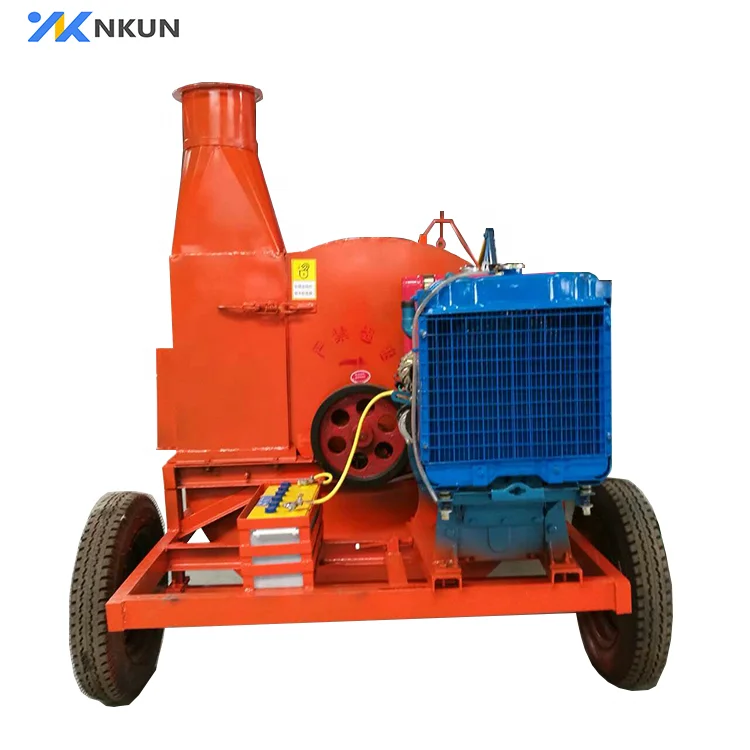

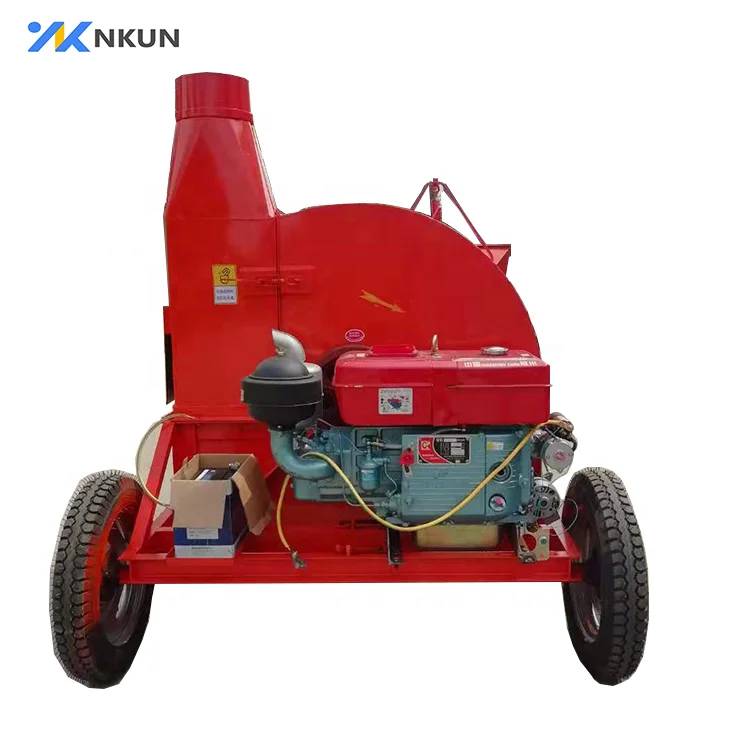

The cutter is mainly composed of feeding mechanism, cutting mechanism, throwing mechanism, driving mechanism, walking mechanism, protective device and frame.
Chaff cutter machine is suitable for large and medium-sized animal husbandry plant to be used for various dry and wet fresh crop straw and grass.
After processing, the forage grass is soft, without a round rod, no hard knot, and the livestock feed rate is high. It can also improve the uniformity of the mixing of forage grass and other fine feed, reduce waste, and reduce the feeding cost of livestock.
This model combines the main structure of cutter and forage mill, and solves the problem of high energy consumption and low efficiency of forage mill.
Excellent performance, reliable operation, safe operation.
Its components are as follows:
1) feeding mechanism: mainly consists of feeding platform, up and down cao, fixed blade and fixed knife support base.
Ensilage machine
2) guillotine throwing mechanism: mainly consists of dynamic knife, cutter plate, locking screw and so on.
3) transmission mechanism: mainly composed of triangle belt, transmission shaft, gear, universal joint, etc.
4) walking mechanism: mainly consists of ground casters.
5) protective device: consists of a protective cover.
| Model | NKCC-0.4 | NKCC-1.5 | NKCC-3.0 | NKCC-5.0 | NKCC-8.0 | NKCC-10.0 | NKCC-12.0 | NKCC-30.0 |
| Capacity(t/h) | 0.4-1 | 1.5-2.5 | 2.5-3.5 | 4.5-5.5 | 6-8 | 8-10 | 12-15 | 30 |
| Power(Kw) | 2.2 | 3 | 4 | 5.5 | 7.5 | 15 | 18.5 | 30 |
| Rotary Speed(r/m) | 2800 | 2800 | 1440 | 1440 | 1440 | 1440 | 1470 | 1470 |
| Blade Rotary Speed(r/m) | 1050 | 1050 | 800 | 800 | 650 | 500 | 500 | 450 |
| Blades(pcs) | 4/6 | 3/4 | 2/3/4 | 4 | 3/4 | 3 | 3 | 3 |
| Belt Qty(pcs) | 2*B1550 | 2*B1550 | 3*B1650 | 3*B1800 | 3*B2150 | 5*B3000 | 5*B2900 | 3*C3050 |
| Cutting Length(mm) | 12-35 | |||||||
| Output Air Conveying Distance(m) | 1-5 | 1-5 | 1-5 | 4-6 | 5-8 | 10-15 | 10-15 | 10-15 |
| Weight(kg) | 60 | 90 | 138 | 280 | 400 | 880 | 1000 | 2300 |
| Total Size(mm) | 650*500 *600 | 820*460 *1160 | 1230*1150 *1695 | 1737*1575 *2315 | 2147*1600 *2756 | 2620*2140 *4110 | 2630*2230 *4120 | 4290*2510 *4510 |
| Delivery Size(mm) | 510*952 *1050 | 630*1010 *1300 | 1755*1393 *1585 | 2620*1720 *1850 | 2630*1690 *1870 | 3630*2070 *2810 | ||




Question 1: What are your advantages compared with your competitors?
Answer:
With rich industry experience and strict Product Quality Control systems, we provide:
1. Stable and reliable product at reasonable price
2. Good customer service: Fast response to any inquiry or question
3. On-time delivery.
Question 2: Are you manufacturer?
Answer: Yes, we are Industrial and trade enterprises with more than 10 years' experience.
Question 3: What are your Trade Terms?
Answer: Price can be based on FOB, CFR, or CIF, etc.
Question 4: What are your Payment Terms?
Answer: Payment shall be made by T/T, L/C, or WU, etc., it varies considerably according to the region that you are in.
Question 5: What's your Minimum Order Quantity?
Answer: Any order quantity is warmly welcomed.
Question 6: Do you have English Manual for each machinery?
Answer: Yes. The instruction manual,the test report and other Data Sheets related shall be provided by us.
Question 7: Can I print my Logo on the machine?
Answer: Yes, sure.
Question 8: Can you customize the machine for me ?
Answer: Yes, we can customize according to customer's requirements.
Question 9: What shall we do if breakdown occurs?
Answer: Please informed us once the breakdown occurs. During warranty period, if breakdown occurs, we shall respond in time after receiving the notification of the buyer. We shall handle failure over the telephone/ fax or arrange relevant personnel to the site according to the buyer’s requirements.
Question 10: What are your modes of transportation?
Answer: Courier service, Air transport, Sea Transport.
Question 11: Which ports do you usually ship at?
Answer: We can load container at: Tianjin,Qingdao, Shanghai, Ningbo, Tianjin, Guangzhou etc.
