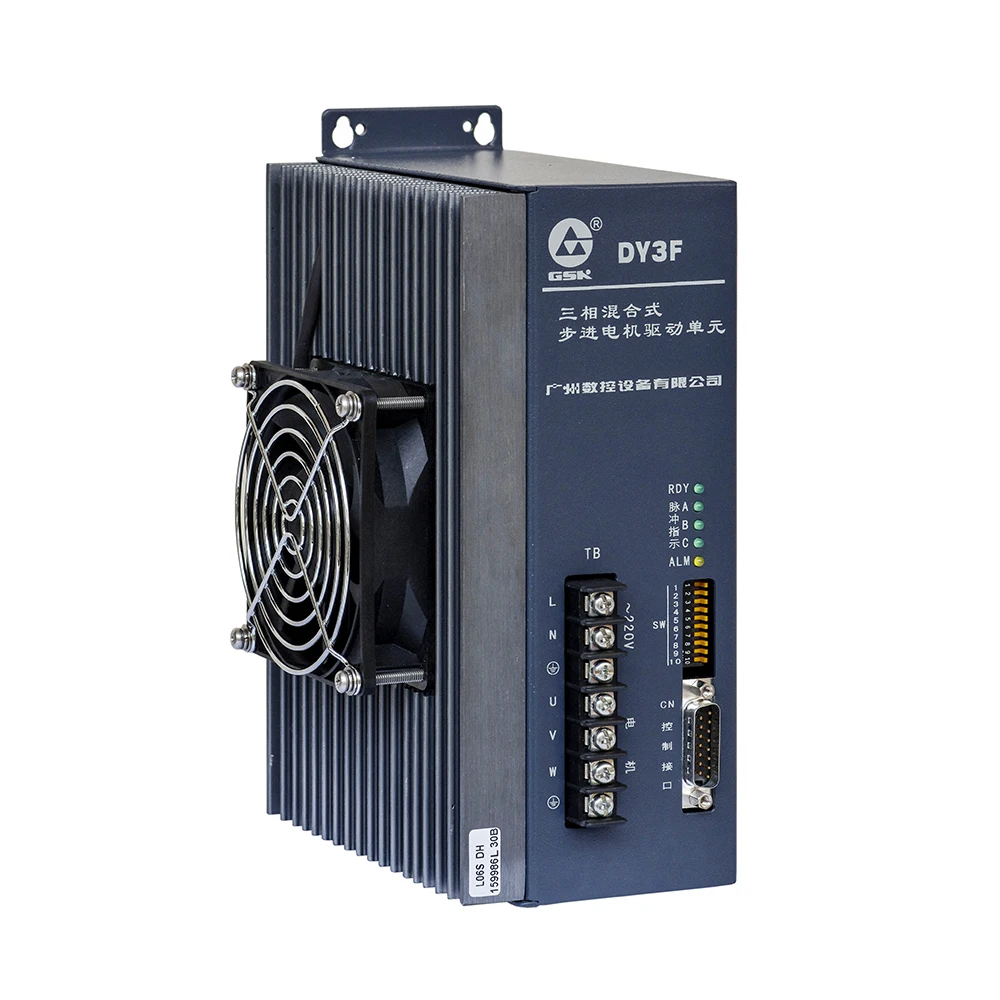

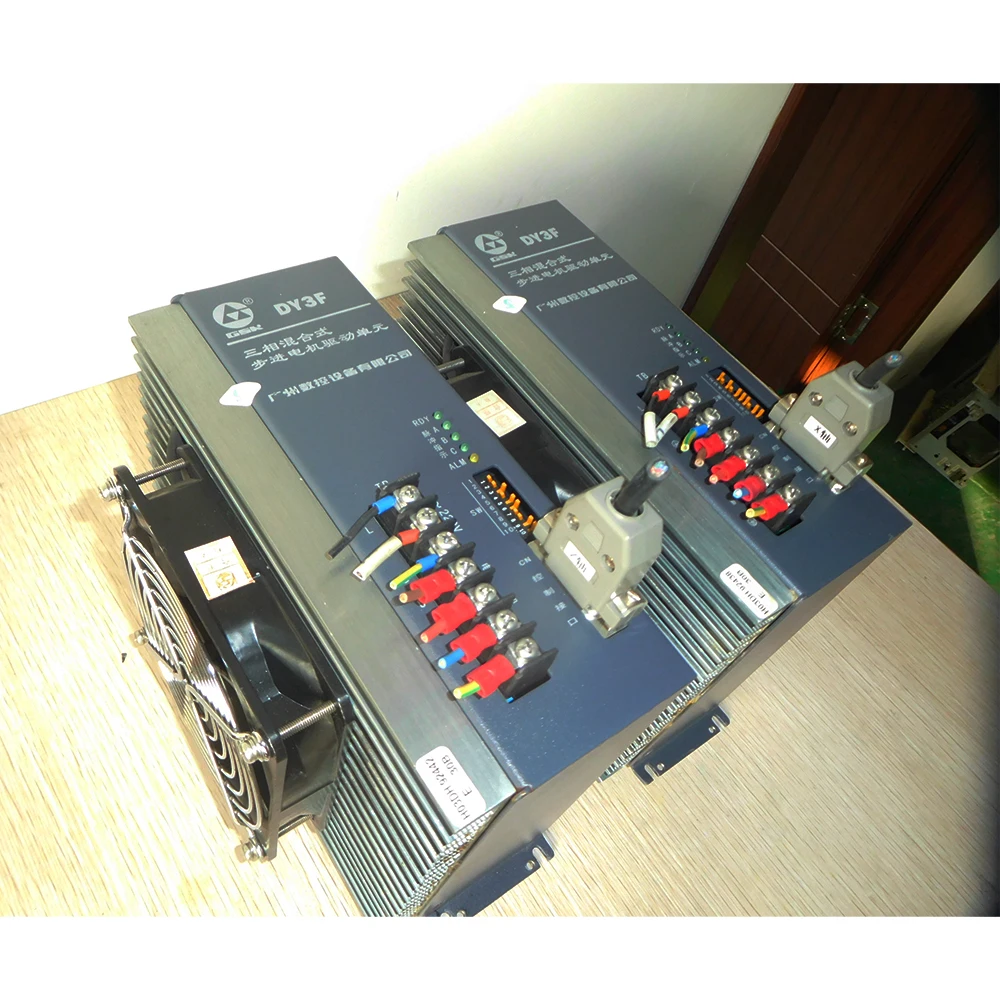

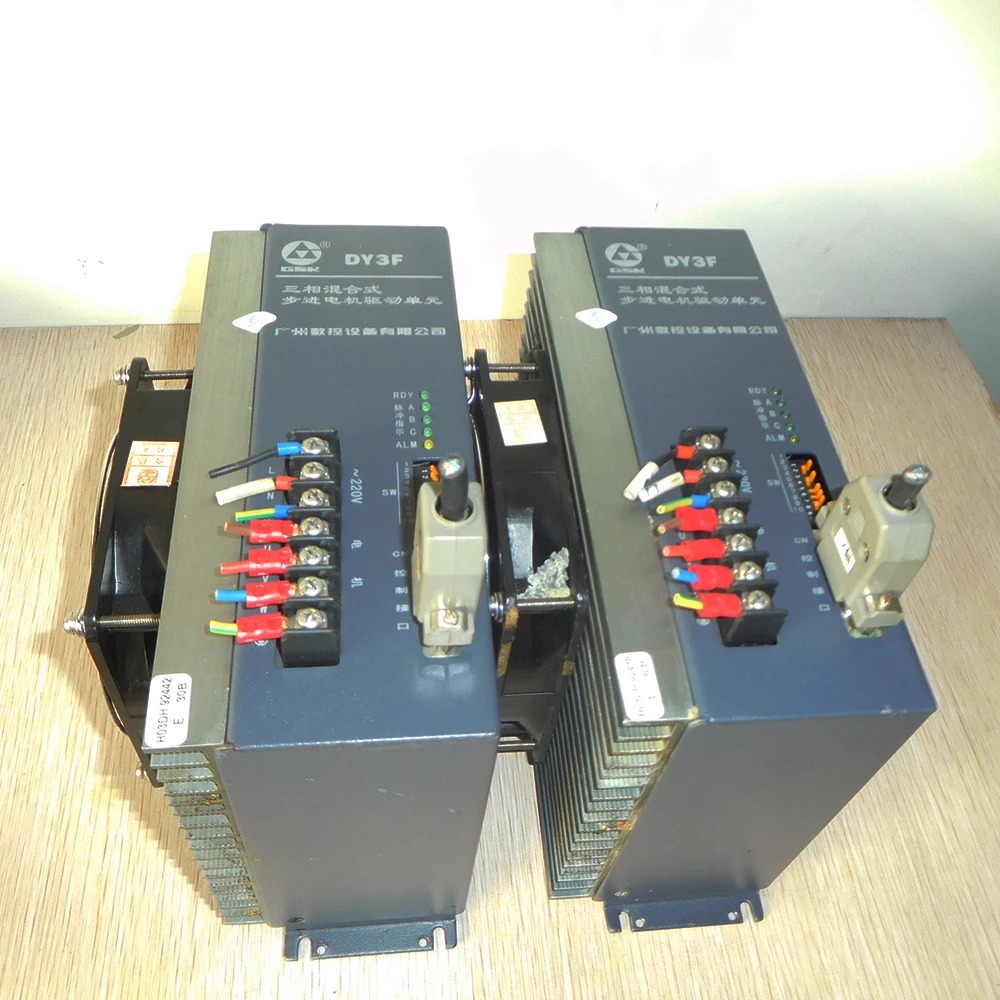

Product Overview

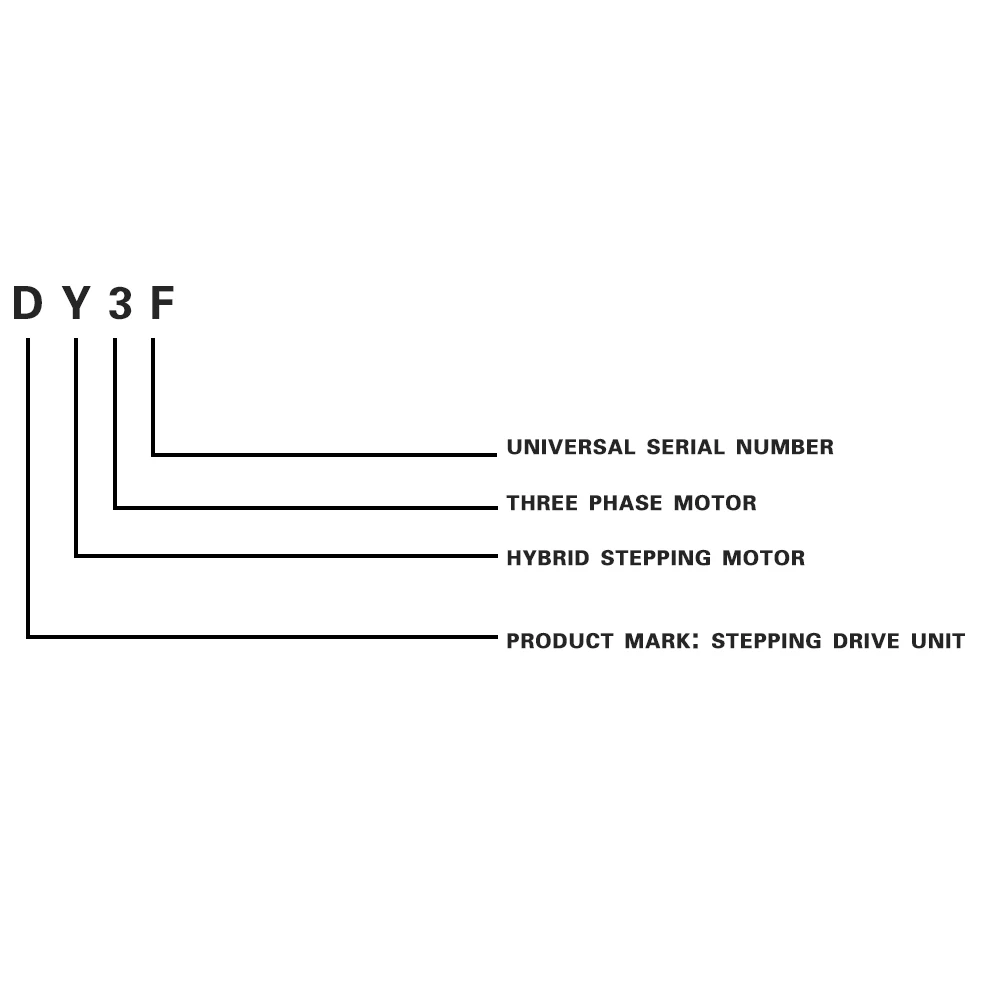

Description
Product Description
① New technology
Using microelectronic technology, a new generation of high-speed single chip microcomputer is embedded in the driving unit to improve the control performance and simplify the circuit; It adopts the control principle of AC servo, has the operation characteristics of AC servo, and the output is driven by three-phase sinusoidal current; The low-voltage DC power supply in the driving unit applies switching power supply technology to make the power circuit small, stable and reliable.
② Microstep
Using vector subdivision technology, the minimum rotation angle of stepping motor can be controlled to be 1 / 20 (0.03 °) of motor step angle. Micro step control can make the stepper motor run smoothly at low speed, and its operation effect is close to that of AC servo. Micro step drive unit and μ M (0.001mm) level CNC controller, which can realize μ M-class minimum movement is used to process workpieces such as arc surface, cone surface and thread, which can significantly improve the fine effect of workpiece surface.
③ High torque
The output torque of stepper motor is directly proportional to the injection current. During high-speed operation, the injection current is directly proportional to the voltage used by the power amplifier stage of driving unit. At present, most stepper motor driving unit power amplifier stages. Due to technical limitations, the voltage used is less than DC 150V, while the voltage of power amplifier stage of dy3f stepper motor driving unit reaches DC 310V. Therefore, there is still high torque output when driving stepper motor at high speed.
④ High reliability

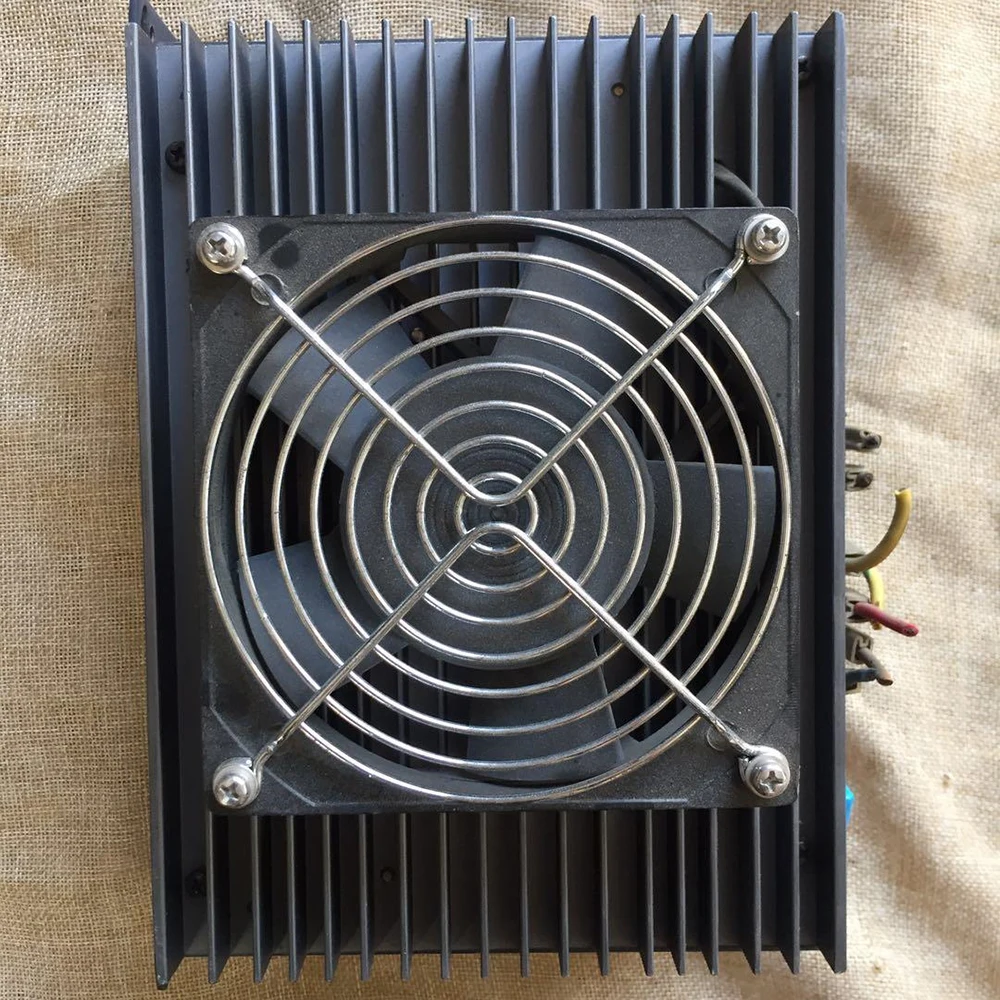

The control part has high integration and power amplifier level. The new intelligent IPM module of Mitsubishi Corporation of Japan is adopted. The whole machine has compact structure, simple circuit, few connectors, and the design of external air cooling and heat dissipation can reduce the intrusion of dust into the machine. It is equipped with over temperature, over voltage, under voltage, protection and alarm signal output.
Specification

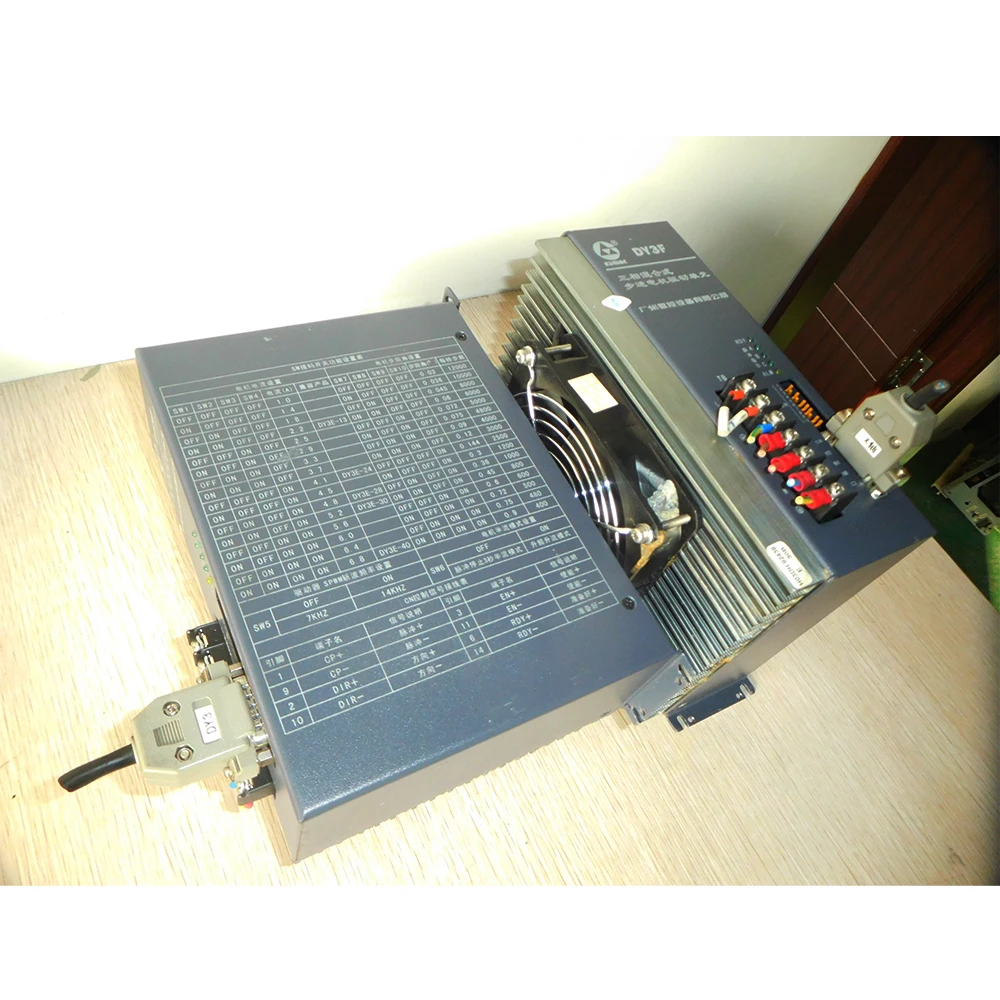

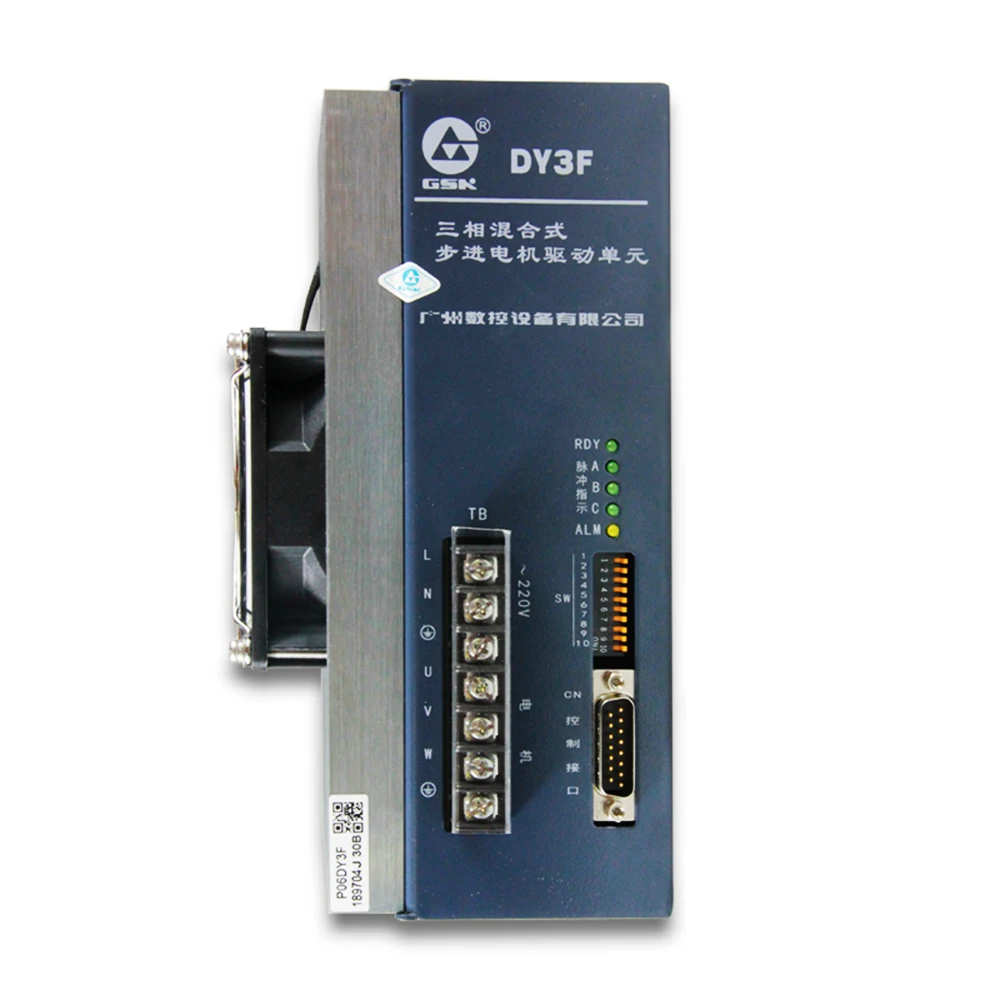

Input power | AC (0.85~1.1)220V 50 Hz /60Hz 10A（Max） |
Output phase current | The effective value of phase current shall not be greater than 6.8A |
Adaptive motor | Three phase hybrid stepping motor (step angle 0.6 °) |
work environment | 0℃~45℃ 10%~85%RH (no condensation). No corrosive, flammable, explosive, conductive gas, liquid and dust. |
Storage environment | -20℃~80℃ 10%~85%RH (no condensation).。 |
Driving mode | SPWM (sine pulse width modulation) constant current chopper, three-phase sine wave current output. |
Step angle | It can be set by the user：0.030°、0.036°、0.045°、0.060°、0.072°、0.075°、0.090°、0.120°、0.144° |
Corresponding motor Pulse per revolution | 12000、10000、8000、6000、5000、4800、4000、3000、2500 |
Step angle Setting mode | DIP Switch（SW7、SW8、SW9、SW10）setting ; |
Input signal | CP/（pulse）；DIR/（direction）；EN/（enable）； |
Input level | 5V、5 mA ~10mA，1k Ω resistor is connected in series at 12V，2.2k Ω resistor is connected in series at 24V。 The input is valid when there is current in the input circuit. |
Position pulse Input mode | Single pulse mode：CP（pulse）+DIR（direction） Pulse width≥2μs； Pulse frequency：(step angle<0.300°)≤200kHz； During commutation, dir (direction) signal leads CP (pulse) signal ≥ 10 μ s。 |
output signal | RDY1/RDY2 ( ready ) : connected when there is no alarm, load 30V, 0.5A (max). |
Power down phase memory | Automatically memorize the current phase after driving power failure； |
Motor current automatic halving function | When set to on, the driving unit works in the frequency and current rise mode, which can suppress the vibration and noise of the motor at low speed, and the locking current is automatically halved; When set to off, when the input pulse stops for 100ms, the locking current will be halved automatically. |
Protection function | Abnormal braking, undervoltage, overpressure and IPM module. |
Status indication | Green LED RDY：normal indication，when there is no fault Light up;； A、B、C：pulse indication when enabled Yellow LED ALM：flashes in case of abnormal braking, undervoltage, overpressure and IPM module. |

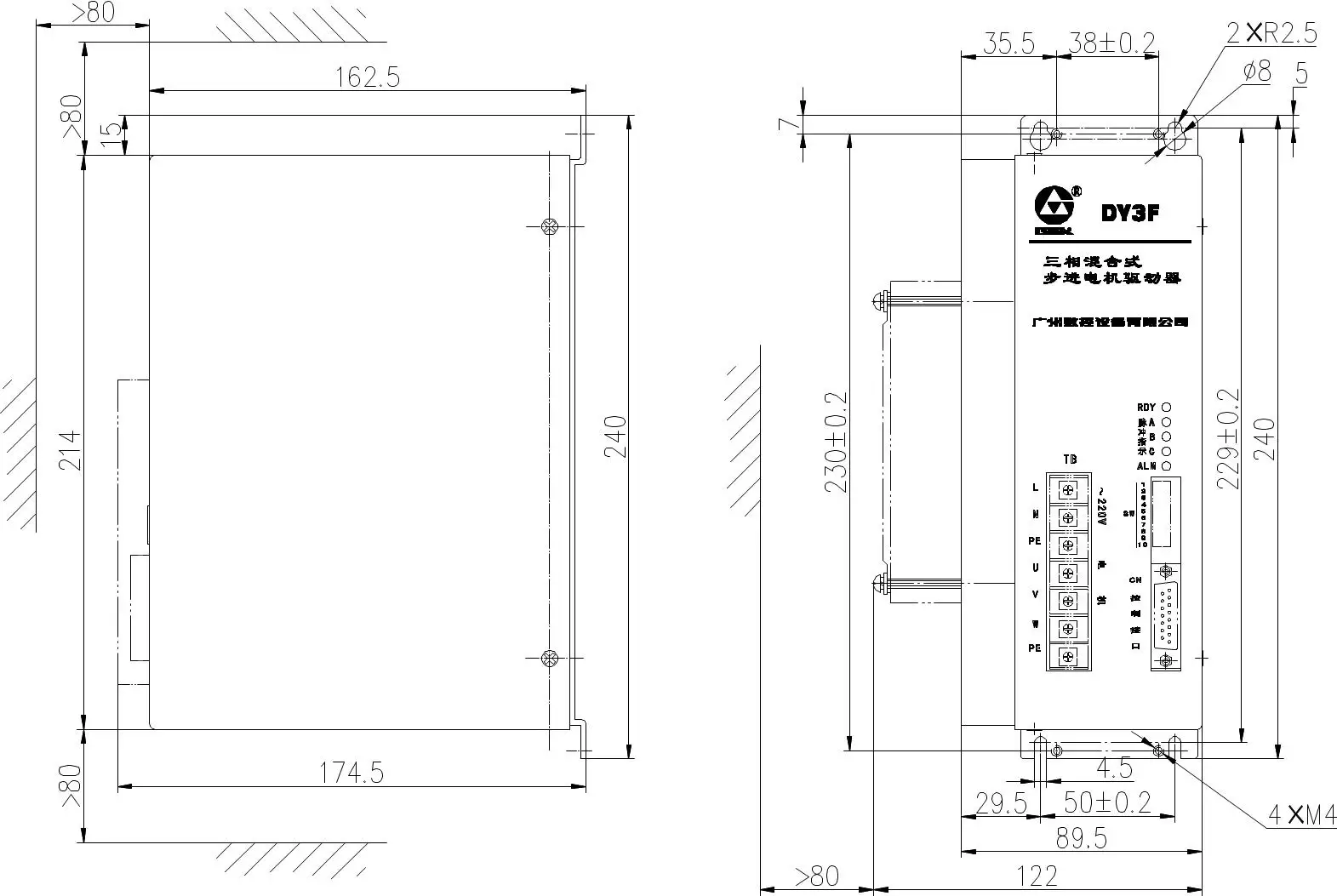

Overall dimension | 244 mm×163 mm×92mm（see Figure） |
Weight | 2.7kg |
Parameter table of three-phase hybrid stepping motor
Model | 90BYG350A | 90BYG350B | 90BYG350C | 110BYG350A | 110BYG350B | 110BYG350C | |||||
Phase number | 3 | ||||||||||
Holding torque | 2N.m | 4N.m | 6N.m | 8N.m | 12N.m | 16N.m | |||||
Step angle | 0.6° | ||||||||||
Phase current | 1.7A | 1.9A | 2.3A | 4.2A | 4.8A | 5.2A | |||||
No load operation frequency | 30000Hz | ||||||||||
No load starting frequency | 1600Hz | ||||||||||
Phase inductance | 28mH | 38mH | 43mH | 20mH | 30mH | 35mH | |||||
Moment of inertia kgcm2 | 1.5 | 3.0 | 4.5 | 8.4 | 12.6 | 16.8 | |||||
Operating voltage range VKC | 80V～325V | ||||||||||
Weight | 3kg | 4kg | 5kg | 7kg | 10kg | 12kg | |||||
