Video Camera LED indicator all in one parking sensor guidance system with Thailand license plate recognition toll gate system
- Category: >>>
- Supplier: Shenzhen Tigerwong Technology Co. Ltd.
Share on (1600438412925):
Product Overview
Description
Product Description
LPR VIDEO GUIDANCE PARKING SENSOR SYSTEM
The HD Video Parking Space Detector is a detector device used to detect the presence or absence of a vehicle in the parking space of a parking guidance system and reverse car search system. The Embedded intelligent digital monitoring products integrate the traditional Analog Detectors and the Network Video Servers. The video parking space detector comprises of Video Recognition and Parking Space Indicator. The detector uses video recognition to detect the occupancy status of 1 to 6 parking spaces in real-time. It uploads the detected results to the server through the network. The Parking Space Detector can guide the vehicle to quickly find an empty parking space by the red and green status of the Parking Status Indicator.
By utilizing the advanced video and image processing technology, it can perform parking status processing and license plate recognition for the captured parking space image information. The comprehensive functionalities of the Parking Space Detector include capturing the pictures of the vehicle, recognizing the license plate number and detecting the status of parking space occupancy.
It is mainly used in the field of indoor large parking lots to solve the problems of difficulty in parking and finding a car.
By utilizing the advanced video and image processing technology, it can perform parking status processing and license plate recognition for the captured parking space image information. The comprehensive functionalities of the Parking Space Detector include capturing the pictures of the vehicle, recognizing the license plate number and detecting the status of parking space occupancy.
It is mainly used in the field of indoor large parking lots to solve the problems of difficulty in parking and finding a car.
Product Details

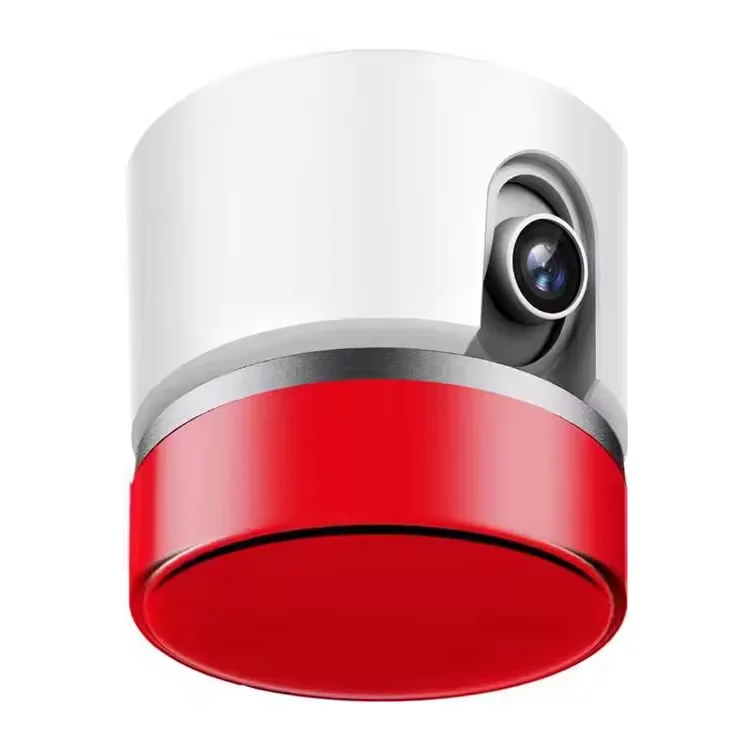

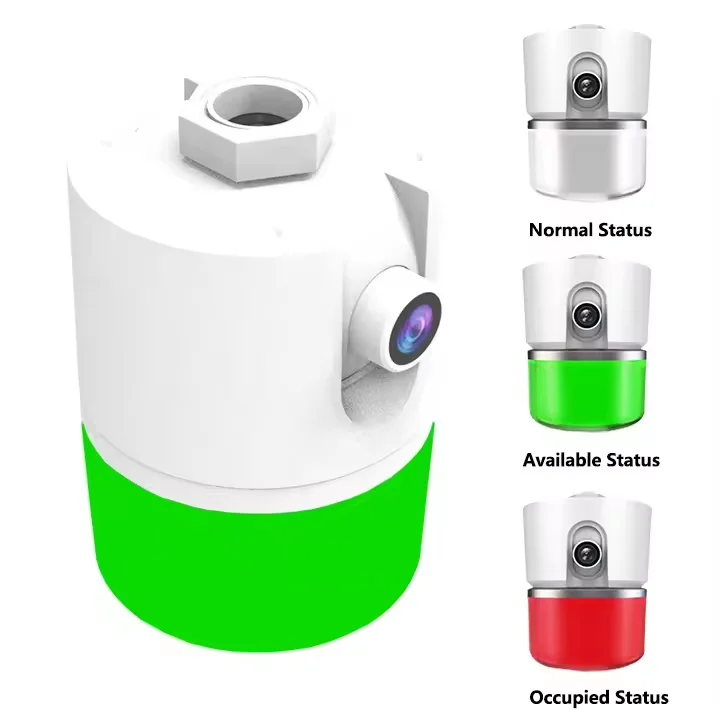

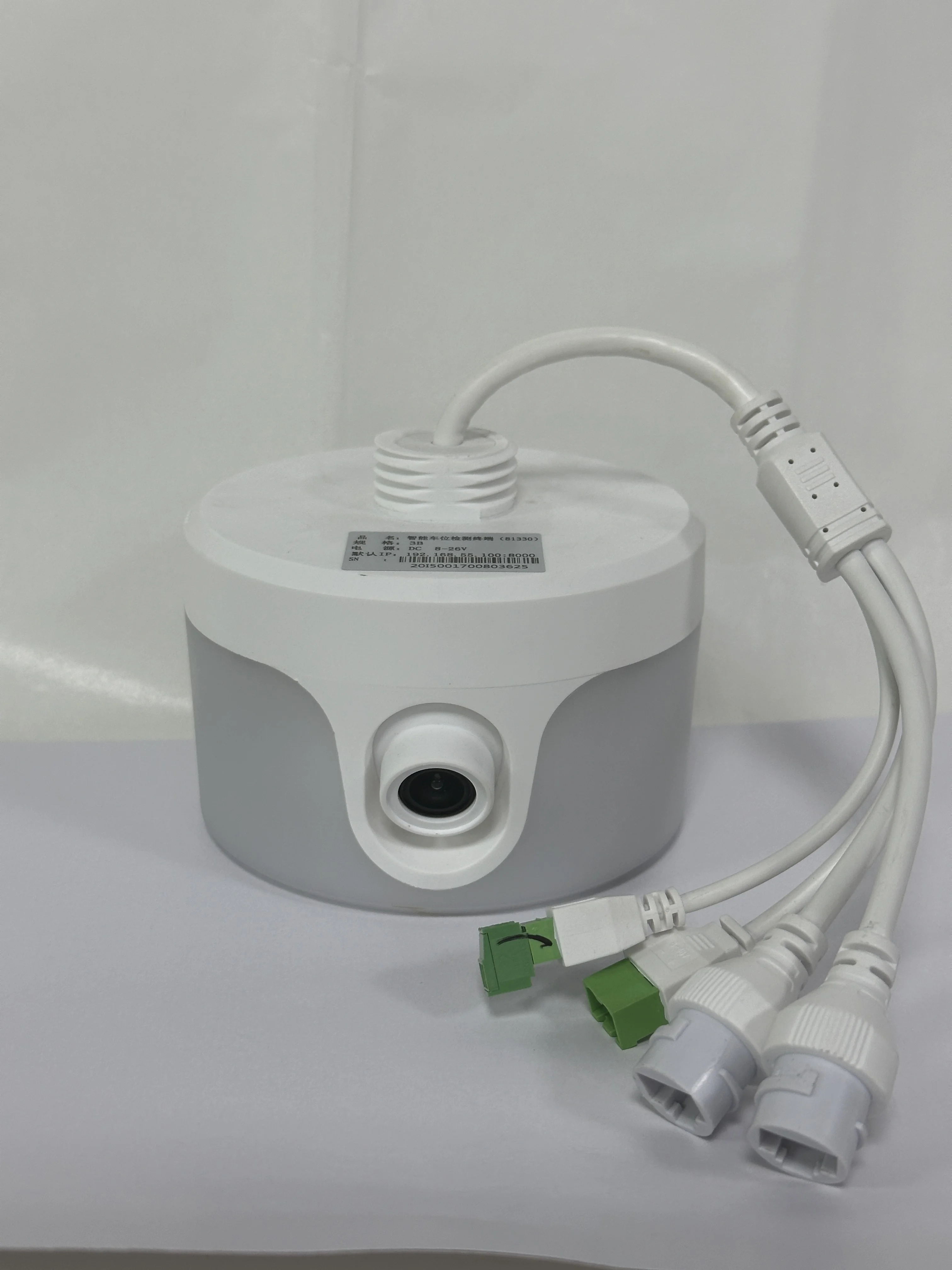

Camera Sensor
# Real Time Monitoring Parking Space Status
# With RS485 Port，to Connect Guidance Screen
# Snap on Base, Easy to Install and Adjustment
#Input Voltage DC 24V
# Power Consumption <5W
#Interface Ethernet TCP/IP
#Resolution H.264，1080P，25FPS
#Resolution H.264，1080P，25FPS
Video Controller
The video controller is the control and data transmission equipment of the video parking guidance system.
TCP / IP network architecture is adopted, up link to management server and down link to camera sensor.
Parameter
Input Voltage : AC 220 V ±10%
Communication: TCP / IP
Application : 1～16 pcs camera sensors
Size : 333*275*65 mm
Input Voltage : AC 220 V ±10%
Communication: TCP / IP
Application : 1～16 pcs camera sensors
Size : 333*275*65 mm

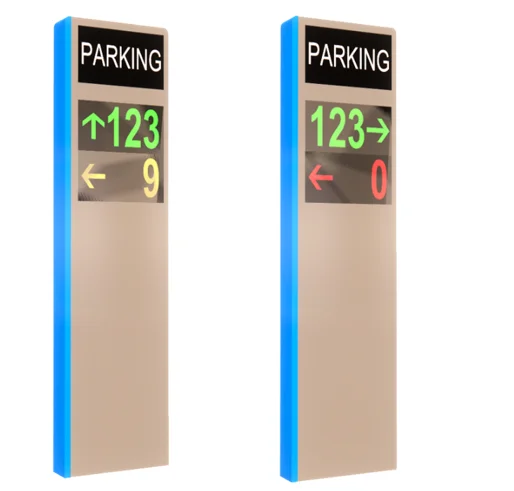

Indoor Display
The parking guidance display installed at intersections of main carriageways of parking lot, showing nu of vacant parking space and direction.
Features
High light LED display module
Built-in light box
3 digits number and arrow show direction
Arrow direction adjustable
RS485 communication protocol
Aluminum frame housing
High light LED display module
Built-in light box
3 digits number and arrow show direction
Arrow direction adjustable
RS485 communication protocol
Aluminum frame housing

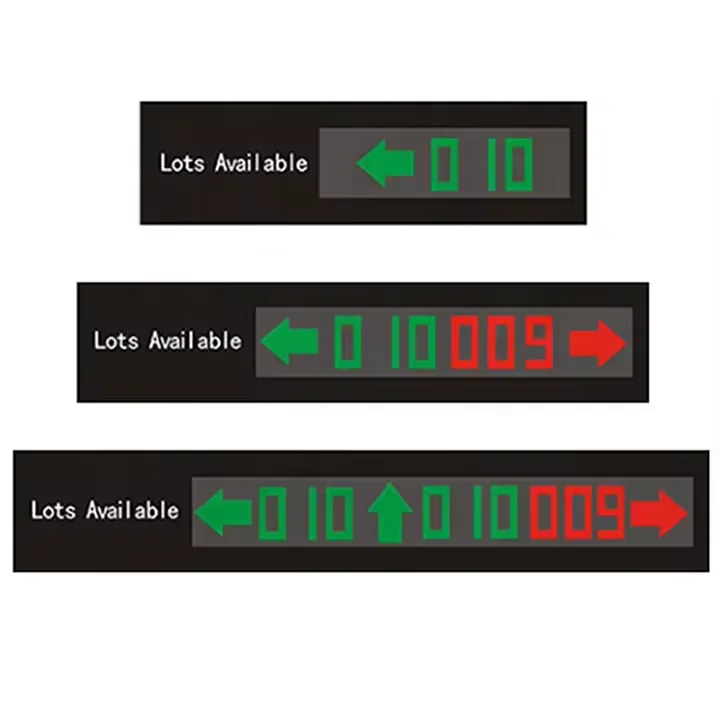

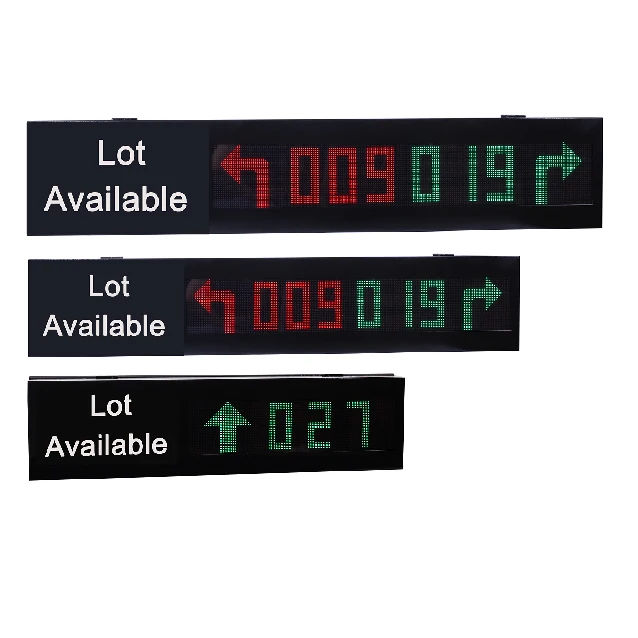

Outdoor Display
Features
High light LED display module
Built-in light box
3 digits number and arrow show direction
Arrow direction adjustable, or set as 4 digits number
Outdoor waterproof housing
Built-in light box
3 digits number and arrow show direction
Arrow direction adjustable, or set as 4 digits number
Outdoor waterproof housing
Interface RS 485
Baud rate 9600 bps
LED module
P 4.75 64*32 dot array when number 0，
Baud rate 9600 bps
LED module
P 4.75 64*32 dot array when number 0，
show red color；
number as 1～9，show yellow color；
Number above 10，show green color.
Brightness 256 level adjustable
Size 1600*550*150 mm
number as 1～9，show yellow color；
Number above 10，show green color.
Brightness 256 level adjustable
Size 1600*550*150 mm

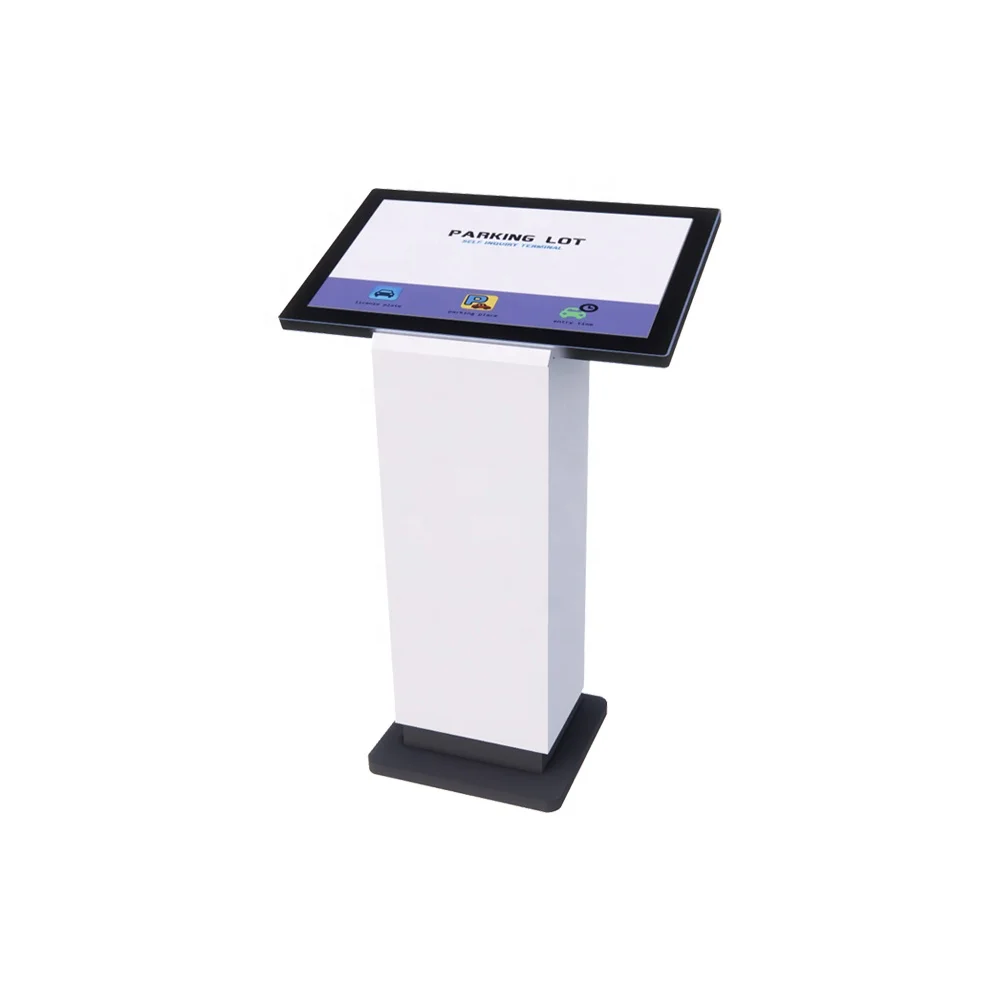

Car Searching Kiosk
Install at the elevator entrance or pedestrian passage of the parking lot, which is used to query the vehicle position and give the vehicle pick-up path.
Features
Support English
21.5/ 32/ 42 inch touch screen inch touch screen
Find vehicles by license plate number, parking space number and mobilization time
Support unlicensed vehicle search and fuzzy query
Display real-time map and plan the best vehicle search path to facilitate vehicle collection.
21.5/ 32/ 42 inch touch screen inch touch screen
Find vehicles by license plate number, parking space number and mobilization time
Support unlicensed vehicle search and fuzzy query
Display real-time map and plan the best vehicle search path to facilitate vehicle collection.

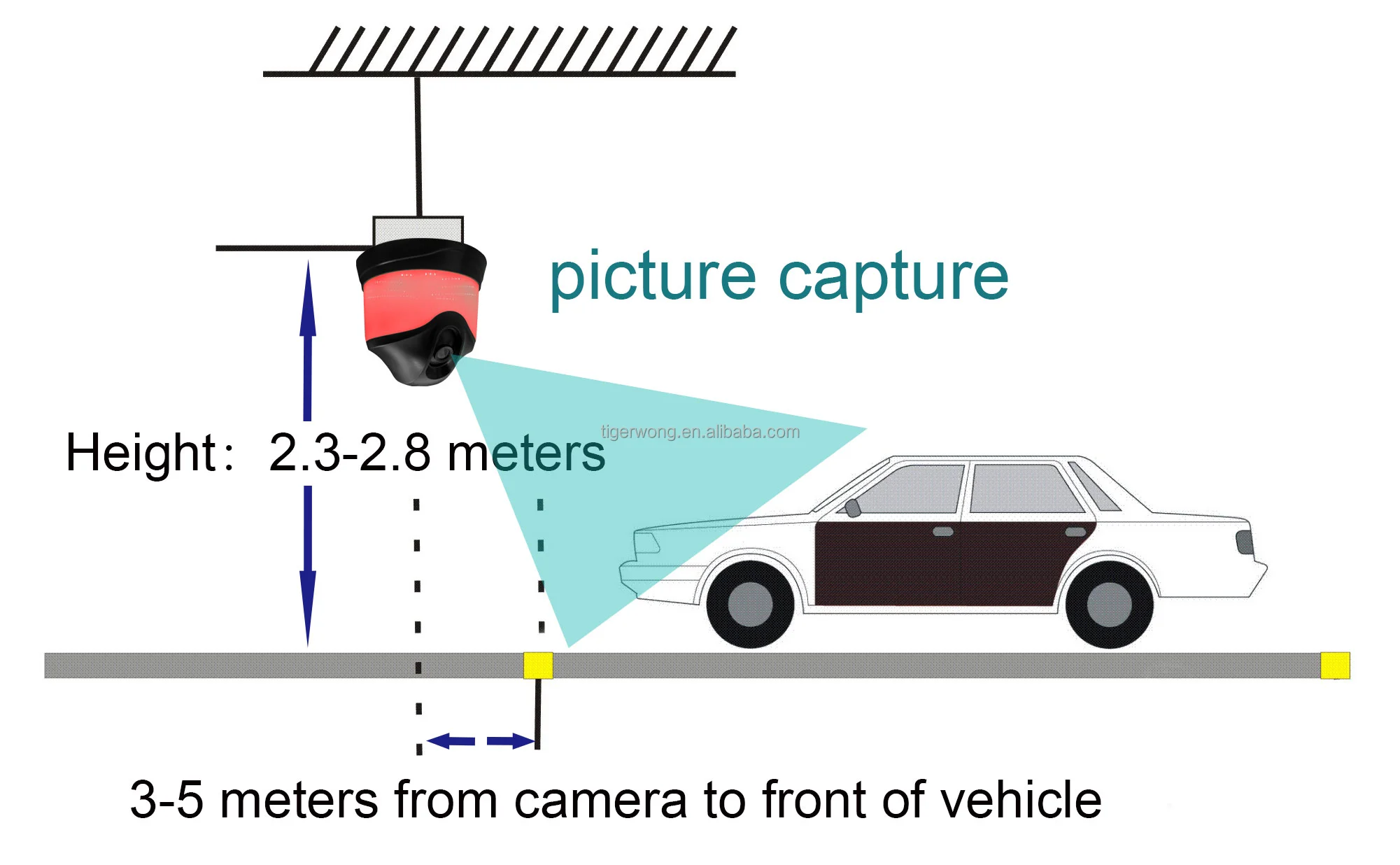

Installation
