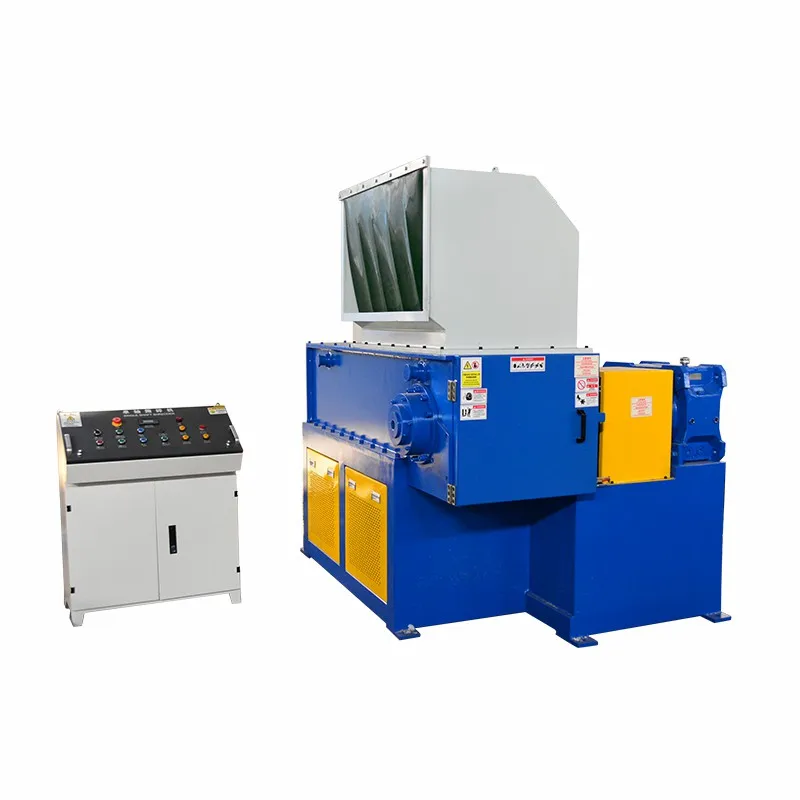

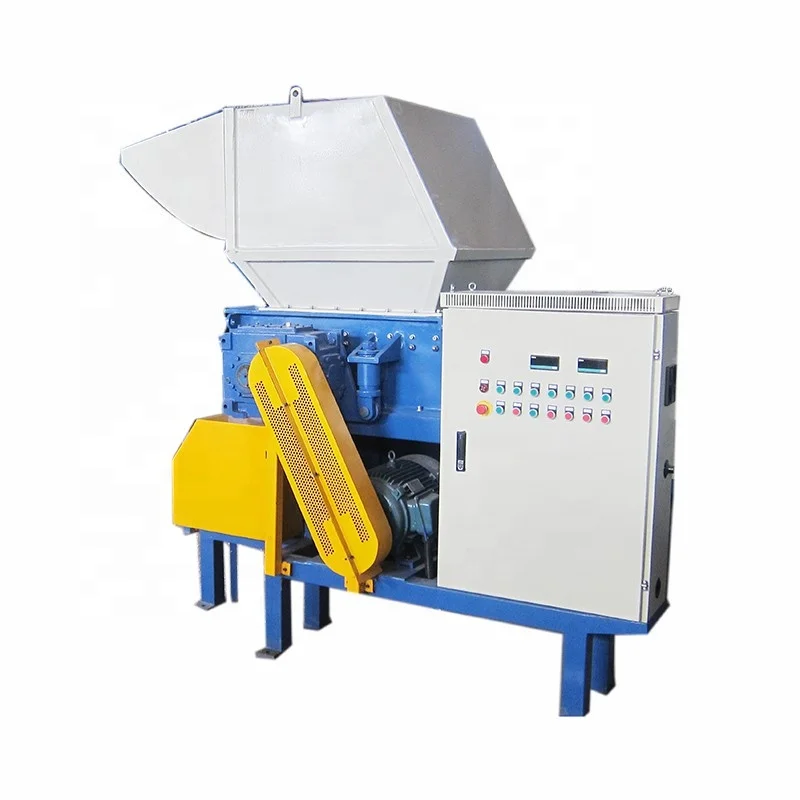

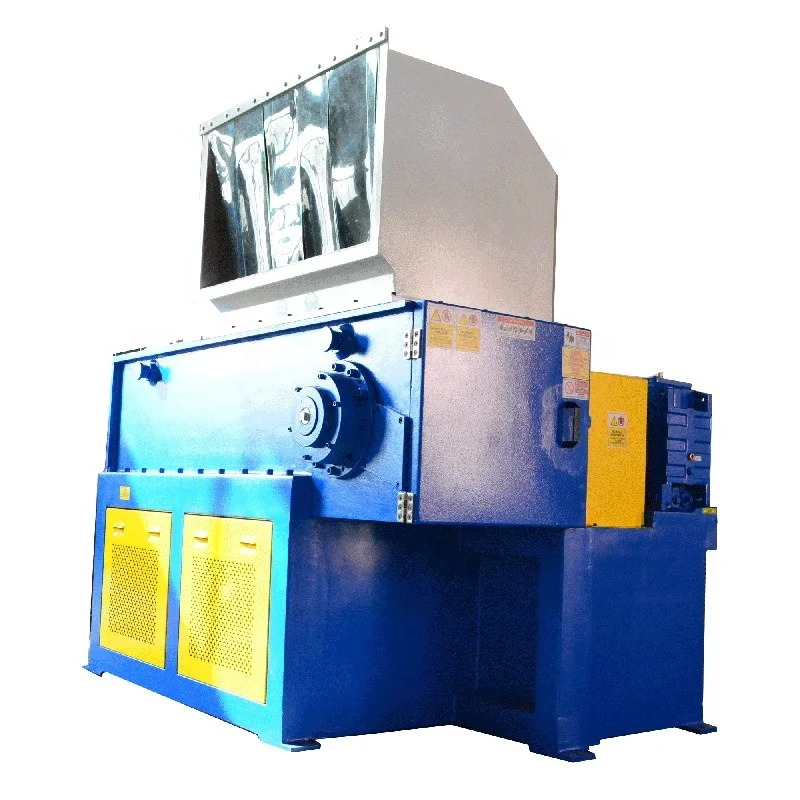

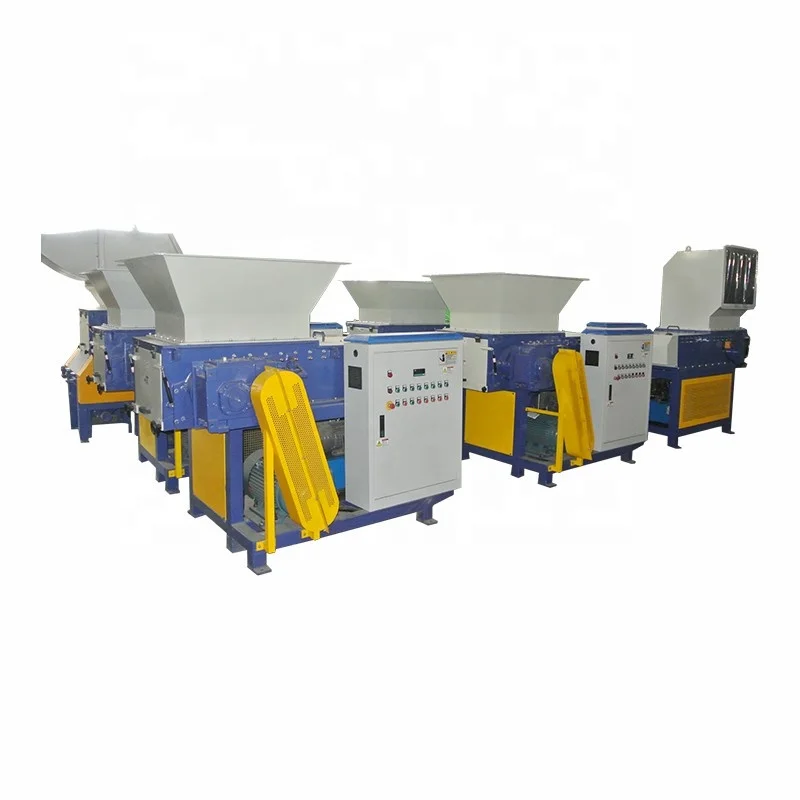

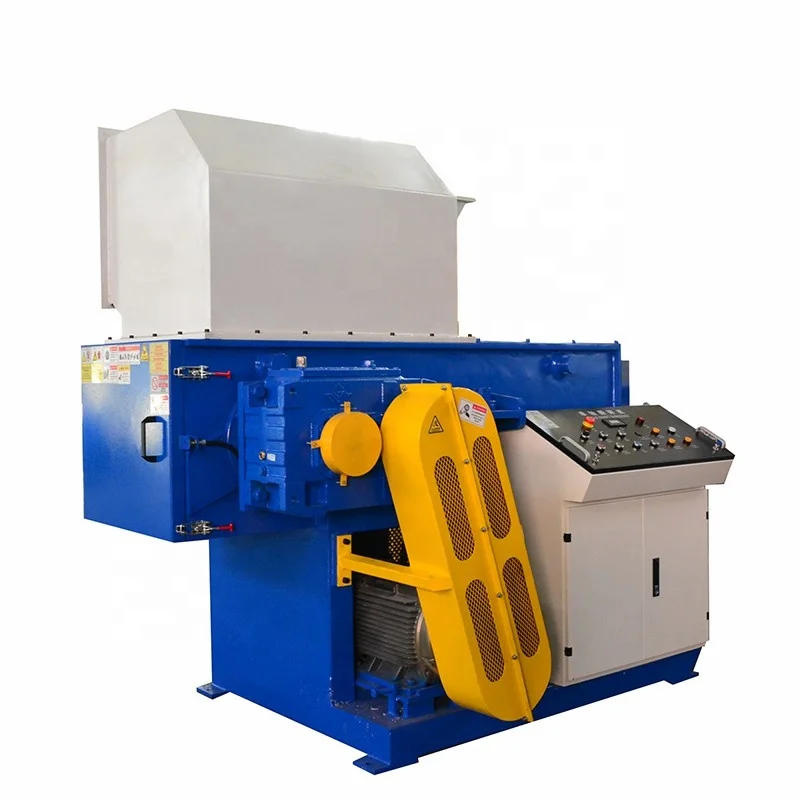

Factory Price Widely Used PP PE Lumps Plastic Shredder One Shaft Shredder
- Category: >>>
- Supplier: Suzhou Famous Machinery Co. Ltd.
Share on (1600438418903):
Product Overview
Description
Product Image
Shaft Design | one |
Bearing | Heavy Duty Bearing |
Screen Size | 40-100mm |
Motor Brand | Simo, Wannan, Siemens, Weg |
Main Motor Power | 22kw |
Gear Box | GUOMAO or BONENG |
Hydraulic Station | 2.2kw |
Main Electrics | Schneider |
PLC Control | Siemens |
Output | 300-600kg/Hr |
Color | customer choice |
After Warranty Service: | Video technical support, Online support, Free spare parts, Field installation, commissioning and Trainning, Field Maintenance and Repair Service |
HS Code | 84778000 |
Products Description

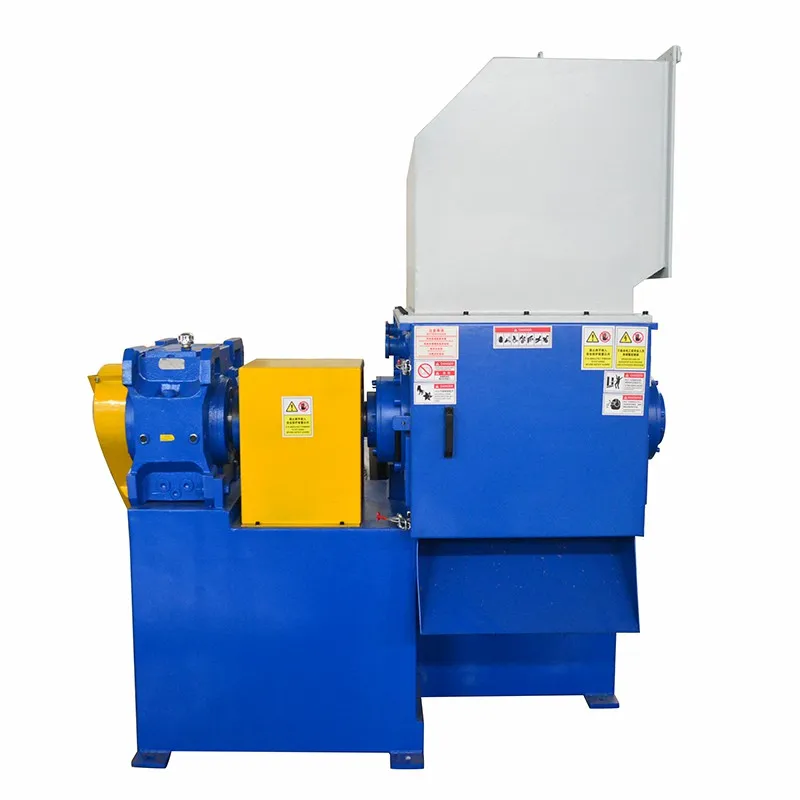

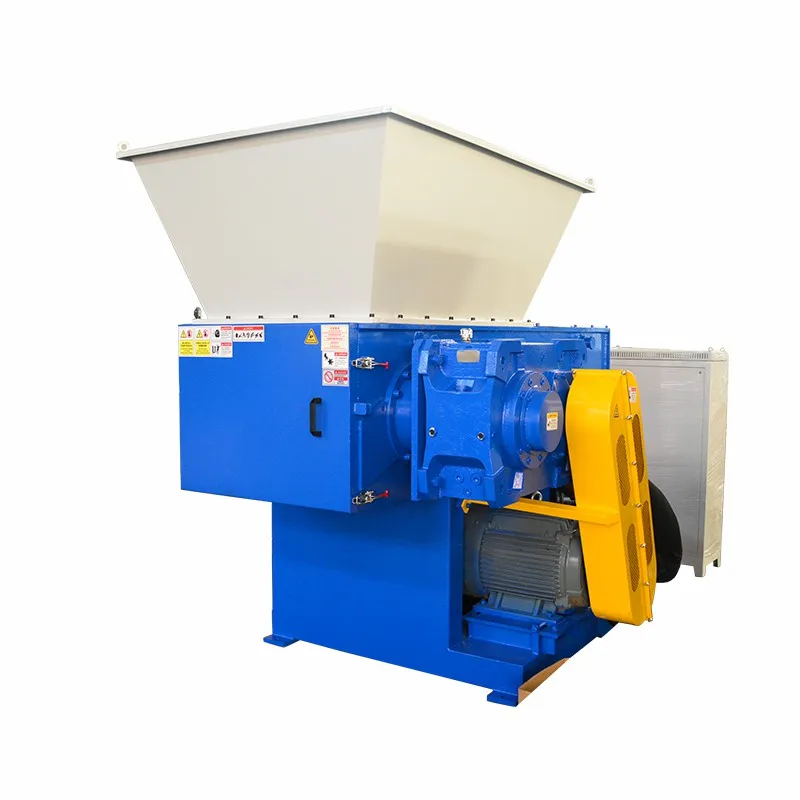

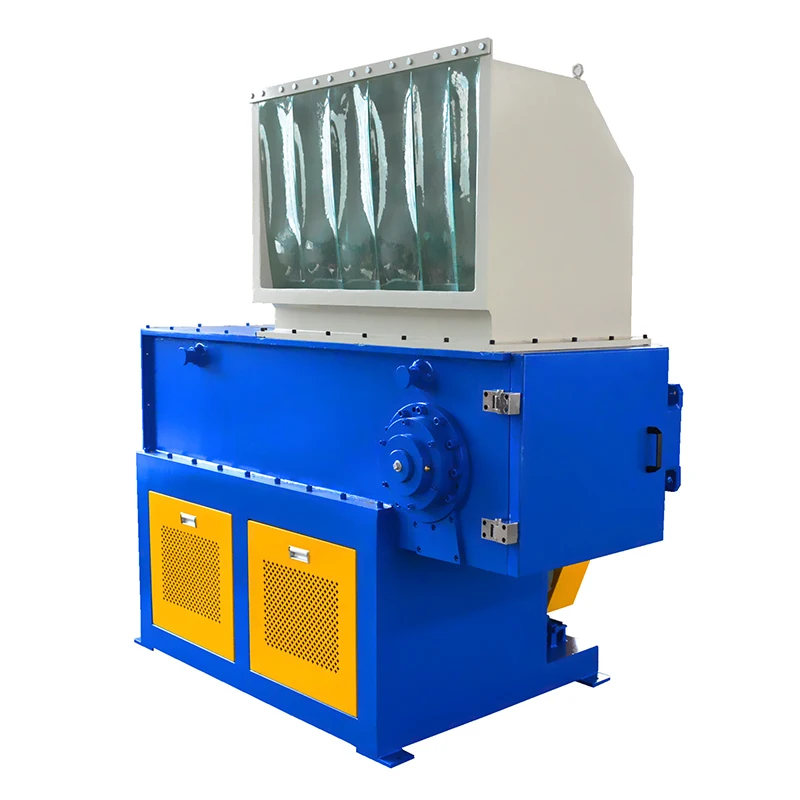

Single Shaft Shredder Machine
Single shaft shredder machine feature and function:
Plastic shredder/shredding machine was mainly used to shred different kinds of plastic materials, especially very large waste plastic.
Product Description:
The XR series single shaft shredder is suitable for recycling wide range of materials. It is an ideal machine for plastic, paper, fiber, rubber, organic waste and a wide variety of materials. As per our customers’ requirements, such as the input size of the material, capacity and the final output size etc, we could work out a suitable proposal for our clients. After being shredded by the machine, the output material could be used directly or go into the next step of size reduction. With the function of Siemens microcomputer control system, it is possible to control automatically start, stop, automatic reverse sensors to protect the machine against over loading and jamming.
Single shaft shredder machine feature and function:
Plastic shredder/shredding machine was mainly used to shred different kinds of plastic materials, especially very large waste plastic.
single shaft shredder machine can shredding plastic lumps, barrels, pipes , wood, wood pallet, big block material, plastic container, plastic chair,plastic pallet, woven bags, jumbo bags, cable, etc.
Suitable Products:
The single-shaft shredder is used to recycle plastic, paper, wood, fiber, cable, rubber, home appliance, light steel, municipal solid waste, etc. It is ideally suited for the reduction of a wide range of different materials:
•Refuse-derived fuel: straw, municipal solid waste;
•Textile: cloth fiber, nylon;
•Paper: industrial waste paper, packing paper, cardboard paper;
•Cable wires: copper core cable, aluminum cable, composite cables;
•Polypropylene pipe, industrial packaging & plastic films, PP woven bags;
•Plastic: plastic block, plastic sheets, PET bottle, plastics pipe, plastic container, plastic drums;
The single-shaft shredder is used to recycle plastic, paper, wood, fiber, cable, rubber, home appliance, light steel, municipal solid waste, etc. It is ideally suited for the reduction of a wide range of different materials:
•Refuse-derived fuel: straw, municipal solid waste;
•Textile: cloth fiber, nylon;
•Paper: industrial waste paper, packing paper, cardboard paper;
•Cable wires: copper core cable, aluminum cable, composite cables;
•Polypropylene pipe, industrial packaging & plastic films, PP woven bags;
•Plastic: plastic block, plastic sheets, PET bottle, plastics pipe, plastic container, plastic drums;
Product Parameters:
Model | Motor (kw) | Diameter of rotor (mm) | Speed (rpm) | Rotating Knife (pcs) | Fixed Knife (pcs) | Hydraulic Motor power (kw) | Weight (kg) |
XR600 | 22 | Φ280 | 75 | 26+4 | 2 | 2.2 | 1550 |
XR700 | 30 or 37 | Φ280 | 75 | 32+4 | 2 | 3 | 1950 |
XR800 | 45 | Φ400 | 75 | 34+4 | 2 | 3 | 3500 |
XR1000 | 55 | Φ400 | 75 | 46+4 | 2 | 4 | 4000 |
XR1200 | 75 | Φ500 | 75 | 68+4 | 2 | 5.5 | 5000 |
XR1500 | 90 or 110 | Φ550 | 75 | 84+6 | 2 | 7.5 | 6200 |
XR2000 | 132 or 160 | Φ600 | 75 | 112+6 | 2 | 11 | 7800 |
Note: The above technical parameters is only for your consideration, real technical parameters of shredder machine will be different based on shredding different material requirements, please call us for more information before purchasing.

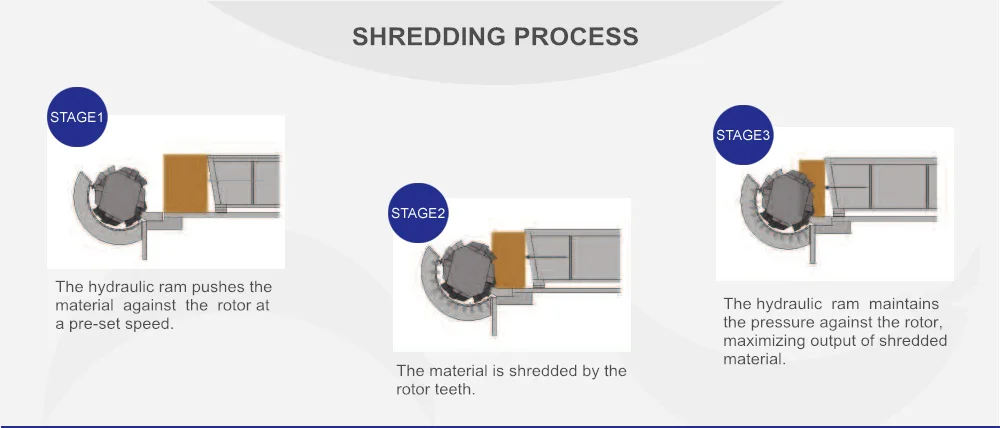

Single Shaft Shredder Machine Work Process:
Product Details

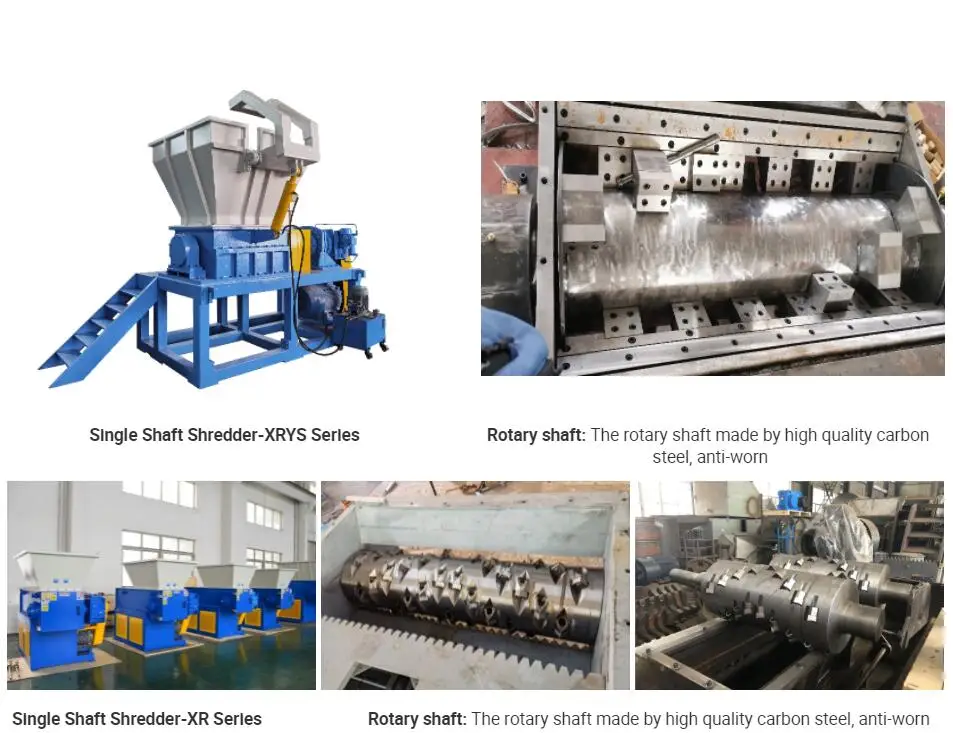

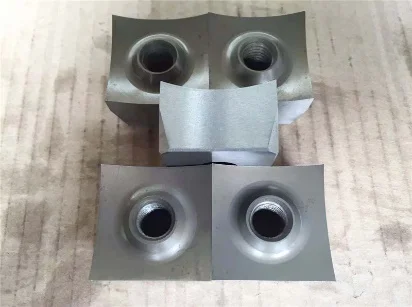

Rotor blade
The rotor blade made by D2, fixed on the blades holder by screw easy to remove and maintenance, blade can use 4 times when the blade worn after using long time

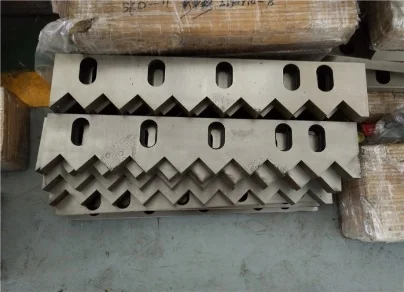

Fixed Blade
The fixed blades are movables to adjust and longer time use Using D2 material, USA Standard, HRC 58-59 more better than SKD-II, We also can use DC53 material

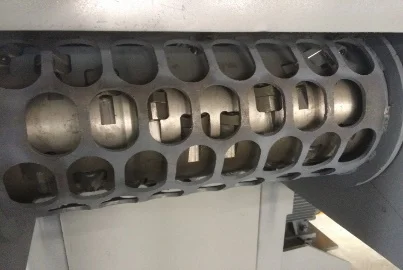

the screen use 10mm thickness carbon steel made, with 60mm screen, the flakes will easy shredding and down

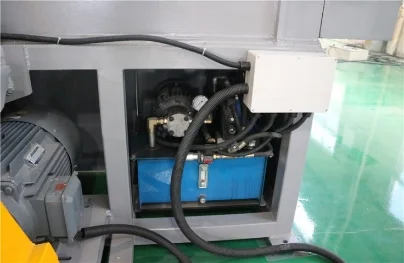

Oil cylinder effective working
Pushing speed is adjusted by manual
Using Beide brand motor(siemens standard motors ltd in china)

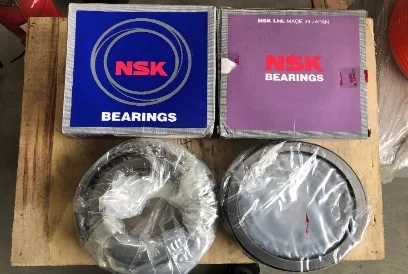

Using Japan famous brand- NSK
original import from Japan factory
We also supply SKF bearing for customer

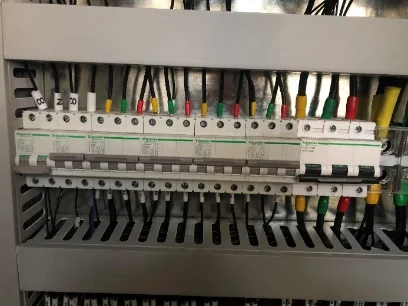

Use Schneider brand in our control system

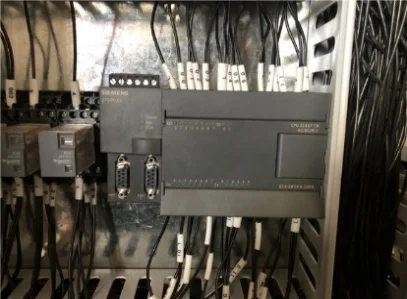

Use Siemens PLC for shredder machine
Automatic control rotor shaft positive, negative rotary
Final Products
Company Profile
SUZHOU FAMOUS MACHINERY CO.,LTD. is located in the national civilized city—Zhangjiagang, it's near the golden waterway of Yangtze River, only 2 hours from Shanghai Pudong airport by car. It covers an area of 10000 square meters, with two machinery workshop. It’s a modernized manufacturing enterprise with machinery, product and technology together.
FAMOUS MACHINERY COMPANY held the mission “turn plastic waste into profit, and make it industrialization”, vigorously develop circular economy, We are dedicated to developing and manufacturing the high technology plastic recycling machinery. Our factory has a history of 20 years of equipment processing and experienced engineers which will ensure the quality for you;
Our main products machinery are at below: 1- Waste PET Recycling Line used to washing the waste PET bottles into clean PET flakes complete line; 2- Waste Plastic Film, Woven bags/Jumbo bags recycling washing line; 3- Plastic granulator line with different model can used for the waste plastic Film, PP woven bags, Jumbo bags, waste PSF/POY textile and fabric, Nylon and for hard plastics such as PE, PP, PET, PS, ABS, EPS, XPS, etc. 4- Plastic Shredder Machinery include the Single Shaft Shredder Machine, Double/Four Shaft Shredder Machine, Twin Roller Shredder Machine; 5- Plastic Crushers: PET bottle crusher, PPPE film crusher, PIPE crusher. 6- Milling Machine: PVC milling machine, PE milling machine, WOOD milling machine. 7- Plastic Mixer: PVC mixer, PE mixer, Wood Plastic Mixer; 8- EPS Foam material recycling machine which includes EPS hot melting machine, EPS compacting machine, EPS crusher. 9- Auxiliary Machine: Agglomeration Machine, Plastic Film Squeezer, Plastic film squeezing pelletizer machine, etc.
FAMOUS MACHINERY COMPANY held the mission “turn plastic waste into profit, and make it industrialization”, vigorously develop circular economy, We are dedicated to developing and manufacturing the high technology plastic recycling machinery. Our factory has a history of 20 years of equipment processing and experienced engineers which will ensure the quality for you;
Our main products machinery are at below: 1- Waste PET Recycling Line used to washing the waste PET bottles into clean PET flakes complete line; 2- Waste Plastic Film, Woven bags/Jumbo bags recycling washing line; 3- Plastic granulator line with different model can used for the waste plastic Film, PP woven bags, Jumbo bags, waste PSF/POY textile and fabric, Nylon and for hard plastics such as PE, PP, PET, PS, ABS, EPS, XPS, etc. 4- Plastic Shredder Machinery include the Single Shaft Shredder Machine, Double/Four Shaft Shredder Machine, Twin Roller Shredder Machine; 5- Plastic Crushers: PET bottle crusher, PPPE film crusher, PIPE crusher. 6- Milling Machine: PVC milling machine, PE milling machine, WOOD milling machine. 7- Plastic Mixer: PVC mixer, PE mixer, Wood Plastic Mixer; 8- EPS Foam material recycling machine which includes EPS hot melting machine, EPS compacting machine, EPS crusher. 9- Auxiliary Machine: Agglomeration Machine, Plastic Film Squeezer, Plastic film squeezing pelletizer machine, etc.
Our Partners
Our Certificates
Exhibition
Our Service
Service Before Sale
1. 24 hours online. Your inquiry will be quick reply by email.
Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
2. Professionally and patiently introduction, details pictures and working video to show machine
Service On Sale
1. Test every machine and inspect the machine seriously.
2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3. Delivery: If ship by sea. After delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free.
If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
Service After Sale
1. 24 hours online. Your inquiry will be quick reply by email.
Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
2. Professionally and patiently introduction, details pictures and working video to show machine
Service On Sale
1. Test every machine and inspect the machine seriously.
2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3. Delivery: If ship by sea. After delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free.
If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you the tracking number after delivery.
Service After Sale
1. Free insurance for goods
2. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.
2. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory.
Package & Delivery
FAQ
Q: Are you a factory or a trading company? |
A: As a professional manufacturer, we have been in plastic recycling machine industry for more than 20 years, our factory is in Zhangjiagang city which is near shanghai and wuxi. |
Q: Do you have any certifications? |
A: Yes, we have ISO, CE, SGS. |
Q: What’s your guarantee or the warranty of the quality if we buy your machines? |
A: We offer you high quality machines with 1 year guarantee and supply life-long technical support. |
Q: When can I get my machine after I paid? |
A: Normally production time is around 45-75days, the exactly depend on what kind of machine you order. The shipping time is based on your destination port. |
Q: How to install my machines when it arrives? how much the cost? |
A: We will send the instruction manual and videos to you, your workers can install the machine according to it. If you still have problems in installing it and need our engineer to help, we will arrange our engineer to debugging the machine for you. At same time our engineer will give training lessons to workers in your factory. Customer pay for visa, round air tickets, accommodation and USD100/day/person. |
Q:How long time for installation? |
A:According your machines order, we will send one or two engineers to your plant, it will take about 15 days to 30 days. |
Q: How about the spare parts? |
A: We will send one year enough easy broken spare parts together with the machines, shipping together. During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If it is caused by your incorrect operations, we will provide the spare parts at cost price. |
