professional stone crusher breaking machine mobile crushing and screening plant stone crush production line price
- Category: >>>
- Supplier: Shanghai Minggong Heavy Equipment Co. Ltd.
Share on (1600438433744):
Product Overview
Description
product description

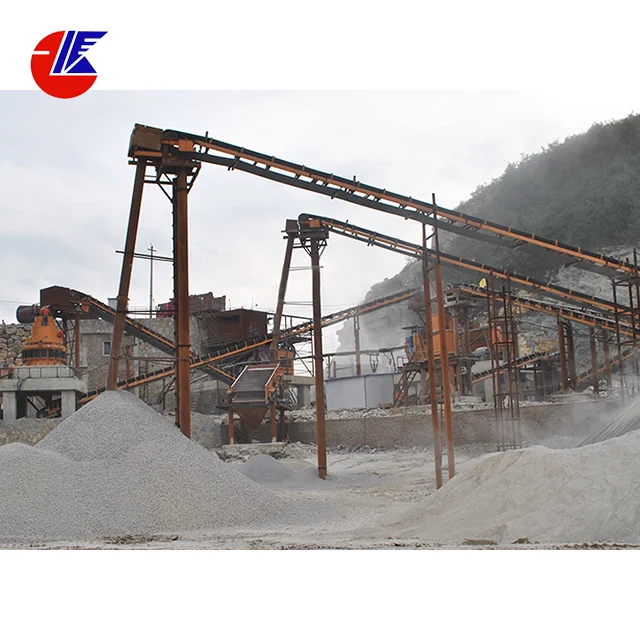

ISO/CE certificated large capacity 250T/H Quarry Crushing Plant/Rockstone production line/granite stone crushing plant

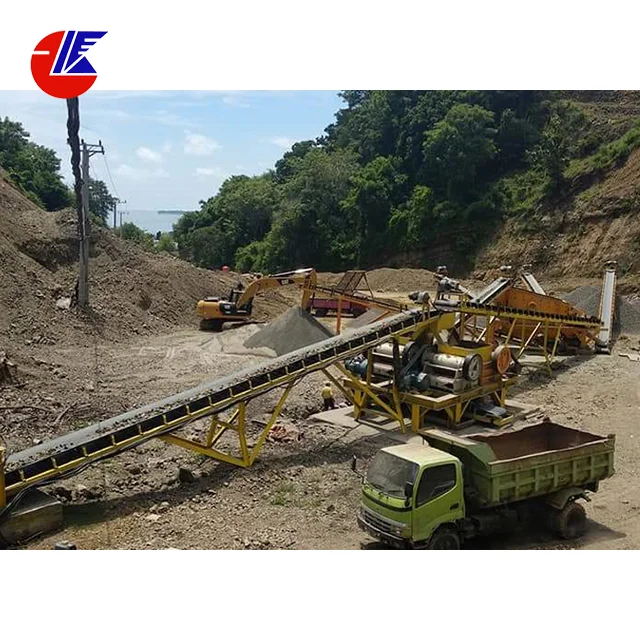

Introduction of stone crushing production line
Stone production line also known as sand making production line. It is the special production line for making sand and stone used in construction, road, and railway industries. The stone crushing equipments consist of jaw crusher, stone crusher, impact crusher, vibrating feeder, vibrating screen, sand washer, and belt conveyor etc. the equipments manufactured by our company have the advantages of reliable performance, reasonable design, easy operation, and high efficiency.
The capacity mainly vary between 50-500thp. And in order to meet the different demands of customers, the production line can equip with cone crusher, dust removal equipment and other equipment. It is suitable for the materials like hard limestone, granite, basalt, pebble, metallurgy slag and artificial sand making work. It is widely used in the industries of hydroelectric, building materials, highway, and urban construction. And according to different technological requirement, various types of equipment can be combined to
meet
the demands of different customers.

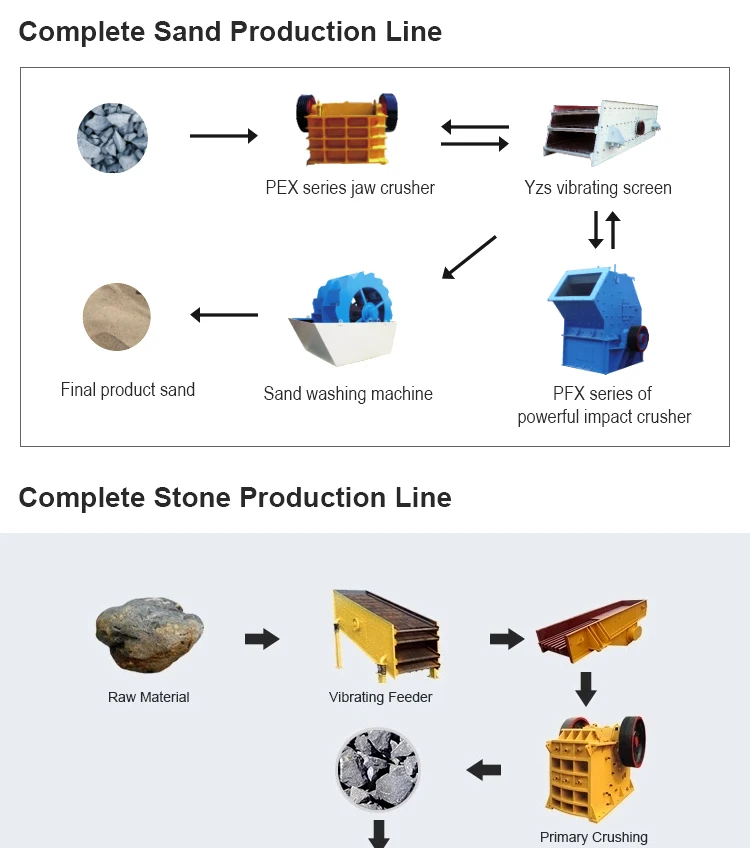

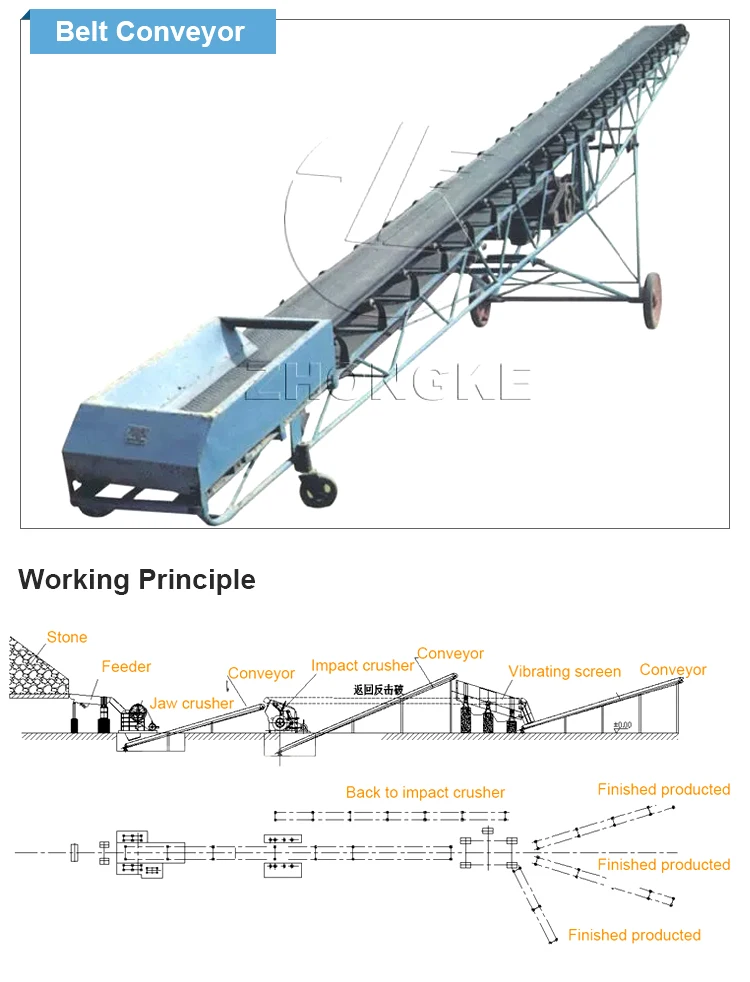

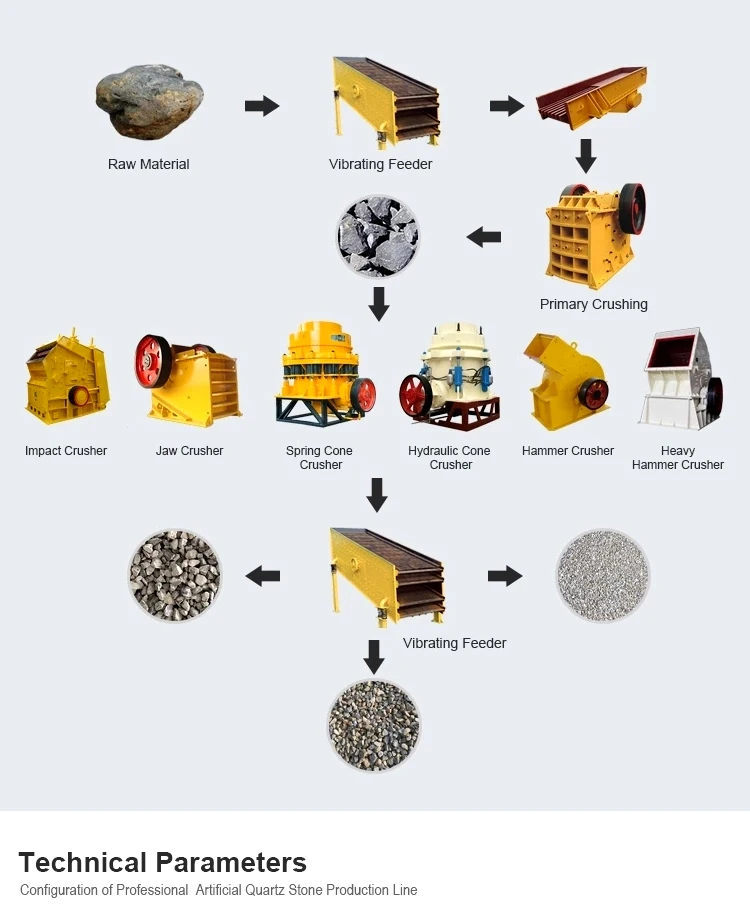

Process of stone crushing production line
1 Big material is fed to the hammer crusher evenly and gradually by vibrating feeder through a hopper for one crushing successfully 2 the crushed materials will then transferred to vibrating screen for separating. 3. The parts that can meet standard will be transferred away as final products, while the other parts will be returned to impact crusher, thus forming a closed circuit. 4. Size of final products can be combined and graded according to customer’s specific requirement.

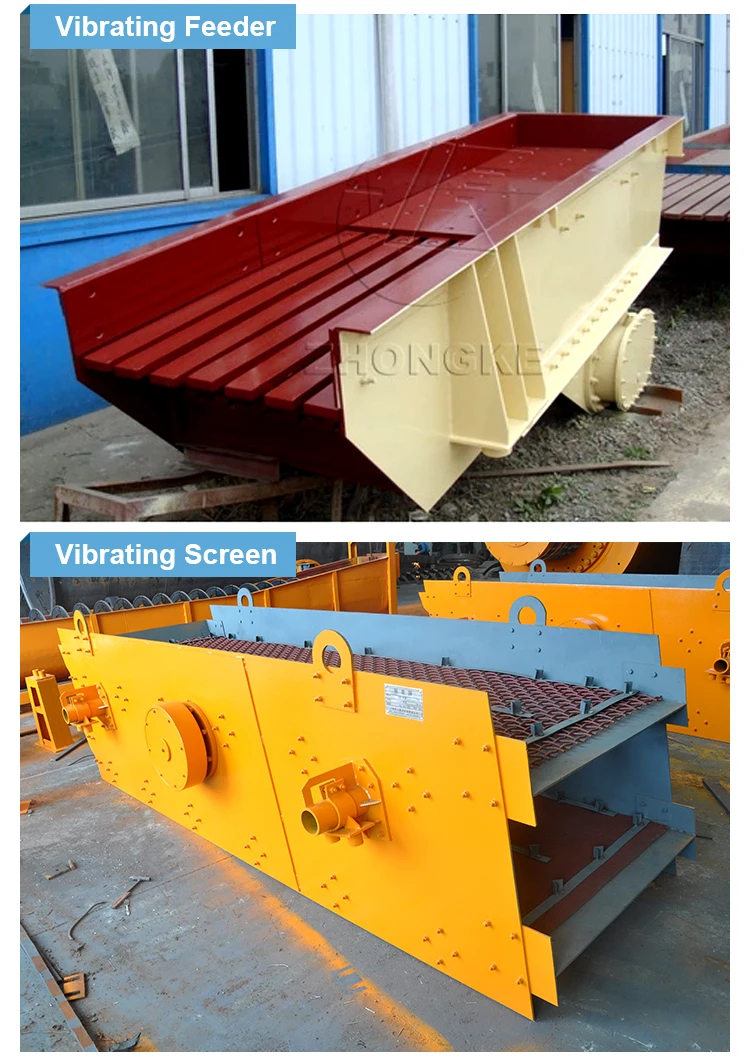

Basic machine: Jaw crusher,Impact Crusher,Vibrating Feeder,Vibrating Screen,Belt Conveyor,this line can be adjusted according to customer's demands.
| Maximum feeding size (mm) | capacity (t/h) | Main equipment Model/Spec./Quantity | | | | | | |||||
| | | feeding equipment | Coarse crushing equipment | Fine crushing equipment | Grading screening equipment | Belt conveyor (m) | Installed power(kw) | |||||
| 340 | 30 | GZD2511 (3kw) | PE400x600 (30kw) | PF1007 (45kw) | 3YZ1236 (15kw) | 60-90 (20kw) | 120 | |||||
| 340 | 50 | GZD3117 (10kw) | PE400x600 (30kw) | PF1007 (45kw) | 3YZ1545 (22kw) | 100-130 (30kw) | 140 | |||||
| 420 | 80 | GZD3617 (10kw) | PE500x750 (55kw) | PF1010 (75kw) | 3YZ1548 (22kw) | 130-160 (30kw) | 200 | |||||
| 480 | 100 | GZD4321 (13kw) | PE600x900 (75kw) | PF1210 (130kw) | 3YZ1548 (22kw) | 140-180 (40kw) | 280 | |||||
| 560 | 150 | GZD4321 (13kw) | PE750x1060 (90kw) | PF1210 (130kw) | 3YZ1845 (22kw) | 200-240 (50kw) | 300 | |||||
| 630 | 200 | GZD4321 (13kw) | PE900x1060 (110kw) | PFB1212 (140kw) | 3YZ2050 (30kw) | 200 (40kw) | 350 | |||||
| 630 | 250 | GZD5027 (17kw) | PE900x1060 (110kw) | PFB1214 (180kw) | 3YZ2050 (30kw) | 200 (40kw) | 400 | |||||
| 630 | 300 | GZD5027 (17kw) | PE900x1200 (110kw) | PFB1214 (180kw) | 3YZ2160 (30kw) | 250 (50kw) | 450 | |||||
| 700 | 350 | GZD5027 (17kw) | PE1000x1200 (132kw) | PFB1315 (250kw) | 3YZ2160 (30kw) | 250 (50kw) | 500 | |||||
| 700 | 450 | GZD6223 (28kw) | PE1000x1200 (132kw) | PFB1214/2 (300kw) | 3YZ2145/2 (60kw) | | | |||||

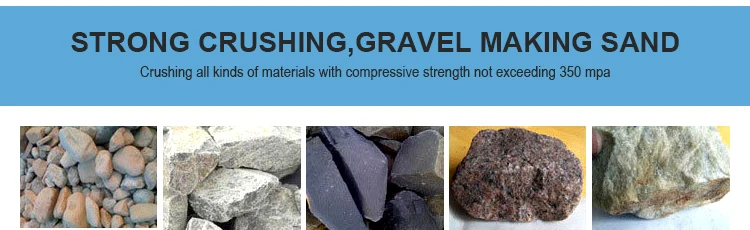

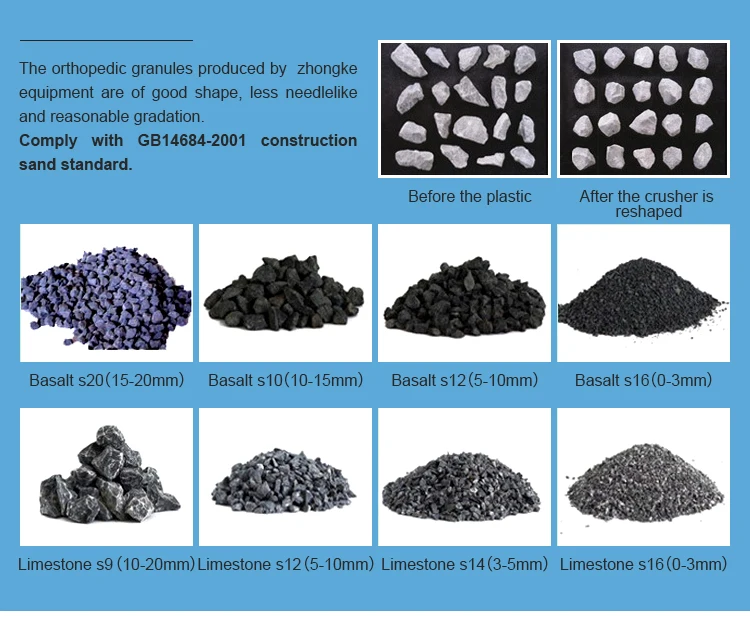

Materials used
1.Pebble 2.Limestone 3.Basalt 4.Granite 5.Quartzite
1.Andesite 2.Perlite 3.Diabase 4.Syenite 5.Sandstone
1.Bauxite 2.Conglomerate 3.Potash feldspar 4.Potash feldspar 5.Iron ore

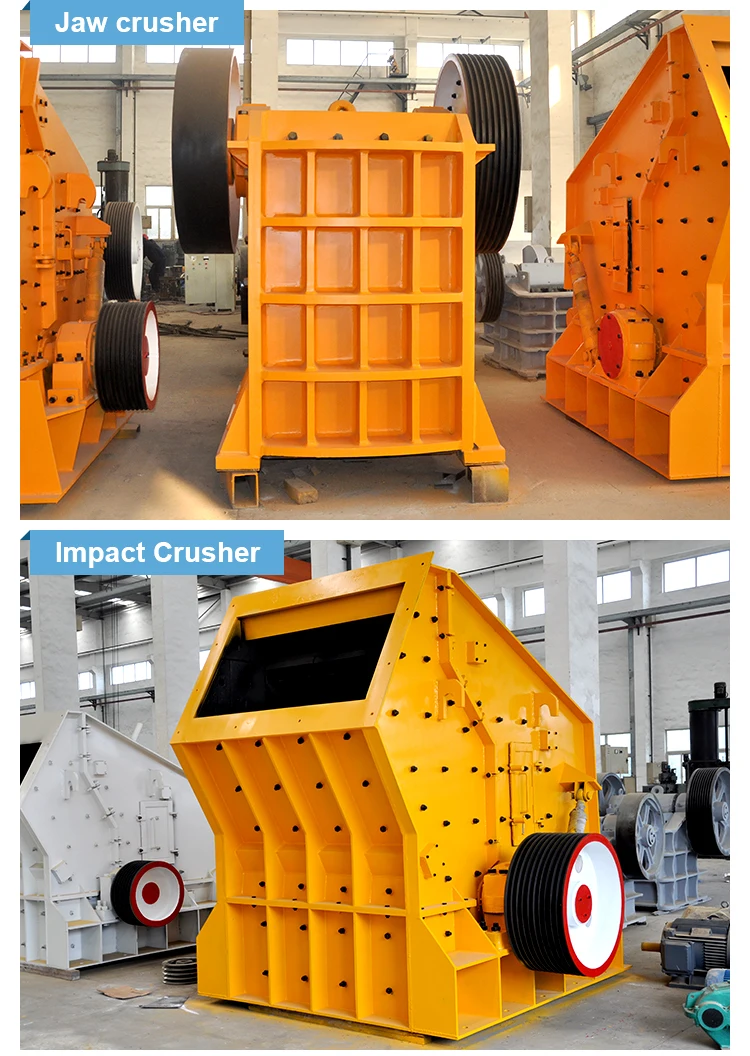

Products Show

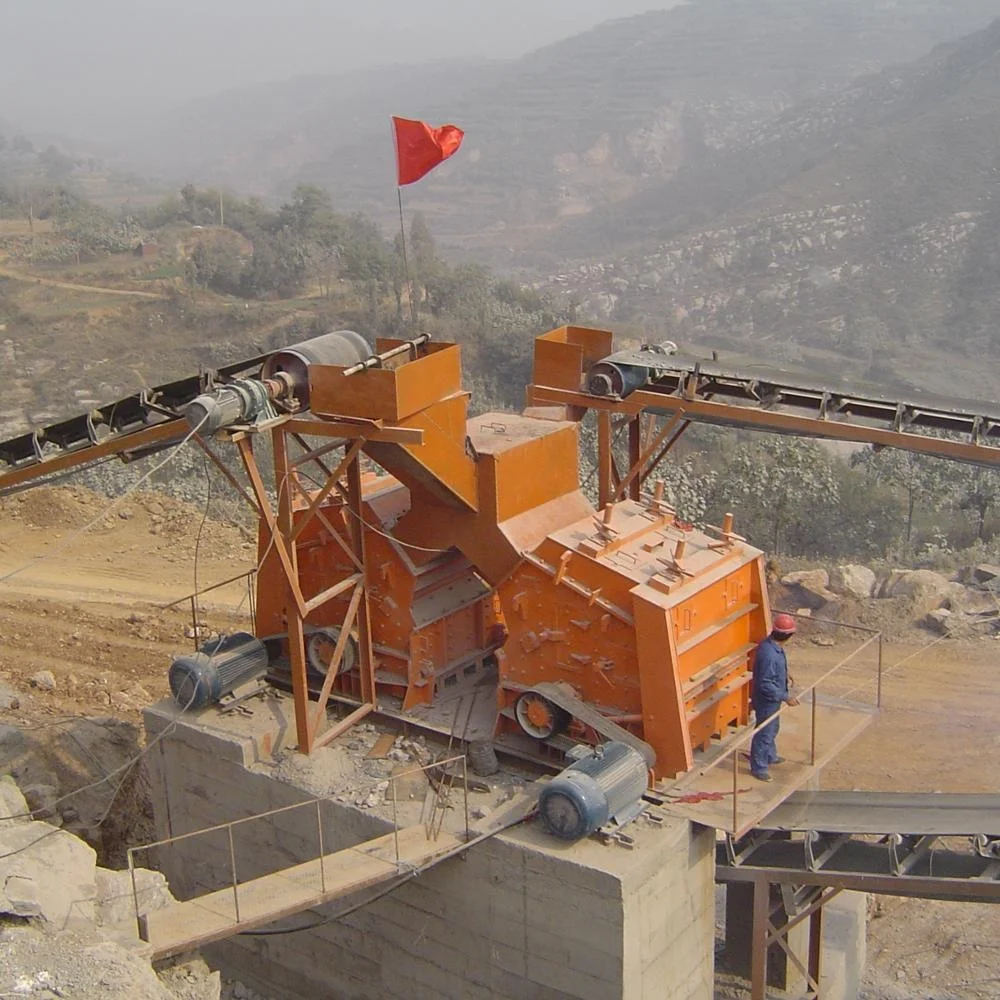

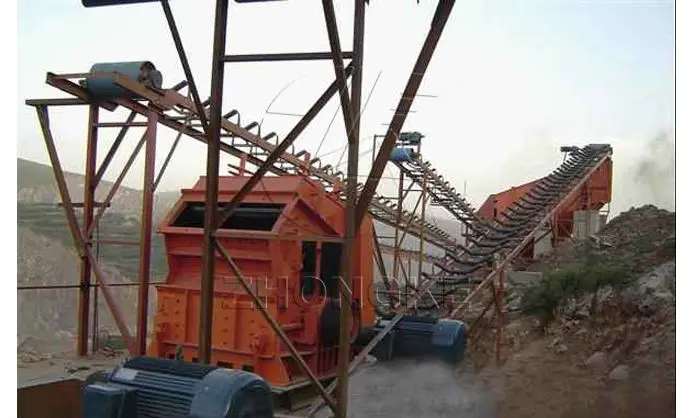

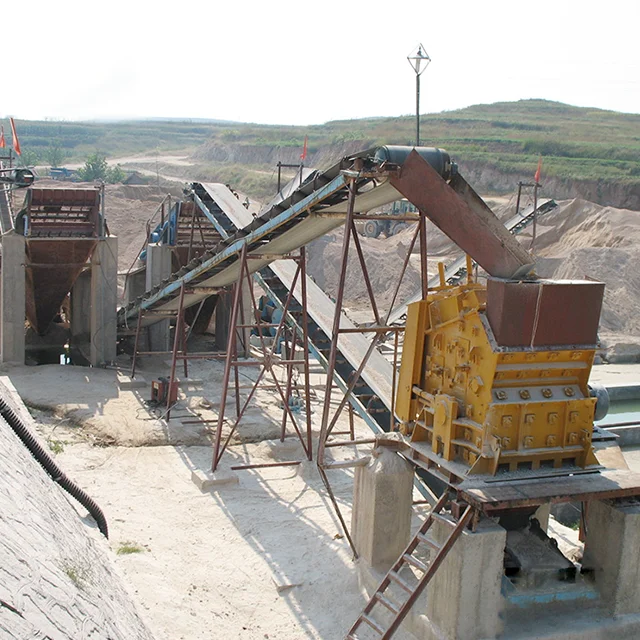

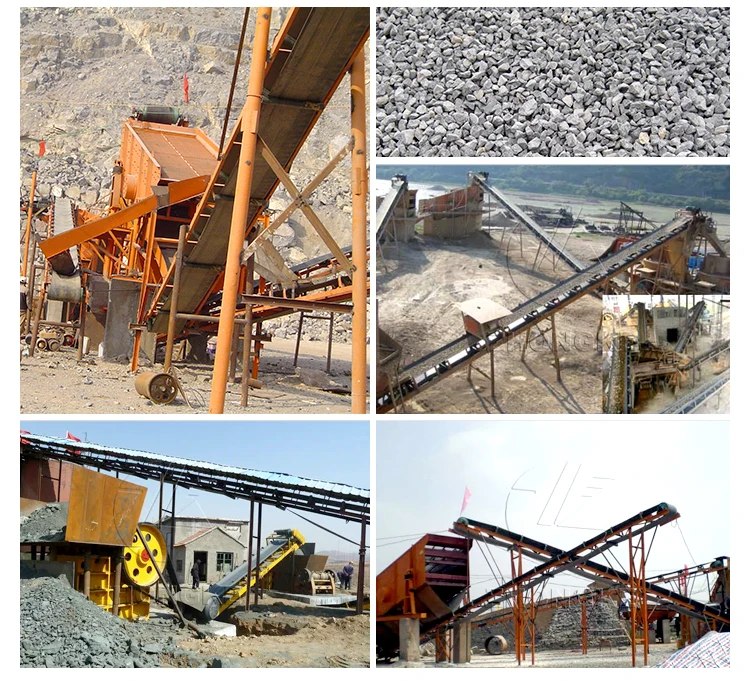

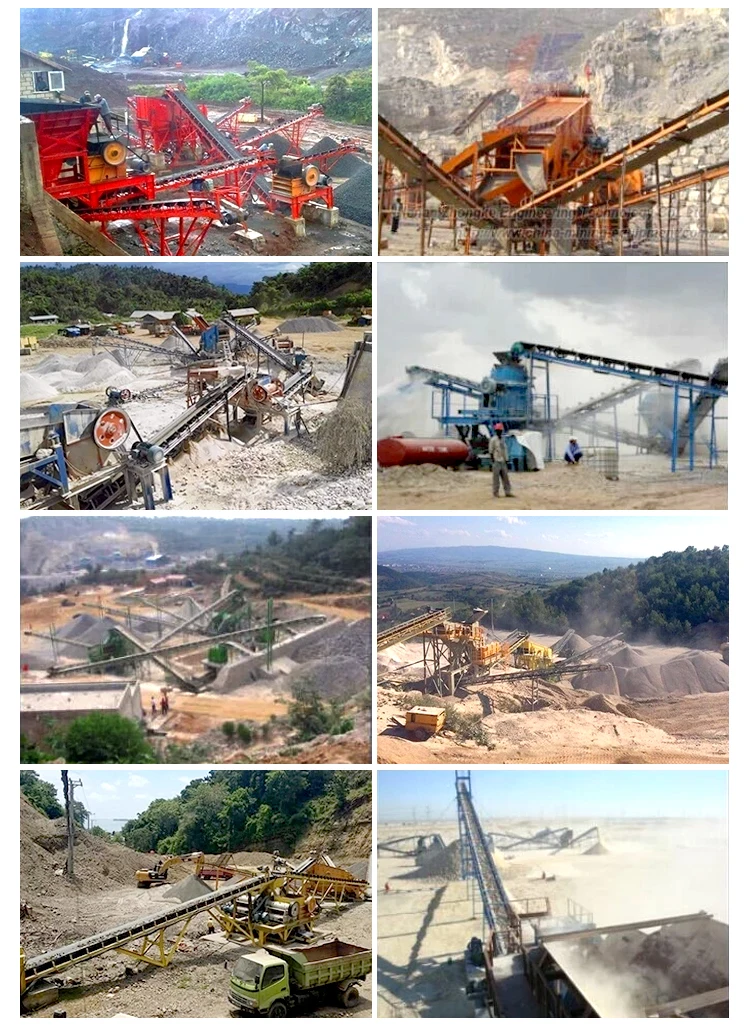

Customer case

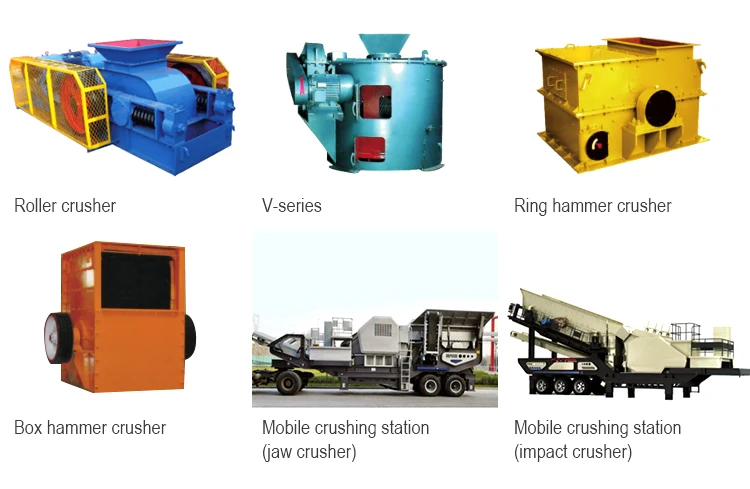

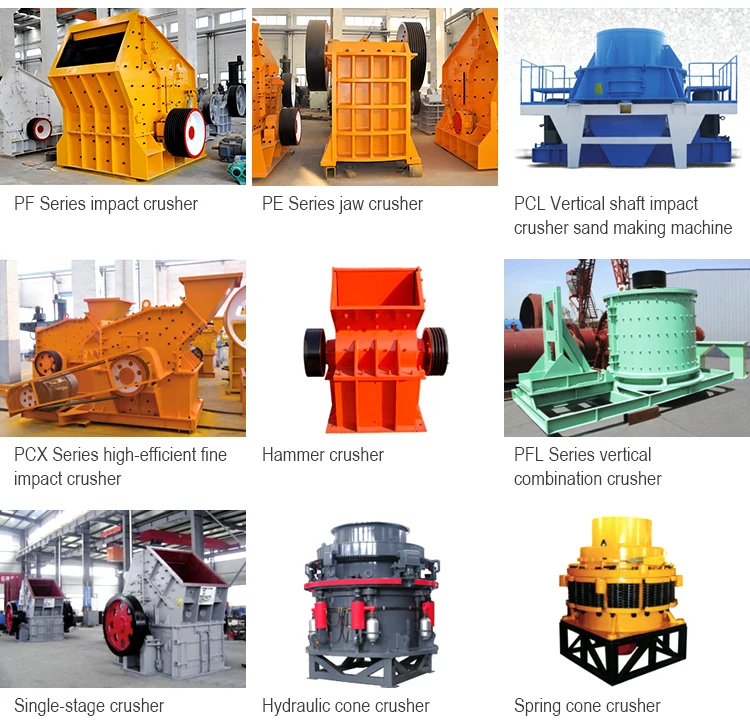

more products
Company Information

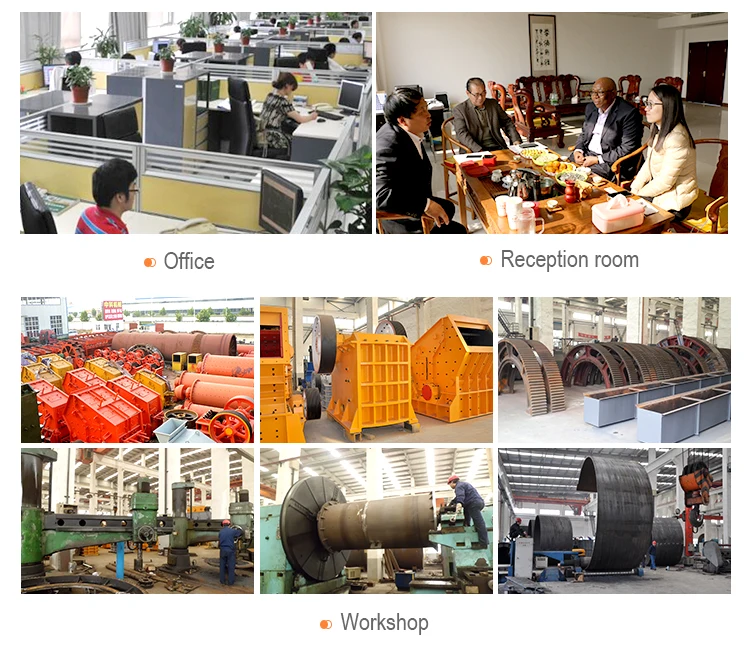

01.Our factory >>>
Henan Zhongke Engineering & Technology Co.,Ltd. is specialized in large and medium-sized series of mining machinery, metallurgical machinery, building materials equipments, cement equipment and rotary kiln. R&D, production and marketing into a joint-stock enterprise, our company is headquartered in Zhengzhou Country’s High-tech Industrial Development Zone, which consists of three branches, a research and development department.
Since the establishment of our company, always adopt advanced modern management system, and focused on innovation, has brought together a number of scientific and technological elite, our company develop very fast we have over 500 employees, 29 senior engineers and more than 100 middling technicians. We have a good long-term cooperation with domestic scientific research units, have introduced advanced technology and testing system at home and abroad.
Our company pays more attention to basic managements, we constantly improve and perfect the quality management system to ensure to provide high-quality products, work site achieve fixation management, logistic achieve ABC management; our office achieve computer automatization; production technology adopt computer management; product development process design using CAD,CAPP, PROE technology. We have completed ISO9001-2000 quality certification.
Our company constantly insist on the development of new products and development investment funds for technological renovation to meet with different requirements from different countries. Our products are very popular in Africa, South America and Southeast Asia.
05.Our service >>>
Service---customers is the first!
We not only have experienced engineers and after-sales groups,but deal with the trade through internet and form our own sales network.
1. Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments. 1>. Select equipment model; 2>. Design and manufacture products according to clients' special requirement; 3>. Train technical personnel for clients.
2. Services during the sale:
Respect clients, devote ourselves to improving the total value of clients. 1>. Pre-check and accept products ahead of delivery; 2>. Help clients to draft solving plans.
3. After-sale services:
Provide considerate services to minimize clients' worries. 1>. Assist clients to prepare for the first construction scheme; 2>. Install and debug the equipment; 3>. Train the first-line operators; 4>. Examine the equipment; 5>. Take initiative to eliminate the troubles rapidly; 6>. Provide perfect service; 7>. Provide technical exchanges.

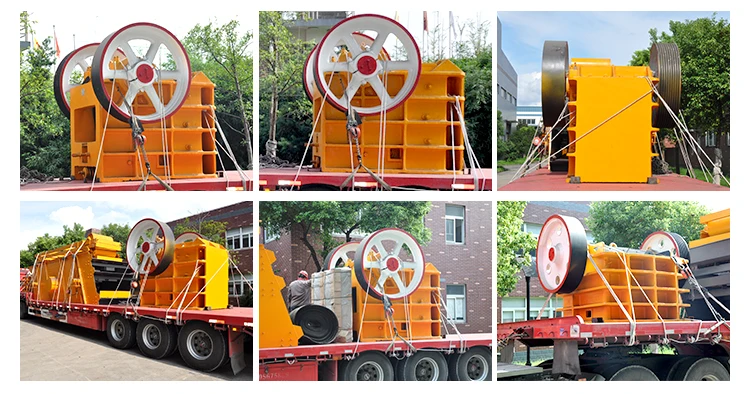

Packaging & Shipping
Packaging Details:We will make different packaging according to different machine sizes .standard international export packing, container, wooden box. Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 20 to 30 working days.
Our factory is capable of shipping large machine even more than 100 tons
FAQ
Q1: How long is the warranty of the complete stone/sand production line ? A1: Our warranty period is one year generally. Q2: Can I visit your factory? A2:Yes. We warmly welcome you to visit our factory. We will take you to our customer site to have a real look. We will arrange a car to pick you up at the Xinzheng International Airport. Q3: Do you provide equipment operation training? A3: Yes. We can send professional engineers to the working site for installation, adjustment, and operation training. All of our engineers have passports. Q4: Do you provide flow chart? A4: Yes. Our experienced engineers are specialized in designing process flow for various project for different final product sizes. Q5: Can you test our samples? A5: Yes. You can send your samples to us for test and analysis.
