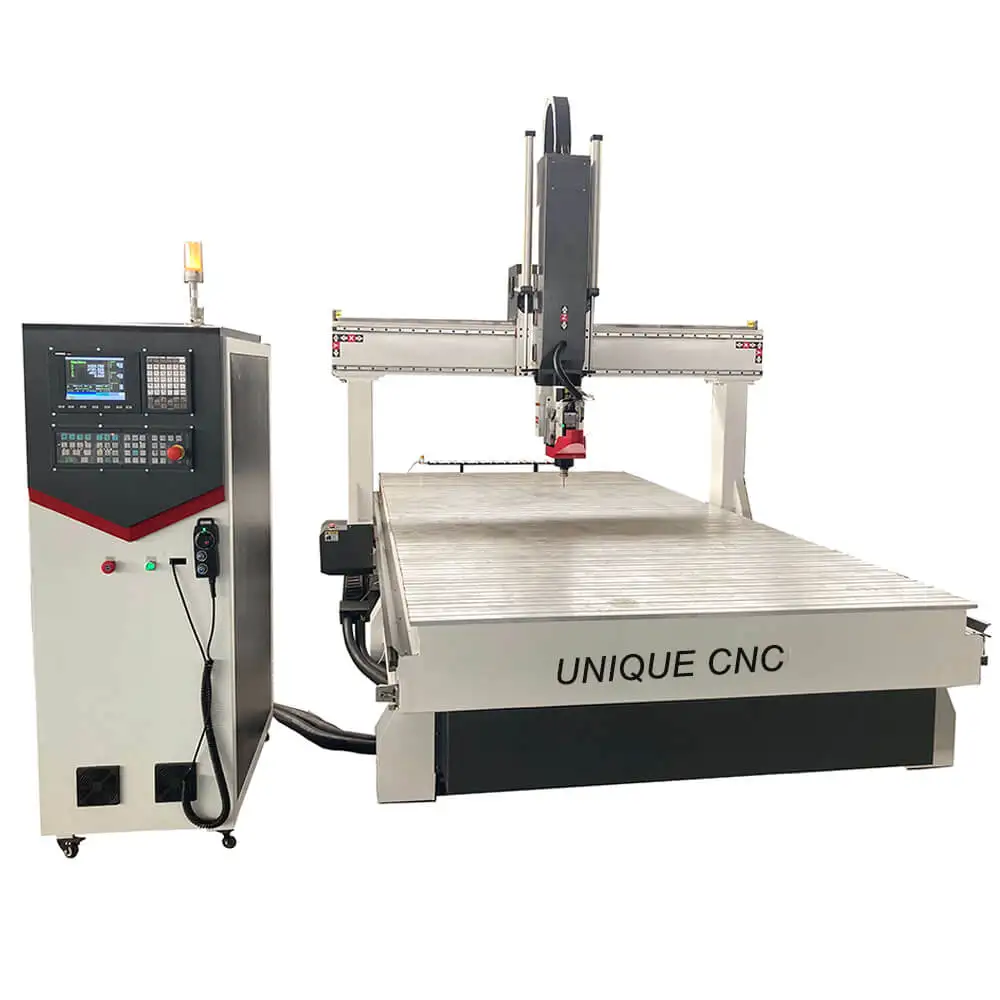

Wood 4 Axis CNC Router 4 Axis Foam Mold Making Machine 3D Sculpture CNC Router For EPS Foam Mould

Product Overview

Description

Applications of Wood 4 Axis CNC Router 4 Axis Foam Mold Making Machine 3D Sculpture CNC Router For EPS Foam Mould

1. Wood,foam,styrofoam and other soft materials,hybrid materials mold processing.

2. Solid furniture parts processing, like chair arms, bed plates and so on.

3. Musical instrument processing.



Main features of Wood 4 Axis CNC Router 4 Axis Foam Mold Making Machine 3D Sculpture CNC Router For EPS Foam Mould:



1. The spindle can rotate 180 degree(±90 degree), can make multi-kinds of surface which can designed by CAM softwares.

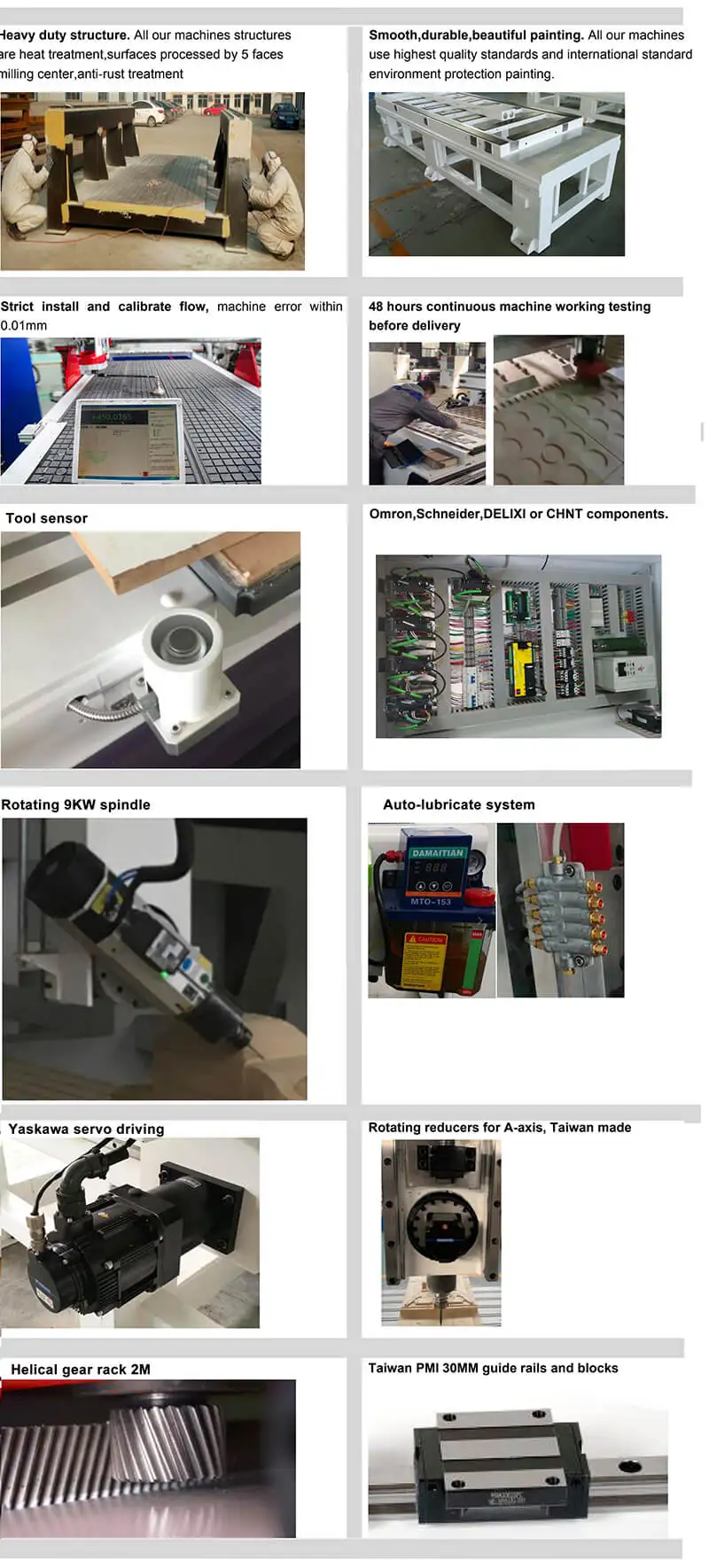

2. Heavy-duty structure to guarantee the stability. The structure is welded by thick steel tube,then processed by professional maching center to mill the surface of guide rails and gear rack and drill holes,rust cleaning,then painting.



3.Unique CNC mold CNC routers machine structures all processed by heat-treatment,it release the tensile force of the steels.After heat-treatment,the structure become very rigid, no deform, harder and low-noisy.

4. Beautiful and scientific structure design. There are dust covers for X and Y axis, protect the inside rails and avoid the rails from dusting.

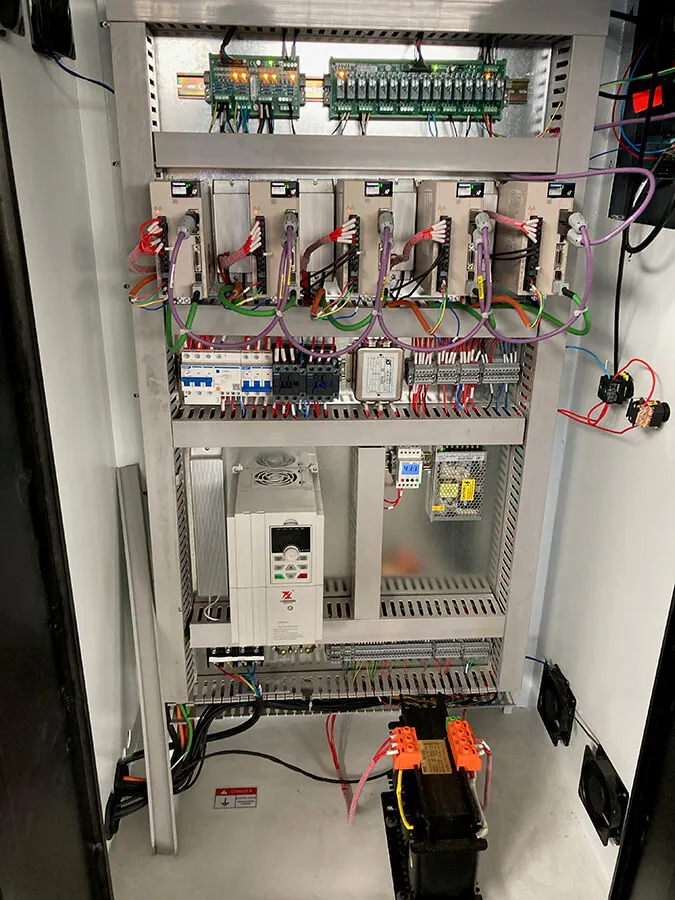

5. The machine equips with world famous components: Italy HSD spindle, Yaskawa servo motors and drivers, Delta driver, Taiwan made guide rails and ballscrews,helical gear rack, Syntec controller,best quality cable and so on.

6. Professional 4-Axis control system Syntec 60W-E,multi-functional,stable and easy to learn and operate.



7.Italy HSD spindle, higher precision, longer life and low noise. The spindle passed the IP65 water proof test, the inside bearings are ceramic materials. Max.speed is 24000rpm. Double cooling systems of the spindle make it very long life.





No.	Description	Parameter

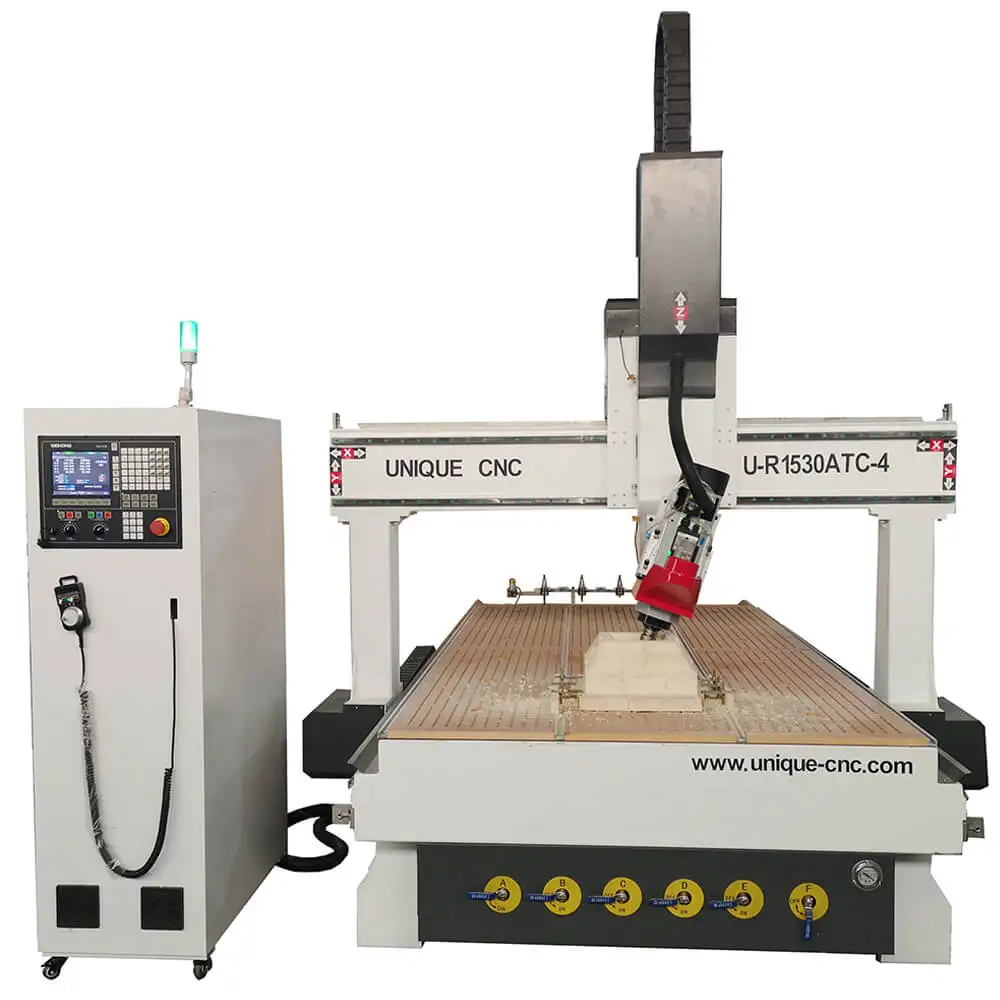

1	Model No.	U-R1530ATC-4
2	X,Y,Z Working Area	1500*3000*700mm (Other sizes are customized)
3	X,Y,Z Traveling Positioning Accuracy	±0.01/300mm
4	X,Y,Z repositioning Accuracy	±001mm
5	Table Surface	T-slot table (Vaccum table,steel table,cast iron tables are optional)
6	Frame	Thick and big steel tube welded
7	X and Y structure	Helical rack and pinion transmit, Taiwan made HIWIN or PMI linear square guide rails
8	Z structure	Taiwan made PMI ballscrews, linear square guide rail
9	Spindle	9KW auto tool change spindle, air cooled,0-24000rpm(Other spindles are optional), ER32 collect (Can hold Φ20mm bits)
10	Spindle rotate degree	±90 degree
11	Driving system	1300W Yaskawa servo motors and drivers, Shimpo reducers for all axis
12	Max. Rapid Travel Rate	40000mm/min
13	Max. Working Speed	30000mm/min
14	Control system	Syntec 4 axis system (Others are optional)
15	System Interface	USB
16	Command language	G code
17	Working Voltage	AC380V/50/60Hz,3PH (Option: 220V))
18	Software Compatibility	Artcam,Powermill,Mastercam,UG,Rhino and other CAM softwares
19	Running Environment  Temperature	0-50 Centigrade
20	Relative Humidity	30% - 75%
21	Optional Parts/function	Vacuum table,steel table or cast iron table
		Dust collector
		Rotary system
		Mist-cooling system for soft metal processing
		RTCP (Rotating Tool Center Point) function
		Rotary attachment for process columns round materials





You may consider the following aspects when need an mold CNC Router:

1. 1 year warranty for spindle, 2 years warranty for other parts.
2. Our engineers can go to your factory for install and training the machine.

3. 7*24 hours online service by whatspp,wechat,skype,teamviewer or by other way.
