VH 100 Laboratory Small V Type Milk Food Dry Powder Mixer Machine
- Category: >>>
- Supplier: Herun Machinery (shanghai) Co. Limited
Share on (1600438448852):
Product Overview
Description
Product Paramenters
Type | Full Volume (L) | Max. Charging (L) | Feed Port Dia. (mm) | Discharge Port Dia. (mm) | Rotary Speed (r/min) | Outline Dim. (mm) | Motor Power (kw) | Weight (kg) |
VH-50 | 50 | 20 | 150 | 80 | 20 | 1350x450x1600 | 0.75 | 170 |
VH-100 | 100 | 40 | 250 | 80 | 15 | 1730x750x1640 | 1.5 | 240 |
VH-200 | 200 | 80 | 300 | 100 | 15 | 2000x650x1700 | 1.5 | 300 |
VH-300 | 300 | 120 | 300 | 100 | 8 | 2220x900x1470 | 4 | 400 |
VH-500 | 500 | 200 | 330 | 200 | 10 | 2800x910x2050 | 5.5 | 550 |

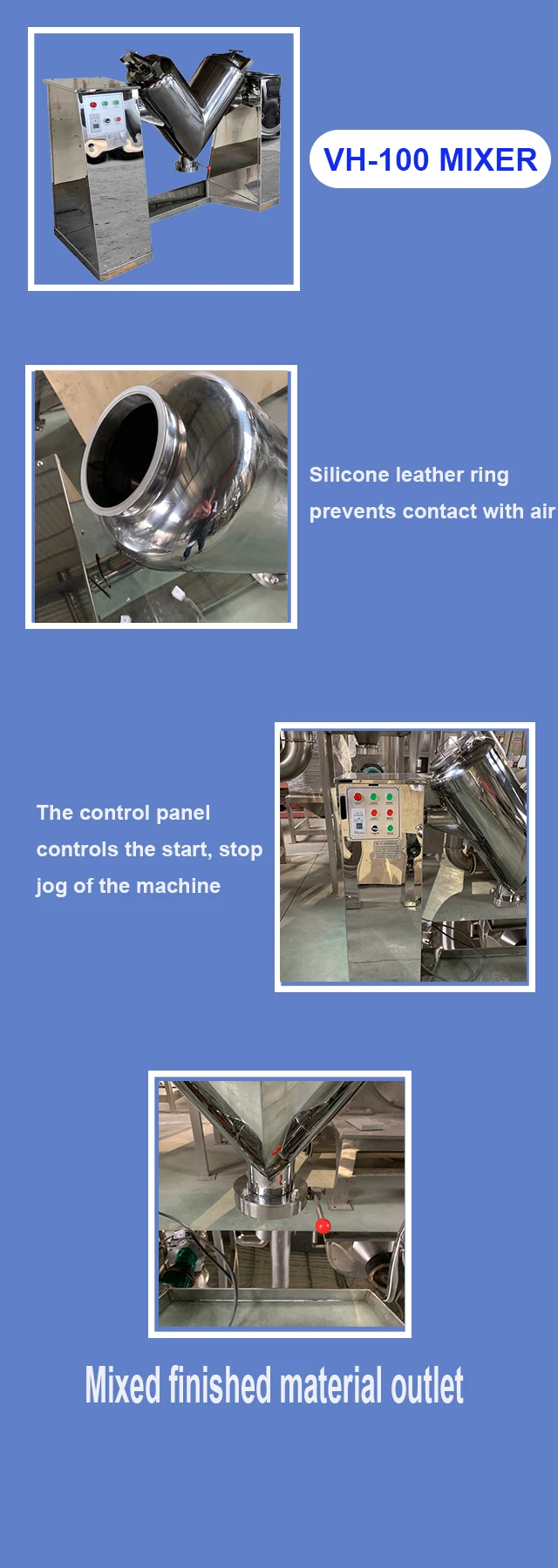

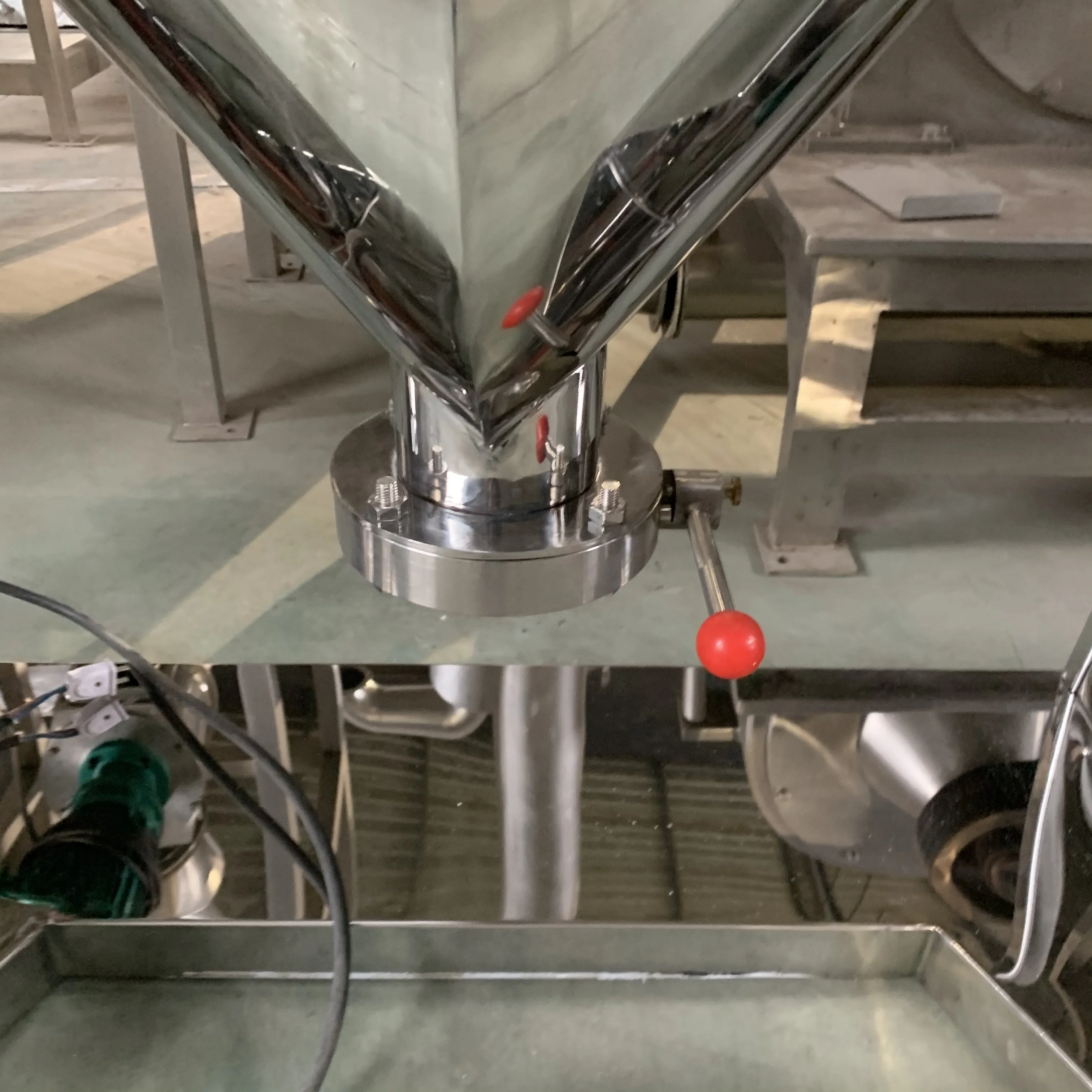

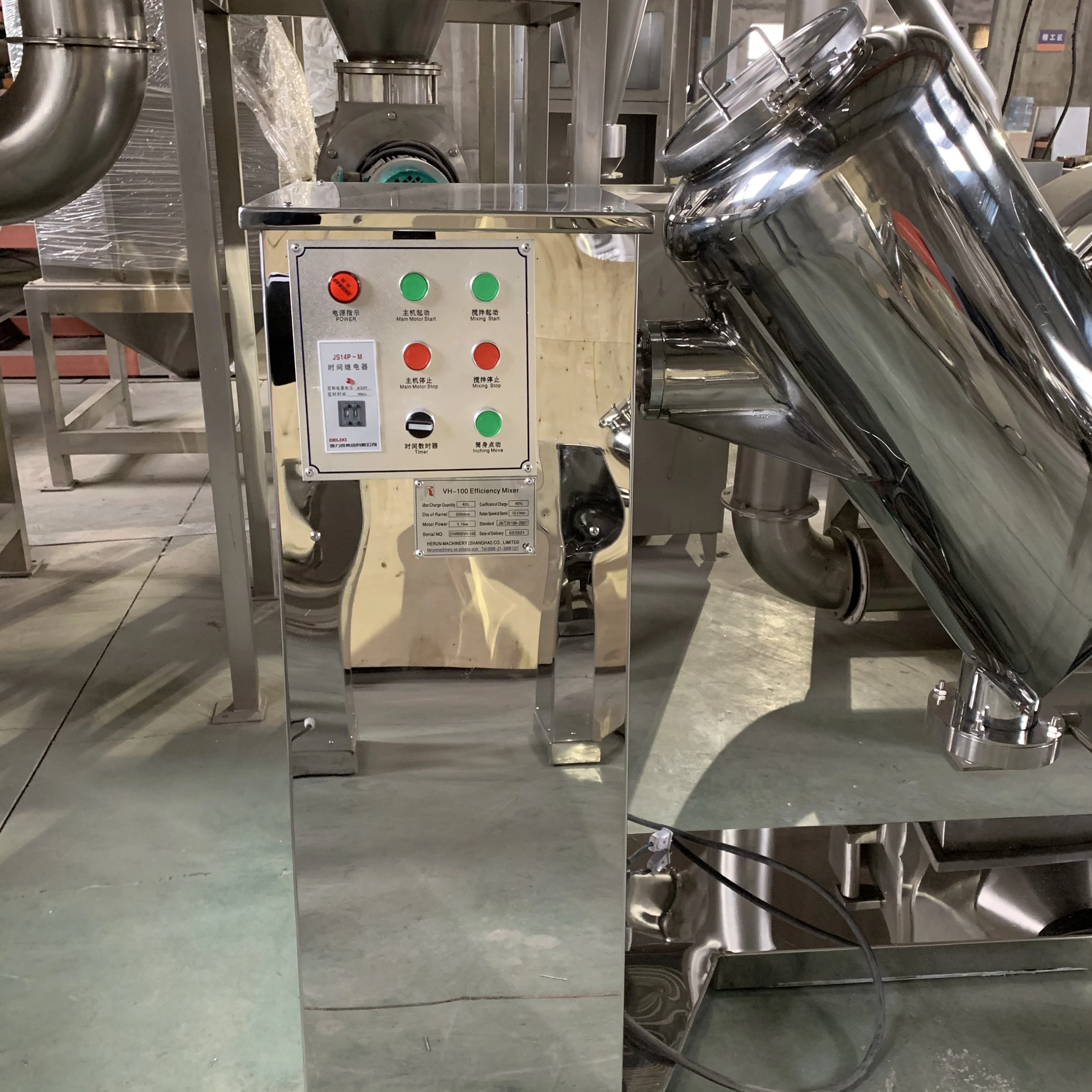

Details Images
Configuration List
No. | Name | Specification type, material quality | Qty | Remark |
1 | Mixing drum | 3m/m | 1pcs | HERUN |
2 | Brackets on both sides | Channel steel, angle steel, s1.2m/m stainless steel plate | 2pcs | HERUN |
3 | Chassis | 10# channel steel, outsourcing s1.2m/m stainless steel plate | 1pcs | HERUN |
4 | Motor | 3kw | 1pcs | Wuxi |
5 | Reducer | Wp100 | 1pcs | Zhejiang |
6 | Gear | 45# | 1set | HERUN |
7 | Axis | 45#Plating network | 1set | HERUN |
8 | Valve | ¢150m/m stainless steel | 1set | HERUN |
9 | Electrical appliances | 1set | DELIXI | |
10 | Main bearing | 1310 | 2pcs | Heilongjiang |
11 | Shaft shell | 2212 | 2pcs | Heilongjiang |
Recommend Products
Packing And Shipping

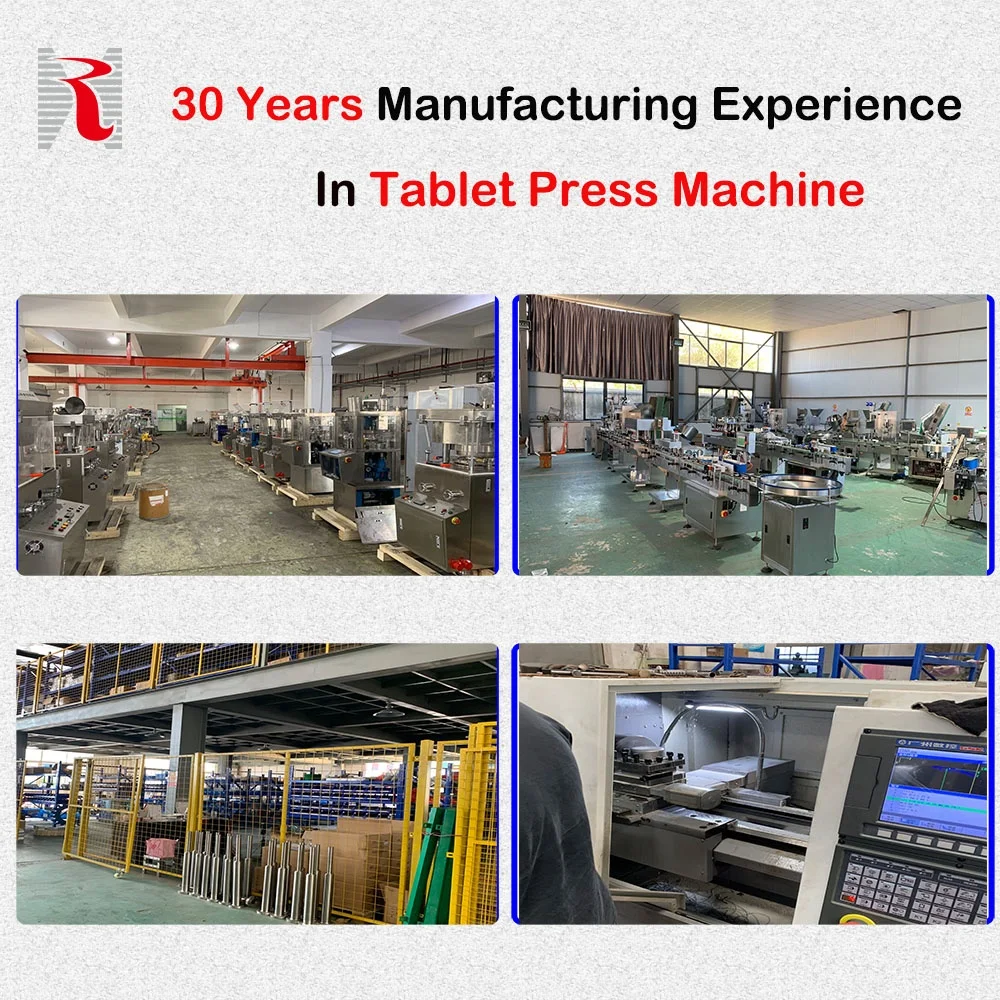

Company Profile
Herun Machinery (Shanghai) Co. Limited, located in Shanghai, is a professional manufacturing and trading company for pharmaceutical machinery, with CE certificates covering all the equipments we produced. Herun Machinery is member of China Association for Pharmaceutical Equipments, supplying generally 6 categories of products, such as mixer, tablet press machine, coating machine, automatic capsule filling machine, blister packing machine, counting and packing machine, to pharmaceutical and food industry.
We have a top R&D team to control the standardized process in the production and make our machines to meet at maximum the
customer's strict requirements. We provide OEM/ODM, and after-sales service to overseas customers. Customers of more than 20
countries choose us for the cooperation because of our professional experience of 12 years.
customer's strict requirements. We provide OEM/ODM, and after-sales service to overseas customers. Customers of more than 20
countries choose us for the cooperation because of our professional experience of 12 years.
FAQ
Q1: Where is your factory? How can I visit your factory?
A1: Our factory is located in Shanghai. We are warmly welcome you to
visit the production base if you have a travel plan.
visit the production base if you have a travel plan.
Q2: How can I know your machine is designed for my product?
A2: If you don't mind, you can send us material sample and we test it on the machine. During that time, we will take video and clear ,pictures for your reference. If possible, we even can hold video conversation online with you.
Q3: How can I trust you for the first transaction?
A3: Please note that our above business licenses and certificates. And if you don't trust us, we can use Alibaba
Trade Assurance service. it will protect your money during the whole transaction.
Trade Assurance service. it will protect your money during the whole transaction.
Q4: How about the after service and guarantee period?
A4: We make the warranty of 12 months from the machine's arrival in buyer's facility. With a professional team of experienced technicians, we can serve abroad and do the best after-sale service to assure the machine's perfect operation.
Q5: How can we contact you?
A5: Please leave a message and click "send" to send us an inquiry.
Please find our contact information on this page, then you can communicate with us by Email,
WeChat, Skype, WhatsApp, QQ, Facebook, phone, etc.
