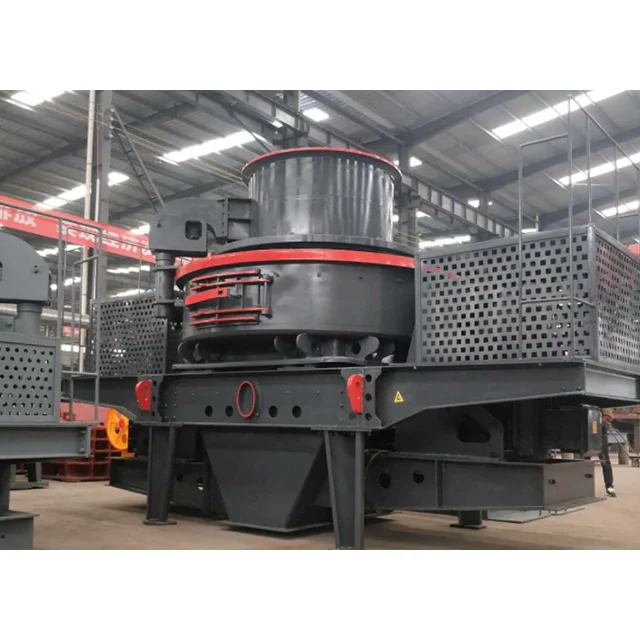

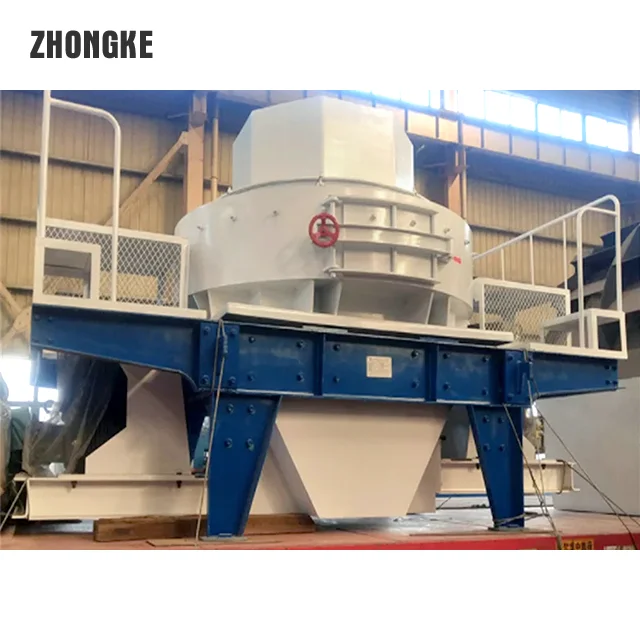

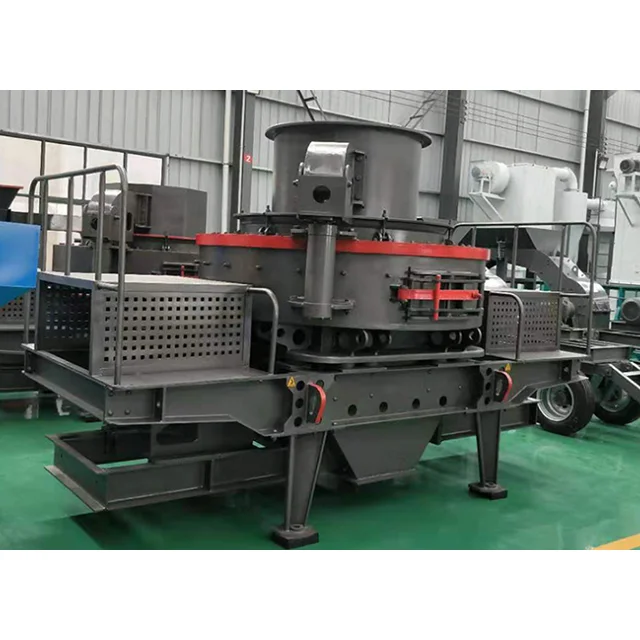

sand and gravel lime brick making machine used/sand making machine price for sale vsi crusher india
- Category: >>>
- Supplier: Shanghai Minggong Heavy Equipment Co. Ltd.
Share on (1600438457545):
Product Overview
Description

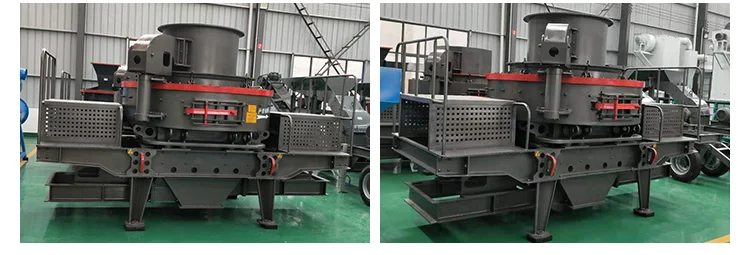

Product Show

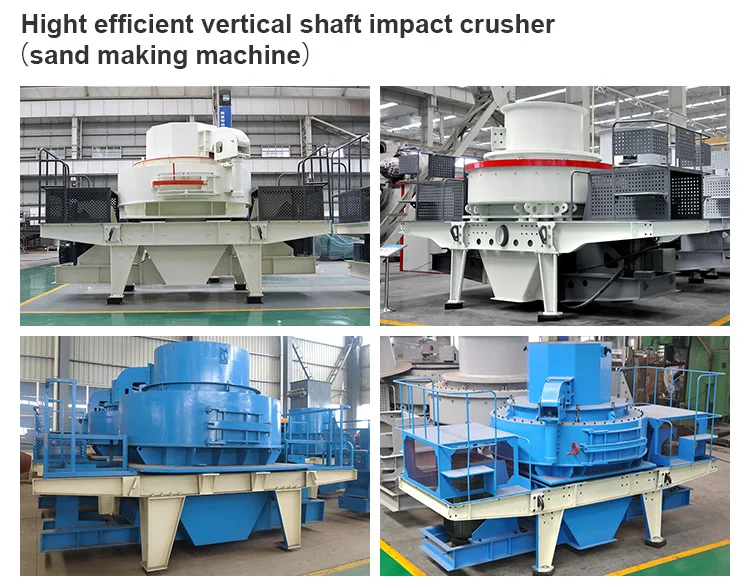

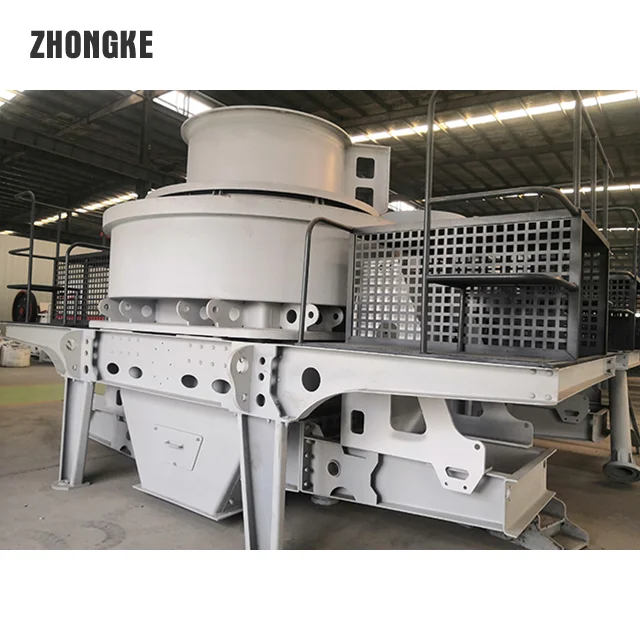

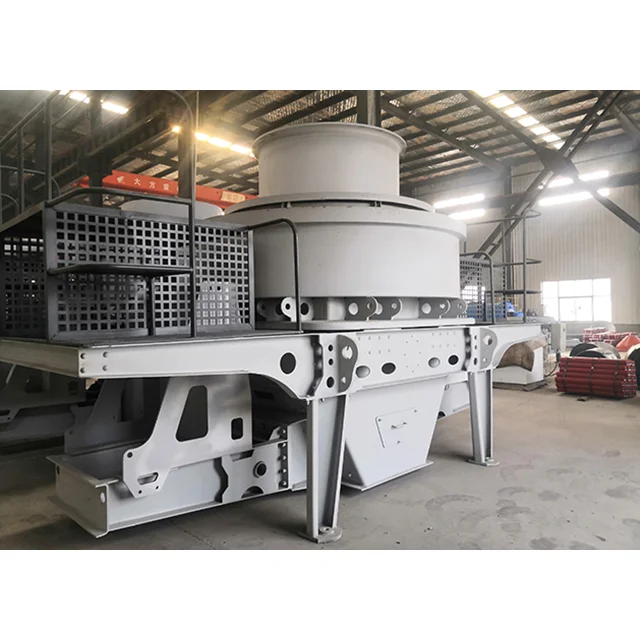

1.Hight efficient vertical shaft impact crusher
VSI,the high efficient Vertical Shaft Impact Crusher and the newest result, is designed by German authoritative experts according to Chinese local working condition.It is a kind of sand making machine of world high-level performance produced exclusively in China.The machine provides high-quality materials especially for motorway,high-speed railway,tall building,city project,hydroelectric dam construction and concrete mixing station.VSl is the first and best choice for the field of man-made sand and stone shaping.
2.Application:
1. It is used for producing building aggregate, concrete, aggregate for road surface and roadbed, asphalt concrete and cement concrete. 2. It is also used for sand making and shaping in the field of engineering such as water conservancy, hydroelectric power, high-class highway, high-speed railway, passenger special line, bridge, airport pavement, municipal works and high-rise buildings. 3. It is used widely in many industries such as building materials, metallurgy, chemical engineer, mining, refractory materials, cement etc. 4. It is used for producing glass raw materials quartz sand and other high purity materials. pebble, limestone, granite, basalt, diabase, andesite, etc.
3.Performance characteristics:
1. The crushing cavity internal items can be changed or repaired easily and fast,because of adopting hydraulic drive cover device. 2. With the unique feeding crusher structure, it is convenient to realize the"stone crushing stone" and "stone crushing metal", can crush and shaping stones. 3. With the unique dust proof sealing system, completely avoid the external dust into the lubricating parts. 4. High quality materials and advanced technology, improve the equipment quality and appearance, low failure rate to ensure. 5. The best design of crushing cavity, prolong the service time of wearing parts and reduce the cost.
4.Hydraulic device：
All VSI Sand maker come with the hydraulic device . This hydraulic device advantage : 1. it is easy to open the cover of machine and repair fast . 2.it is easy to adjust the discharge size.
Application of hight efficient vertical shaft impact crusher
1.dolomite 2.platinum 3.Gangue 4.Calcite
1.Calcium ore 2.Manganese ore 3.Cobalt ore 4.granite
Main technical parameters
Model | VSI7611 | VSI8518 | VSI9526 | VSI1140 | |||||
Capacity(t/h) | Feed both at center and sides | 120-180 | 200-260 | 300-380 | 450-520 | ||||
Feed at center | 60-90 | 100-130 | 150-190 | 225-260 | |||||
Best feed size(mm) | Sofe material | 35 | 40 | 45 | 50 | ||||
Hard material | 30 | 35 | 40 | 45 | |||||
Rotation speed (r/min) | 1700-1890 | 1520-1690 | 1360-1510 | 1180-1310 | |||||
Double motor power ( Kw) | 110 | 180 | 264 | 400 | |||||
overall dimension (LxW×H) (mm) | 3700×2150x2100 | 4140×2280 x 2425 | 4560×2447 x2778 | 5000x2700 x3300 | |||||
Weight (t) | 11.8 | 14.5 | 17.8 | 25.6 | |||||
Power supply | 380V 50HZ | ||||||||
Vibrating sensor | detect range 0.1-20mm/s continous and adjustable | ||||||||
Lubrication and hydraulic station | Double motor power | 2×0.3 1KW | |||||||
Safety assuance | Double oil pumps assure enough oil supply: automantic switch off with no oil stream or hydraulic strength:lower the temperature with cool water in summer:raise the temperature with motor in winer. | ||||||||
Overall dimension (L×W×H) (mm) | 820x520×1270 | ||||||||
Power of oil tank heater | 2KW | ||||||||

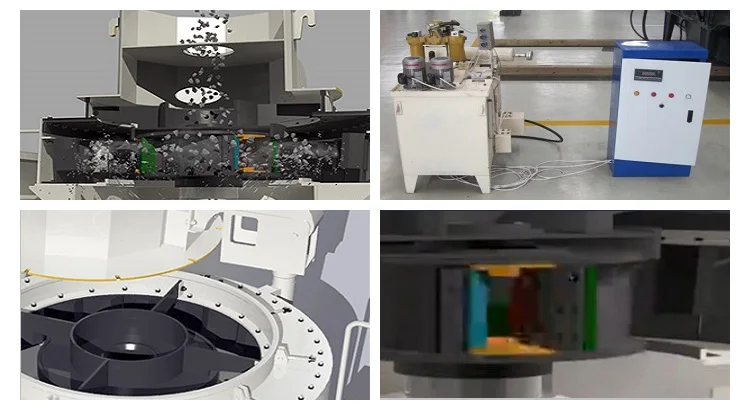

Design details
1.Two Crushing Ways: Multiple crushing ways meet the needs of difterent materials crushing. 2. Dual Pump Design: There is only one pump working in normal use. When the value of the pressure and flow rate do not reach the set value, or when the first pump fails, the second will open automatically, to ensure the normal operation of the host. 3. Hydraulic Arms: Hydraulic arm design greatly reduces maintenance costs. 4. Bearing Bit Thermostat: Bearing bit thermostat and pump automatic cycle ensure that the temperature inside the bearing cartidge similar to the oil in the tank to prevent the winter freeze.

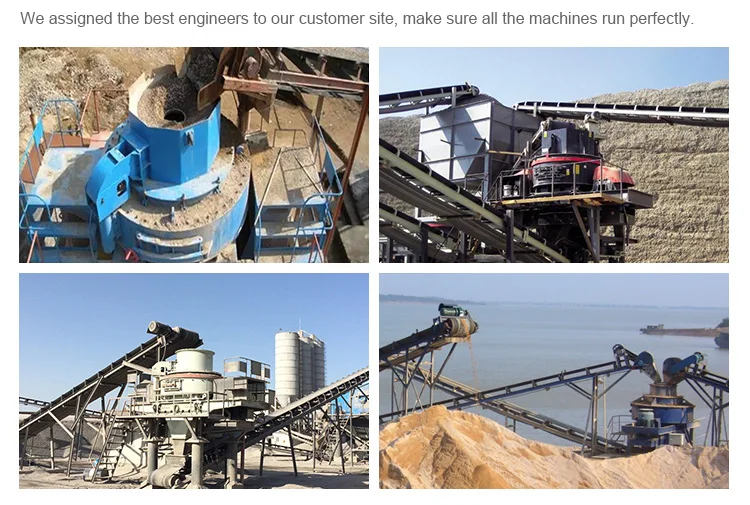

Our Project

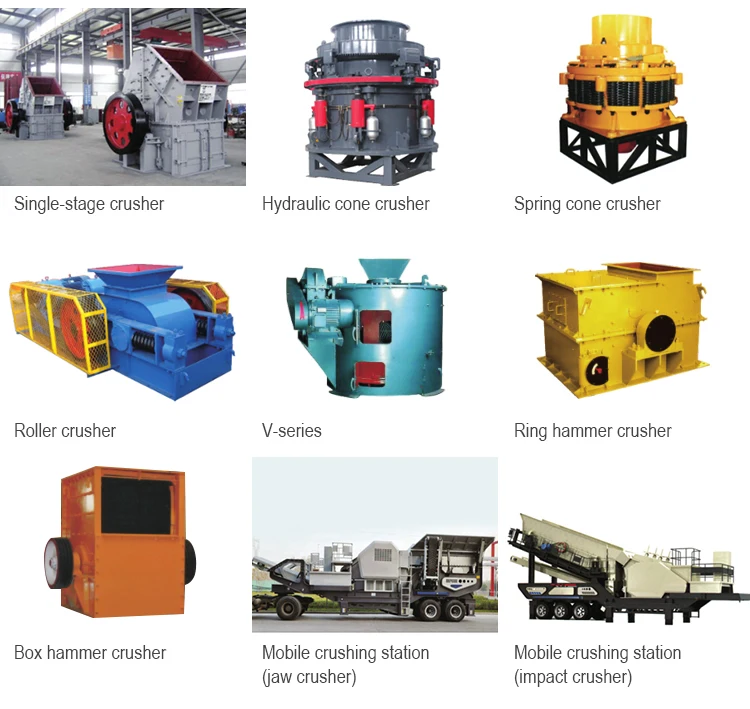

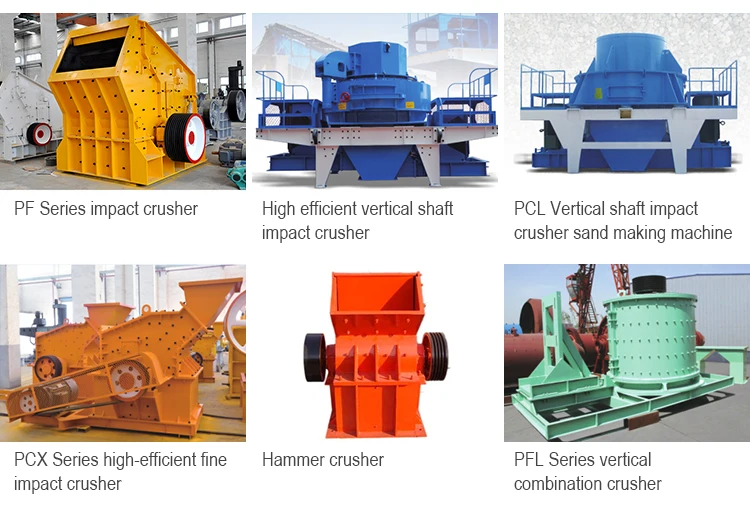

More products
Company Information

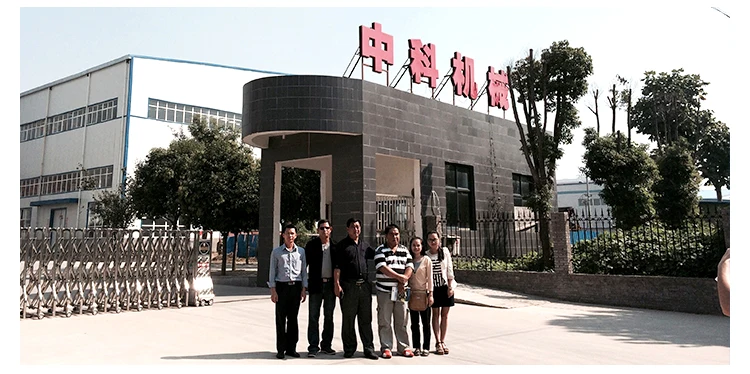

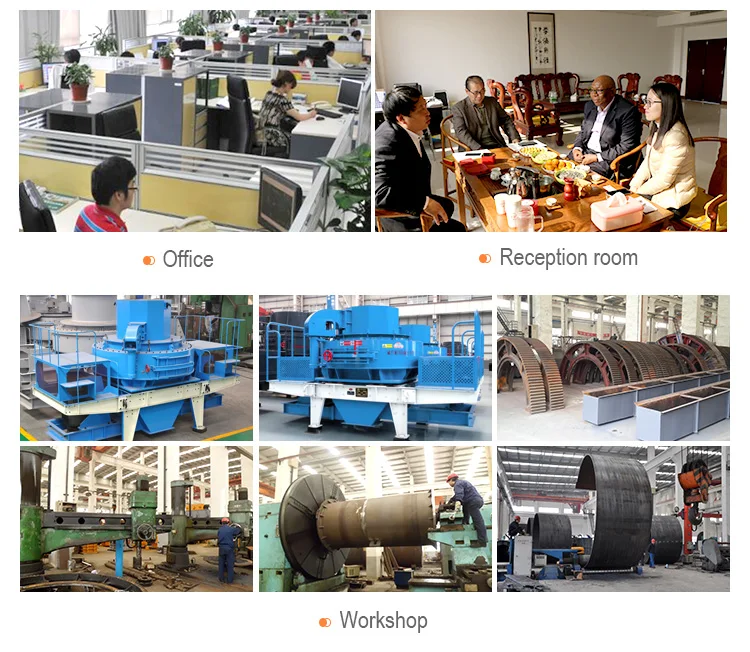

1.OUR FACTORY >>
Henan Zhongke Engineering & Technology Co.,Ltd. is specialized in large and medium-sized series of mining machinery, metallurgical machinery, building materials equipments, cement equipment and rotary kiln. R&D, production and marketing into a joint-stock enterprise, our company is headquartered in Zhengzhou Country’s High-tech Industrial Development Zone, which consists of three branches, a research and development department. Since the establishment of our company, always adopt advanced modern management system, and focused on innovation, has brought together a number of scientific and technological elite, our company develop very fast we have over 500 employees, 29 senior engineers and more than 100 middling technicians. We have a good long-term cooperation with domestic scientific research units, have introduced advanced technology and testing system at home and abroad. Our company pays more attention to basic managements, we constantly improve and perfect the quality management system to ensure to provide high-quality products, work site achieve fixation management, logistic achieve ABC management; our office achieve computer automatization; production technology adopt computer management; product development process design using CAD,CAPP, PROE technology. We have completed ISO9001-2000 quality certification. Our company constantly insist on the development of new products and development investment funds for technological renovation to meet with different requirements from different countries. Our products are very popular in Africa, South America and Southeast Asia.

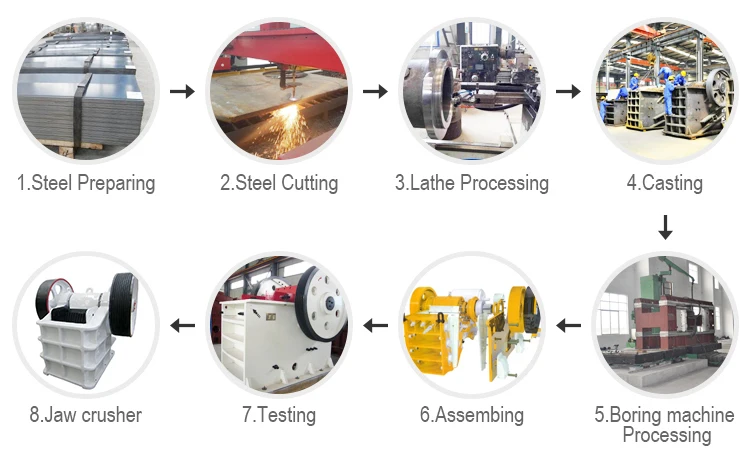

2.PRODUCTION PROCESS >>
With advanced machining equipment, we will offer a most suitable machine for you.
1.Steel Preparing 2.Steel Cutting 3.Lathe Processing 4.Casting 5.Boring machine Processing 6.Assembing 7.Testing 8.Jaw crusher
6.OUR SERVICE >>
Service---customers is the first!
We not only have experienced engineers and after-sales groups,but deal with the trade through internet and form our own sales network.
1. Pre-sale services: Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments. 1>. Select equipment model; 2>. Design and manufacture products according to clients' special requirement; 3>. Train technical personnel for clients. 2. Services during the sale: Respect clients, devote ourselves to improving the total value of clients. 1>. Pre-check and accept products ahead of delivery; 2>. Help clients to draft solving plans. 3. After-sale services: Provide considerate services to minimize clients' worries. 1>. Assist clients to prepare for the first construction scheme; 2>. Install and debug the equipment; 3>. Train the first-line operators; 4>. Examine the equipment; 5>. Take initiative to eliminate the troubles rapidly; 6>. Provide perfect service; 7>. Provide technical exchanges.

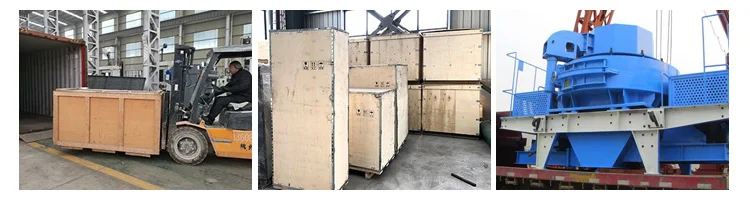

Packaging & Shipping
Packaging Details:We will make different packaging according to different machine sizes .standard international export packing, container, wooden box. Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 20 to 30 working days.
Our factory is capable of shipping large machine even more than 100 tons
FAQ
Q1: How long is the warranty of thehight efficient vertical shaft impact crusher ? A1: Our warranty period is one year generally. Q2: Can I visit your factory? A2: Yes. We warmly welcome you to visit our factory. We will take you to our customer site to have a real look. We will arrange a car to pick you up at the Xinzheng International Airport. Q3: Do you provide equipment operation training? A3: Yes. We can send professional engineers to the working site for installation, adjustment, and operation training. All of our engineers have passports. Q4: Do you provide flow chart? A4: Yes. Our experienced engineers are specialized in designing process flow for various project for different final product sizes. Q5: Can you test our samples? A5: Yes. You can send your samples to us for test and analysis.
