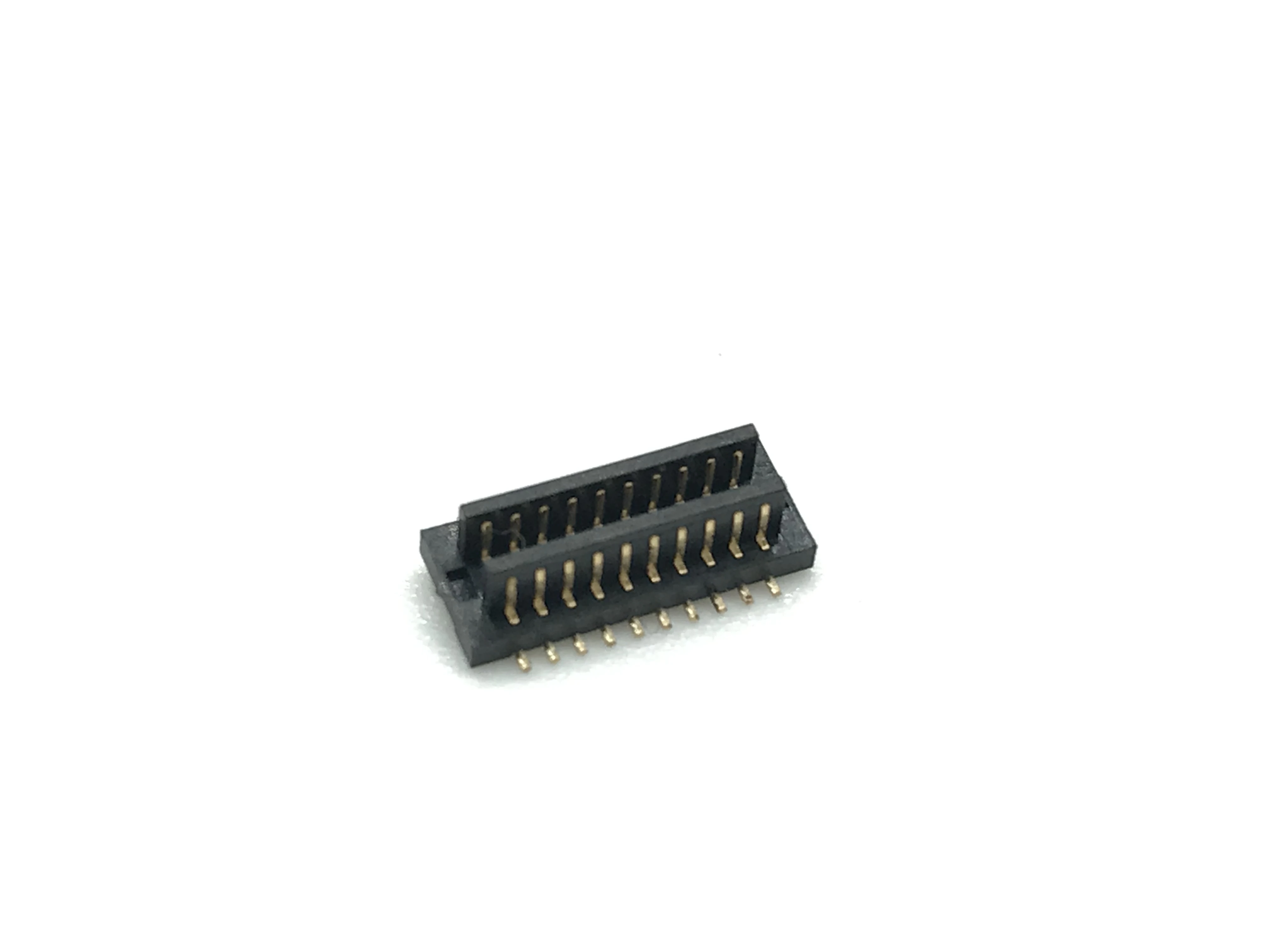

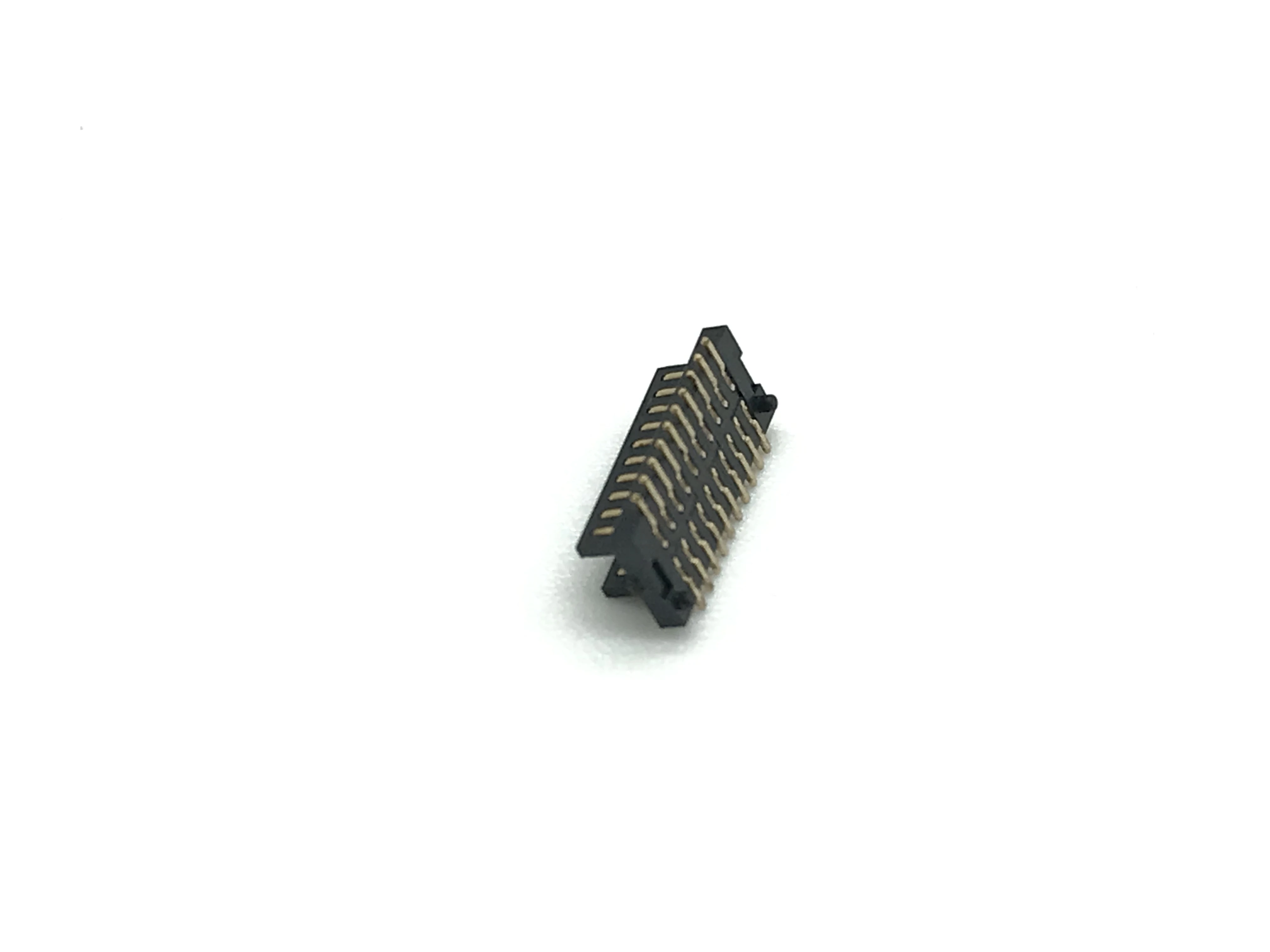

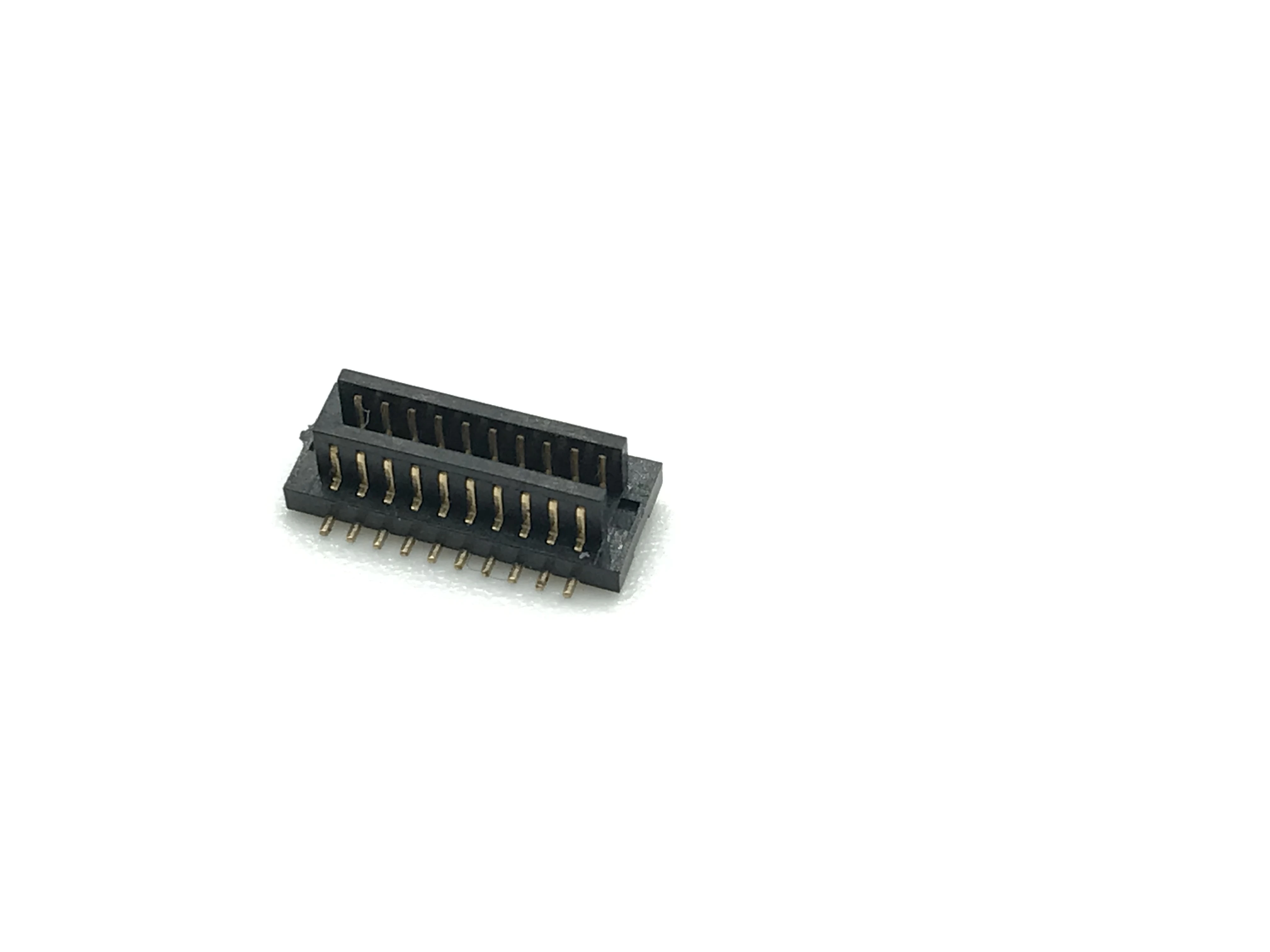

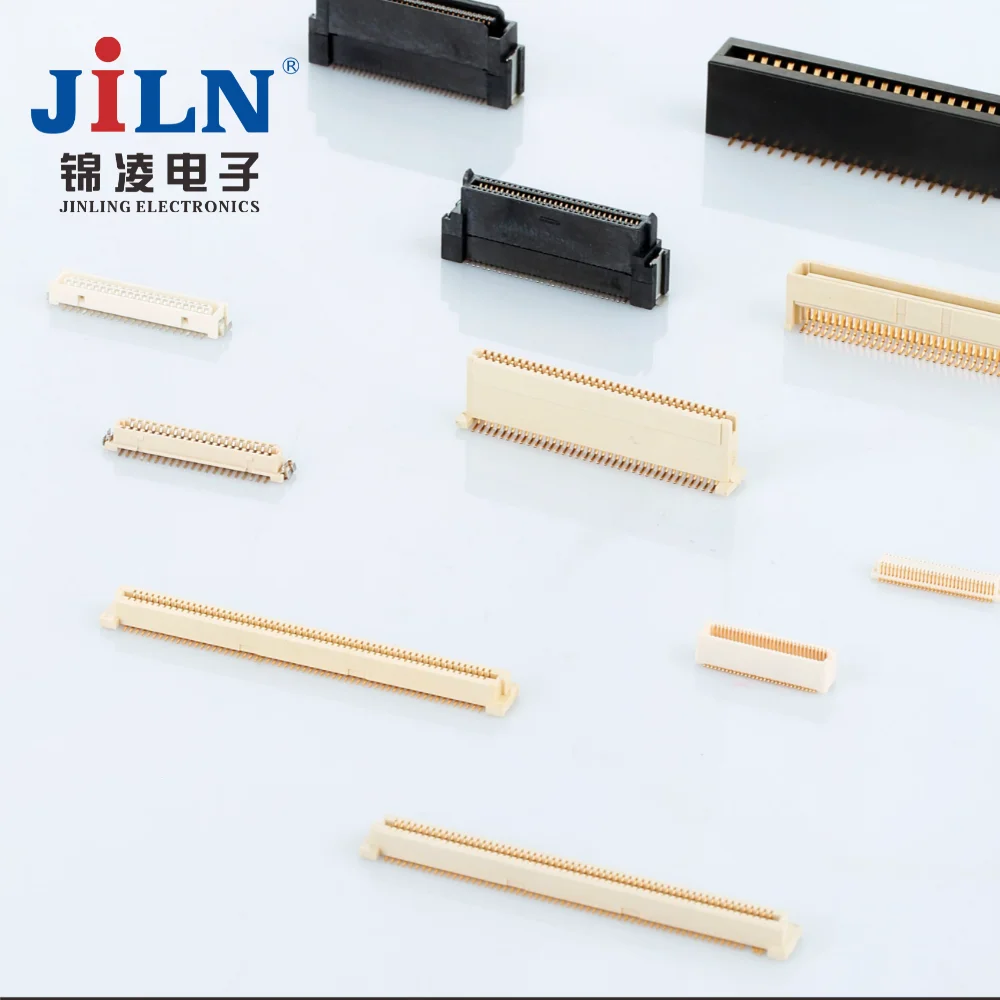

BTB Connector 0.8 mm H5.2 pitch double groove Male Board to Board Connector
- Category: >>>
- Supplier: Shenzhen Jinling Electronics Co. Ltd.
Share on (1600438469457):
Product Overview
Description
Product Paramenters
Specifications: Board To Board | Unit | |||||||

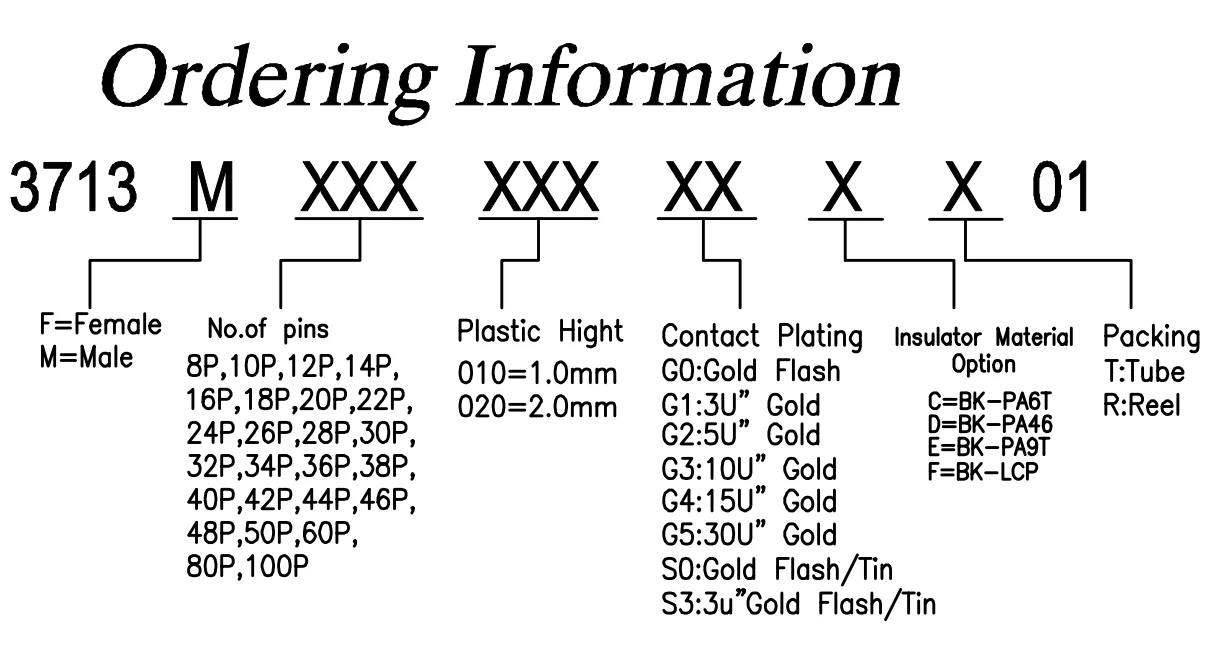

JiLN Material Code | 3713MXXXXXXXXXX01_00 | |||||||
Category | Board to Board Connector Series | |||||||
Spacing | 0.8 | mm | ||||||
Type | Board to Board Connectors | |||||||
Height | 1.0 / 2.0 | mm | ||||||
Mounting type | SMT | |||||||
Rated Current(Singal)： | 0.5 | AMP | ||||||
Rated Voltage(Power): | 50 | AC/DC | ||||||
Withstand Voltage: | 500 | AC/minute | ||||||
Insulation Resistance: | 500 | mΩ Min | ||||||
Operation Temperature: | -40 | 105 | ° C | |||||
Contact Material: | Bronze Gold-Plated | Phosphor Bronze / Brass Bronze Gold-Plated | ||||||
Standard Material : | PA46 | PA6T / PA46 / PA9T | ||||||
Max. Processing Temp: | 230° C for 30-60 seconds 260° C for 10 seconds | 230° C for 30-60 seconds 260° C for 10 seconds | ||||||

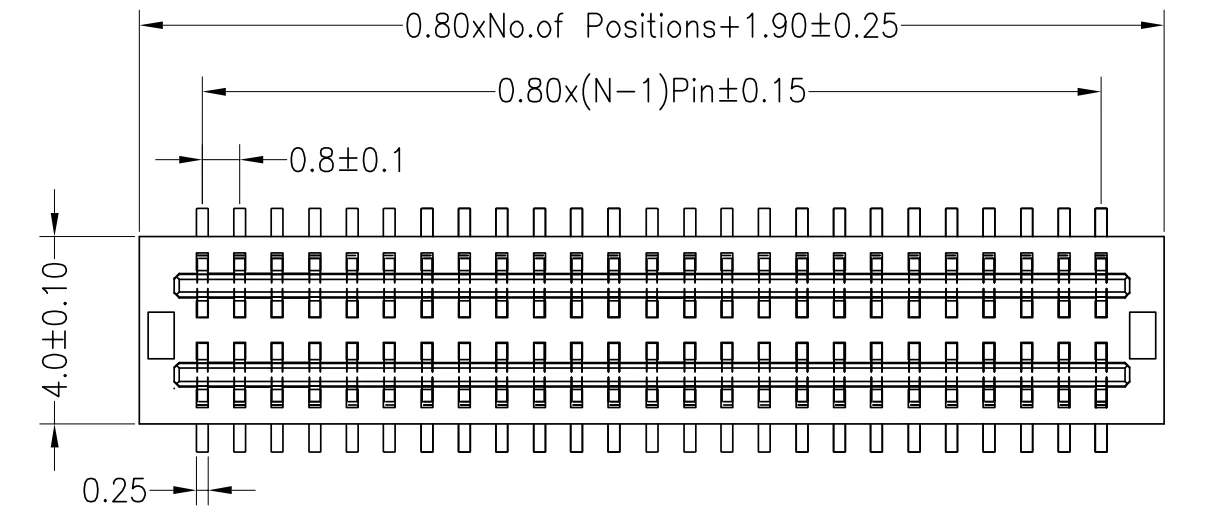

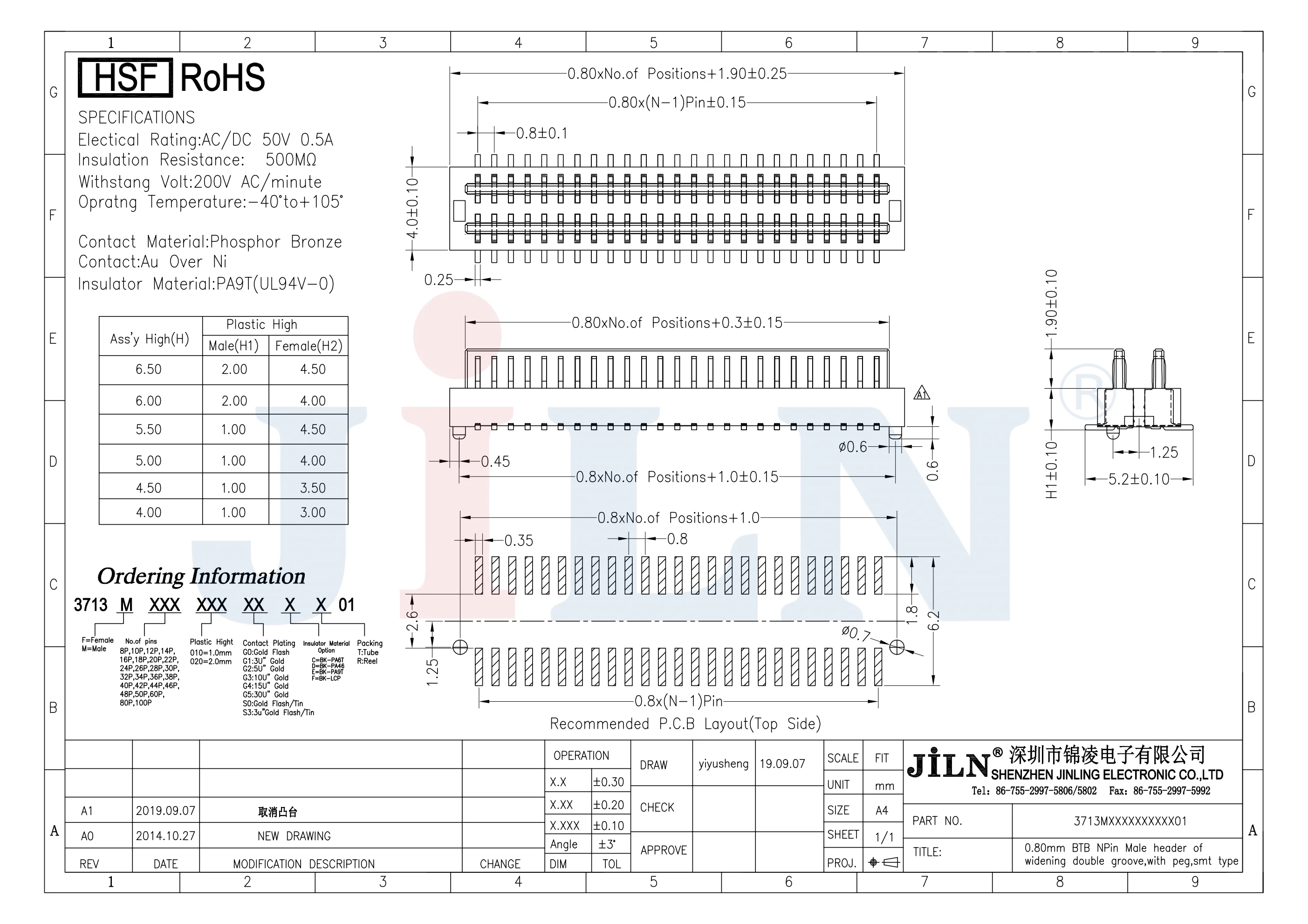

Engineering Drawing
