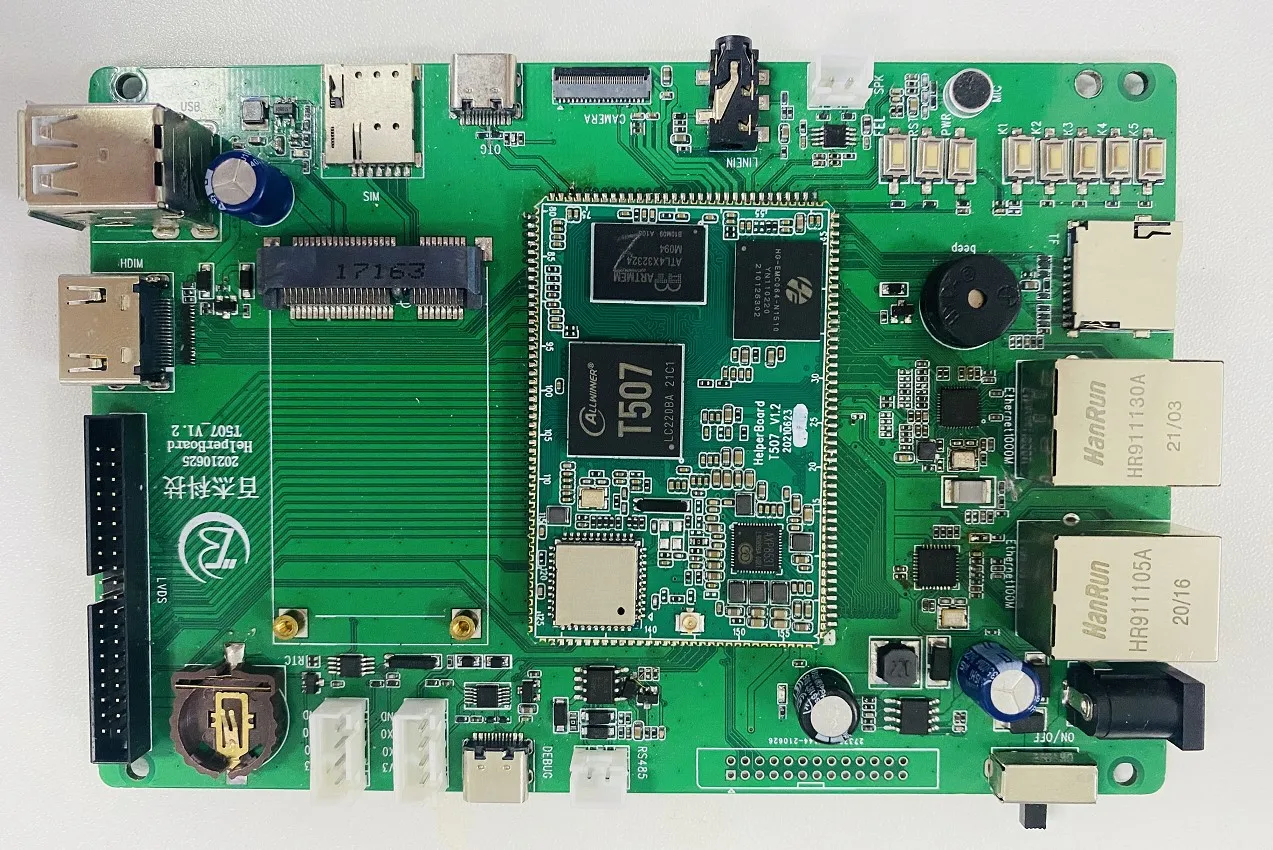

HelperBoard T507 Allwinner T5 serial core board SoM board based on android 10 linux open source development board and driver
- Category: >>>
- Supplier: Shenzhen Baijie Technology Co. Ltd.
Share on (1600438479591):
Product Overview
Description
Product Description

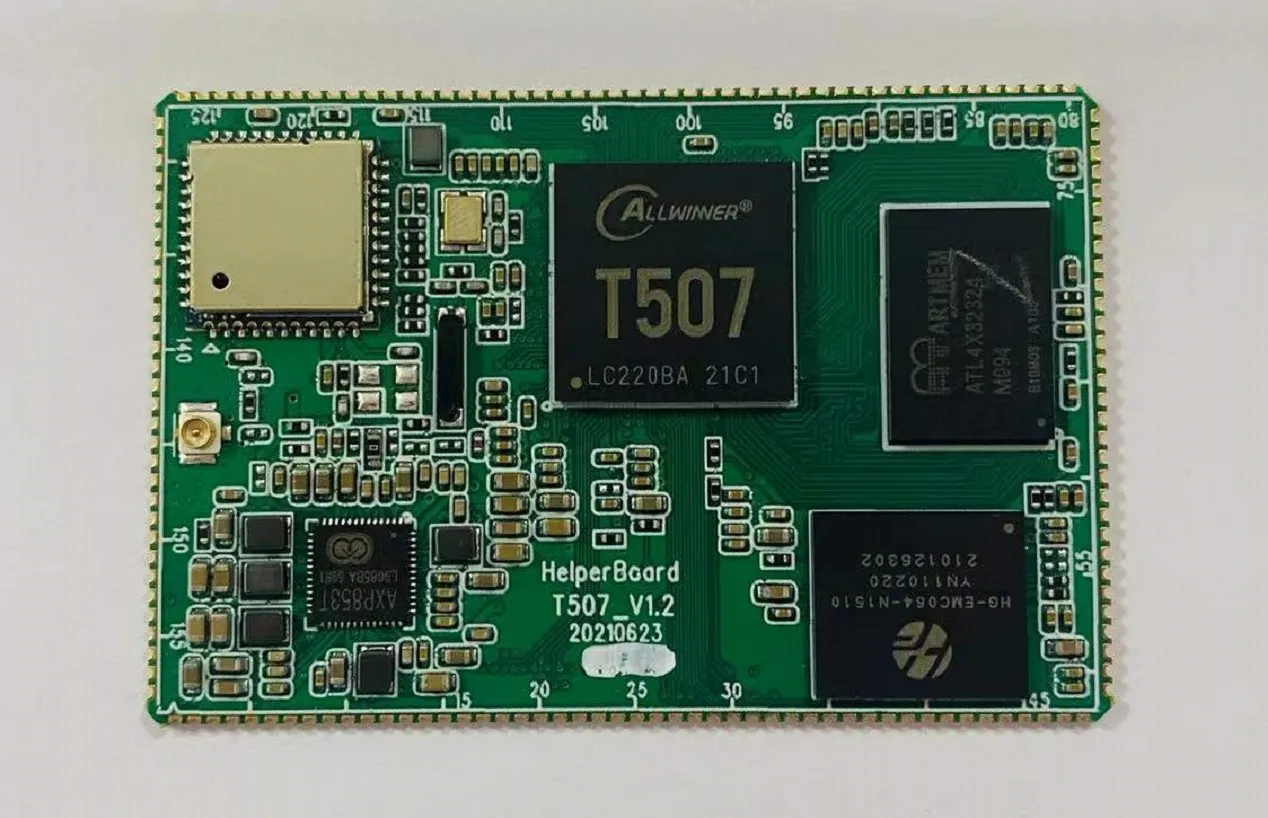

HelperBoard T507 core board specifications
The main features
* Main control chip: T507
* CPU: 64-bit 4-core A53 Maximum main frequency: 1.5GHz
* Memory: 1G/2G/4G LPDDR4
* Storage: 16G/32GB/64GB EMMC
* Graphics processor: G31 MP2;Supports OpenGL ES3.2, Vulkan 1.1, OpenCL 1.2
* Video processor: H.265 Video Decoder 4K@30fps, H.264 video decoder 4K@30fps, VP9 Video decoder 720p@30fps;264 Video encoder
1080p@60fps;MJPEG/JPEG Baseline encoder 4K@15fps
* Decoding: 1080 p @ 60 hz
* Display: MIpi-DSI interface, Dual-link LVDS Interface, RGB Interface
* Ethernet: One gigabit MAC, one gigabit MAC
* WIFI/BT: 5G WIFI/BT 4.2
* 4G: EC20 module (software support)
* LCD: support RGB maximum 1920x1200, DUAL LVDS 1920x1200, HDMI 2.0 4K@60Hz
* USB: 1 channel high-speed USB HOST, 1 channel high-speed USB OTG
* One earphone output
* All the way double channel LINEOUT
* Route 1 leads out the SDIO port
* Power supply: 5V voltage input, 3.7V battery input
* System: Android10.0, ubuntu+qt, ubuntu+xfce (Linux does not have hardware codec, does not support hardware acceleration)
* Operating temperature: -40-85 degrees Celsius
* Storage temperature: -40-125 ℃
* Provide source code, reference design schematic and PCB diagram (ORCAD, PADS format)
* Provide paid software technical support, hardware customization services, do not provide free technical services
* System:
Android: 10.0, kernel 4.9
Ubuntu 18.04 (XFCE/Core) + QT5
