KODI Spice Pulverizer Grinder Machine Price
- Category: >>>
- Supplier: Changzhou Kodi Machinery Co. Ltd.
Share on (1600438497491):
Product Overview
Description

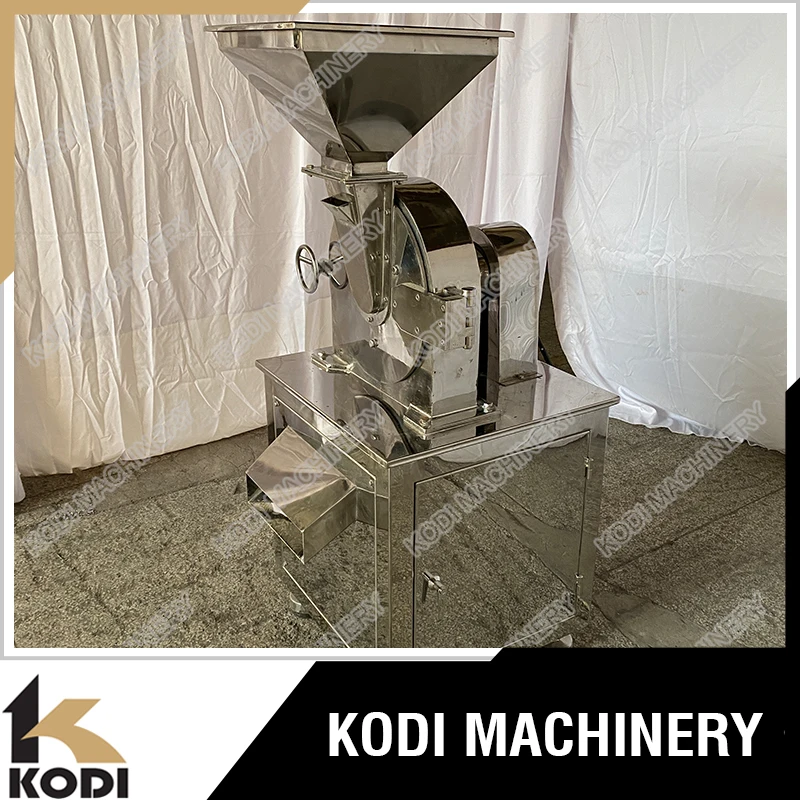

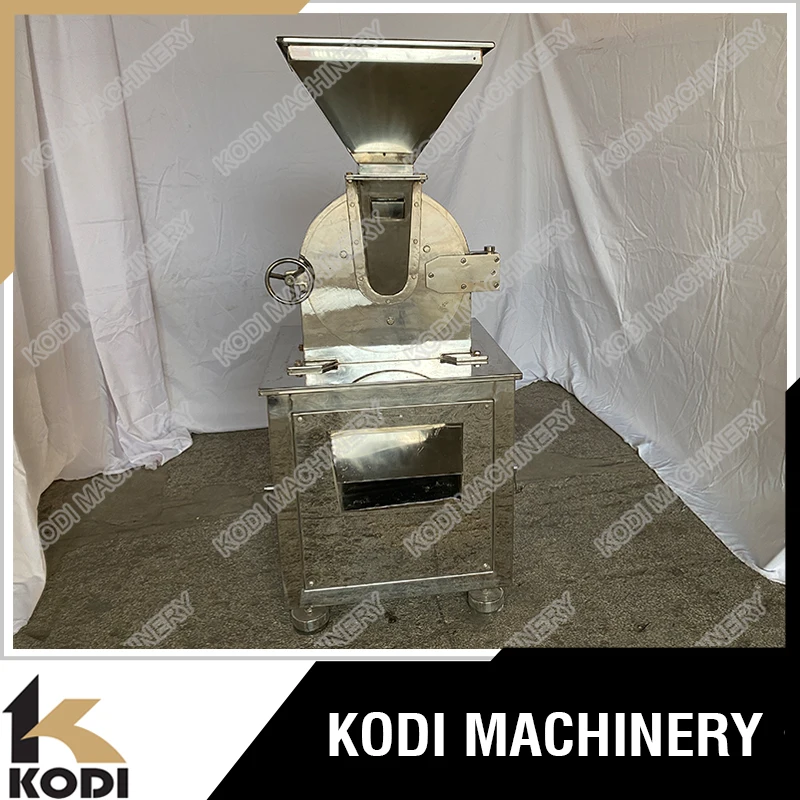

KODI Spice Pulverizer Grinder Machine Price
1. Pulverizer grinder machine / Spice grinder machine / Pulverizer machine price
2. Made of SS304/SS616L
3. Can have Dust Absorption
4. 20-120 mesh
1. Pulverizer grinder machine / Spice grinder machine / Pulverizer machine price
2. Made of SS304/SS616L
3. Can have Dust Absorption
4. 20-120 mesh
Products Description
Feature of Pulverizer Grinder Machine

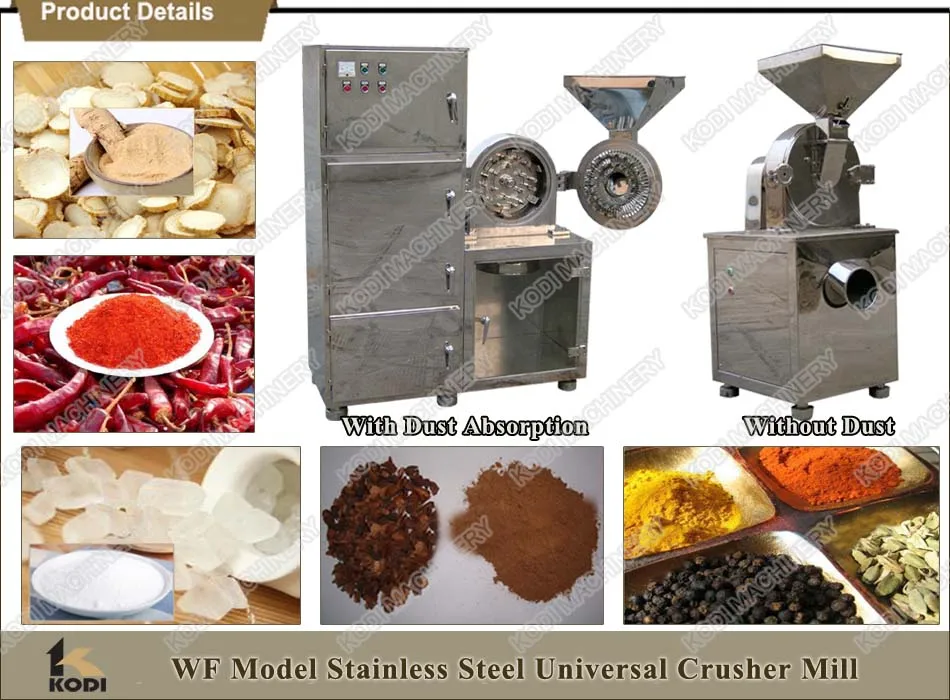

The universal food pulverizer is mainly applied for the material grinding for the trades of pharmaceutics, chemical and foodstuff, etc.
Pulverizer Grinder Machine Working Method

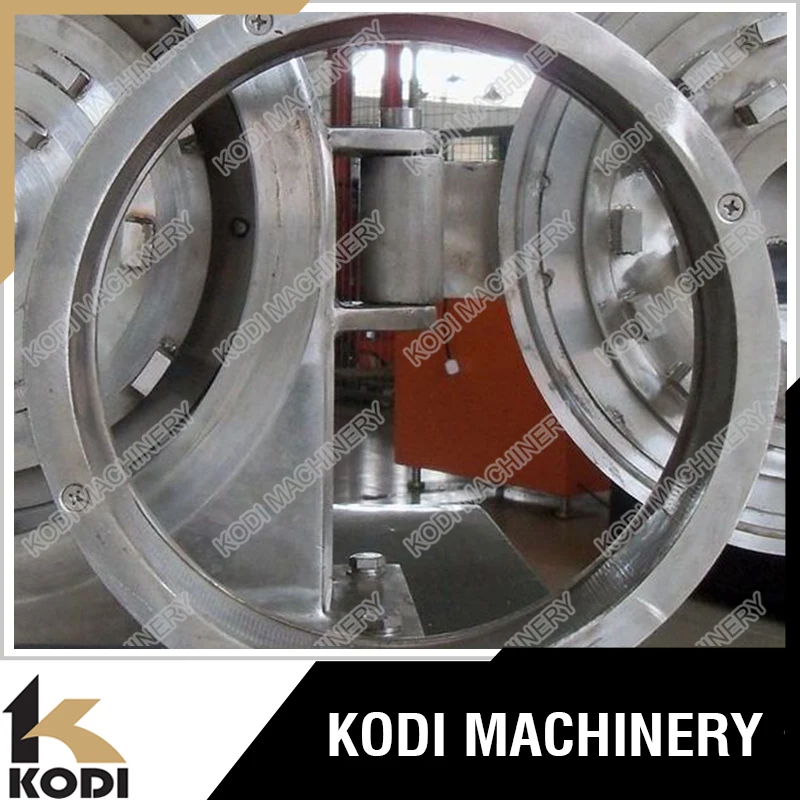

This food universal crusher uses the relative movement between the active of fluted disc and the fixed fluted disc to impact, grind and crush the target materials. The crushed material can enter the collection box by the centrifugal force. The dust from grinding is filtered and recycled via the cloth bag or filter of the dust absorption box. The whole machine, designed according to "GMP" standard, is made of stainless steel, thus to avoid dust flying, improve the utilization of raw material and decrease the production cost. Currently, the machine has been on the world advanced level.
Pulverizer Grinder Machine Feature
1. Food universal grinding machine has a simple structure design for long lasting, stable, low noise, high performance and easy maintenance.
2. The fixed and movable knives revolve in a high speed in the chamber.
3. Materials will then flow out from the bottom exit. The fineness is adjustable by adopting various sift.
2. The fixed and movable knives revolve in a high speed in the chamber.
3. Materials will then flow out from the bottom exit. The fineness is adjustable by adopting various sift.
Pulverizer Grinder Machine Technical Parameters

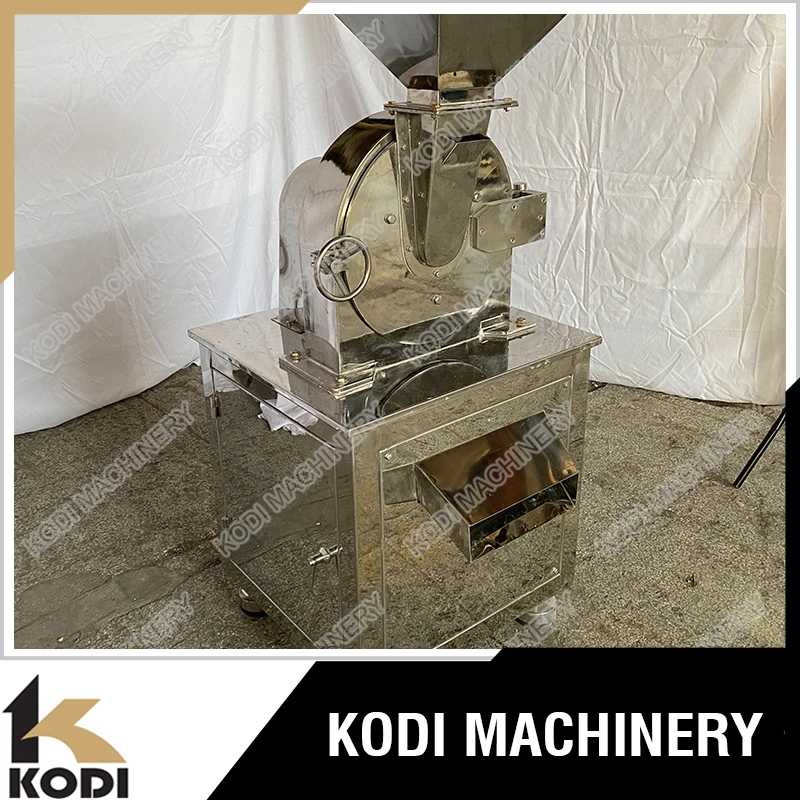

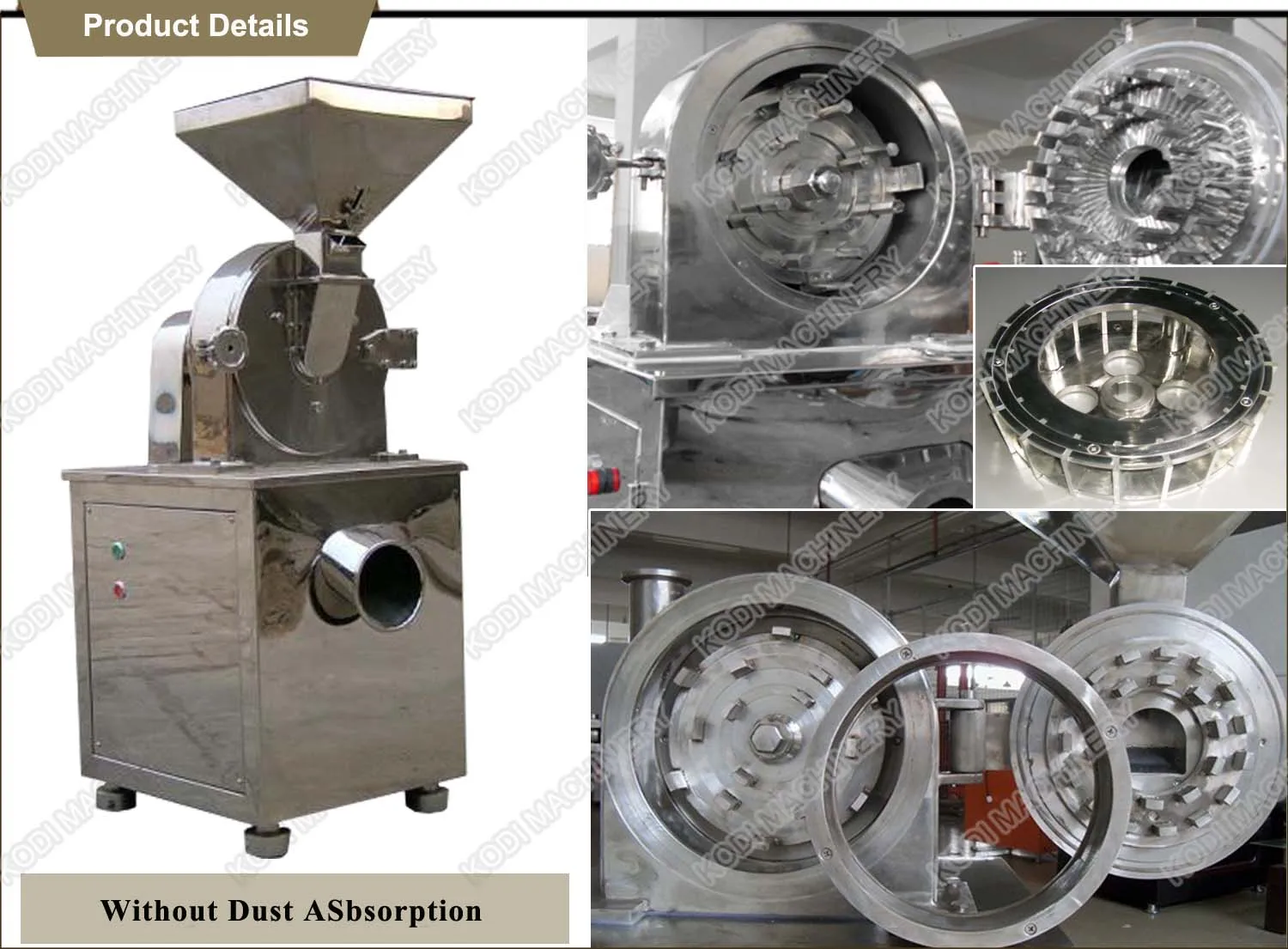

Grinder Without Dust Absorption
Grinder Without Dust Absorption
Model | 18 | 20 | 30 | 40 | 60 | 80 | 100 |
Capacity(kg/h) | 10-50 | 60-150 | 100-400 | 160-1000 | 500-1200 | 1000-5000 | 2000-8000 |
Speed of principal axis(r/min) | 6000 | 4500 | 3800 | 3400 | 2800 | 2000 | 1500 |
Size of input granules(mm) | <6 | <6 | <6 | <10 | <12 | <12 | <12 |
Fineness of products(mesh) | 20-120 | 12-120 | 20-120 | 12-120 | 20-120 | 20-120 | 20-120 |
Power(KW) | 2.2 | 4 | 5.5 | 11 | 18.5 | 37 | 55 |
Weight(kg) | 100 | 280 | 350 | 550 | 680 | 1500 | 2500 |
Overall size (mm) | 550*400*850 | 550*600*1250 | 600*700*1450 | 800*900*1550 | 900*900*1880 | 1100*950*1960 | 1350*1000*2100 |

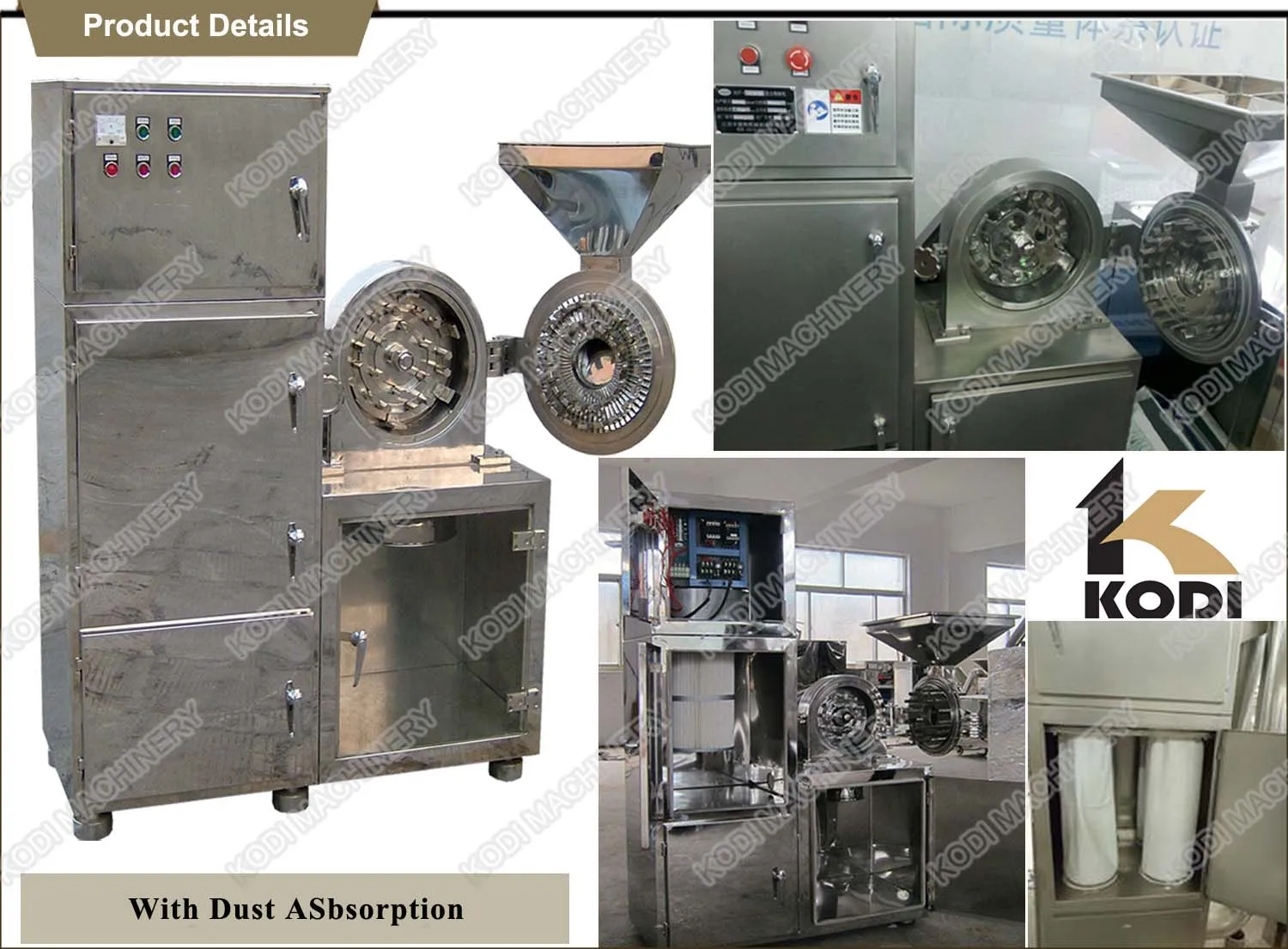

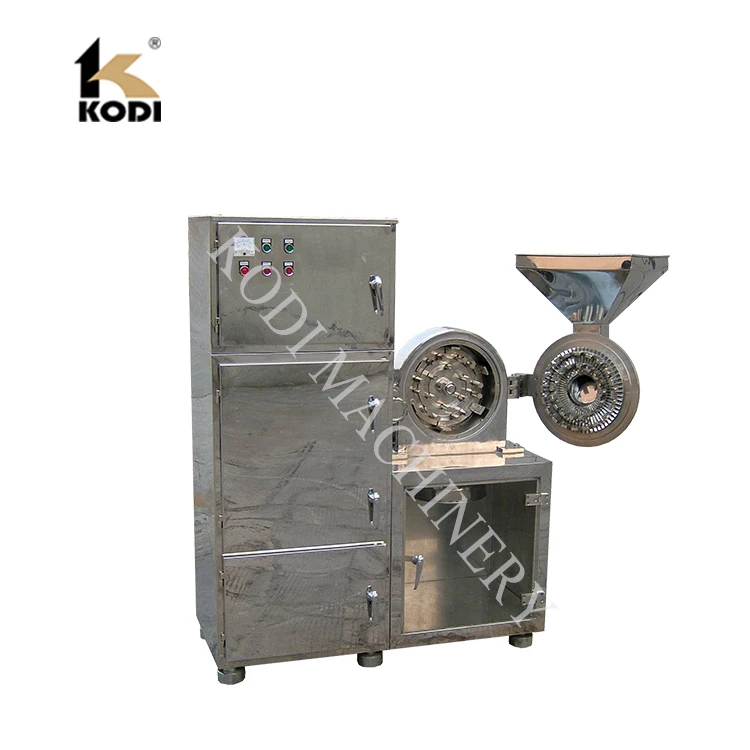

Grinder With Dust Absorption
Model | 18B | 20B | 30B | 40B | 60B |
Capacity(kg/h) | 5-30 | 20-150 | 30-300 | 40-800 | 60-1200 |
Speed of principal axis(r/min) | 5200 | 4500 | 3800 | 3400 | 2600 |
Size of input granules(mm) | <5 | <6 | <10 | <12 | <15 |
Fineness of products(mesh) | 12-120 | 12-120 | 12-120 | 12-120 | 12-120 |
Grinding power(Kw) | 2.2 | 4 | 5.5 | 11 | 22 |
Dust absorption(Kw) | 0.75 | 1.5 | 1.5 | 1.5 | 1.5 |
Weight(Kg) | 200 | 300 | 450 | 620 | 1150 |
Overall size(mm) | 820*400*1350 | 1100*600*1400 | 1200*700*1450 | 1400*800*1650 | 1650*950*2100 |

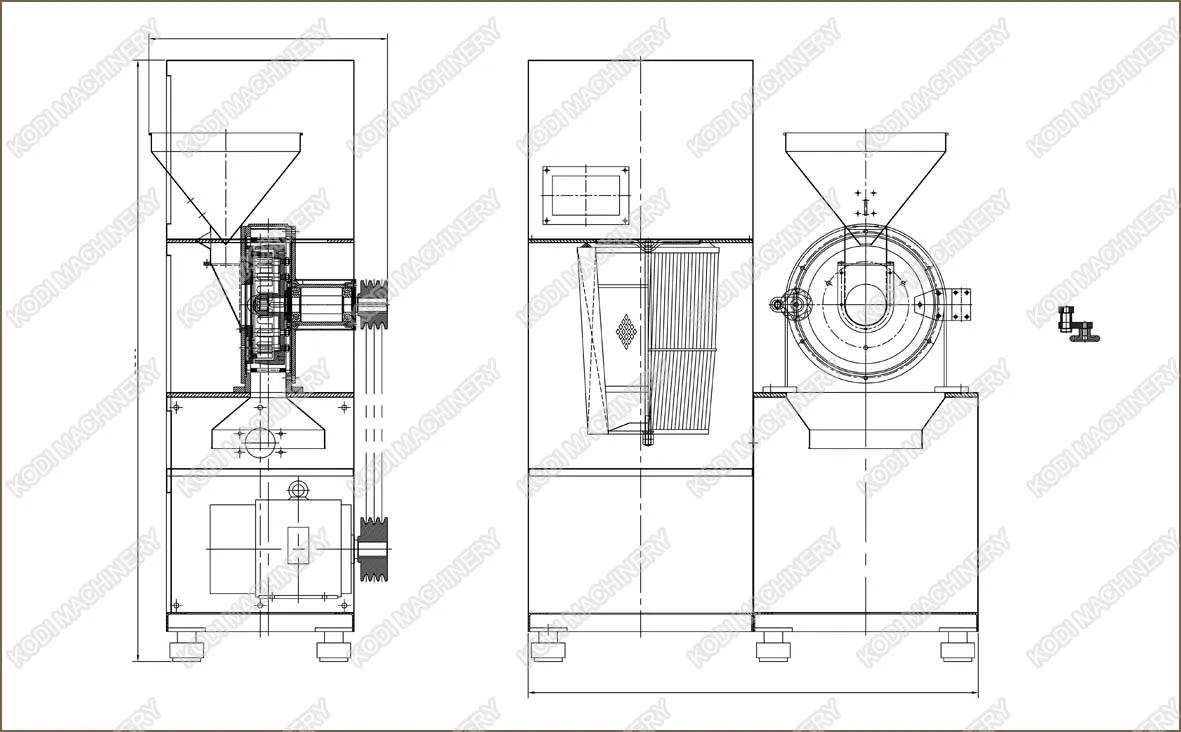

Flow Chart of Pulverizer Grinder Machine
Packing & Delivery
Company Profile
Why Choose KODI
* International high quality certification product chain
* Manufacturer, more reasonable price
* Solid technical support and after-sales service
* Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
* Exports to more than 20 countries and regions, good customers feedback
* One-stop service, customized exclusive project feasibility report
* International high quality certification product chain
* Manufacturer, more reasonable price
* Solid technical support and after-sales service
* Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
* Exports to more than 20 countries and regions, good customers feedback
* One-stop service, customized exclusive project feasibility report
Changzhou KODI Machinery Co., Ltd. located in the birthplace of China drying equipment----Zhenglu Industrial Park, Changzhou City, Jiangsu Province which is 150km away from Shanghai city, with a comfortable environment and convenient transportation access.
KODI company is a professional manufacture of drying machine, which include Seaweed processing machine, Seaweed drying machine (Cottonii to carrageenan, Agar agar ), Spray dryer price, Food ingredients spray dryer price, Flavor spray dryer price (Cocoa, Maltdextrin,Gum Acacia), Lab rotary Atomizer Spray dryer price / rotary atomizer type spray drye, Gelatin processing machinery, Gelatin drying machine (Hide and bone),Gelatin production line. we also deal in high-quality fermentation tank, Bright tank , Extraction tank, concentration tank , evaporator and etc..
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products conform to international standards, such as CE, SGS.
KODI company also has a lot of top talent which have more than 15years of work experience, include research, design, manufacture and after sale service. Our products sell to all of the world (such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Chile, Peru, Argentina, Russia, Ukraine, South Africa, Cameroon, Sudan, Syria) and also have the good cooperation with the foreign client and vendor.
We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us. Welcome!
KODI company is a professional manufacture of drying machine, which include Seaweed processing machine, Seaweed drying machine (Cottonii to carrageenan, Agar agar ), Spray dryer price, Food ingredients spray dryer price, Flavor spray dryer price (Cocoa, Maltdextrin,Gum Acacia), Lab rotary Atomizer Spray dryer price / rotary atomizer type spray drye, Gelatin processing machinery, Gelatin drying machine (Hide and bone),Gelatin production line. we also deal in high-quality fermentation tank, Bright tank , Extraction tank, concentration tank , evaporator and etc..
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products conform to international standards, such as CE, SGS.
KODI company also has a lot of top talent which have more than 15years of work experience, include research, design, manufacture and after sale service. Our products sell to all of the world (such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Chile, Peru, Argentina, Russia, Ukraine, South Africa, Cameroon, Sudan, Syria) and also have the good cooperation with the foreign client and vendor.
We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us. Welcome!
Our Service
Pre-service:
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale-service:
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale-service:
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
FAQ
Special Notice:
In order to quota you the right Pulverizer grinder machine / Spice grinder machine / Pulverizer machine price with the best price , we would like to get the following information include in your inquiry:
* -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
* -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
* -What is the capacity per hour you need (kg/h)?
* -What is the initial moisture and final moisture of finished products you require to get?
* -What about the maximum heat temperature of raw material?
* -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
* -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
* -Provide us your country’s electricity information, such as phases, voltage, HZ?
* -How about dust collect requirements?
* -Other special requirements?
* -What about the maximum heat temperature of raw material?
* -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
* -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
* -Provide us your country’s electricity information, such as phases, voltage, HZ?
* -How about dust collect requirements?
* -Other special requirements?
Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou. Or we can visit you in Shanghai.
A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou. Or we can visit you in Shanghai.
Q: What’s the quality of your products?
A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What to do if the machine has a problem?
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.
Q: What is your payment term?
A: Our usual payment term is: 40% TT in advance, 60% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF
price.
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF
price.
