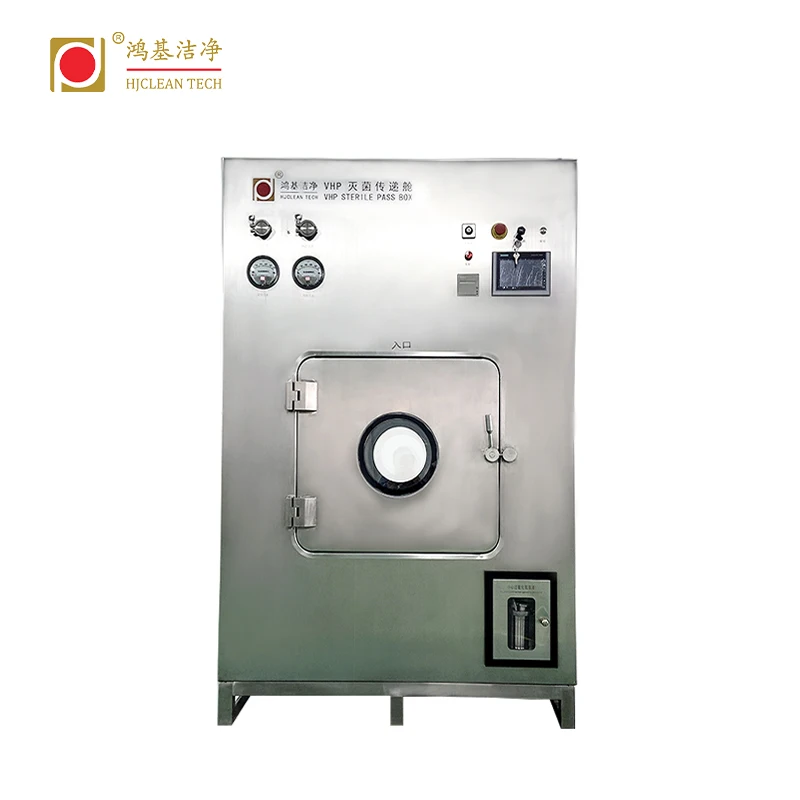

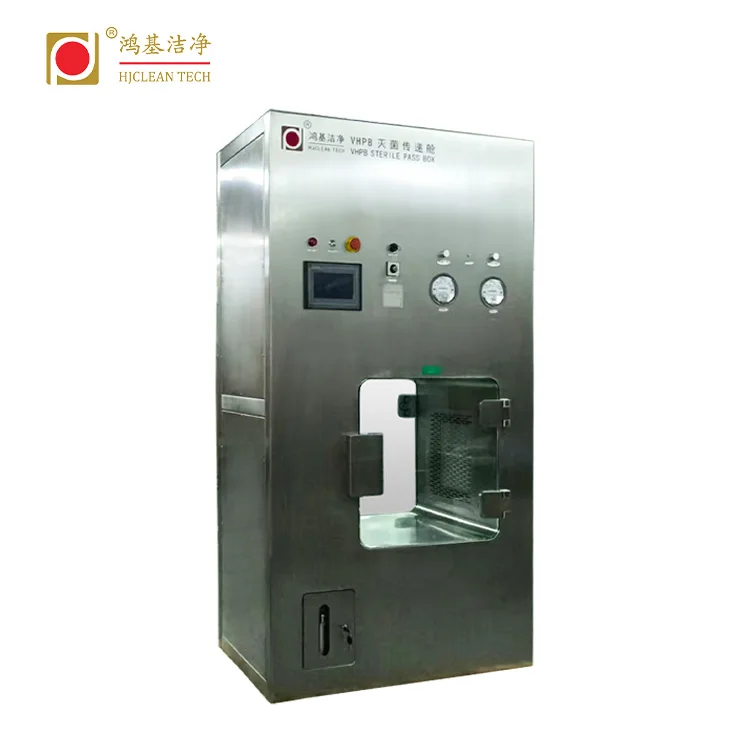

HJCLEAN customized size CE certification VHP sterile pass box
- Category: >>>
- Supplier: Suzhou Hjclean Tech Co. Ltd.
Share on (1600438497683):
Product Overview
Description
Product Description

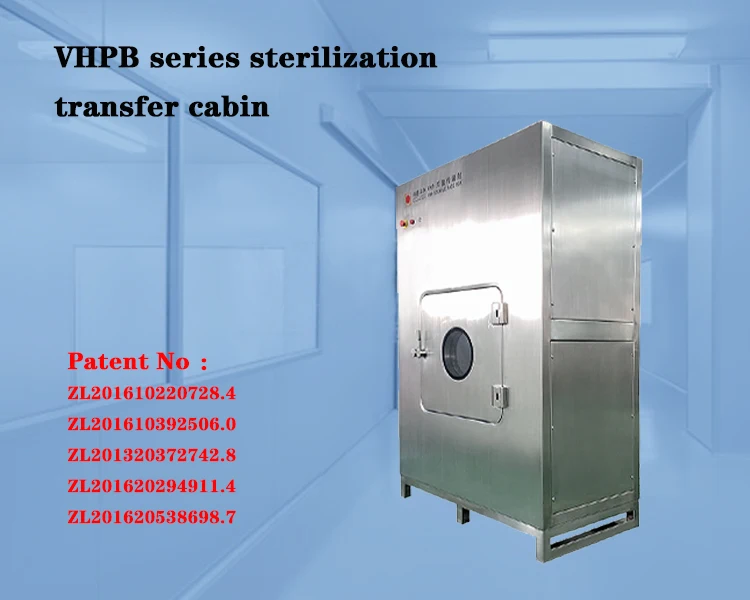

VHPB series sterilization transfer cabin ：
The VHPB series sterilization transfer cabin is a special sterilization equipment that can provide absolute biological

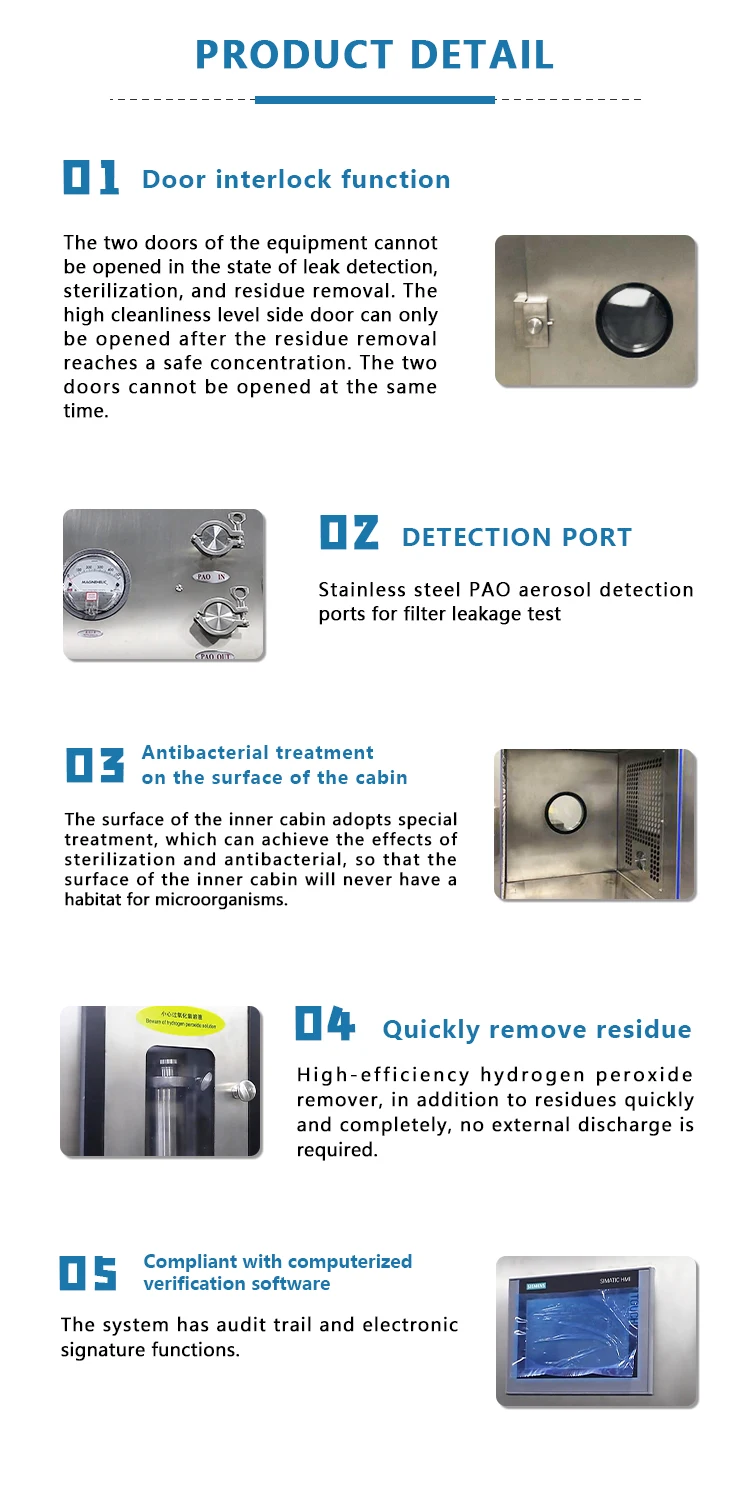

decontamination on the surface of the article when transferring articles between different functions. It is equipped with a dedicated hydrogen peroxide VHP generator, a sterile air supply system, an electromagnetic door interlocking system, a closed system, a residue removal system after sterilization, a dedicated HMI (human machine interface) and a sterilizing medium delivery system. It is widely used for surface sterilization at room temperature in places such as pharmacy, medical treatment, sanitation, biological experiment, etc.
decontamination on the surface of the article when transferring articles between different functions. It is equipped with a dedicated hydrogen peroxide VHP generator, a sterile air supply system, an electromagnetic door interlocking system, a closed system, a residue removal system after sterilization, a dedicated HMI (human machine interface) and a sterilizing medium delivery system. It is widely used for surface sterilization at room temperature in places such as pharmacy, medical treatment, sanitation, biological experiment, etc.
Product Parameter
Material | 304 stainless steel externally,316L stainless steel internally | ||||||
Clean Grade | CLASS A | ||||||
Leakage rate | ≤0.5%VOL/h (under 100Pa) | ||||||
Air change | ≧80T/h | ||||||
Vaporization temperature | ≤60℃ | ||||||
Compressed air | ≥0.5Mpa | ||||||
Sterilizer | better than 30% food grade hydrogen peroxide solution | ||||||
VHP residue removal efficiency | ≤1PPM | ||||||
Control method | manual or automatic | ||||||
Noise | ≤70dB(A) | ||||||
Specification/model | Outer size W*D*H, unit: mm | Inner dimension w*d*h unit: mm | Exhaust connection | Fresh air outlet | power supply | Maximum power consumption KW |
VHPB-125 | 950*600*1800 | 500*500*500 | DN50 | DN150 | AC220/50Hz | 3.5 |
VHPB-200 | 1050*700*1900 | 600*600*600 | DN50 | DN150 | 3.5 | |
VHPB-350 | 1150*800*2000 | 700*700*700 | DN50 | DN200 | 3.5 | |
VHPB-500 | 1250*900*2100 | 800*800*800 | DN75 | DN200 | AC380V/50Hz | 5.5 |
VHPB-800 | 1350*1000*2200 | 900*900*1000 | DN75 | DN250 | 5.5 | |
VHPB-1000 | 1450*1100*2300 | 1000*1000*1000 | DN75 | DN250 | 5.5 | |
VHPB-1200 | 1650*1100*2300 | 1200*1000*1000 | DN75 | DN250 | 5.5 |

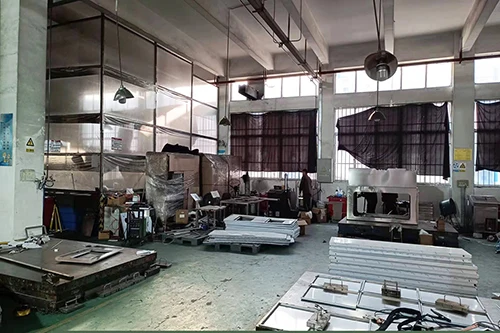

Company Profile

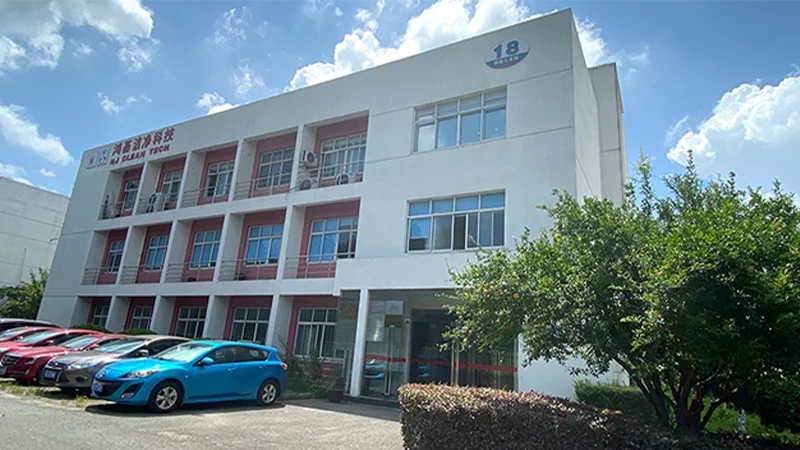

About hjclean.
HJClean Tech Co.Ltd., has established in Suzhou where the city is famous of clean room line since 2003. We dedicate ourselves to consulting, researching and design, manufacture and supporting service on clean room technical. Our company owns advanced technology and stronger power on scientific research capabilities . The products what we do includes cleaning equipments,airborne particle monitor, clean room project design and construct etc.And our products are widely used in electron factory, pharmacy factory, precise machinery line and space flight line . Until now we have owned 15 corprights in the airborne particle monitoring field and the copyrights have been used in respective projects over the world. There is a professional team in Hjclean-tech,leads by 10 senior engineers and senior mechanic. An experienced site operation team, with an entire unit of advanced monitoring machinery and installing equipments, Imported the advanced popular international management model With above, made us self-confident to guarantee our clients:The products we provide to our clients are highly in quality and better in cost performance.

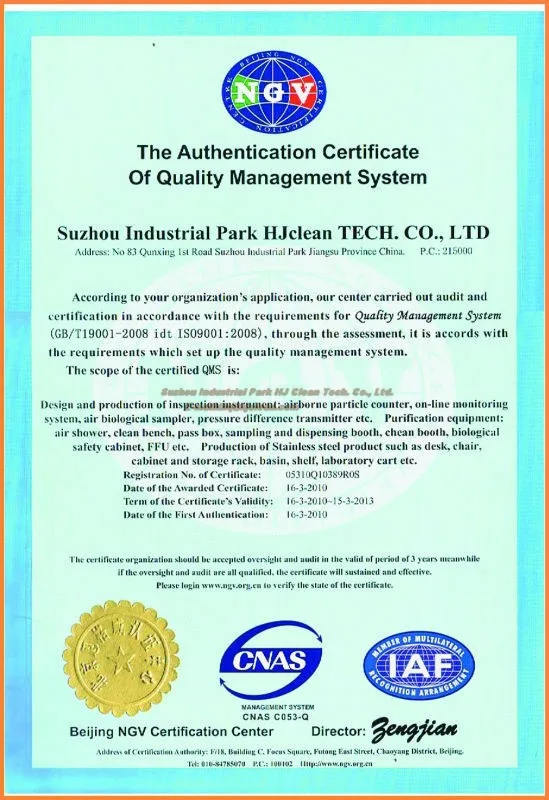

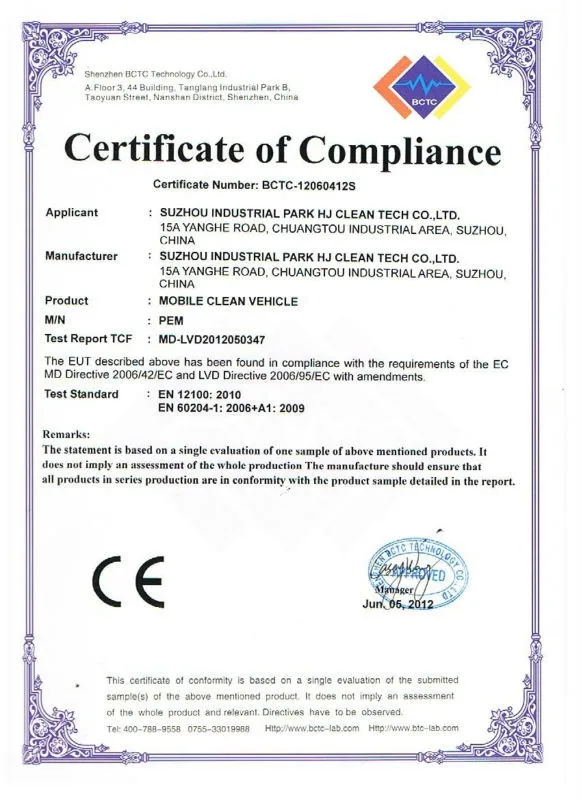

Certifications

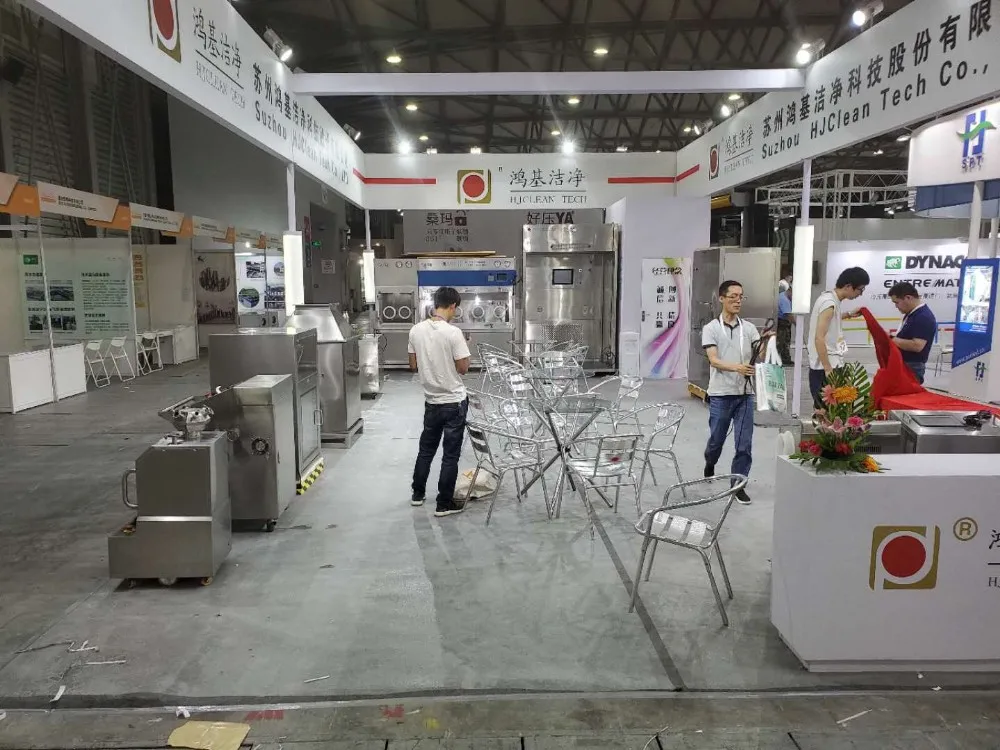

Exhibition

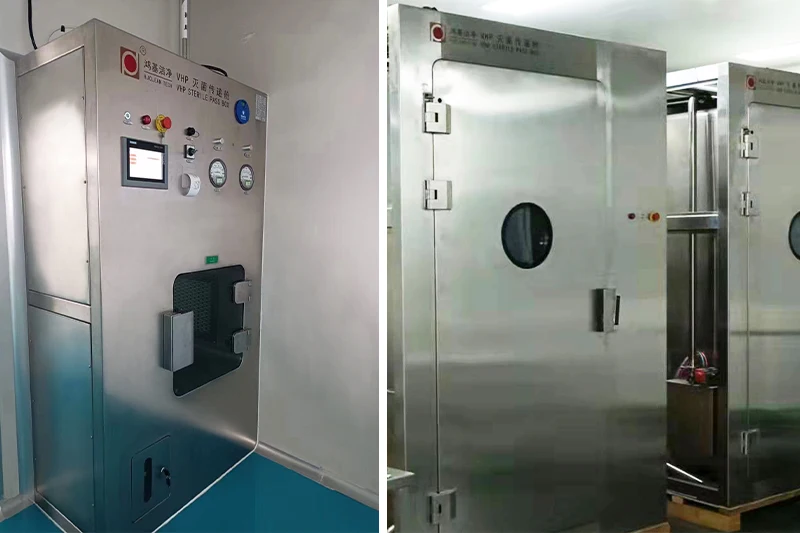

Customer Photos
