300kg small rotating pipe turning positioner welding turning table
- Category: >>>
- Supplier: Wuxi,Zhouxiang,Complete,Set,Of,Welding,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Welding positioner
Welding positioner is a universal and efficient welding equipment that mainly realizes circular seam welding. The welding positioner can be equipped with welding power: such as argon arc welding power (wired or not filled), molten gas shielded welding power (C02/MAG/MIG welding machine), plasma welding power, flame or plasma cutting torches etc., and can be combined with other auxiliary machinery, Such as welding manipulators, robots... etc. constitute an automatic welding system.
Welding positioner is a universal and efficient welding equipment that mainly realizes circular seam welding. The welding positioner can be equipped with welding power: such as argon arc welding power (wired or not filled), molten gas shielded welding power (C02/MAG/MIG welding machine), plasma welding power, flame or plasma cutting torches etc., and can be combined with other auxiliary machinery, Such as welding manipulators, robots... etc. constitute an automatic welding system.

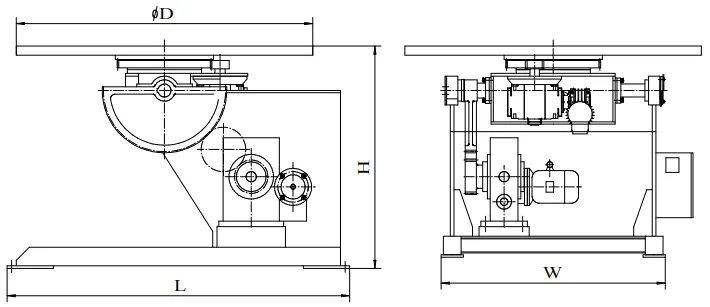

Model | Load Capacity（Kg） | Table Speed | Table | Power | Table Dia.(mm) | Machine Size L*W*H(mm) | ||||
Ratation （RPM） | Tilt （RPM） | Tilt Angle(°) | Ratation(Kw) | Tilt (Kw) | ||||||
HBZ-1 | 100 | 0.35-3.5 | 1.0 | 0-90 | 0.18 | 0.18 | 400 | 740*525*480 | ||
HBZ-3 | 300 | 0.20-2.0 | 1.0 | 0-90 | 0.37 | 0.37 | 600 | 940*720*610 | ||
HBZ-6 | 600 | 0.09-0.9 | 1.0 | 0-90 | 0.75 | 0.75 | 1000 | 1500*1120*1000 | ||
HBZ-10 | 1000 | 0.05-0.5 | 0.8 | 0-120 | 1.1 | 1.5 | 1200 | 1850*1210*1140 | ||
HBZ-30 | 3000 | 0.05-0.5 | 0.23 | 0-120 | 1.5 | 1.5 | 1400 | 2200*1740*1355 | ||
HBZ-50 | 5000 | 0.05-0.5 | 0.16 | 0-120 | 2.2 | 3 | 1500 | 2700*1984*1510 | ||
HBZ-100 | 10000 | 0.017-0.17 | 0.1 | 0-120 | 3 | 5.5 | 2000 | 3460*2500*2024 | ||
HBZ-200 | 20000 | 0.017-0.17 | 0.1 | 0-120 | 4 | 5.5 | 2000 | 3610*2930*1974 | ||
Product Details
1.Strong load-bearing capacity
After the positioner’s worktable uses high-strength plates, it carried with heat treatment and finishing after welding. The table rotation adopts slewing support, which has strong load-bearing capacity.
2.Overturning angle ruler display
The positioner is equipped with ruler, and the overturning angle can be clearly displayed on the ruler, which is convenient for grasping the overturning angle.
3.Stepless variable frequency speed control
Schneider frequency converter is used to realize variable frequency speed control of worktable slewing and overturning.
