electric stainless steel vertical loading hopper screw conveyor elevator for corn/wheat/rice/grain/cereal/flour

Product Overview

Description





electric stainless steel vertical loading hopper screw conveyor elevator for corn/wheat/rice/grain/cereal/flour





Introduction of  Screw Conveyor
The LS series screw conveyor as a material handling equipment , can be widely used in a number of industries like building material, metallurgy, chemical, coal, and grain food processing. To be specific, it can be served as powder conveyor, granule conveyor, pellet conveyor and small lump conveyor,  for transfter materials like sand, lime, cement, coal powder, fertilizer, animal feed, grain, sugar, spice , coffee etc.


Features of Screw Conveyor
1. unique design , occupying small space;
2. simple structure , easy maintenance;
3. allowed vertical lift, horizontal transmission or inclined feeding;
4. reducer motor conveyor, adjustable speed.

5. customized service allowed as per requirement.







Electric: 110/220V /380V /415V etc.   50Hz/60Hz.    3phase

Packing: plywood case

Lead time: 5-7 working days after received advance payment

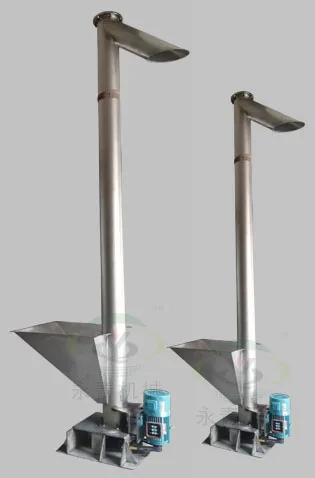

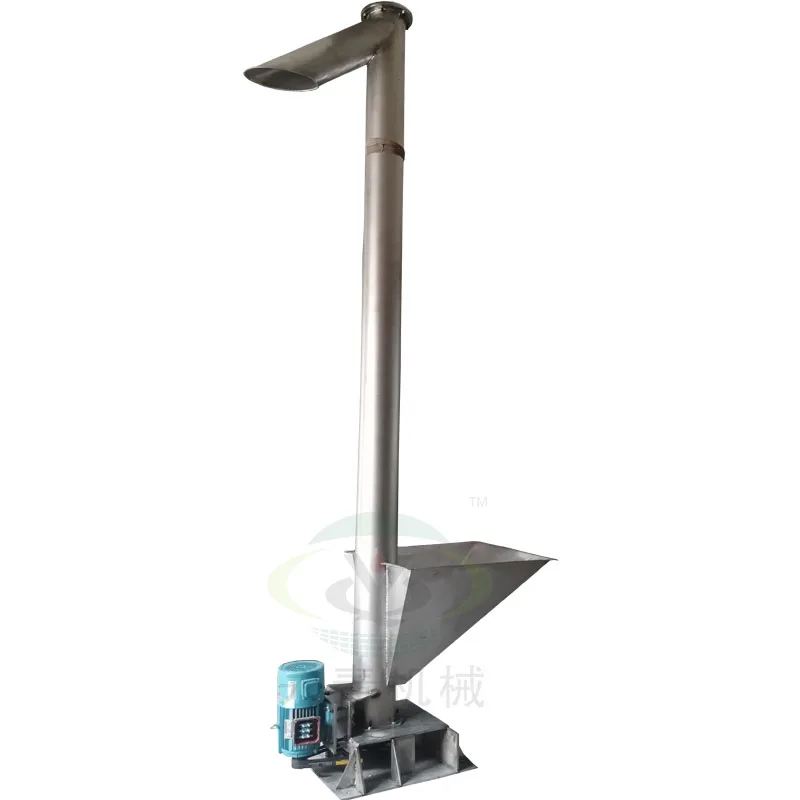

Vertical Screw Conveyor

---------Vertical screw conveyor ---------LS219 ---------3 meters high                (from discharge point to floor) ----------3-5 tph ----------stainless steel 304 ---------380V,50Hz, 3phase (or as requires) ----------4KW ----------for conveying rice/millet/corn/wheat/               flour/spice/sugar/salt/sand/coffee/              beans/cement  etc.



Perameters of Screw Conveyor

Model	Spiral diameter (mm)	Pitch (mm)	Rotating speed (r/min)	Capacity (m3/h)	Power (kw)	Inclination angle (°)
LS100	100	100	140	2.2	2.2---18.5	≤ 60.
LS125	125	125	125	4.0
LS160	160	160	112	8
LS200	200	200	100	11
LS250	250	250	90	22
LS315	315	315	80	34
LS400	400	355	71	64
LS500	500	400	63	95
LS630	630	450	50	150

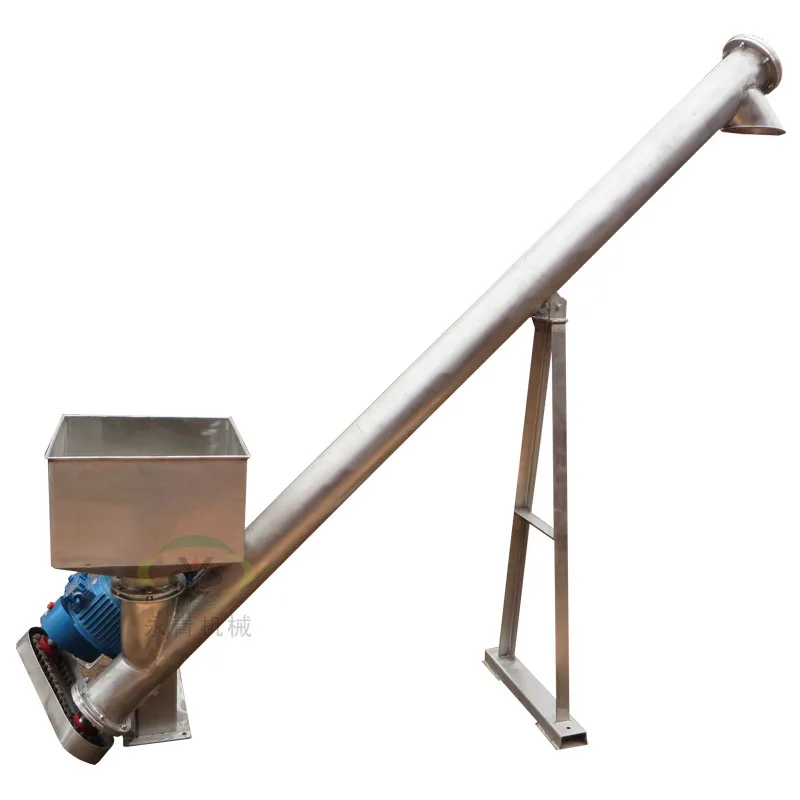

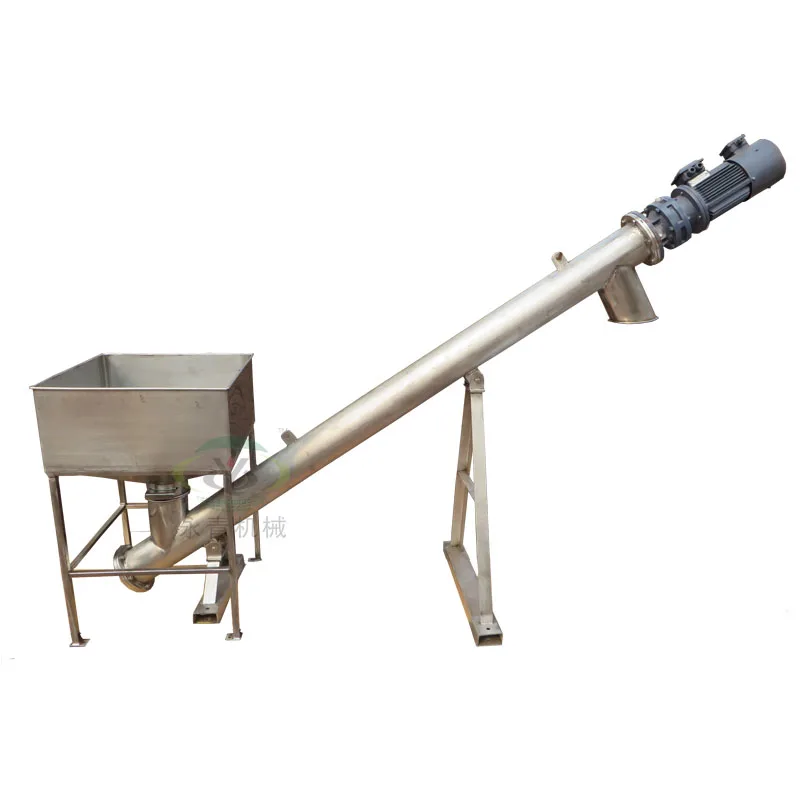

Inclined Screw conveyor

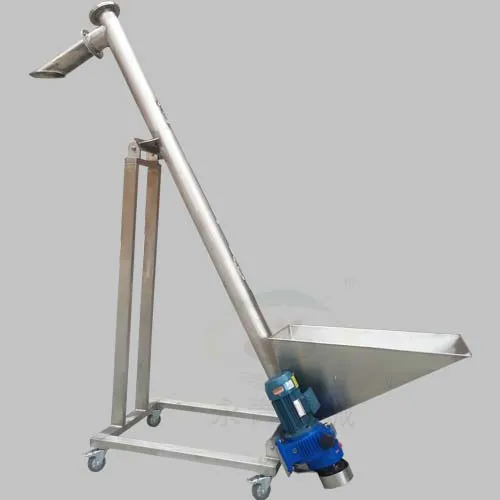

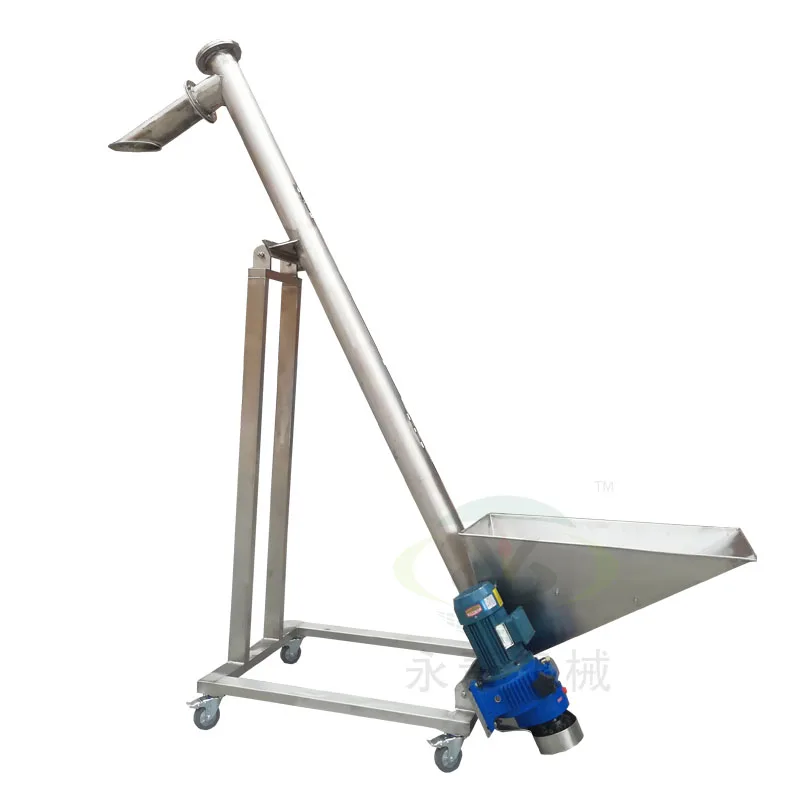

Inclined Screw conveyor with mobile wheels easy to move to anywhere 304 stainless steel with inlet feeding hopper

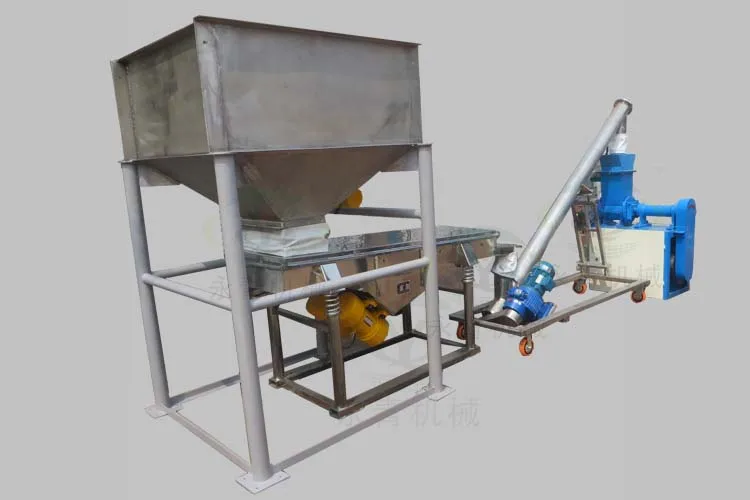

Conveyor system (feeding hopper+ sifter+ conveyor + packing machine)







Related Product

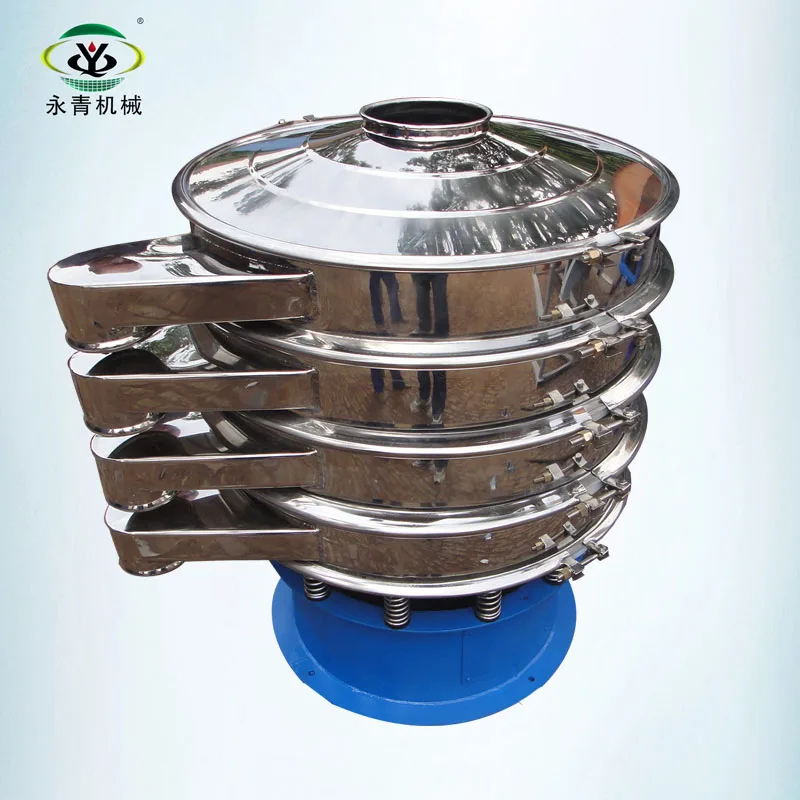

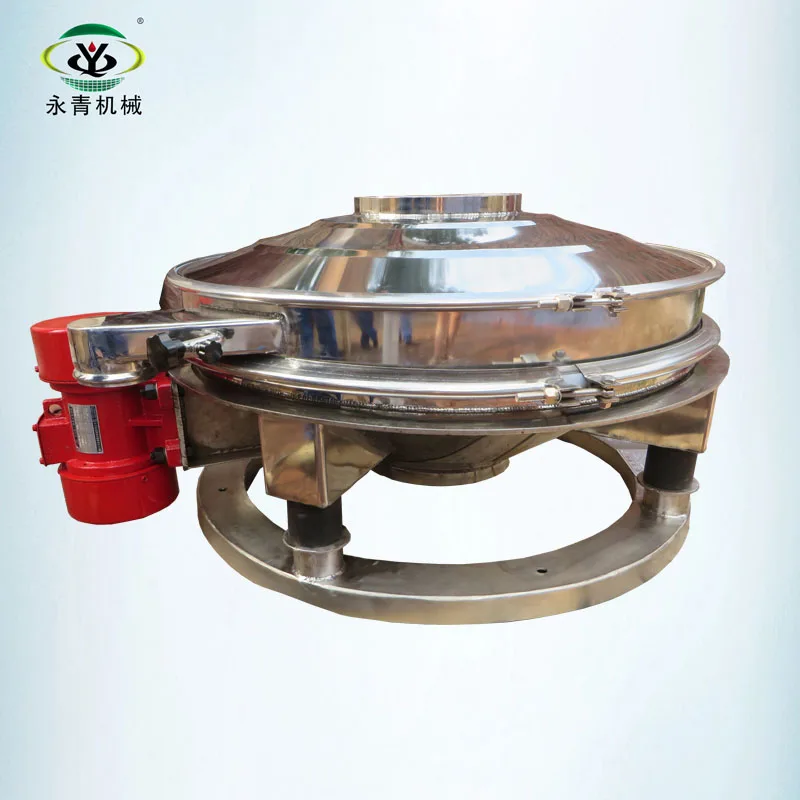

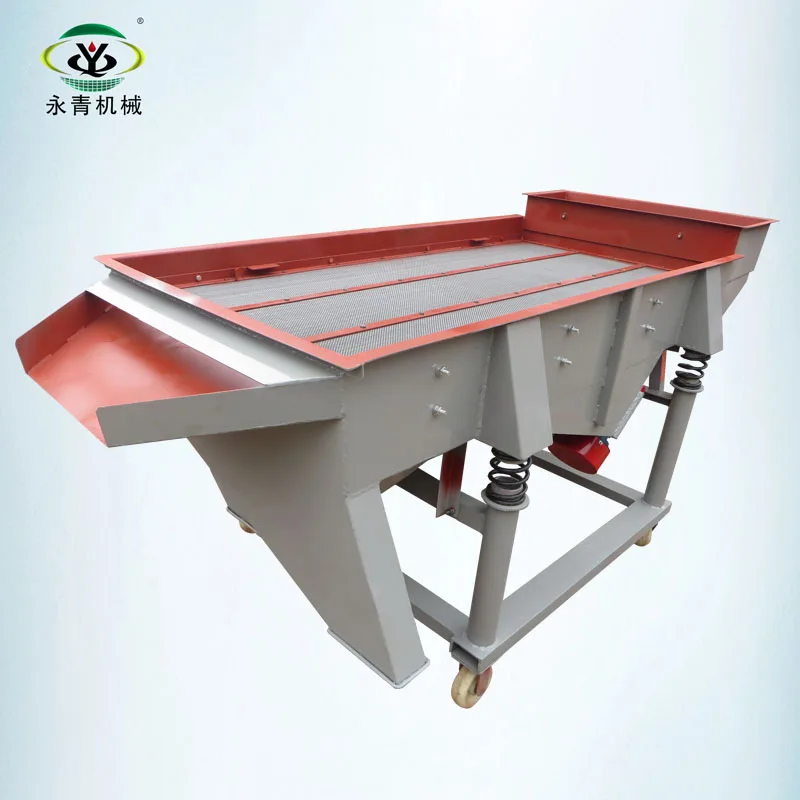

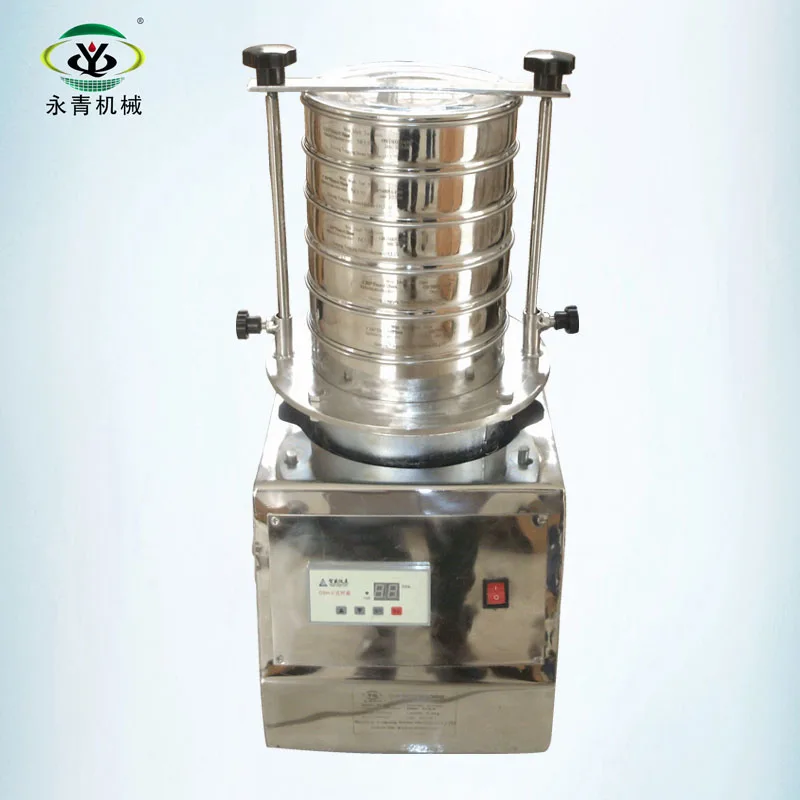

Rotary vibrating sieve	inline check sieve	lab test sieve shaker

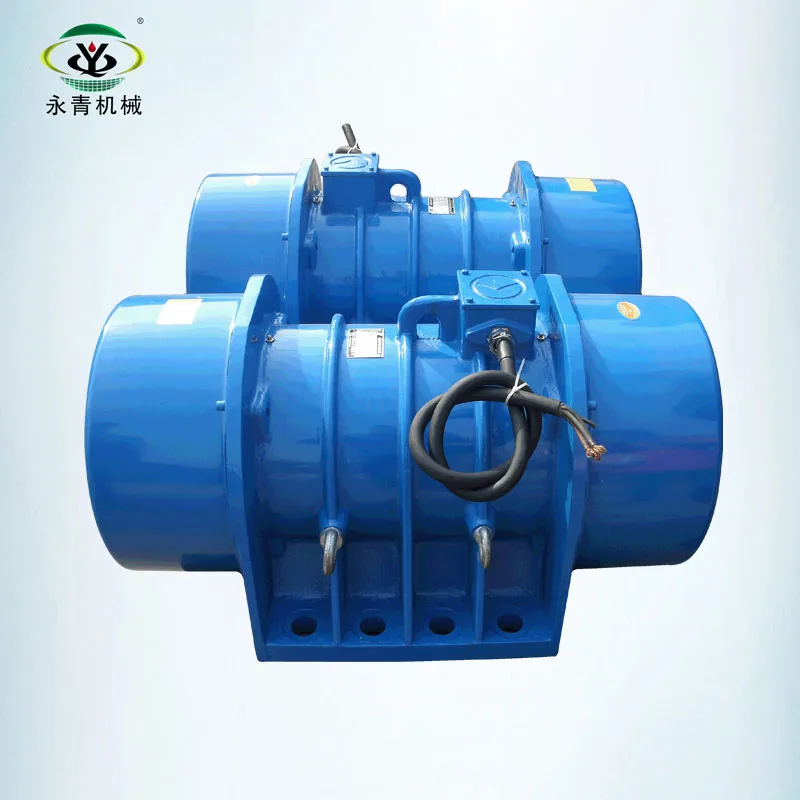

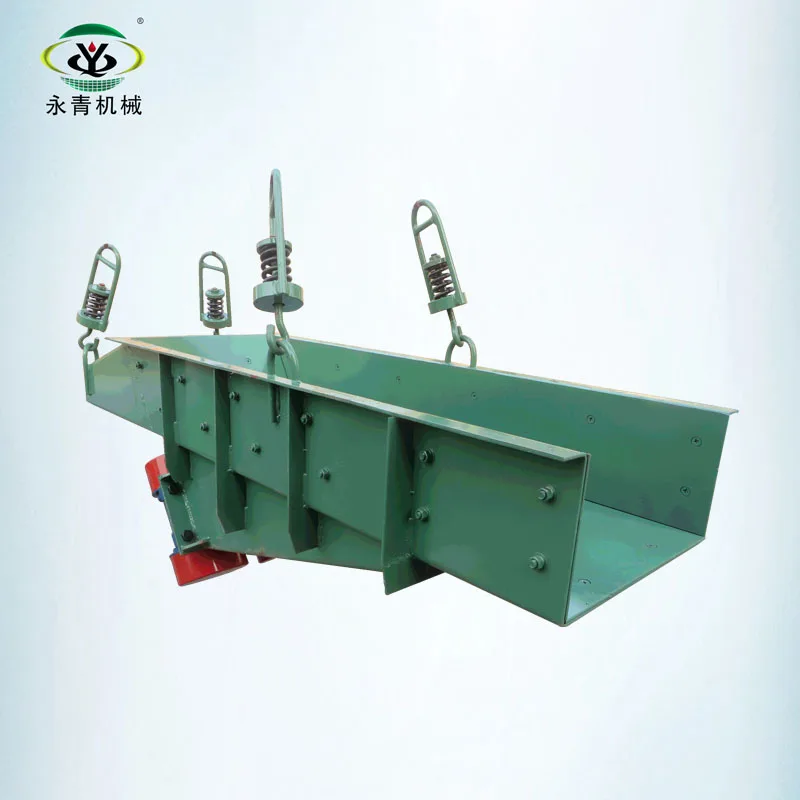

vibrating sifter	vibrating feeder	vibrating motor
