Outdoor High end Hire Rental LED Display P2.97 Pixel Pitch Media Wall for Concert Events
- Category: >>>
- Supplier: Shenzhen Lianchengfa Technology Co. Ltd.
Share on (1600438514082):
Product Overview
Description
Product Description
Specification
Features:
1. IP65 waterproof, anti-ultraviolet, wind resistance , vibration resistant,suit for indoor outdoor events.
2. Super light weight,only 6.5kg per piece led cabinet.
3. Ultra thickness, only 62.5mm,saving space under installation.
4. Integrated back cover, and designed with positioning pin, easy and fast to assemble and maintenance.
1. IP65 waterproof, anti-ultraviolet, wind resistance , vibration resistant,suit for indoor outdoor events.
2. Super light weight,only 6.5kg per piece led cabinet.
3. Ultra thickness, only 62.5mm,saving space under installation.
4. Integrated back cover, and designed with positioning pin, easy and fast to assemble and maintenance.
5. Support front and rear service, each modules has four magnets to stick on the led cabinet.
6. Corner protector optional, customer can choose it according to their requirements
LED Module Technical Parameters | ||||
No. | Item | Specification | ||
1 | Pixel Configuration | SMD 3in 1 1R1G1B | ||
2 | Packing | SMD1921 | ||
3 | Pixel Pitch | P2.976 Outdoor | ||
4 | Module Size | 250 x 250mm | ||
5 | Module Resolution | 84dots x84dots | ||
6 | Wavelength | R: 620~625nm, G: 525~527.5nm, B: 462.5~465nm | ||
7 | Pixel Density | 65536dots/sqm | ||
8 | Brightness | 4000nits, @white balance | ||
9 | Grey Scale | 16384 | ||
10 | Scaning Driver Mode | 1/28 scan, constant current drive | ||
11 | Refresh Frequency | 1920-3840Hz | ||
12 | Visible Angle | X>140 degree; Y>120 degree | ||
13 | Best Viewing Distance | 3~30m | ||
14 | Brightness Control | 256 degree by software | ||
15 | Brightness Adjustment | Automatic or manual | ||
16 | Control System Transmission | Synchronization+Master Control Card+DVI Graphics Card+Fiber Transmission RJ45+DVI/HDMI Interface | ||
17 | Multimedia Video Processor | Support for various multimedia formats | ||
18 | Woking Voltage | 5V | ||
19 | Life Span | >100000 Hours | ||
20 | Sheathing Material | PC | ||
21 | Module Weight | 450g | ||
22 | Ambient Temperature and Humidity | -20 degree to 65degree, RH=10~95% | ||
23 | LED Packing | Nationstar Cooper Wire(Optional) | ||
24 | Driver IC | ICN2153 (Optional) | ||
25 | Module Mask | Hard Mask | ||
26 | Certification | CE, CCC, ROHS,FCC | ||
Cabinet Technical Parameters | ||||
1 | Cabinet Size(L*H*T) | 500mm*500mm*62.5mm | ||
2 | Cabinet Resolution | 168dots x 168dots | ||
3 | Input Voltage | AC110~220V±10%, 50~60Hz | ||
4 | Cabinet Material | Die-casting Aluminum Cabinet | ||
5 | Power Density | Max. 800W/sqm, Ave.360W/sqm, depends on the display content | ||
6 | Cabinet Weight | <6.5kg | ||
7 | Power Supply | G-energy/Meanwell Power Supply | ||
8 | Control System | Colorlight/Nova | ||
9 | IP Grade | Outdoor, IP65 | ||
10 | Heat Dissipation | Natural Convection+Shell Conduction+Fan Dissipation | ||
Packing & Delivery

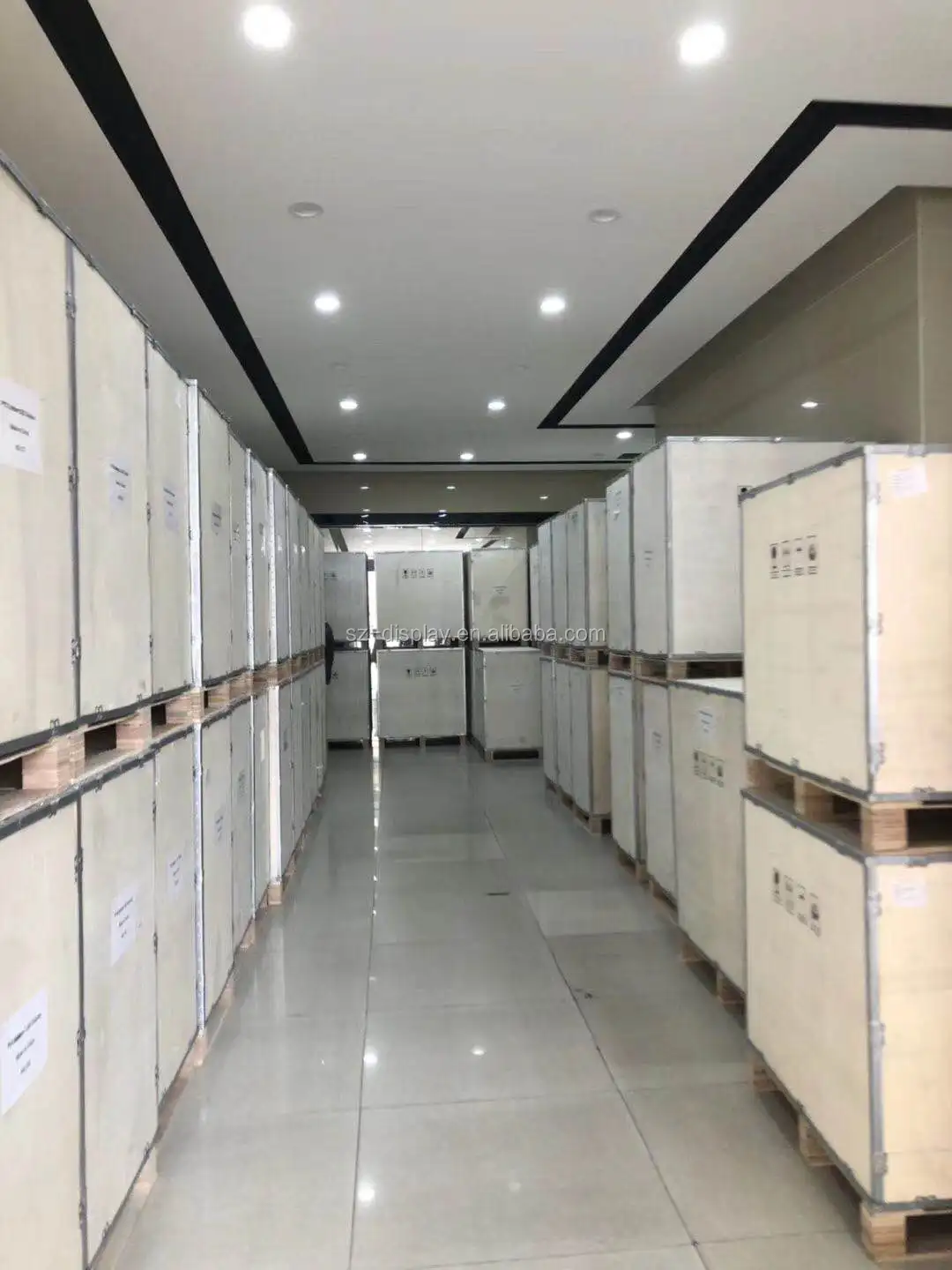

Packaging:

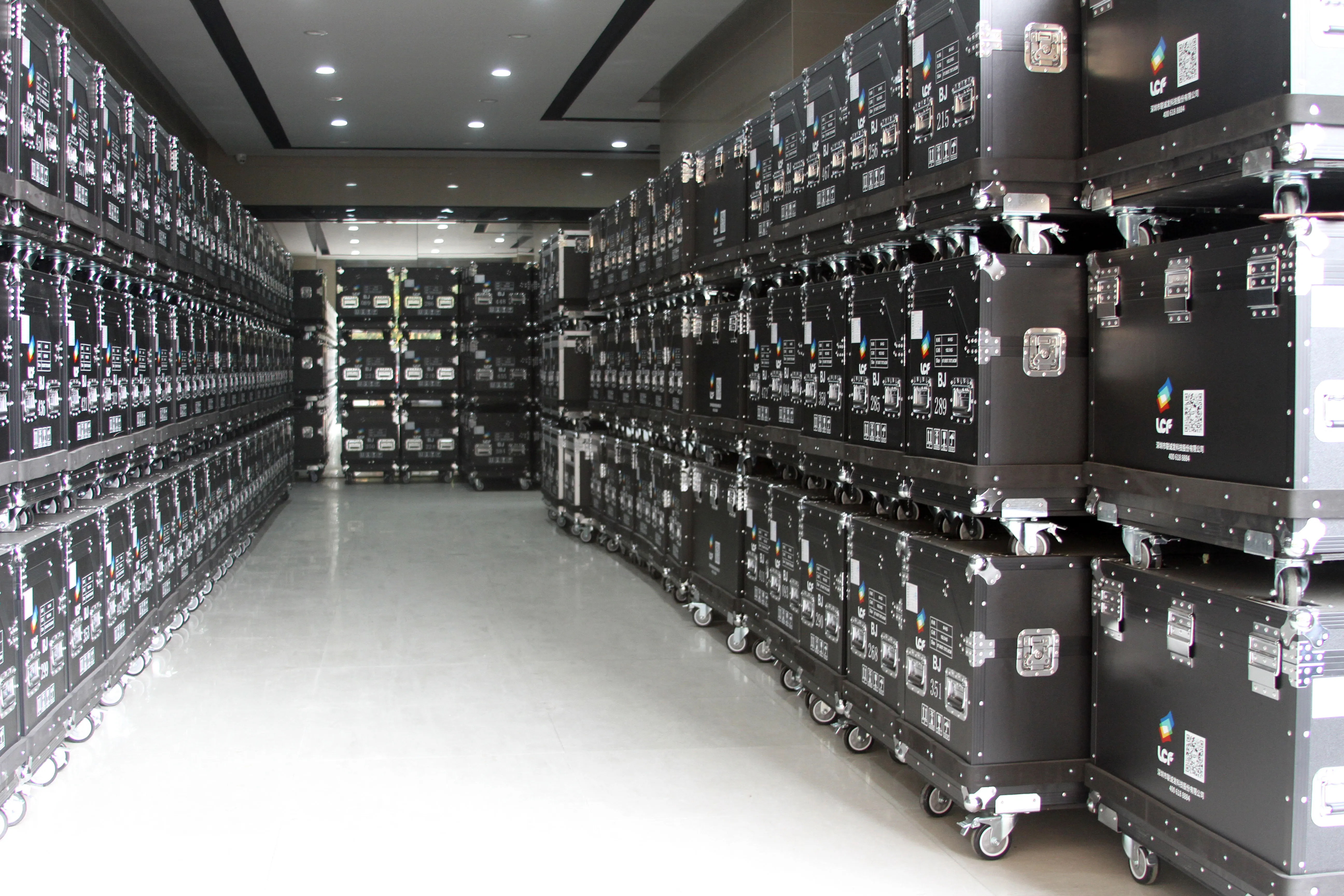

Flight case, wooden case, paper cartons and ect, optional by customers.Shipping
*Express(UPS,DHL,Fedex,EMS,etc) is available.
*Sea and Air delivery is available.
Delivery time
*General Sample order is in stock,Bulk order is about 20-25 working days after down payment.
*Express(UPS,DHL,Fedex,EMS,etc) is available.
*Sea and Air delivery is available.
Delivery time
*General Sample order is in stock,Bulk order is about 20-25 working days after down payment.

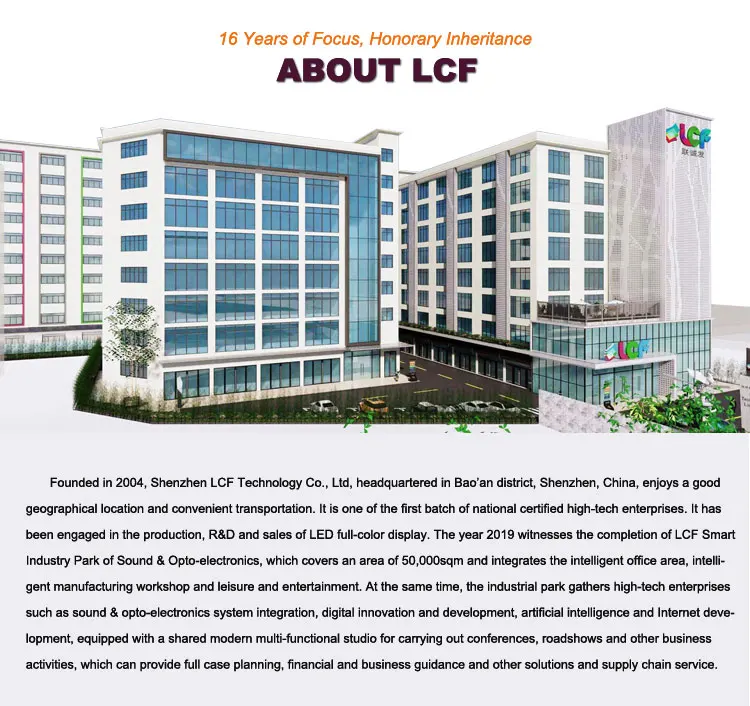

Company Profie
Founded in 2004, Shenzhen LCF Technology Co., Ltd, headquartered in Bao’an district, Shenzhen, China, enjoys a good geographical
location and convenient transportation. It is one of the first batch of national certified high-tech enterprises. It has been
engaged in the production, R&D and sales of LED full-color display. The year 2019 witnesses the completion of LCF Smart Industry
Park of Sound & Opto-electronics, which covers an area of 50,000sqm and integrates the intelligent office area, intelligent
manufacturing workshop and leisure and entertainment. At the same time, the industrial park gathers high-tech enterprises such as
sound & opto-electronics system integration, digital innovation and development, artificial intelligence and Internet development,
equipped with a shared modern multi-functional studio for carrying out conferences, roadshows and other business activities, which
can provide full case planning, financial and business guidance and other solutions and supply chain service.
Our products have passed ISO9001:2008, UL, RoHS, CCC, CE, EMC, FCC, ETL and other certifications, with sales in more than 200
cities in 30 provinces and autonomous regions in China. We have established good cooperative relationship with companies from more
than 100 countries such as France, Germany and Spain etc., and also have a number of overseas sole agents. Our products serve the
whole world. We have provided LED displays and designs for the Beijing Olympic Games 2008, Shanghai World Expo 2010, Ukrain
Stadium of Euro Cup 2012 , Kuwait Futsal Game of World Cup 2012, Kuwait Football Association in 2014, Albania National Stadium in
2015 and Australian Stadium in 2017. After the Hangzhou Airport Project in 2018, We became the designated supplier of LED display
for BOE Technology Group. In 2019, it becomes a licensed product for teams and artists such as the national e-sports tour, Jay
Chou, Angela Chang, Jason Zhang, Wilber Pan, and Wu Bai. Up to now, it has hundreds of thousands of classic project cases.
At present, LCF has subsidiaries: Anshun Lianshunda Technology Co., Ltd., Dongguan Tongda Chuang Industrial Co., Ltd., LCF (HK)
Technology Co., Ltd., LCF (Egypt) Technology Co., Ltd., LCF (Japan) Technology Co., Ltd., Yingwangsheng (Shenzhen) Capital
Investment Enterprise (Limited Partnership), ShenzhenYuding Investment Consulting Co., Ltd.
location and convenient transportation. It is one of the first batch of national certified high-tech enterprises. It has been
engaged in the production, R&D and sales of LED full-color display. The year 2019 witnesses the completion of LCF Smart Industry
Park of Sound & Opto-electronics, which covers an area of 50,000sqm and integrates the intelligent office area, intelligent
manufacturing workshop and leisure and entertainment. At the same time, the industrial park gathers high-tech enterprises such as
sound & opto-electronics system integration, digital innovation and development, artificial intelligence and Internet development,
equipped with a shared modern multi-functional studio for carrying out conferences, roadshows and other business activities, which
can provide full case planning, financial and business guidance and other solutions and supply chain service.
Our products have passed ISO9001:2008, UL, RoHS, CCC, CE, EMC, FCC, ETL and other certifications, with sales in more than 200
cities in 30 provinces and autonomous regions in China. We have established good cooperative relationship with companies from more
than 100 countries such as France, Germany and Spain etc., and also have a number of overseas sole agents. Our products serve the
whole world. We have provided LED displays and designs for the Beijing Olympic Games 2008, Shanghai World Expo 2010, Ukrain
Stadium of Euro Cup 2012 , Kuwait Futsal Game of World Cup 2012, Kuwait Football Association in 2014, Albania National Stadium in
2015 and Australian Stadium in 2017. After the Hangzhou Airport Project in 2018, We became the designated supplier of LED display
for BOE Technology Group. In 2019, it becomes a licensed product for teams and artists such as the national e-sports tour, Jay
Chou, Angela Chang, Jason Zhang, Wilber Pan, and Wu Bai. Up to now, it has hundreds of thousands of classic project cases.
At present, LCF has subsidiaries: Anshun Lianshunda Technology Co., Ltd., Dongguan Tongda Chuang Industrial Co., Ltd., LCF (HK)
Technology Co., Ltd., LCF (Egypt) Technology Co., Ltd., LCF (Japan) Technology Co., Ltd., Yingwangsheng (Shenzhen) Capital
Investment Enterprise (Limited Partnership), ShenzhenYuding Investment Consulting Co., Ltd.
Certifications
Our Service
We have an excellent customer service system with well-trained, strong and skilled service team to provide customers with a
comprehensive pre-sales service, product service and after service.Also we are continuously improving upon our level of service
and quality to quickly and effectively meet our customer needs and grarantee their benefits and interests.
Quality Guarantee
Warrant time is 2 years, during this period; we will maintain and replace the defect components for free, if the damage iscaused
by fault operation, you need to pay for cost. After warranty time is over, we will offer you component parts at our bottom cost.
Technical Support
We provide technology training for free, which contains the operation and maintenance training of the LED screens in thefactory.
All operation manual, software, test reports are available. Any associated diagram on how to fix up the display and some other
expert suggestion will be provided. If need, we can send our engineers to your side for instruction, and clients should pay the
cost about engineer’s trip.
Free Training
You can send your engineers to our factory for one week free of charge training, such as: soft operation, installation,adjustment,
basic repairing and so on.
comprehensive pre-sales service, product service and after service.Also we are continuously improving upon our level of service
and quality to quickly and effectively meet our customer needs and grarantee their benefits and interests.
Quality Guarantee
Warrant time is 2 years, during this period; we will maintain and replace the defect components for free, if the damage iscaused
by fault operation, you need to pay for cost. After warranty time is over, we will offer you component parts at our bottom cost.
Technical Support
We provide technology training for free, which contains the operation and maintenance training of the LED screens in thefactory.
All operation manual, software, test reports are available. Any associated diagram on how to fix up the display and some other
expert suggestion will be provided. If need, we can send our engineers to your side for instruction, and clients should pay the
cost about engineer’s trip.
Free Training
You can send your engineers to our factory for one week free of charge training, such as: soft operation, installation,adjustment,
basic repairing and so on.
Our Team
Recommend Products
LTV 2.0 for video conference
P6.944 Outdoor Curtain LED Display
Rental LED screen
FAQ
Q1: What application that the Die-casting aluminum LED Display Suit for?
A1: Sound events,concert events, wedding events,party events...all kinds of indoor and outdoor stage events.
Q2: Does your Rental LED Screen export to any countries before?
A2: Yes, we exported to Malaysia,Australia,Vietnam,Mexico,USA,Italy,Tanzania,Kenya,Nigeria,Singapore,Sri Lanka...All over the world....
Q3: Can it do different shape for the stage setup?
A3: Yes, we here supply straight cabinets, curved angle cabinets, flexible curved cabinets to assemble different shape
More details, please contact Jolie now.
A1: Sound events,concert events, wedding events,party events...all kinds of indoor and outdoor stage events.
Q2: Does your Rental LED Screen export to any countries before?
A2: Yes, we exported to Malaysia,Australia,Vietnam,Mexico,USA,Italy,Tanzania,Kenya,Nigeria,Singapore,Sri Lanka...All over the world....
Q3: Can it do different shape for the stage setup?
A3: Yes, we here supply straight cabinets, curved angle cabinets, flexible curved cabinets to assemble different shape
More details, please contact Jolie now.
