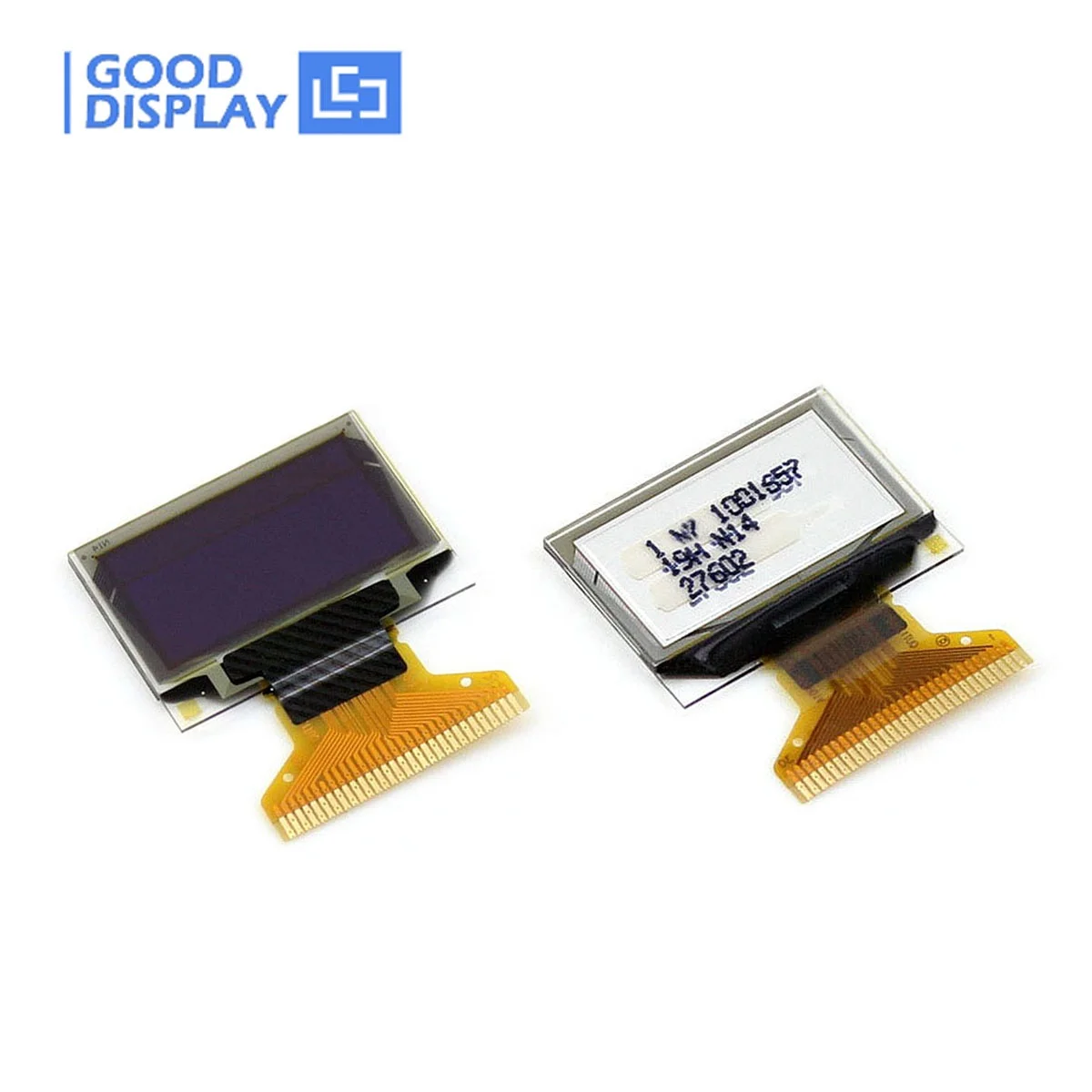

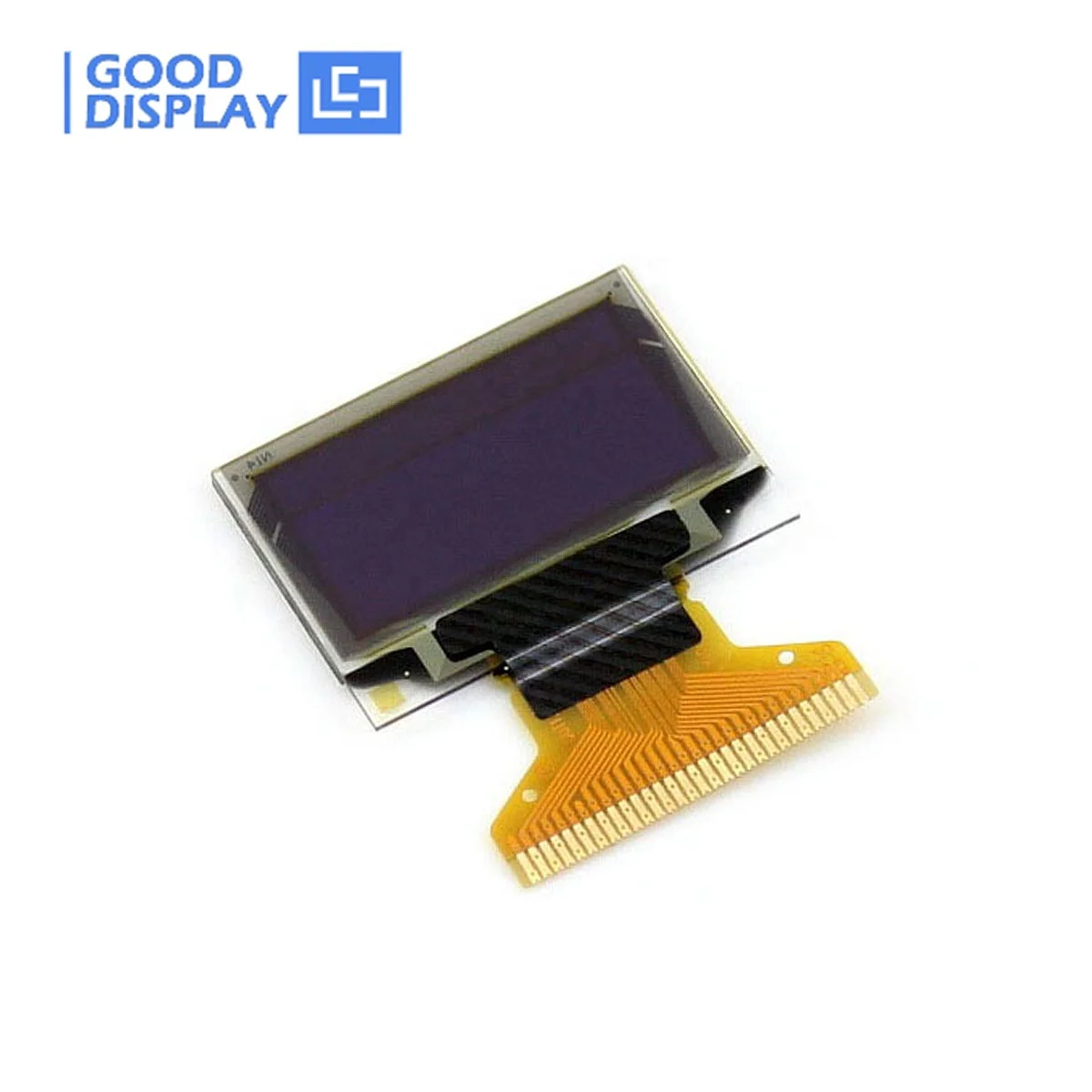

OLED 0.96 inch Mini Display 128X64 White OLED Screen
General Description
GDON0096PGW is the white graphic OLED display made of 128x64 OLED pixels,diagonal is only 0.96 inch.The controller ic SSD1315, communicates via 3-/4-wire SPI, I2C. Because the display makes its own light, no backlight is required. This reduces the power required to run the OLED and is why the display has such high contrast,extremely wide viewing angle and extremely operating temperature.

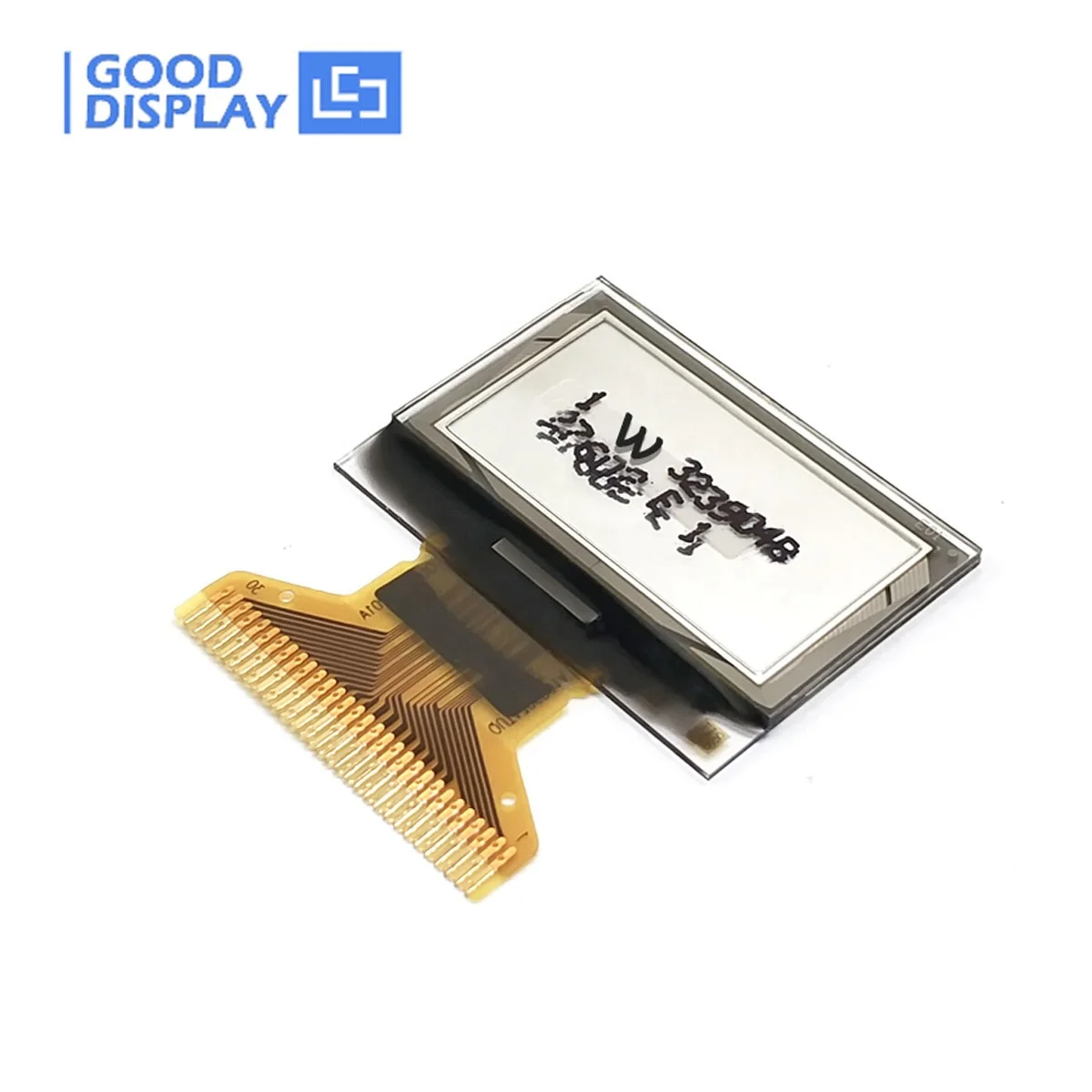

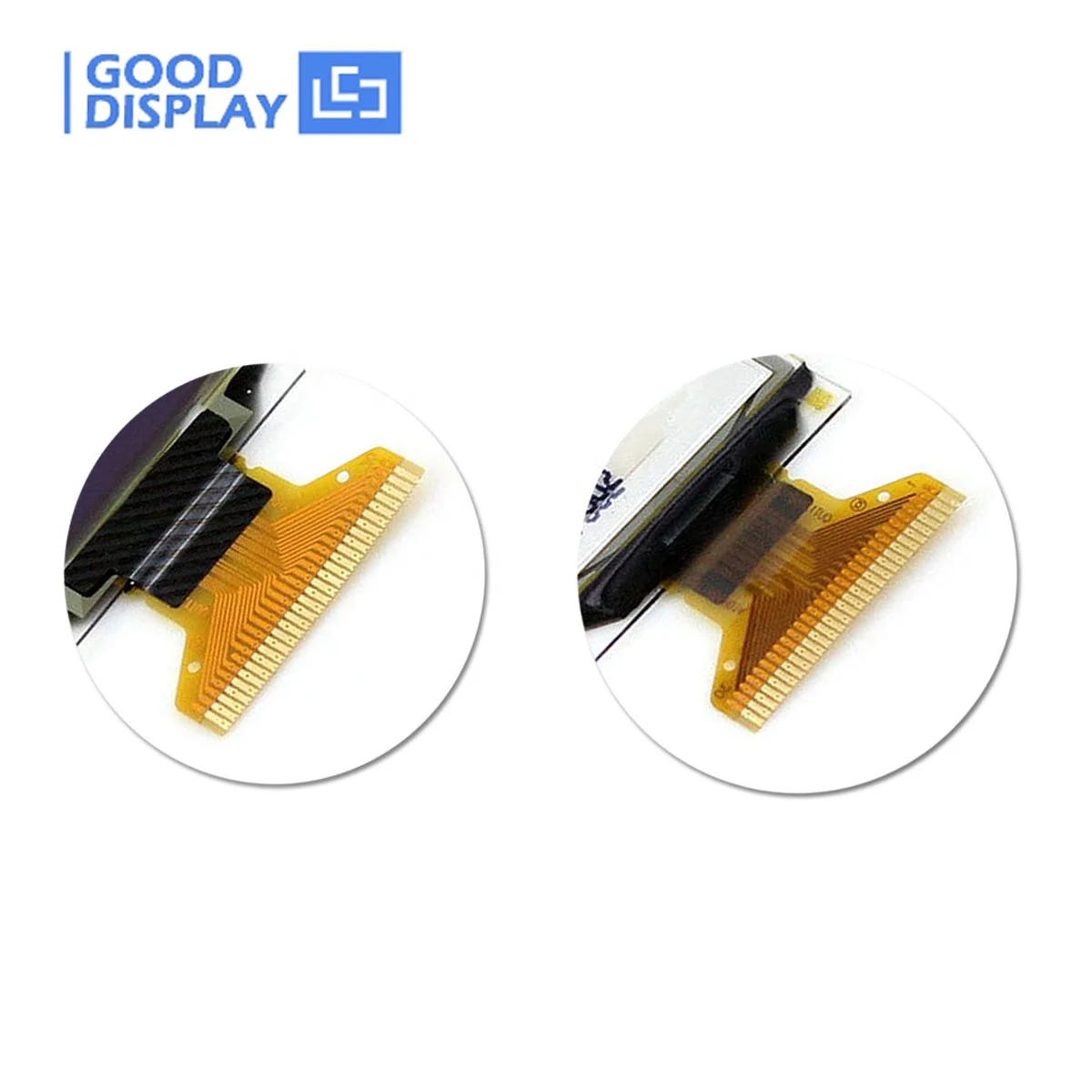

The FPC is the soldering type,no need connector.Just solder the FPC on your PCB directly. It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.
The FPC is the soldering type,no need connector.Just solder the FPC on your PCB directly. It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held device.
Main Parameters
Part Number | GDON0096PGW |
Diagonal Size | 0.96" |
Display Mode | Passive Matrix |
Display Color | White |
Drive Duty | 1/64 Duty |
Number of Pixels | 128x64 |
Interface | 3-/ 4-wire SPI, I2C |
Driver IC | SSD1315 |
Connection | FPC-Soldering |

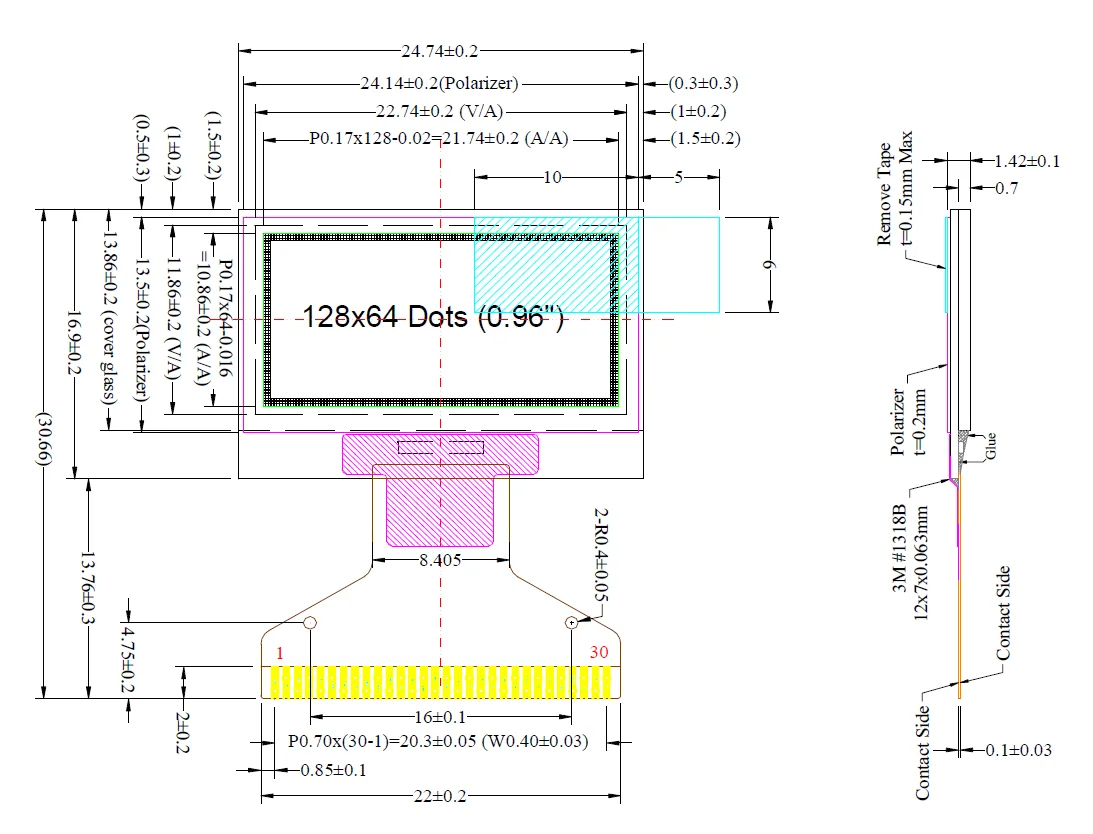

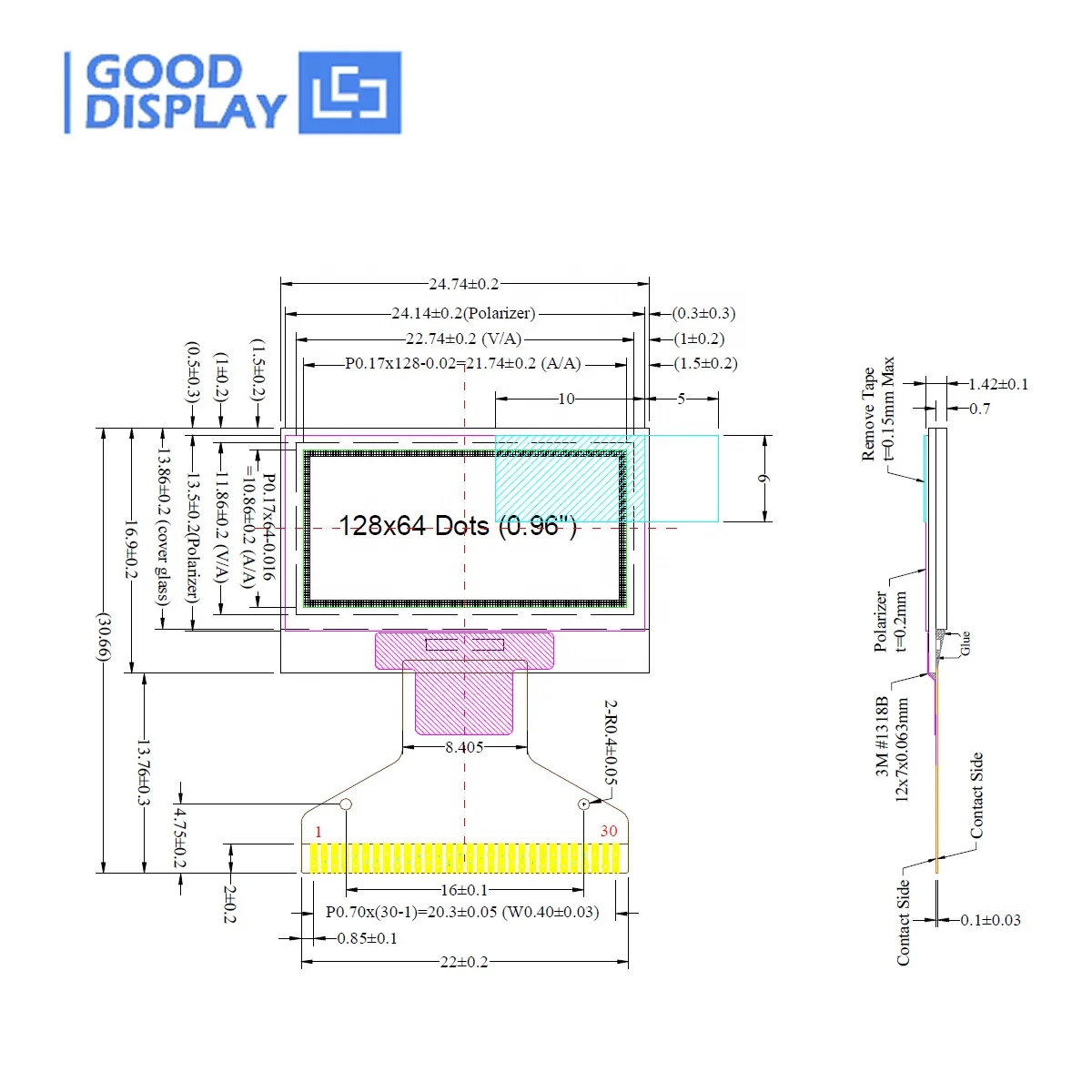

Outlin Dimension | 24.74x16.9x1.42 (mm) |
Active Area | 21.74x10.86 (mm) |
Pixel Pitch | 0.17x0.17 (mm) |
Pixel Size | 0.15x0.15 (mm) |
Brightness(Typ) | 100 cd/m2 |
View Angle | Free |
Power Suppley(Typ) | 3.3V |
Operating Temperature | -40℃~85℃ |
Storage Temperature | -40℃~85℃ |
Particulars
\t\t\t\t\t\t\t\t\tFeatures \t\t\t\t\t\t\t
· It makes its own light, no backlight is required.
· High contrast,extremely wide viewing angle
· It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi
· High contrast,extremely wide viewing angle
· It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi
· Wide operating temperature: -40~85℃
