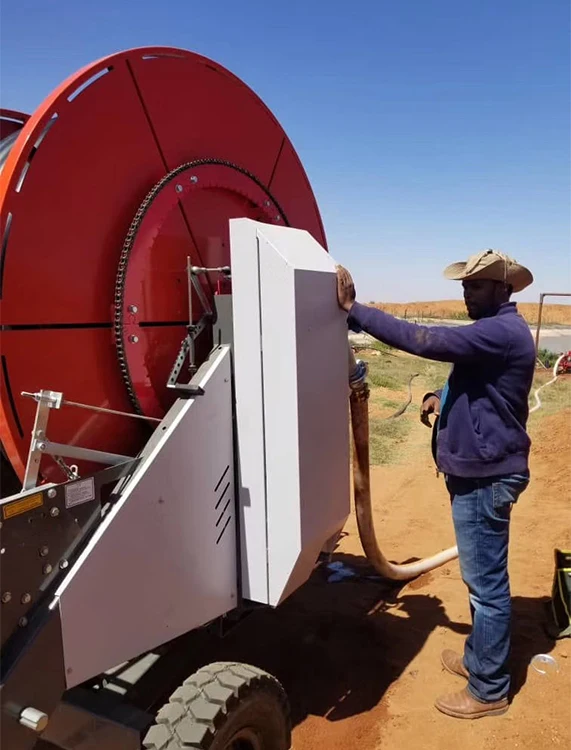

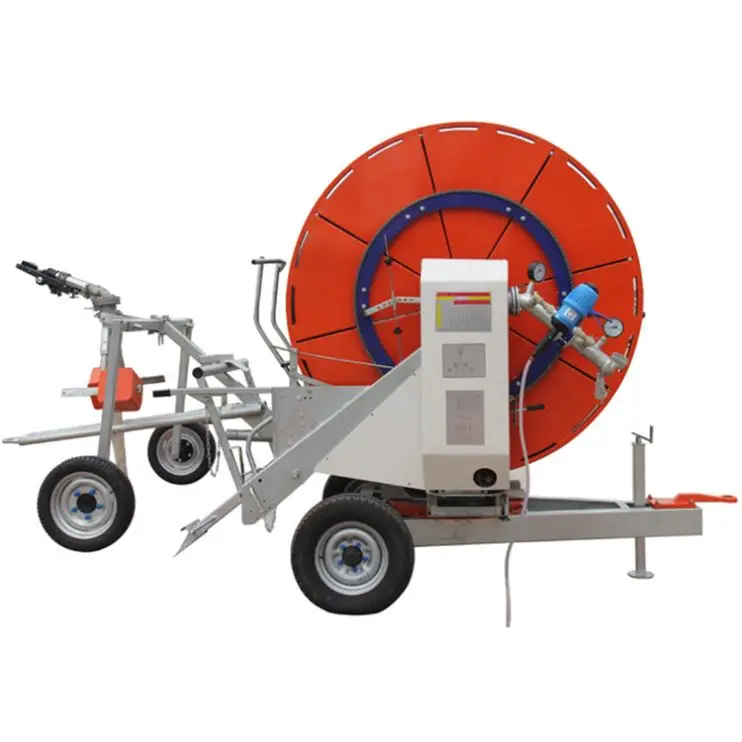

Pictures of the hose reel irrigation machine


Description of sprinklers agriculture irrigation system china center pivot irrigation system
This hose reel irrigation machine is turbine-driven , automatic rewinding and ater saving irrigation equipment .
It can be used in different areas of water saving irrigation project .
This machine can use at least 15 years . PE pipe adopts anti-aging,corrosion imported raw material and qualification is in international leading
Main paramters of sprinklers agriculture irrigation system china center pivot irrigation system
Project/Model | VLTX32 | VLTX40 | VLTX50 | VLTX65 | VLTX75 | VLTX90 | VLTX110 |
PE pipe diameter(mm) | 32 | 40 | 50 | 65 | 75 | 90 | 110 |
PE pipe length(m) | 70-100 | 90-120 | 150-250 | 200-350 | 250-450 | 300-450 | 300-500 |
Nozzle pressure(MPa) | 0.15-0.3 | 0.15-0.3 | 0.2-0.4 | 0.2-0.6 | 0.3-0.6 | 0.4-0.6 | 0.5-0.8 |
Nozzle diameter(mm) | 6-10 | 8-12 | 9-16 | 14-18 | 16-22 | 20-26 | 24-32 |
Flow rate(m³/h) | 3-6 | 5-9 | 5-19.7 | 11-31 | 13-38 | 17-52 | 45-106 |
range(m) | 12-18 | 12-18 | 19-30 | 28-43 | 28-43 | 35-52 | 45-68 |
Sprayer width(m) | 20-30 | 20-30 | 32-51 | 47-74 | 47-74 | 60-90 | 77-116 |
Combination uniformity coefficient(%) | ≥85 | ||||||
Interlayer velocity difference(%) | <20 | ||||||
Precipitation(mm) | 5-30 | 5-30 | 6-44 | 8-50 | 8-50 | 8-50 | 7.3-92 |
Nozzle car track(mm) | 800 | 800 | 1000-1800 | 1300-2800 | 1300-2800 | 1300-2800 | 2000-3000 |
Nozzle height(mm) | 300 | 500 | 600 | 1300 | 1300 | 1300 | 1300-1500 |
Car climbing(%) | 20 | ||||||
Traction height(mm) | / | / | 300 | 300-500 | 300-500 | 300-500 | 300-500 |
Ground clearance(mm) | 200 | 200 | 300 | 300 | 300 | 300 | 300 |
Wheel tire rim Maximum width(mm) | 840 | 1030 | 1580 | 2000 | 2000 | 2310 | 2400 |

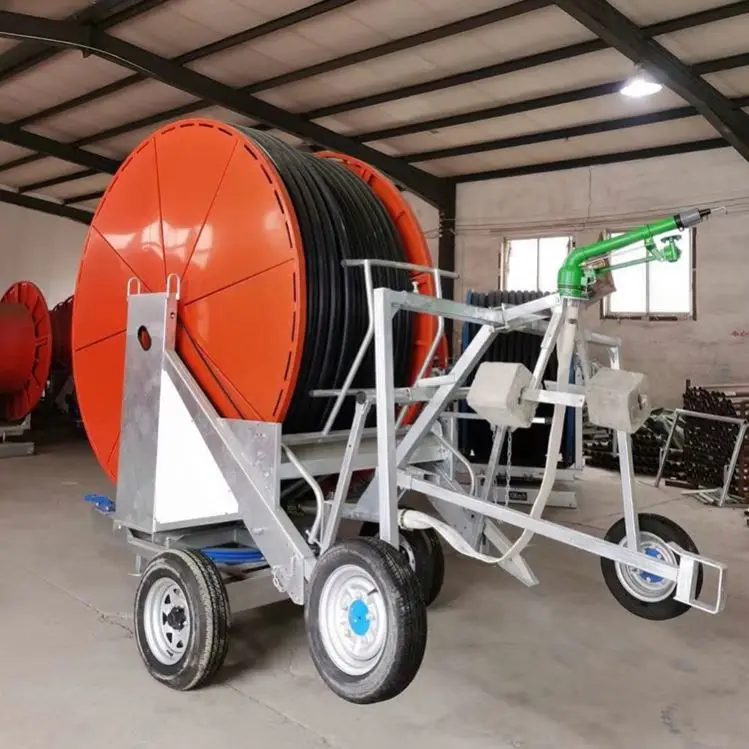

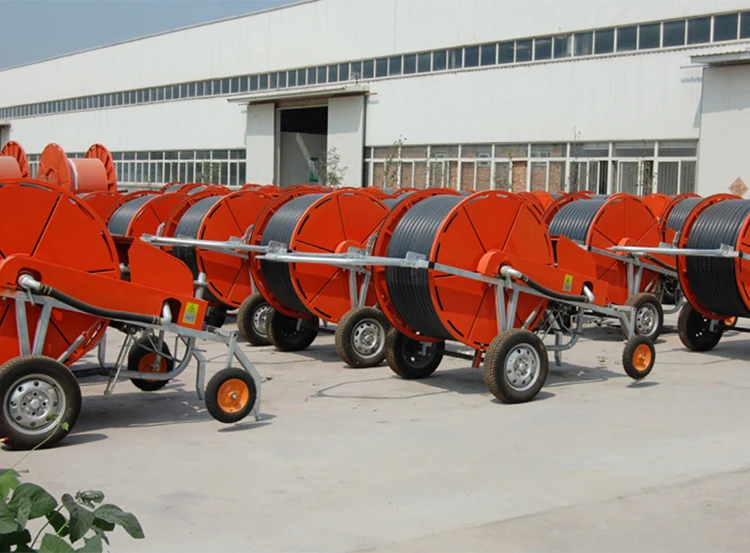

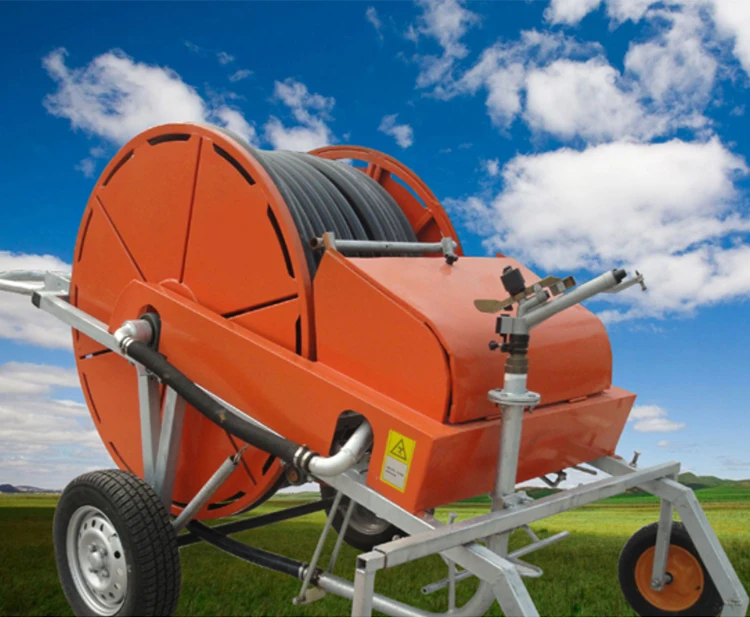

More pictures of sprinklers agriculture irrigation system china center pivot irrigation system










For more details about the irrigation machine , pls contact us freely !
