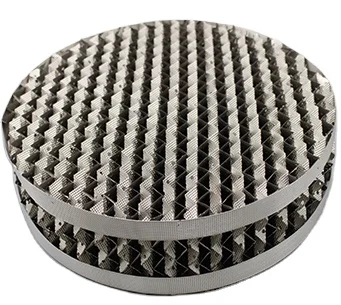

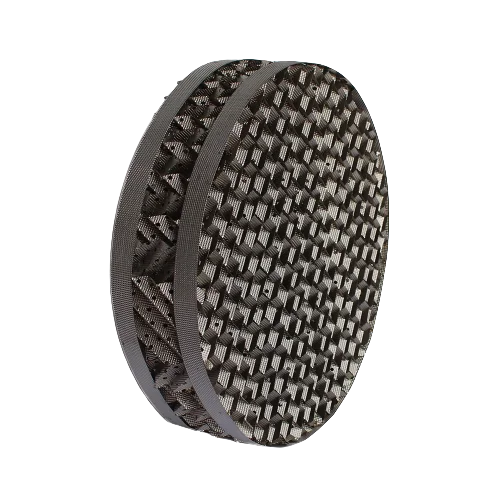

Stainless Steel Metal Perforated Plate Corrugated Packing Structured Packing for Distillation Column
- Category: >>>
- Supplier: Pingxiang Super Packing Mall Co. Ltd.
Share on (1600438531854):
Product Overview
Description
Product Description

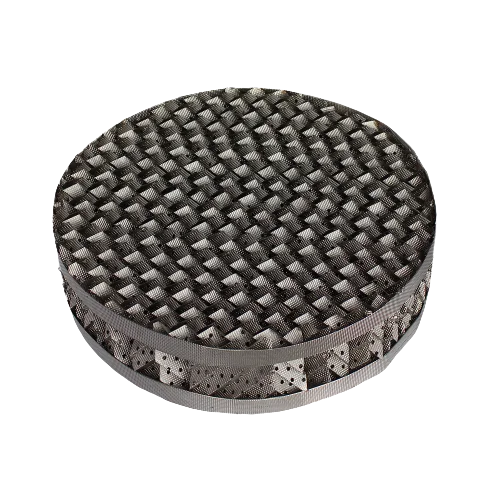

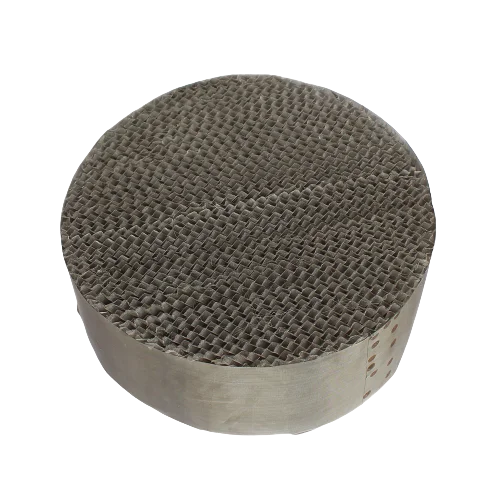

Metal Wire Gauze Structured Packing
Material: Carbon Steel. SS304, 304L, 410, 316, 316L, etc.
Model: 125Y, 250Y, 350Y, 500Y, 125X, 250X, 350X, 500X.
Advantage:The main advantage of metal wire gauze structured packings is that even under very small liquid load, the separation efficiency is very high, the pressure is reduced, and the liquid retention is small, so it is very suitable for distillation of heat sensitive products.
Application:Fine chemical, flavours factory, isomer separation. The separation of thermally sensitive materials, testing tower and the improvement of tower.
Application:Fine chemical, flavours factory, isomer separation. The separation of thermally sensitive materials, testing tower and the improvement of tower.

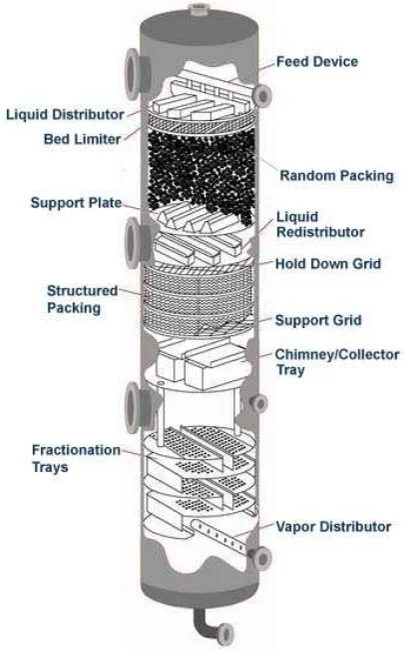

Application
Recommend Products

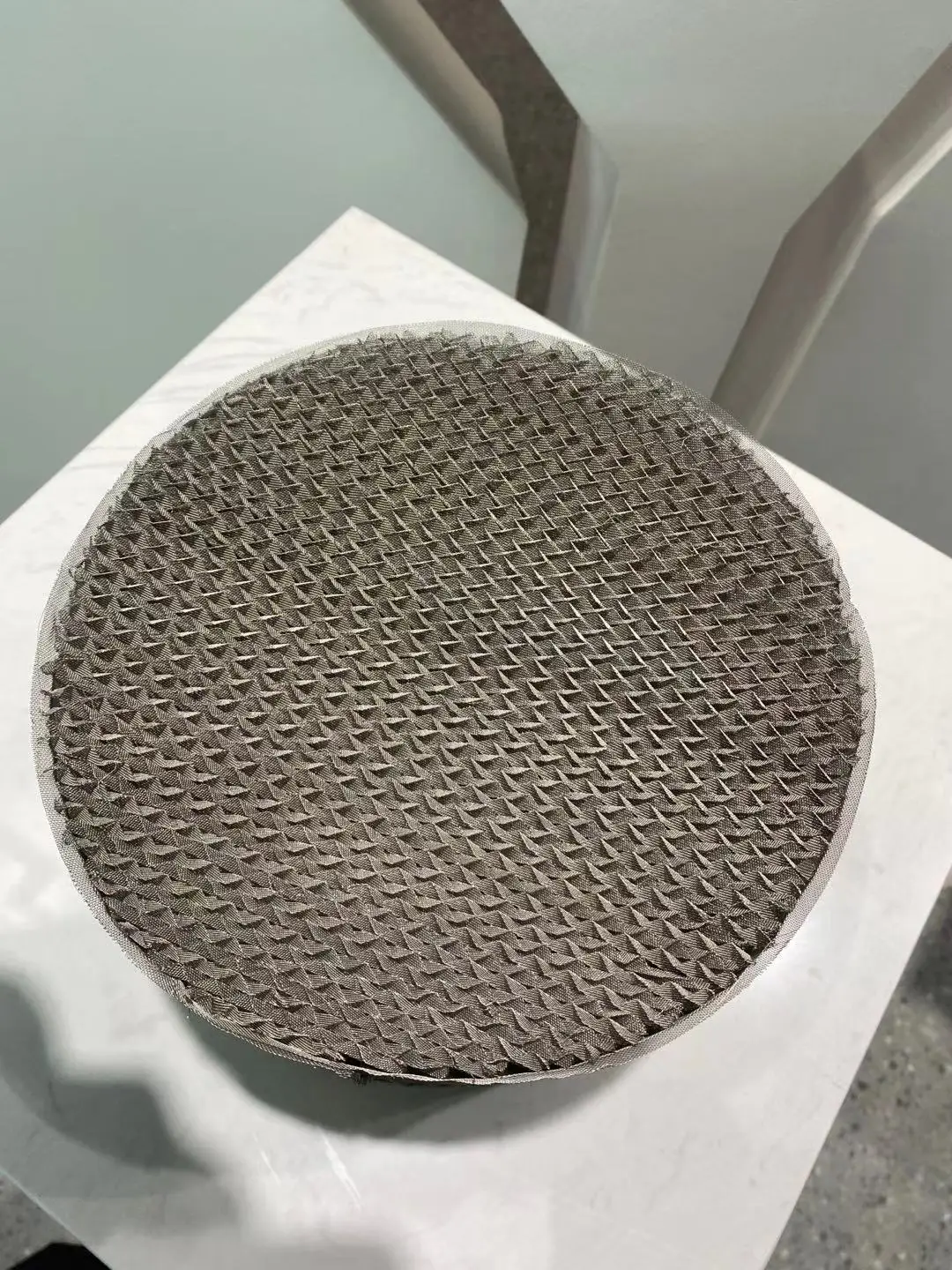

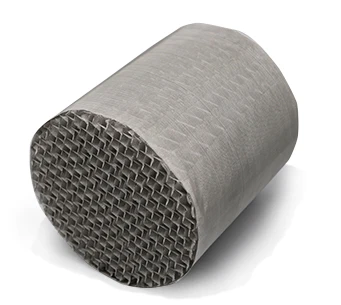

Metal Wire Gauze Structured Packing
Material: SS304, 316L, 410 etc
Model: 250AX, 500BX, 700CY
Specific surface: 250, 500, 700m2/m3
Bulk density: 125, 250, 350kg/m3
Package: wooden box
Model: 250AX, 500BX, 700CY
Specific surface: 250, 500, 700m2/m3
Bulk density: 125, 250, 350kg/m3
Package: wooden box
Material: SS304, 316L, 410 etc
Model: 125Y, 250Y, 350Y,500Y, 125X etc
Specific surface: 125, 250, 350, 500 m2/m3
Package: wooden box
Application: Absorption, scrubbing and stripping
Model: 125Y, 250Y, 350Y,500Y, 125X etc
Specific surface: 125, 250, 350, 500 m2/m3
Package: wooden box
Application: Absorption, scrubbing and stripping

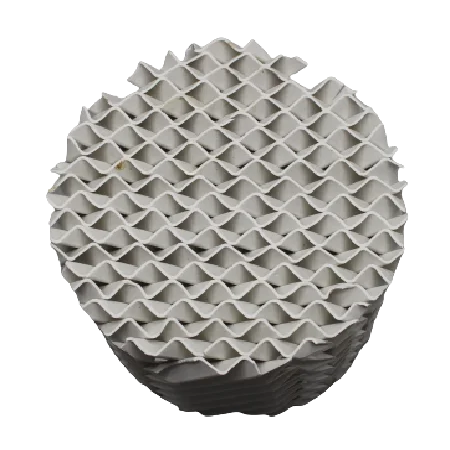

Specification: 125Y, 250Y, 350Y, 450Y etc
Fe2O3 content: Can control 0.3%
Water absorption: <0.5%
Max. Operation Temp.: 800 degree
Mohs hardness: >7
Package: carton box or wooden box
Fe2O3 content: Can control 0.3%
Water absorption: <0.5%
Max. Operation Temp.: 800 degree
Mohs hardness: >7
Package: carton box or wooden box
Specification
Model | Metal Wire Gauze Structured Packing | ||||||||||||
Material | SS 304,304L,410,316,316L,etc. | ||||||||||||
Model | Specific surface (m2/m3) | Bulk density (kg/m3) | Void ratio (%) | Obl （angle） | ΔP (Pa/plate) | Theo. plate (piece/m) | F factor m/s (kg/m3)0.5 | ||||||
250AX | 250 | 125 | 95 | 30 | 100-400 | 2.5~3 | 2.5-3.5 | ||||||
500BX | 500 | 250 | 90 | 30 | 400 | 4~5 | 2.0-2.4 | ||||||
700CY | 700 | 350 | 85 | 45 | 600-700 | 8~10 | 1.5-2.0 | ||||||
Company Profile
Pingxiang Super Packing Mall Co.,Ltd
"Packing mall" is a one-stop chemical packing mall Co.,ltd.All kinds of chemical fillers,molecular sieves, active alumina, catalysts and other products can be purchased online in packing mall. the products have been widely used in the national electric power, petroleum,chemical, metallurgy, environmental protection,pharmaceutical, aerospace, aviation and other industries, and sold overseas. We promote the“Packing-mall”App, and already establishing a warehouse center of 50,000 m2 to serve the mall.

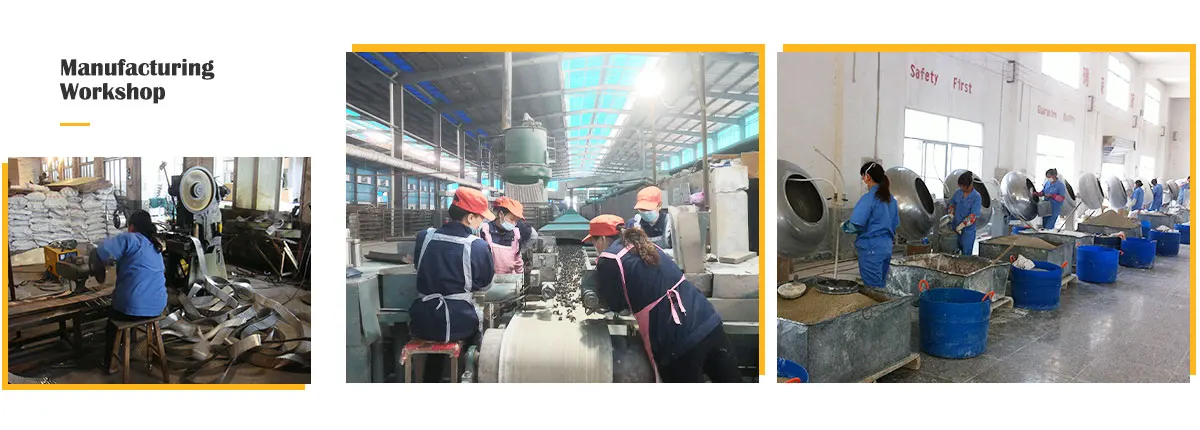

64m2 manufacture square
Samples room
QC room
Professional R&D team
International sales team
Professional technical team
