Paper Processing Machinery Waste Paper Recylce Wood Bamboo Pulping Kraft Corrugated Roll Forming Machines

Product Overview

Description



China Good Quality Carton Recycling Machine Kraft Paper Machine Waste Paper Recycling Equipment

PRODUCTION  PARAMETERS

1. Main product:	Used for making paper bag, packaging paper, kraft paper , corrugated paper etc.
2. Weight of paper:	80~180gsm
3. Machine Form	Double round net double cylinder
4. Capacity:	2-2.5T/D
5. Raw paper width	1092-1150mm
6. Design speed	50m/min
7. Transmission speed	15-40m/min
8. Dynamic balancing speed:	200m/min
9. Roller balance:	G2.5
10. Dryer balance:	G4
11. Winding paper roll:	G1.6
12. Transmission Mode	Ac motor frequency control of motor speed digital distribution transmission
13. Arrangement Mode	Right or left arrangement(selected by the user)
14. Track Gauge	1800mm
15.Large Equipment No.1	Dryer cylinder:Ø1500mm×2

PRODUCTION  DETAILS

 Paper machine is to meet the paper making requirements of the pulp water suspension by the filter dehydration forming, mechanical extrusion dehydration and drying process then making into paper. The use of raw materials are: OCC,bleached wood pulp, bleached straw pulp, bleached straw pulp board, bleached wood pulp board, used books, waste paper edge. It can produce cultural paper, writing paper, A4 paper, fruit packaging paper and so on. The machine with reliable quality, stable performance, easy operation, energy saving and environmental protection, paper making machine is the ideal product in machinery field.

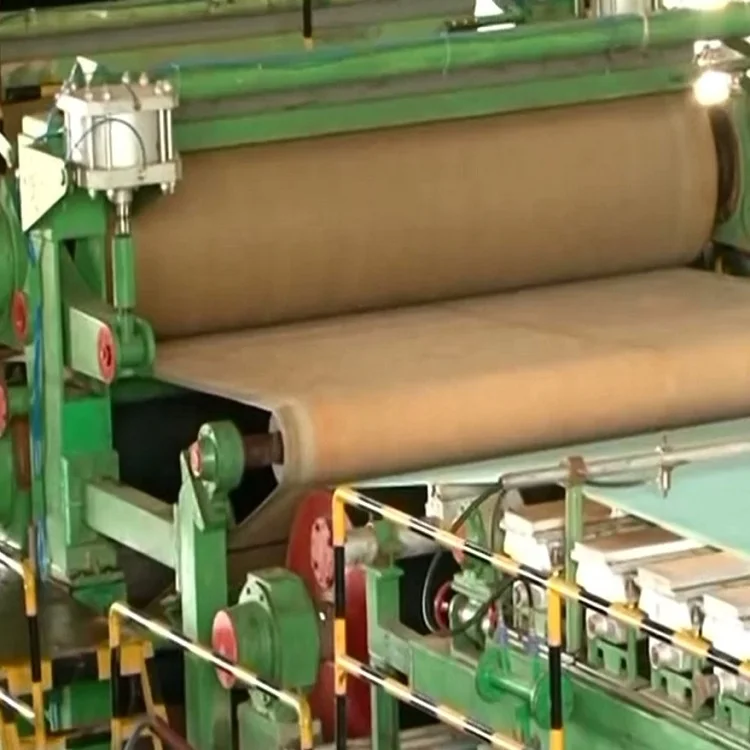

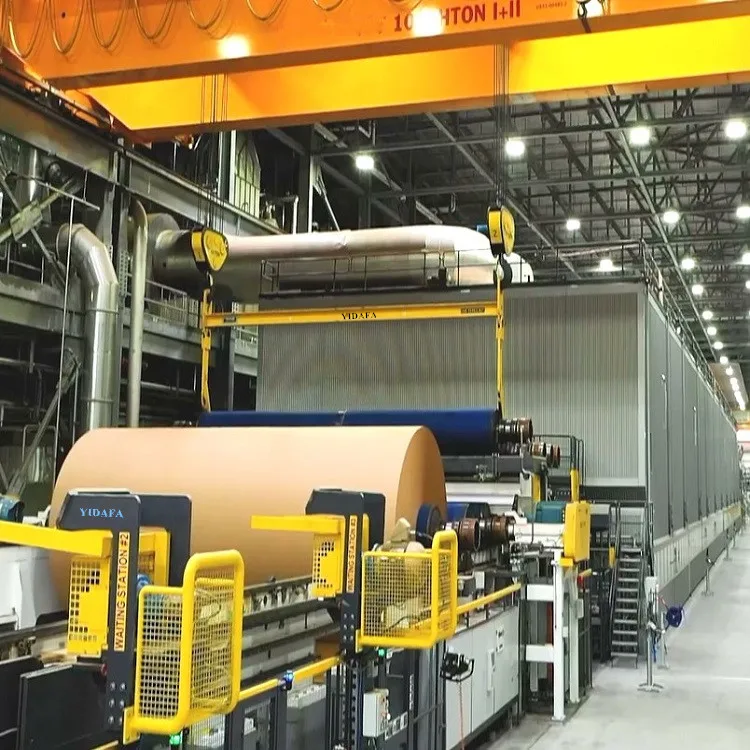

PRODUCTION  SHOW
