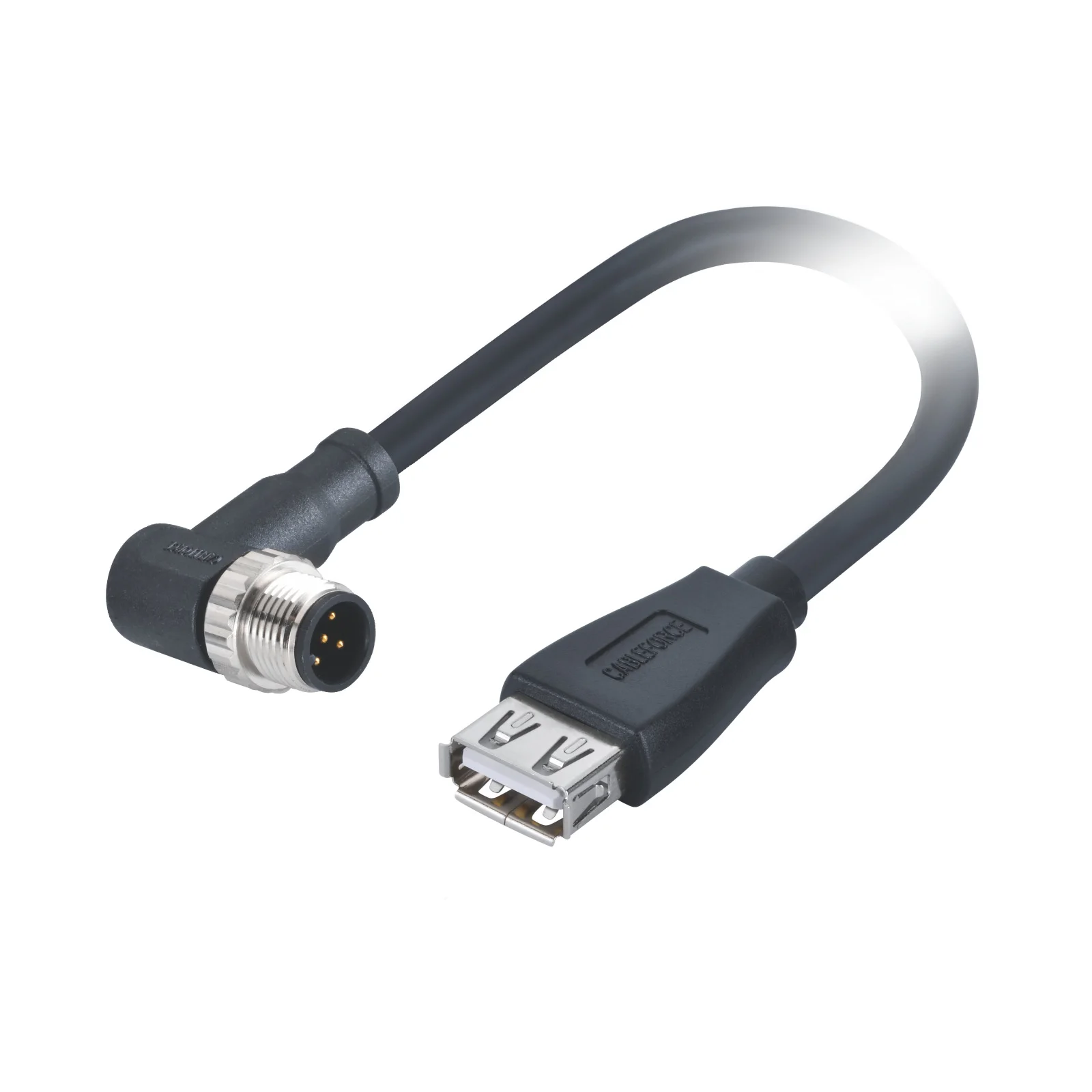

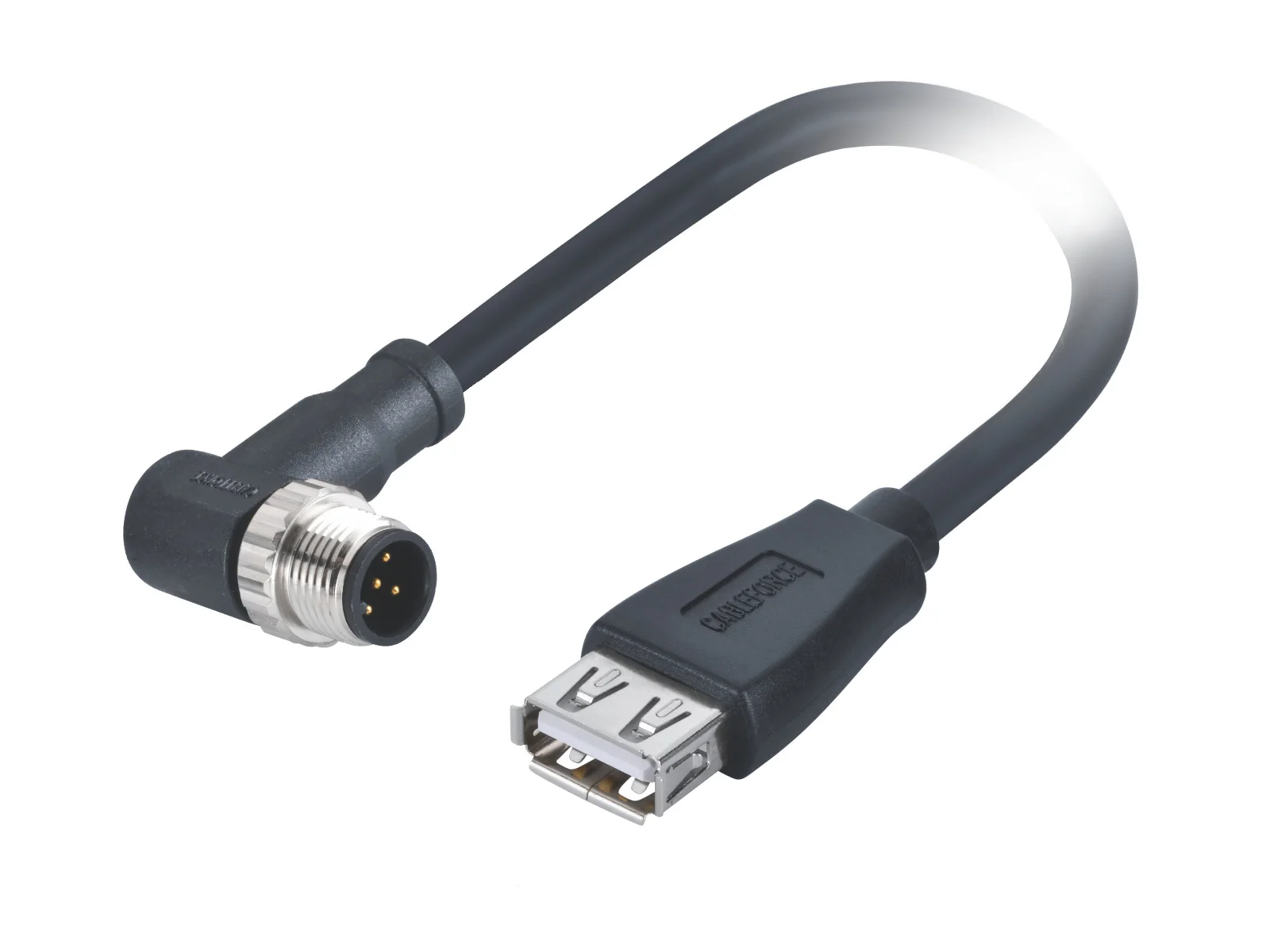

M12 A Code female connector 4 Pin to USB 2.0 male connector molded with 2M PVC AWG 24*2C AWG 28*1P cable
- Category: >>>
- Supplier: Dongguan Cableforce Connector Co. Limited.
Share on (1600438541878):
Product Overview
Description
M12 A Code female connector 4 Pin to USB 2.0 male connector molded with 2M PVC AWG 24*2C+AWG 28*1P cable
Customized cable assemlby with M12 4Pin A-Coding female connector molded with USB cable to USB 2.0 Male Plug, EMI Shielded.
Connector Technical Data | ||||||||||||||||||
Brand | CABLEFORCE | |||||||||||||||||
Product Name | M12 A Code to USB 2.0 connector, molded with cable | |||||||||||||||||
Model Number | MC04C2LSASB-U2C1-24CK20 | |||||||||||||||||
Reference Standard | IEC 61076-2-101 | |||||||||||||||||
Rated Current | 1A | |||||||||||||||||
Rated Voltage | 30V | |||||||||||||||||
Termination | Soldering | |||||||||||||||||
Rated Temperature | -40℃~+75℃ | |||||||||||||||||
Insulation Resistance | ≥100MΩ | |||||||||||||||||
Contact Resistance | ≤10mΩ | |||||||||||||||||
Over-molding | TPU | |||||||||||||||||
Contact Carrier | TPU+GF | |||||||||||||||||
Screw Nut | Brass, CNC, Nickel-plated | |||||||||||||||||
Contact | Male: Brass, Female: Phosphor bronze | |||||||||||||||||
Contact Plating | Au（Gold） | |||||||||||||||||
O-ring | FKM/Silicon O-Ring | |||||||||||||||||
Protection Degree | IP60 | |||||||||||||||||
Pollution Degree | 2 | |||||||||||||||||
