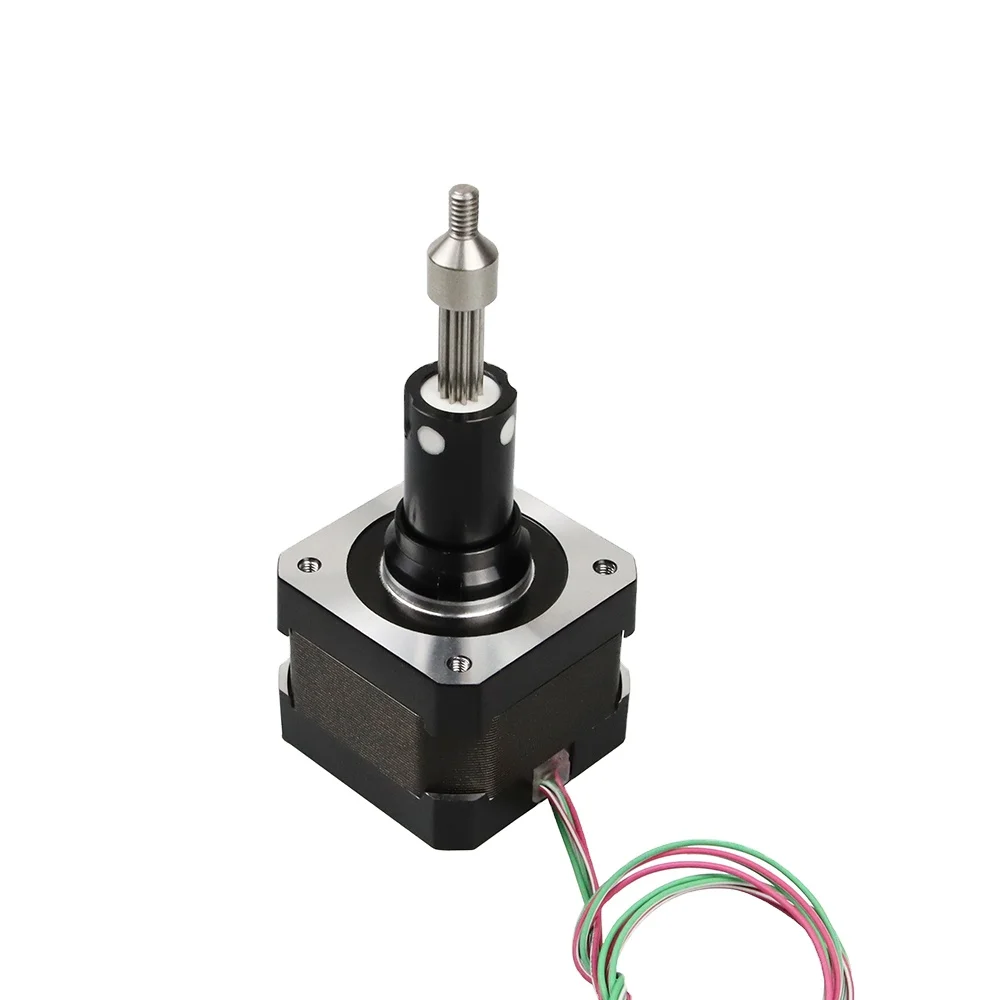

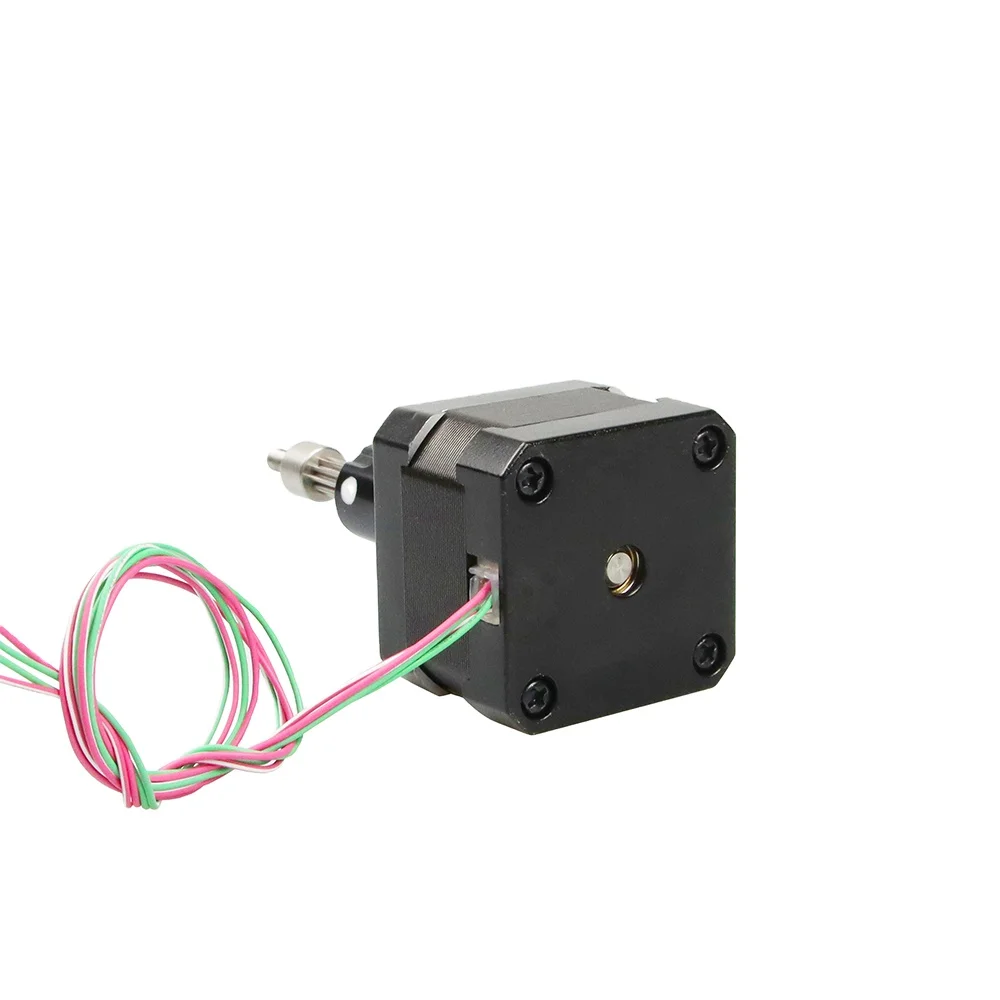

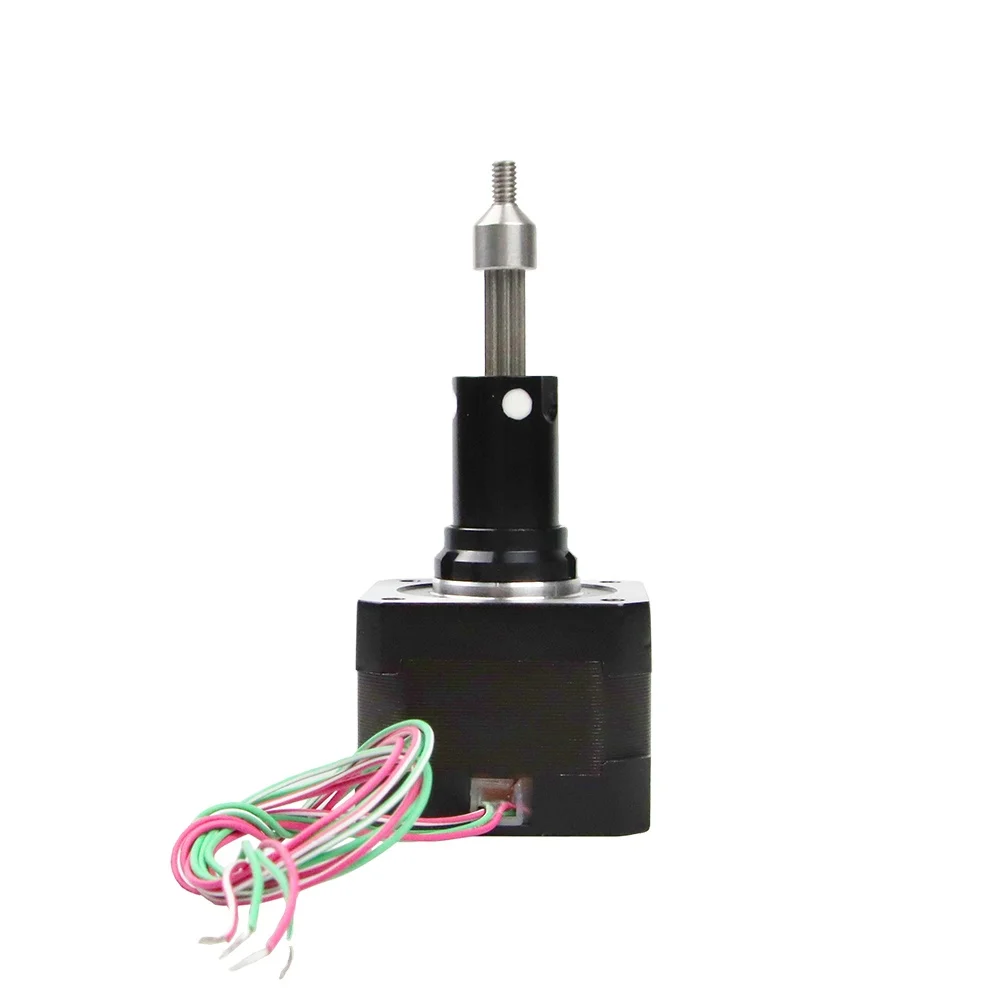

Jkongmotor Micro Captive Linear Actuator NEMA17 lead screw stepper motor
- Category: >>>
- Supplier: Changzhou Jkongmotor Co. Ltd.
Share on (1600438554009):
Product Overview
Description
Product Description
item | value |
Warranty | 3months-1year |
Place of Origin | China |
Brand Name | Jkongmotor |
Model Number | JK42H2A5007K4-22 |
Phase | 2 |
Type | Hybrid |
Current / Phase | 0.7A |
Product Type | Nema 17 Captive Linear Actuators |
Model Name | JK42H2A5007K4-22 |
Phase No | 2 Phase |
Rated Voltage | 5.0V |
Step Angle | 1.8Degree |
Lead Screw Diameter | Φ6.35mm |
Lead Screw Lead | 1.5875mm |
Linear Travel Per Step | 0.0079mm/step |
Resistance | 7.2Ω |
Minimal Thurst /300pps | 10KG |

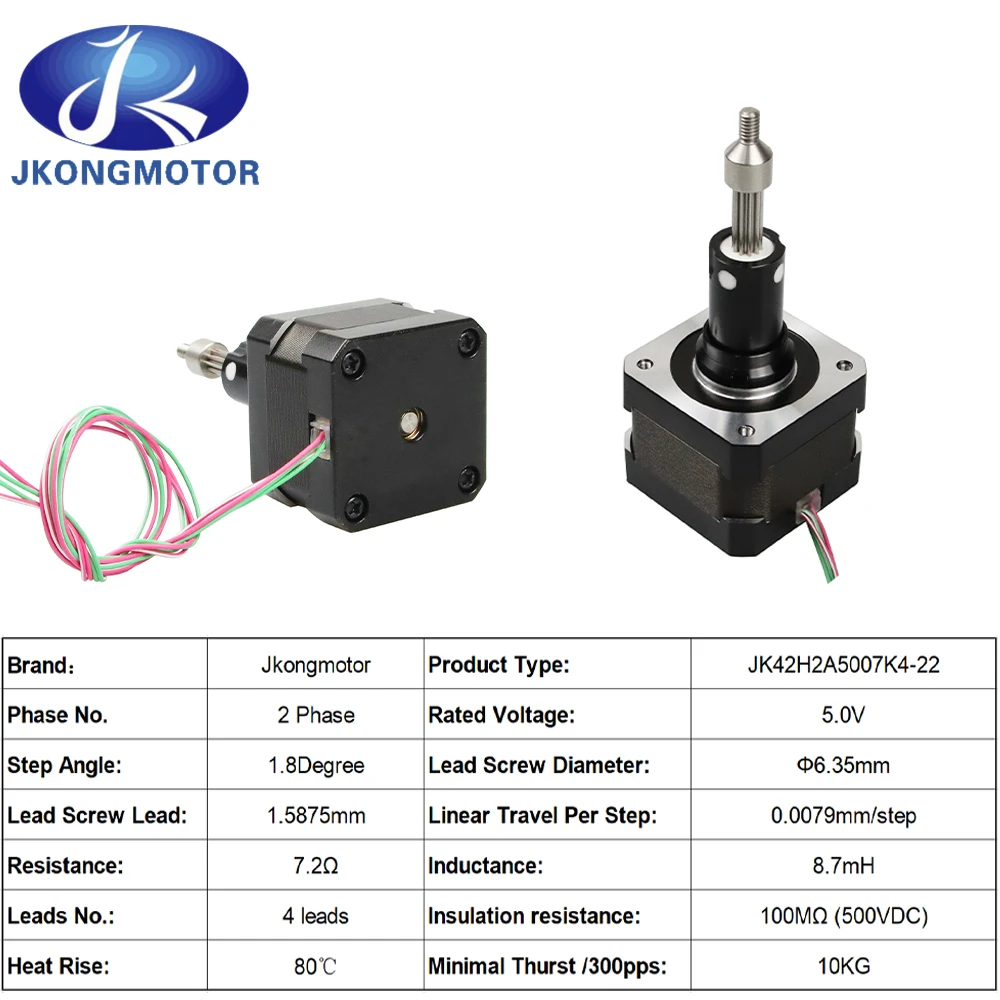

Product Parameters:
Brand：Jkongmotor
Product Type: Nema 17 Captive Linear Actuators
Model Name: JK42H2A5007K4-22
Phase No.: 2 Phase
Step Angle: 1.8Degree
Rated Voltage: 5.0V
Current: 0.7A
Resistance: 7.2Ω
Inductance: 8.7mH
Lead Screw Diameter: Φ6.35mm
Lead Screw Lead: 1.5875mm
Linear Travel Per Step: 0.0079mm/step
Leads No.: 4 leads
Insulation resistance: 100MΩ (500VDC)
Heat Rise: 80℃
Minimal Thurst /300pps: 10KG
Noted: This motor can replace Haydon motors
Product Type: Nema 17 Captive Linear Actuators
Model Name: JK42H2A5007K4-22
Phase No.: 2 Phase
Step Angle: 1.8Degree
Rated Voltage: 5.0V
Current: 0.7A
Resistance: 7.2Ω
Inductance: 8.7mH
Lead Screw Diameter: Φ6.35mm
Lead Screw Lead: 1.5875mm
Linear Travel Per Step: 0.0079mm/step
Leads No.: 4 leads
Insulation resistance: 100MΩ (500VDC)
Heat Rise: 80℃
Minimal Thurst /300pps: 10KG
Noted: This motor can replace Haydon motors
Product Features:
1. It has a threaded drive screwheld mostly inside the motor body which connected to a spline.
2. It has a built in anti-rotation though the use of a spline shaft that allows it to extend and retact as a unit with no requirements for additional anti-rotation.
3. The captive actuator is designed for shorter strokes up to about three inches, the basic design is least tolerant of system misalignment and is the most protective actuator style, beacuse it is self contained. The captive has the longest basic body style.
2. It has a built in anti-rotation though the use of a spline shaft that allows it to extend and retact as a unit with no requirements for additional anti-rotation.
3. The captive actuator is designed for shorter strokes up to about three inches, the basic design is least tolerant of system misalignment and is the most protective actuator style, beacuse it is self contained. The captive has the longest basic body style.
Changzhou Jkongmotor Co., Ltd was a high technology industry zone in changzhou, china. Our products used in many kinds of machines, such as 3d printer CNC machine, medical equipment, weaving printing equipments and so on.
JKONGMOTOR warmly welcome 'OEM' & 'ODM' cooperations and other companies to establish long-term cooperation with us.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
Company spirit of sincere and good reputation, won the recognition and support of the broad masses of customers, at the same time with the domestic and foreign suppliers close community of interests, the company entered the stage of stage of benign development, laying a solid foundation for the strategic goal of realizing only really the sustainable development of the company.
1. Can you make the gearbox or gearmotor with custom specifications?
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2. Do you provide the samples?
YES. Our company can provide the samples to you
3.Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
4. why should you buy from us not from other suppliers?
Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
5. How to ship to us?
We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.
6. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
YES. We have strong R&D capability, also a great term of engineers, each of them have many work years experience.
2. Do you provide the samples?
YES. Our company can provide the samples to you
3.Do you provide technology support?
YES. Our company have strong R&D capability, we can provide technology support if you need.
4. why should you buy from us not from other suppliers?
Professional one-to-one motor customized . The world's large enterprise of choice for high quality suppliers . ISO9001:2008 quality management system certification, through the CE, ROHS certification.
5. How to ship to us?
We will ship the samples to you according to the DHL or UPS or FEDEX etc account you provide.
6. How can I know the product is suitable for me?
Frist, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
