NEKEKE New style High Quality Led Light Bar rocker switch Output Circuit Laser On Off 12V switch
- Category: >>>
- Supplier: Shenzhen Nekeke Industrial Co. Ltd.
Share on (1600438578911):
Product Overview
Description
Specification
High Quality Led Light Bar rocker switch Output Circuit View LED Ligth bar rocker switch.
DC 12/24V LED LIGHT BAR SPST ON-OFF Rocker Switch for Boat,
Car- Ultra-high-end Luxury Switch with LED Indicator Light
DC 12/24V LED LIGHT BAR SPST ON-OFF Rocker Switch for Boat,
Car- Ultra-high-end Luxury Switch with LED Indicator Light
Item | Led Laser rocker switch |
Function | SPST |
Certificate | IP TEST REPORT/CE |
Color | black |
Product type | 5 Pin Rocker Switch |
Material | Nylon 66 flame-rertardant |
Operating Rating | DC12V24V |
Operating voltage range | DC 3-30V |
Switch function | ON-OFF |
Logo | Customzied laser led logo |
Product Keywords | SPST sealed rocker switch,New Rear lights rocker switch & Sealed ROCKER SWITCH / marine rocker switch,New Car Boat Marine LED Rocker Switch Panel & Circuit Breaker / Marine rocker switch |
DC 12/24V LED LIGHT BAR SPST ON-OFF Rocker Switch for Boat, Car- Ultra-high-end luxury switch with LED indicator light.
- CE certified quality, made of environmentally friendly anti-retardant materials.
- 12-24V car universal voltage; suitable for conversion control car people all equipment.

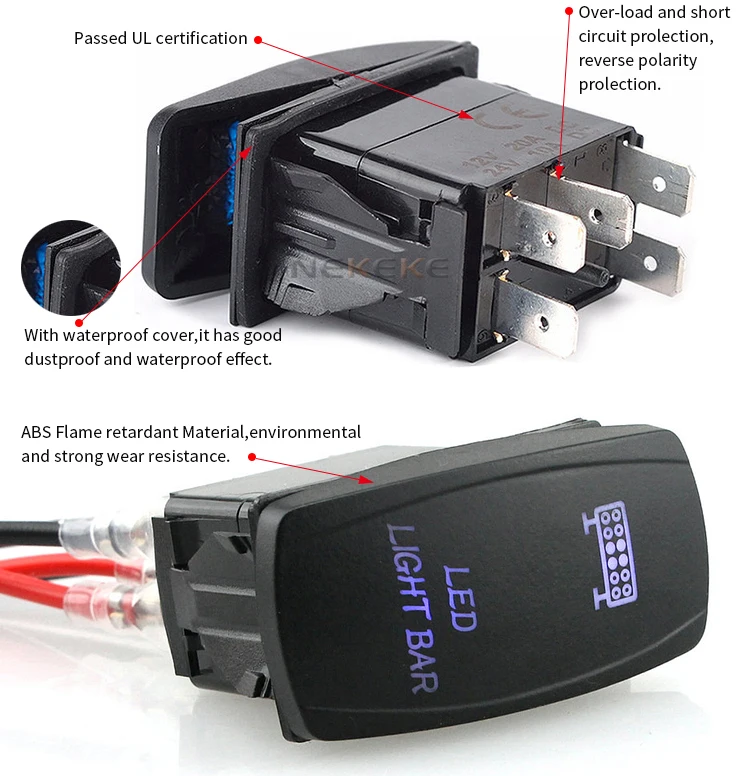

- Output circuit protection, overload protection, reverse polarity protection, multiple protection, safety to use.
- Widely used in automobile, trailer, off-road vehicles, ships, yachts
Which Switch Do I need?
Off-On One-way switch to simply switch on and off, e.g. Spotlamps
Off-Mom Momentary switch which can be used as either a fog switch on the later Defender, or simply as a horn function.
See Wiring Diagram.
On-On Single Pole ON-ON switch for 2-way operation of accessories with their own switched facility.
Off-On-On Three position switch allowing you to wire two auxiliary circuits through one switch.
Typical application would be for controlling two pairs of spotlamps or two electric fans via the one switch.
Click switch once to activate circuit one; click again to activate circuits one and two.
On-Off-On This alternative three position switch allows you to wire two auxiliary circuits through the one switch.
This switch operates where circuits one or two are activated completely independently from one another.
This switch will replace the standard switch supplied with the popular Exmoor Trim/Waeco heated seat kits
Mom-Off-Mom Momentary spring loaded 2-way rocker switch.
Use the DP switch wiring when using the momentary switch as an electric window control.
Use the SP switch wiring when using the momentary switch as a winch control.
- CE certified quality, made of environmentally friendly anti-retardant materials.
- 12-24V car universal voltage; suitable for conversion control car people all equipment.
- Output circuit protection, overload protection, reverse polarity protection, multiple protection, safety to use.
- Widely used in automobile, trailer, off-road vehicles, ships, yachts
Which Switch Do I need?
Off-On One-way switch to simply switch on and off, e.g. Spotlamps
Off-Mom Momentary switch which can be used as either a fog switch on the later Defender, or simply as a horn function.
See Wiring Diagram.
On-On Single Pole ON-ON switch for 2-way operation of accessories with their own switched facility.
Off-On-On Three position switch allowing you to wire two auxiliary circuits through one switch.
Typical application would be for controlling two pairs of spotlamps or two electric fans via the one switch.
Click switch once to activate circuit one; click again to activate circuits one and two.
On-Off-On This alternative three position switch allows you to wire two auxiliary circuits through the one switch.
This switch operates where circuits one or two are activated completely independently from one another.
This switch will replace the standard switch supplied with the popular Exmoor Trim/Waeco heated seat kits
Mom-Off-Mom Momentary spring loaded 2-way rocker switch.
Use the DP switch wiring when using the momentary switch as an electric window control.
Use the SP switch wiring when using the momentary switch as a winch control.
