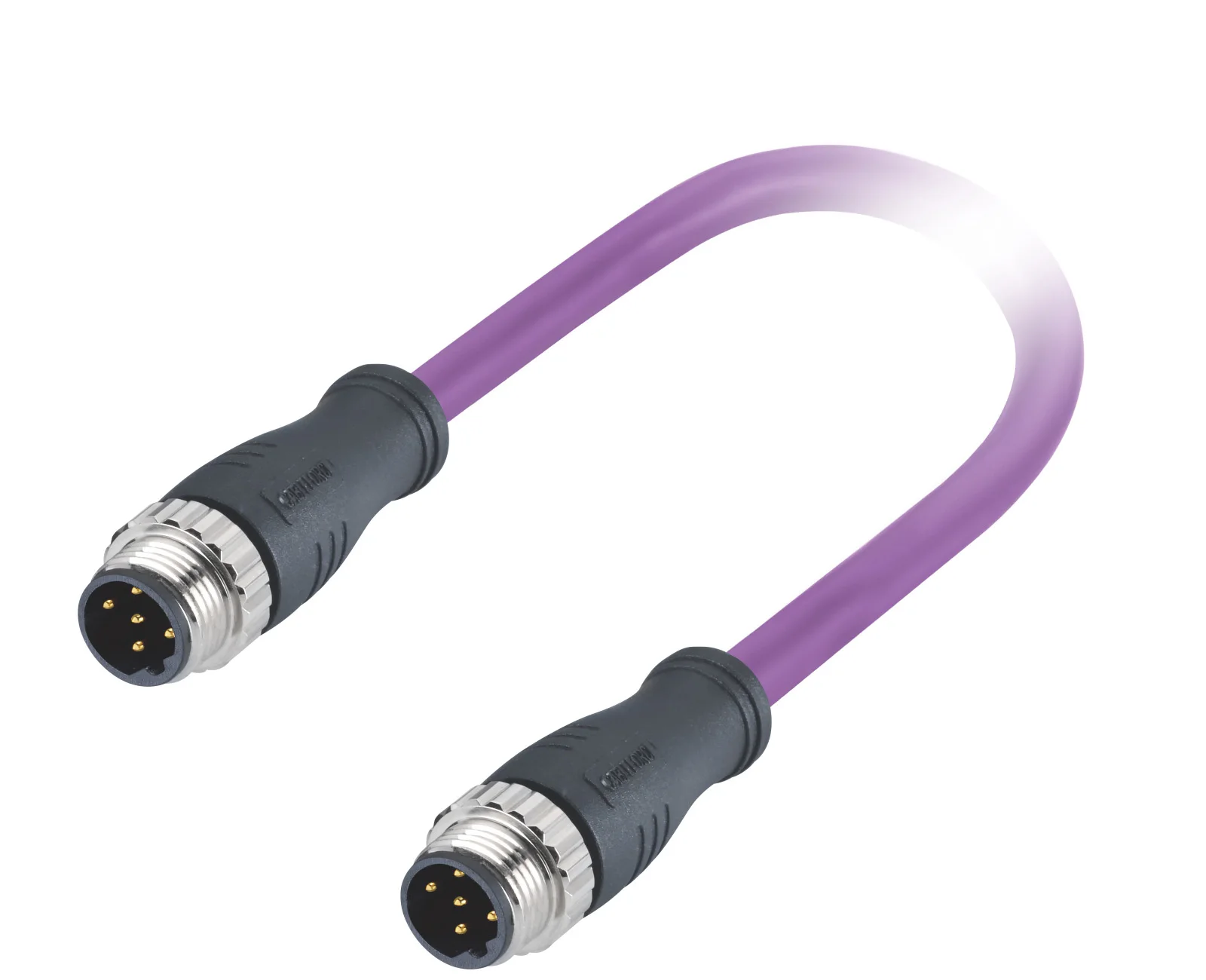

M12 B Code male to male connector 5 Pin molded 2M purple Profibus DP Shielded cable
- Category: >>>
- Supplier: Dongguan Cableforce Connector Co. Limited.
Share on (1600438611574):
Product Overview
Description
M12 B Code male to male connector 5 Pin molded 2M purple Profibus DP Shielded cable

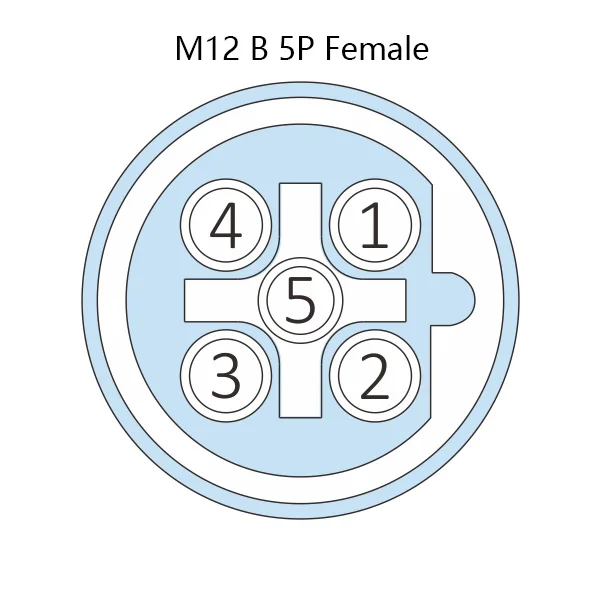

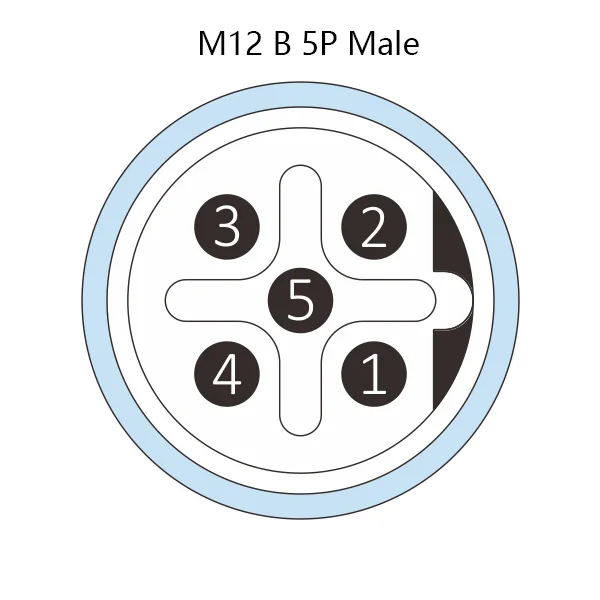

M12 Pre-molded (PUR/PVC) cable connectors with 12mm thread locking mechanism, rated IP67 protection degree, the B-Coding 5 poles contacts configuration with 360°EMC shielding design. Compliant with IEC 61076-2-101 and mainly designed for Fieldbus signal transmission, provide quick connection between the field Devices and cables. CABLEFORCE offers ether singled ended cable or double ended cables which are ready for plug-in use.
Connector Technical Data | ||||||||||||||||||
Brand | CABLEFORCE | |||||||||||||||||

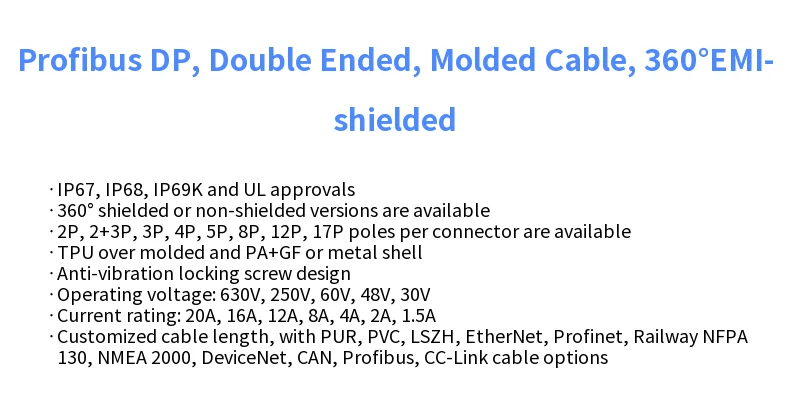

Product Name | Profibus DP, double ended, molded cable, 360° EMI-shielded | |||||||||||||||||
Model Number | MC05C5LSBSB22CV20-PFB | |||||||||||||||||
Reference Standard | IEC 61076-2-101 | |||||||||||||||||
Rated Current | 4A | |||||||||||||||||
Rated Voltage | 60V | |||||||||||||||||
Termination | Soldering | |||||||||||||||||
Rated Temperature | -40℃~+75℃ | |||||||||||||||||
Insulation Resistance | ≥100MΩ | |||||||||||||||||
Contact Resistance | ≤10mΩ | |||||||||||||||||
Characteristic Impedance | 150Ω ±15 | |||||||||||||||||
Over-molding | TPU | |||||||||||||||||
Contact Carrier | TPU+GF | |||||||||||||||||
Screw Nut | Brass, CNC, Nickel-plated | |||||||||||||||||
Contact | Male: Brass, Female: Phosphor bronze | |||||||||||||||||
Contact Plating | Au（Gold） | |||||||||||||||||
O-ring | FKM/Silicon O-Ring | |||||||||||||||||
Protection Degree | IP67, IP68 | |||||||||||||||||
Pollution Degree | 3 | |||||||||||||||||
