ES3035E 10KV Digital Megohmmeter Voltage Tester Ohm Meter Insulation Resistance Tester FUZRR
ES3035E 10KV Digital Megohmmeter Voltage Tester Ohm Meter Insulation Resistance Tester FUZRR
ES3035E 10KV Digital Megohmmeter Voltage Tester Ohm Meter Insulation Resistance Tester FUZRR
ES3035E 10KV Digital Megohmmeter Voltage Tester Ohm Meter Insulation Resistance Tester FUZRR
ES3035E 10KV Digital Megohmmeter Voltage Tester Ohm Meter Insulation Resistance Tester FUZRR
ES3035E 10KV Digital Megohmmeter Voltage Tester Ohm Meter Insulation Resistance Tester FUZRR

ES3035E 10KV Digital Megohmmeter Voltage Tester Ohm Meter Insulation Resistance Tester FUZRR

Share on (1600438626974):


Price:$315.00 - $385.00

Quantity:


Product Overview

Description



product description


Function
Insulation resistance test, voltage test
Base conditions
23°C±5°C，below 75%rh
Rated voltage(V)
250；500；1000；2500；5000V；10KV
Test Voltage(V)
rated voltage×（1±10%）
Insulation Resistance Range（GΩ）
0.01MΩ～2000GΩ
Resolution：0.01MΩ
DC Voltage Range
0～1000V
Resolution：0.1V
AC Voltage Range
0～750V
Resolution：0.1V
Output short-circuit Current
≥5mA(10KV)
Absorption Ratio and Polarization Index Measurement
Have
Power Supply
12.6V rechargeable battery
Backlight
Controllable gray screen backlight, suitable for use in dim places
Dispaly mode
4-bit large LCD display, gray screen backlight
LCD display size
108mm×65mm

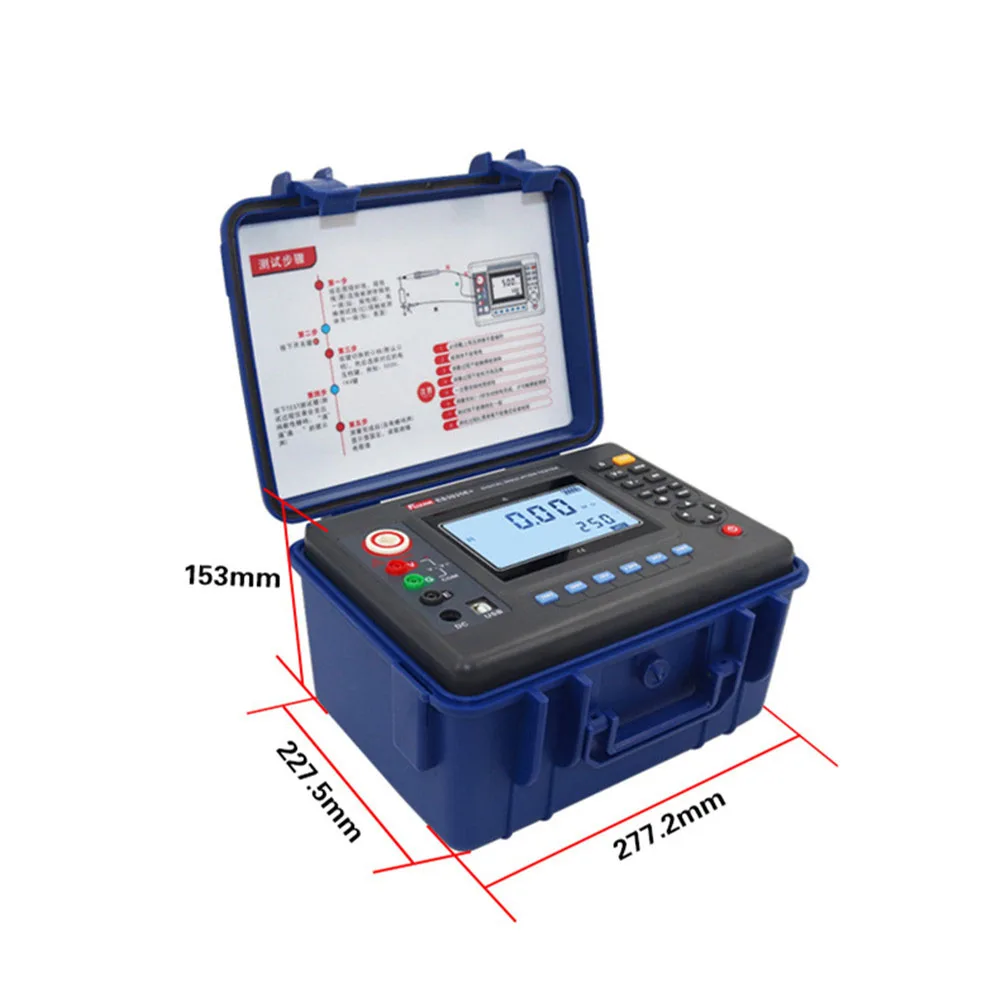

Instrument size
L/W/H：277.2mm×227.5mm×153mm
USB interface
With USB interface, software monitoring, storage data can be uploaded to the computer, save the print

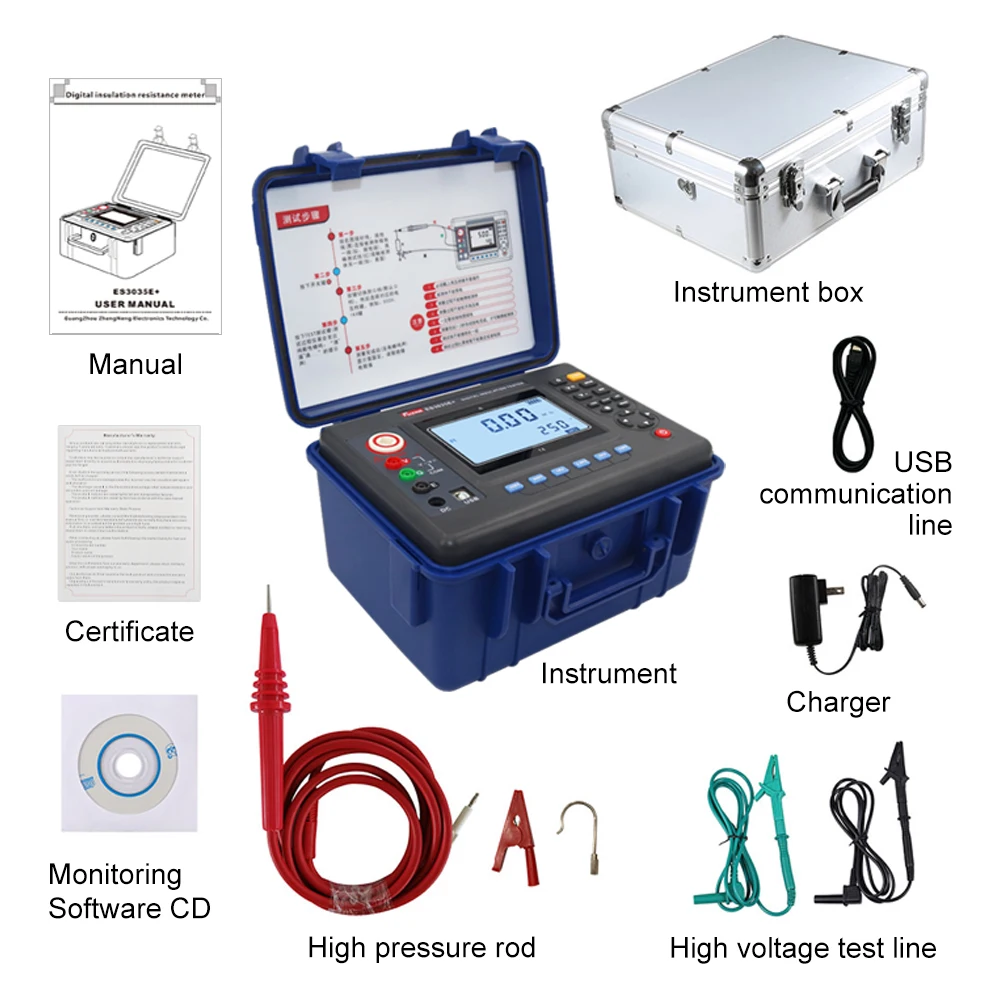

Communication Line
USB communication line 1PC
Test Line
High voltage rob red 3meter, high voltage test line black 1.5meter, green 1.5meter
Data Storage
500 groups, "FULL" symbol indicates that storage is full
Data Review
Data review function: "MR" symbol display
Overflow Display
Exceed measurement range overflow function: “OL ” symbol display
Alarm Function
Alarm when the measured value smaller than the alarm setting value
Power Consumption
Standby: 30mA Max(backlight off), turn on backlight: 42mA Max, measure：300mA Max(backlight off)
Instrument weight
2750g(including battery)
Battery voltage
When the battery voltage is low, low battery symbol “ ”will display
Automatic shut-down
automatic shutdown after 15 minutes boot
Insulation Resistance
≥50MΩ(between Measuring line and housing)
voltage withstand
AC3kV/50Hz 1min
Working Temperature and Humidity
－10℃～+50℃＜85%RH
Storage Temperature and Humidity
－15℃～+55℃＜90%RH
Suitable for Safety Regulations
IEC61010-1、IEC1010-2-31、IEC61557-1,5、IEC60529(IP54) pollution grade 2、CAT Ⅲ 300V
