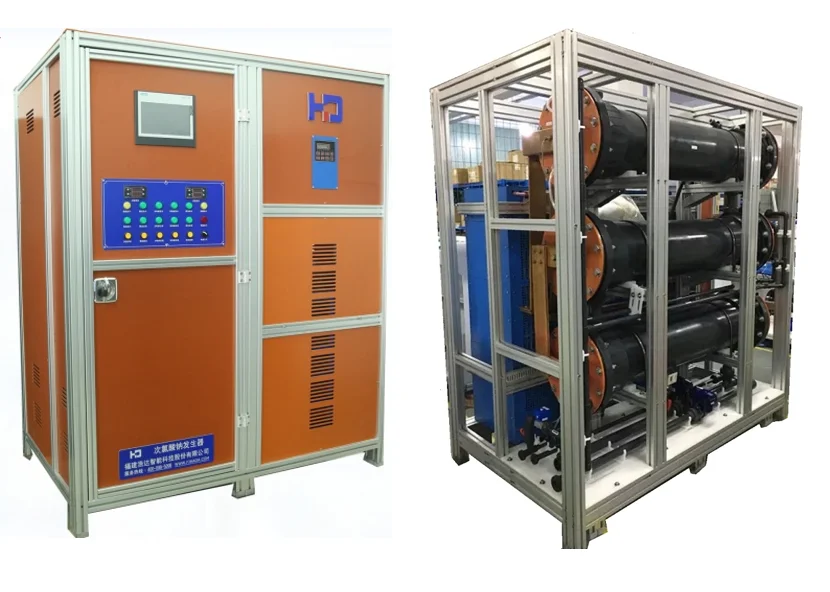

HD 6K Industrial Electrolysis caustic soda lye chemical solution On site Chlorinator Generation System sterilization equipment
- Category: >>>
- Supplier: Fujian Hada Intelligence Technology Co. Ltd.
Share on (1600438633831):
Product Overview
Description
Our Company
Fujian Hada Intelligence Technology Co., Ltd.
Fujian HADA Intelligence Technology Co.,Ltd. established in 2005 with registered capital 5.97 million USD and was listed in New OTC Market (Stock code:871727) in August, 2017. Fujian HADA, whose core product is high-efficiency and energy-saving sodium hypochlorite generator, adheres to independent intellectual property rights, and insists on mastering core technologies and applications based on the research and application of the most advanced nanocrystalline titanium anode technology. It is a private high-tech enterprise integrating the design, manufacture, construction and operation of water-related environmental protection equipment with comprehensive strength and high reputation.
Hada's founders were famous research professor in National Research Institues of rare metal, which make our electrolytic cell almos the best in China, HADA has obtained more than 30 technical patents.and as its great demand on water treatment industry, it turns many our competitors into our customers.We involed in drinking water treatment,waste water treatment ,industrial water treatment projects etc.
But we always keeping the best for ourselves and install in the machine, and we never stop processing, seeing is believing, welcome to visit us.
Product Introduction
Electroplating chemical equipment for water treatment
Process & Operation:
1). Salt will be dissolved in the tank and become saturated brine (25%);
2). Diluted into 3% after filtered ( If use sea water as raw material, it will be treated before electrolysis);
3). Electrolysis in the host machine;
4). The final product- Sodium hypochlorite liquid (5000ppm) in the storage tank;
5). The sodium hypochlorite solution will be injected into the pipe by metering pump;
6). Residual chlorine detective will monitoring the residual chlorine and return feedback to PLC center;
7). PLC center will adjust the speed of dosing pump according to the preset standard.
Product Parameters
Model | Available chlorine (Kg/h) | Salt Consumption (Kg/h) | DC Consumption (W/h) | Overall Dimension L*B*H (mm) |
HD-1K-NACLO | 1 | 3.85 | 4.6 | 980*780*1780 |
HD-1.5K-NACLO | 1.5 | 5.775 | 6.9 | 980*780*1780 |
HD-2K-NACLO | 2 | 7.7 | 9.2 | 980*780*1780 |
HD-3K-NACLO | 3 | 11.55 | 13.8 | 2240*1205*1905 |
HD-4K-NACLO | 4 | 15.4 | 18.4 | 2240*1205*1905 |
HD-5K-NACLO | 5 | 19.25 | 23 | 2240*1205*1905 |
HD-6K-NACLO | 6 | 23.1 | 27.6 | 2240*1205*1905 |
HD-7K-NACLO | 7 | 26.95 | 32.2 | 2240*1205*1905 |
HD-8K-NACLO | 8 | 30.8 | 36.8 | 2240*1205*1905 |
HD-9K-NACLO | 9 | 34.65 | 41.4 | 2240*1205*1905 |
HD-10K-NACLO | 10 | 38.5 | 46 | 2240*1205*1905 |
HD-11K-NACLO | 11 | 42.35 | 50.6 | 2240*1205*1905 |
HD-12K-NACLO | 12 | 46.2 | 55.2 | 2240*1205*1905 |
HD-13K-NACLO | 13 | 50.05 | 59.8 | 2240*1205*1905 |
HD-14K-NACLO | 14 | 53.9 | 64.4 | 2240*1205*1905 |
HD-15K-NACLO | 15 | 57.75 | 69 | 2240*1205*1905 |
Product Details Show
Siemens LCD touch screen:
All running status are shown clearly and all parameters can be adjusted directly by the touch screen.
Electrolytic Cell:
Raw material: Titanium electrode, UPVC shell
Brand: Hada
Guarantee: 5 years
Features:
3mm pure titanium electrode, 25 times coating (secret recipe with ruthenium and irridium), 20um coating thickness, and patented structure design makes it a perfect balance between life and efficiency.
Electrolysis power supply:
(HIGH FREQUENCY CONSTANT CURRENT)
High-frequency, stablility and constant current power specialized for ship-leveled electrolytic power;
Protection: antiseptic, moisture-proof, dust-proof, under/over voltage alarm, short/ over current alarm, default phase and overheat alarm;
Input voltage: AC335～435V/50Hz±10%;
Output steady flow value: 10%~100% continuous adjustable;
Working temperature: (-20～50)℃;
Relative humidity: 90%(40±2℃);
Electric conversion efficiency: ≥92%;
Load regulation: ≤1% ;
Voltage regulation: ≤0.1%;
Ripple voltage: ≤1% Vout(p-p) ;
Dielectric resistance: ≥20M ;
Project Reference
Mongolia swimming pool disinfection project
Sodium hypochlorite generator(Electrochlorination)
Model:HD-30K-NACLO×2 (1 work 1 standby)
Chlorine production:30kg/h
Running method: fully automatic/PLC control
Range of residual chlorine: 0.3~0.5 ppm
Semcorp drinking water treatment plant
Sodium hypochlorite generator(Electrochlorination)
Model: HDT-1.5K-NACLO×2 (1 work 1 standby)
Chlorine production: 1500g/h
Running method: fully automatic/PLC control
Range of residual chlorine: 0.2~0.3 ppm
Why Choose Us
About us
1, the company professional to do water treatment equipment.
Equipment & technology
2, is one of the biggest suppliers in China.
Service
3, We provide you with technical and training support.
Customers from U.S,Singapore,Indonesia,Malaysia,Africa etc.
Factory Overview
Laboratory
Production Department
