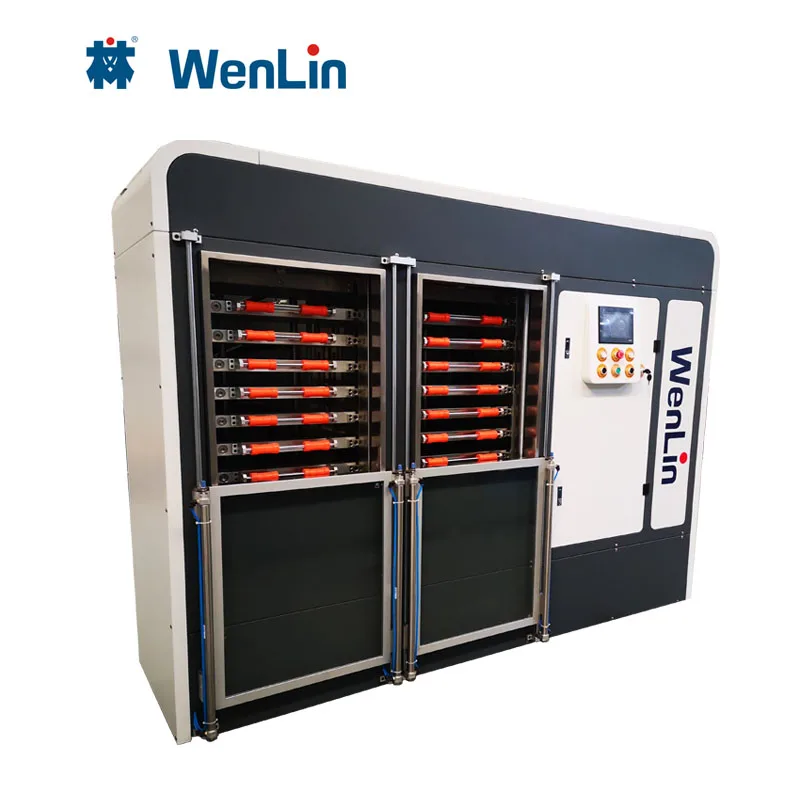

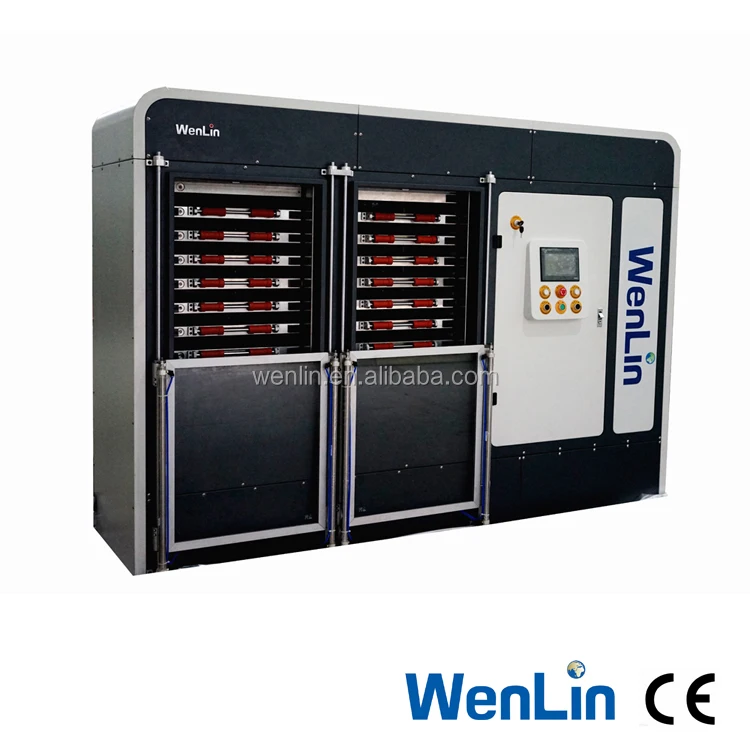

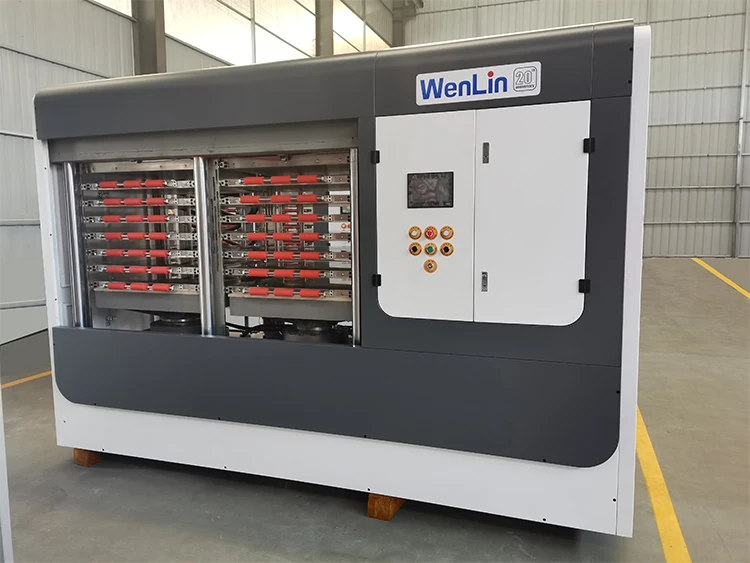

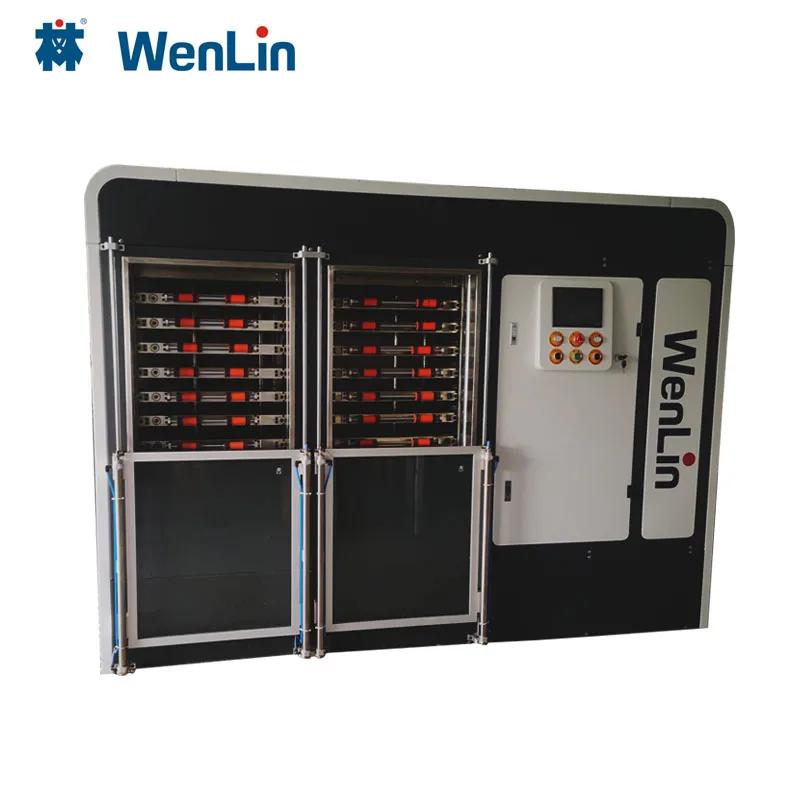

Hot Sale A3 3*8 Layout RFID Card Laminator Machine Automatic PVC Sheet Heat Press Machine
- Category: >>>
- Supplier: Wuhan Wenlin Technology Co. Ltd.
Share on (1600438683024):
Product Overview
Description
Hot Sale A3 3*8 Layout RFID Card Laminator Machine Automatic PVC Sheet Heat Press Machine
Product Description
Application range：
WL-FA5200AT-7 industrial laminator is new generation auto transfer PVC card laminate machine for laminating printing all kinds of plastic PC ,PVC,PC,PET,PETG cards such as IC ID card/ RFID NFC tag/ loyalty cards/ membership card /reward card / library card /VIP card / calendar card/key card hotel access card/ bank and financial card/privilege card etc.Wenlin specialized in card making equipment for 20 years.
Introduce:
The new generation PVC Card Laminator is high speed with smart auto PLC system , which achieves more functions with automatic transfer materials, time and labor saving, safe and standard production , enterprise maximize benefit,etc.
This model ID card making machine in PC PVC card printing industry is our latest design, which adopts the most advanced automatic transferring technology, it makes material transferring more easily and safely, also saves worker labor intensity efficiently.
Features:
●This PLC High Speed Laminators breaks with traditional designs and realizes automatic material transfer instead of manual transfer,achieving safe and high efficiency working.
● PLC industrial automation control system & touch-screen display are imported, convenient for operation;
● With its powerful functions, the software can save several lamination parameters automatically.
● Trouble alarm and record functions make the machine more humanized.
●Both heating and cooling tower are made of aluminum alloy,which is not easy to rust.
●Wenlin automatic transfer laminating machine series is equipped with feeding and turning device, can realize easy materials disassembly, easy loading and discharging, labor saving, safety and high efficiency. The turning rack can be controlled by PLC to up and down, and move left and right.
The new generation PVC Card Laminator is high speed with smart auto PLC system , which achieves more functions with automatic transfer materials, time and labor saving, safe and standard production , enterprise maximize benefit,etc.
This model ID card making machine in PC PVC card printing industry is our latest design, which adopts the most advanced automatic transferring technology, it makes material transferring more easily and safely, also saves worker labor intensity efficiently.
Features:
●This PLC High Speed Laminators breaks with traditional designs and realizes automatic material transfer instead of manual transfer,achieving safe and high efficiency working.
● PLC industrial automation control system & touch-screen display are imported, convenient for operation;
● With its powerful functions, the software can save several lamination parameters automatically.
● Trouble alarm and record functions make the machine more humanized.
●Both heating and cooling tower are made of aluminum alloy,which is not easy to rust.
●Wenlin automatic transfer laminating machine series is equipped with feeding and turning device, can realize easy materials disassembly, easy loading and discharging, labor saving, safety and high efficiency. The turning rack can be controlled by PLC to up and down, and move left and right.
Product Parameters
Model | WENLIN-FA5200AT-7 |
Cooling Method | Water Cooling |
Heating Method | Electric Heating |
Pressure Stages | Heating 12 stages/cooling 5 stages |
Pressure Precision | ±0.1 MPa |
Temperature Precision | 0-200℃ ±2（℃） |
Plate Smoothness | ±0.05mm |
Laminating Plate | Aluminum Alloy |
Hydraulic Cylinder | Single |
Pressure | 0-16Mpa |
Platen Size | 420mm×520mm |
Opening | 7 |
Opening Space | 50mm |
Plate thickness | 45mm |
Electric | 380V ,50/60HZ, 30 KW |
Dimension with loading system /without | L2500mm×W1950mm×H1870mm L2450mm×W1000mm×H1870mm |
Weight with loading system /without | 3300KGS 2,600 KGS |
Output | Around 10,000 cards/hour |
Packing and Transportation
Other products
Why Choose Us
1.Professional manufacturer of smart card laminating & punching machine,anti-counterfeiting labels laser marking machine with 20 years experience.
2.Premium supplier verified by SGS,passed CE & ISO9001 certificates.
3.Obtained 11 national invention patents, multi patents for utility models and software copyright.
4.High quality,custumized products and better service.
5.Cooperate with customers in many countries around the world.
2.Premium supplier verified by SGS,passed CE & ISO9001 certificates.
3.Obtained 11 national invention patents, multi patents for utility models and software copyright.
4.High quality,custumized products and better service.
5.Cooperate with customers in many countries around the world.
Company Profile
Wuhan Wenlin Technology Co., Ltd. was founded in 2001, which is a smart card making equipment R & D, production and materials supply enterprise. The laminator and punching machine for IC, ID&RFID smart card are well-praised. There are more than 1000 customers in nearly more than 50 countries and regions around the world, including the world-famous card making enterprises. The machines are widely used in the production fields of Union Pay, VISA, MasterCard, second generation ID card, residence card, social security card, double interface card and IC, ID smart card and so on.
Wenlin is a high-tech and national Torch Program project enterprise identified by the Chinese government, as well as a demonstration enterprise of scientific & technological innovation and patent transformation. The trademark “WENLIN" have been evaluated as famous trademarks of Hubei province and Wuhan city for more than 10 years.
Wenlin passed CE and ISO9001 certificates, and obtained 11 national invention patents(ZL201110189116.0;ZL201110189122.6;ZL201410139338.5;ZL201410140570.0;ZL201410139337.0;ZL201410140607.X;ZL201410125696.0;ZL201410140568.3;ZL201410139336.6;ZL201511029056.0;ZL201510513046.8),multi patents for utility models(ZL2015211392374;ZL201721920832.0;ZL20192242777.7T etc)and software copyright.
Founding century name brand, Creating hundred-years-old Wenlin. To provide the best card making solution and service for all the customers is the eternal aim of Wenlin. We’d like to cooperate with agents all over the world.
Wenlin is a high-tech and national Torch Program project enterprise identified by the Chinese government, as well as a demonstration enterprise of scientific & technological innovation and patent transformation. The trademark “WENLIN" have been evaluated as famous trademarks of Hubei province and Wuhan city for more than 10 years.
Wenlin passed CE and ISO9001 certificates, and obtained 11 national invention patents(ZL201110189116.0;ZL201110189122.6;ZL201410139338.5;ZL201410140570.0;ZL201410139337.0;ZL201410140607.X;ZL201410125696.0;ZL201410140568.3;ZL201410139336.6;ZL201511029056.0;ZL201510513046.8),multi patents for utility models(ZL2015211392374;ZL201721920832.0;ZL20192242777.7T etc)and software copyright.
Founding century name brand, Creating hundred-years-old Wenlin. To provide the best card making solution and service for all the customers is the eternal aim of Wenlin. We’d like to cooperate with agents all over the world.
