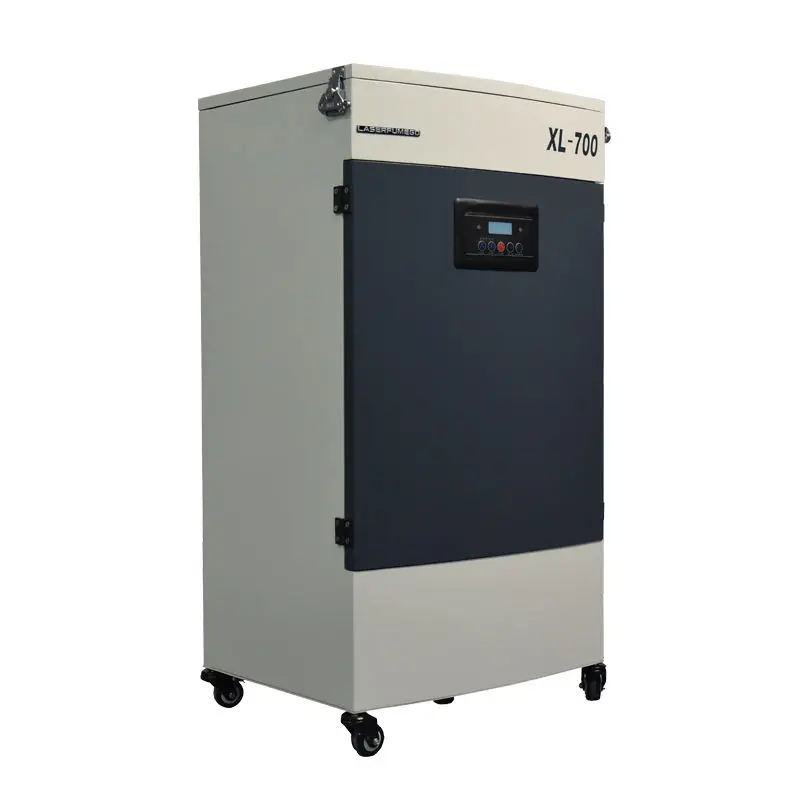

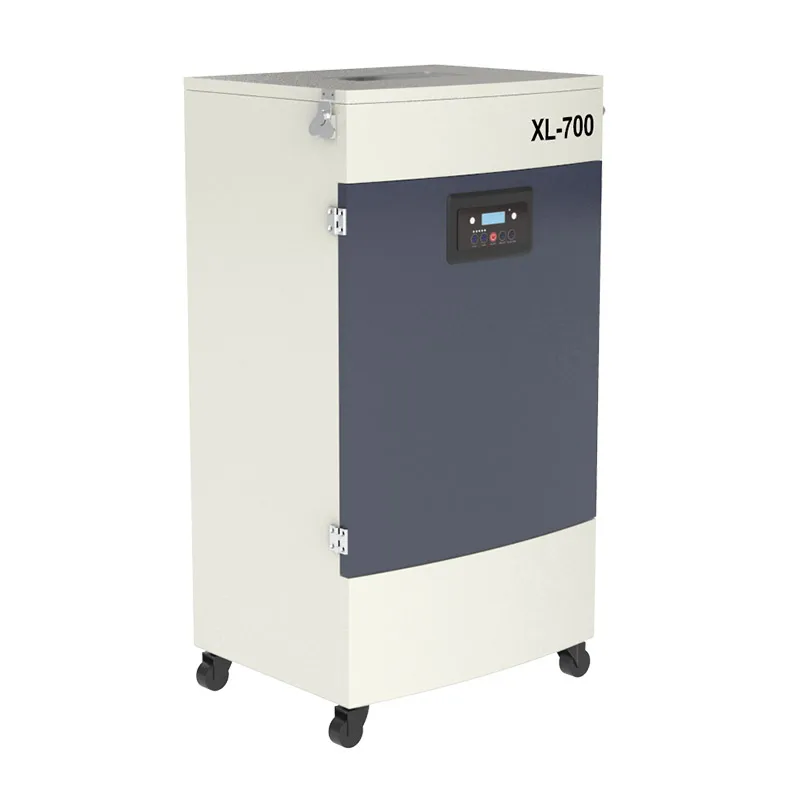

Waterun XL 700 New Condition Fume Extraction System 99.97% Smoke Removal Rate 20% Cost Savings for Laser Cutting Fume
- Category: >>>
- Supplier: Shen Zhen Waterun Technology Co. Ltd.
Share on (1600438683453):
Product Overview
Description
Product Images
Application
Our fume extractor can be used for laser welding, laser cutting, laser cleaning, laser printing, laser engraving etc laser machines. It can be used for soldering pot, soldering station, soldering robots etc. too.
Laser Smoke Extractor Models Selection Recommend | ||||||
Application | Material | Use Range | Model Recommend | |||
Printing/Engraving/Cutting | Common Metal | L20*W20cm | F6001/F6001D 200W | |||
Printing/Engraving/Cutting | Common Metal | >L20*W20cm | XL-300/XS330 | |||
Printing/Engraving/Cutting | Stainless steel/Magnesium/Aluminium | L20*W20cm | XL-500/XS450 | |||
Printing/Engraving/Cutting | Stainless steel/Magnesium/Aluminium | >L20*W20cm | XL-700/XS700 | |||
Printing/Engraving/Cutting | Plastic/Wood/Leather | L20*W20cm | XL-300/XS330 | |||
Printing/Engraving/Cutting | Plastic/Wood/Leather | >L20*W20cm | XL-500/XS450 | |||
Printing/Engraving/Cutting | plexiglass (acrylic) | L20*W20cm | XL-500/XS450 | |||
Printing/Engraving/Cutting | plexiglass (acrylic) | >L20*W20cm | XL-700/XS700 | |||
Laser soldering | Metal/Steel/Magnesium/Aluminium | Double workstation | XL-500/XS450 | |||
Laser soldering | Metal/Steel/Magnesium/Aluminium | More than 2 stations | XL-700/XS700 | |||
Product Highlights
Low energy consumption Hall-free brushless DC motor 2500~3000PA negative pressure
Specially made double compound carbon can effectively deal with VOCS odor
The feedback from end customers is the use time of filter element of our equipment is times longer than others
500C instant temperature resistance, 250-300pa Spark intercept to avoid spark suction into the machine
Features

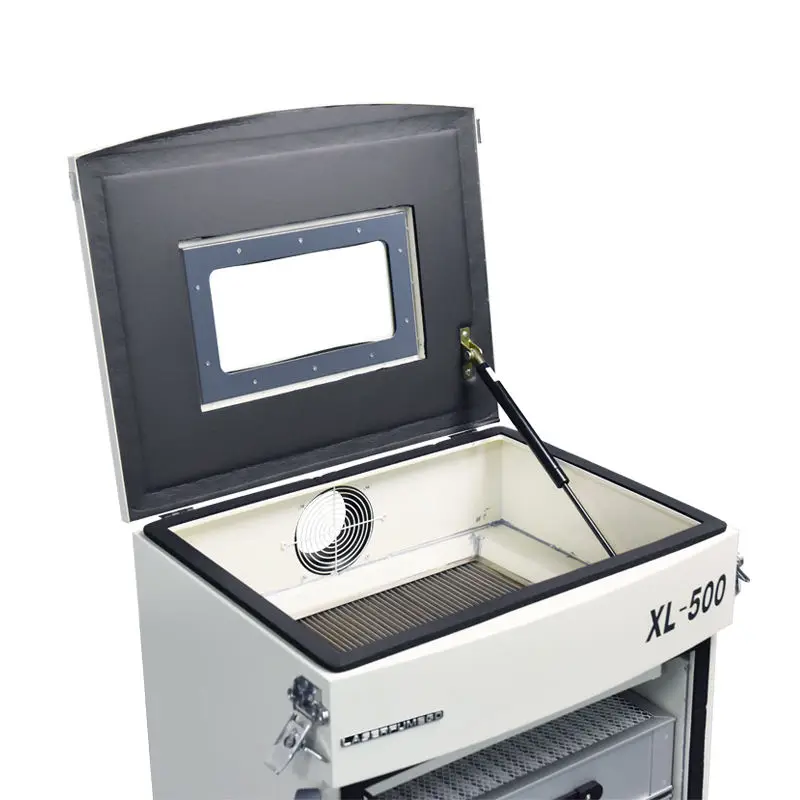

With filter observation window
Air inlet diversion design, increase the purification efficiency by 80%
Intelligent digital display, with remote control
Sound and light alarm for filter clogging
Brushless DC motor with stable performance,can work for 40000 hours consecutively
Air inlet diversion design, increase the purification efficiency by 80%
Intelligent digital display, with remote control
Sound and light alarm for filter clogging
Brushless DC motor with stable performance,can work for 40000 hours consecutively
Specification

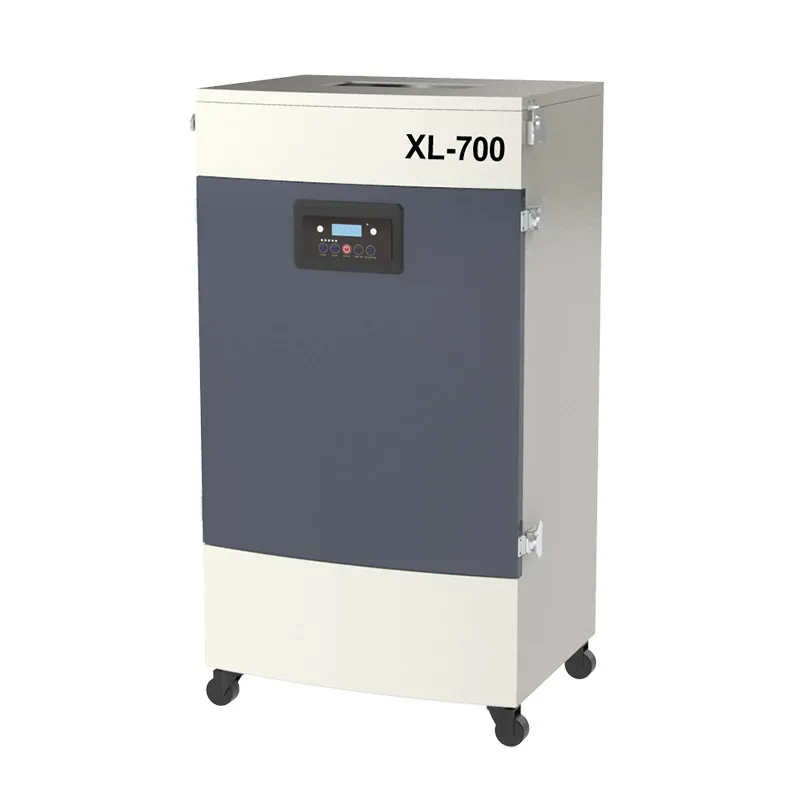

Waterun XL-700 Fume Extraction System 99.97% Smoke Removal Rate 20% Cost Savings for Laser Cutting Fumes

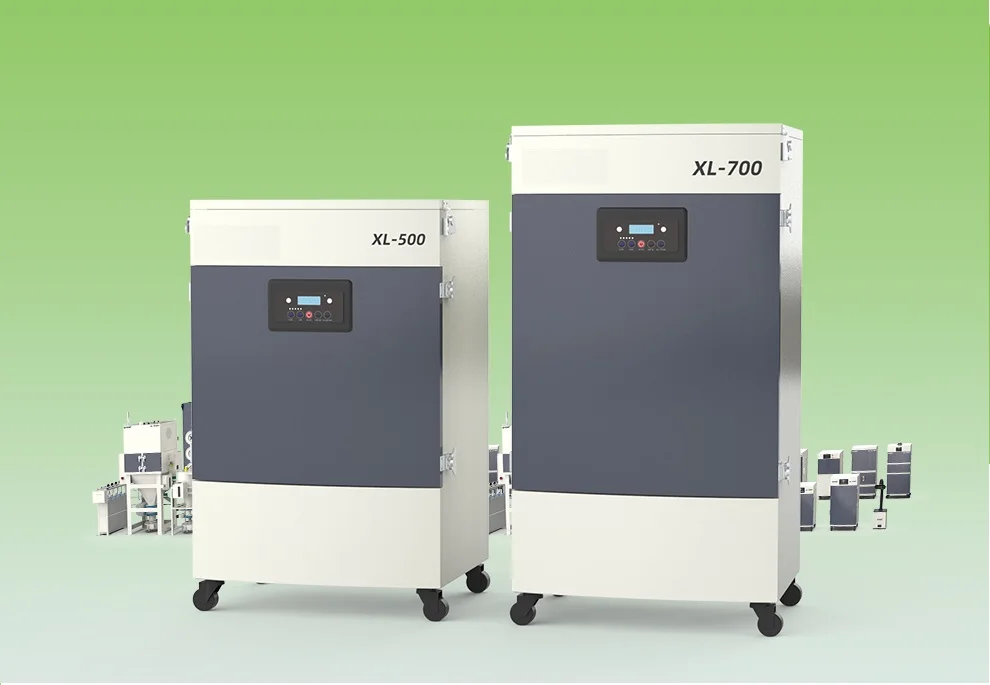

Model | XL-300 | XL-500 | XL-700 |
Filter | 5 Layers | 8 Layers | 7 Layers |
Weight | 37kg | 60kg | 70kg |
Size(mm) | 425 x 315 x 700 | 550 x 440 x 885 | 550 x 440 x 1060 |
Flow | 450m3/h | 700m3/h | 750m3/h |
Noise | 60dB | 63dB | 63dB |
Power | 300W | 500W | 700W |
Voltage | 110V/220V | 110V/220V | 110V/220V |
Filters Combination for Laser Cutting, Laser Printing, Laser Marking, Laser Carving
XL-300 Laser Fume Extractor
1st Layer: Pre- Filter
2~3nd Layer: Glass Fiber Filter /PP Filter
4 to 5th Layer: Active Carbon Filter
XL-500 Laser Fume Extractor
1st Layer: Fire Prevention Layer
2nd Layer: Pre- Filter Cotton
3rd Layer: Pre- Filter
4th Layer: Glass Fiber Filter
5 to 6th Layers：Active Carbon Filter

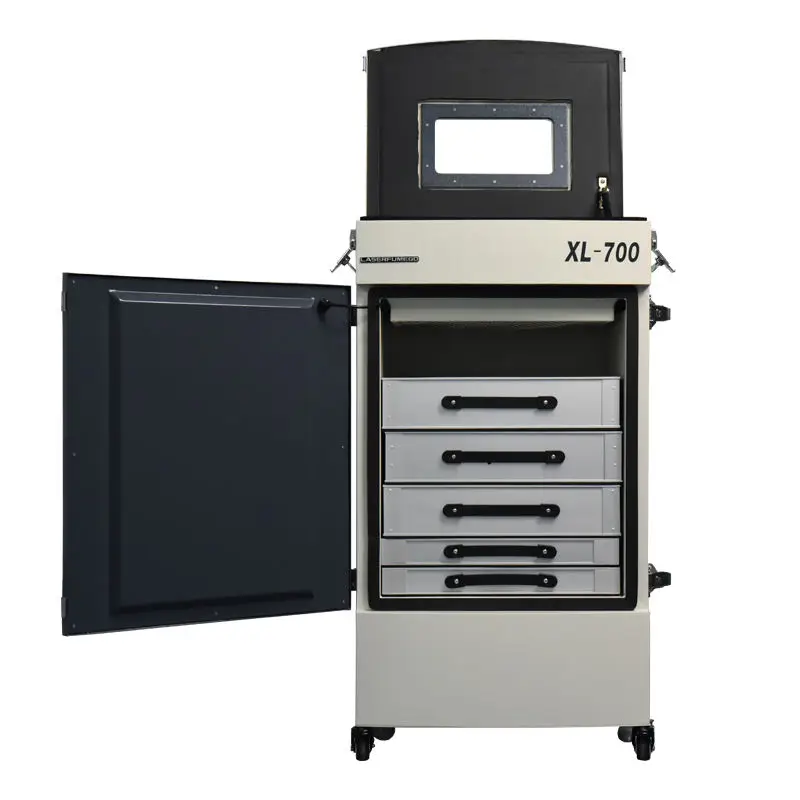

XL-700 Laser Fume Extractor
1st Layer: Fire Prevention Layer
2nd Layer: Pre- Filter
3rd Layer: PP Filter
4th Layer: Glass Fiber Filter
5 to 6th Layers：Active Carbon Filter
Note: you can select different filter combination to meet different applications.
1st Layer: Pre- Filter
2~3nd Layer: Glass Fiber Filter /PP Filter
4 to 5th Layer: Active Carbon Filter
XL-500 Laser Fume Extractor
1st Layer: Fire Prevention Layer
2nd Layer: Pre- Filter Cotton
3rd Layer: Pre- Filter
4th Layer: Glass Fiber Filter
5 to 6th Layers：Active Carbon Filter
XL-700 Laser Fume Extractor
1st Layer: Fire Prevention Layer
2nd Layer: Pre- Filter
3rd Layer: PP Filter
4th Layer: Glass Fiber Filter
5 to 6th Layers：Active Carbon Filter
Note: you can select different filter combination to meet different applications.
Sizes of the different Filters for XL-300
Pre-Filter: 378 x 278 x 100mm
PP Filter/Glass Fiber Filter: 378 X 278 X 50mm
Activated carbon Filter: 378 x 278 x 50mm
Sizes of the different Filters for XL-500
Fire prevention layer: 415 x 335 x 25mm
Pre-filter cotton: 415 x 335 x 28mm
PP Filter:450 x 380 x 50mm
Glass Fiber Filter: 450 x 380 x50mm
Glass Fiber Filter: 450 x 380 x50mm
Activated carbon Filter: 450 x 380 x 50mm
Sizes of the different Filters for XL-700
Fire prevention layer: 415 x 335 x 25mm
Pre-Filter:450 x 380 x 100mm
PP Filter: 450 X 380 X 50mm
Glass Fiber Filter: 450 x 380 x50mm
Activated carbon Filter: 450 x 380 x 50mm
Fire prevention layer: 415 x 335 x 25mm
Pre-Filter:450 x 380 x 100mm
PP Filter: 450 X 380 X 50mm
Glass Fiber Filter: 450 x 380 x50mm
Activated carbon Filter: 450 x 380 x 50mm
Overseas Markets
Our products are getting popular in many countries around the world, Currently, our products have been exported to USA, Canada, Germany, Israel, Italy, Brazil, Korea, India, Southeast Asia, etc.

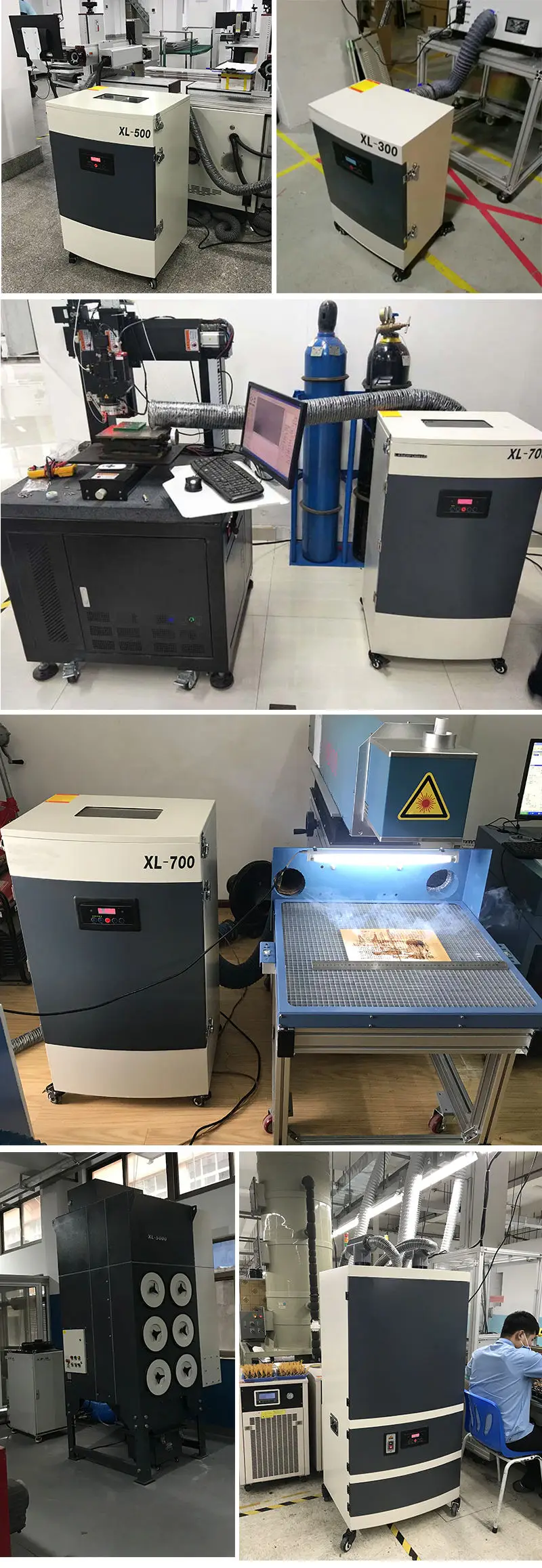

Work Sites
Company Profile
WATERUN is specialized in smoke removal, odor removal, dust removal and explosion prevention air cleaning machines for 18 years. Our main products include: Solder Fume Extractor, Laser Smoke Evacuator, Dust collector etc.We can provide OEM, ODM services.
FAQ
TEL : +86 755-29356991 ( EN )
+86 13025643757 ( EN )
+86 13510351675 ( JP )
Whatsapp : +86 130 2564 3757
Wechat ： +86 13025643757
Web ： www.waterun.com.cn
+86 13510351675 ( JP )
Whatsapp : +86 130 2564 3757
Wechat ： +86 13025643757
Web ： www.waterun.com.cn
www.fumego.com.cn
Email ： viky@waterun.com.cn
Email ： viky@waterun.com.cn
Q: Are you a factory or trading Company?
A: Yes, we have factory in Dongguan city.
Q: Can you do OEM or ODM?
A: Yes, we have factory in Dongguan city.
Q: Can you do OEM or ODM?
A: Yes, we can provide OEM & ODM services.
Q:What's your payment terms?
A: Normally we can work on T/T ,VISA ,Mastercard ,West Union, Paypal.
Q: What about the delivery time?
A : Normally 1-2 days for stock items. Regular orders takes about 7-15 days.
Q: What's your MOQ?
A: MOQ: 1 pcs, sample order in small quantity is acceptable too.
Q: Can I visit your factory before order?
A: Yes, welcome to visit our factory. About forty minuates from Shenzhen Airport.
Q: Can you provide sample before a regular order?
A: Sure, some items samples can be provided free of charge.
A: Normally we can work on T/T ,VISA ,Mastercard ,West Union, Paypal.
Q: What about the delivery time?
A : Normally 1-2 days for stock items. Regular orders takes about 7-15 days.
Q: What's your MOQ?
A: MOQ: 1 pcs, sample order in small quantity is acceptable too.
Q: Can I visit your factory before order?
A: Yes, welcome to visit our factory. About forty minuates from Shenzhen Airport.
Q: Can you provide sample before a regular order?
A: Sure, some items samples can be provided free of charge.
