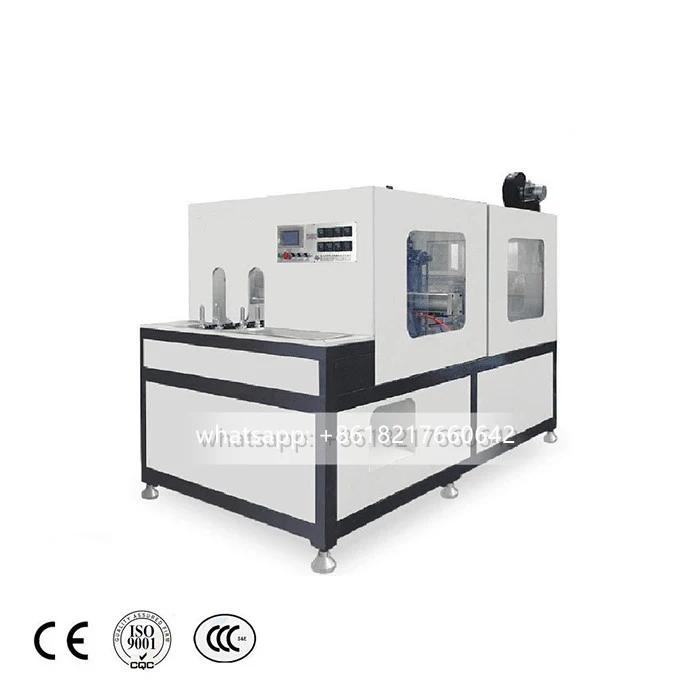

J & Ben Stretch 4 Cavity Auto Blow Molding Semi Automatic 5 Gallon Pet Bottle Blowing Machine
- Category: >>>
- Supplier: Shanghai Hongqi Machinery Manufacture Co. Ltd.
Share on (1600438686619):
Product Overview
Description
Manufacturing Technique
ITEM（V3) | HQ-2L | HQ-2-2L | HQ-5L | HQ-10L | HQ-20L |
Max .Volumn Of Product | 2 L | 2 L | 5L | 10L | 20L |
Production Capacity | 800-1000 bph | 1600-1800 bph | 300-400 | 200-300 | 50-180 |
Neck Size of Product | 15-75 mm | 15-75 mm | 15-75 mm | 15-120 mm | <=160 mm |
Useful Area of Mould Thickness | 350*450 mm | 350*450 mm | 350*450 mm | 350*450 mm | 420*660 mm |
Mould Thickness | 120-170 mm | 120-170 mm | 120-170 mm | 120-200 mm | 350-420 mm |
Mould Stroke | 170mm | 170 mm | 250 mm | 300 mm | 400 mm |
Clamping Force | 50 kn | 50 kn | 50 kn | 50 kn | 80 kn |
Stretching Stroke | 530 mm | 530 mm | 360 mm | 360 mm | 530 mm |
Working Pressure | <=10 kg/cm3 | < =10 kg/cm3 | < =10 kg/cm3 | < =10 kg/cm3 | < =10 kg/cm3 |
Blowing Air Pressure | <=40 kg/cm3 | <=40 kg/cm3 | <=40 kg/cm3 | <=40 kg/cm3 | <=40 kg/cm3 |
Power Of Main Blower | 2.5 kw | 0.2 kw (2 set) | |||
Measurement Of Main Blower | 1520*580*1780 mm | 3000×1050×2050 mm | |||
Power Of Preheater | 10 kw | 30 kw (2 set) | |||
Weight Of Preheater | 450 kg | 650 kg | |||
Measurement Of Preheater | 3500×750×1150 mm | 3800×1000×2080 mm |
Product Description

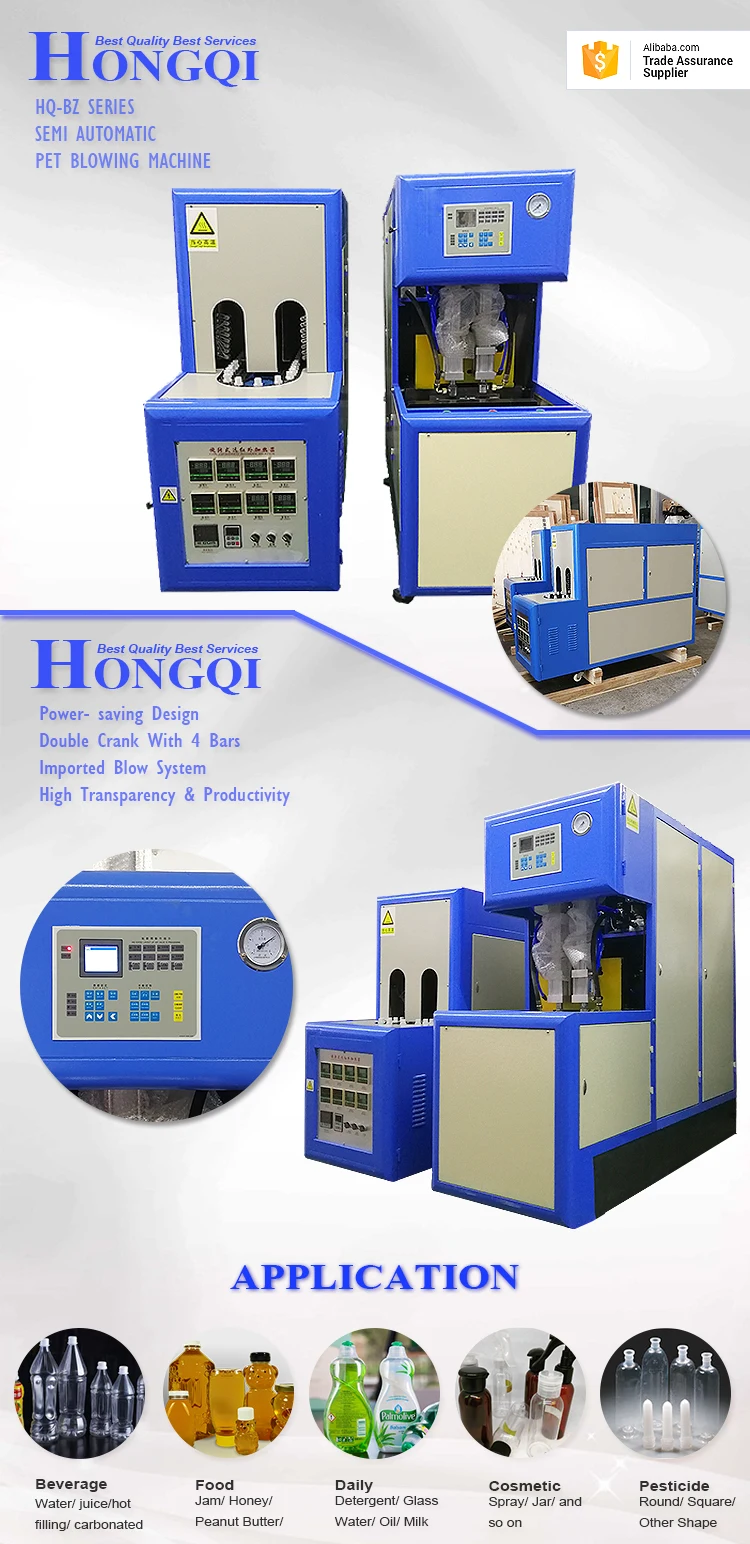

HONGQI HQ-BZ-5L series semi automatic bottle blowing machine is an advanced 2-step PET blowing equipment. There are automatic and semi-automatic operation ways to choose. Machine is compatible, with approprite design, easy and safe to operate.

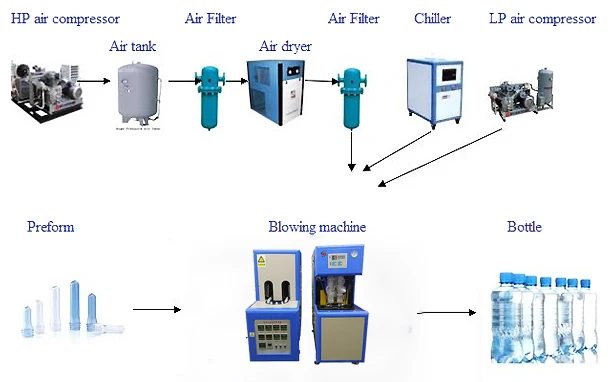

Auxiliary Machine

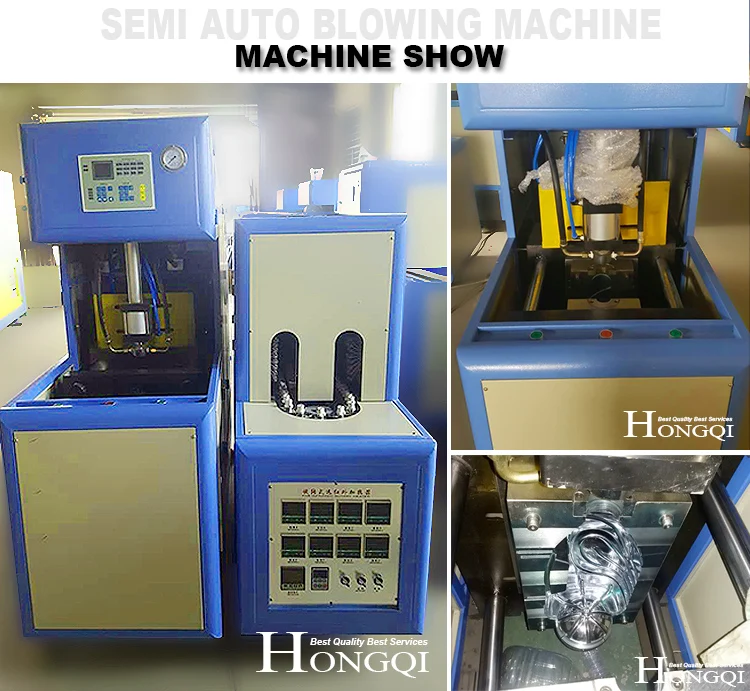

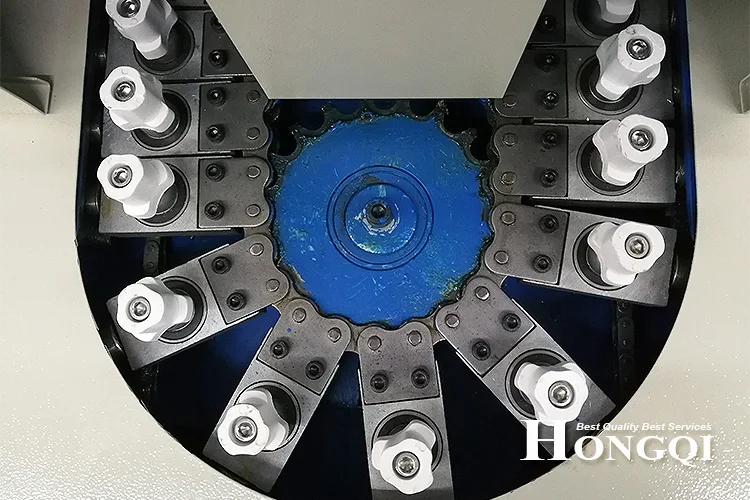

Detailed Images

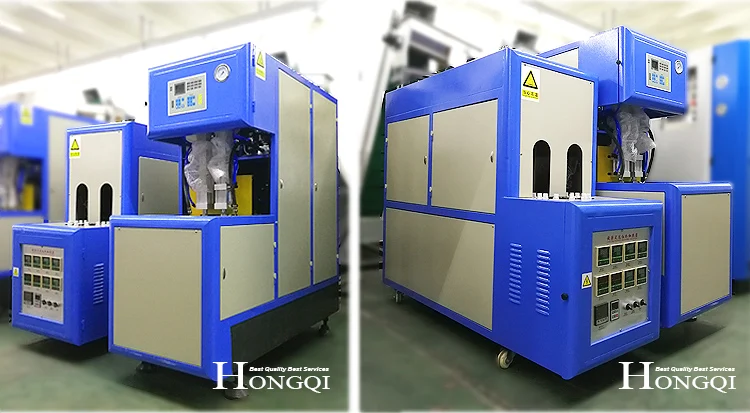

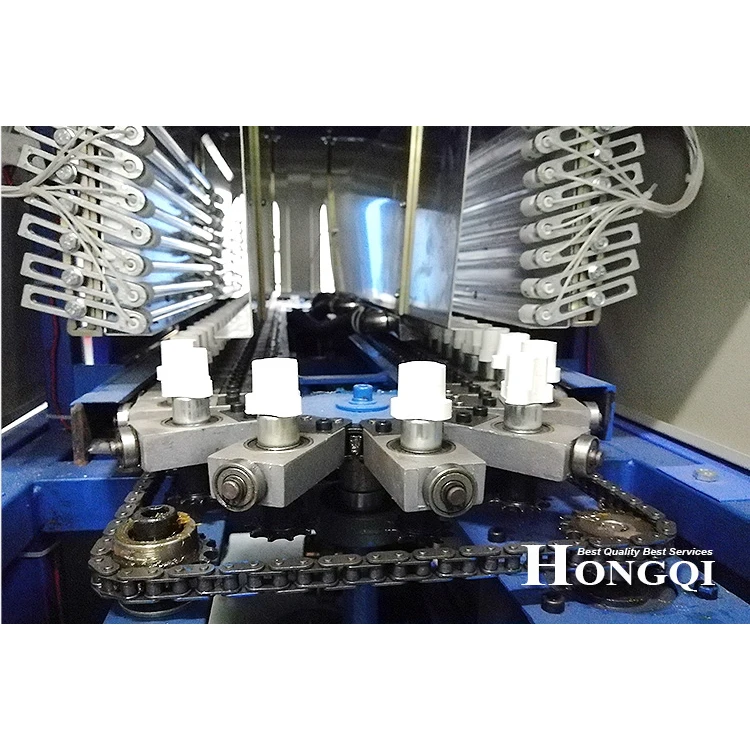

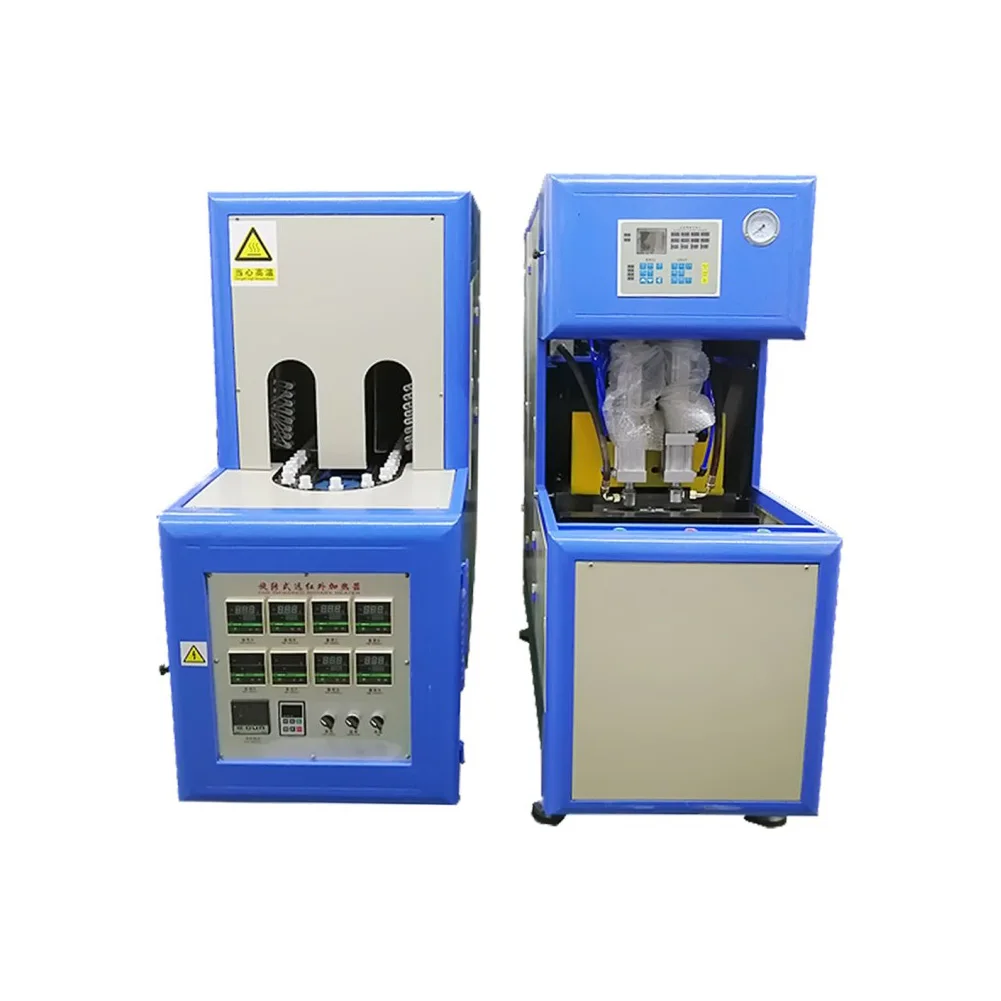

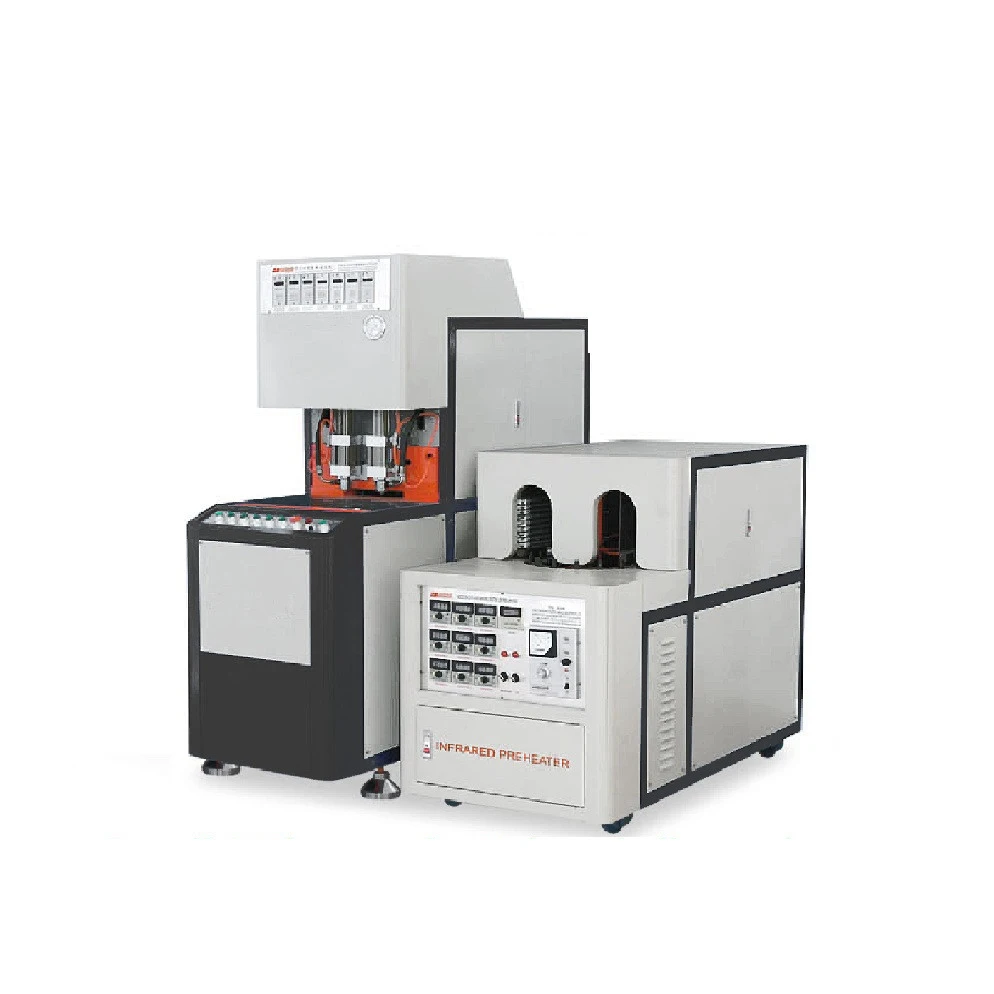

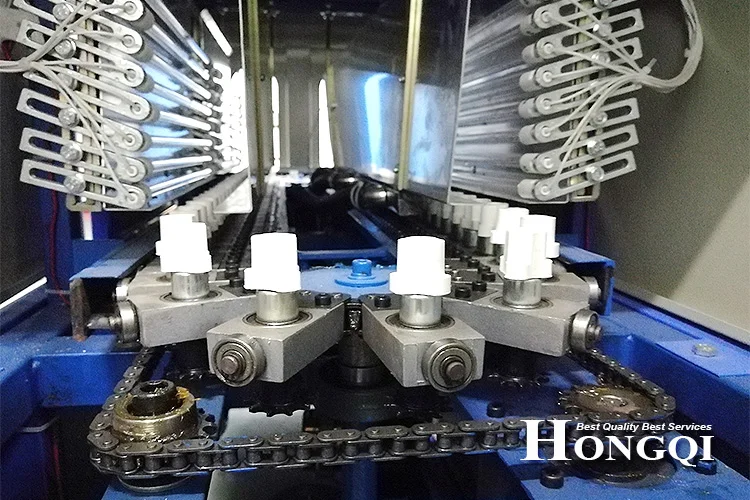

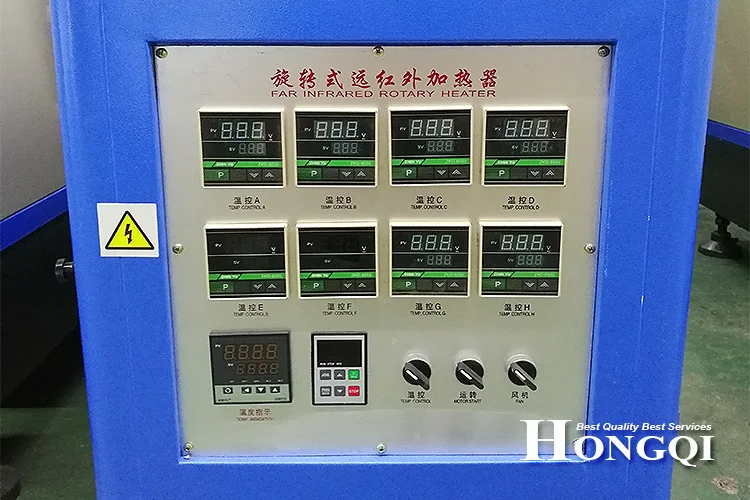

Machine basically consists of blow unit and heater. First put the preform in the heater to be soft and flexible. Then put it in the mould on the blow unit to make bottles.

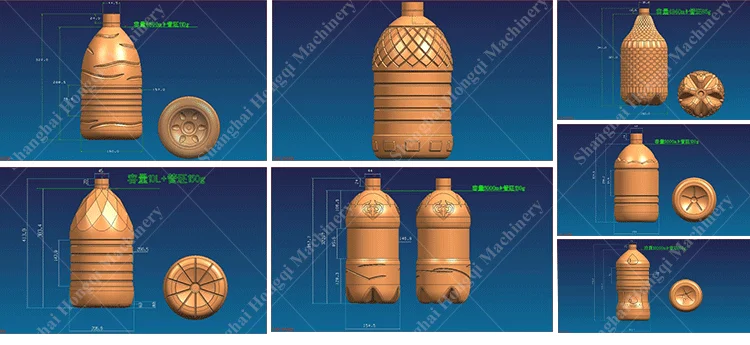

Free Bottle Design
1. Before starting to manufacture the machine it is neccessory for us to get the bottles samples or bottle size from you.

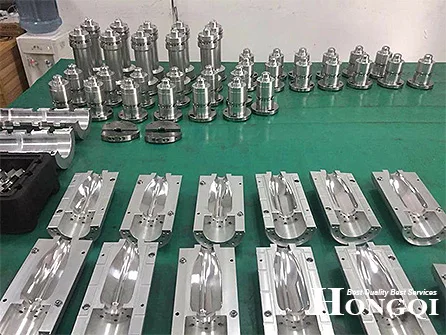

2. According to your bottle size and bottle demands we can design the preform and bottles mold.
3. The shape of the PET bottles can be various according to you. We can help you to sculpt the bottles and confirm with you before making bottle moulds.
Our Advantages
Our main beverage machinery includes as below:
All the products are sold well both at home and aboard. We've exported to more than 20 countries, and built stable business
relationships with foreign customers.
⇒ labeling and packing machine
⇒ Packing machine
All the products are sold well both at home and aboard. We've exported to more than 20 countries, and built stable business
relationships with foreign customers.

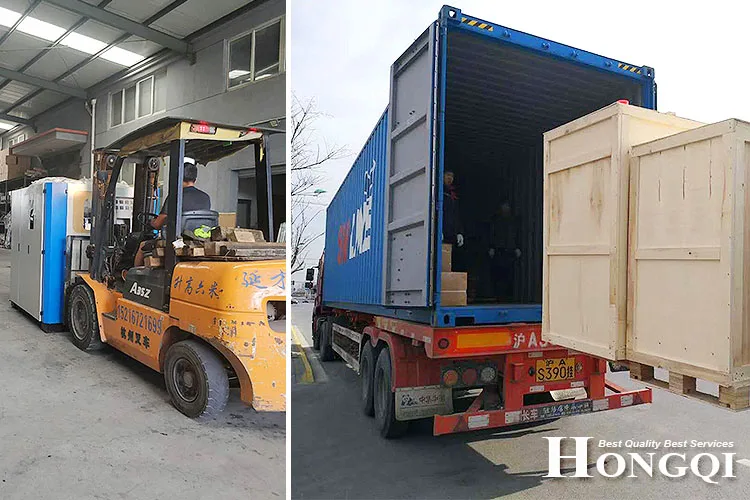

Packing & Delivery
Packaging | Normally the inner package ,we will packed by the stretch film ,outpackage we will use the export woodencas if you have special requirment of the package pls let us know in advance . |
Shipping | Mostly we send the goods to you by sea,as in this way the freight is most reasonable ,if you need the goods urgently ,We can also send by air . |
Our Services

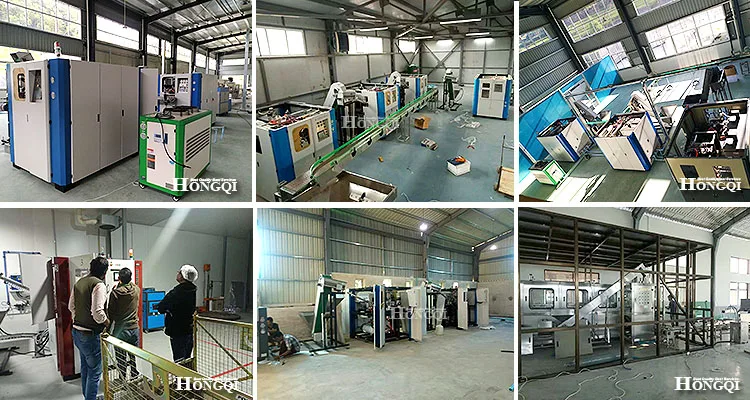

/ Project Case /

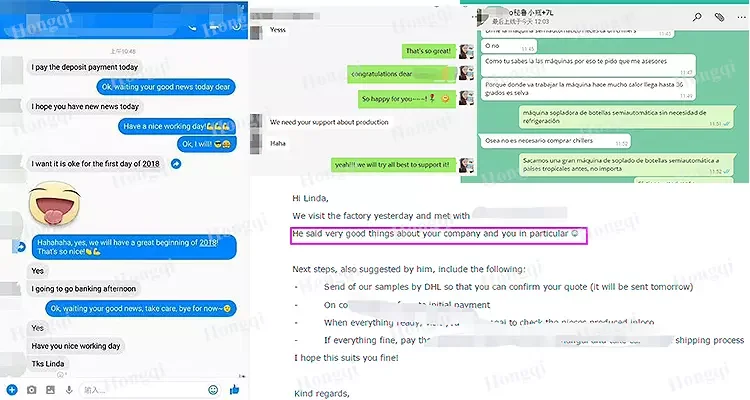

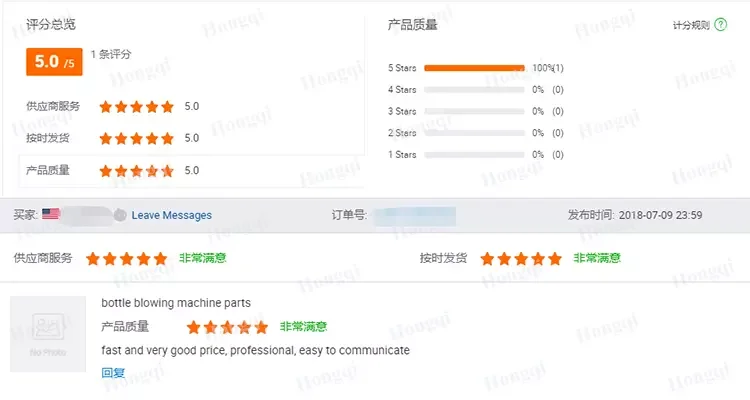

Buyer feedback
>>> FAQ
Q: Are you a factory or trading company?
A:HQ Machinery is a factory who has rich experiences in All kinds of bottle blow moulding machine, we offer OEM services in the last over 5 years, and now we have our own brands and own designed machines for sale!
Q: How long need to ship the machines after order
A: All machines can be ready and shipped in 20-60 days after order!
Q: What's the payment you prefer?
A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.
Q:Can i visit your factory and send team for learning and inspect ?
A: Yes,sure.We will do our best to teaching you how to use the machine.welcome to visit our factory!
A:HQ Machinery is a factory who has rich experiences in All kinds of bottle blow moulding machine, we offer OEM services in the last over 5 years, and now we have our own brands and own designed machines for sale!
Q: How long need to ship the machines after order
A: All machines can be ready and shipped in 20-60 days after order!
Q: What's the payment you prefer?
A: Our standard payment terms are T/T with 30% deposits and balanced before shipment.
Q:Can i visit your factory and send team for learning and inspect ?
A: Yes,sure.We will do our best to teaching you how to use the machine.welcome to visit our factory!
