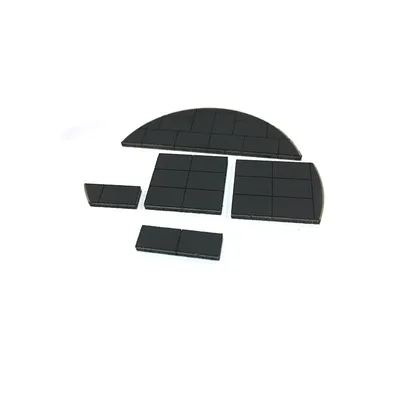

PCD polycrystalline diamond 50mm PCBN cutting blanks for cast iron / steel
- Category: >>>
- Supplier: Henan Bedge Hardware Tools Co. Ltd.
Share on (1600438688002):
Product Overview
Description
Product Description
PCD cutting tool blanks are produced by sintering selected diamond particles at high pressure and high temperature, and consist of diamond layer and tungsten carbide substrate.
Feature:
1. Long working life.
2. Uniform surface finish.
3. Reduces machine down time.
4. Highly improved workpiece quality and excellent dimensional control.
5. Increase productivity.
6. High material removal rate.
7. Lower cost per piece.
8. The working life of a PCD cutting edge is usually 50 to 250 times longer than that of traditional sintered carbide cutting tools.
Application:
PCD cutting tool blanks are widely used for the machining of non-ferrous metals and alloys, such as aluminum, copper, aluminum / gray iron composites, as well as nonmetallic materials such as wood, chipboard, ceramics, plastic, rubber etc, where high abrasion resistance and good surface finish are required. The products are available in 5um, 10 um and 25um.
Feature:
1. Long working life.
2. Uniform surface finish.
3. Reduces machine down time.
4. Highly improved workpiece quality and excellent dimensional control.
5. Increase productivity.
6. High material removal rate.
7. Lower cost per piece.
8. The working life of a PCD cutting edge is usually 50 to 250 times longer than that of traditional sintered carbide cutting tools.
Application:
PCD cutting tool blanks are widely used for the machining of non-ferrous metals and alloys, such as aluminum, copper, aluminum / gray iron composites, as well as nonmetallic materials such as wood, chipboard, ceramics, plastic, rubber etc, where high abrasion resistance and good surface finish are required. The products are available in 5um, 10 um and 25um.
Grades | Characters | Applications | Advantages |
W5 fine grain size | 1.Average grain size:5μm 2.High diamond content over90% 3.Laser cutting or wire EDM cutting | Aluminum,Brass/Copper,Precious metals,Wood composites,Plastic | Excellent surface finish |
W10 medium grain size | 1.Average grain size:10μm 2.High diamond content over90% 3.Laser cutting or wire EDM cutting | Excellent resistance,good surface finish | |
W25 coarse grain size | 1.Average grain size:25μm 2.High diamond contentover90% 3.Laser cutting or wire EDM cutting | >14% Si/Al alloys,metal matrix composites,Bi-metals(aluminum/castiron),sintered ceramics and carbides | Long life,extremely high wear resistance |
Specification
Grade | Average diamond grain size (μm) | Diameter (mm) | Standard overall thickness (mm) | Average PCD thickness (mm) | PCD surface |
GC001 | 1 | 58 | 1.6, 2.0, 3.2 | 0.5 | Polished or unpolished |
GC002 | 2 | 58 | 1.6, 2.0, 3.2 | 0.5 | Polished or unpolished |
GC005 | 5 | 58 | 1.6, 2.0, 3.2 | 0.5 | Polished or unpolished |
GC010 | 10 | 58 | 1.6, 2.0, 3.2 | 0.5 | Polished or unpolished |
UA010 | 10 | 58 | 1.6, 2.0, 3.2 | 0.5 | Polished or unpolished |
GD025 | 25 | 58 | 1.6, 2.0, 3.2 | 0.5 | Polished or unpolished |
GA025 | 25 | 58 | 1.6, 2.0, 3.2 | 0.5 | Polished or unpolished |
GM253 | 25+3 | 58 | 1.6, 2.0, 3.2 | 0.5 | Polished or unpolished |
GM302 | 30+2 | 58 | 1.6, 2.0, 3.2 | 0.5 | Polished or unpolished |
1). Special overall thickness, such as 0.8mm. 1.0mm, 1.2mm, 2.5mm, etc. are available for customization.
2). Special PCD thicknesses are also available for customization.
3). Both regular and irregular PCD cut tips in various shapes or profiles are available in accordance with customers’ drawings.
2). Special PCD thicknesses are also available for customization.
3). Both regular and irregular PCD cut tips in various shapes or profiles are available in accordance with customers’ drawings.
Packing & Delivery
Plastic box/wooden box or other required boxes
