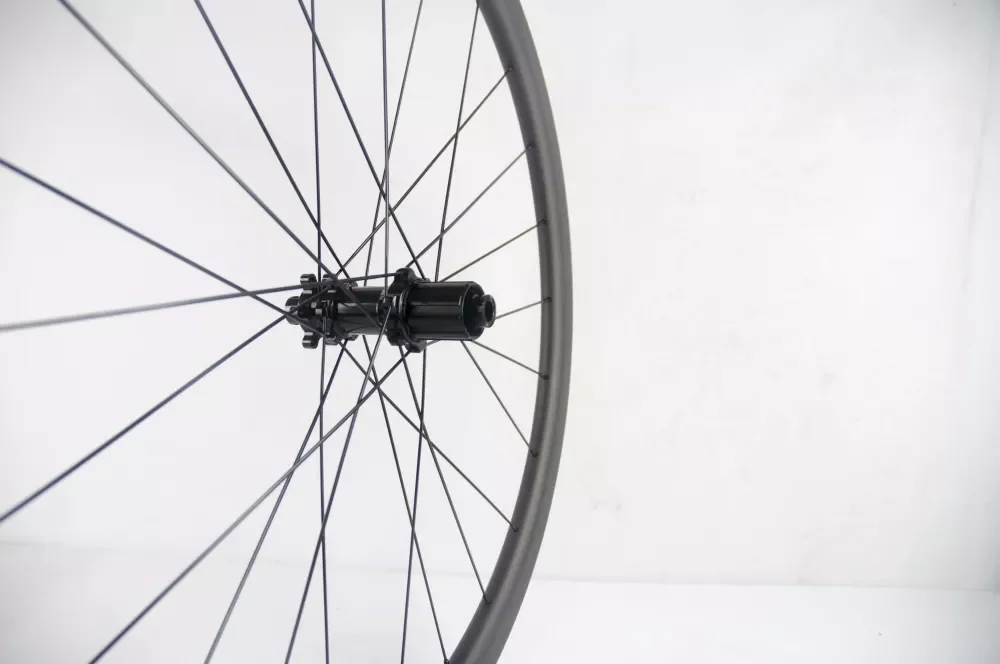

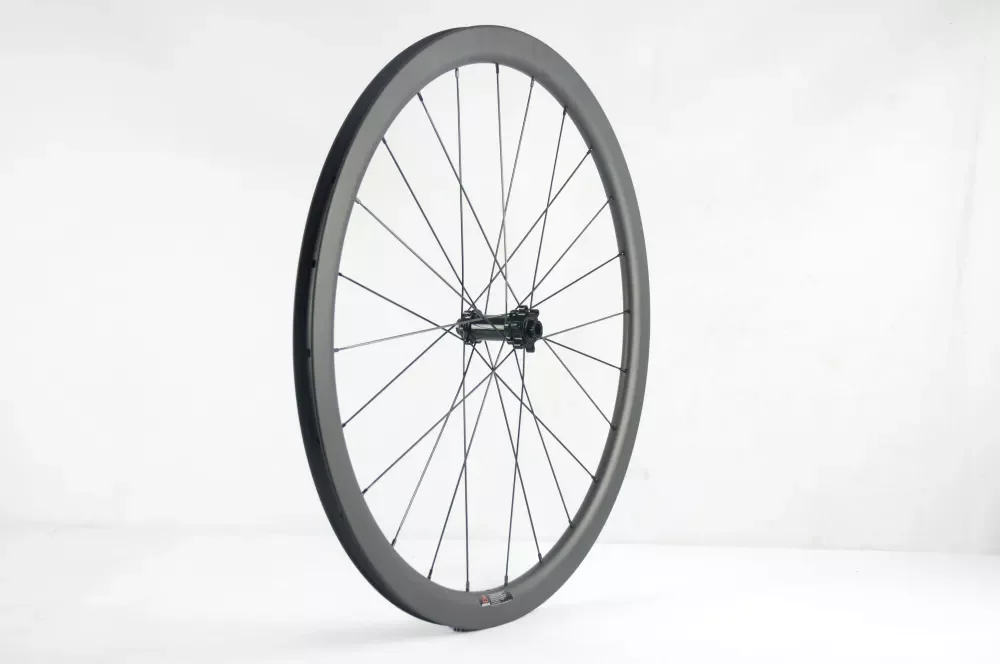

TB2562 Wholesale carbon fiber wheel 700C Road bike disc brake Carbon wheel disc brake gravel carbon wheel gravel bicycle
- Category: Bicycle Wheel >>>
- Supplier: Xiamen Tanben Material Technology Co. LTD
Share on (1600438706296):
Product Overview
Description
Model | 40mm clincher carbon wheelset with black CX6 hub center lock UD matte finish without braking surface |
Material | Carbon Fibre-Toray T700 |
Size | 700C |

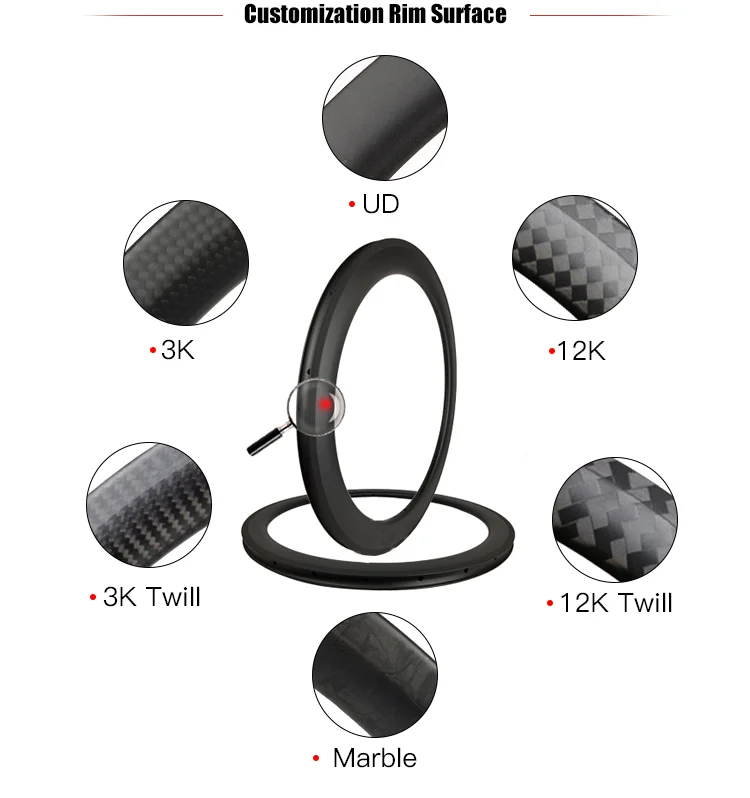

Appearance | UD(3K also available, contact me if you need.) |
Finish | Matte(contact me if you need glossy finish ) |

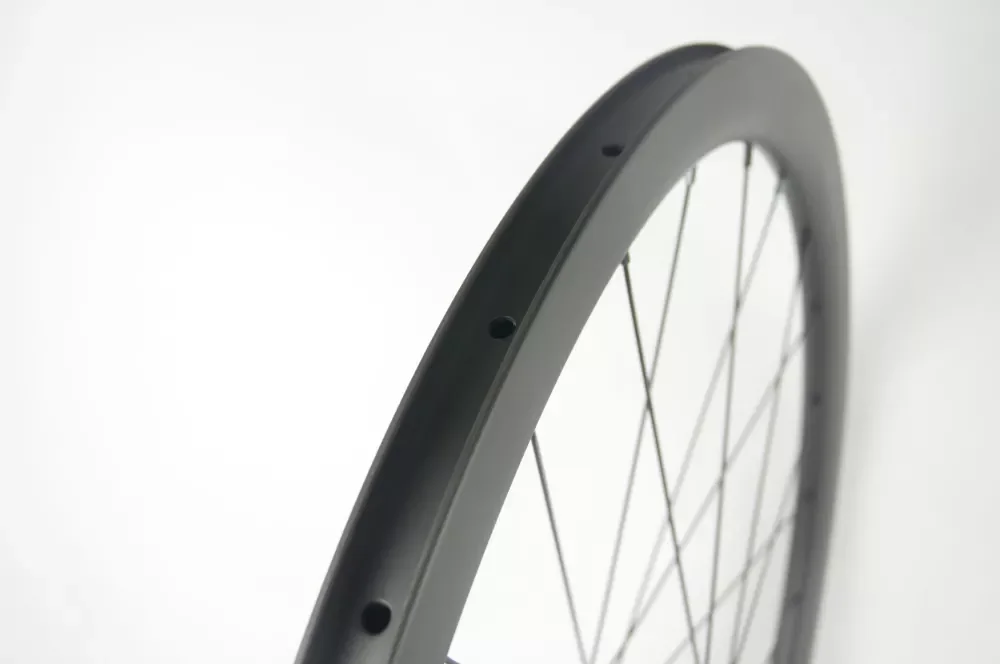

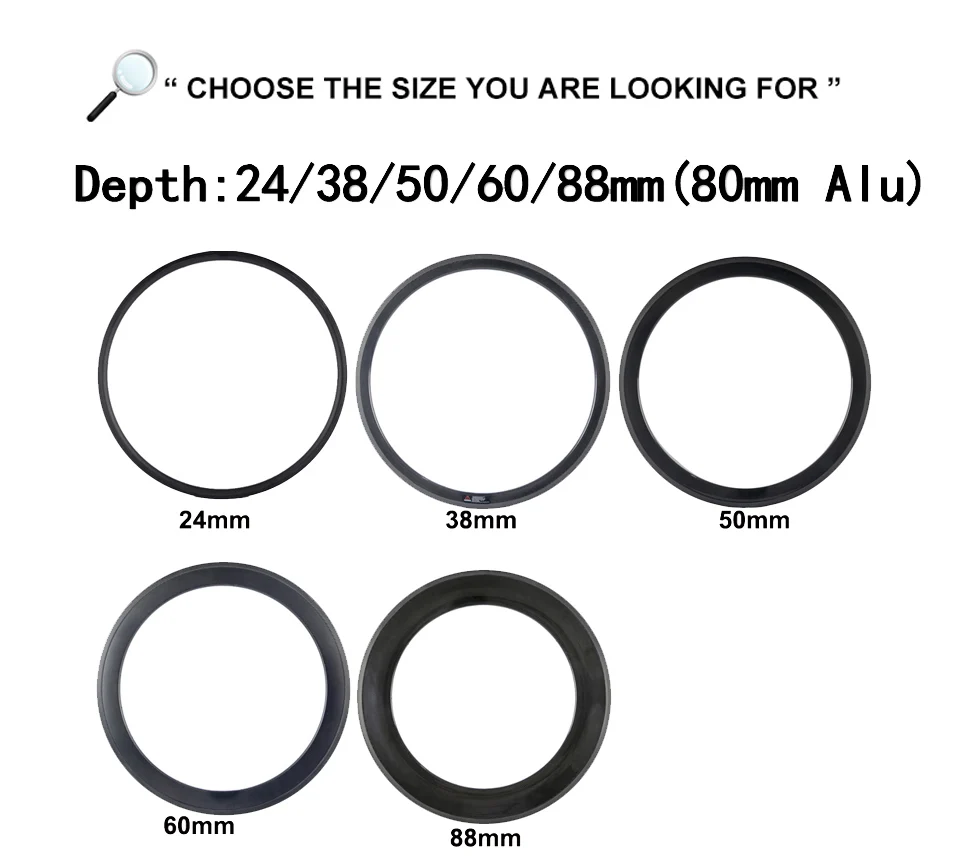

Rim depth | 40mm |
Rim width | 25mm |
Brake Line Width | no braking surface |

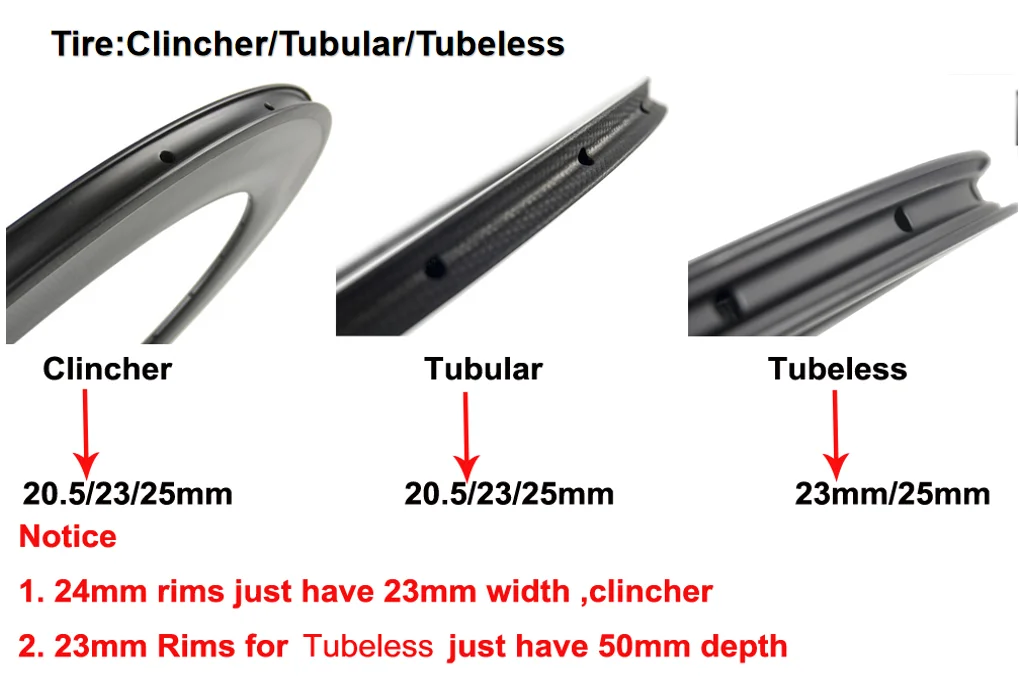

Rim type | Clincher(Tubular and tubeless aslo available ,contact me if you need.) |
Wheel Out Diameter | 633mm |
ERD | 560mm |
Assembly Hole Dia | 7.5mm |
Spoke Hole Dia | 4.5mm |
Valve Hole Dia | 6.5mm |
Flatness | <0.2mm |
Roundness | <0.5mm |
Maximum Tire Pressure | 120PSI for Clincher version, and 200psi for Tubular version |
Spoke Tension Front | 80-90kg |
Spoke Tension Rear | 80-90kg (Non-Drive Side) 100-130kg(Drive Side) |
Yaw | 0.2mm |
Weight | Front:735+/-30g Rear:801+/-30g |
Maximum Rider Weight | 130kg |

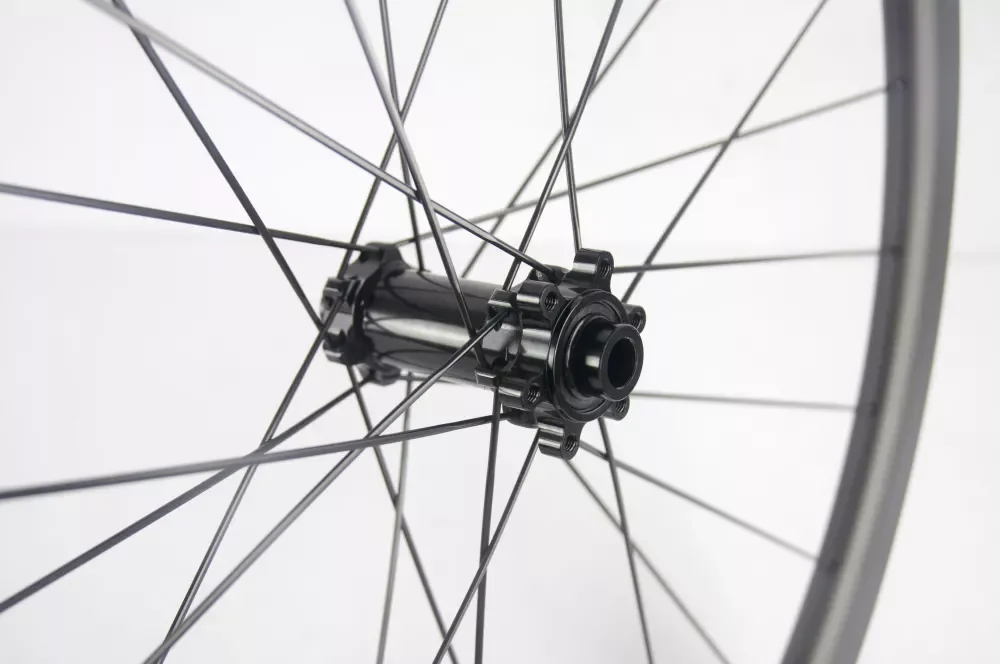

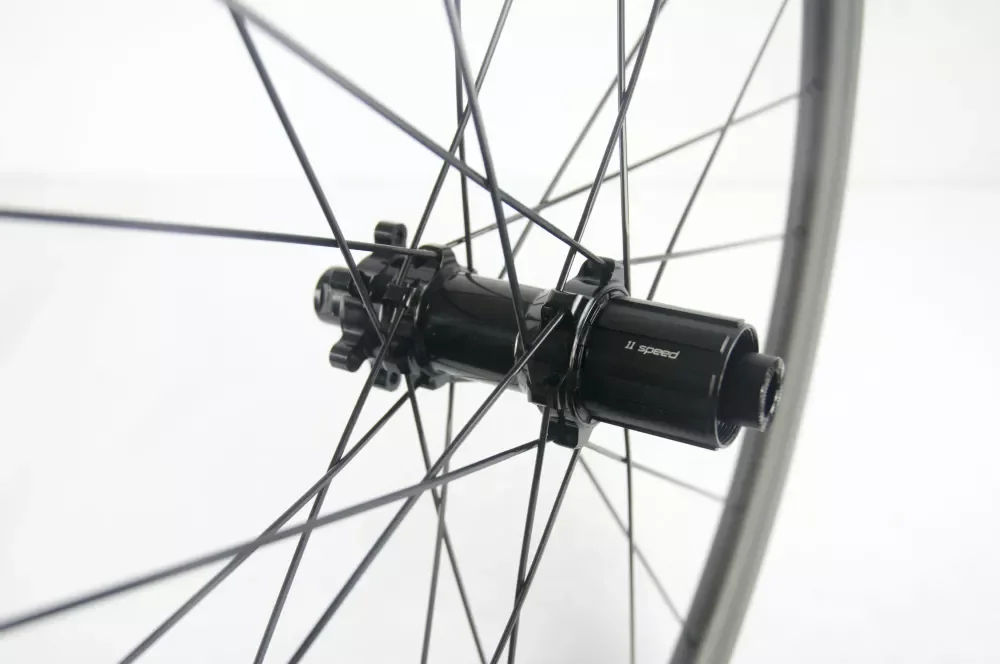

Hub | CX6 Hub（Black) |
Spoke holes | 24-24H |
spoke color | Aero Flat Spokes (Black) |
Nipple color | Alloy nipples (Black) |
Hub size | QR type:front 9*100mm,rear 10*135mm Thru-axle:front 12*100mm ,rear 12*142mm (kindly contact me if you need other size) |
Fit frame | For road bike disc brake |
Casette body | Shimano |
Warranty | 1 year |

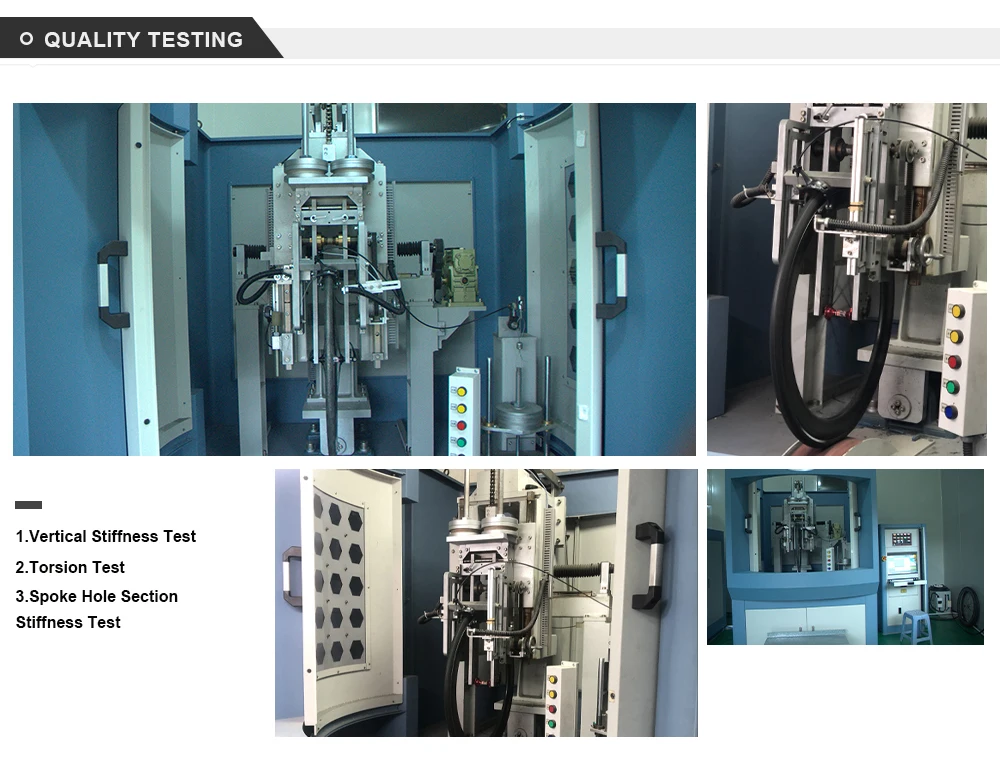

Quality control | All pass EN standard test |

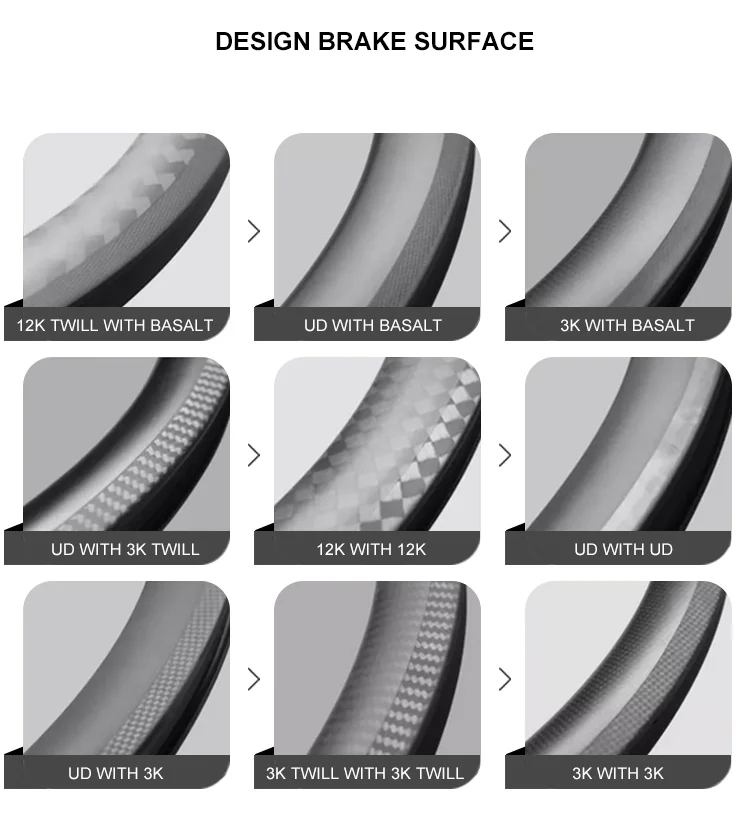

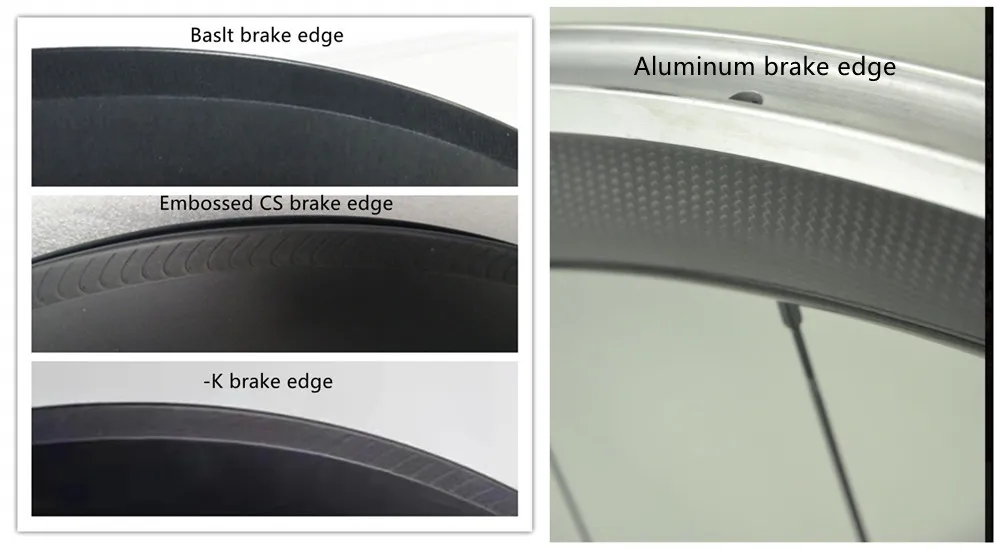

Brake edge choice: Do braking edge / No do braking edge
If you do brake edge can have the following options
1. Q: Test criteria?

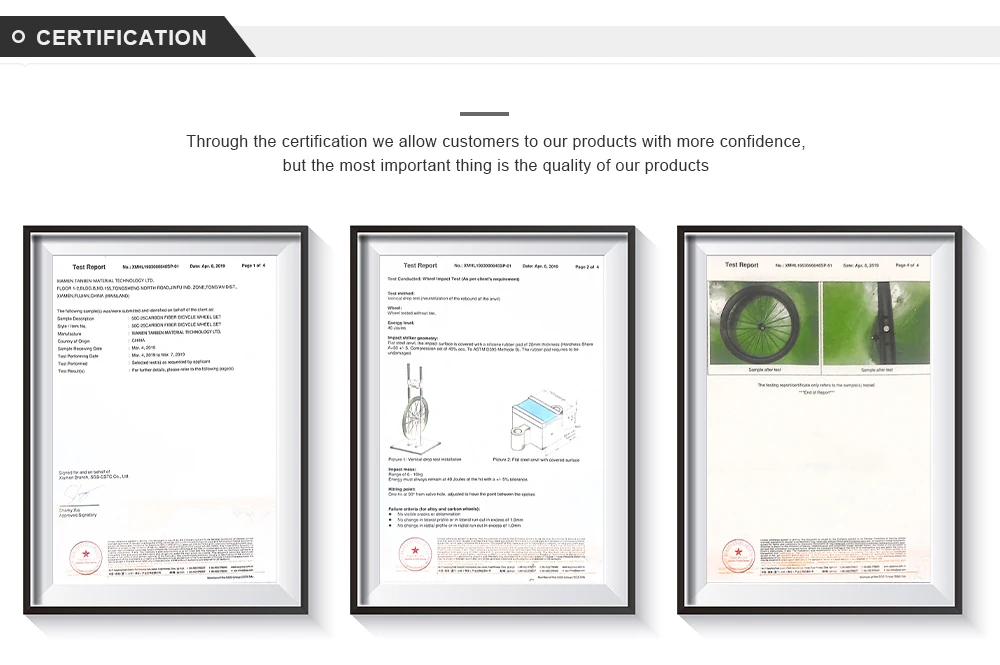

Answer: EN14781 European standard test, SGS certification,ISO9001 and Swiss UCI certification.
2. Q: What accessories do you come with?
A: In the case of road wheels, it includes brake pads, quick release, tire pads, extended air nozzles, spokes and a cap.

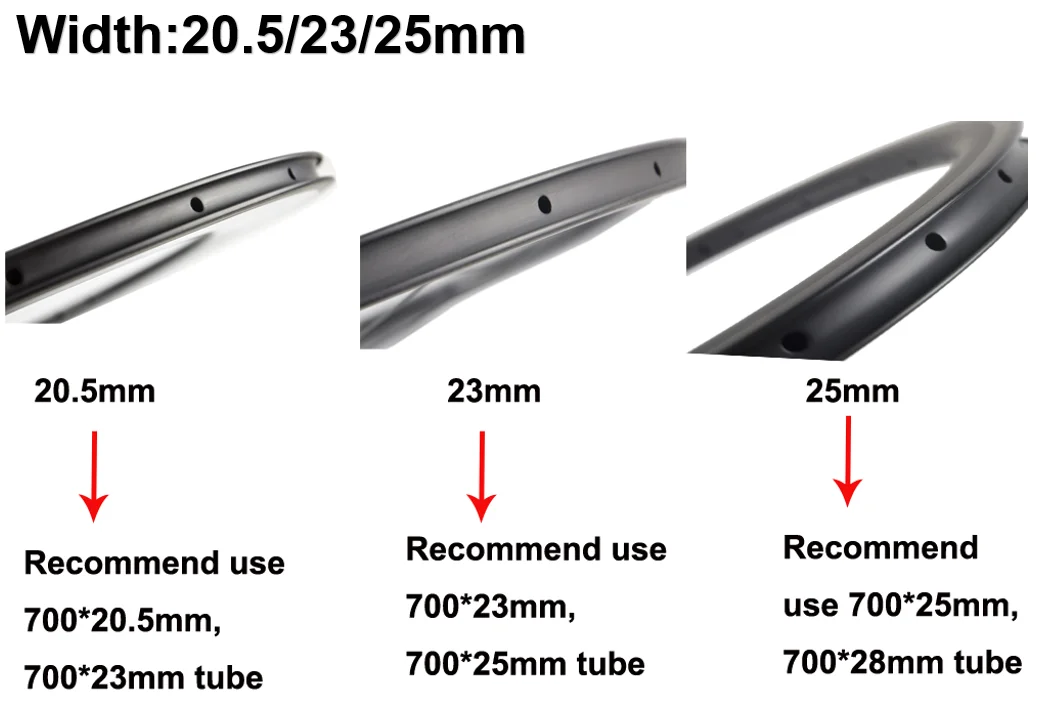

3.Q: What size tires can you fit on your wheel sets?
A:
(I) 23mm wide wheel sets can be fitted with 23mm and 25mm outer tires.
(2) 25mm wide wheel sets can be fitted with 25mm and 28mm outer tires.
4. Q: What is the weight capacity of your wheelset?
A: The maximum rider weight capacity is 150kg or less
5. Q: Can I customize the LOGO of the wheel group?
A: Yes, you can customize it as long as you provide pictures or AI documents, but you need to charge for bid opening. According to
normal label size 300 * 40mm, there are three labeling methods: 1, ordinary label $ 35. 2. Highlights: 100 dollars. 3, metal
paint: $ 190.For more than 10 groups, no bid opening fee is charged.
6. Q: What are the advantages of carbon fiber?
A:Carbon fiber is lighter and harder than aluminum alloy (litter, stronger). It has light weight, excellent seismic resistance and
high performance. When aluminum alloy reaches the upper limit, it will break immediately.
7. Q: What materials are you using?
A: We use carbon fiber purchased from Toray of Japan, the world's top carbon fiber factory. Our company is responsible for
immersion processing. The brake edge uses high TG resin, and the temperature of the brake edge can reach 240 degrees.
8.Q: Delivery time?
A: Normally, the delivery time of our production is 15 days. If you need to customize the logo, it may take 3-5 extra days. If you are in urgent need, we have inventory of this model XXX and we can deliver the goods to you in 1-2 days.
